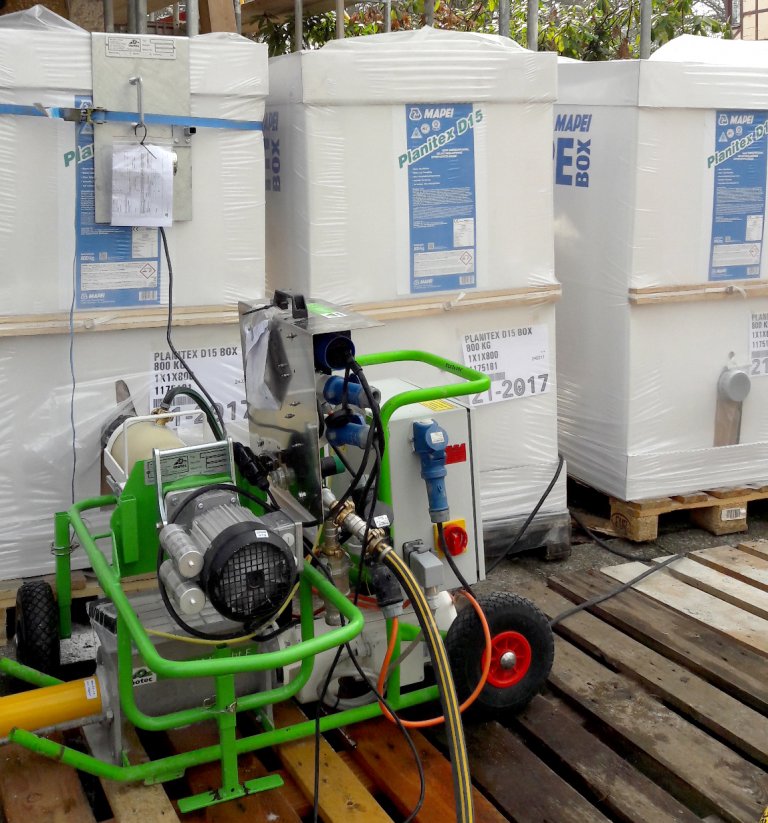

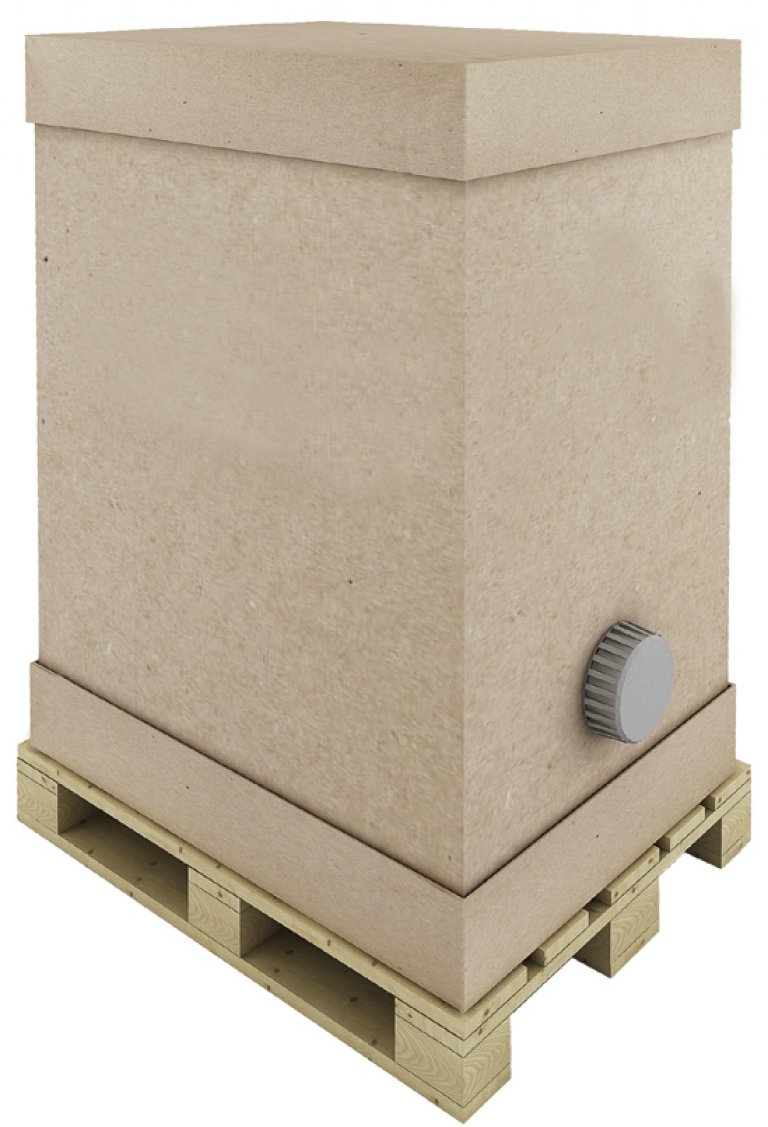

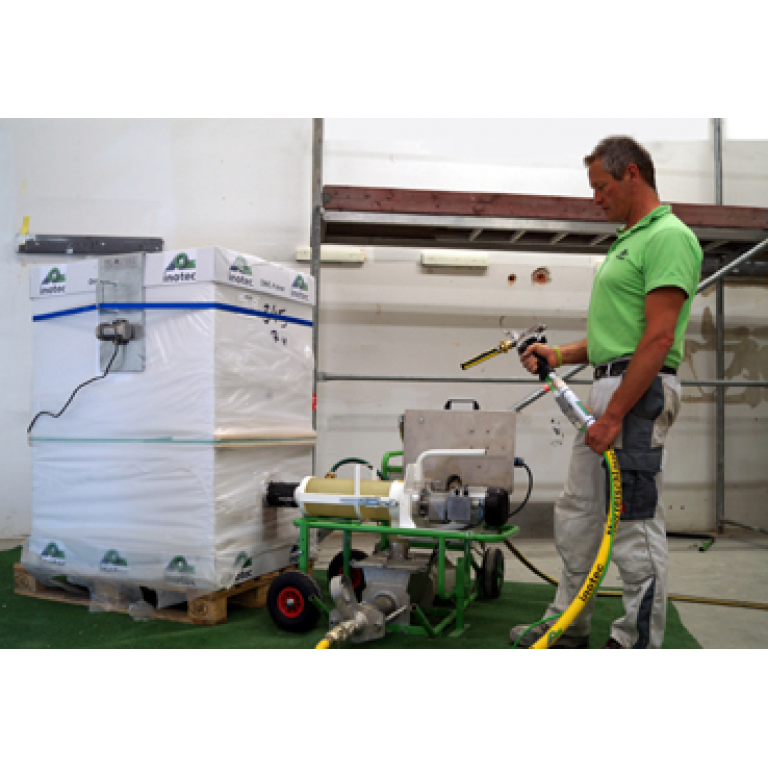

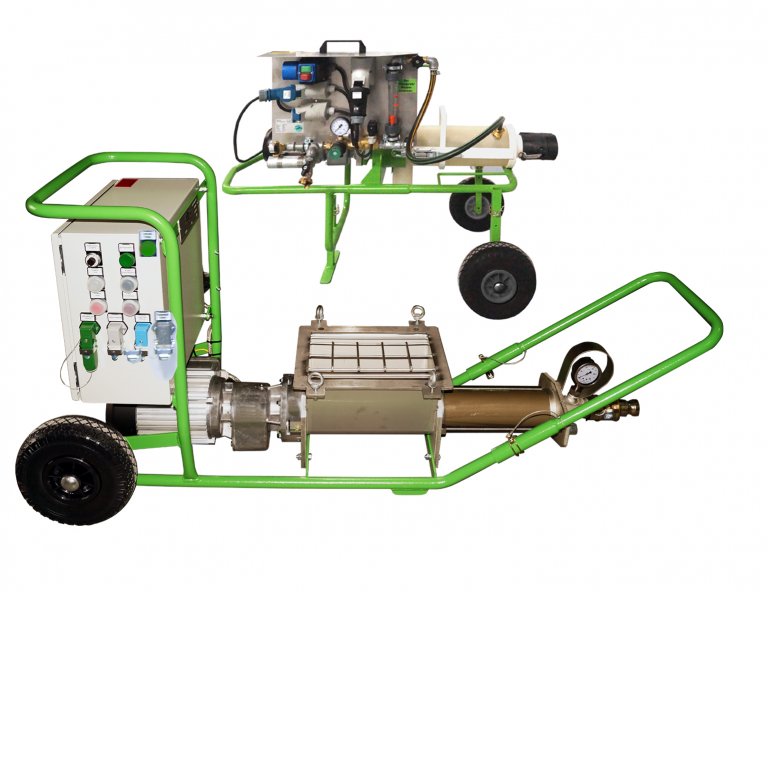

One-way container for powdery materials in combination with inoMIX E12 continuous mixer and inoBEAM F30 delivery pump ideal for floor levelling compound
Benefits at a glance
Mixer: inoMIX E12
- Extremely simple operation
- Constant material consistency
- High mixing rate
- Simple one-person transport
- Simple cleaning
- Low-maintenance technology
- PU mixing pipe (detachable)
Delivery pump: inoBEAM F30
- For liquid and paste-like materials
- Material hopper made from stainless steel
- High delivery rate
- Continuously variable speed control using potentiometer
- Simple operation
- Connection socket for remote control cable

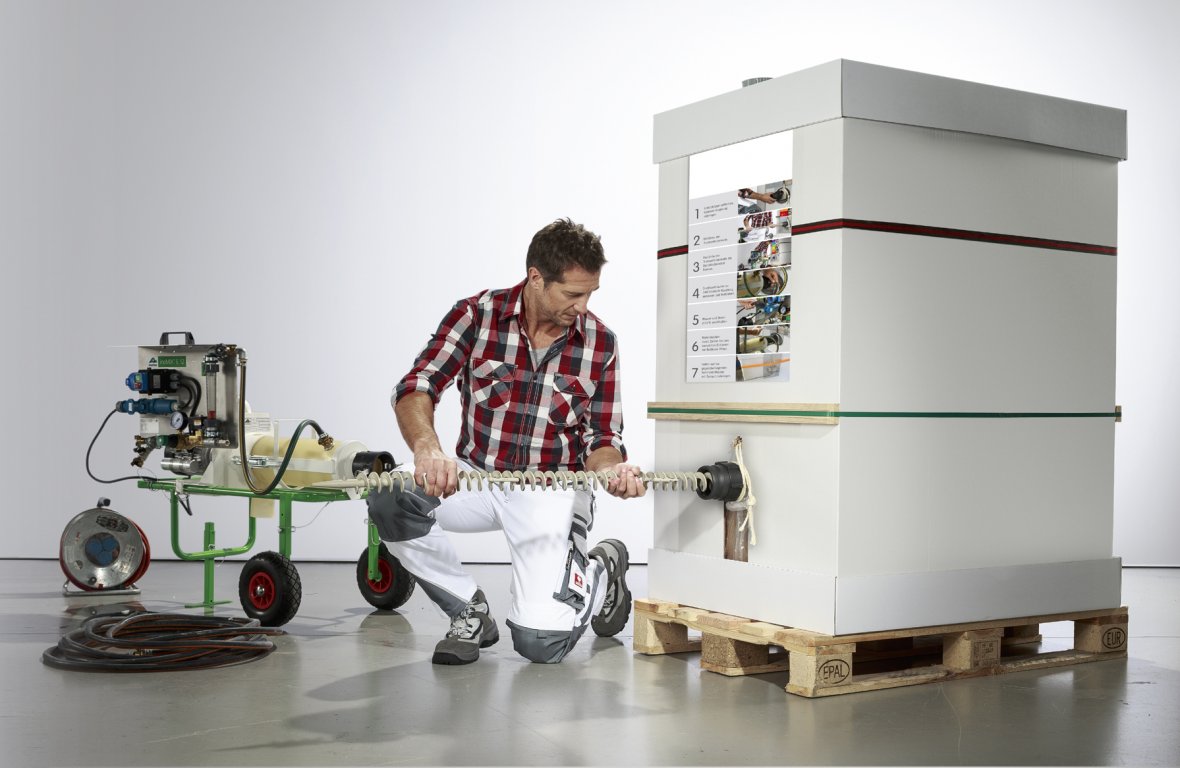

The material to be processed is transported from the inoBOX M to the inoMIX E12 continuous mixer via a delivery shaft. The perfectly mixed material then falls into the hopper of the efficient inoBEAM Light E delivery pump and, from there, is delivered to workmen through the material hose.
_______________
* The machine is available in 110 and 230 V
Watch this video ...
Alternative Machines
Powdery materials: OWC in combination with a continuous mixer
Powdery materials: OWC in combination with the dry delivery unit for mixing pumps
Powdery materials: OWC in combination with two dry delivery unit for a small silo
Pastöses Material: OWC kombiniert mit Nassfördereinheit und Förderpumpe
Service details
Services
| Operating pressure | bar | up to 40 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | inoMIX: 1,1 kW / inoBEAM F30 E: 3,0 (frequency controlled) |
| Delivery rate (depending on the material) | l/min | max. 0 - 30 |
| Conveying distance (depending on the material) | m | max. 80 |
| Pressure height (depending on the material) | m | max. 25 |
| Material container | l | 10 l / 60 l |
| Machine technique | OWC Machine technology | |
| Dimensions (L x W x H) | mm | 1450 x 530 x 700 |
| Weight | kg | approx. inoMIX: 47 kg / inoBEAM Light E: 80 |
Scope of delivery
inoMIX E 12
Item no. 10005950
- Height-adjustable frame
- 2 running wheels
- PU mixing pipe
- Mixing shaft
- Gear motor
- Metering shaft
- Water fitting with flow meter
- OWC camlock coupling
- Operating instructions
Set “D”-F30
for spray applications (22 l / 40 bar)
Item no. 10041913*
Set “R”-F30
for floor levelling compounds (60 l / 15 bar)
Item no. 10043416*
Probe control set F30
for inoBEAM F30 in combination with inoMIX E12 and one-way containers
Item no. 10043986*
-----------------------------------
* Scope of delivery, see accessories
Basic module
Item no. 10044215
Scope of delivery
inoBEAM F30 E
- Frame
- 2 running wheels
- Plastic material hopper (for filling with e.g. liquid or paste-like material from buckets)
- Cover for material hopper
- Gear motor
- Switching cabinet
- 3 m connecting cable
- Pump shaft
- Pump housing made from stainless steel
- Tool set
- Assembly spray lubricant
- Operating instructions

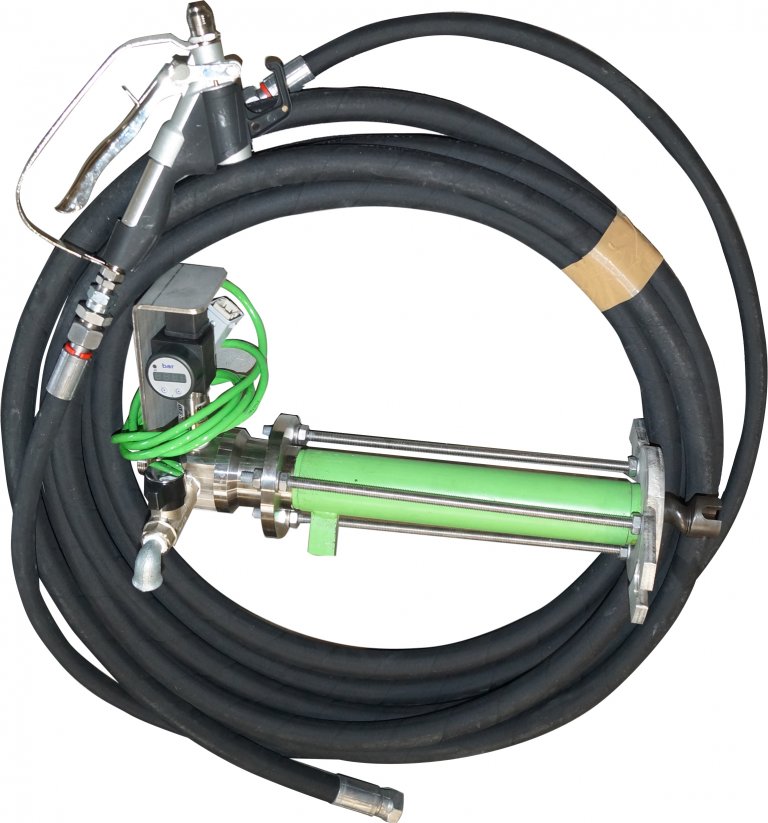

Set “HP”-F30
The inoBEAM F30 delivery pump can be converted into a high-performance 230 V airless spraying device using an optional set and just a few, easy steps. A delivery rate of 7-8 l/min is achieved with 3.0 kW when processing spray-on filler.
Scope of delivery:
High-pressure pump SPRAY, high-pressure hose, airless gun with hose whip, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle
Set “HP”-F30 (Article No. 10044242)

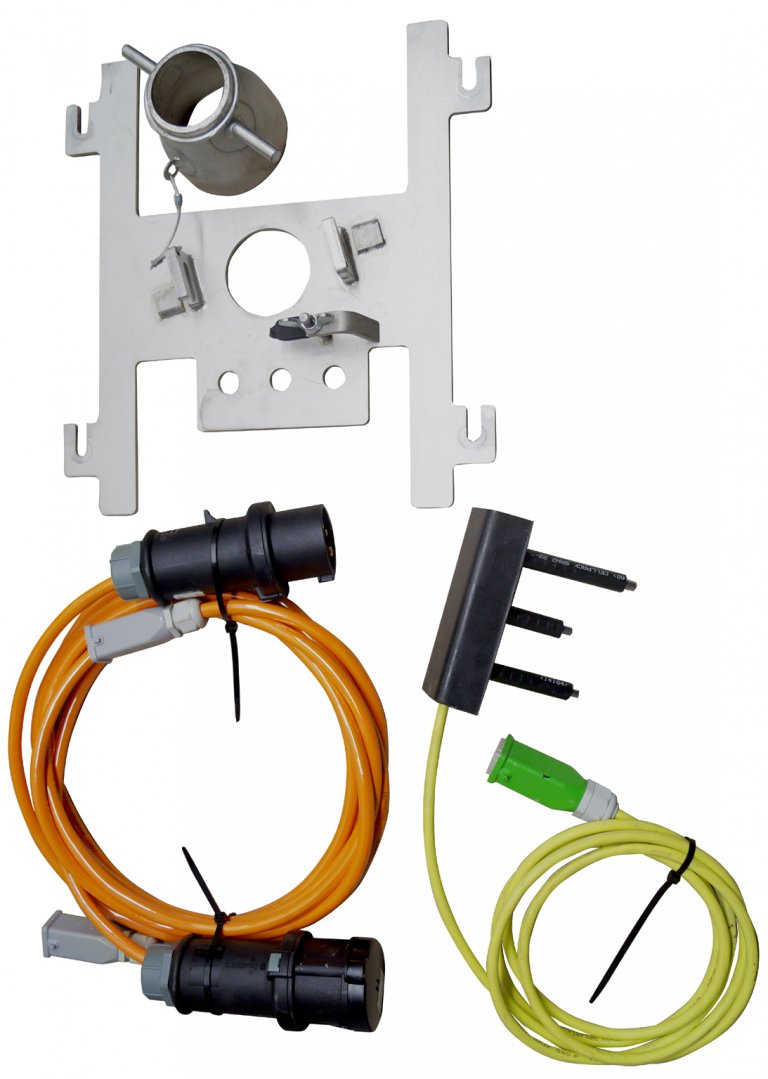

Probe control set F30 for inoBEAM F30 in combination with inoMIX E12 and one-way containers
Scope of delivery:
- Cable for probe control system (Item no. 10042946)
- Filling level probe with 3 prongs (Item no. 10036550)
- Stainless steel lid with transition connecting piece and retaining device for hydrostatic level probe
Probe control set F30 for inoBEAM F30 in combination with inoMIX E12 and one-way containers (Article No. 10043986)

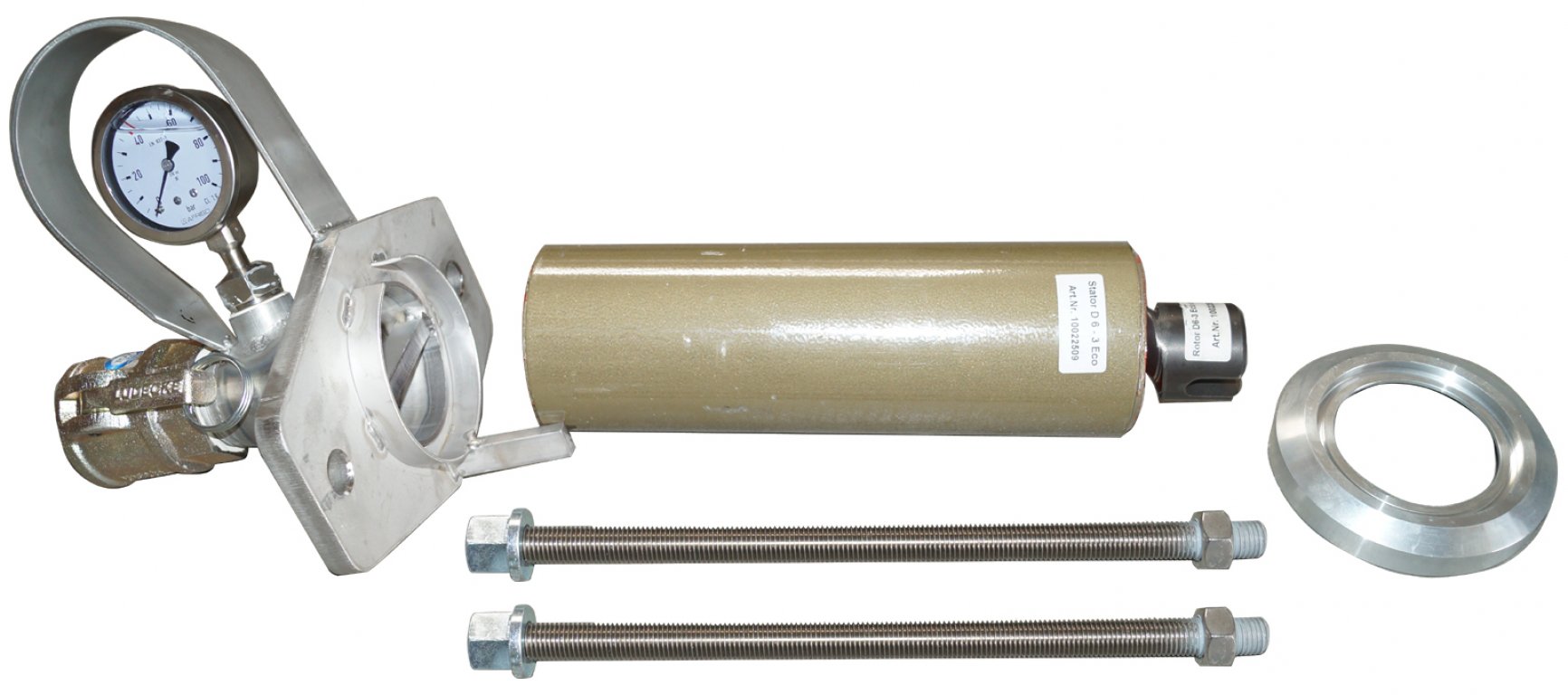

Set “D”-F30 (Rotor/stator D6-3 Eco gold)
- Ø 89 mm, 18 l/min, 40 bar, e.g., for spray applications
Scope of delivery:
Pressure and suction flange with tension rods, mortar pressure gauge, rotor/stator D6-3 Eco gold
Set “D”-F30 (Rotor/stator D6-3 Eco gold) (Article No. 10041913)

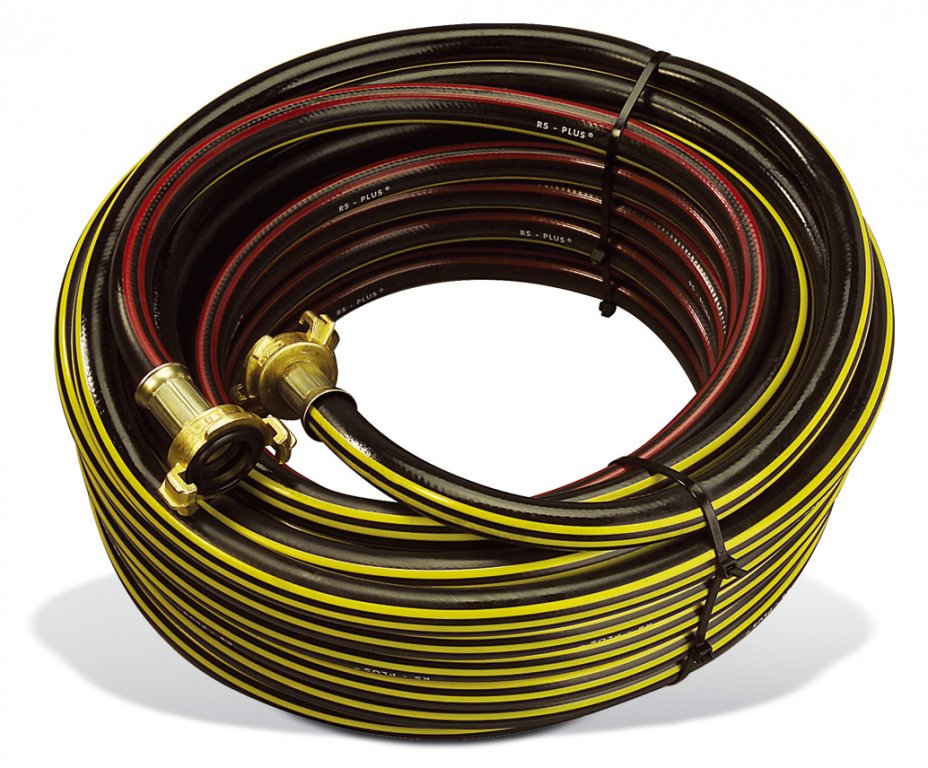

Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
INOTEC mortar hose
- Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
- For an operating pressure of 40 bar with 3 times the reliability
- Yellow on the outside at Ø 35 mm
- Black on the outside at Ø 40 and Ø 50 mm
- With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
- With cam levers on the M-piece
| Technical data: | |
| Operating pressure: | 40 bar |
| Bursting pressure: | 120 bar |
Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)
Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)
Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)
Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)
Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)

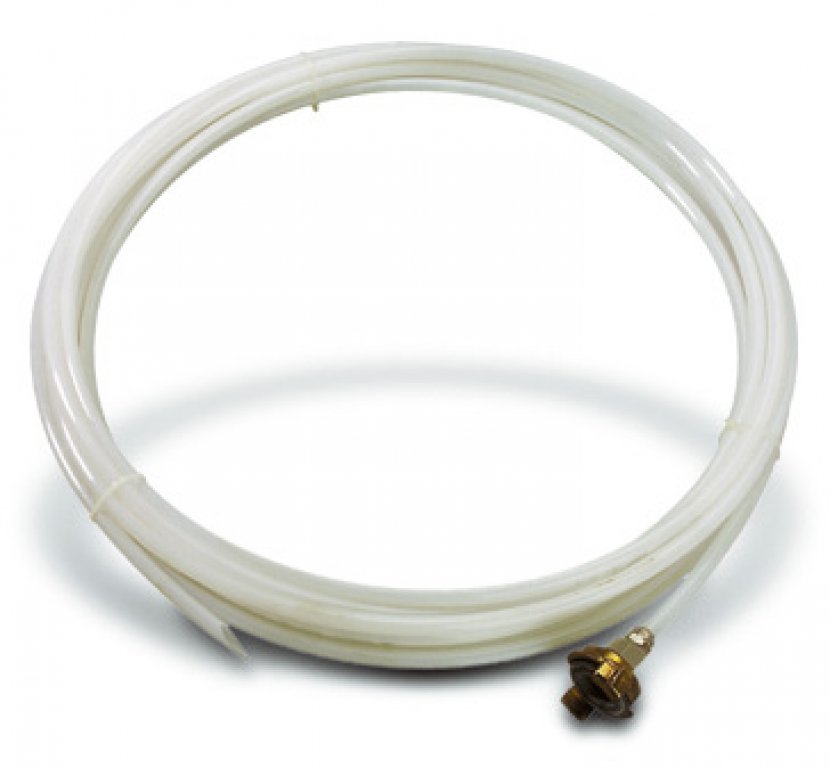

Flushing hose
- For clearing blockages in mortar hoses
Flushing hose - Length 10 m (Article No. 10024385)

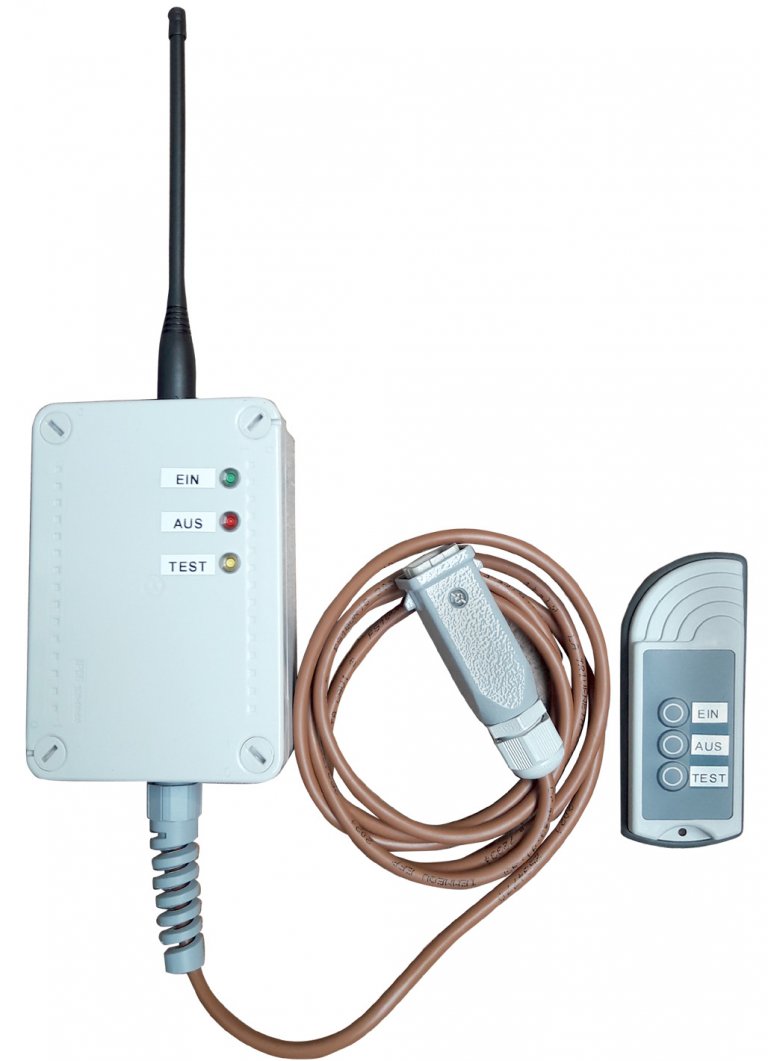

Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST
Wireless remote control (Article No. 10044303)

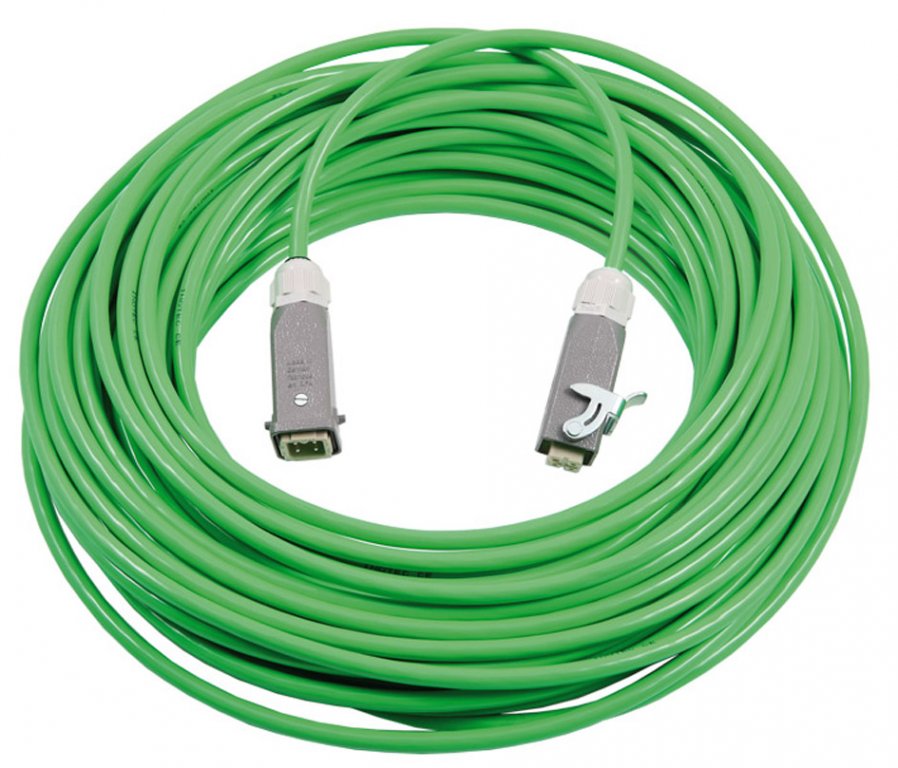

Remote control cable with remote control switch
Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)
Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)

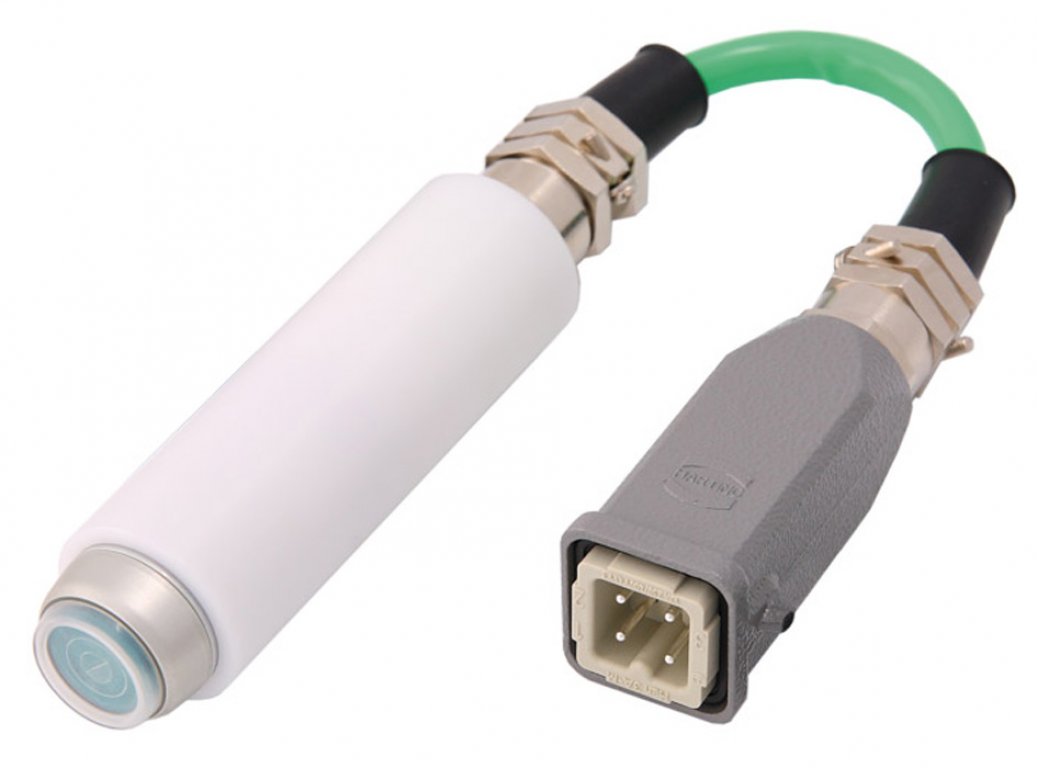

Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Remote control switch (Article No. 10015134)

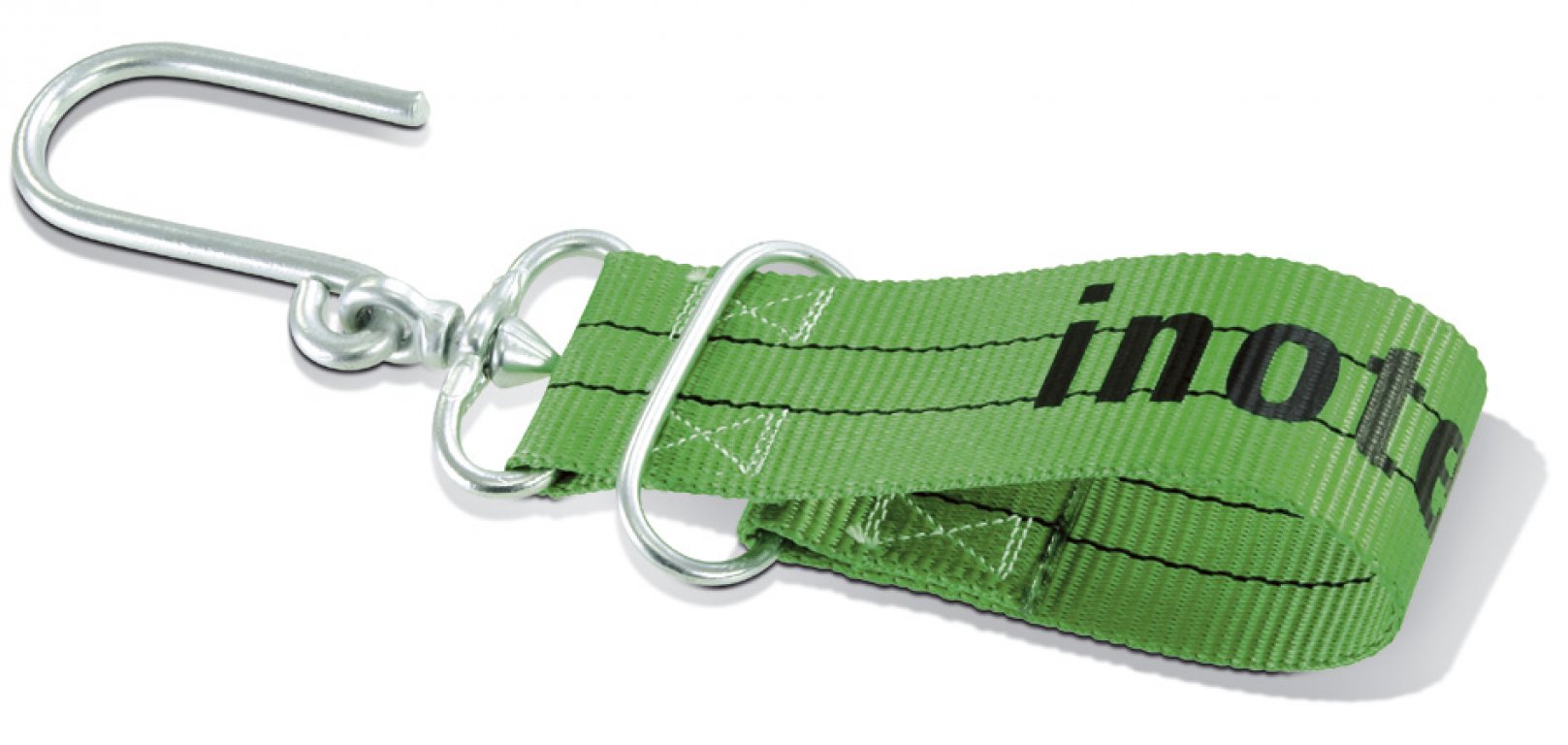

Hose holder
- For rapidly fixing hoses to the scaffold
Hose holder (Article No. 10018503)

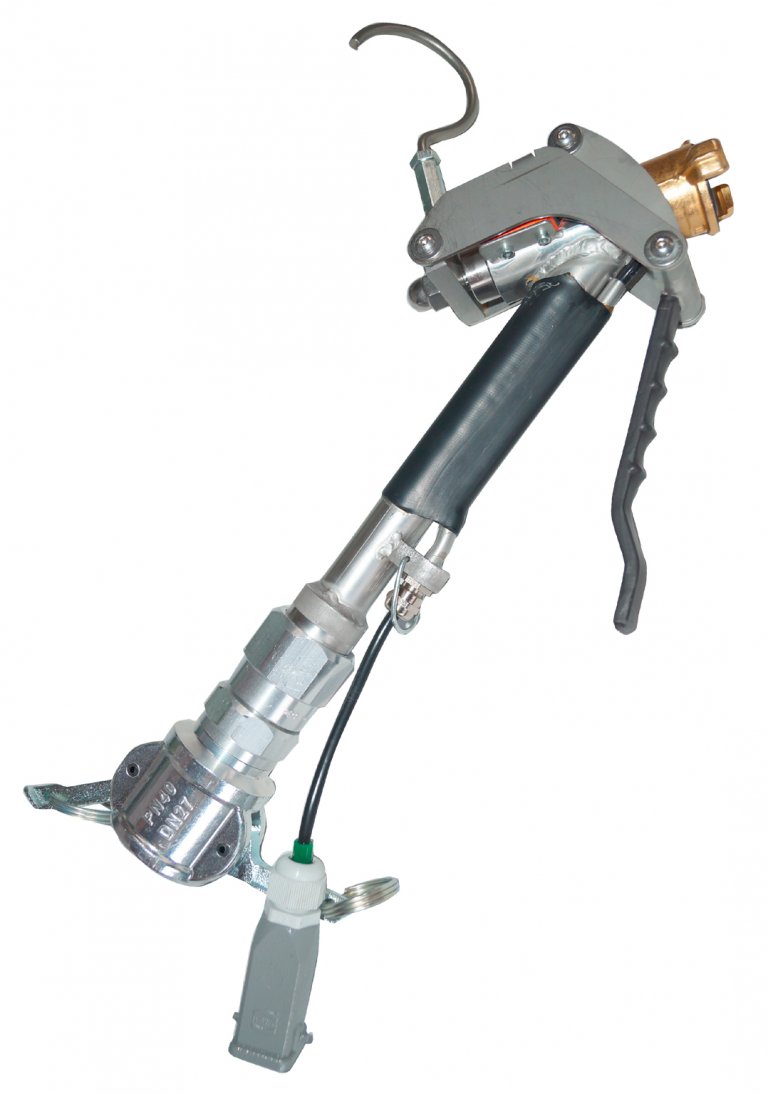

inoCOLL one-handed gun
- For bonding and basecoat mortars
- 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
- For grit sizes up to 1.5 mm
inoCOLL one-handed gun (Article No. 10024144)
inoCOLL PRO one-handed gun
- For applying reinforcing mortar and finishing plaster up to 4 mm grit size
- Operating pressure: up to 40 bar
inoCOLL PRO one-handed gun (Article No. 10041950)
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)

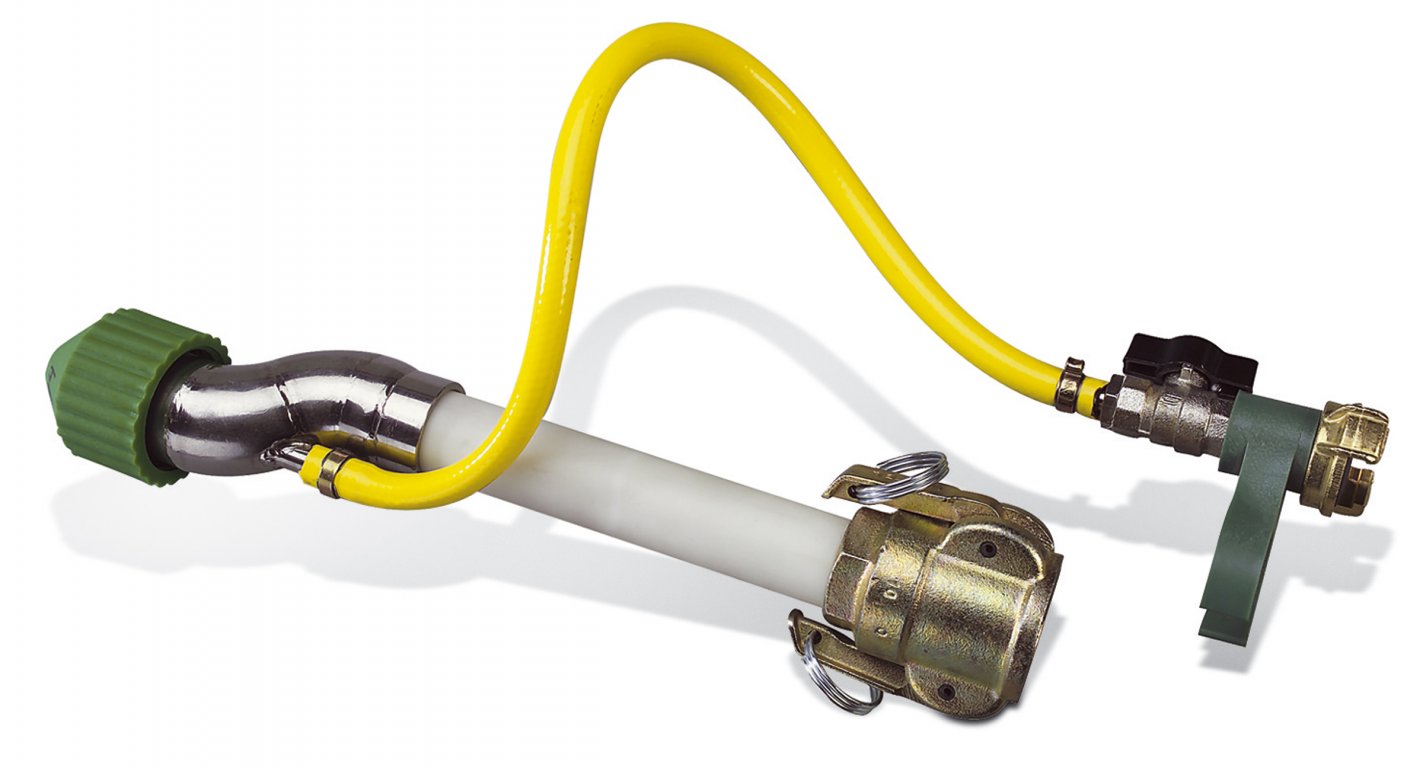

Small spray pipe – short design
- With 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose (without a nozzle)
- For grit sizes up to 3.0 mm
Small spray pipe – short design (Article No. 10039887)

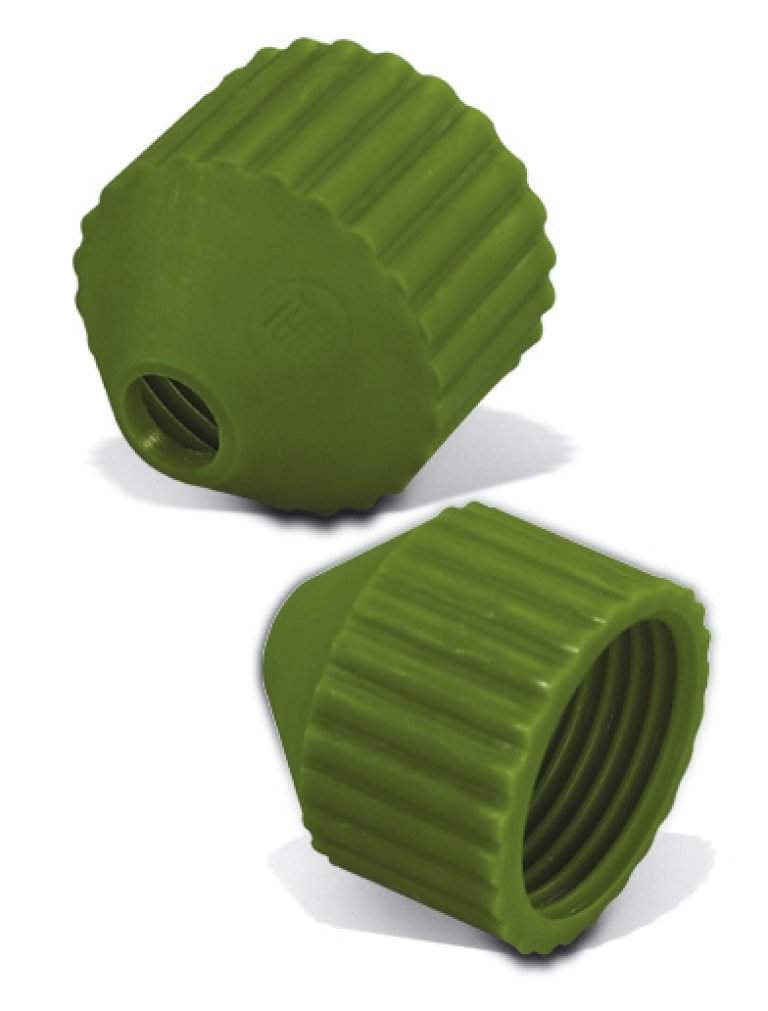

Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel
Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 4 mm (Article No. 10039271)
Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 5 mm (Article No. 10042461)
Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 6 mm (Article No. 10039220)
Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 8 mm (Article No. 10039221)
Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 10 mm (Article No. 10039222)
MAI finishing coat device, straight
- With 25 mm M-piece coupling
- Including a 14 mm jet nozzle
MAI finishing coat device, straight (Article No. 10024362)
Jet nozzle
- For MAI finishing coat device
Jet nozzle - Ø 10 mm (Article No. 10024378)
Jet nozzle - Ø 12 mm (Article No. 10024379)
Jet nozzle - Ø 14 mm (Article No. 10024380)
Jet nozzle - Ø 16 mm (Article No. 10024381)
Straight finishing coat device
- With 25 mm M-piece coupling
- Incl. a 14 mm finishing coat nozzle
Straight finishing coat device (Article No. 10024098)
Finishing coat nozzles
- For finishing coat devices, item nos.:
10024098 / 10024099
Finishing coat nozzles - Ø 10 mm (Article No. 10024089)
Finishing coat nozzles - Ø 12 mm (Article No. 10024090)
Finishing coat nozzles - Ø 14 mm (Article No. 10024091)
Finishing coat nozzles - Ø 16 mm (Article No. 10024093)
Plastic hopper
Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.
Plastic hopper (Article No. 10040973)

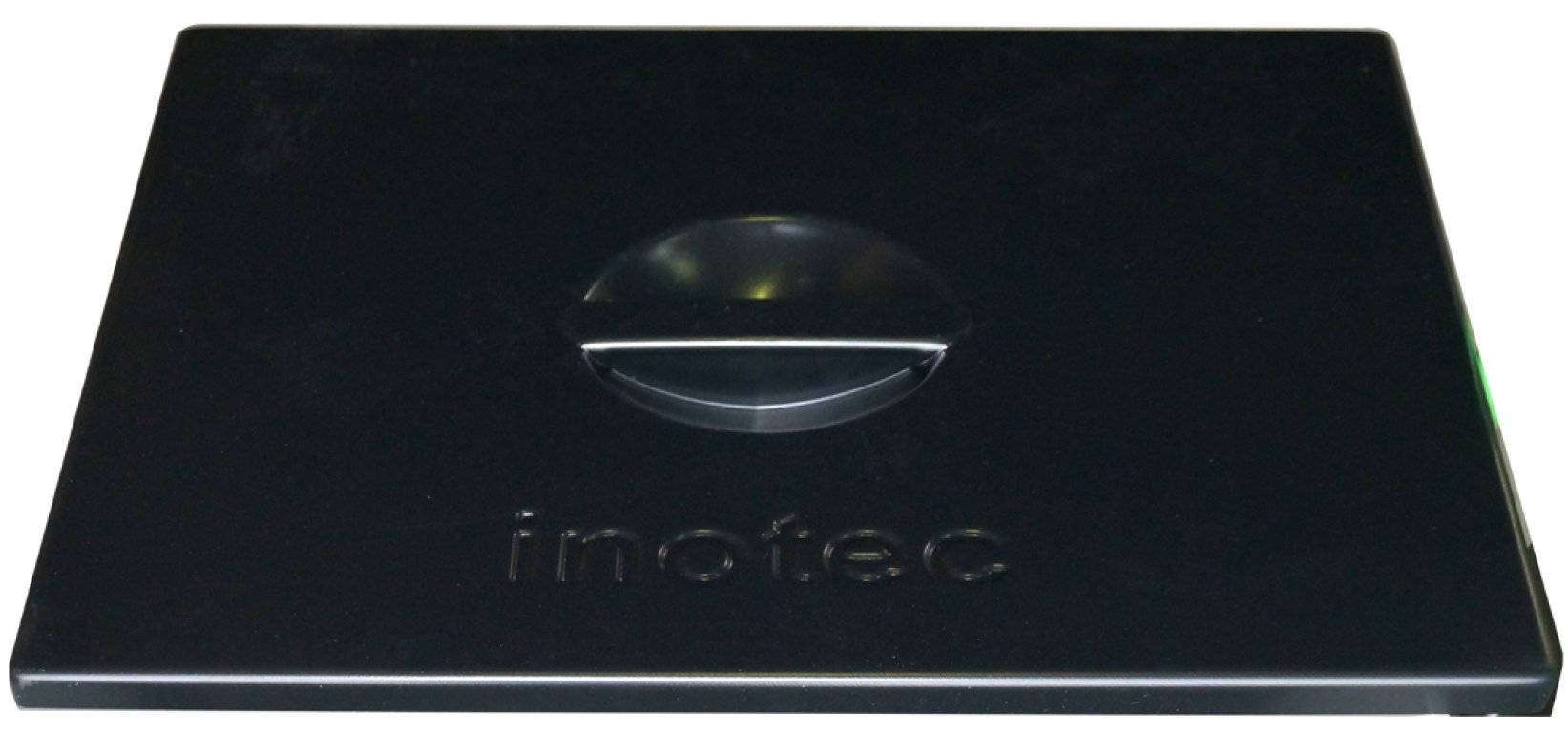

Cover for plastic hopper
- For protecting the content of the hopper against impurities
- Made from black plastic
Cover for plastic hopper (Article No. 10041816)
Bag mangle
- For emptying plastic bags with paste-like materials
Bag mangle (Article No. 10041971)

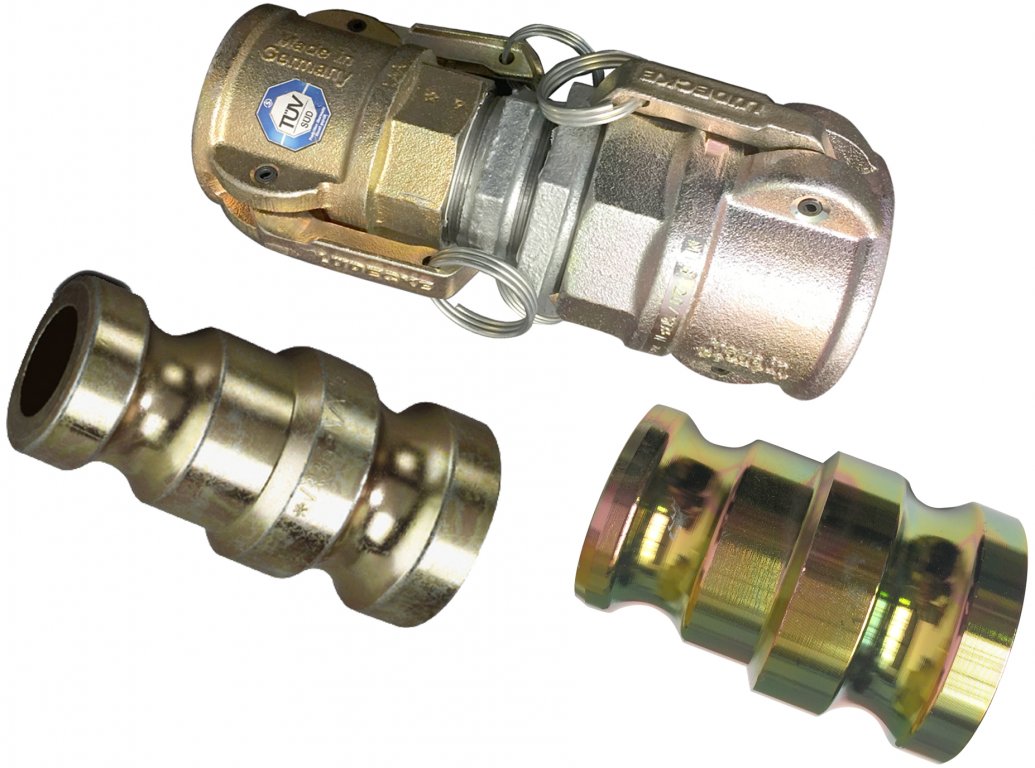

Coupling reducer
- For connecting two mortar hoses or reducing the machine outlet.
Coupling reducer 35 V -> 25 V (Article No. 10022101)
Plaster piece for cleaning mortar hoses
Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)
Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)
Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)

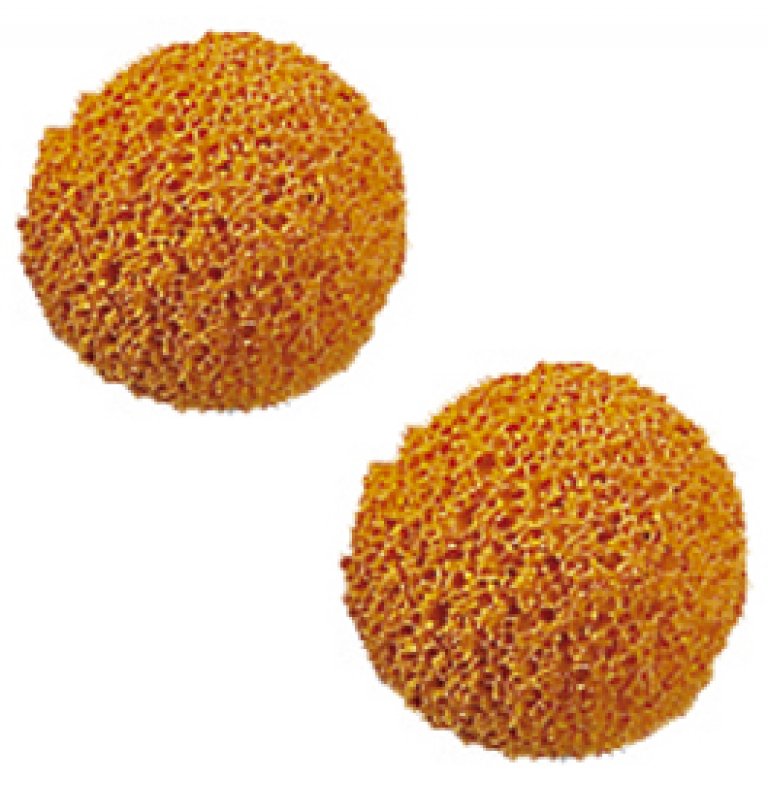

Sponge balls (soft version)
- For cleaning material / mortar hoses
Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)
Sponge balls (soft version) - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-005)
Sponge balls (solid version)
- For cleaningmaterial / mortar hoses
Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)
Sponge balls (solid version) Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)

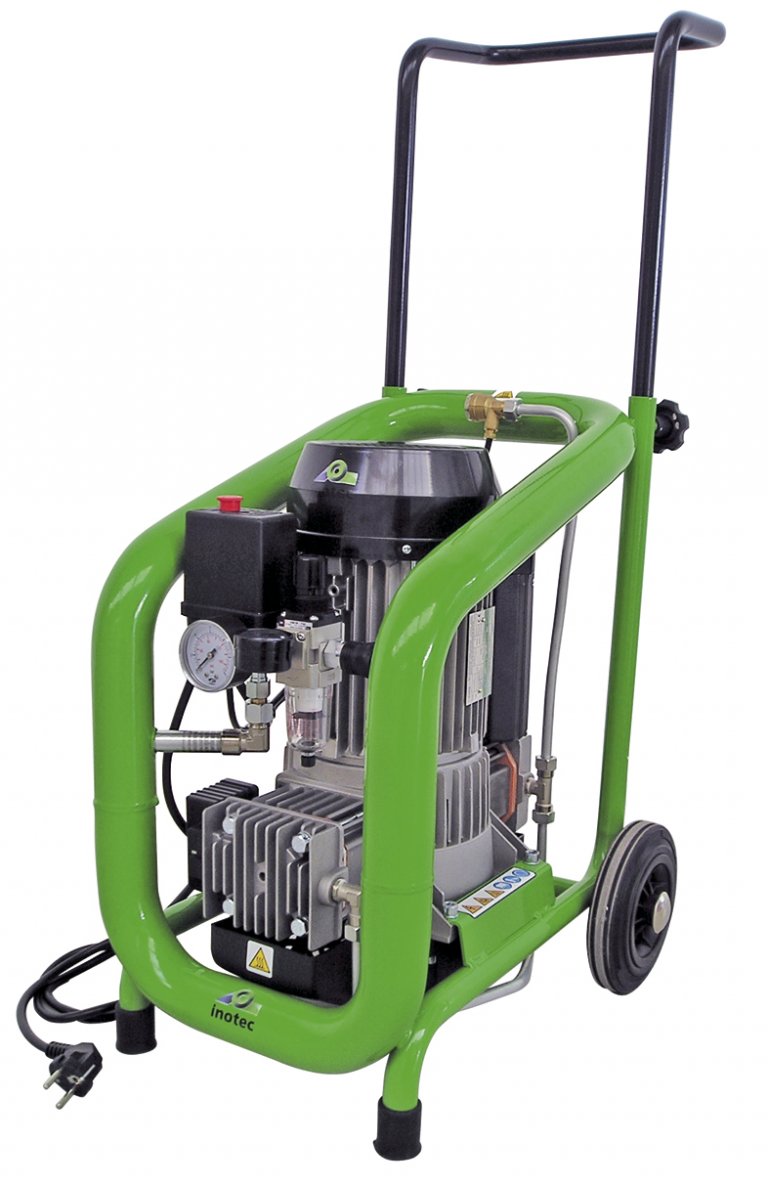

230 V INOTEC Compact 330 compressor
The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.
| Technical data: | |
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | 32 kg |
230 V INOTEC Compact 330 compressor (Article No. 10034389)
Connection unit for 2 INOTEC Compact 330 compressors
consisting of check valve and EWO coupling
- 2 x V parts
- 1 x M part
Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)
Pump shaft for inoBEAM F12 / F30
Pump shaft for inoBEAM F12 / F30 (Article No. 10006177)
D4 ½ output conveying screw - Head marked in green
D4 ½ output conveying screw - Head marked in green (Article No. 10022543)

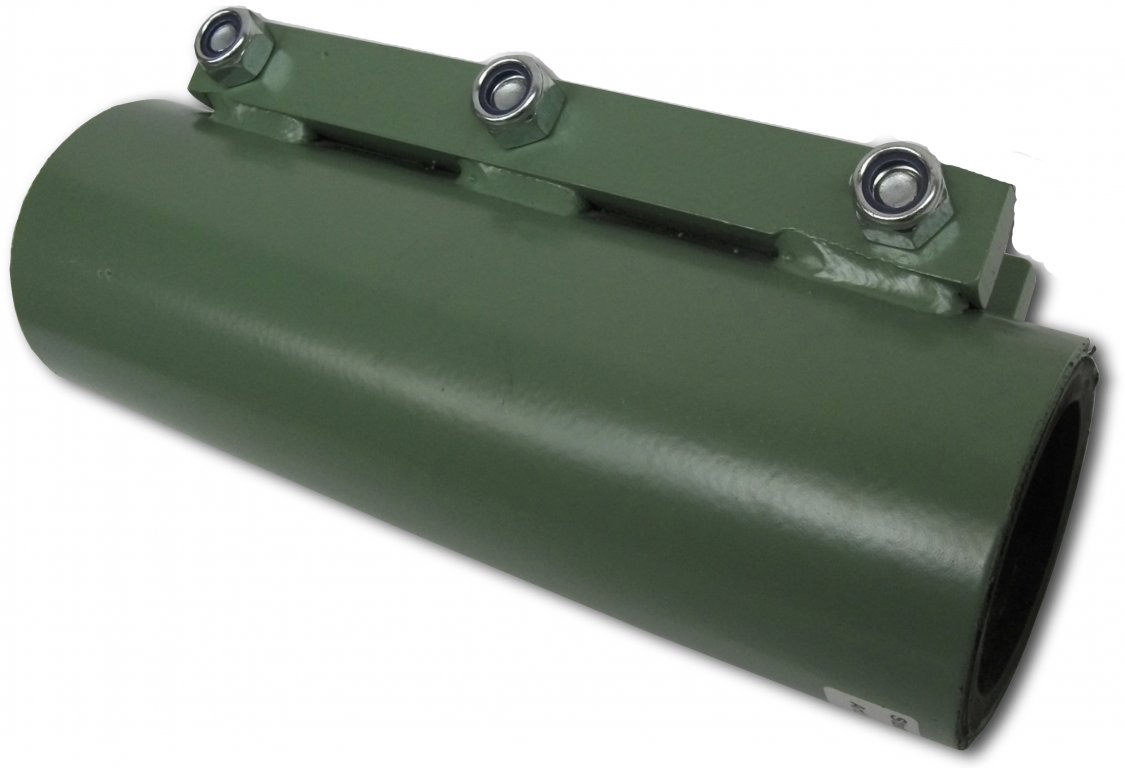

D4 ½ output screw casing, soft with clamping strip
D4 ½ output screw casing, soft with clamping strip (Article No. 10022503)

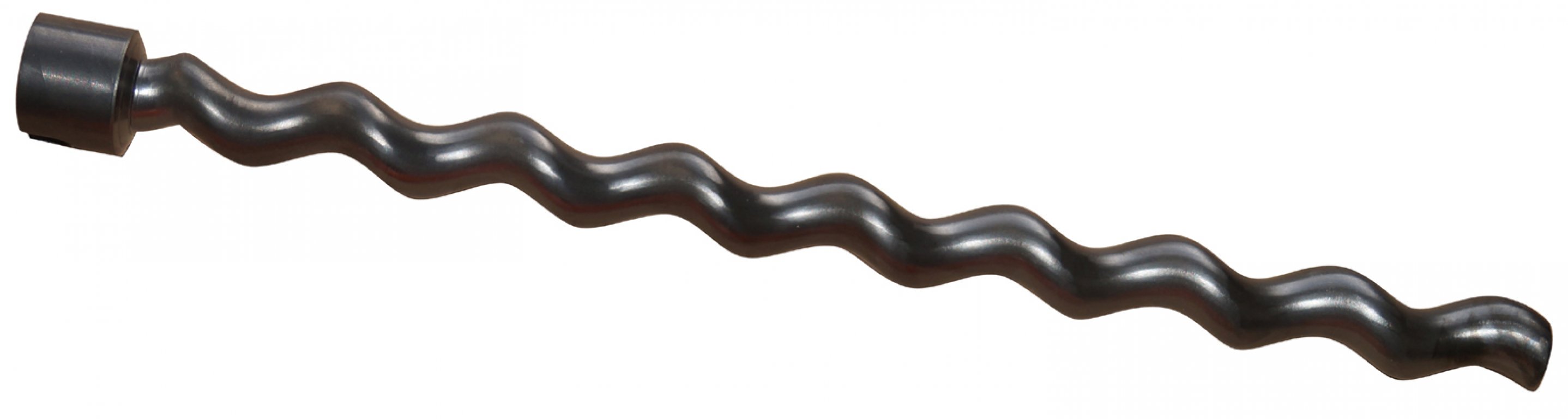

D6-3 Eco Gold conveying screw
- Tip marked in gold
D6-3 Eco Gold conveying screw (Article No. 10022552)

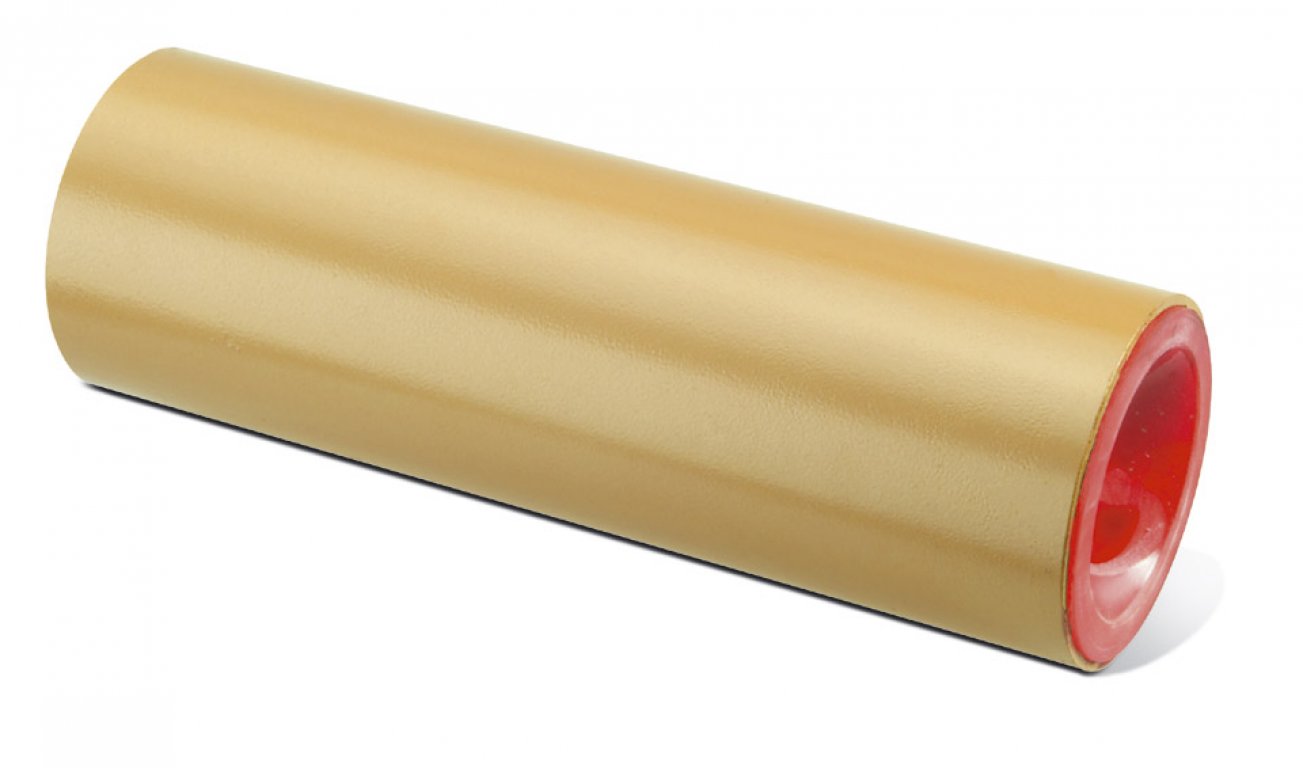

D6-3 Eco Gold screw casing
- Without anti-twist protection, colour: gold
D6-3 Eco Gold screw casing (Article No. 10022509)
D8-1.5 conveying screw
- Tip marked in yellow
D8-1.5 conveying screw (Article No. 10022562)
D8-1.5 yellow screw casing (maintenance free)
D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)
D8-1.5 yellow screw casing with clamping strip
D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)

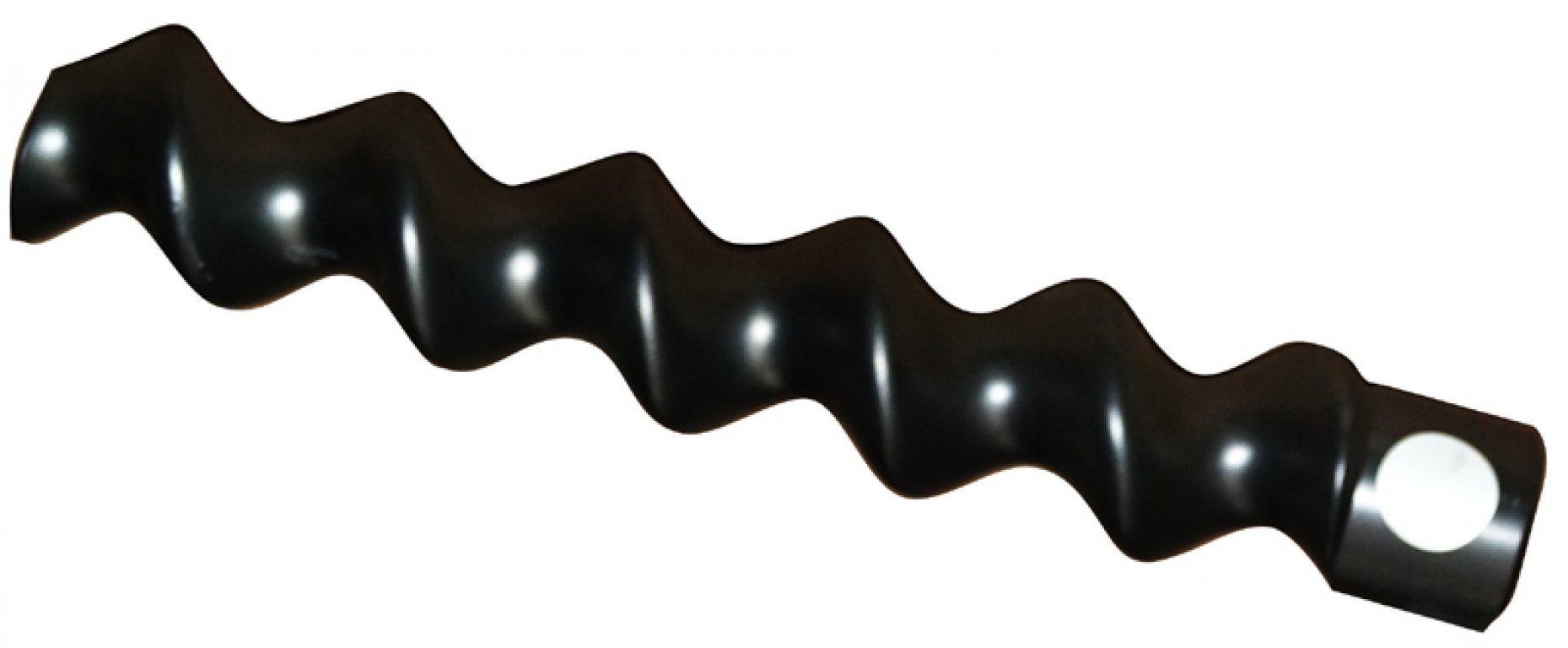

Rotor D7-2.5 “S”
Rotor D7-2,5 „S“ (Article No. 10022556)
Stator D7-2.5 “Mono Plus” (maintenance free)
Stator D7-2.5 “Mono Plus” (maintenance free) (Article No. 10042506)
Rotor SPRAY for inoBEAM F30 high-pressure pump (HP)
Rotor SPRAY (HP) (Article No. 10042467)
Stator SPRAY for inoBEAM F30 high-pressure pump (HP)
Stator SPRAY (HP) (Article No. 10042466)
Assembly spray lubricant
- For assembling the conveying screw and screw casing
- 400 ml
Assembly spray lubricant (Article No. 10004591)
