Benefits at a glance

  • 230 V high-pressure pump – and thus suitable for any construction site
  • Lightweight, small and handy
  • Optimum machine capacity thanks to various areas of application
  • Continuously variable speed control using potentiometer
  • Simple operation
  • Simple cleaning and maintenance
  • Plastic material hopper (50 l)
  • Weight approx. 65 kg

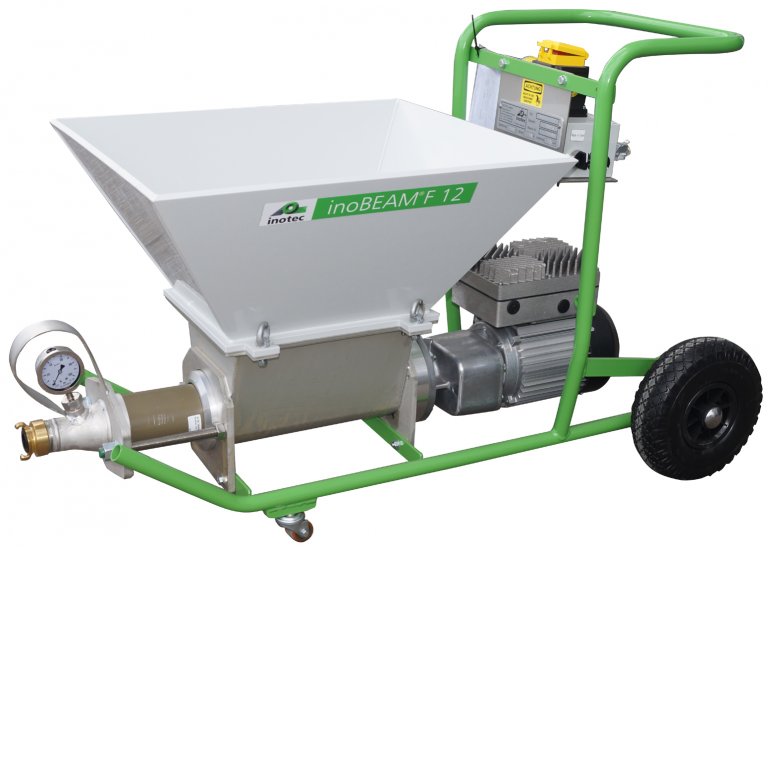

The inoBEAM F12  is a compact, easy-to-use, and versatile 230 V delivery pump. With an optional set that is available, the delivery pump can be converted for various fields of application in just a couple of steps. This means that the “HP” set can be used to create a high-performance high-pressure pump for airless spray-on filling compounds from the delivery pump.



inoBEAM F12 (HP)
Operating pressurebarup to 85
Operating voltageV/Hz/A230 / 50 / 16
Drive performancekW1,5 (frequency controlled)
Delivery rate (depending on the material)l/minmax. 6
Material containerl50
Machine techniqueAirless devices
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 65
inoBEAM
inoBEAM F12 (HP)
Airless spattling compounds
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories)
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Clear varnishes
EP and PU injection resins
External dispersion paints
Fire protection coats
Highly viscous materials
Internal dispersion paints
Pigmented varnishes
Primers
Silicate paints
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”-F12 and “D”- & “R”-F30
Stains
Varnishes greater than 21°C
Water-based varnishes
Wood preservatives

Basic module
Item no. 10044357

Scope of delivery
inoBEAM F12:

  • Frame
  • 2 running wheels & 2 steering wheels
  • Plastic material hopper
  • Cover for material hopper
  • Gear motor
  • Electric control system with 10 m connecting cable
  • Pump shaft
  • Pump housing made from stainless steel
  • Mortar pressure gauge
  • Tool set
  • Assembly spray lubricant
  • Operating instructions

Set “HP”-F12
for airless spray-on filling compounds (6 l / 85 bar)
Item no. 10044328*


* For scope of delivery, see accessories

inoBEAM F12 (HP)
Set “HP”-F12

Set “HP”-F12

The inoBEAM F12 delivery pump can be converted into a high-performance 230 V airless spraying device using an optional set and just a few, easy steps. A delivery rate of up to 6 l/min is achieved with 1.5 kW when processing spray-on filler.


Scope of delivery: High pressure pump SPRAY “short”, high pressure hose, airless gun, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, and nozzle

Set “HP”-F12 (Article No. 10044328)
Rotor spray “short”

Rotor spray “short”

(for high-pressure pump inoBEAM F12 HP)

Rotor spray “short” (Article No. 10044327)
Stator spray “short”

Stator spray “short”

(for high-pressure pump inoBEAM F12 HP)

Stator spray “short” (Article No. 10044326)
Plastic hopper

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.

Plastic hopper (Article No. 10040973)
Cover for plastic hopper

Cover for plastic hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for plastic hopper (Article No. 10041816)
inoSPRAY Temp, heating hose for  airless devices

inoSPRAY Temp, heating hose for airless devices

For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.

Technical data:
Operating pressure: 250 bar
Nominal width: 10 mm e.g. for dispersions, 8 mm for varnish
Connection: 3/8“ IT

Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 15 m (Article No. 10012278)
inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 30 m (Article No. 10012279)
High-pressure / airless hoses

High-pressure / airless hoses

Colours: yellow / blue / black

High-pressure / airless hoses - Ø 13 mm - 1/2' IT - 260 bar - 15 m (Article No. 10035852)
High-pressure / airless hoses - Ø 16 mm - 1/2' IT - 160 bar - 15 m (Article No. 10012228)
High-pressure / airless hoses - Ø 16 mm - 1/2' IT - 160 bar - 7 m (Article No. 10012231)
High-pressure / airless hoses - Ø 19 mm - 3/4' IT - 230 bar - 15 m (Article No. 10043715)
INOTEC airless gun (280 bar) for inoSPRAY F30 HP and  inoSPRAY F12 HP

INOTEC airless gun (280 bar) for inoSPRAY F30 HP and inoSPRAY F12 HP

  • Not including nozzle or nozzle holder, with resistant stainless steel fasteners

Technical data:
Maximum pressure: 280 bar

Not included in the scope of delivery:

  • XHD nozzle holder (10012096)
  • XHD 651 nozzle (10008021-009)
  • Swivel joint (10016849)

INOTEC airless gun for inoBEAM F30 HP and inoBEAM F12 HP (Article No. 10012014)
Graco RAC X nozzle holder for RAC X nozzles

Graco RAC X nozzle holder for RAC X nozzles

  • Operating pressure: 280 bar
  • Suitable for:
    Graco PAA, FFA, HDA, WA nozzles

Graco RAC X nozzle holder for RAC X nozzles - 7/8" - 280 bar (Article No. 10012119)
Graco HDA nozzles

Graco HDA nozzles

for RAC X nozzle holders (HDA = Heavy Duty Application)

  • Colour: brown
  • E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications

Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 40° (Article No. 10008017-003)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 50° (Article No. 10008017-007)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 60° (Article No. 10008017-011)
Graco HDA nozzles - 0,039“ / 0,991 mm - 6,78 l/min / 40° (Article No. 10008017-004)
Graco HDA nozzles - 0,045“ / 1,090 mm - 8,20 l/min / 50° (Article No. 10008017-008)
Graco HDA nozzles - 0,055“ / 1,397 mm - 12,29 l/min / 60° (Article No. 10008017-015)
Graco RAC X nozzle extension

Graco RAC X nozzle extension

  • With 7/8” thread
  • With RAC X nozzle holder (not including nozzle)

Graco RAC X nozzle extension - 25 cm (Article No. 10007986-001)
Graco RAC X nozzle extension - 50 cm (Article No. 10007986-003)
Graco RAC X nozzle extension RAC X - 75 cm (Article No. 10007986-004)
Bag mangle for material hopper

Bag mangle for material hopper

Bag mangle for material hopper (Article No. 10013581)
Tip-Clean nozzle cleaning set for airless nozzles

Tip-Clean nozzle cleaning set for airless nozzles

For quick and simple cleaning and preservation of airless nozzles.

Tip-Clean nozzle cleaning set for airless nozzles (Article No. 10012495)
Transition nipple

Transition nipple

This connection is rigid; does not rotate

  • For connecting a variety of hoses

Transition nipple - 3/4” ET x 1/2” IT (Article No. 10042718)
Double nipple

Double nipple

  • Hose connection – this connection is rigid; does not rotate

Double nipple - 1/2“ ET x 1/2“ ET - 500 bar (Article No. 10022161)
Double nipple - 1/2“ ET x 3/8“ ET - 400 bar (Article No. 10022162)
Double nipple - 1/2” ET x 3/4” ET 410 bar (Article No. 10043716)
Double nipple - 1/4“ ET x 3/8“ ET - 350 bar (Article No. 10012987)
Double nipple - 1/4“ET x 1/4“ ET - 410 bar (Article No. 10022170)
Double nipple - 3/8“ ET x 3/8“ ET - 410 bar (Article No. 10012991)
