The efficient 230 V delivery pump − as a high pressure pump

Benefits at a glance

  • 230 V high-pressure pump – and thus suitable on every construction site.
  • High delivery rate up to 8 l/min.
  • Frequency-controlled 3.0 kW motor.
  • Plastic material hopper (60 l).
  • Weight only 90 kg
  • Can be combined with OWC machine technology (e.g. inoMIX E12) at any time.
  • Optimum machine capacity thanks to various areas of application (Spray filling, paint spraying, glueing, cleaning and sheathing)

HP_EN

The inoBEAM F30 is an efficient 230 V delivery pump suitable for a wide range of indoor and outdoor applications. With an optional set that is available, the delivery pump can be converted for various fields of application in just a couple of steps.
This means that the “HP” set can be used to create a high-performance high-pressure pump for airless spray-on filling compounds from the delivery pump.

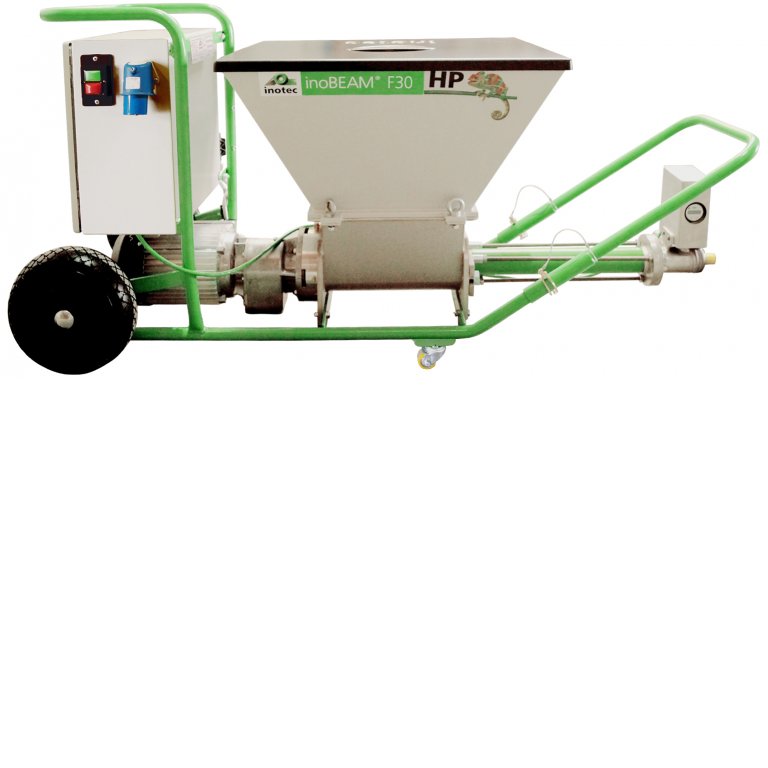

inoBEAM F30 high-pressure pump (HP)

Operating pressurebarup to 120
Operating voltageV/Hz/A230 / 50 / 16
Drive performancekW3,0 (frequency controlled)
Material containerl60
Machine techniqueAirless devices
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 85
inoBEAM
inoBEAM F30 high-pressure pump (HP)
Airless spattling compounds
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Clear varnishes
EP and PU injection resins
External dispersion paints
Fire protection coats
Highly viscous materials
Internal dispersion paints
Pigmented varnishes
Primers
Silicate paints
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”- & “R”-F30
Stains
Varnishes greater than 21°C
Water-based varnishes
Wood preservatives

Basic module
Item no. 10041083

Scope of delivery
inoBEAM F30:

  • Frame
  • 2 running wheels
  • Plastic material hopper
  • Cover for material hopper
  • Gear motor
  • Switching cabinet
  • 3 m connecting cable
  • Pump shaft
  • Pump housing made from stainless steel
  • Tool set
  • Assembly spray lubricant
  • Operating instructions

Set “HP”-F30
for airless spray-on smoothing compounds
(8 l / 90 bar)
Item no. 10041888*

------------------------------------------
* For delivery contents, see accessories

inoBEAM F30 high-pressure pump (HP)
Set “HP”-F30

Set “HP”-F30

The inoBEAM F30 delivery pump can be converted into a high-performance 230 V airless spraying device using an optional set and just a few, easy steps. A delivery rate of 7-8 l/min is achieved with 3.0 kW when processing spray-on filler.

Scope of delivery:
High-pressure pump SPRAY, high-pressure hose, airless gun with hose whip, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle

Set “HP”-F30 (Article No. 10041888)
Plastic hopper

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 60 litres.

Plastic hopper (Article No. 10040973)
Cover for plastic hopper

Cover for plastic hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for plastic hopper (Article No. 10041816)
Bag mangle

Bag mangle

  • For emptying plastic bags with paste-like materials

Bag mangle (Article No. 10041971)
inoSPRAY Temp, heating hose for  airless devices

inoSPRAY Temp, heating hose for airless devices

For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.

Technical data:
Operating pressure: 250 bar
Nominal width: 10 mm e.g. for dispersions, 8 mm for varnish
Connection: 3/8“ IT

Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 15 m (Article No. 10012278)
inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 30 m (Article No. 10012279)
High-pressure / airless hoses

High-pressure / airless hoses

Colours: yellow / blue / black

High-pressure / airless hoses - Ø 13 mm - 1/2' IT - 260 bar - 15 m (Article No. 10035852)
High-pressure / airless hoses - Ø 19 mm - 3/4' IT - 230 bar - 15 m (Article No. 10043715)
INOTEC airless gun (280 bar) for inoSPRAY F30 HP and AS Power

INOTEC airless gun (280 bar) for inoSPRAY F30 HP and AS Power

  • Not including nozzle or nozzle holder, with resistant stainless steel fasteners

Technical data:
Maximum pressure: 280 bar

Not included in the scope of delivery:

  • XHD nozzle holder (10012096)
  • XHD 651 nozzle (standard with inoSPRAY AS Power) (10008021-009)
  • Swivel joint (10016849)

INOTEC airless gun for inoSPRAY F30 HP and AS Power (Article No. 10012014)
Swivel joint for INOTEC airless gun (Article No. 10016849)
XHD 651 nozzle (standard with inoSPRAY AS Power) for INOTEC airless gun (Article No. 10008021-009)
XHD nozzle holder for INOTEC airless gun (Article No. 10012096)
Graco RAC X nozzle holder for RAC X nozzles

Graco RAC X nozzle holder for RAC X nozzles

  • Operating pressure: 280 bar
  • Suitable for:
    Graco PAA, FFA, HDA, WA nozzles

Graco RAC X nozzle holder for RAC X nozzles - 7/8' - 280 bar (Article No. 10012119)
Graco HDA nozzles

Graco HDA nozzles

for RAC X nozzle holders (HDA = Heavy Duty Application)

  • Colour: brown
  • E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications
Technical data
Nozzle opening: inches, mm
Throughput / opening angle: l/min / °

Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 40° (Article No. 10008017-003)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 50° (Article No. 10008017-007)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 60° (Article No. 10008017-011)
Graco HDA nozzles - 0,039“ / 0,991 mm - 6,78 l/min / 40° (Article No. 10008017-004)
Graco HDA nozzles - 0,045“ / 1,090 mm - 8,20 l/min / 50° (Article No. 10008017-008)
Graco HDA nozzles - 0,055“ / 1,397 mm - 12,29 l/min / 60° (Article No. 10008017-015)
Graco RAC X nozzle extension

Graco RAC X nozzle extension

  • With 7/8” thread
  • With RAC X nozzle holder (not including nozzle)

Graco RAC X nozzle extension - 25 cm (Article No. 10007986-001)
Graco RAC X nozzle extension - 50 cm (Article No. 10007986-003)
Graco RAC X nozzle extension RAC X - 75 cm (Article No. 10007986-004)
Tip-Clean nozzle cleaning set for airless nozzles

Tip-Clean nozzle cleaning set for airless nozzles

For quick and simple cleaning and preservation of airless nozzles.

Tip-Clean nozzle cleaning set for airless nozzles (Article No. 10012495)
Transition nipple

Transition nipple

This connection is rigid; does not rotate

  • For connecting a variety of hoses

Transition nipple - 3/4” ET x 1/2” IT (Article No. 10042718)
Double nipple

Double nipple

  • Hose connection – this connection is rigid; does not rotate

Double nipple - 1/2“ ET x 1/2“ ET - 500 bar (Article No. 10022161)
Double nipple - 1/2“ ET x 3/8“ ET - 400 bar (Article No. 10022162)
Double nipple - 1/2” ET x 3/4” ET 410 bar (Article No. 10043716)
Double nipple - 1/4“ ET x 3/8“ ET - 350 bar (Article No. 10012987)
Double nipple - 1/4“ET x 1/4“ ET - 410 bar (Article No. 10022170)
Double nipple - 3/8“ ET x 3/8“ ET - 410 bar (Article No. 10012991)
Rotor SPRAY for inoBEAM F30 high-pressure pump (HP)

Rotor SPRAY for inoBEAM F30 high-pressure pump (HP)

Rotor SPRAY (HP) (Article No. 10041803)
Stator SPRAY for inoBEAM F30 high-pressure pump (HP)

Stator SPRAY for inoBEAM F30 high-pressure pump (HP)

Stator SPRAY (HP) (Article No. 10041802)
