inoCUT ic127 Pro

 inoCUT ic127 Pro inoCUT ic127 Pro

Cutters

inoCUT ic127 Pro

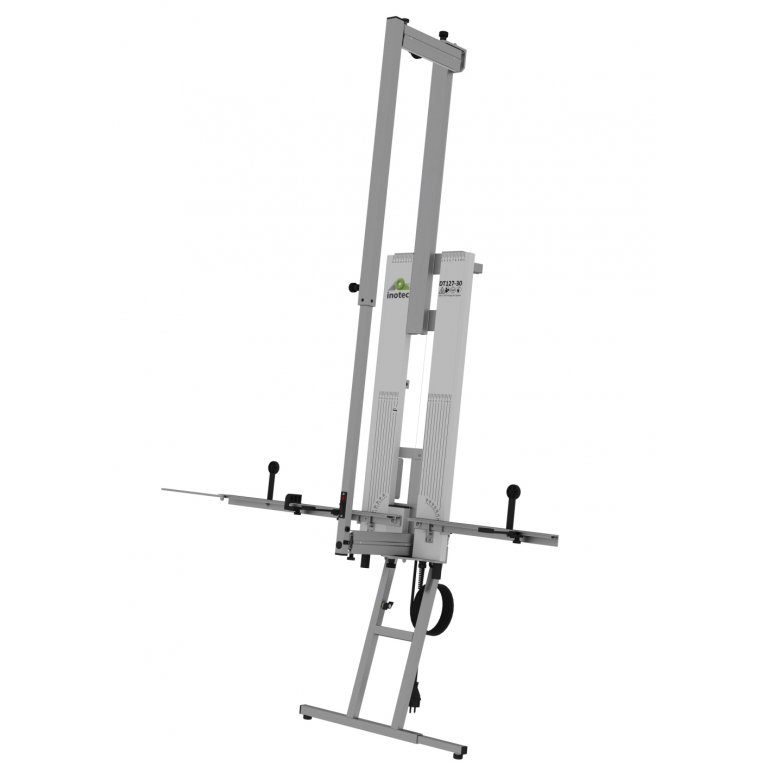

The innovative hot wire cutter for cutting ETICS insulation boards


Benefits at a glance

  • Telescopic cutting bar length and depth for space-saving device insertion on the scaffolding (only 29 cm bracket depth)
  • With wall-clearance edge for leaning the device on the building wall
  • Continuous operation with ON/OFF switch and status indicator
  • With integrated reserve wire spool for easy and tool-free wire change
  • Top and bottom mitre display
  • Horizontally and vertically arranged supports ensure optimal plate guidancely and vertically arranged supports ensure optimal plate guidance

The space-saving double-telescopic inoCUT ic127 Pro hot-wire cutter with adjustable cutting bracket length (vertical) and cutting bracket depth (horizontal) can be used both as a standing and as a hanging device (with optional railing holder) perpendicular to the scaffold.
The inoCUT ic127 Pro revolutionises the thermal cutting of ETICS rigid foam panels on the construction site.


Further information / downloads:


Alternative Machines:

Operating voltage: 110 or 230 V / 50 Hz
Cutting length: max. 78 - 127 cm
Cutting depth: max. 90° = 30 cm / 45° = 20 cm cm
Dimensions (W x H x D): 310 x 1.550 / 1.890 x 150* mm
Weight: 14,3 kg
Comments: * Dimensions without support strip
 inoCUT ic127 Pro

Basic module
Item no. 10042561


Scope of delivery
inoCUT ic127 Pro:

  • Base plate
  • Freestanding support
  • Fold-out feet with extendable foot widening
  • Telescopic and swivelling cutting bracket
  • Left and right support strip
  • Connecting cable
  • Power supply unit
  • Plastic case
  • Operating instructions
 inoCUT ic127 Pro

inoCUT ic127 Pro

Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts
Corner cutter with rail, transformer and pouch for inoCUT ic127 PRO

Corner cutter with rail, transformer and pouch for inoCUT ic127 PRO

  • Rafter cutouts, corner cutouts in window sills, plasterboard, lintels, etc.
  • 0 - 90° swivel
  • Degree scale and slider for diagonal cut repetition
  • Tool-free, fast wire change thanks to integrated reserve wire spool
  • Separate transformer
  • With nylon pouch

Corner cutter with rail, transformer and bag for inoCUT ic127 PRO (Article no. 10042564)

Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm for inoCUT 127 PRO (Article no. 10026102)

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter (Article no. 10026105)

Railing bracket with mounting kit for inoCUT ic127 PRO

Railing bracket with mounting kit for inoCUT ic127 PRO

  • Support with mounting rail. The rail remains attached to the device after
       installation.

Railing bracket with mounting kit (Article no. 10042566)
