inoCUT icM135

 inoCUT icM135 inoCUT icM135

Cutters

inoCUT icM135

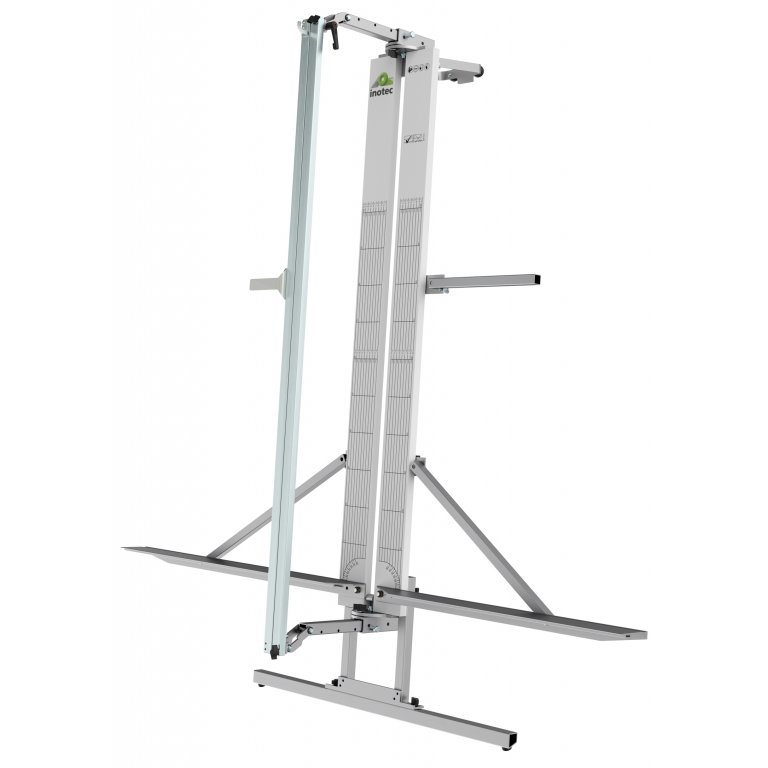

The universal cutter for insulation material with a cutting depth of up to 30 cm


Benefits at a glance

  • Short-stroke parallelogram for user-friendly operation
  • Preset insulation thickness
  • Double-sided forced guidance for electric saw blades or unrestricted handsaws
  • Swivel cutting bracket up to 45°
  • Wide foot profile for excellent device positioning
  • Wall support, making it possible to work on the scaffold without an independent support

The new inoCUT icM135 makes cutting all mineral wool and glass wool child’s play.
The new cutting device for manual or power cutting has large, swivelling board supports on both sides.
Exact mitre cuts, as well as straight, angular and diagonal cuts can be carried out with the toothed handsaw included in the scope of supply or, alternatively, performed quickly and effortlessly with an electric, cordless Milwaukee sabre saw.


Further information / downloads:


Alternative Machines:

Cutting length: max. 135 cm
Cutting depth: max. 90° = 8 - 30 cm / 45° = 20 cm
Dimensions (W x H x D): 350 x 1.800 x 420* mm
Weight: 21,0 kg
Comments: * Dimensions without support strip
 inoCUT icM135

Scope of delivery
inoCUT icM135
Item no. 10042899

  • Base plate
  • Left and right support strip
  • Removable foot strip
  • Short stroke parallelogram
  • Right height-adjustable swivel arm
  • Toothed handsaw 500 mm, without chamfer
  • Magnet for the handsaw
  • Park holder for electric sabre saw
  • Operating instructions
 inoCUT icM135

inoCUT icM135

Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts
Freestanding support with strut for inoCUT icM135

Freestanding support with strut for inoCUT icM135

  • For freely positioning the icM135 cutter

Freestanding support with strut for inoCUT icM135 (Article no. 10042901)

Aluminium transport case for inoCUT icM135 and ic127

Aluminium transport case for inoCUT icM135 and ic127

  • Robust case with wheels

Aluminium transport case for inoCUT icM110 and ic127 (Article no. 10042569)

Serrated handsaw (length 500 mm) for icM135

Serrated handsaw (length 500 mm) for icM135

  • suitable for rock wool and glass wool

Serrated handsaw (length 500 mm) for icM135 (Article no. 10041522)

Toothed handsaw without chamfer (length 500 mm) for icM135

Toothed handsaw without chamfer (length 500 mm) for icM135

  • suitable for insulation material

Toothed handsaw without bevel (Article no. 10042905)

12 volt Milwaukee cordless sabre saw

12 volt Milwaukee cordless sabre saw

High-performance 12 volt compact sabre saw. The saw has a cutting depth of up to 450 mm

Technical data:

  • Battery: 12 V / 2 Ah Li-Ion
  • sawing height: 16.5 mm,
  • weight (with battery): 1.2 kg

Scope of delivery:

  • 2 batteries
  • fast charger
  • 2 universal saw blades (450 mm)
  • with case

12 volt Milwaukee cordless sabre saw (Article no. 10042573)

18 volt Milwaukee cordless sabre saw

18 volt Milwaukee cordless sabre saw

High-performance 18 volt compact sabre saw. The saw has a cutting depth of up to 450 mm


Technical data:

  • Battery: 18 V / 4 Ah Li-Ion
  • sawing height: 20.0 mm,
  • weight (with battery): 2.6 kg


Scope of delivery:

  • 2 batteries
  • fast charger
  • 2 universal saw blades (450 mm)
  • with case

18 volt Milwaukee cordless sabre saw (Article no. 10042632)

Replacement saw blades for Milwaukee cordless sabre saw

Replacement saw blades for Milwaukee cordless sabre saw

  • Length 450 mm, corrugated for Milwaukee sabre saw

Insulation saw blade for Milwaukee cordless sabre saw (Article no. 10042572)

Stands for rolls and boards for icM 135

Stands for rolls and boards for icM 135

  • For processing rolls of clamping felt

Stands for rolls and boards for icM 135 (Article no. 10042903)
