Benefits at a glance

  • Compact design
  • Proven, robust machine technology
  • 3-disc grinding and sanding technology ensures excellent grinding and sanding results
  • Versatile
  • Can be used for both dry and wet suitable for wet use

The BS-520-EL has a strong torque and excellent ground contact thanks to the planetary gear.
It is the ideal floor grinding and sanding machine for powerful grinding and sanding results on small and medium-sized surfaces.

Areas of application
Removing fillers and adhesives, evening and levelling uneven surfaces, polishing, grinding and sanding concrete surfaces and industrial floors, renovating floors, etc.

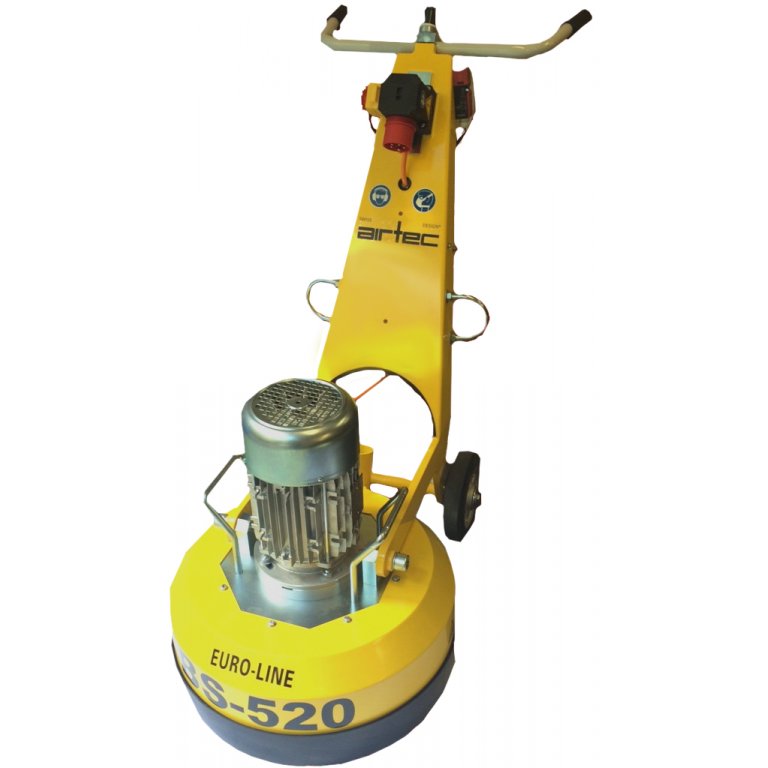

Floor sander BS-520-EL
Operating voltageV/Hz/A400 / 50 / -
Drive performancekW3,0
Rotational frequencyr/min900
Machine techniqueFloor processing
Working widthmm520
Working pressurekg90
Dust extraction connectionmm51
Dimensions (L x W x H)mm980 x 580 x 1080
Weightkgapprox. 130
Floor
Floor sander BS-520-EL
Blasting EP and PU coatings
EP and PU coatings: Removal of old coatings, roughening of new coatings, roughening of concrete or screed
Industrial flooring: Restoration and remedy
Keying and removal of mineral substrates
Natural and artificial stone, terrazzo: grinding of slabs made of artificial stone, hard and soft stone up to polishing, grinding and honing of terrazzo
Remedy of surface roughness
Removal of sanding bridges and blast tracks
Removal of sealants and thin coatings
Screed: Grinding and polishing, tackling irregularities
Shot-blasting of concrete, screed and asphalt to remove cement slurry and for substrate preparation
Shot-blasting of steel to remove sinter layers and for rust removal
Topsoil transfer: substrate preparation, removal of spattling compounds and adhesive residues

Scope of delivery
BS-520-EL
Item no. 10044436

  • BS-520-EL floor sander
  • 9 units of AT-CA-6H segments
  • 3 mounting plates
  • 400 V motor
  • Operating instructions

Optional (see accessories):

  • Other segments
    - AT-CA-40H
    - AT-PCM-9L-1
    - AT-PKD-SPLITT-1
  • Industrial vacuum cleaner KV-3500-EL
Floor sander BS-520-EL
Super-Wings™ brown trapezium tool

Super-Wings™ brown trapezium tool

in premium quality for single and triple disc floor sanders.

Bond: Very hard

  • 6 tools are required for Eraser 270
  • 9 tools are required for PDG 5000

Areas of application: Very rough and very abrasive surfaces, e.g. fresh concrete; fresh screed; eroded, scorched or frozen concrete; synthetic resin screed

Super-Wings™ brown trapezium tool (Article No. 10030031)
Super-Wings™ blue trapezium tool

Super-Wings™ blue trapezium tool

in premium quality for single and triple disc floor sanders.

Bond: Ultra-hard

  • 6 tools are required for Eraser 270
  • 9 tools are required for PDG 5000

Areas of application: Rough and abrasive surface e.g. smoothed concrete; sand-cement screed; slightly eroded, scorched or frozen concrete; grinding of filled or spread coatings; substrate preparation; removal of sanding marks; re-grinding of shot-blasted floors, asphalt, terrazzo

Super-Wings™ blue trapezium tool (Article No. 10030032)
XC Super-Wings red trapezium tools

XC Super-Wings red trapezium tools

for single and triple-disc floor sanders.

Bond: Soft

  • 6 tools are required for Eraser 270
  • 9 tools are required for PDG 5000

Areas of application: Geared tool system in grit sizes K1 to K2, particularly for substrate preparation.

XC Super-Wings red trapezium tools (Article No. 10030033)
XC Arrow, light blue trapezium tools

XC Arrow, light blue trapezium tools

for single and triple-disc floor sanders.

Bond: Hard

  • 6 tools are required for Eraser 270
  • 9 tools are required for PDG 5000

Areas of application: The arrow-shaped segments with their sharp cutting edge and effective diamond cutting action are used for rough erosion, as well as for roughening coatings and grinding thin layer structures.

XC Arrow, light blue trapezium tools (Article No. 10030034)
XC Vigor Splitt orange trapezium tools

XC Vigor Splitt orange trapezium tools

for single and triple-disc floor sanders.

Bond: Hard

  • 6 tools are required for Eraser 270
  • 9 tools are required for PDG 5000

Areas of application: Even on thin and hard layer structures, such as unfilled levelling coatings or highly plastic-modified spattling compounds, these tools offer extremely fast erosion and leave a clean and flawless substrate.

XC Vigor Splitt orange trapezium tools (Article No. 10030035)
Dry vacuum cleaner MKS M-Jet 2-56 T

Dry vacuum cleaner MKS M-Jet 2-56 T

The power pack has two suction motors for optimum vacuum performance when vacuuming floor sanders and hand sanders and when cleaning areas with the floor nozzle. The DF (dust free) filter system ensures an extremely low-dust work environment. The filter performance is the best in class of the M-Jet 2-56 T and is CE-tested according to Standard H.
The hose connection and the aluminium pipe with floor nozzle are included in the delivery.

Dry vacuum cleaner MKS M-Jet 2-56 T (Article No. 10030045)
MKS M-JET Pre-separator Compact

MKS M-JET Pre-separator Compact

The MKS M-JET Pre-separator Compact is the optimum extension for the M-Jet 2-56 T. A large proportion of the extracted material is already deposited in the pre-separator and never even reaches the vacuum.
This considerably reduces the process of emptying the vacuum and protects the filter system. The pre-selector compact is used with the Longopac endless system. Absorbed extracted material can be disposed of in easy-to-transport quantities. Low risk of tipping due to the low centre of gravity.
The hose connection from the vacuum to the pre-selector and 4-pcs. Longopac replacement bag are included in the delivery.

MKS M-JET Pre-separator Compact (Article No. 10030046)
