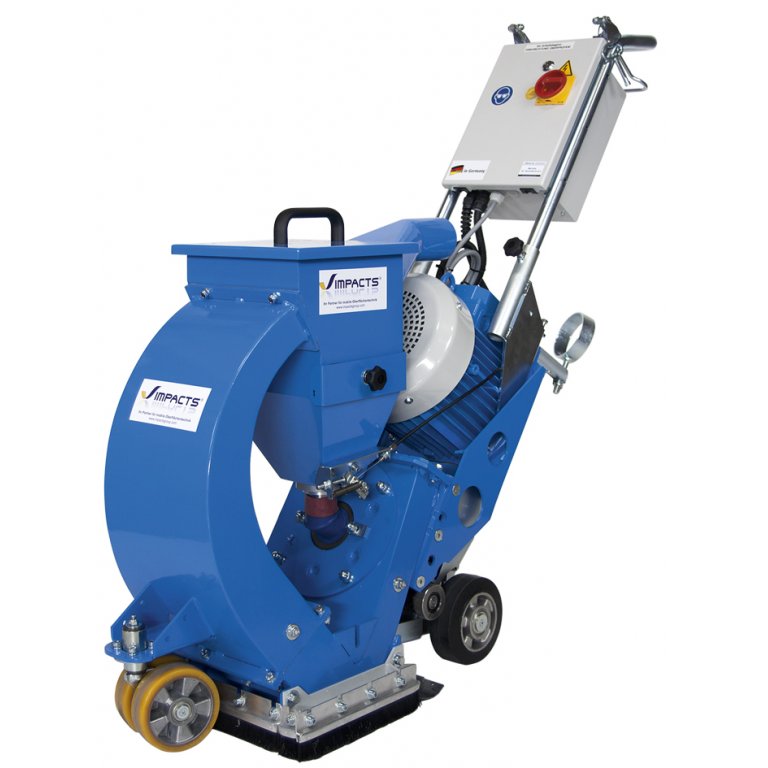

The S270E75R Streamer is a compact and efficient shot blaster

Advantages at a glance


  • Excellent separation
  • Height-adjustable steering arm, with integrated control elements
  • Extremely good handling
  • Powerful drive
  • Optimised weight

The S270E75R Streamer is a compact, efficient shot blaster for processing medium-sized horizontal surfaces.
It is equipped with a variable drive, as well as impellers for optimum coverage of the complete working range and latest-generation separation.
To generate the optimum blast output, we recommend using the S270E75R Streamer along with the filter systems DUSTCOM 3003GP.



Shot blaster system S270E75R Streamer
Operating voltageV/Hz/A400 / 50 / 32
Drive performancekW7,5
Machine techniqueFloor processing
Beam power on concretem²/h130
Filter connectionmmØ 75
Rotationsmin-10 - 30 *
Comments* Rotations continuously variable
Dimensions (L x W x H)mm1250 x 390 x 1050
Weightkgapprox. 166
Shot
Shot blaster system S270E75R Streamer
Blasting EP and PU coatings
EP and PU coatings: Removal of old coatings, roughening of new coatings, roughening of concrete or screed
Industrial flooring: Restoration and remedy
Keying and removal of mineral substrates
Natural and artificial stone, terrazzo: grinding of slabs made of artificial stone, hard and soft stone up to polishing, grinding and honing of terrazzo
Remedy of surface roughness
Removal of sanding bridges and blast tracks
Removal of sealants and thin coatings
Screed: Grinding and polishing, tackling irregularities
Shot-blasting of concrete, screed and asphalt to remove cement slurry and for substrate preparation
Shot-blasting of steel to remove sinter layers and for rust removal
Topsoil transfer: substrate preparation, removal of spattling compounds and adhesive residues

Scope of delivery
S270E75R Streamer Set
Item no. 10030023

  • Streamer S270E75R shot blaster
  • Abrasive S330, 300 kg
  • DC 3003GP filter system, incl. filter cartridges
  • Dust hose Ø 75 mm, 10 m
  • Magnet trolley 700 mm
  • Maintenance box
  • Operating instructions
Shot blaster system S270E75R Streamer
S270E75R maintenance box

S270E75R maintenance box

  • 1 x toolbox (660 x 280 x 320 mm)
  • 1 x of each spanner 10x11, 13x17, 17x19 mm
  • 1 x of each wrench socket 10, 13, 17, 19, 8 x 100 mm
  • 1 x lever reversible ratchet
  • 1 x flat head screwdriver 5.5 x 1.0 x 100
  • 1 x machinist’s hammer 500 g
  • 1 x hexagonal pin wrench 6 mm
  • 1 x pair safety goggles, 2 x impeller set 165 mm
  • 1 x of each cladding: top, right, left
  • 1 x abrasive control cable
  • 1 x flat belt
  • 1 x of each brush seal: left, right, front, front short,
  • 1 x metal seal: rear

S270E75R maintenance box (Article No. 10030038)
Magnetic brush 500 mm for smaller surfaces (20 m² to 100 m²)

Magnetic brush 500 mm for smaller surfaces (20 m² to 100 m²)

  • For recovering abrasive residues from depressions and joints and for their reuse in the abrasive cycle



Magnetic brush 500 mm for smaller surfaces (20 m² to 100 m²) (Article No. 10030039)
Magnet trolley 700 mm with higher absorption capacity

Magnet trolley 700 mm with higher absorption capacity

  • For recovering abrasive residues from depressions and joints and for their reuse in the abrasive cycle

Magnet trolley 700 mm with higher absorption capacity (Article No. 10030040)
Abrasive (1 bag, 25 kg)

Abrasive (1 bag, 25 kg)

IMPACTOR GL 18 (sharp-edged, for increasing the roughness depth and for the effective removal of thin coatings (for max. 20 % admixture) (Article No. 10030044)
IMPACTOR S330 (for an extra-fine profile − also as admixture) (Article No. 10030042)
IMPACTOR S390 (standard abrasive) (Article No. 10030043)
Filter system DUSTCOM 3003GP

Filter system DUSTCOM 3003GP

The IMPACTS filter system DUSTCOM 3003GP is a particularly robust, powerful unit. Three turbines each with 1500 watt drive power form the basis of its exceptional performance.
In conjunction with the 15 m² filter surface, the automatic dedusting and the compact design, the IMPACTS filter system DUSTCOM 3003GP sets new standards.

  • Standard version: Dust class M



Filter system DUSTCOM 3003GP (Article No. 10030049)
Filter cartridge for filter system Dustcom DC3003GP

Filter cartridge for filter system Dustcom DC3003GP

Filter medium suitable for all dry mineral dusts.

  • Dust class M

Filter cartridge for filter system Dustcom DC3003GP (Article No. 10030050)
