The perfect silo continuous mixer for processing powdery materials

Benefits at a glance

  • Constant material consistency
  • High mixing rate (22 l/min.)
  • PU mixing pipe with quick-release fasteners
  • Detachable mixing pipe cover
  • Standardised flange attachment with a diameter of 250 mm and thus suitable for all conventional silos
  • Automatic rotation direction detection
  • Very simple operation and cleaning
  • Low-maintenance and construction site compliant technology

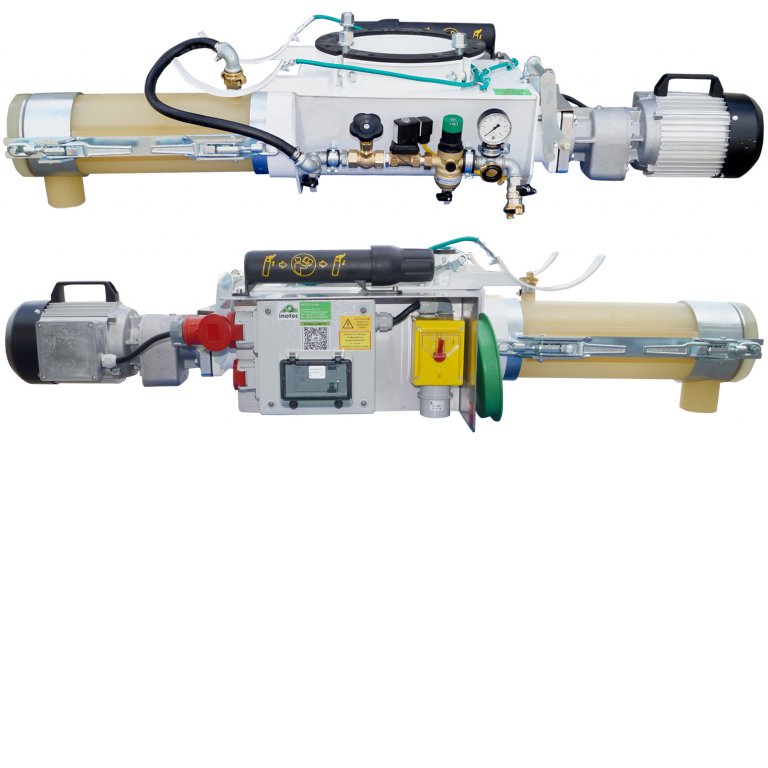

The inoMIX F51 is the perfect 400 V continuous mixer for use with silos for mixing powdery materials.
Its compact design means that the inoMIX F51 can also remain flange-mounted to the silo during transport.
The mixing and metering shafts are driven directly using a gear motor.


This video shows the assembly and operation of the inoMIX F51 continuous flow mixer.
It does not replace reading the original operating instructions.



inoMIX F51

Video

Service details

Services
Operating voltageV/Hz/A400 / 50 / 16
Drive performancekW2,6
Mixing performancel/minmax. 22 l/min / ca. 50 l/min*
Machine techniqueMixers
Comments* With optional metering shaft, gradient 40 mm
Dimensions (L x W x H)mm1500 x 500 x 320
Weightkgapprox. 65
inoMIX
inoMIX F51
Cement pastes, suspensions
Cement plasters
Dried clay plasters
ETICS glue, mineral
Fire protection mortar
Floating screeds
Floor spattling compounds
Gypsum filling compounds
Lime cement plasters
Lime plasters
Lime smoothers
Loam plasters
Masonry mortar
Mineral textured plasters
Multi-layer acoustic spray plasters
Renovating plaster systems
SPCC mortar / filler
SPCC Spatula

Scope of delivery
inoMIX F21:
Item no. 10043789

  • Solid steel funnel
  • PU mixing pipe
  • Mixing shaft
  • Metering shaft
  • Gear motor
  • Water fitting
  • Operating instructions
inoMIX F51
Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos to prevent material flow or compression problems.

Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos to prevent material flow or compression problems.

Mains voltage: 400 volts / 50 Hz

Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos (Article No. 10043960)
400 V extension cable, 5 x 2.5 mm², length 20 m

400 V extension cable, 5 x 2.5 mm², length 20 m

  • 16 A, CEE plug and coupling

400 V extension cable, 5 x 2.5 mm², length 20 m (Article No. 10015199)
inoPOWERMIX „S“ PU mixing pipe including mixing shaft, mixing pipe cover and holders

inoPOWERMIX „S“ PU mixing pipe including mixing shaft, mixing pipe cover and holders

inoPOWERMIX „S“ PU mixing pipe including mixing shaft, mixing pipe cover and holders (Article No. 10044030)
Mixing shaft for inoPOWERMIX „S“ for adhesive and reinforcement mortar

Mixing shaft for inoPOWERMIX „S“ for adhesive and reinforcement mortar

Mixing shaft for inoPOWERMIX „S“ for adhesive and reinforcement mortar (Article No. 10040026)
Mixing shaft for inoPOWERMIX 'S' with PU scraper for masonry mortar

Mixing shaft for inoPOWERMIX 'S' with PU scraper for masonry mortar

Mixing shaft for inoPOWERMIX 'S' with PU scraper for masonry mortar (Article No. 10041033)
PU inlay for inoPowerMIX

PU inlay for inoPowerMIX "S" mixing pipe

PU inlay for inoPowerMIX "S" mixing pipe (Article No. )
Steel frame for mixing pipe inoPOWERMIX 'S'

Steel frame for mixing pipe inoPOWERMIX 'S'

  • without eccentric locks

Steel frame for mixing pipe inoPOWERMIX "S" (Article No. 10044012)
PU  inoPOWERMIX „L“ mixing pipe including mixing shaft, mixing pipe cover and holders

PU inoPOWERMIX „L“ mixing pipe including mixing shaft, mixing pipe cover and holders

PU inoPOWERMIX „L“ mixing pipe including mixing shaft, mixing pipe cover and holders (Article No. 10044010)
Mixing shaft for inoPOWERMIX 'L' with PU scraper for masonry mortar

Mixing shaft for inoPOWERMIX 'L' with PU scraper for masonry mortar

Mixing shaft for inoPOWERMIX 'L' with PU scraper for masonry mortar (Article No. 10044009)
PU inlay for inoPowerMIX

PU inlay for inoPowerMIX "L" mixing pipe

PU inlay for inoPowerMIX "L" mixing pipe (Article No. 10044006)
Steel frame for mixing pipe inoPOWERMIX 'L'

Steel frame for mixing pipe inoPOWERMIX 'L'

  • without eccentric locks

Steel frame for mixing pipe inoPOWERMIX "L" (Article No. 10044007)
Englisch  Eccentric lock for steel frames for inoPOWERMIX 'S' & 'L'

Englisch Eccentric lock for steel frames for inoPOWERMIX 'S' & 'L'

Eccentric lock for steel frames for inoPOWERMIX 'S' & 'L' (Article No. 10017068)
Mixing pipe cover for inoPOWERMIX „S“ & „L“ incl. plastic transfer for the mixing shaft

Mixing pipe cover for inoPOWERMIX „S“ & „L“ incl. plastic transfer for the mixing shaft

Mixing pipe cover for inoPOWERMIX „S“ & „L“ incl. plastic transfer for the mixing shaft (Article No. 10044102)
Metering shaft for inoMix F51

Metering shaft for inoMix F51

Metering shaft for inoMIX F51 - 25 mm gradient, standard (Article No. 10043792)
Metering shaft for inoMIX F51 - 40 mm gradient e.g. for masonry mortar (Article No. 10043794)
