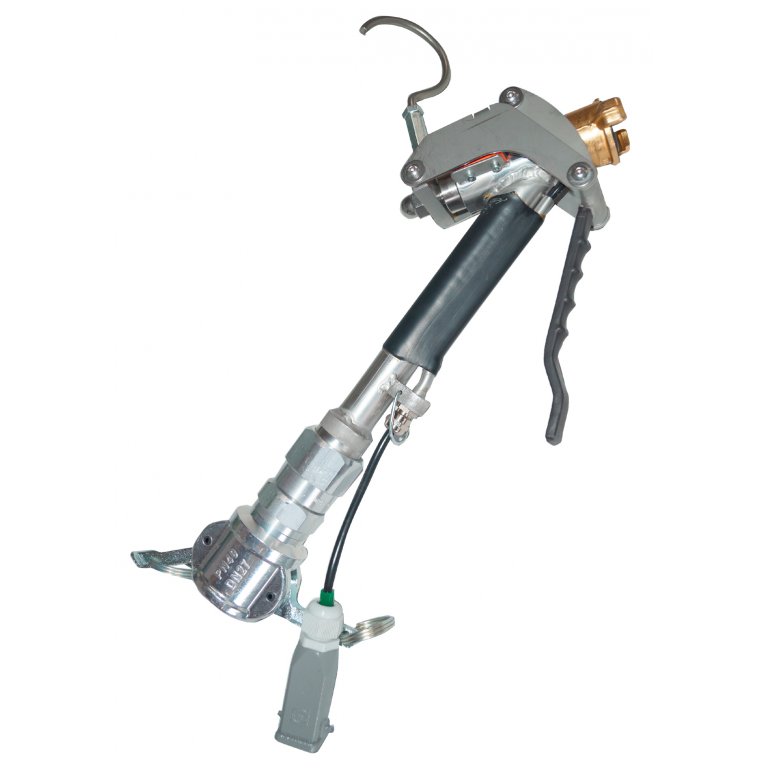

One-handed gun for application of bonding mortars and spraying up to 4.0 mm grit size
Benefits at a glance
- Fast and clean material application
- Simple operation
- Robust and handy design
- Fast and simple cleaning
- Ergonomic handle
- Swivel joint for fatigue-free working
- Integrated remote control switch
- Can be connected to all common mixing and delivery pumps
- Practical scaffold hook for suspending on scaffold poles
- Optional attachment for spraying mineral and organic products
- For grit sizes up to 4.0 mm
The all-purpose inoCOLL PRO one-handed gun can be directly connected to all common mixing and delivery pumps. The mortar is applied to the ETICS insulation boards in a fatigue-free and time-saving manner. An integrated remote control switch enables automatic activation or deactivation of connected silos or delivery / mixing pumps when the trigger is actuated.
With the optional, handy and lightweight spray attachment, the inoCOLL PRO can be retooled to form a complete spraying device.
Service details
| Operating pressure | bar | up to 40 |
| Operating voltage | V/Hz/A | 24 - 42 / - / - |
| Grain size | mm | max. 4,0 |
| Hose diameter | mm | 19 |
| Hose length | m | 2 |
| Machine technique | One-handed gun | |
| Weight | kg | approx. 1,5 |
inoCOLL PRO | |
| Applying basecoat mortar | |
| Applying bonding mortar | |
| Performing filling work (e.g. fire dampers) | |
| Performing grouting work (e.g. exposed brickwork) | |
| Spraying decorative coatings | |
| Spraying final coats: inoCOLL PRO up to 4.0 mm (with bonding/spraying set) | |
| Spraying final coats: inoCOLL up to 1.5 mm | |
| Spraying fine mortar | |
| Spraying sealing compounds |
Basic module
Item no. 10041950
Scope of delivery
inoCOLL PRO:
- One-handed gun
- Scaffold hook
- Connecting plug for remote control cable
- Hose piece
- 2 sponge balls with a diameter of 20 mm
- Operating instructions
Bonding / spraying set
Item no. 10043000
Scope of delivery
inCOLL PRO bonding / spraying set:
As with the basic module
(item no. 10041950)
Plus:
- Spray attachment with 10 and 13 mm nozzle
- Remote control extension cable, 16 m
- Plastic case
Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Adapter for remote control cable
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel
Sponge balls (soft version)
- For cleaning material / mortar hoses
Sponge balls (solid version)
- For cleaningmaterial / mortar hoses
