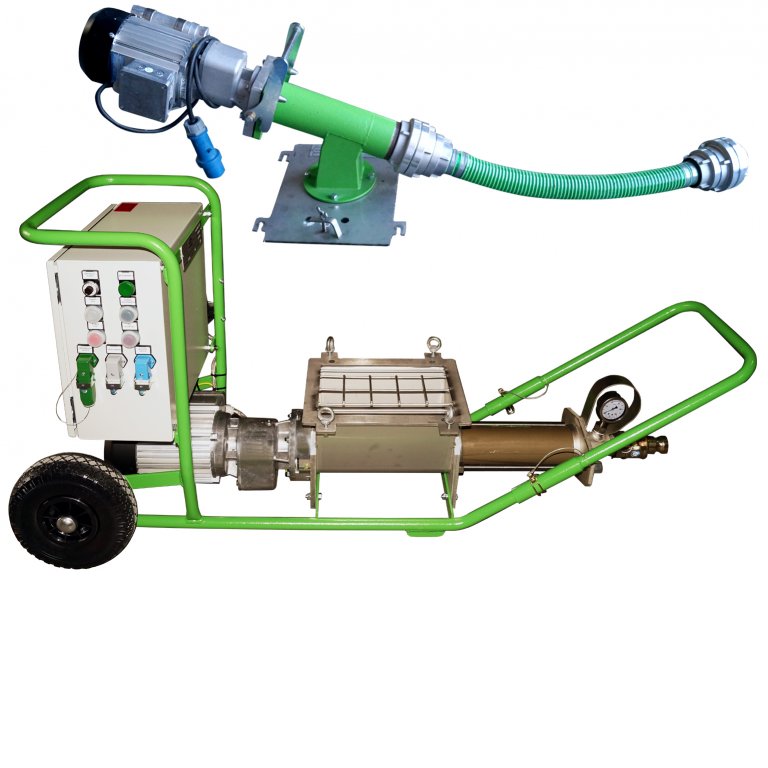

Paste-like materials: OWC in combination with the inoFLEX paste-like wet delivery unit and the inoBEAM Light E delivery pump

inoFLEX paste-like
Advantages at a glance

  • Extremely simple assembly on the inoBEAM Light E delivery pump
  • Simple one-person transport
  • High delivery rate
  • Low-maintenance and building site-compliant technology
  • Simple cleaning

OWC pastösThe flexible inoFLEX paste-like delivery shaft transports the material to be processed from a one-way container or from an IBC container directly into the mixing pump hopper, and from there into the material hose for the spray or glue gun.

The inoFLEX paste-like wet delivery unit is combined with the inoBEAM Light E delivery pump.



Paste-like materials: OWC in combination with a wet delivery unit and a delivery pump

Operating pressurebarup to 40
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekWinoFLEX pastös: 1,1 kW / inoBEAM Light E: 3,0 (frequency controlled)
Delivery rate (mineral materials)l/minmax. 20
Conveying distance (mineral materials)mmax. 50
Pressure height (mineral materials)mmax. 20
Machine techniqueOWC Machine technology
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 80

Scope of delivery
inoFLEX paste-like
Item no. 10010010

  • OWC camlock coupling
  • Flexible hose, approx. 0.5 m
  • Delivery shaft
  • Gear motor
  • Stainless steel lid with transition connecting piece and retaining device for fill level probe
  • Control panel
  • Operating instructions

Scope of delivery
inoBEAM Light E
Item no. 10034332

  • Frame
  • 2 running wheels
  • Material hopper made from stainless steel including protective grating
  • Hydrostatic level probe
  • Stainless steel cover for pump hopper
  • Gear motor
  • Pump housing made from stainless steel
  • Rotor/stator D 6-3 Eco gold
  • Switching cabinet
  • Pump shaft
  • Mortar pressure gauge
  • 3 m connecting cable
  • Operating instructions
