Pulverförmiges Material: OWC kombiniert mit Durchlaufmischer und Förderpumpe / OWC Machine technology / Inotec GmbH

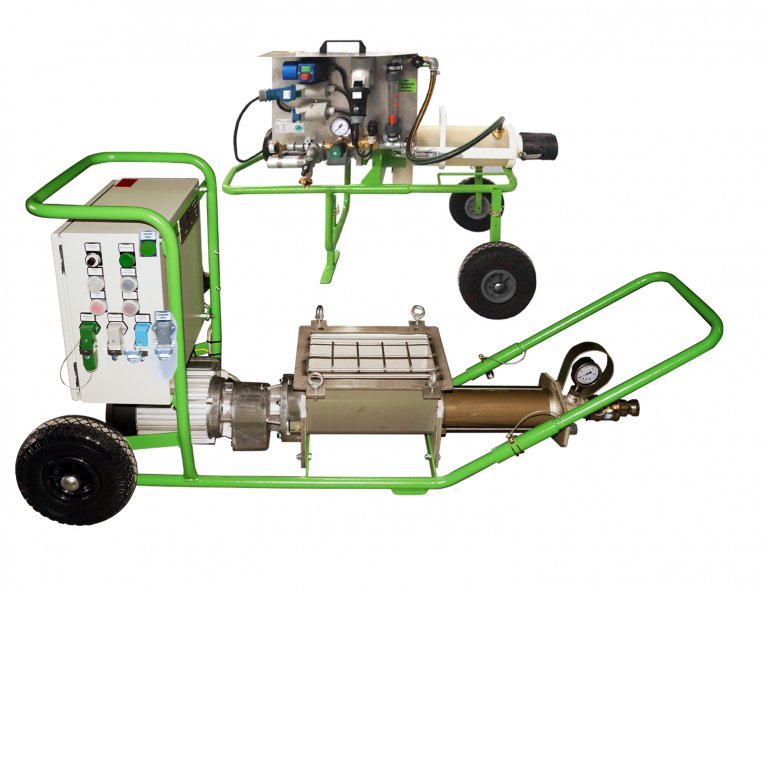

One-way container for powdery materials in combination with inoMIX E12 continuous mixer and inoBEAM F30 delivery pump ideal for floor levelling compound

Benefits at a glance
Mixer: inoMIX E12

Extremely simple operation
Constant material consistency
High mixing rate
Simple one-person transport
Simple cleaning
Low-maintenance technology
PU mixing pipe (detachable)

Delivery pump: inoBEAM F30

For liquid and paste-like materials
Material hopper made from stainless steel
High delivery rate
Continuously variable speed control using potentiometer
Simple operation
Connection socket for remote control cable

OWC The material to be processed is transported from the inoBOX M to the inoMIX E12 continuous mixer via a delivery shaft. The perfectly mixed material then falls into the hopper of the efficient inoBEAM Light E delivery pump and, from there, is delivered to workmen through the material hose.

_______________

* The machine is available in 110 and 230 V

Watch this video ...

Operating pressure	bar	up to 40
Operating voltage	V/Hz/A	110-230 / 50 / 16
Drive performance	kW	inoMIX: 1,1 kW / inoBEAM F30 E: 3,0 (frequency controlled)
Delivery rate (depending on the material)	l/min	max. 0 - 30
Conveying distance (depending on the material)	m	max. 80
Pressure height (depending on the material)	m	max. 25
Material container	l	10 l / 60 l
Machine technique		OWC Machine technology
Dimensions (L x W x H)	mm	1450 x 530 x 700
Weight	kg	approx. inoMIX: 47 kg / inoBEAM Light E: 80

	Powdery materials: OWC in combination with a continuous mixer and a delivery pump

Scope of delivery
inoMIX E 12
Item no. 10005950

Height-adjustable frame
2 running wheels
PU mixing pipe
Mixing shaft
Gear motor
Metering shaft
Water fitting with flow meter
OWC camlock coupling
Operating instructions

Set “D”-F30
for spray applications (22 l / 40 bar)
Item no. 10041913*

Set “R”-F30
for floor levelling compounds (60 l / 15 bar)
Item no. 10043416*

Probe control set F30
for inoBEAM F30 in combination with inoMIX E12 and one-way containers
Item no. 10043986*

-----------------------------------
* Scope of delivery, see accessories

Basic module
Item no. 10044215
Scope of delivery
inoBEAM F30 E

Frame
2 running wheels
Plastic material hopper (for filling with e.g. liquid or paste-like material from buckets)
Cover for material hopper
Gear motor
Switching cabinet
3 m connecting cable
Pump shaft
Pump housing made from stainless steel
Tool set
Assembly spray lubricant
Operating instructions

Multi-purpose hose

For universal use, e.g. air, water
GEKA couplings crimped with sleeves on both sides

Technical data:
Max. operating pressure:	max. 15 bar
Temperature range:	-20 up to +90°C

Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)

Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)

Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)

INOTEC mortar hose

Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
For an operating pressure of 40 bar with 3 times the reliability
Yellow on the outside at Ø 35 mm
Black on the outside at Ø 40 and Ø 50 mm
With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
With cam levers on the M-piece

Technical data:
Operating pressure:	40 bar
Bursting pressure:	120 bar

Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)

Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)

Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)

Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)

Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)

Flushing hose

For clearing blockages in mortar hoses

Flushing hose - Length 10 m (Article No. 10024385)

Wireless remote control

Wireless remote control, 3-channels, with handheld transmitter integrated antenna, 24 V Harting connector with LED display
Only for devices with a control voltage of 12-24 V

Wireless remote control (Article No. 10043315)

Remote control cable with remote control switch

Remote control cable with remote control switch - Length 16 m (Article No. 10042464)

Remote control cable with remote control switch - Length 32 m (Article No. 10042465)

Remote control extension cable without remote control switch

For remote control cable
For remote control switch
For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)

Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)

Remote control switch

With 0.2 m cable, indicator light and 4-pin Harting plug

Remote control switch (Article No. 10015134)

Hose holder

For rapidly fixing hoses to the scaffold

Hose holder (Article No. 10018503)

inoCOLL one-handed gun

For bonding and basecoat mortars
2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
For grit sizes up to 1.5 mm

inoCOLL one-handed gun (Article No. 10024144)

inoCOLL PRO one-handed gun

For applying reinforcing mortar and finishing plaster up to 4 mm grit size
Operating pressure: up to 40 bar

inoCOLL PRO one-handed gun (Article No. 10041950)

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection

For spraying mineral and paste-like products
With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)

Small spray pipe – short design

With 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose (without a nozzle)
For grit sizes up to 3.0 mm

Small spray pipe – short design (Article No. 10039887)

Nozzles for Item no. 10039322 / 10039887 / 10039457

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)

Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 4 mm (Article No. 10039271)

Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 5 mm (Article No. 10042461)

Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 6 mm (Article No. 10039220)

Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 8 mm (Article No. 10039221)

Nozzles for Item no. 10039322 / 10039887 / 10039457 - Ø 10 mm (Article No. 10039222)

MAI finishing coat device, straight

With 25 mm M-piece coupling
Including a 14 mm jet nozzle

MAI finishing coat device, straight (Article No. 10024362)

Jet nozzle

For MAI finishing coat device

Jet nozzle - Ø 10 mm (Article No. 10024378)

Jet nozzle - Ø 12 mm (Article No. 10024379)

Jet nozzle - Ø 14 mm (Article No. 10024380)

Jet nozzle - Ø 16 mm (Article No. 10024381)

Straight finishing coat device

With 25 mm M-piece coupling
Incl. a 14 mm finishing coat nozzle

Straight finishing coat device (Article No. 10024098)

Finishing coat nozzles

For finishing coat devices, item nos.:
10024098 / 10024099

Finishing coat nozzles - Ø 10 mm (Article No. 10024089)

Finishing coat nozzles - Ø 12 mm (Article No. 10024090)

Finishing coat nozzles - Ø 14 mm (Article No. 10024091)

Finishing coat nozzles - Ø 16 mm (Article No. 10024093)

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.

Plastic hopper (Article No. 10040973)

Cover for plastic hopper

For protecting the content of the hopper against impurities
Made from black plastic

Cover for plastic hopper (Article No. 10041816)

Bag mangle

For emptying plastic bags with paste-like materials

Bag mangle (Article No. 10041971)

Coupling reducer

For connecting two mortar hoses or reducing the machine outlet.

Coupling reducer 35 V -> 25 V (Article No. 10022101)

Plaster piece for cleaning mortar hoses

Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)

Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)

Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)

Sponge balls (soft version)

For cleaning material / mortar hoses

Sponge balls (soft version) - Ø 14 mm for hose Ø 13 mm (Article No. 10008116-001)

Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)

Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)

Sponge balls (soft version) - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-005)

Sponge balls (solid version)

For cleaningmaterial / mortar hoses

Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)

Sponge balls (solid version) Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)

230 V INOTEC Compact 330 compressor

The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.

Technical data:
Operating pressure:	10 bar
Suction capacity:	330 l/min
Output:	2,05 kW
Dimensions (L x W x H):	396 x 473 x 598 mm
Weight:	32 kg

230 V INOTEC Compact 330 compressor (Article No. 10034389)

Connection unit for 2 INOTEC Compact 330 compressors

consisting of check valve and EWO coupling

2 x V parts
1 x M part

Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)

D4 ½ output conveying screw - Head marked in green

D4 ½ output conveying screw - Head marked in green (Article No. 10022543)

D4 ½ output screw casing, soft with clamping strip

D4 ½ output screw casing, soft with clamping strip (Article No. 10022503)

D6-3 Eco Gold conveying screw

Tip marked in gold

D6-3 Eco Gold conveying screw (Article No. 10022552)

D6-3 Eco Gold screw casing

Without anti-twist protection, colour: gold

D6-3 Eco Gold screw casing (Article No. 10022509)

D8-1.5 conveying screw

Tip marked in yellow

D8-1.5 conveying screw (Article No. 10022562)

D8-1.5 yellow screw casing (maintenance free)

D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)

D8-1.5 yellow screw casing with clamping strip

D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)

Rotor D7-2.5 “S”

Rotor D7-2,5 „S“ (Article No. 10022556)

Stator D7-2.5 “Mono Plus” (maintenance free)

Stator D7-2.5 “Mono Plus” (maintenance free) (Article No. 10042506)

Assembly spray lubricant

For assembling the conveying screw and screw casing
400 ml

Assembly spray lubricant (Article No. 10004591)
