inoBOX M: One-Way-Container „CLASSIC“ in combination with the inoMIX E12 230 V* continuous mixer

inoMIX E12
Benefits at a glance

  • Extremely simple operation
  • Constant material consistency
  • High mixing rate
  • Simple one-person transport
  • Simple cleaning
  • Low-maintenance technology
  • PU mixing pipe (detachable)

 OWC

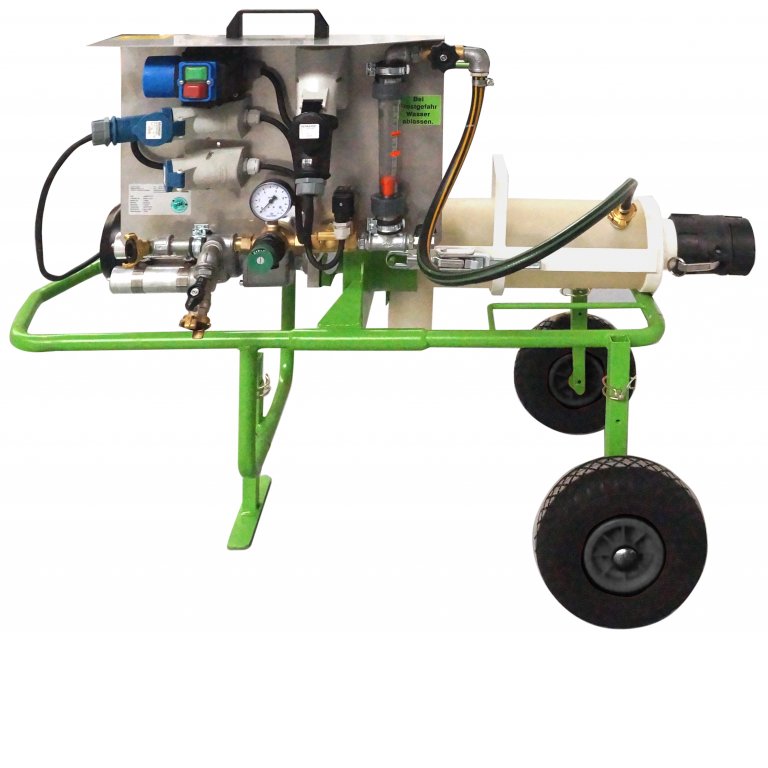

The inoMIX E12 is a simple, affordable and yet very powerful continuous mixer for processing powdery materials from a one-way container (OWC).

Extremely simple operation and handling plus a high mixing rate ensure smooth applications on the construction site.

_______________

* The machine is available in 110 and 230 VGefahrstoffschutzpreis_Stempel_en


OWC-WebbildWatch this video ...



Powdery materials: OWC in combination with a continuous mixer

Service details

Services

Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW1,1
Mixing performancel/minmax. 18
Machine techniqueOWC Machine technology
Dimensions (L x W x H)mm1200 x 610 x 950
Weightkgapprox. 47

Scope of delivery
inoMIX E 12
Item no. 10005950


  • Height-adjustable frame
  • 2 running wheels
  • PU mixing pipe
  • Mixing shaft
  • Gear motor
  • Metering shaft
  • Water fitting with flow meter
  • OWC camlock coupling
  • Connecting cable
  • Operating instructions

Optional (see accessories):

  • Can be combined with optional bag funnel for the use of bagged goods
Powdery materials: OWC in combination with a continuous mixer
PU mixing pipe for inoMIX E12

PU mixing pipe for inoMIX E12

  • Including mixing shaft, camlock coupling and holders

PU mixing pipe for inoMIX E12 (Article No. 10040787)
Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014)

Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014)

Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014) (Article No. 10041421)
Metering shaft for inoMIX E12 - gradient 30 mm

Metering shaft for inoMIX E12 - gradient 30 mm

Metering shaft for inoMIX E12 - gradient 30 mm (Article No. 10006023)
Metering shaft for inoMIX E12 - gradient 45 mm

Metering shaft for inoMIX E12 - gradient 45 mm

Metering shaft for inoMIX E12 - gradient 45 mm (Article No. 10042193)
Camlock M-part 3“ IG PVC

Camlock M-part 3“ IG PVC

  • For screwing onto the inoMIX E12 continuous mixer

Camlock M-part 3“ IG PVC (Article No. 10034504)
Camlock V part 3“ IG PVC

Camlock V part 3“ IG PVC

  • For screwing onto the material outlet flange of the one-way container

Camlock V part 3“ IG PVC (Article No. 10034507)
Outlet flange for metering shaft

Outlet flange for metering shaft

  • For fitting on the camlock V-Part 3“ IG PVC

Outlet flange for metering shaft (Article No. 10041575)
Bag hopper

Bag hopper

  • Bag hopper for connecting to the inoMIX E12 including metering shaft

Material hopper for the inoMIX E12 (Article No. 10035593)
Metering shaft for bag hopper

Metering shaft for bag hopper

Metering shaft for bag hopper (Article No. 10037612)
