The handy grinder with an integrated extractor

Benefits at a glance

  • Extra-large grinding plate made from magnesium
  • Even grinding pattern
  • Grind right up to window frames, corners, etc. (right-angled, flat grinding plate)
  • Protective elements to prevent damages to window frames and similar structures
  • High removal rate
  • Minimal setup times, simple operation
  • Ergonomic shape for fatigue-free working
  • Integrated extractor with connection for collection bag or suction device

The inoPLAN Swing special grinder is ready for immediate use on the construction site. All you have to do is plug it in.
The extra-large grinding plate made from highly resistant and lightweight magnesium guarantees an even grinding pattern and a high removal rate.
A specially developed, integrated and powerful extractor ensures that the removed material is cleanly transported in a collection bag, which can be emptied with a ripcord.

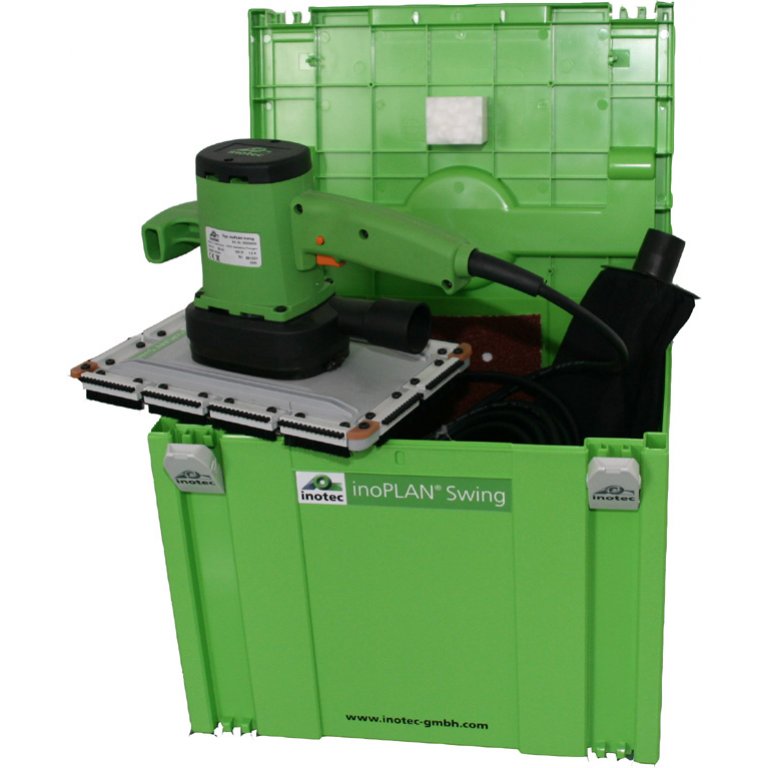

inoPLAN Swing


Alternative Machines

inoPLAN Universal

Service details

Operating voltageV/Hz/A230 / 50 / 16
Drive performancekW0,35
Grinding platecm²390
Vacuum connection (Ø)mm35
Sandingr/min3 mm (rpm) - 24.000
Machine techniqueSpecial grinders
Weightkgapprox. 3

Scope of delivery
inoPLAN Swing
Item no. 10019285

  • Collection bag
  • 2 x sandpaper K24
  • Systainer
  • Operating instructions
inoPLAN Swing
Sandpaper, perforated

Sandpaper, perforated

  • For polystyrene (styropor)

Sandpaper K24 - for a high removal rate (Article No. 10019330)
Sandpaper K40 - for smoother insulation board surfaces (Article No. 10019331)
