The powerful 400 V mixing pump for mineral materials
Benefits at a glance
- Power output: with the 5.5 kW drive motor and 400 V output, it is possible to achieve a delivery range of 50 m and a delivery height of 30 m.
- Water pressure booster pump integrated
- Robust frame, galvanized and powder coated
- Simple operation

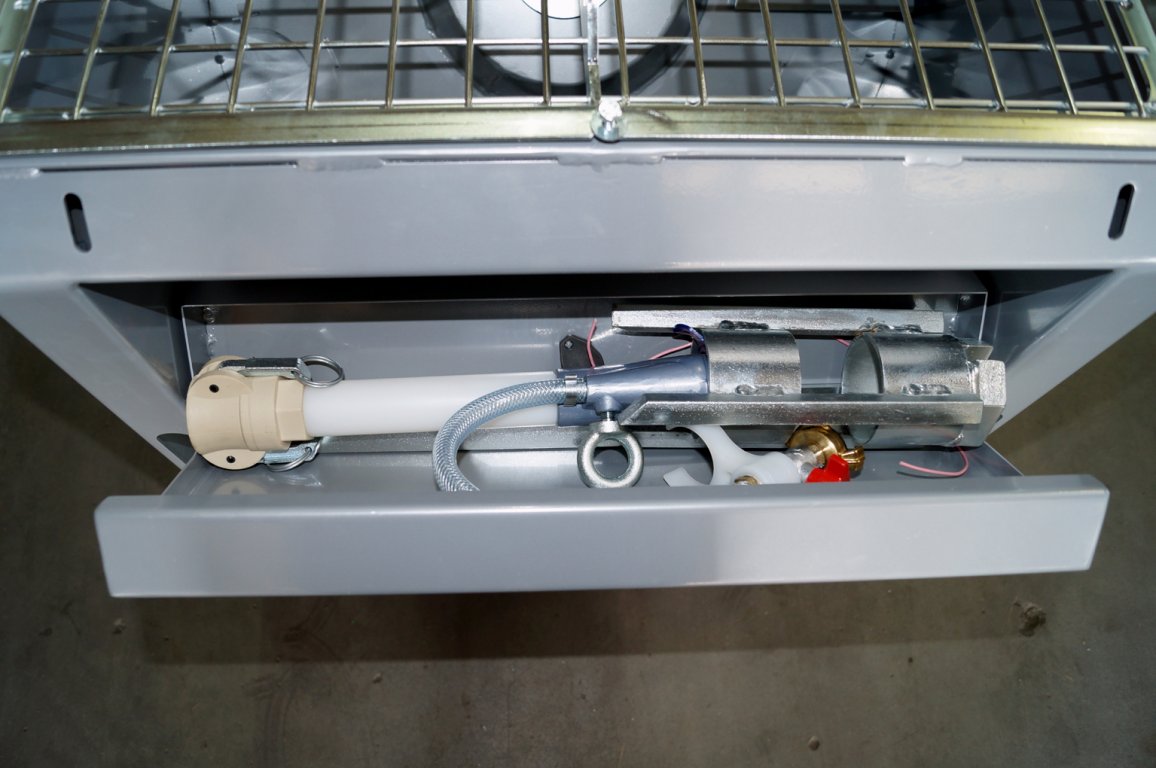

- Both the toolbox and the compressor are integrated into the frame.

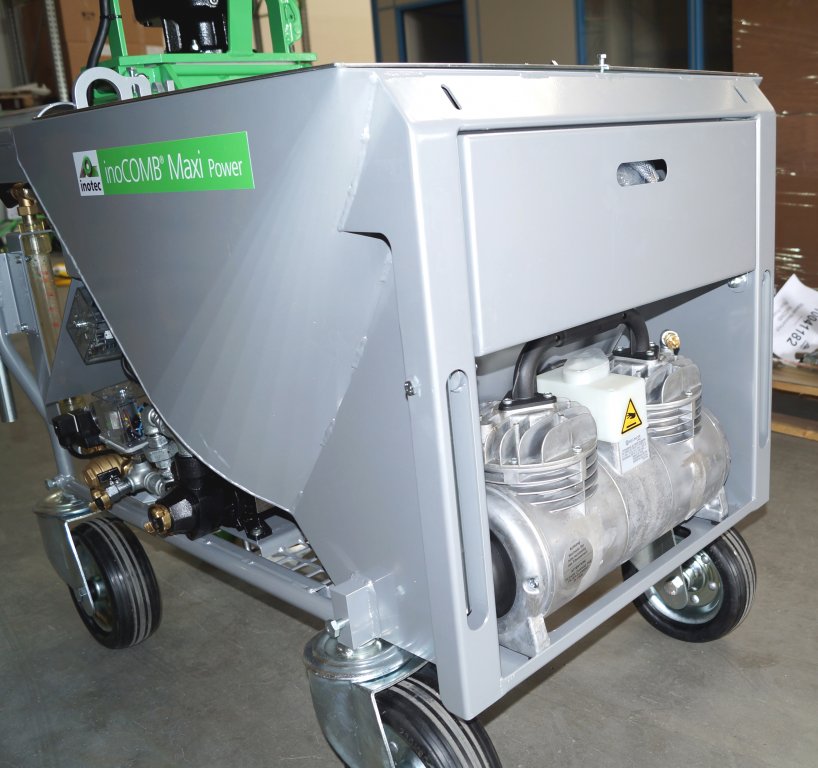

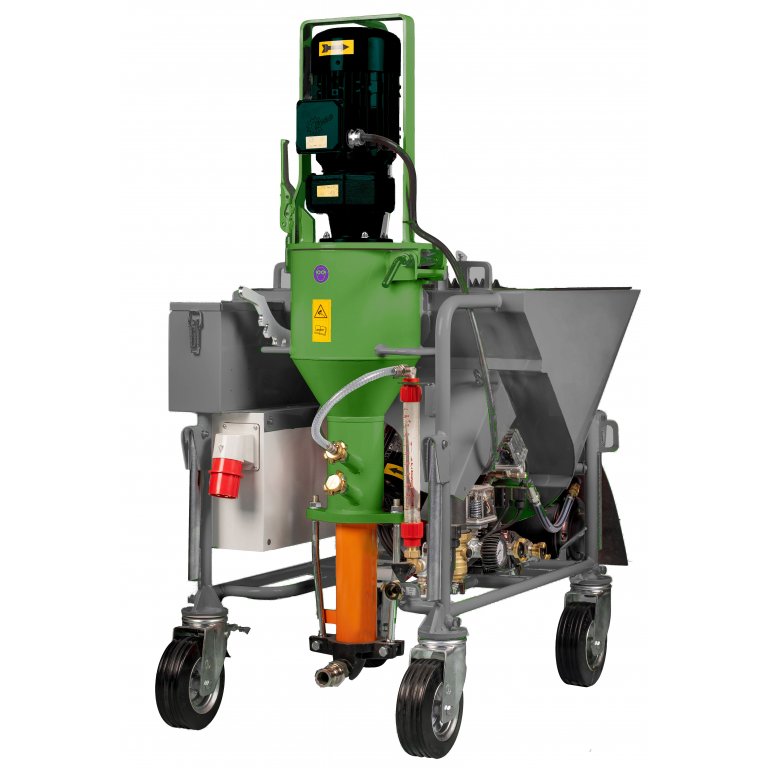

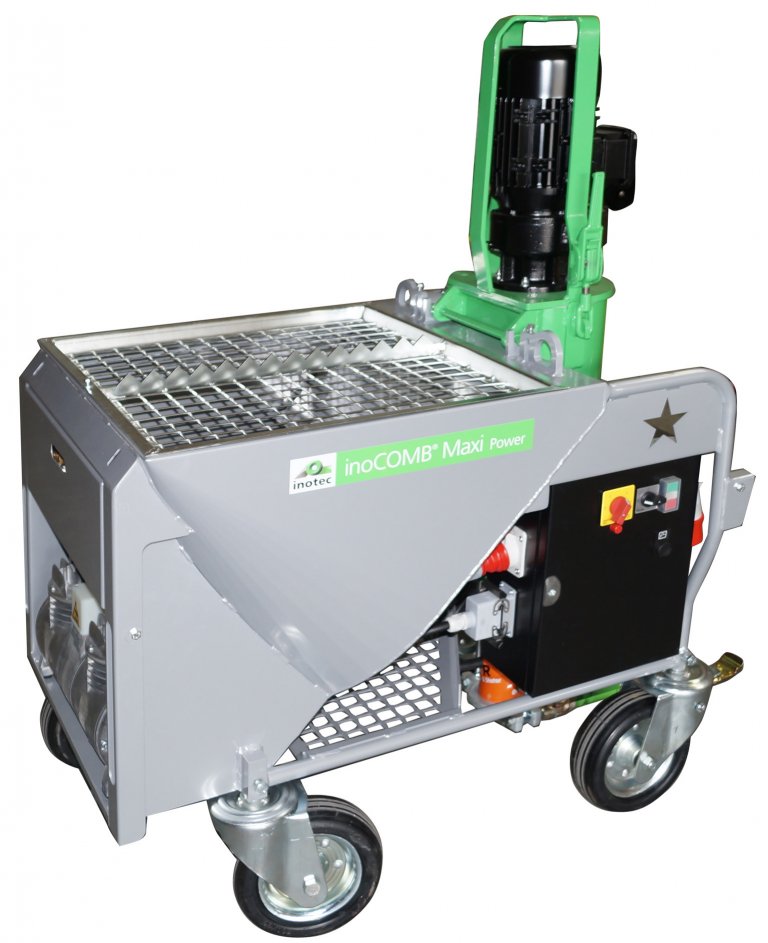

The inoCOMB Maxi Power is a powerful 400 V mixing pump and the classic among mixing pumps!
It can be used for a wide variety of indoor and outdoor applications, as well as for restoration and renovation work, and can be operated with both D and R stators without major modification. Sophisticated engineering, careful workmanship and long-standing proven components create a premium quality that meets building site requirements.
Alternative Machines
| Operating pressure | bar | up to 30 |
| Operating voltage | V/Hz/A | 400 / 50 / 32 |
| Drive performance | kW | 5,5 |
| Delivery rate (depending on the material) | l/min | max. ca. 8 - 50 |
| Conveying distance (depending on the material) | m | max. 50 |
| Pressure height (depending on the material) | m | max. 30 |
| Grain size | mm | max. 6 |
| Material container | l | 130 |
| Filling | mm | approx. 940 |
| Machine technique | Mixing pumps | |
| Dimensions (L x W x H) | mm | 1050 x 720 x 1530 |
| Weight | kg | approx. 250 |
inoCOMB Maxi Power | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Concrete bonder | |
| Decorative fine coats | |
| ETICS glue, mineral | |
| ETICS glue, paste-like | |
| Fine acoustic finishing coats | |
| Fire protection mortar | |
| Floating screeds | |

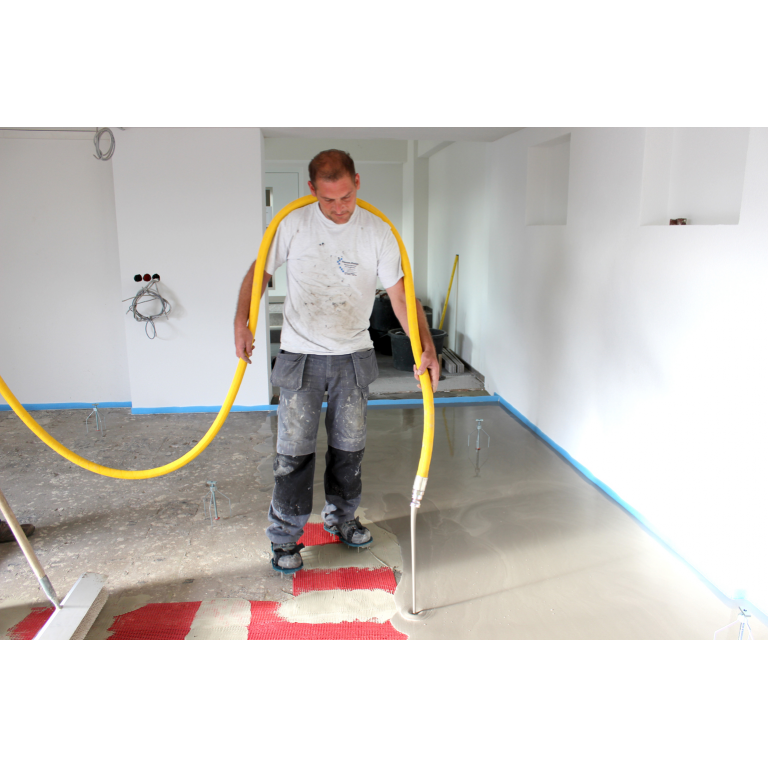

| Floor spattling compounds | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Liquid woodchip | |
| Machine-applied gypsum plasters for indoor applications | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| Paste-like textured plasters | |
| PCC- and SPCC-mortar / filler | |
| Porous concrete coats | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Spray-on spattling compounds |
Ready-to-spray set
Item no. 10044216
Scope of delivery
inoCOMB Maxi Power set:
- Frame, strengthened construction
- 4 running wheels

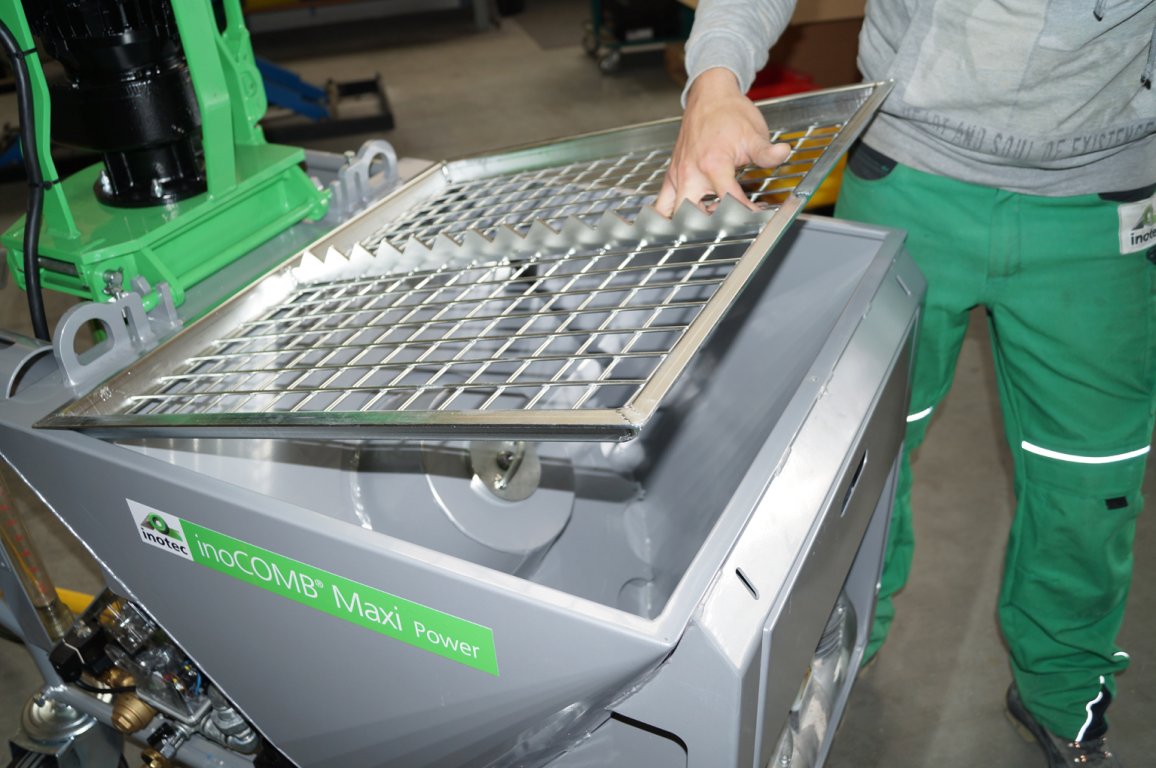

- Material hopper
- Gear motor (with reinforced axial bearing)

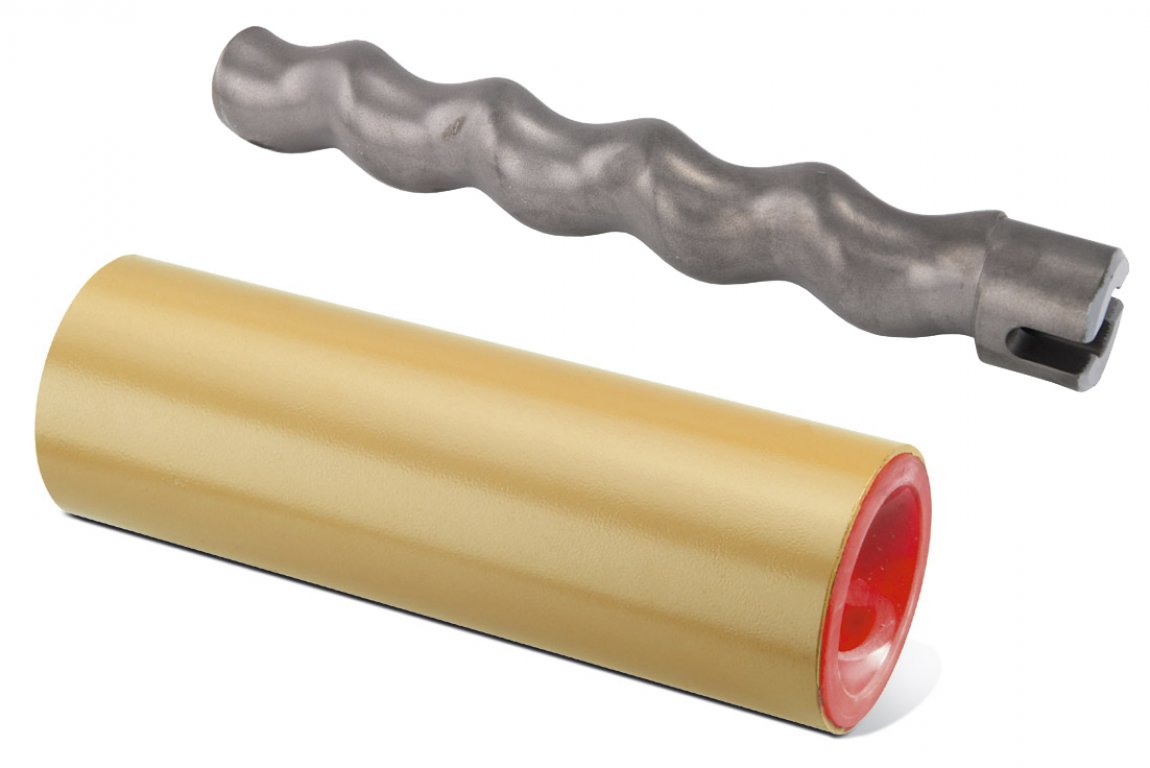

- Rotor/stator D 6-3

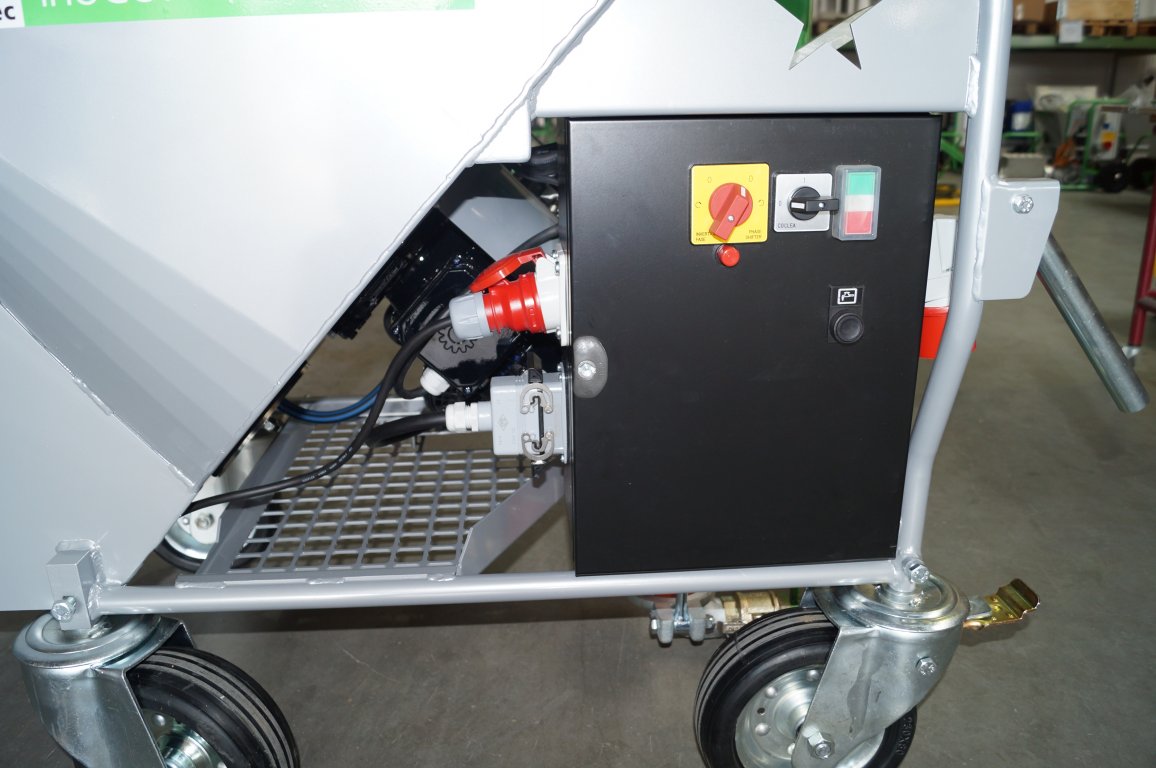

- Switching cabinet
- Mortar pressure gauge
- Compressor
- Mixing coil
- Water fitting
- Water pump
- 10 m mortar hose with a diameter of 25 mm
- 15 m air hose with a diameter of ½”
- Tool set
- Straight finishing coat device incl. nozzle with a diameter of 14 mm
- Assembly spray lubricant
- Operating instructions

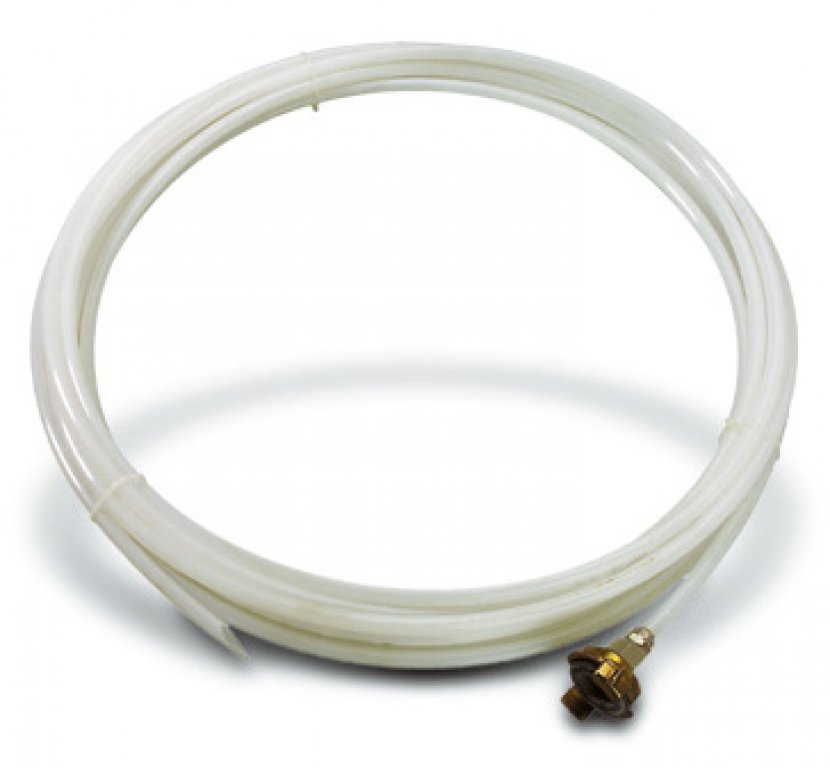

Ultralight hose
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
INOTEC mortar hose
- Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
- For an operating pressure of 40 bar with 3 times the reliability
- Yellow on the outside at Ø 35 mm
- Black on the outside at Ø 40 and Ø 50 mm
- With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
- With cam levers on the M-piece
| Technical data: | |
| Operating pressure: | 40 bar |
| Bursting pressure: | 120 bar |
Flushing hose
- For clearing blockages in mortar hoses

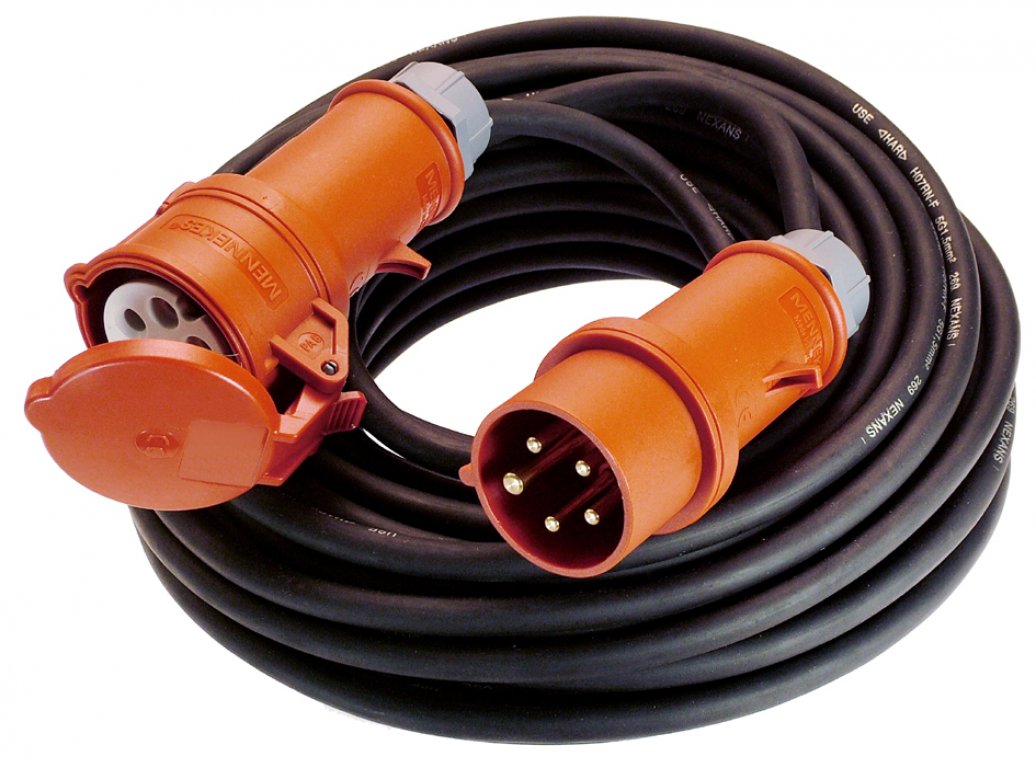

400 V / 5 x 4 mm² extension cable
- 32 A plug and coupling
Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST
Remote control cable with remote control switch
Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Plastic hose connector with V Part 35
- Ø 35 mm
- Length: 0,3 m

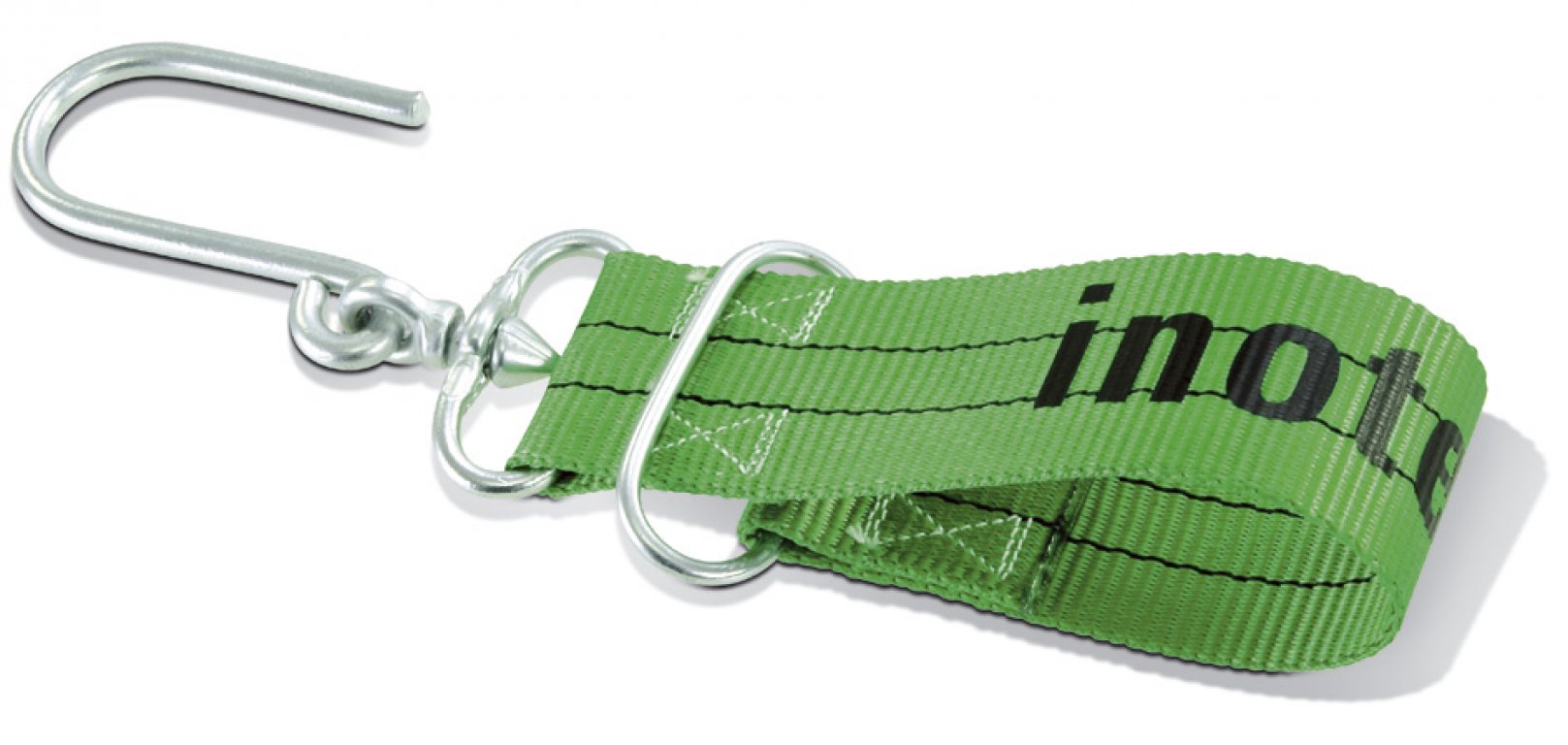

Hose holder
- For rapidly fixing hoses to the scaffold

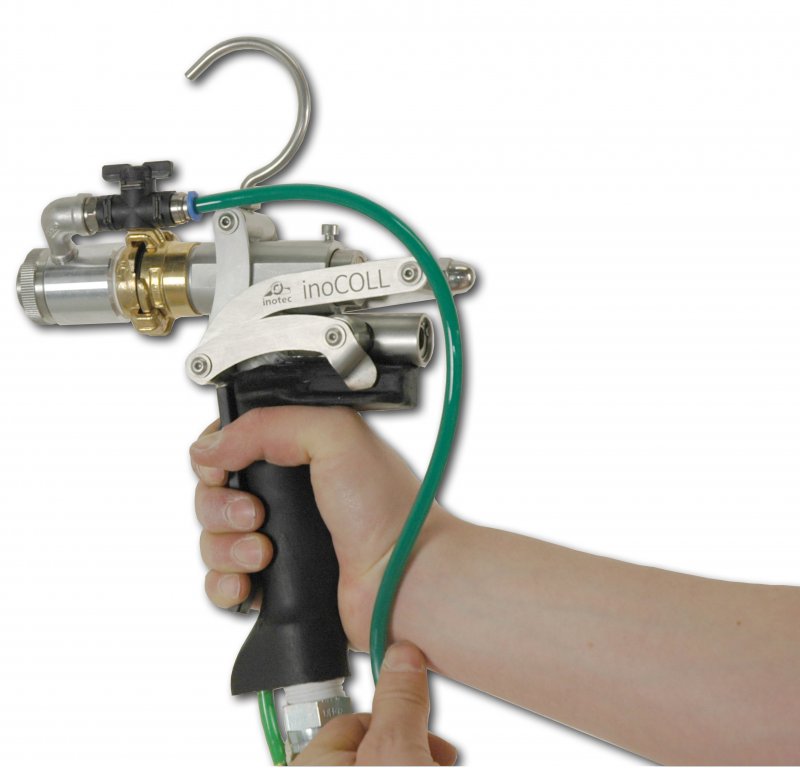

inoCOLL one-handed gun
- For bonding and basecoat mortars
- 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
- For grit sizes up to 1.5 mm
inoCOLL PRO one-handed gun with mortar coupling
- For bonding and basecoat mortars
- For particle sizes up to 4.0 mm
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle

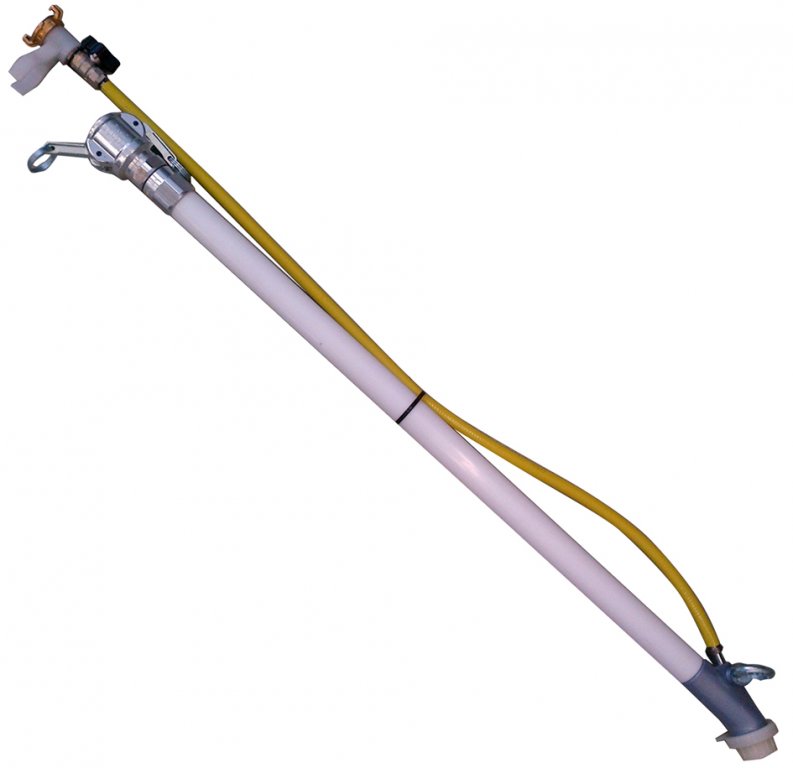

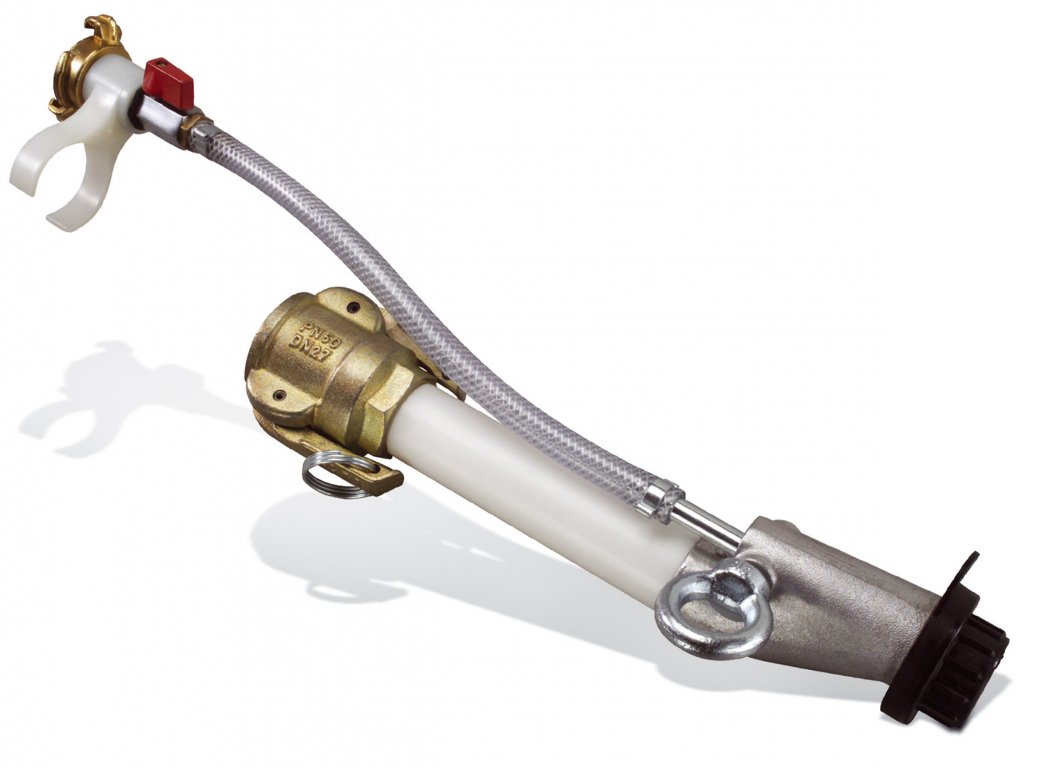

Short spray pipe with mortar coupling 25 mm
Short, lightweight spray pipe with L24 coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (air flow rate from 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.
- For particle sizes up to 3 mm
- Suitable for a 25 mm mortar hose
- Only in conjunction with remote control cable
Scope of delivery:

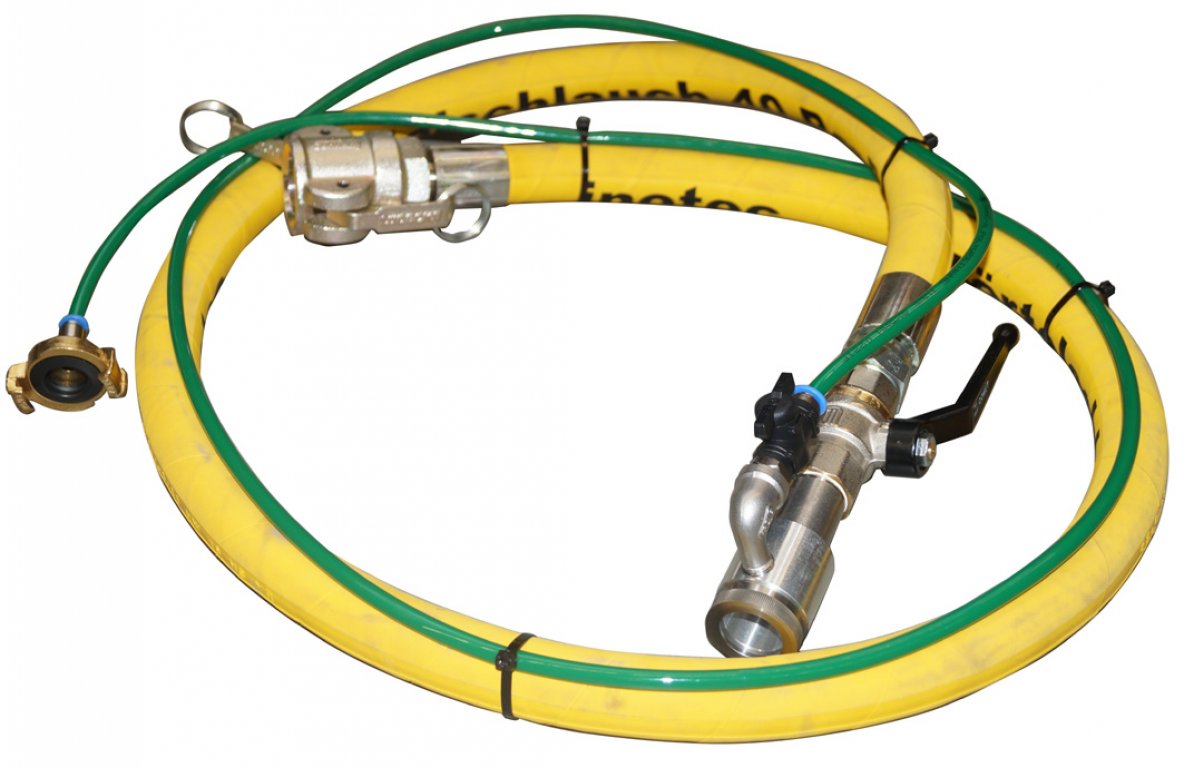

Short spray pipe with 2 m whip hose (Ø 19 mm), with mortar coupling 25 mm and 2 m air hose with GEKA coupling, without nozzles

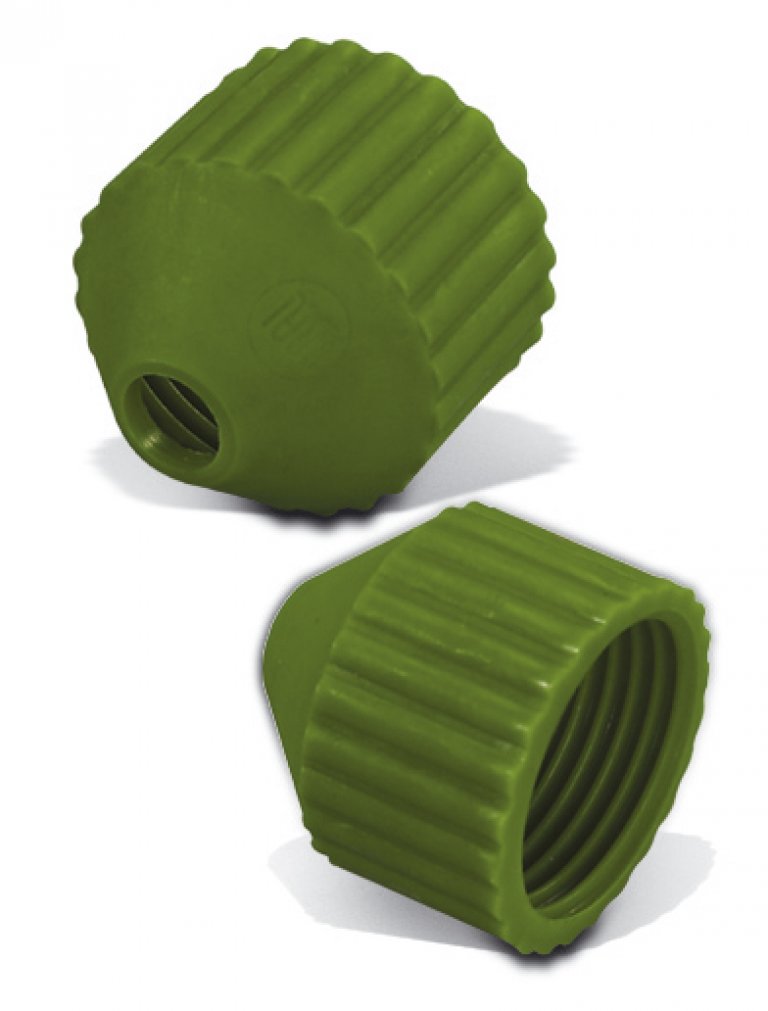

Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel
MAI finishing coat device, straight
- With 25 mm M-piece coupling
- Including a 14 mm jet nozzle

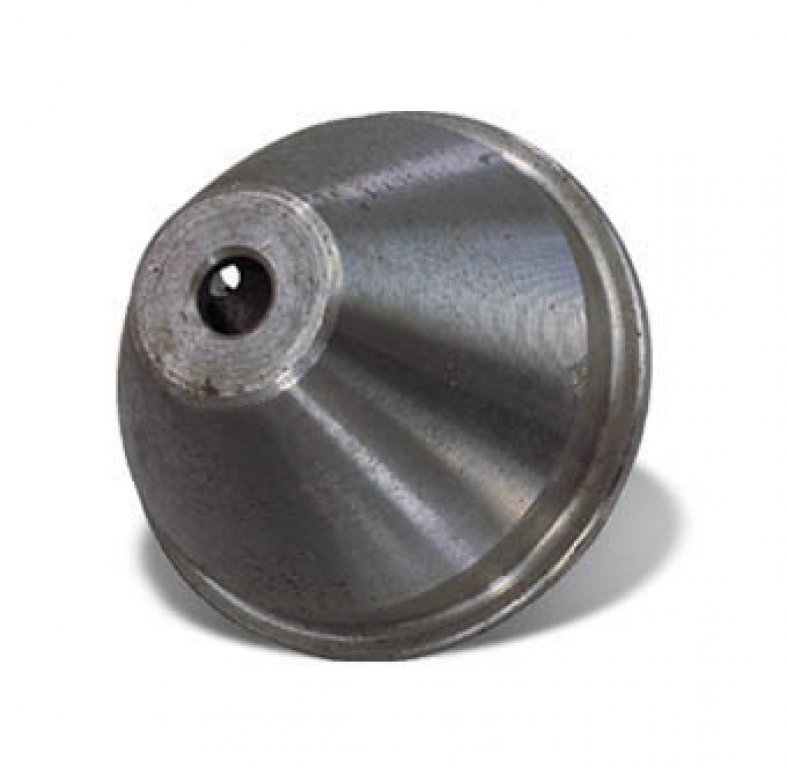

Jet nozzle
- For MAI finishing coat device
Straight finishing coat device
- With 25 mm M-piece coupling
- Incl. a 14 mm finishing coat nozzle

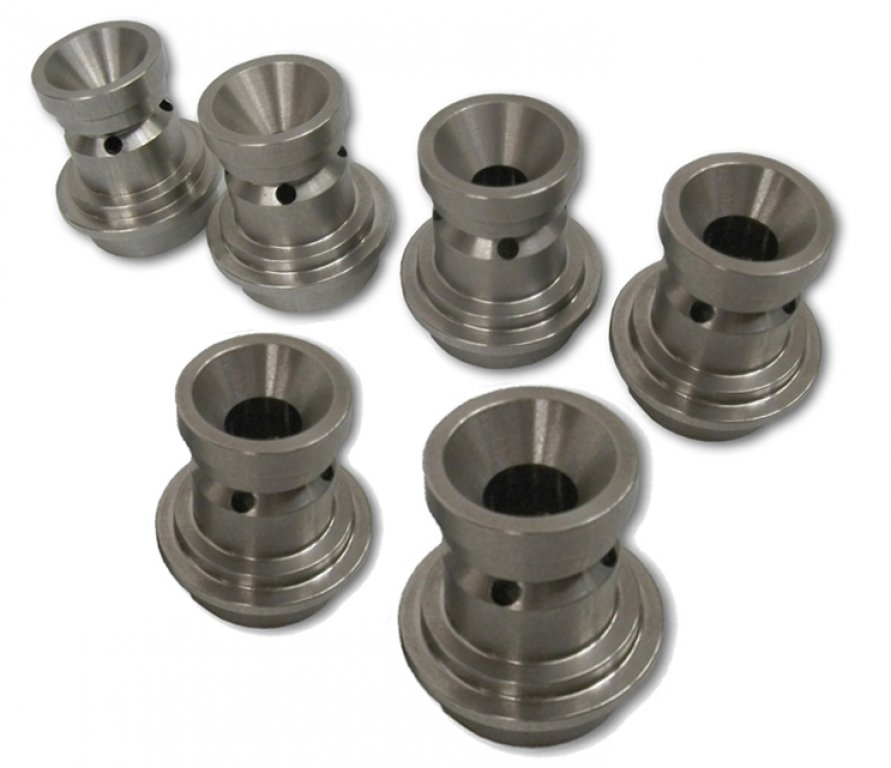

Finishing coat nozzles
- For finishing coat devices, item nos.:
10024098 / 10024099
Straight decorative plaster spraying device
- Not including nozzle with 25 mm M-piece coupling
- For grit sizes up to 6.0 mm
- Only in conjunction with remote control cable
Nozzle for straight decorative plaster spraying device
- Made from stainless steel
Finishing coat device, long design
- With offset tip
- Including a 12 mm nozzle
Static mixer
- Prevents / destroys node in mortar
- Diameter: 35 mm
- Length:200 mm
- incl. Coupling M-piece 35 mm and V-piece 35 mm

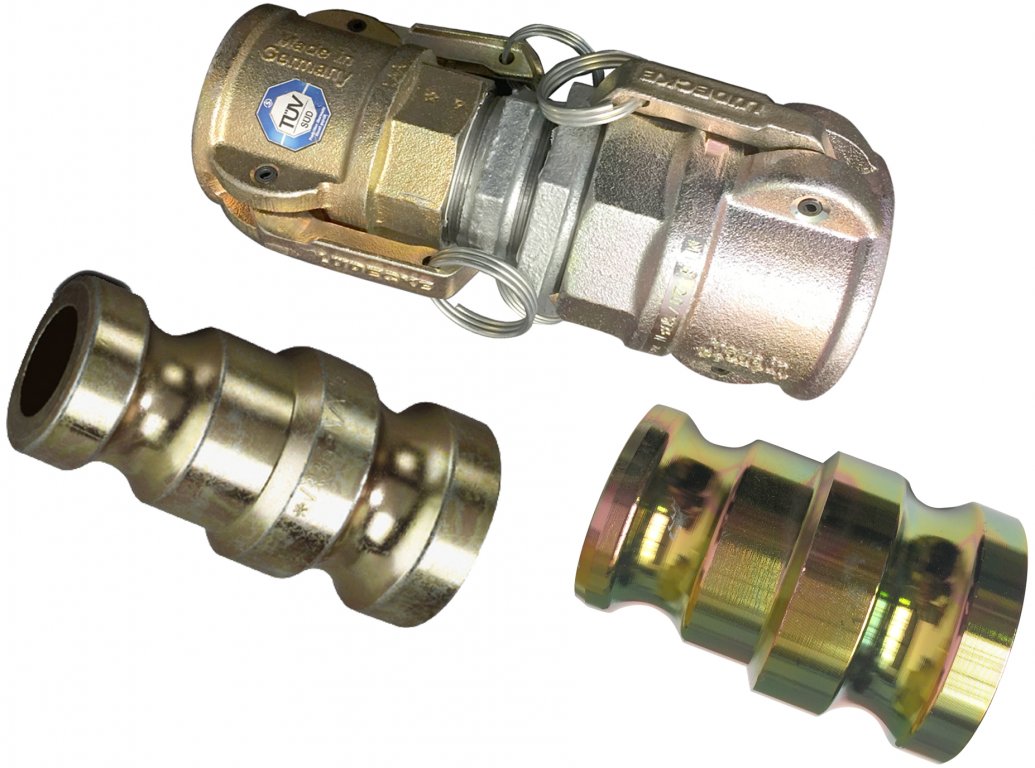

Coupling reducer
- For connecting two mortar hoses or reducing the machine outlet.
Plaster piece for cleaning mortar hoses
Sponge balls (soft version)
- For cleaning material / mortar hoses
Sponge balls (solid version)
- For cleaningmaterial / mortar hoses

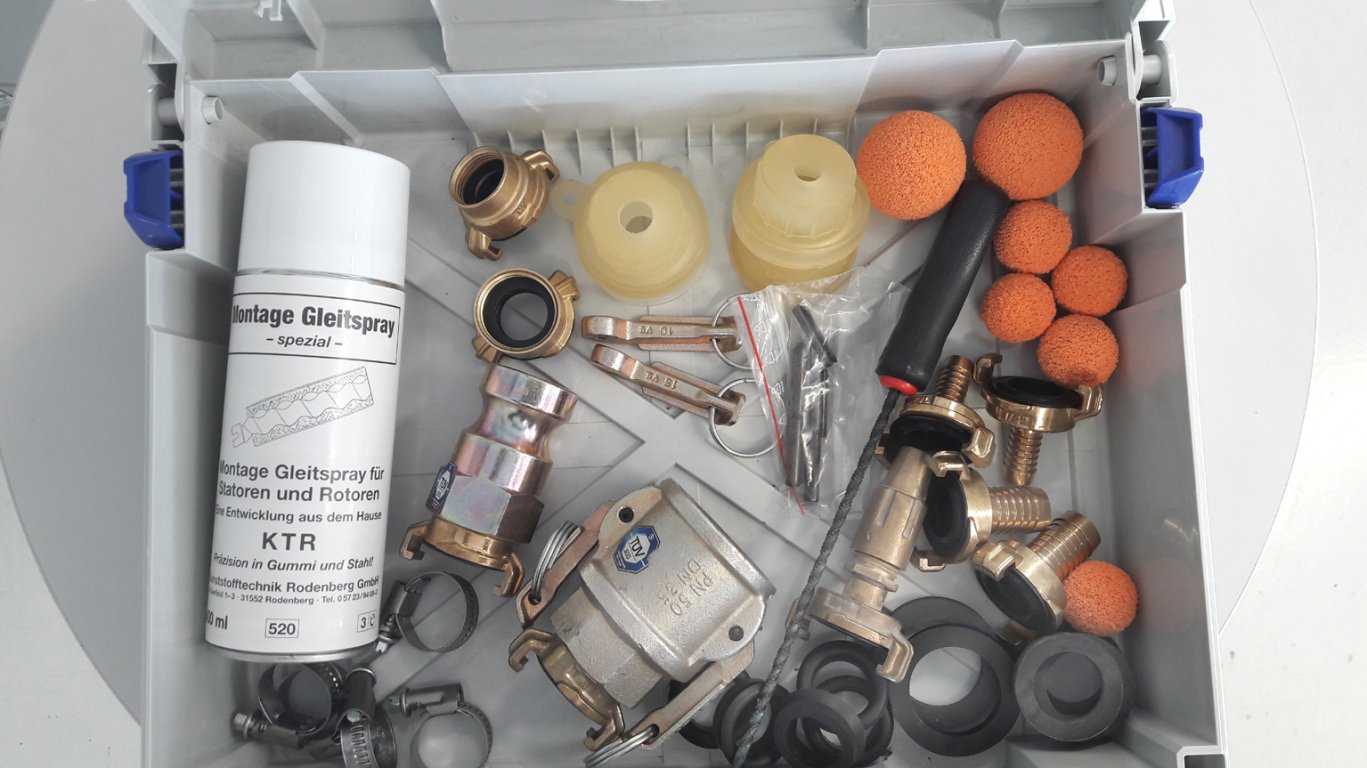

First aid set for plastering machines in the systainer
Scope of delivery:
Sealing systems for coupling (5 x 25 mm & 2 x 35 mm), fine plaster nozzles (each 2 x 12 mm & 14 mm), 5 x Geka sealing system with beaded edging (1 x 1” IT, 2 x 1/2” nozzle, 1 x 3/4” IT, 2 x 3/4” nozzle), 1 x Geka 1/2” injection nozzle, 1 x special assembly lubricant spray (400 ml can), 2 x cam levers with lock ring, plaster piece (each 1 x 25 V part & 35 M part with Geka coupling), 2 x combination wrenches (19 mm), hose clamps (each 5 x 1/2” & 3/4” clamping range), 1 x screwdriver for slotted screws, sponge balls (5 x 30 & 2 x 45 mm RG250), 5 x clamping sleeves (6 x 30), 1 x pin punch (5 mm), 1 x keyhole saw (5 mm).
INOTEC compressor (black) compact C 330 PP, 230 V including pressure switch
The compact 230 V compressor (also as an auxiliary compresso) is excellently suited to a multitude of applications, such as spraying decorative coats, plasters, etc.
Technical data:
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | ca. 32 kg |

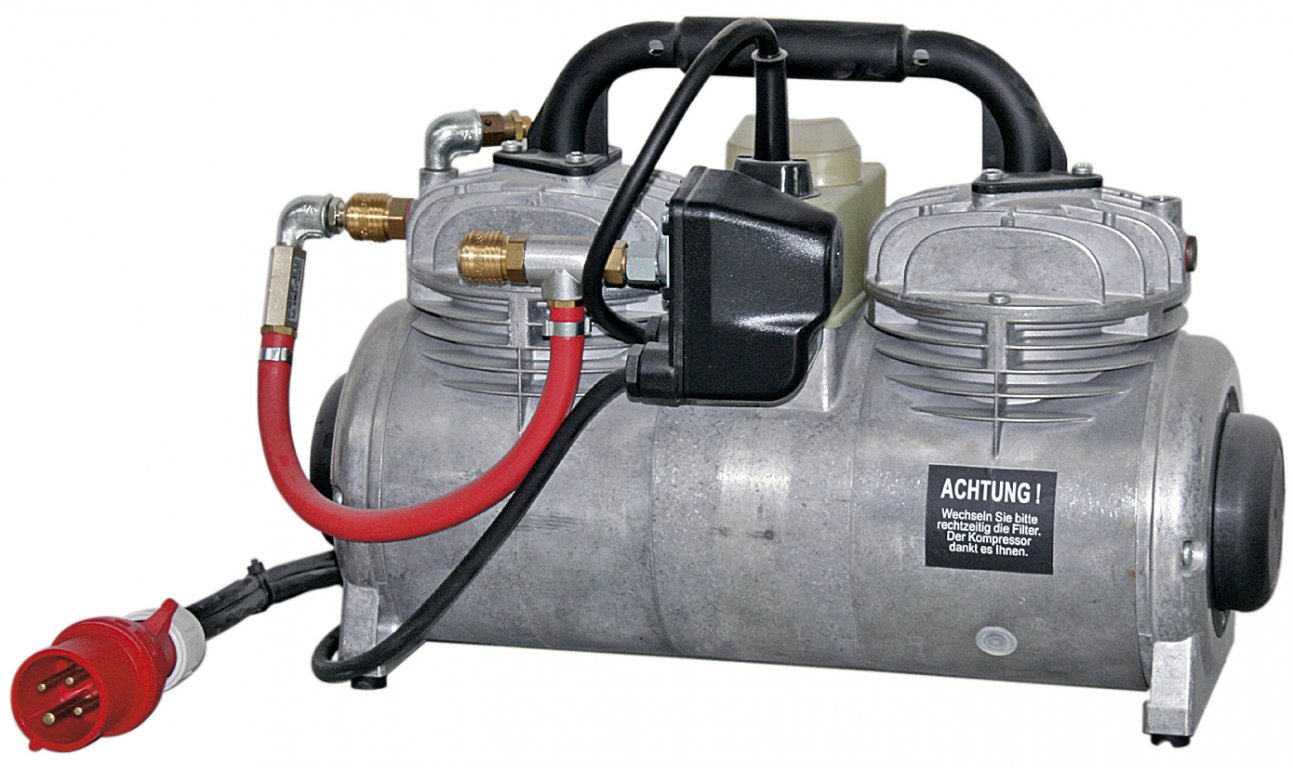

Handy K2 compressor, 400 V including pressure switch
Mobile, universal use diaphragm compressor for the production of oil-free compressed air. Used in many mixing pumps due to its low maintenance and compact design, e.g. inoCOMB M4G.
Technical data:
| Operating pressure: | 5.5 bar |
| Suction capacity: | 250 l/min |
| Output: | 0.9 kW |
| Operating voltage: | 400 V |
| Dimensions (L x W x H): | 495 x 165 x 340 mm |
| Weight: | 23.5 kg |
KAESER 230 V Compressor Premium Car 450/30W
The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.
Technical data:
| Operating pressure: | 10 bar | |
| Suction capacity: | 450 l/min | |
| Output: | 2,2 kW | |
| Dimensions (L x W x H): | 870 x 560 x 590 mm | |
| Weight: | 86 kg |

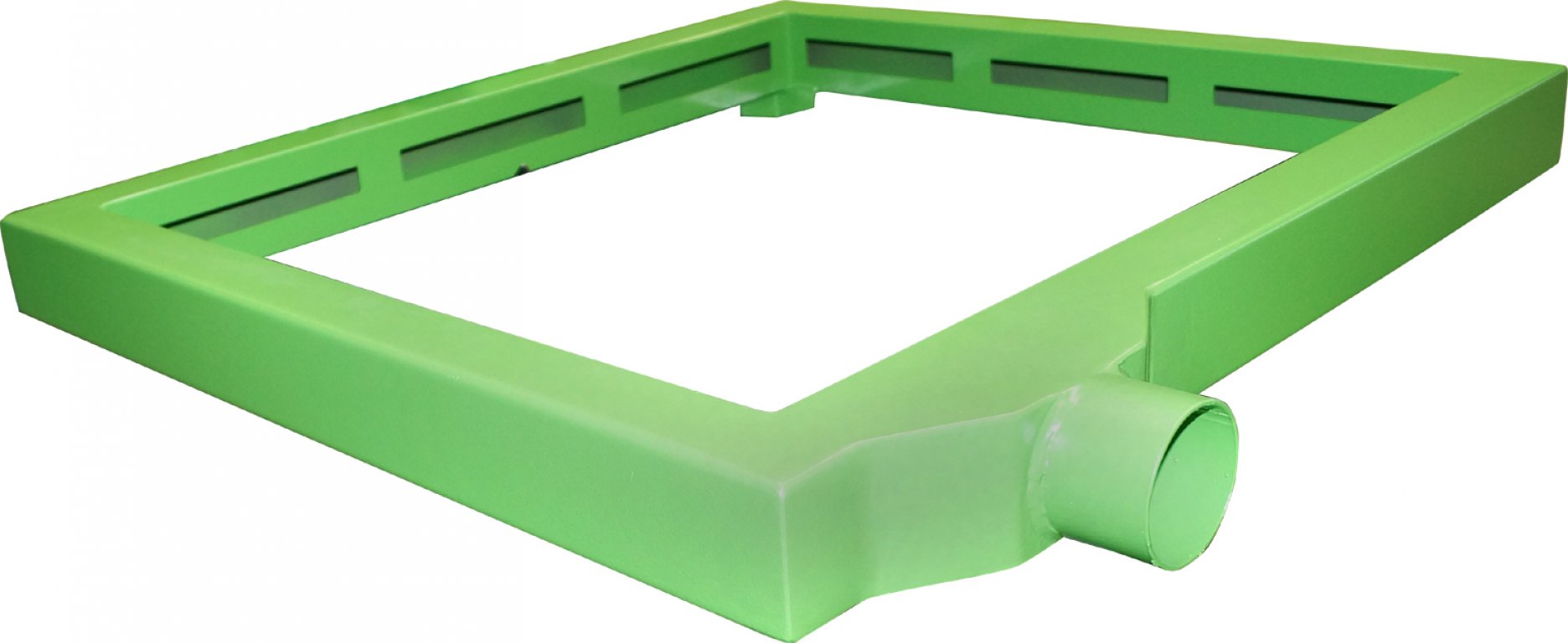

inoCOMB Maxi Power / G4 injection hood
consisting of:
- Injection hood
- Rotor sensor
- 50 m control cable for rotor sensor

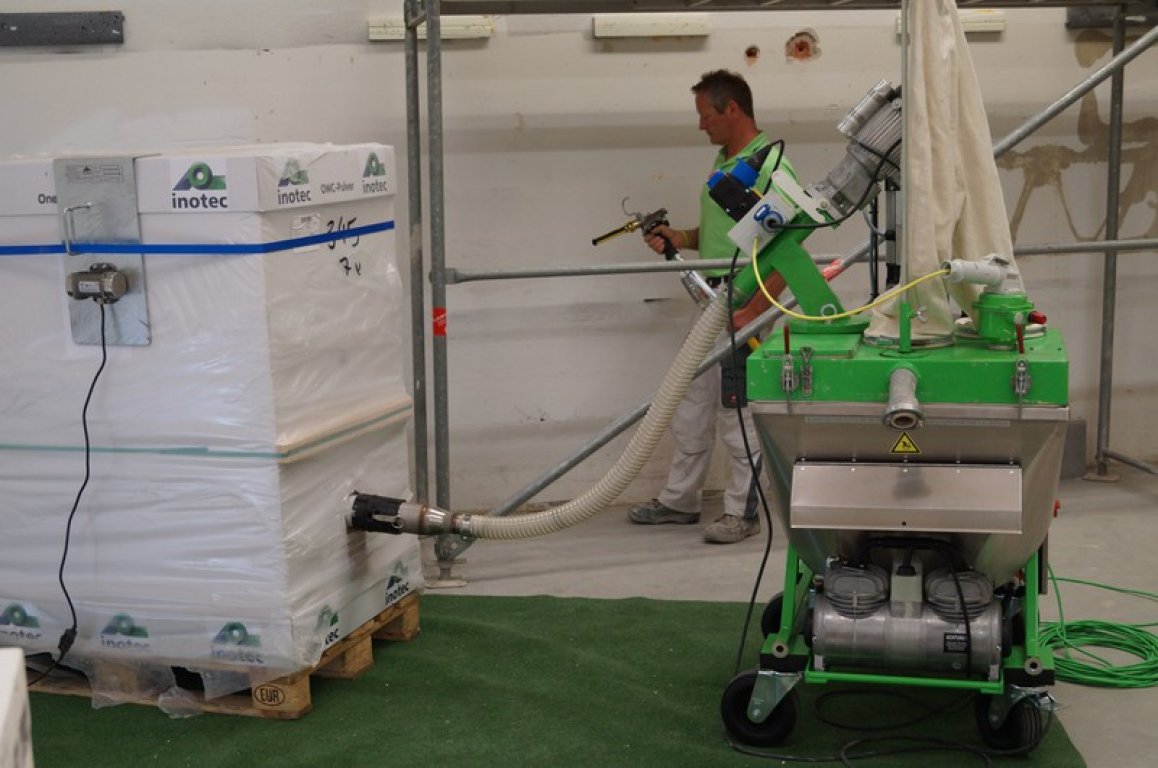

Mobile delivery system for inoTRANS FF 140 free-fall silos in corrosion-resistant design (galvanized & powder-coated)
| Technical data: | |
| Operating voltage: | 400 V / 50 Hz |
| Nominal output: | 7,5 KW |
| Protection | 25 A |
| Dimensions (L x W x H): | 1.220 x 650 x 625 mm |
| Suction capacity: | ca. 140m3/h |
| Conveying vessel volume: | 70 l |
| Dimensions: | 800 x 540 x 910 mm |
| Weight of compressor (dry rotor), frame and switching cabinet: | 208 kg |
| Weight of the conveying vessel: | 88 kg |
Scope of delivery:
Conveying system, conveying vessel (maintenance free), rotary compressor, connecting hose approx. 3 m with GEKA couplings.
The conveying vessel of the inoTRANS FF 140 mobile conveying system is docked directly to the free-fall silo with quick-release fasteners. Approximately 70 litres of material flows through the open shut-off valve into the conveying vessel, where it is mixed with air and conveyed dust-free at a force of 1.4 bar through a conveyor hose to the mixing pump. Here the material is mixed with water and then pumped on-site. A level probe in the mixing pump tank monitors the level and ensures automatic replenishment.
Areas of application:
Suitable for gypsum, lime and cement plasters

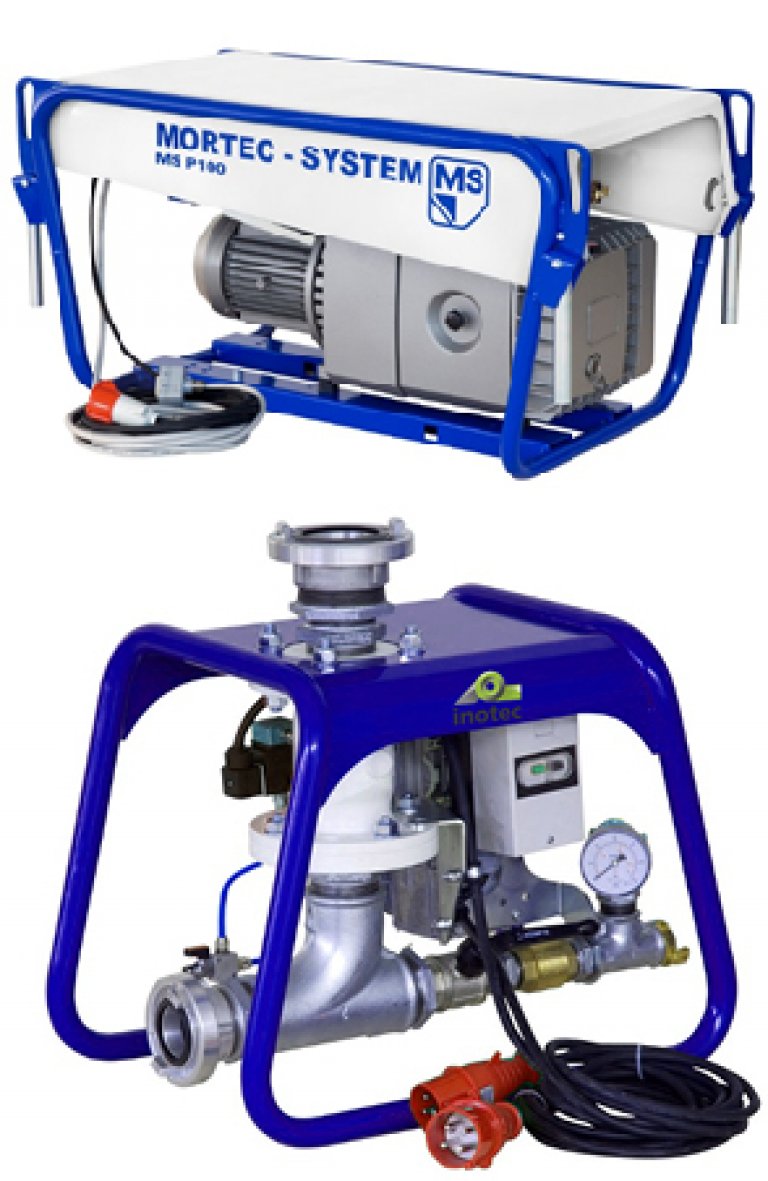

Mobile delivery system for inoTRANS P 140 pressure silos in corrosion-resistant design (galvanized & powder-coated)
| Technical data: | |
| Operating voltage: | 400 V / 50 Hz |
| Nominal output: | 7,5 kW |
| Protection: | 25 A |
| Dimensions (L x W x H): | 1.220 x 650 x 625 mm |
| Suction capacity: | ca. 140 m3/h |
| Weight of compressor (dry rotor, oil-free with additional air filter), frame and switching cabinet: | 198 kg |
| Weight of the conveyor block: | 28 kg |
| Conveyor block dimensions (L x W x H): | 520 x 360 x 460 mm |
Scope of delivery:
Delivery system, conveyor block, rotary compressor, 7 m control cable, 3 m silo connection hose (with GEKA couplings), 3 m conveyor block connection hose (with GEKA couplings).
The conveyor block of the inoTRANS P 140 mobile conveyor system is docked to the pressure silo outlet with standard couplings. The rotary compressor supplies the pressure silo with 1.8 bar operating pressure, which guarantees a continuous material discharge. The dry material is conveyed through a gypsum delivery hose to the mixing pump with a force of 1.2 bar. Here the material is mixed with water and then pumped on-site. A level probe in the mixing pump tank monitors the level and ensures automatic replenishment.
Areas of application:
Suitable for long delivery ranges up to 120 m and materials that are difficult to convey
On request: INOTEC gypsum delivery hose
- Complete with C couplings
For delivering dry mortar from the silo to the plastering machine via the delivery system. Abrasion-resistant, flexible at low temperatures, for a BP of 10 bar. Featuring C couplings with special grommets integrated on both sides that guarantee a transition-free flow of material.
|
Technical data: |
|
|
Hose dimensions: |
42 x 7 mm |
|
Operating pressure: |
up to 10 bar |
Mixing coil
D4 ¼ output conveying screw - Head marked in black
D4-¼ output screw casing (maintenance free) - black
D4 ½ output conveying screw - Head marked in green
D4-½ conveying screw with tappets for after-mixers
(applies only to D4-½ screw coating with clamping strip art. no. 10022501)
- Head tipped in green

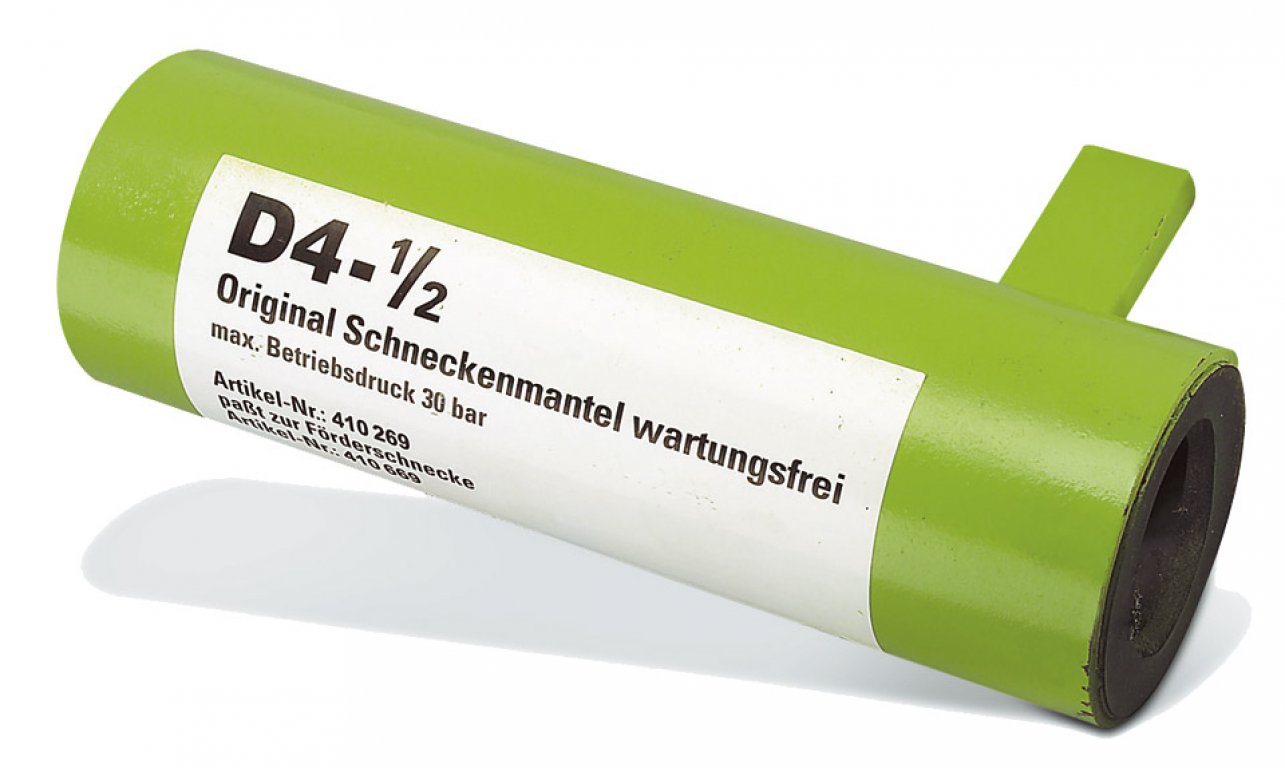

D4 ½ output screw casing (maintenance free) - green

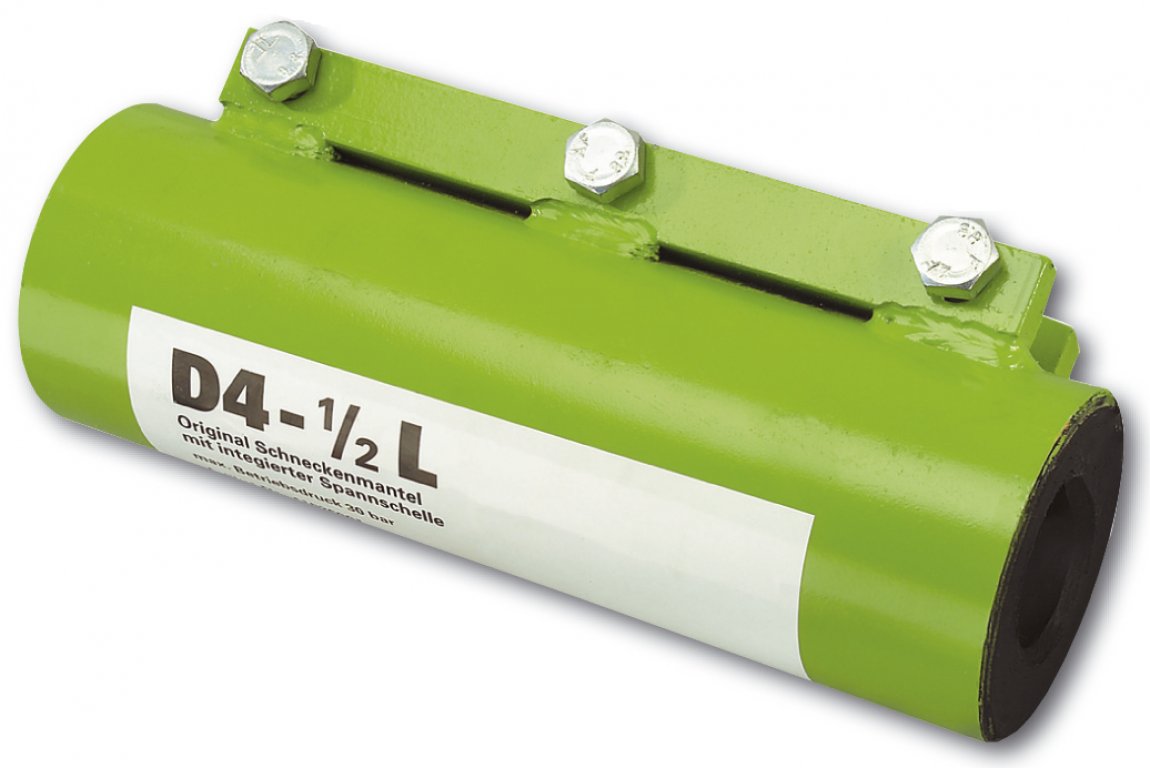

D4-½ output screw casing with clamping strip

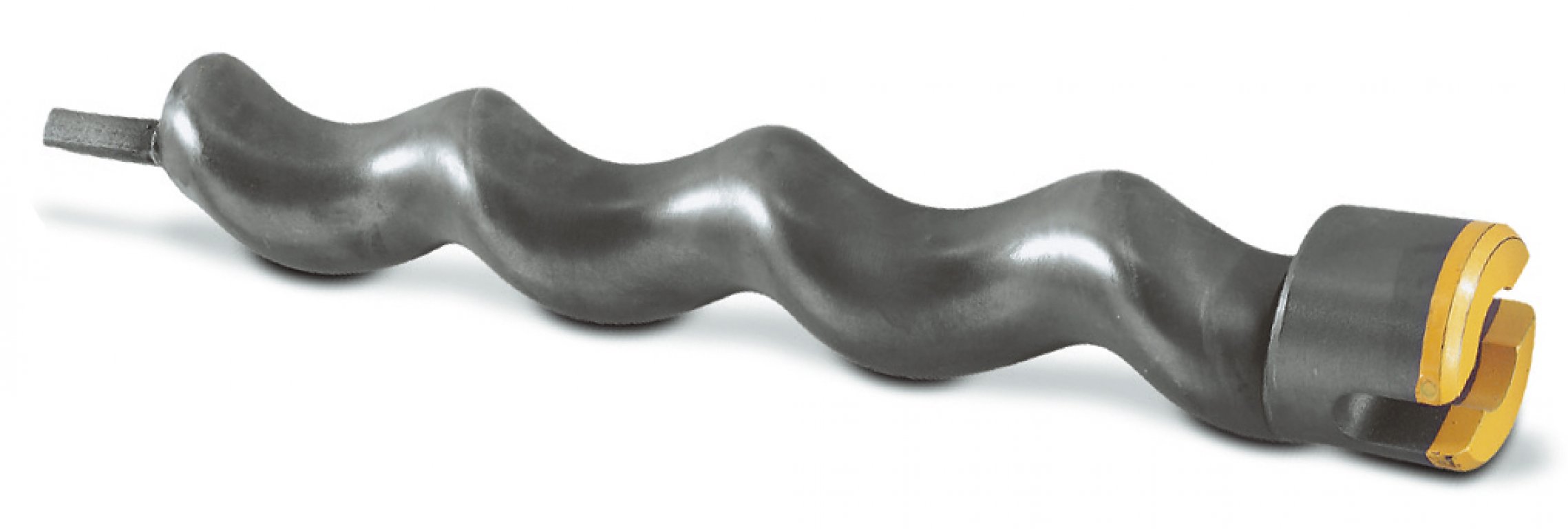

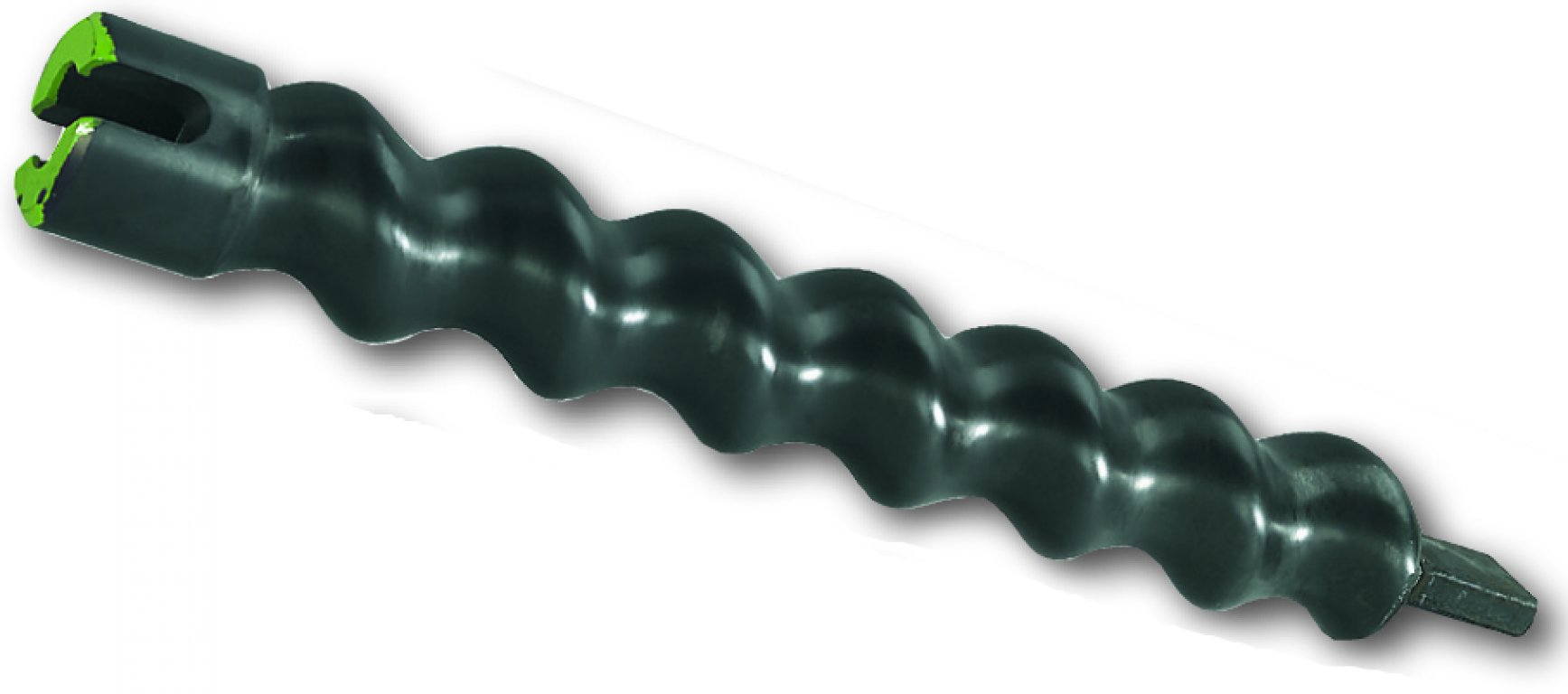

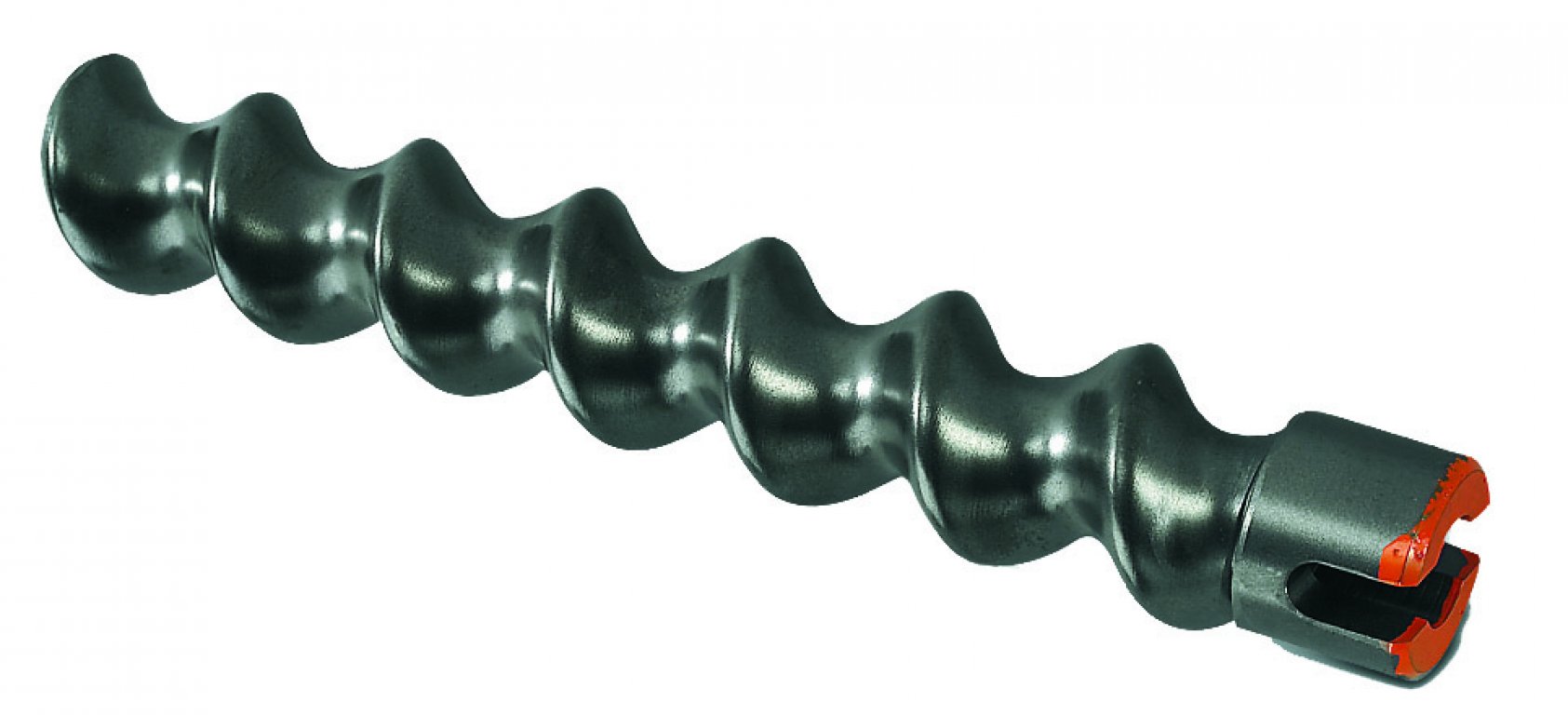

D6-3 C45 conveying screw

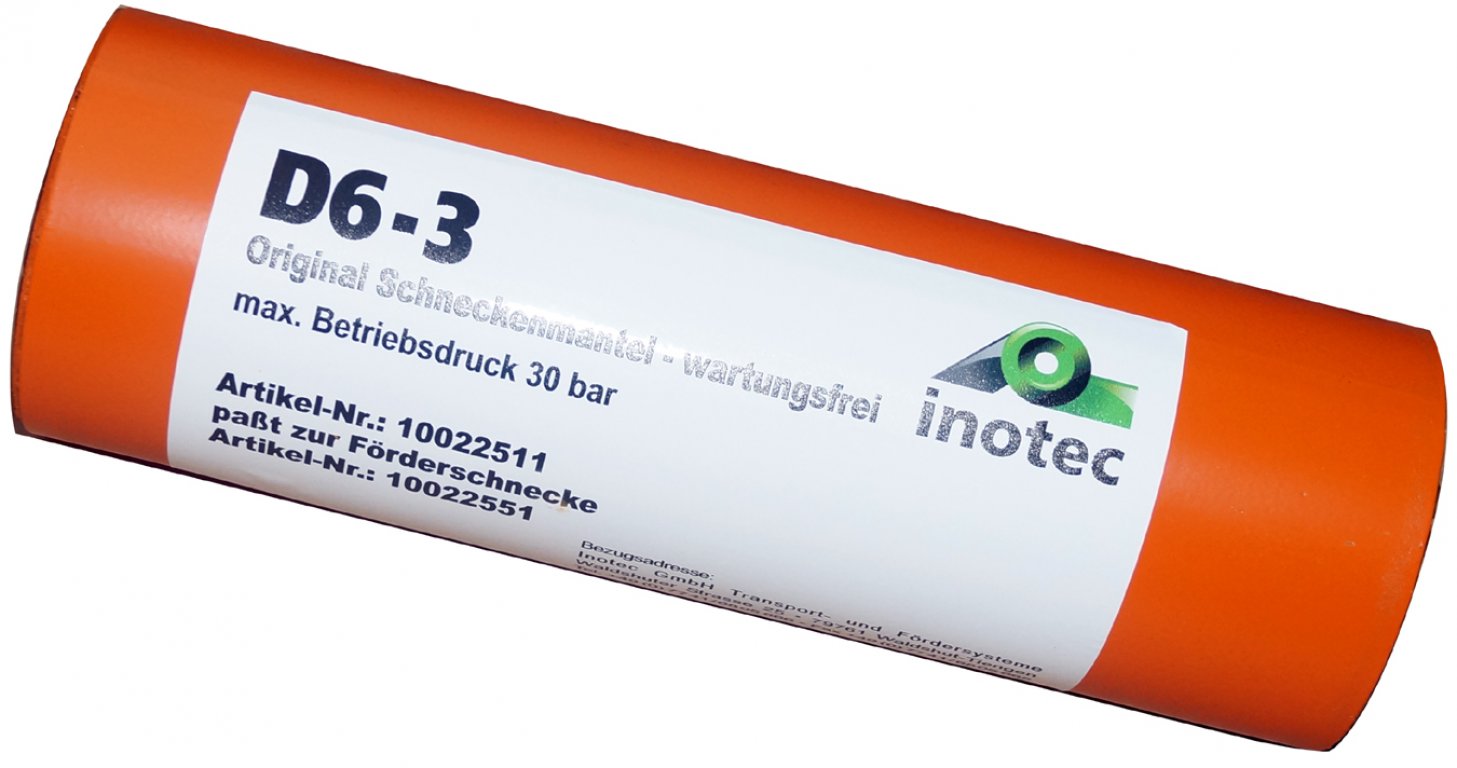

D6-3 screw casting (maintenance free)

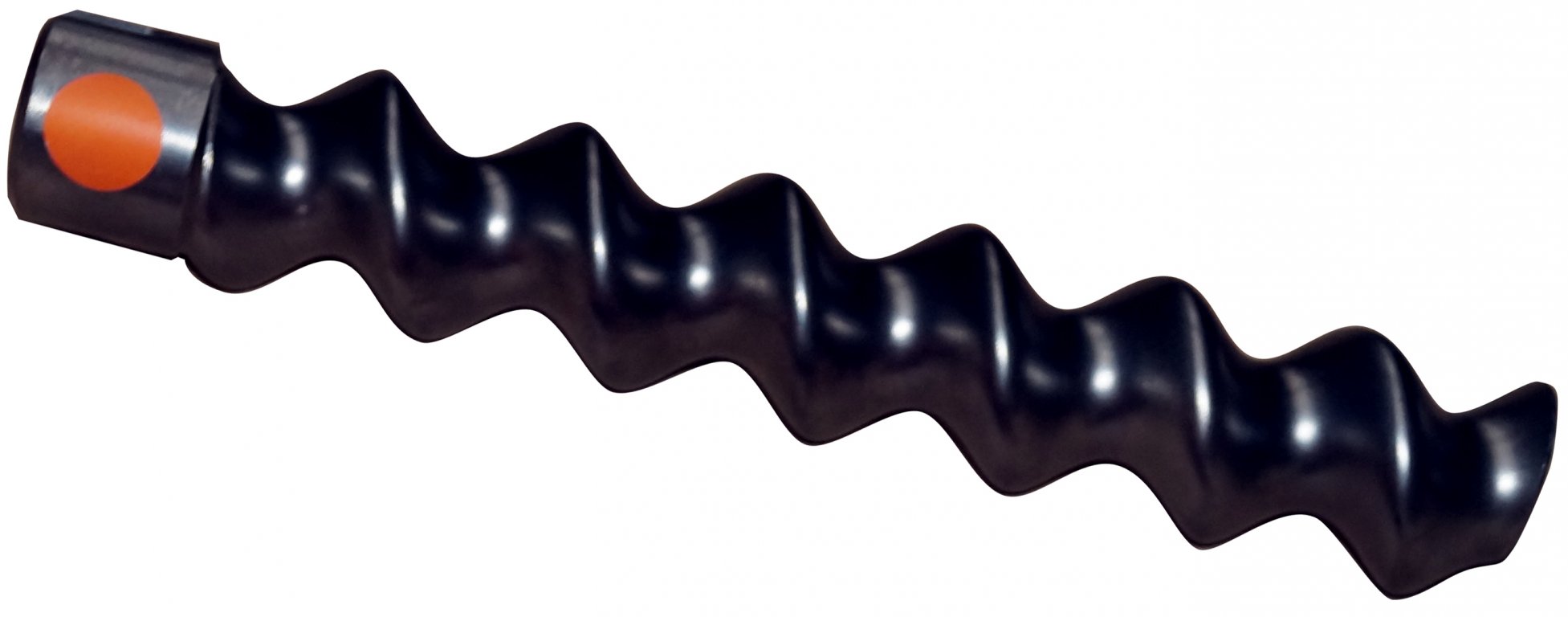

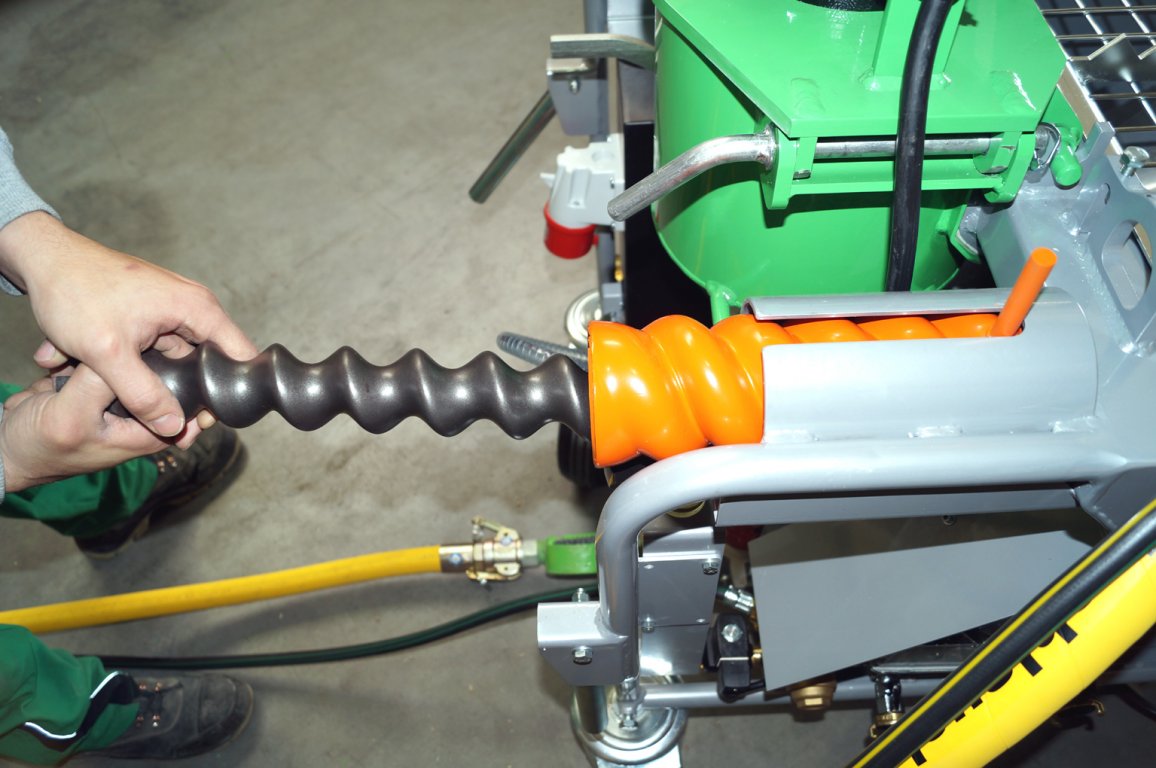

D6-3 Helix conveying screw
- Tip marked in orange

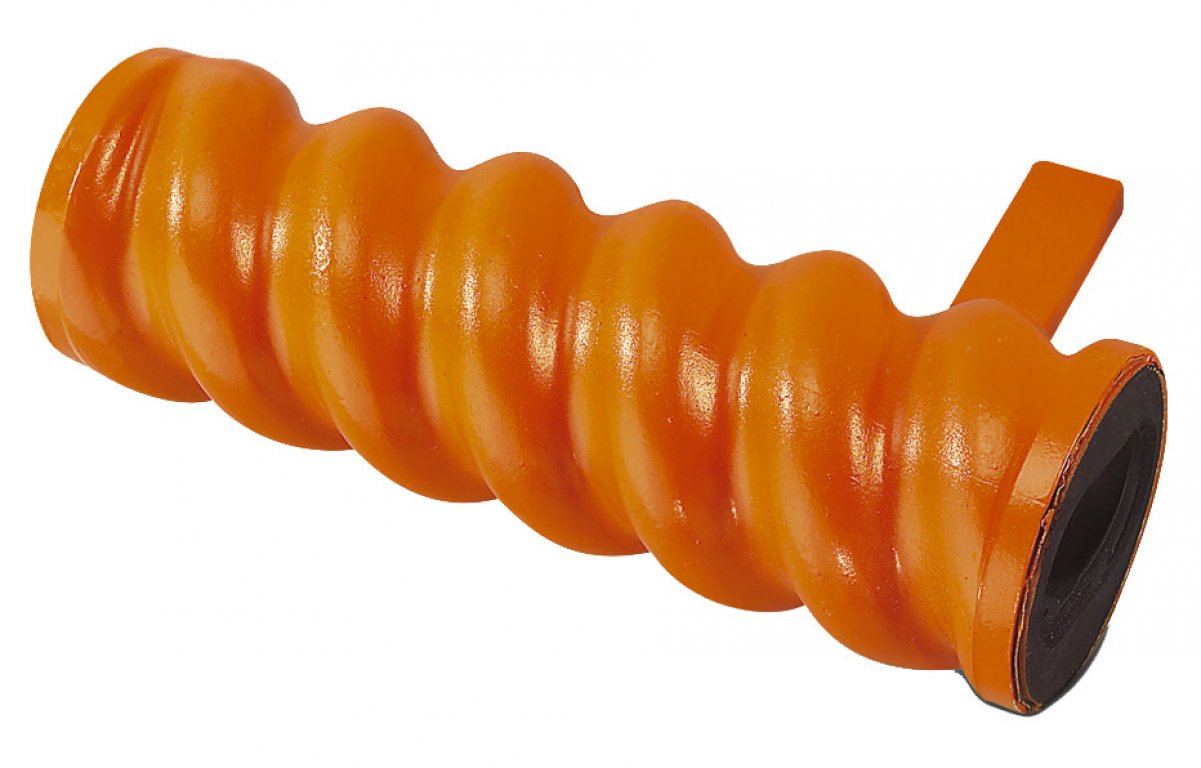

D6-3 Helix orange screw casing

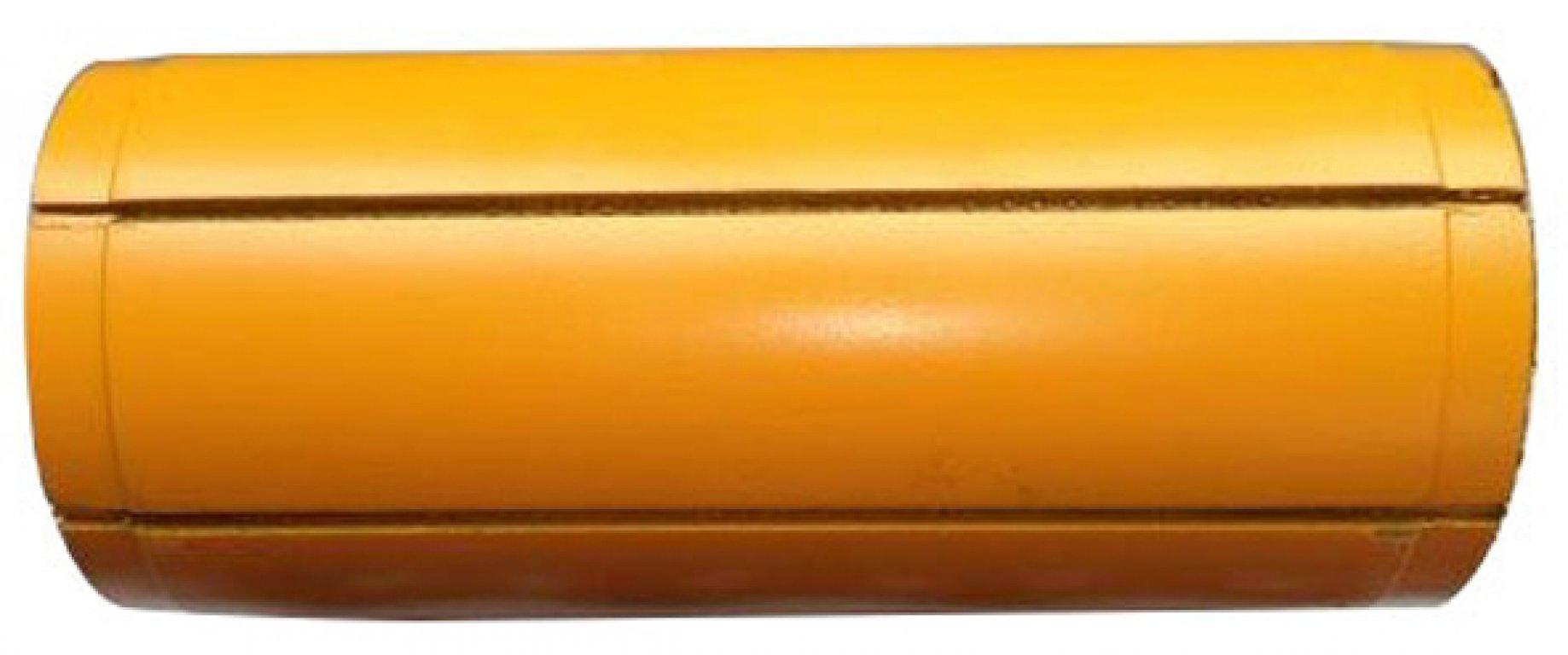

Stator R7-1.5 (maintenance-free)

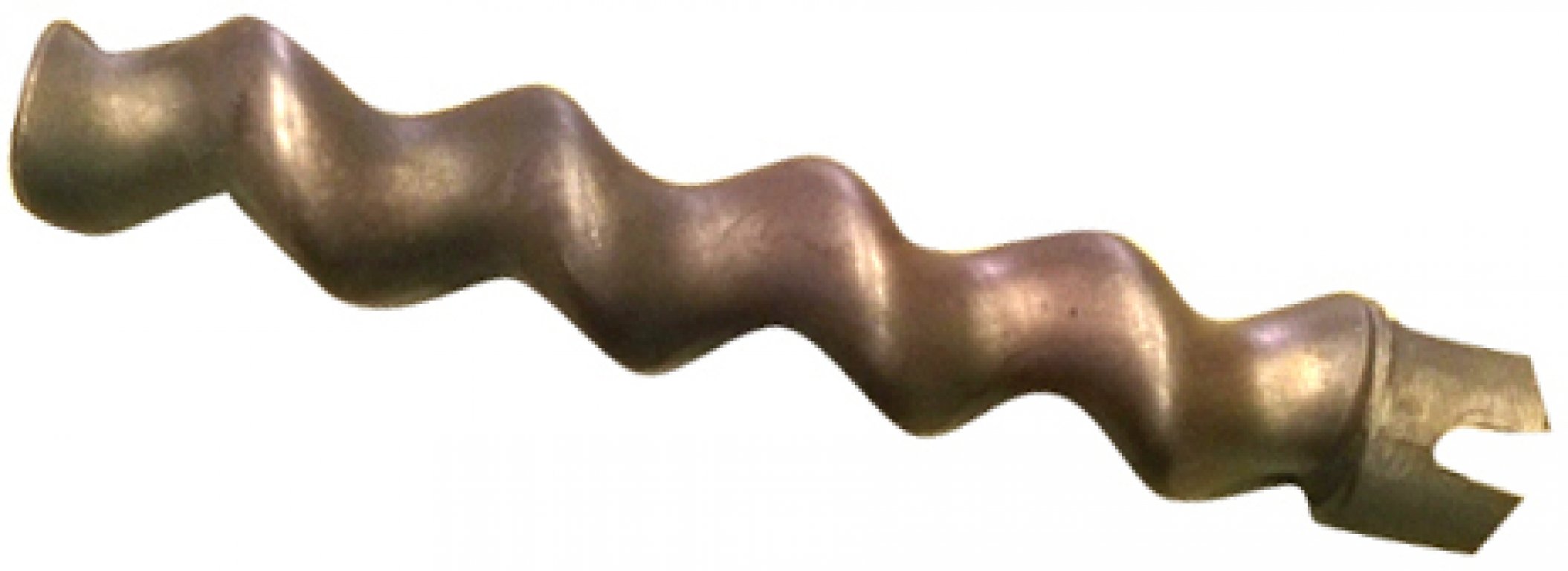

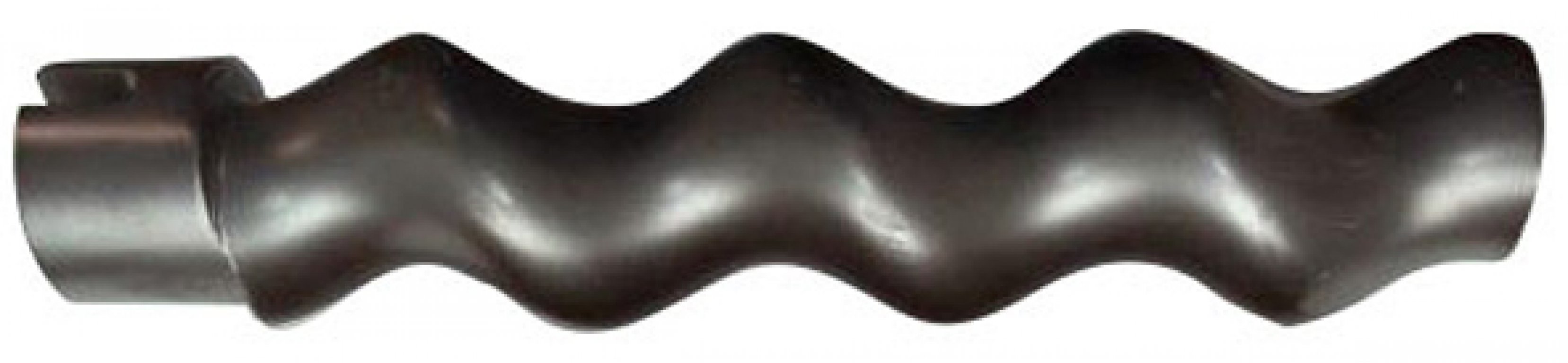

Rotor R7-1.5

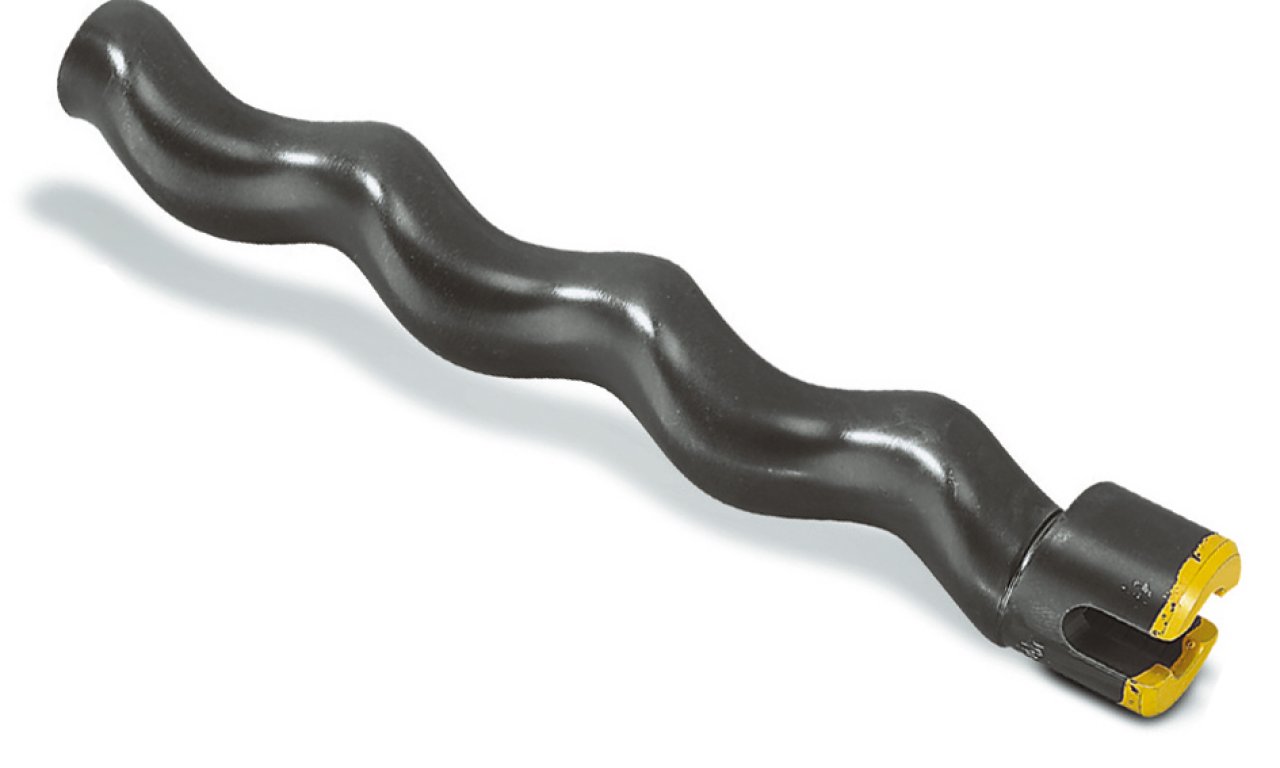

D8-1.5 conveying screw
- Tip marked in yellow
D8-1.5 conveying screw with tappet for after-mixers
- Tip marked in yellow

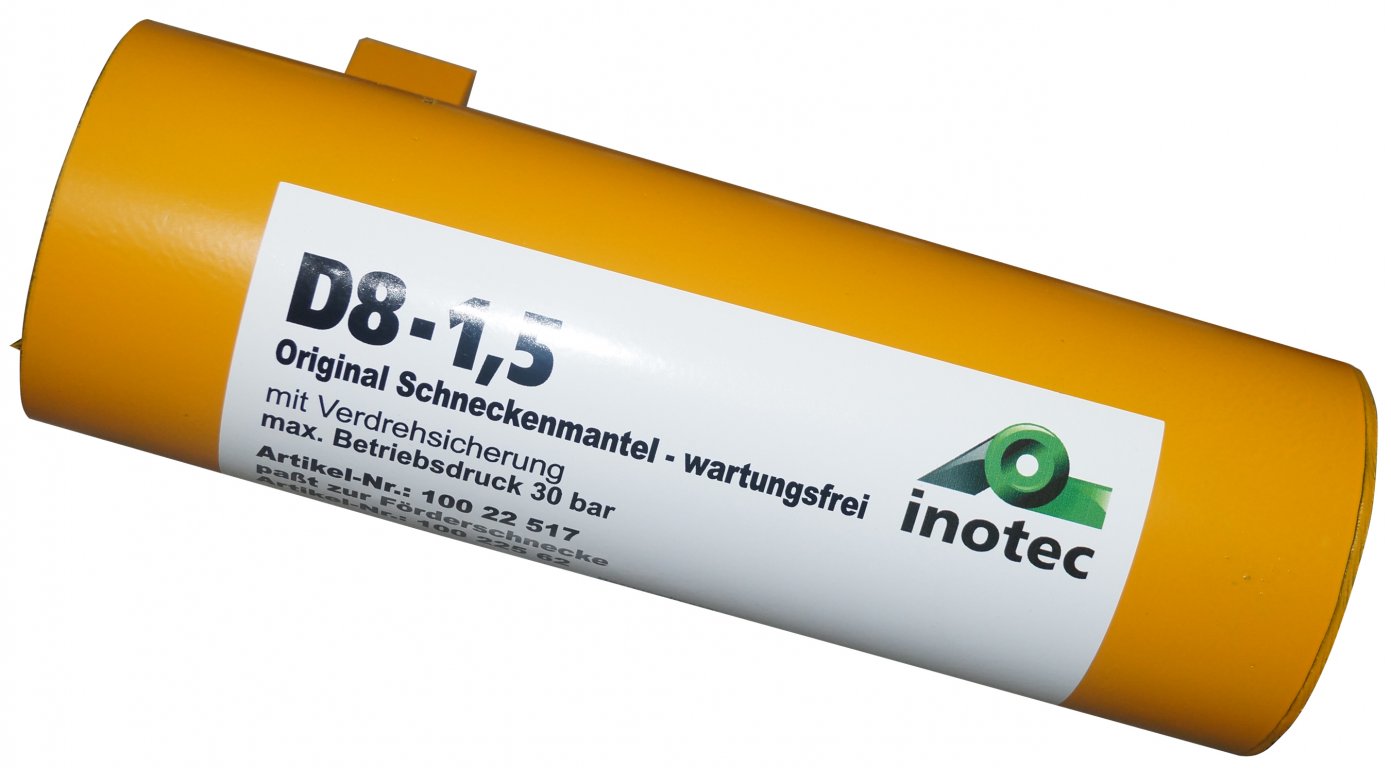

D8-1.5 yellow screw casing (maintenance free)

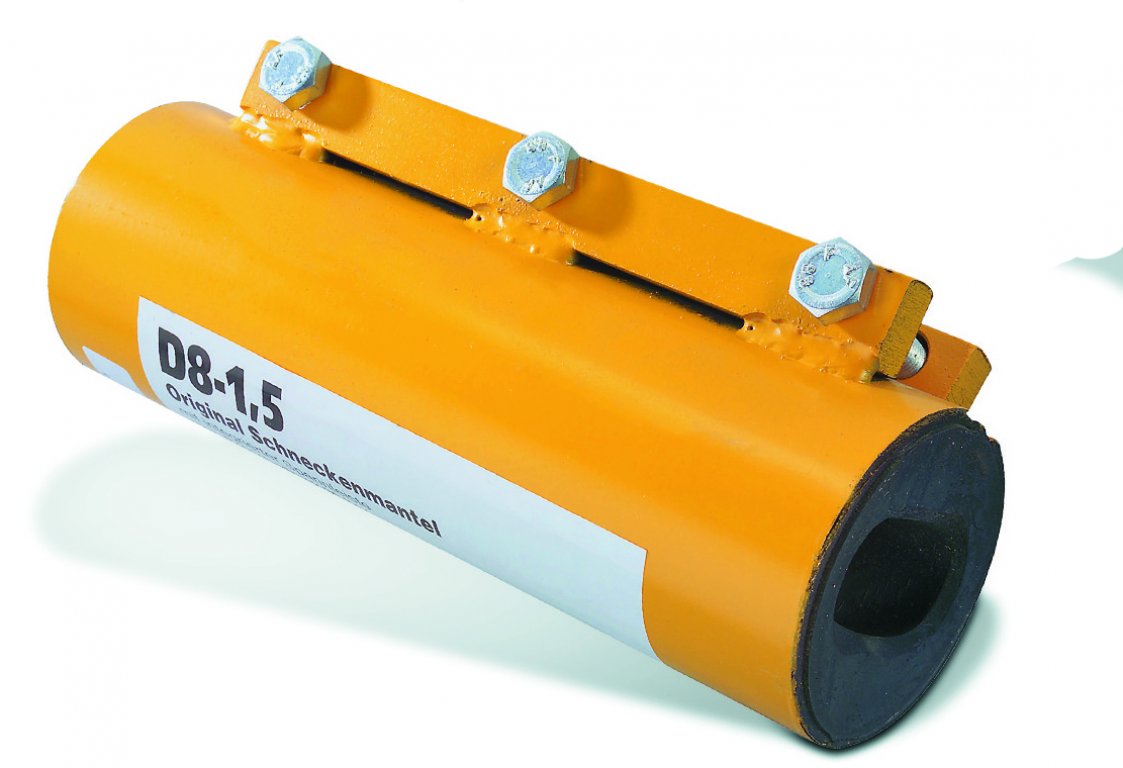

D8-1.5 yellow screw casing with clamping strip
D8-2 output screw casing (maintenance free)
D8-2 screw casing (maintenance free)

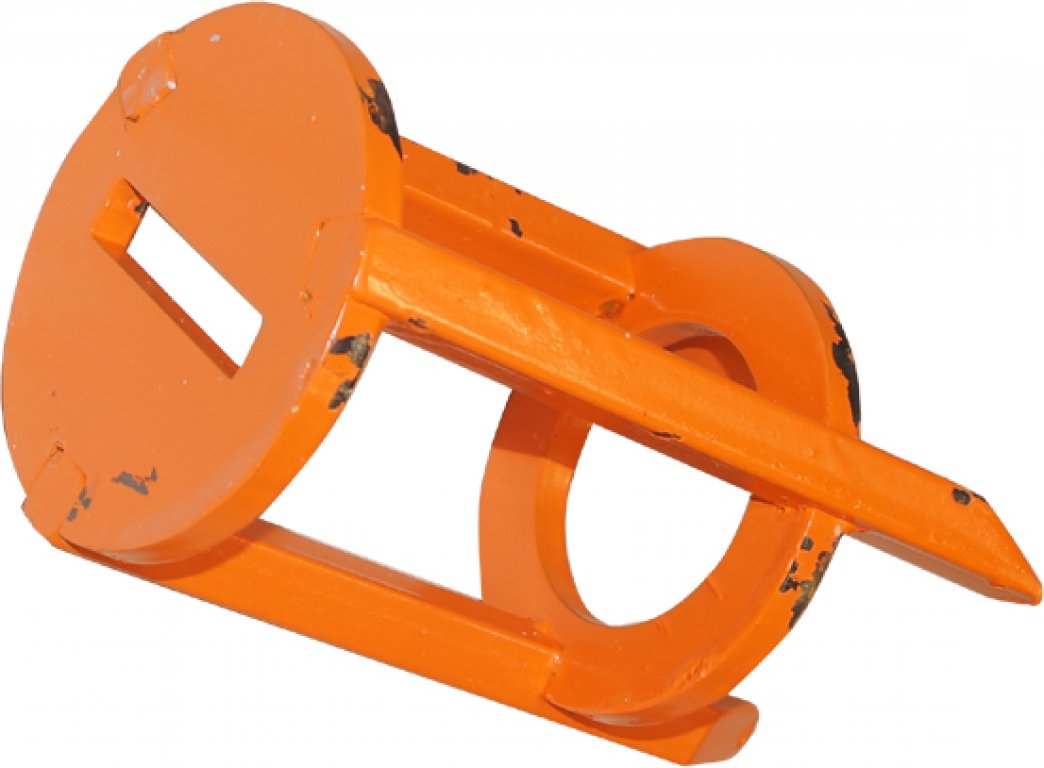

Mixing tube cleaner for Picco Power / Maxi Power / G4 / M4G

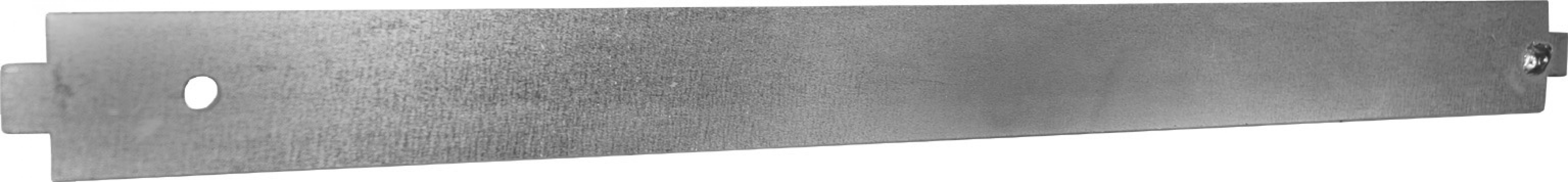

Cleaning rod (520 mm) for Maxi Power / G4 / M4G
Twin-motor industrial vacuum cleaner inoCLEAN 230
- For very fine dust with automatic filter cleaning
- Very powerful thanks to two motors
- Low noise levels
- Easy to use
- With HEPA filter H
- For dry use
Technical data:
- Operating voltage: 230 V / 50 Hz
- Motor rating: 2.2 kW
- Volumetric capacity: 20 l
- Vacuum 230 mbar
- Airflow: 340 m3/h
- Dimensions: 540 x 580 x 850 mm
- Weight (without accessories): 36 kg
Scope of delivery: Vacuum cleaner complete with 2 motors & HEPA filter, suction tube, 5 m suction hose Ø 50 mm, floor suction nozzle

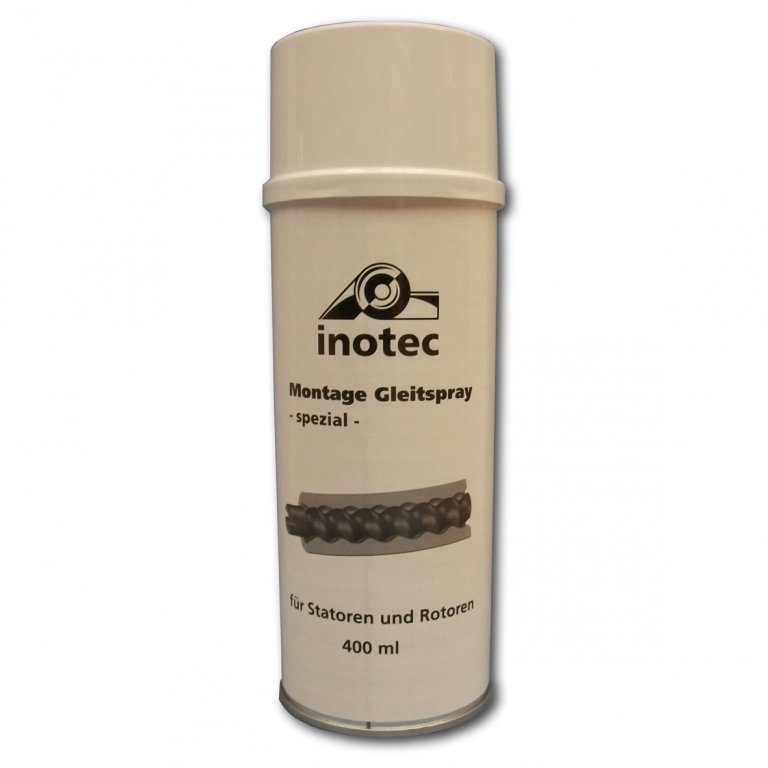

Assembly spray lubricant
- For assembling the conveying screw and screw casing
- 400 ml
