Single handed gun for application of bonding mortars and spraying of basecoat mortars up to 4.0 mm grit

Benefits at a glance

  • Fast and clean material application
  • Simple operation
  • Robust and handy design
  • Fast and simple cleaning
  • Ergonomic handle
  • Swivel joint for fatigue-free working
  • Integrated remote control switch
  • Can be connected to all common mixing and delivery pumps
  • Practical scaffold hook for suspending on scaffold poles
  • Optional attachment for spraying mineral and organic products up to 4.0 mm grit

The all-purpose inoCOLL PRO one-handed gun can be directly connected to all common mixing and delivery pumps.

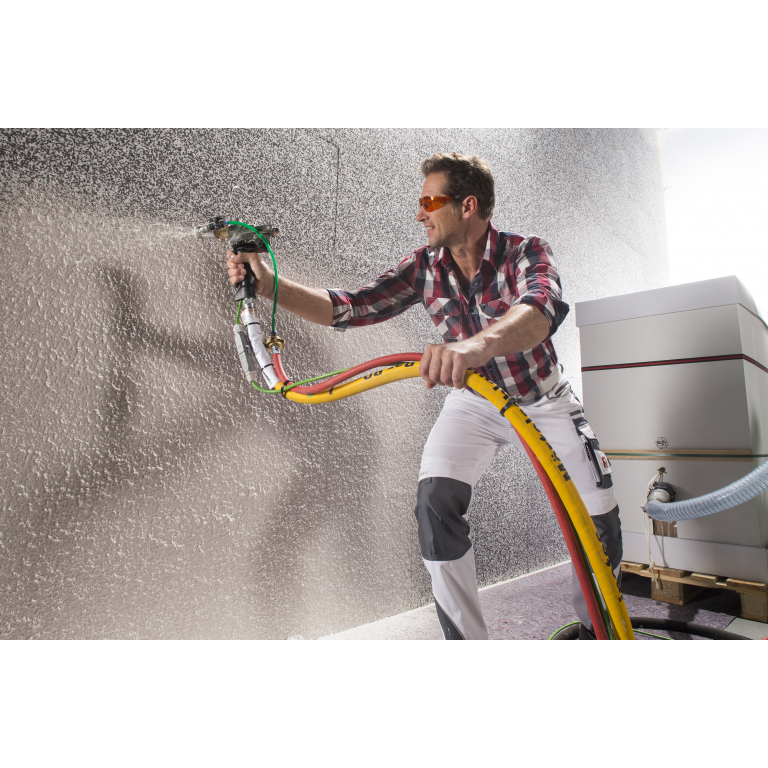

The mortar is applied to the ETICS insulation boards in a fatigue-free and time-saving manner. An integrated remote control switch enables automatic activation or deactivation of connected silos or delivery / mixing pumps when the trigger is actuated.
With the optional, handy and lightweight spray attachment, the inoCOLL PRO can be retooled to form a complete spraying device.



inoCOLL PRO with spray attachment
Operating pressurebarup to 40
Operating voltageV/Hz/A24 - 42 / - / -
Grain sizemmmax. 4,0
Hose diametermm19
Hose lengthm2
Machine techniqueOne-handed gun
Weightkgapprox. 1,5 *
inoCOLL
inoCOLL PRO with spray attachment
Applying basecoat mortar
Applying bonding mortar
Performing filling work (e.g. fire dampers)
Performing grouting work (e.g. exposed brickwork)
Spraying decorative coatings
Spraying final coats: inoCOLL PRO up to 4.0 mm (with bonding/spraying set)
Spraying final coats: inoCOLL up to 1.5 mm
Spraying fine mortar
Spraying sealing compounds

Bonding / spraying set
Item no. 10043000
Scope of delivery
inCOLL PRO bonding / spraying set:
As with the basic module (item no. 10041950)

  • One-handed gun
  • Scaffold hook
  • Connecting plug for remote control cable
  • Hose piece
  • 2 sponge balls with a diameter of 20 mm
  • Operating instructions

Plus:

  • Spray attachment with 10 and 13 mm nozzle
  • Remote control extension cable, 16 m
  • Plastic case
inoCOLL PRO with spray attachment

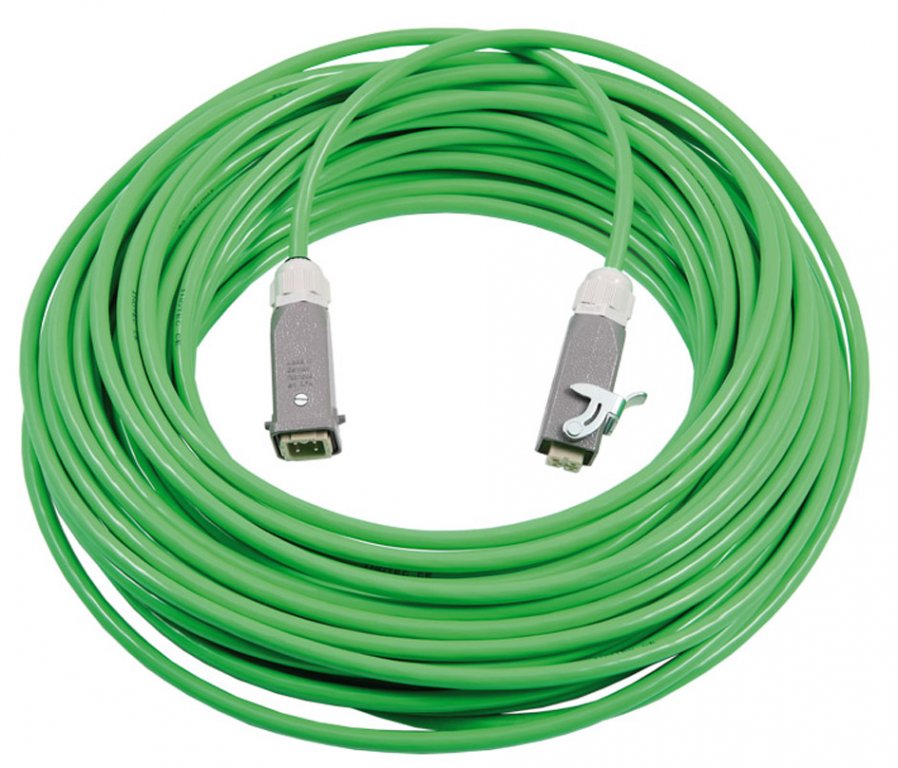

Remote control extension cable without remote control switch

Remote control extension cable without remote control switch

  • For remote control cable
  • For remote control switch
  • For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)
Adapter for remote control cable

Adapter for remote control cable

m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)
Spray attachment for inoCOLL / PRO one-handed gun  with GEKA air connection

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection

  • For spraying mineral and paste-like products
  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)
Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

  • For spraying mineral and paste-like products
  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection (Article No. 10042332)
Nozzles for Item no. 10039322 / 10039887 / 10039457

Nozzles for Item no. 10039322 / 10039887 / 10039457

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)

  • Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10044445)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10044446)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10044447)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10044448)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10044449)

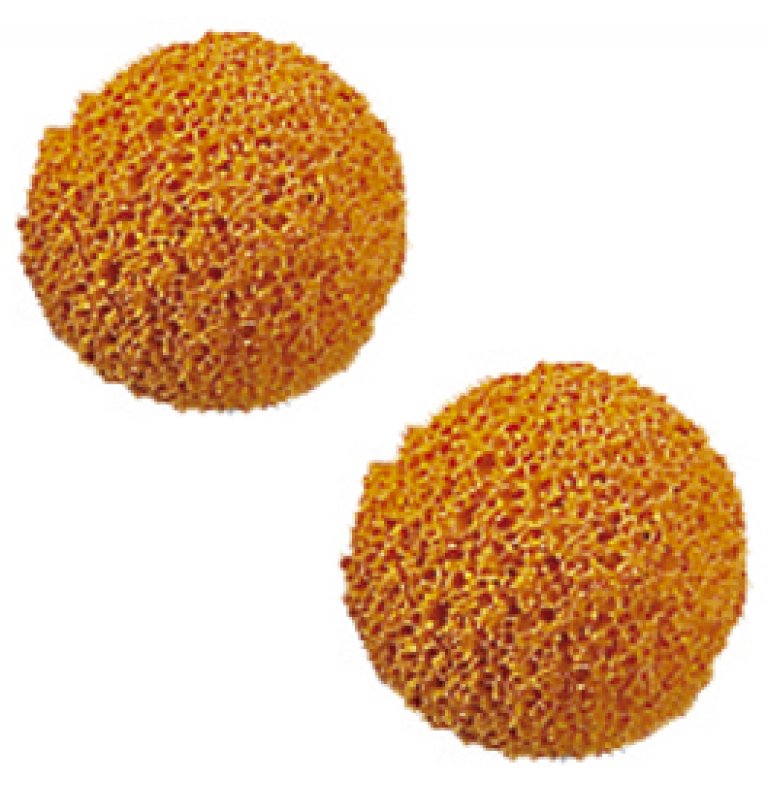

Sponge balls

Sponge balls

  • For cleaning material / mortar hoses

Sponge balls - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version)

Sponge balls (soft version)

  • For cleaningmaterial / mortar hoses

Sponge balls (soft version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-004)
