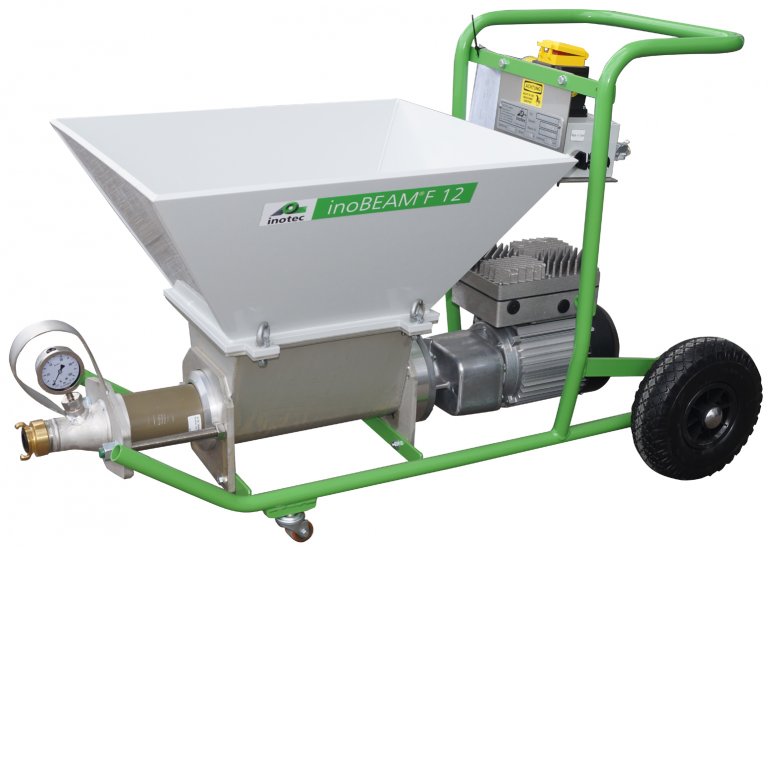

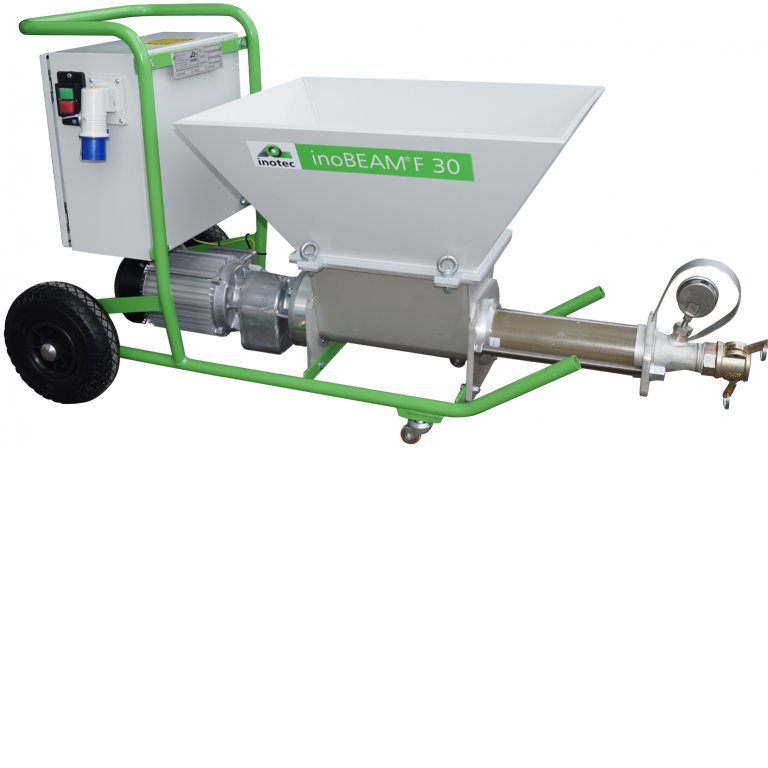

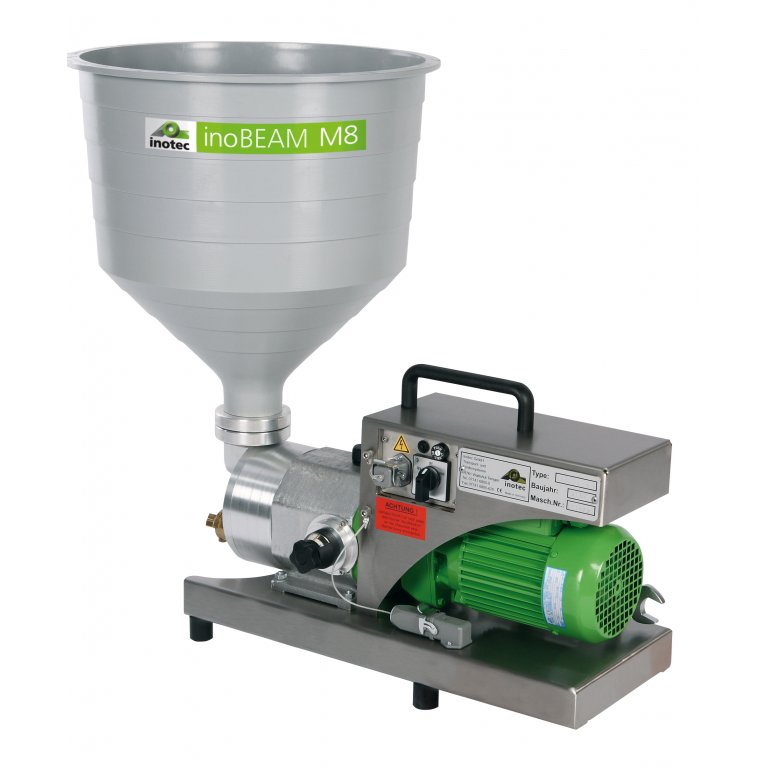

![]() inoBEAM M8 | ![]() inoBEAM F12 | ![]() inoBEAM F30 | ![]() inoBEAM F50 | |
Acoustic renovation paint | ||||
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | ||||
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | ||||
Bitumen | ||||
Cement pastes, suspensions | ||||
Cement plasters | ||||
Concrete bonder | ||||
Decorative fine coats | ||||
ETICS glue, mineral | ||||
ETICS glue, paste-like | ||||
Fibour plaster | ||||
Fine acoustic finishing coats | ||||
Fire protection mortar | ||||
Floor leveling compound | ||||
Floor spattling compounds | ||||
Lime cement plasters | ||||
Lime plasters | ||||
Lime smoothers | ||||
Liquid woodchip | ||||
Mineral textured plasters | ||||
Multi-layer acoustic spray plasters | ||||
Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F12 (see accessories) | ||||
Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F30 (see accessories) | ||||
Paste-like textured plasters | ||||
PCC- and SPCC-mortar / filler | ||||
Porous concrete coats | ||||
Rendering base | ||||
Renovating plaster systems | ||||
Reprofiling mortar | ||||
SPCC Spatula | ||||
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | ||||
Spray-on spattling compounds |
![]() inoBEAM M8 | ![]() inoBEAM F12 | ![]() inoBEAM F30 | ![]() inoBEAM F50 | ||
Operating pressure | bar | up to 15 | up to 16 | up to 40 | up to 40 |
Operating voltage | V/Hz/A | 110-230 / 50 / 16 | 230 / 50 / 16 | 110-230 / 50 / 16 | 400 / 50 / 32 |
Drive performance | kW | 0,55 | 1,5 | 3,0 (frequency controlled) | 6,3 (frequency controlled) |
Empty weight | kg | 28 | |||
Delivery rate (depending on the material) | l/min | max. 0 - 8 | max. 0 - 12 | max. 2 - 50 | max. 2 - 100 |
Conveying distance (depending on the material) | m | max. 30 | max. 30 | max. 80 | max. 80 |
Pressure height (depending on the material) | m | max. 20 | max. 20 | max. 25 | max. 40 |
Grain size | mm | max. 3 | max. 6 | max. 10 | |
Material container | l | 30 | 50 | 50 | 70 |
Machine technique | Delivery pumps | Delivery pumps | Delivery pumps | Delivery pumps | |
Dimensions (L x W x H) | mm | 600 x 230 x 750 | 1450 x 530 x 700 | 1450 x 530 x 700 | 1120 x 660 x 750 |
Weight | kg | approx. 28 | approx. 65 | approx. 85 | approx. 130 |
