The efficient 230 V* delivery pump for liquid and paste-like materials
Benefits at a glance
- For liquid and paste-like materials
- Detachable plastic material hopper
- High delivery rate
- Continuously variable speed control using potentiometer
- Simple operation
- Can be combined with OWC machine technology (e.g. inoMIX E12) at any time.
The inoBEAM F30 is an efficient 230 V delivery pump suitable for a wide range of indoor and outdoor applications. The simple and clear layout of the operating elements make working safe and easy. With the optional sets that are available, the delivery pump can be converted for various fields of application in just a couple of steps. This offers maximum flexibility on your construction site thanks to unlimited areas of application (spraying, adhesion, filling, reinforcing and now also paint spraying, etc.) with an unbeatable price/performance ratio.
______________
* The machine is also available in 110 V
Video
Downloads
Original Operating Manual inoBEAM F30
INOTEC Delivery pumps

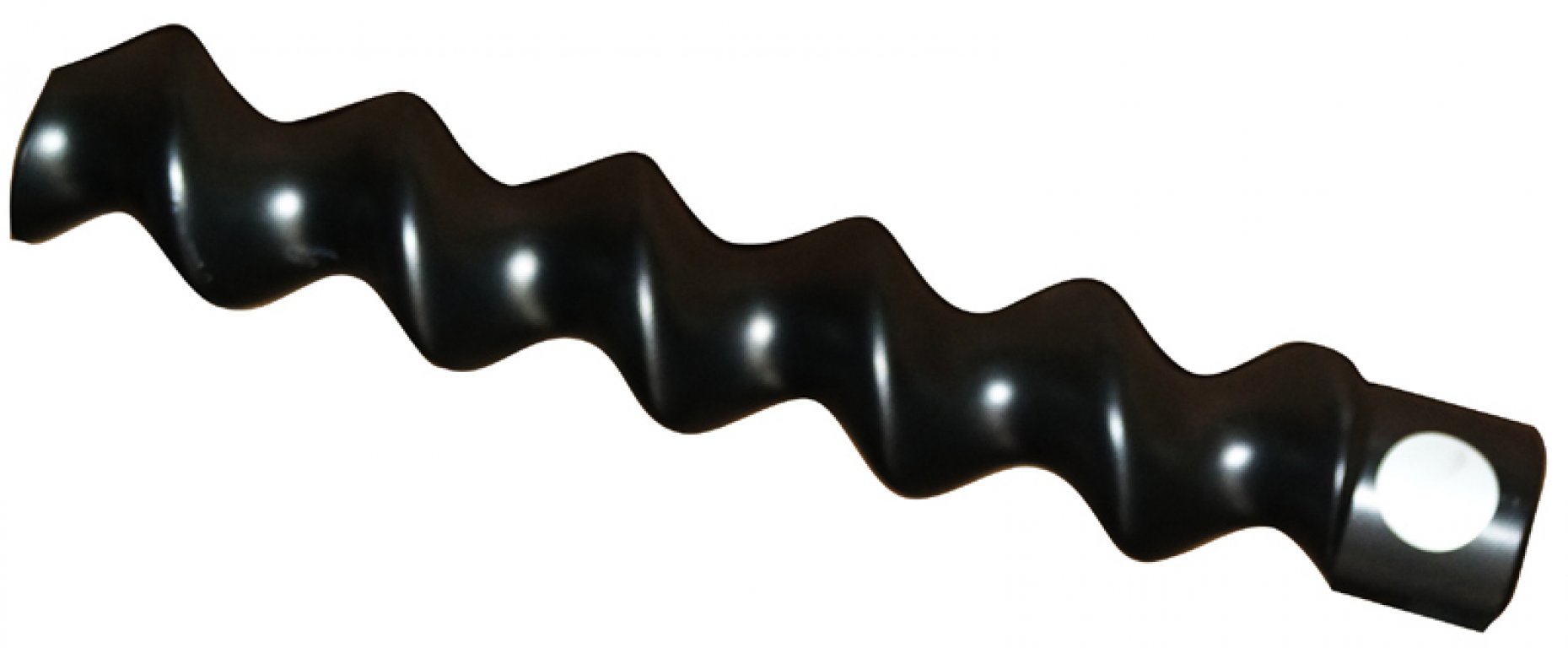

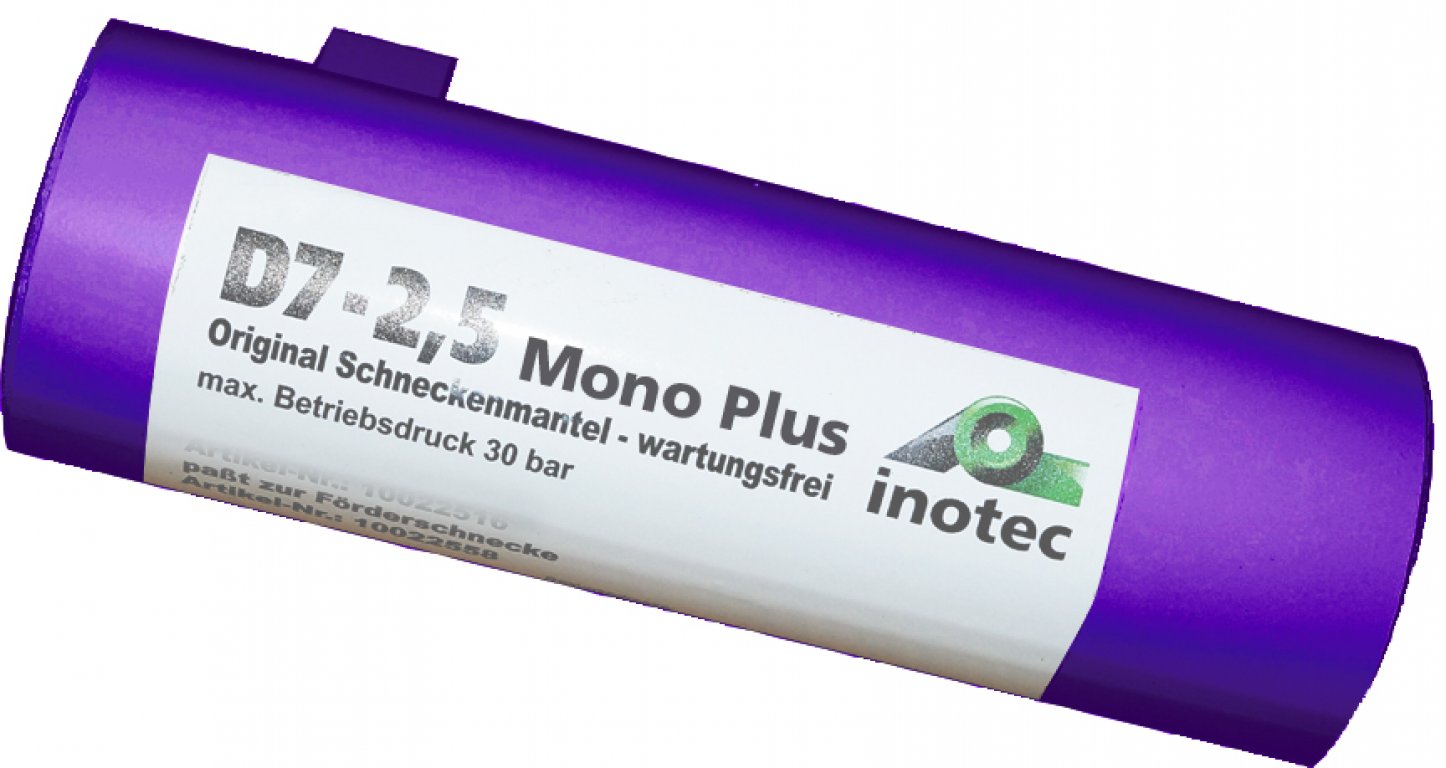

Overview of rotors and stators
Complete Catalogue EN
Service details
Services
| Operating pressure | bar | up to 40 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 3,0 (frequency controlled) |
| Delivery rate (depending on the material) | l/min | max. 2 - 50 |
| Conveying distance (depending on the material) | m | max. 80 |
| Pressure height (depending on the material) | m | max. 25 |
| Grain size | mm | max. 6 |
| Material container | l | 50 |
| Machine technique | Delivery pumps | |
| Dimensions (L x W x H) | mm | 1450 x 530 x 700 |
| Weight | kg | approx. 85 |
inoBEAM F30 | |
| Acoustic renovation paint | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Bitumen | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Concrete bonder | |
| Decorative fine coats | |
| ETICS glue, mineral | |
| ETICS glue, paste-like | |
| Fibour plaster | |
| Fine acoustic finishing coats | |
| Fire protection mortar | |
| Floor leveling compound | |
| Floor spattling compounds | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Liquid woodchip | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F12 (see accessories) | |
| Outdoor / indoor dispersion paint Silicate paint - with conversion kit 'HP'-F30 (see accessories) | |
| Paste-like textured plasters | |
| PCC- and SPCC-mortar / filler | |
| Porous concrete coats | |
| Rendering base | |
| Renovating plaster systems | |
| Reprofiling mortar | |
| SPCC Spatula | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Spray-on spattling compounds |
Basic module
Item no. 10041083
Scope of delivery
inoBEAM F30:
- Frame
- 2 running wheels & 2 steering wheels
- Plastic material hopper
- Cover for material hopper
- Gear motor
- Switching cabinet
- 3 m connecting cable
- Pump shaft
- Pump housing made from stainless steel
- Tool set

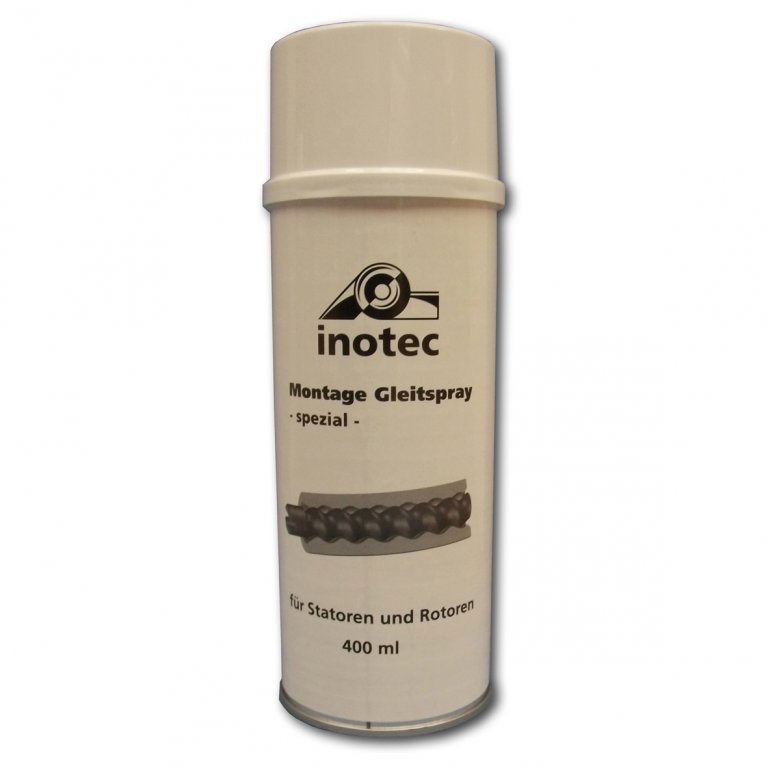

- Assembly spray lubricant
- Operating instructions
Set “D”-F30
for spray applications (18 l / 40 bar)
Item no. 10041913*
Set “R”-F30
for floor levelling compounds (50 l / 15 bar)
Item no. 10043416*
Set “HP”-F30
for airless spray-on smoothing compounds
(8 l / 90 bar)
Item no. 10044659*
------------------------------------------
* For delivery contents, see accessories
Set “HP”-F30
The inoBEAM F30 delivery pump can be converted into a high-performance 230 V airless spraying device using an optional set and just a few, easy steps. A delivery rate of up to 8 l/min is achieved with 3.0 kW when processing spray-on filler.
Scope of delivery: High-pressure pump SPRAY, 20 m high-pressure hose 3/4“ and 2 m 1/2“, airless gun, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, and nozzle
Set “HP”-F30 (Article No. 10044659)

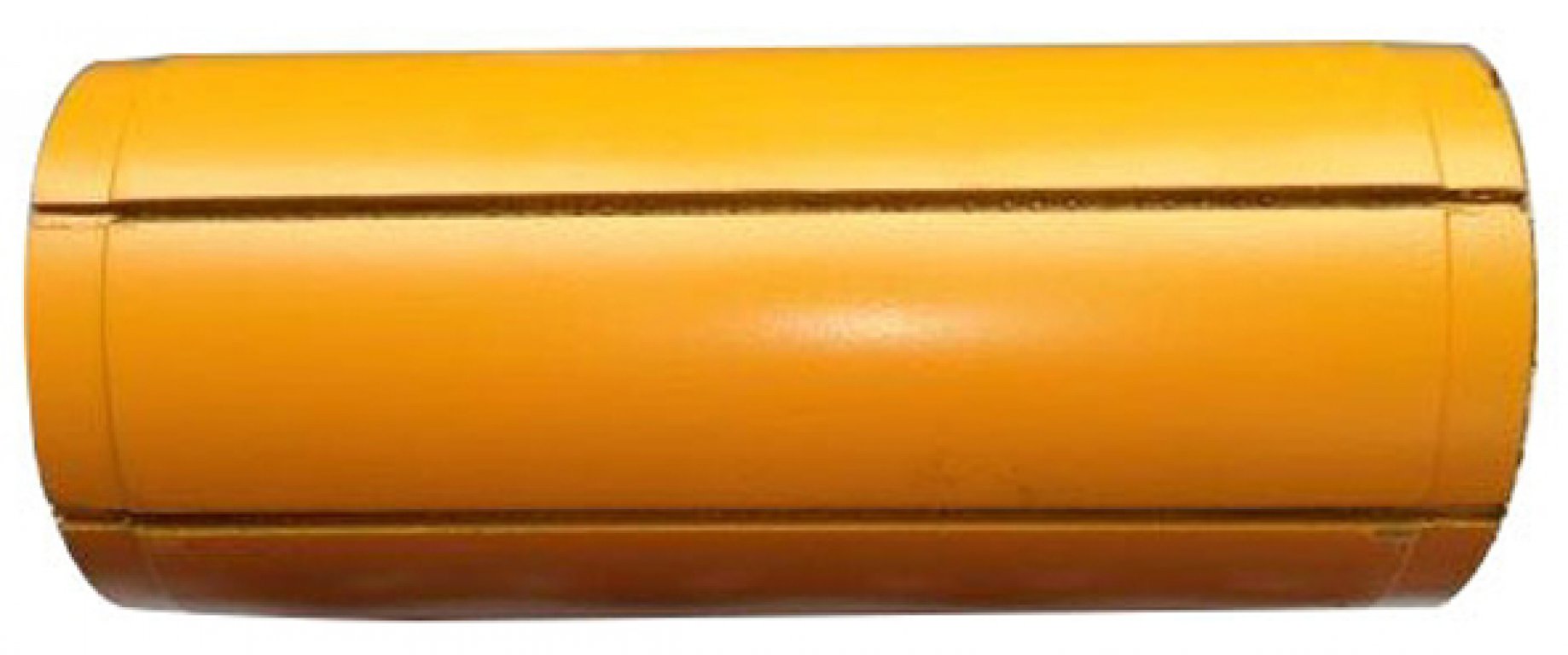

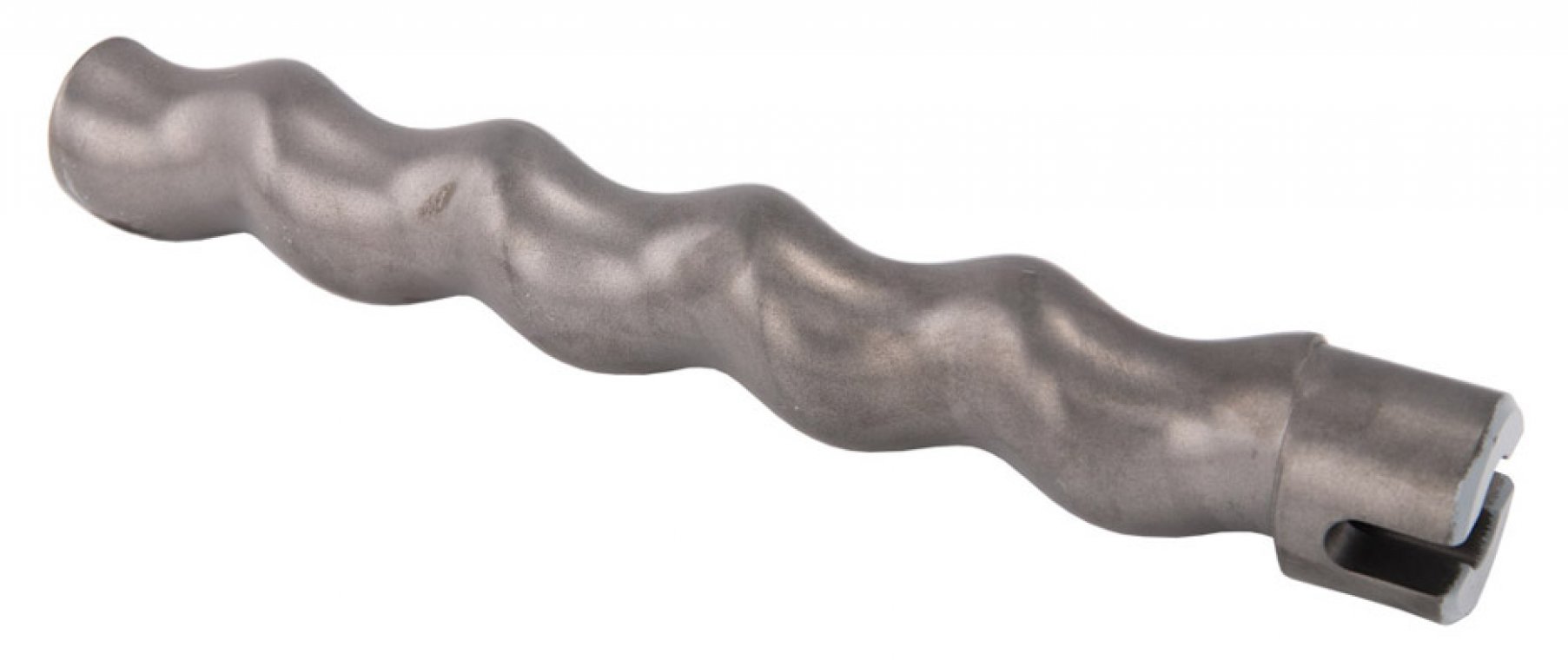

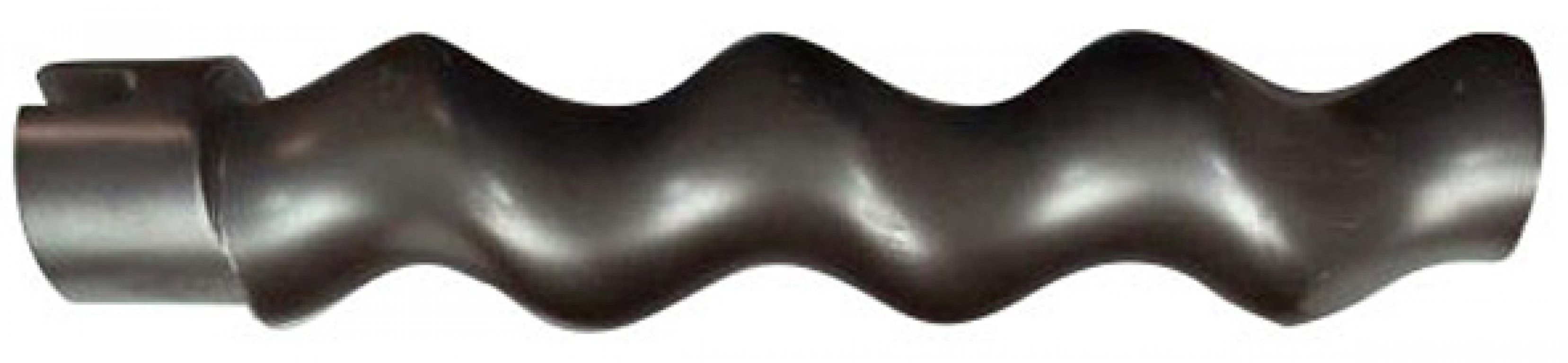

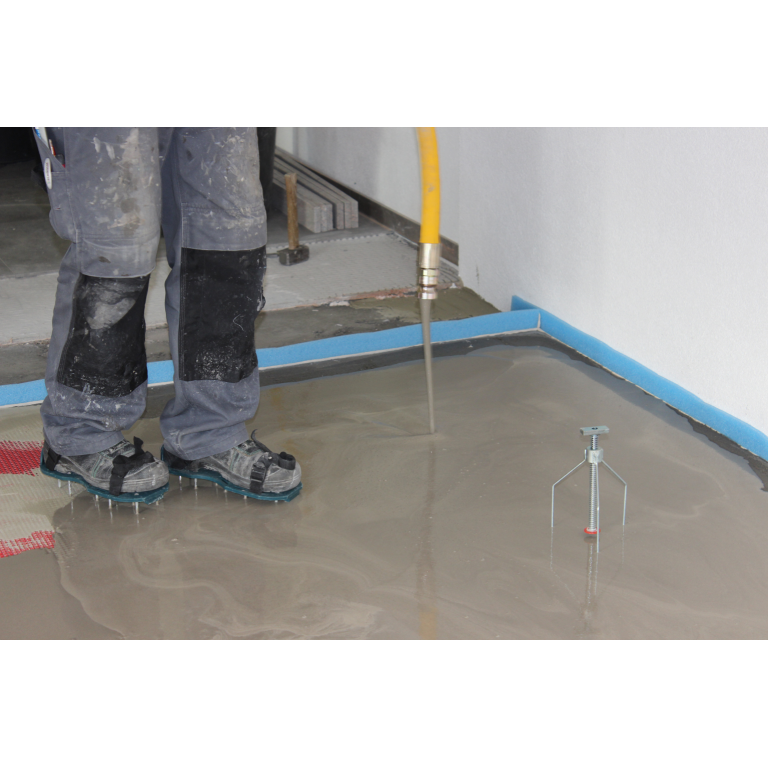

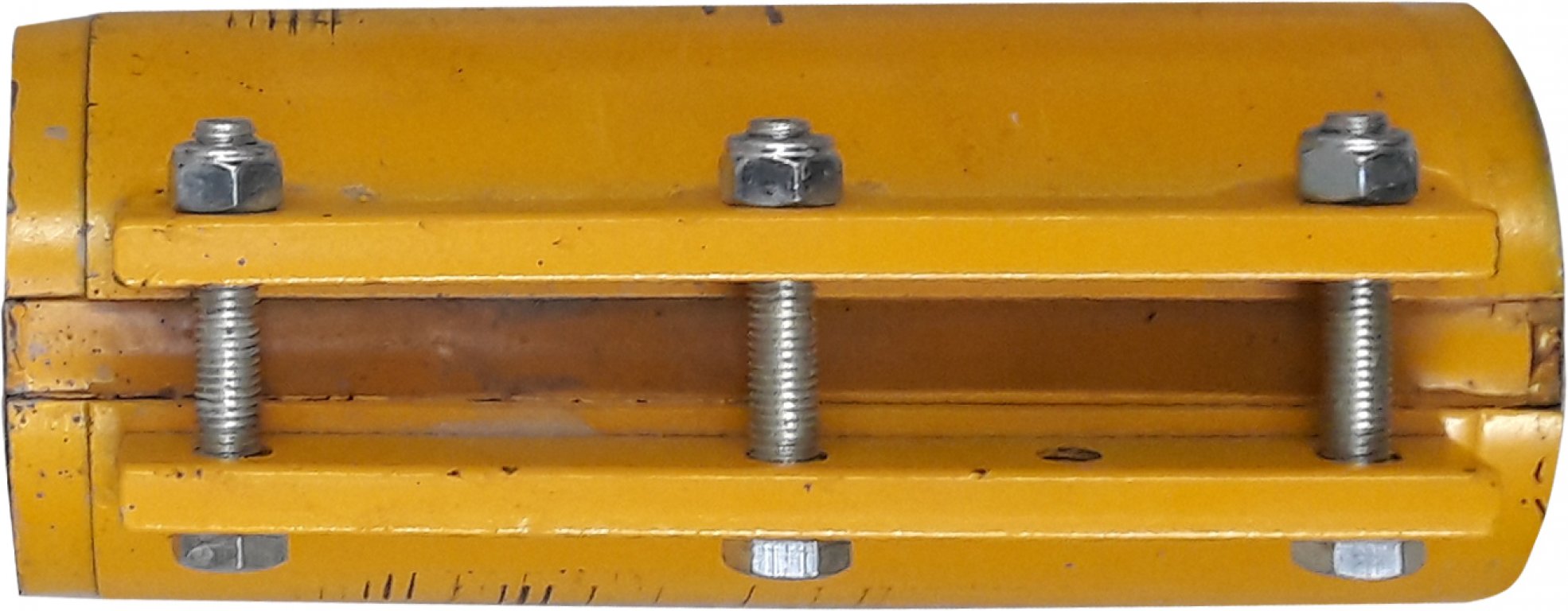

Set “R”-F30 (Rotor/Stator R7-1.5)
- Ø 115 mm, 50 l/min, 15 bar, e.g., for floor levelling compounds
Scope of delivery:
Suction flange, pressure flange, mortar pressure gauge, rotor/stator R7-1.5, coupling M part 50 (2” IT), 2 x M16 nuts, 2 x M16 threaded rods (330 mm), 2 x M16 double nuts
Set “R”-F30 (Rotor/Stator R7-1.5) (Article No. 10043416)

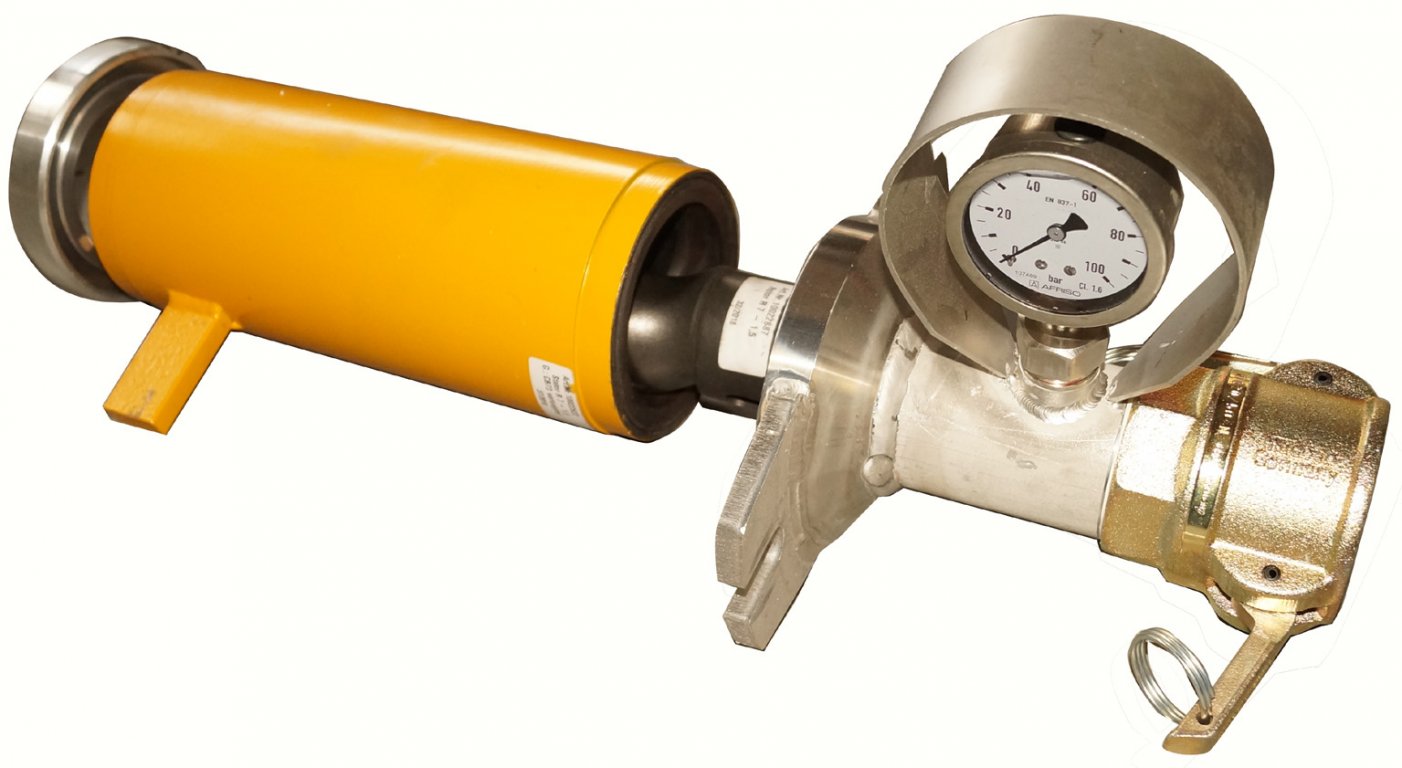

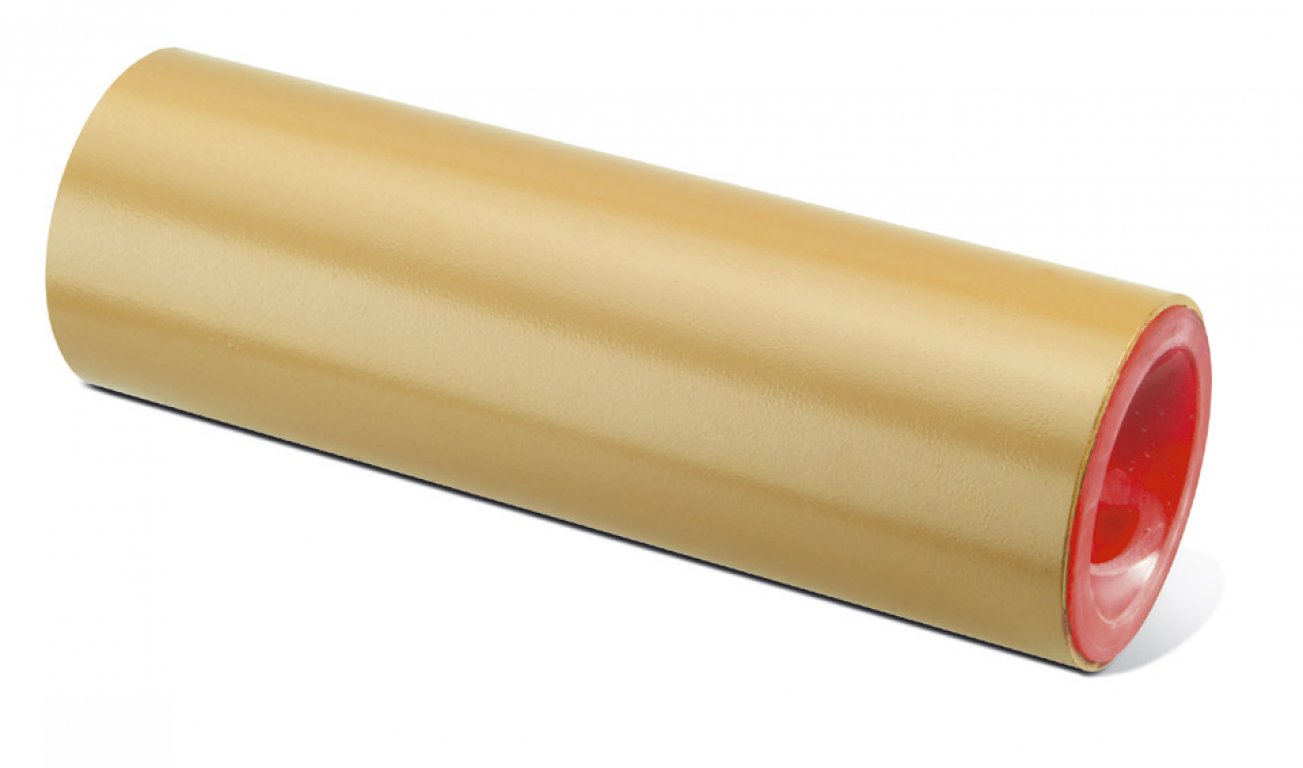

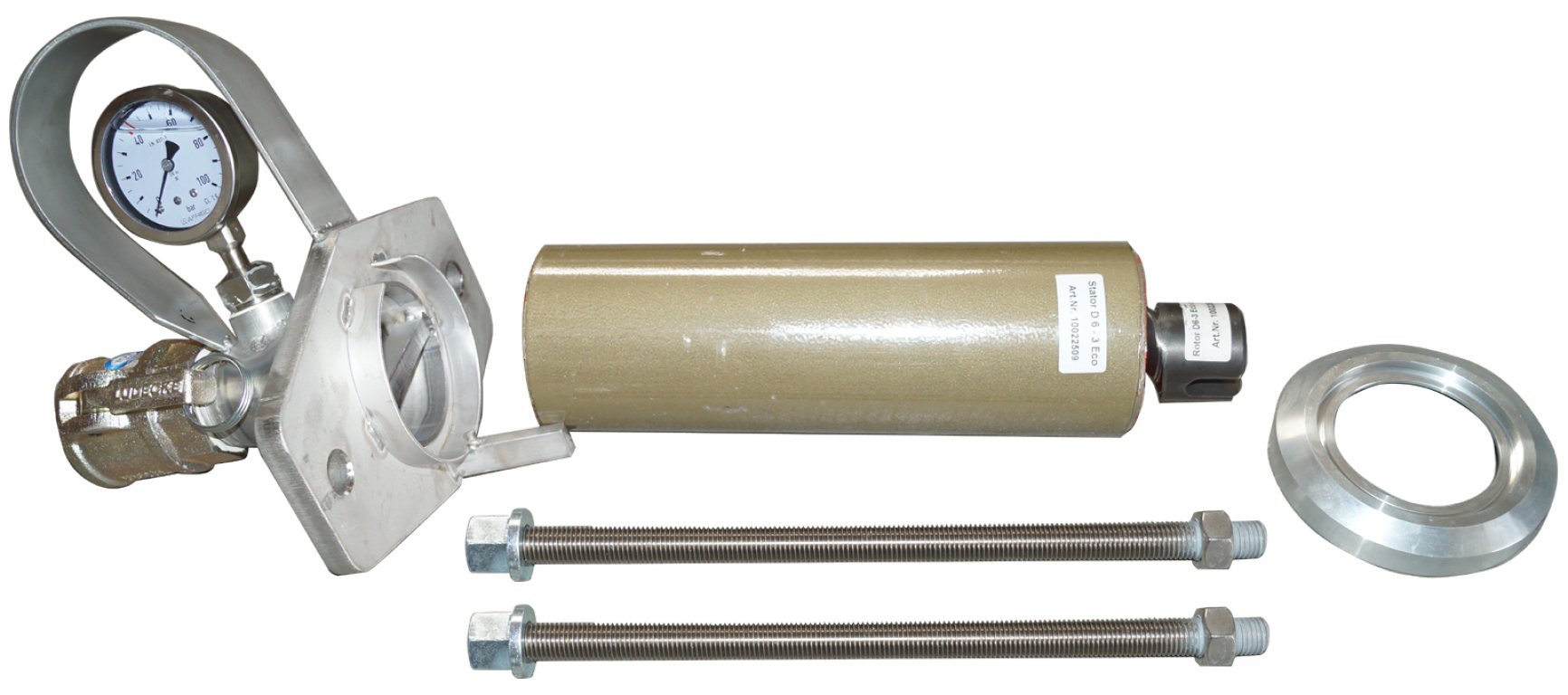

Set “D”-F30 (Rotor/stator D6-3 Eco gold)
- Ø 89 mm, 18 l/min, 40 bar, e.g., for spray applications
Scope of delivery:
Pressure and suction flange with tension rods, mortar pressure gauge, rotor/stator D6-3 Eco gold
Set “D”-F30 (Rotor/stator D6-3 Eco gold) (Article No. 10041913)

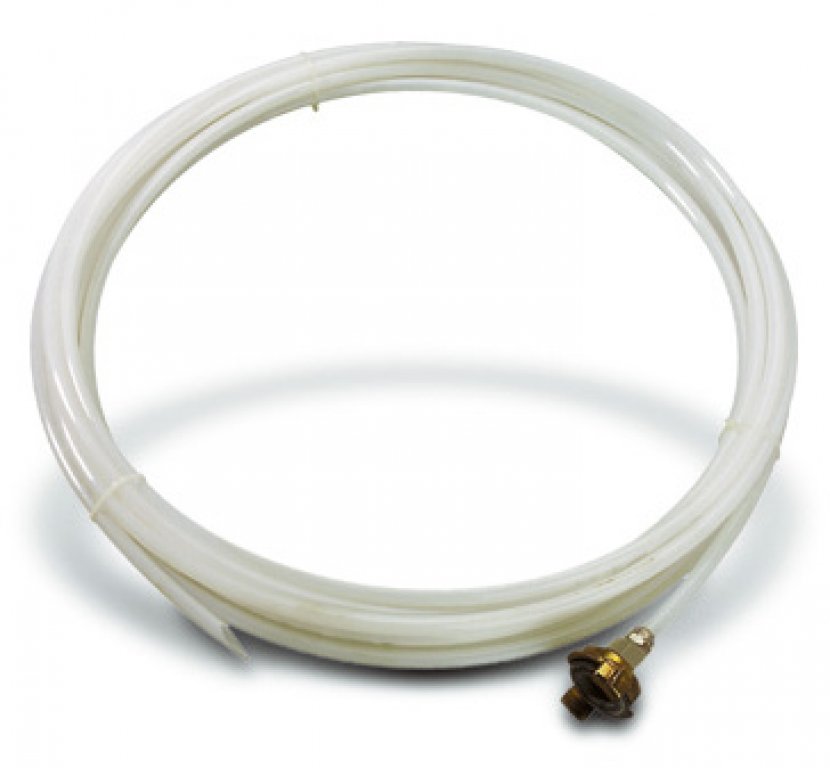

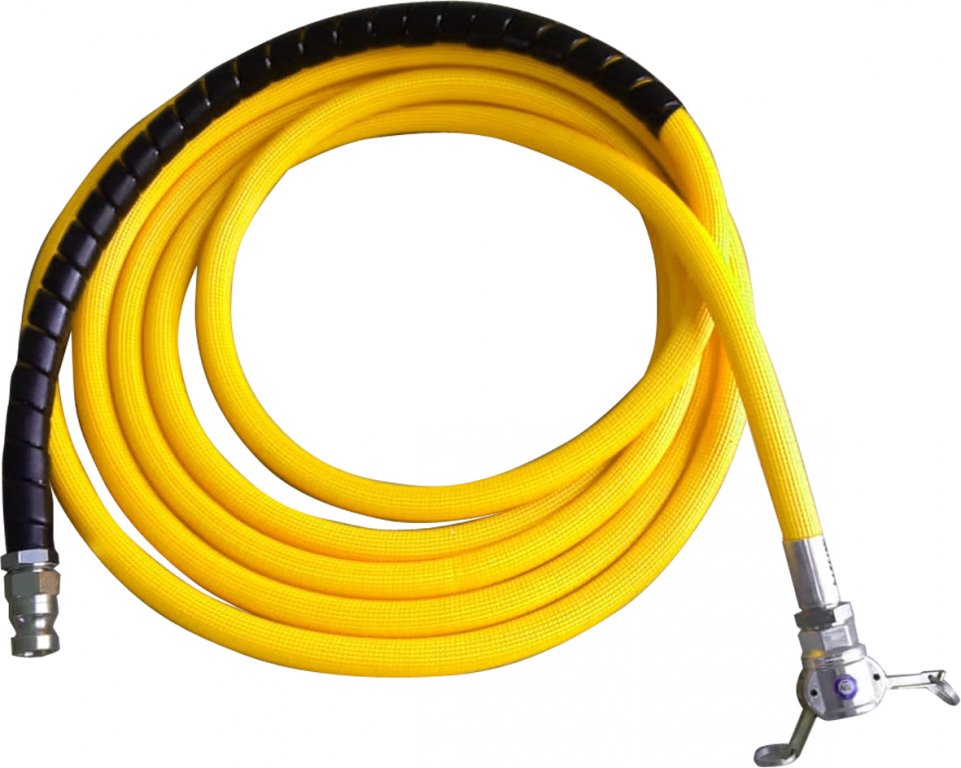

Ultralight hose
Ultralight hose with mortar coupling (Article No. 10043874)

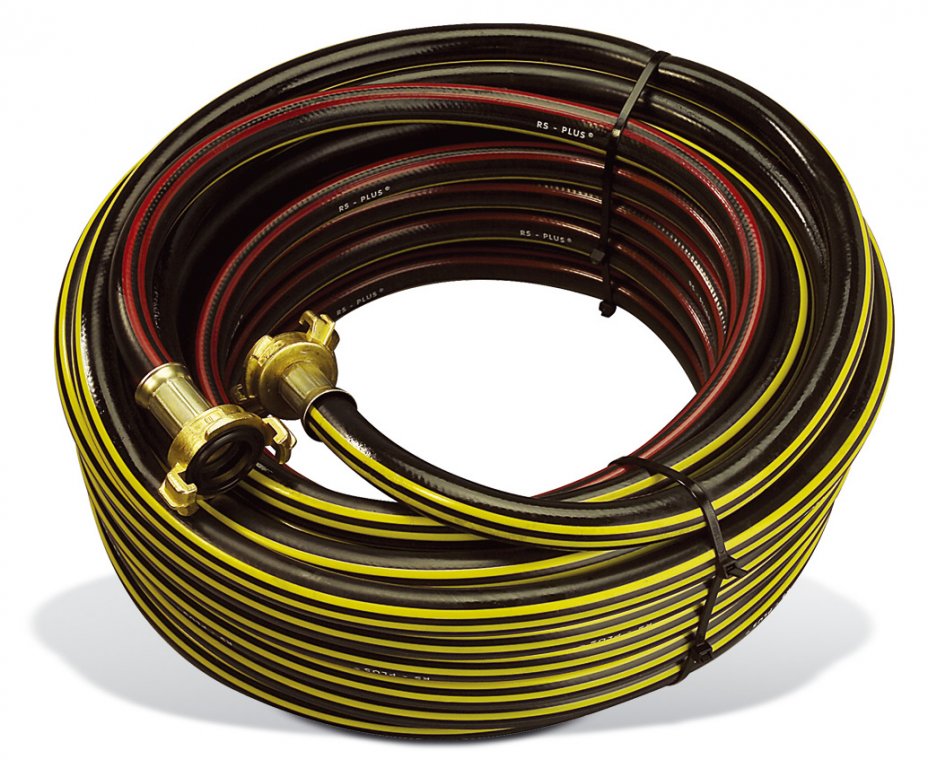

Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)

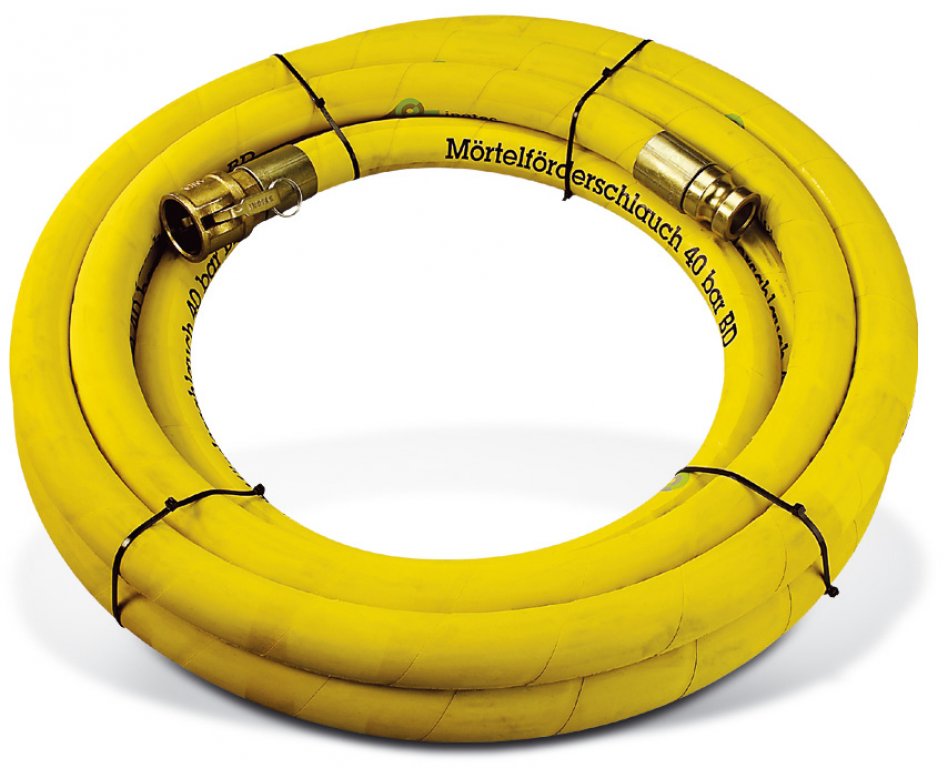

INOTEC mortar hose
- Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
- For an operating pressure of 40 bar with 3 times the reliability
- Yellow on the outside at Ø 35 mm
- Black on the outside at Ø 40 and Ø 50 mm
- With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
- With cam levers on the M-piece
| Technical data: | |
| Operating pressure: | 40 bar |
| Bursting pressure: | 120 bar |
Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)
Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)
Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)
Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)
Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)
Inotec mortar hose - Ø 40 mm - Length 13,3 m (Article No. 10041544)
Inotec mortar hose - Ø 40 mm - Length 20 m (Article No. 10041545)

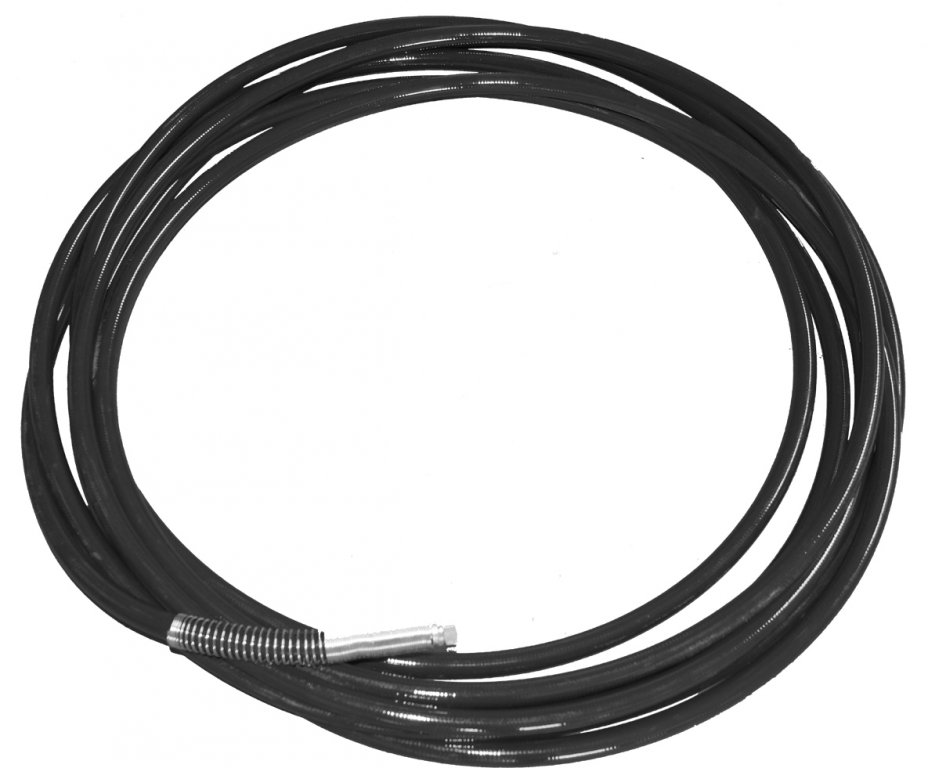

High-pressure / hoses
(Article No. 10044637)
Flushing hose
- For clearing blockages in mortar hoses
Flushing hose - Length 10 m (Article No. 10024385)

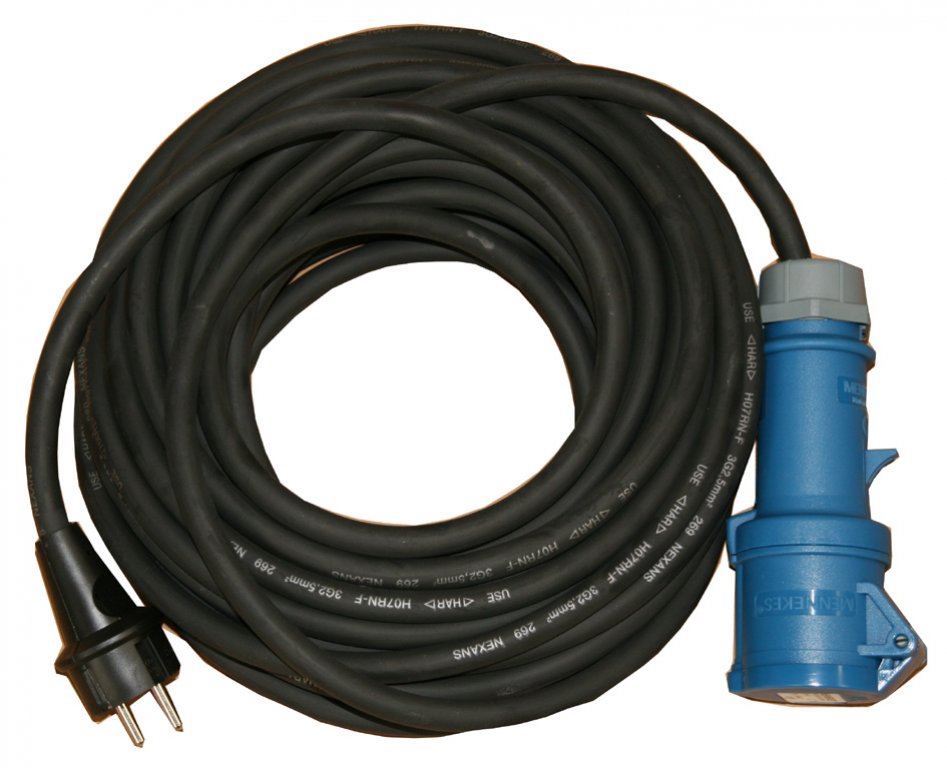

230 V / 3 x 2.5 mm² connecting cable
- 16 A Schuko plug and CEE coupling
230 V / 3 x 2.5 mm² connecting cable - Length 15 m (Article No. 10015126)

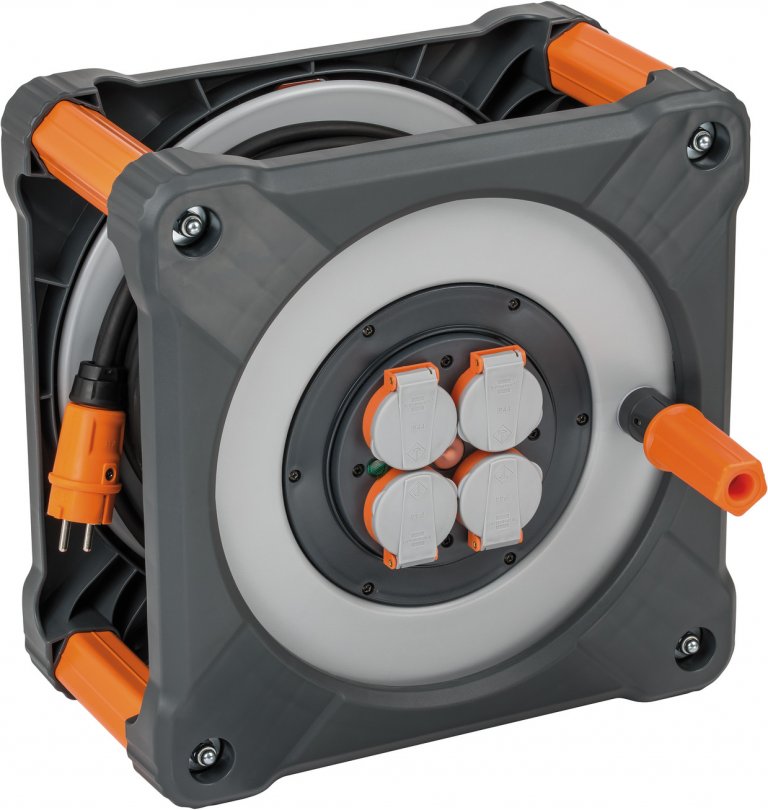

3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m
- Plastic cable reel with 33 m H07BQ-F3G2,5 cable
- Robust, impact-resistant design, all-round roll-over protection
- 4 protective contact sockets (splash-proof, with self-closing lids)
- Protection class: IP44
3 x 2.5 mm² cable reel made from impact-resistant plastic - 33 m (Article No. 10015300)

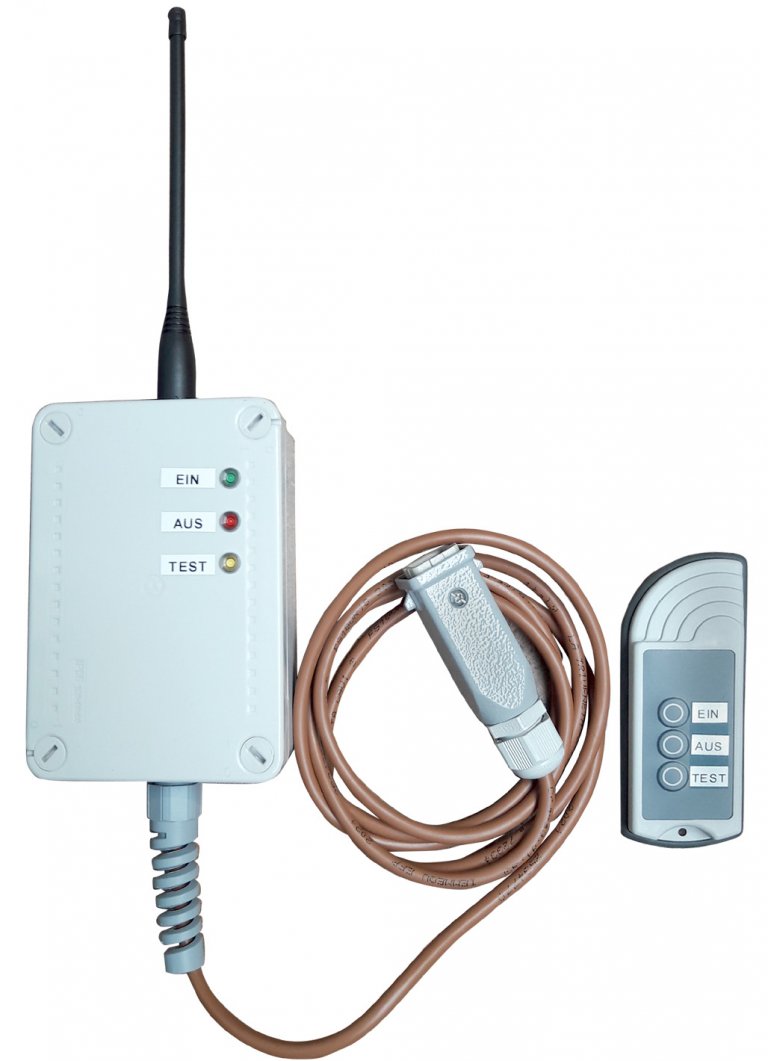

Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST
Wireless remote control (Article No. 10044303)

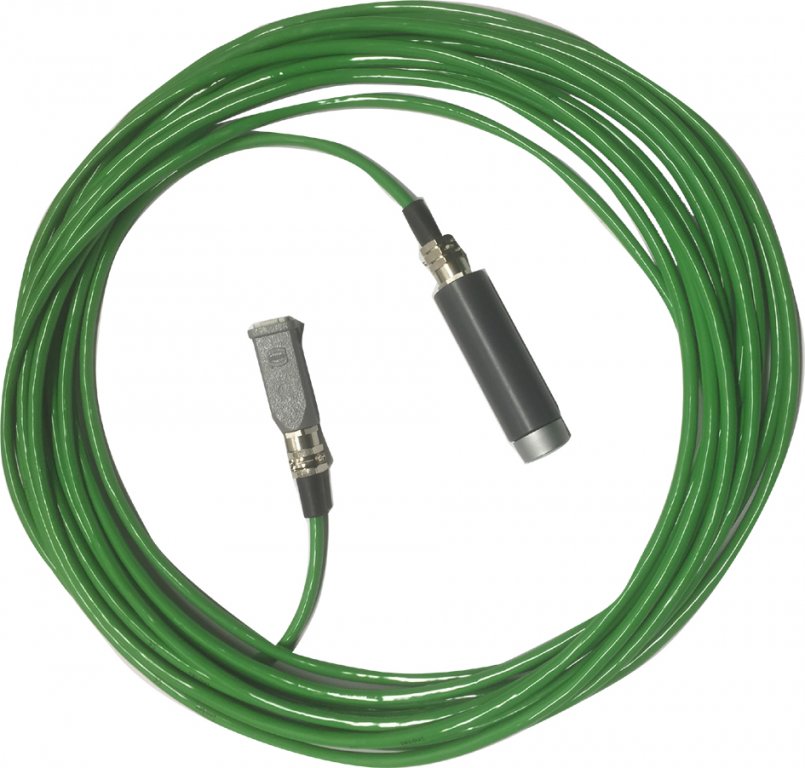

Remote control cable with remote control switch
Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)

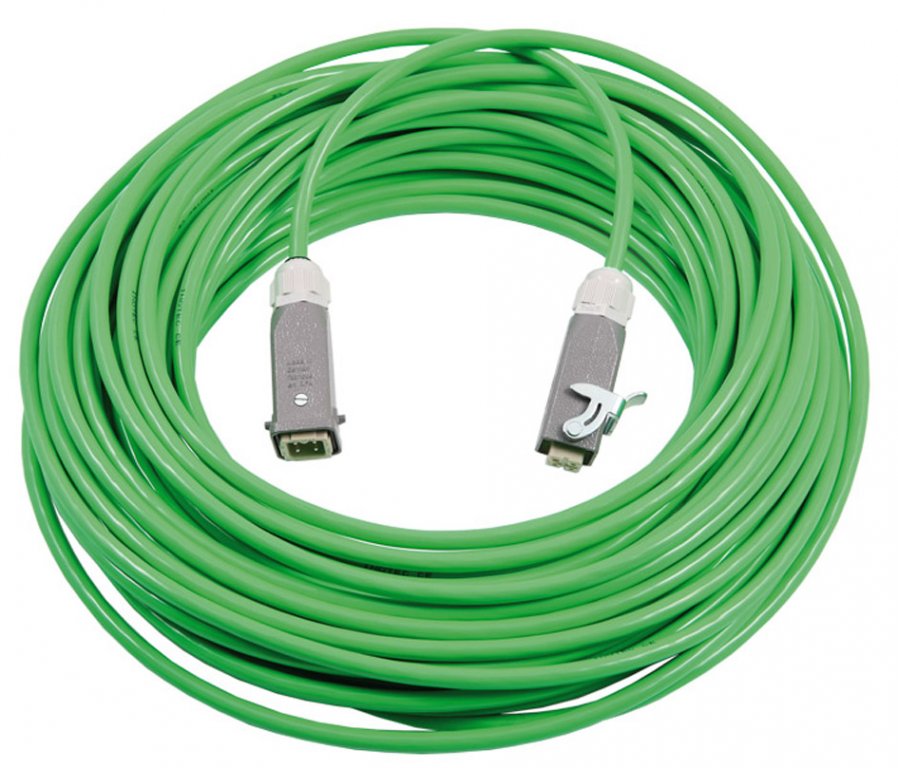

Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)

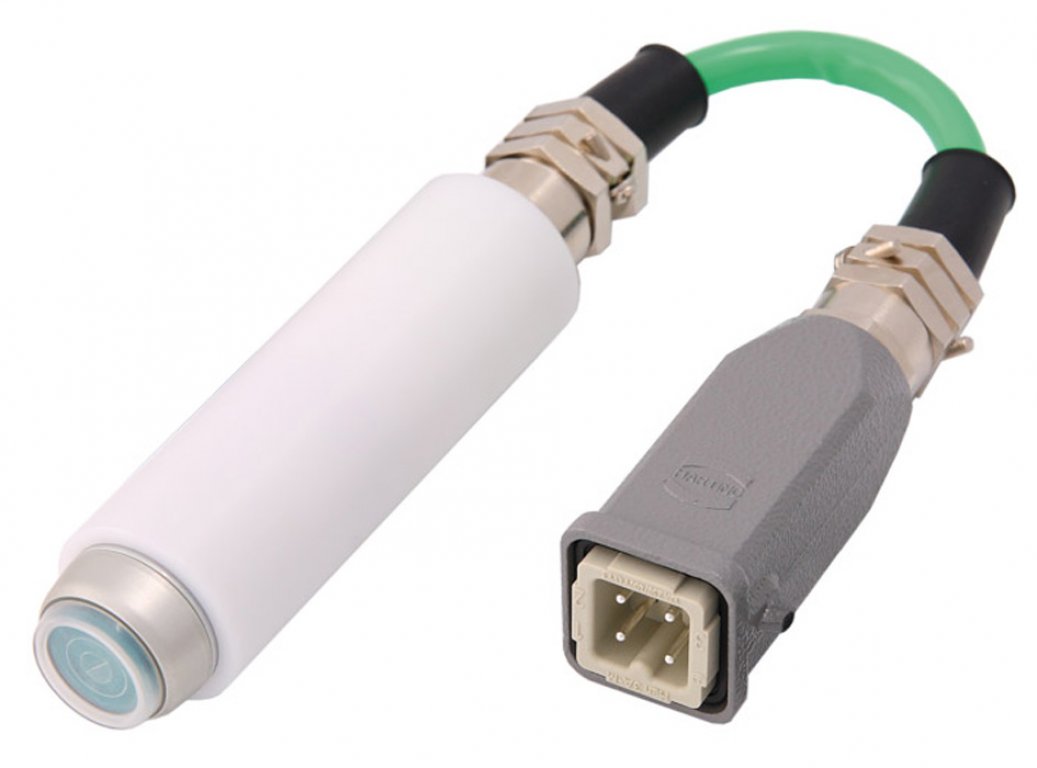

Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Remote control switch (Article No. 10015134)
Adapter for remote control cable
m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)

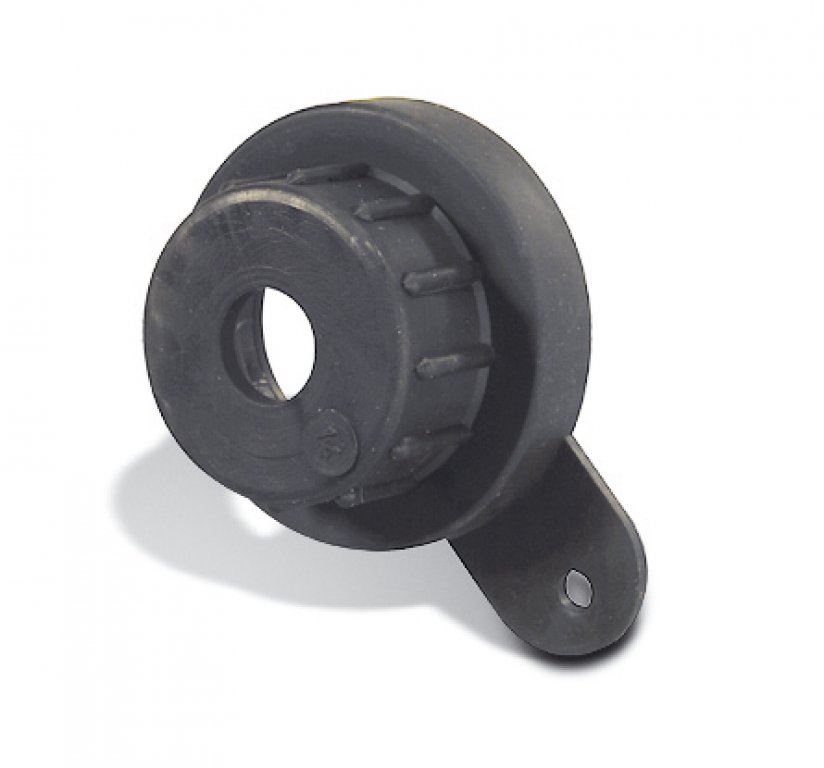

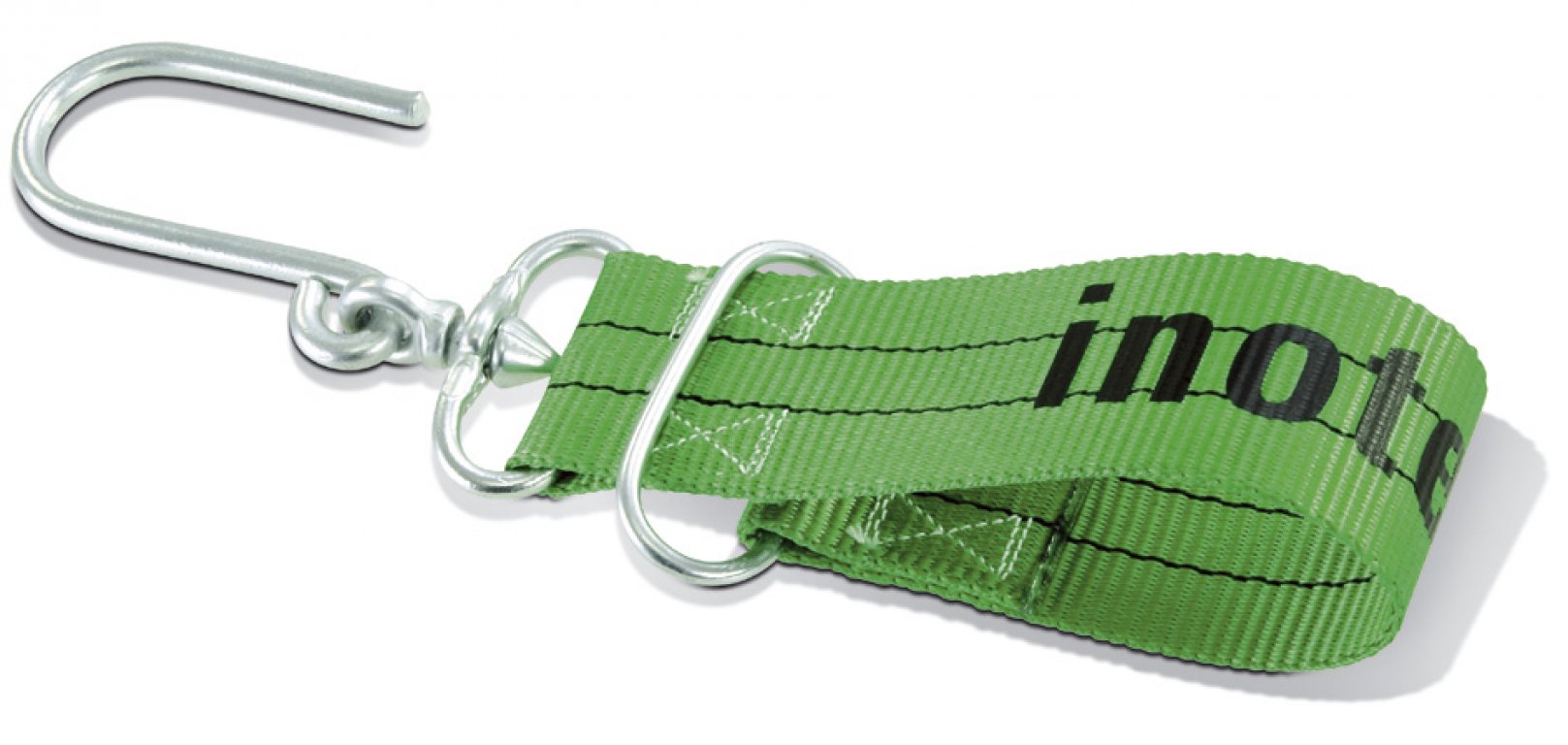

Hose holder
- For rapidly fixing hoses to the scaffold
Hose holder (Article No. 10018503)
inoCOLL one-handed gun
- For bonding and basecoat mortars
- 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
- For grit sizes up to 1.5 mm
inoCOLL one-handed gun with mortar coupling (Article No. 10024144)
inoCOLL PRO one-handed gun with mortar coupling
- For bonding and basecoat mortars
- For particle sizes up to 4.0 mm
inoCOLL PRO one-handed gun with mortar coupling (Article No. 10041950)

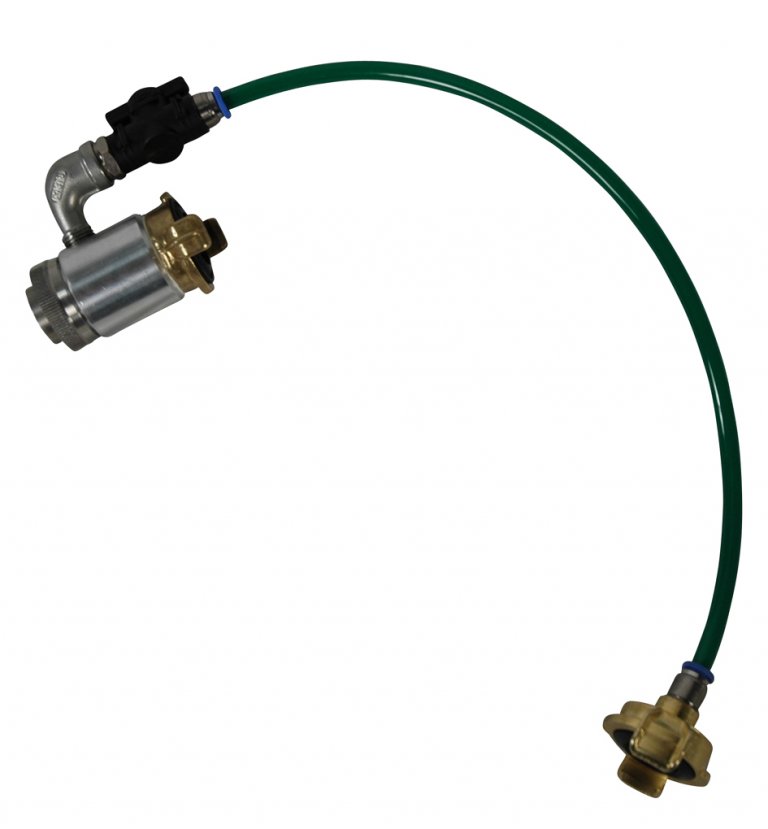

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)

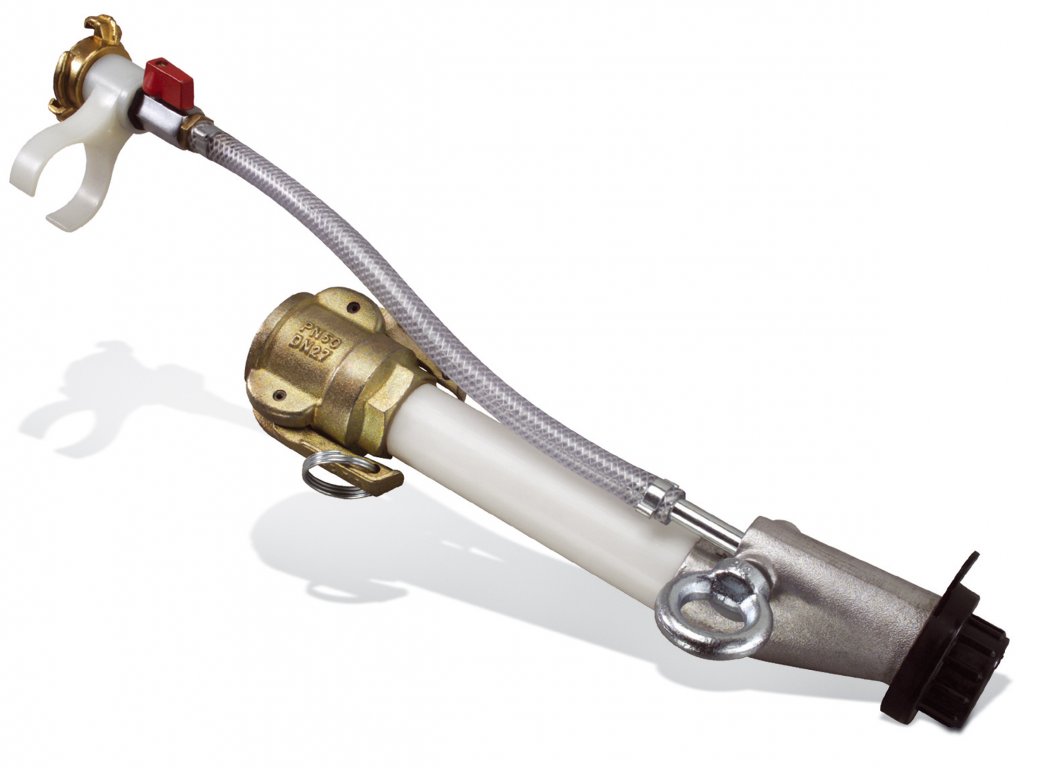

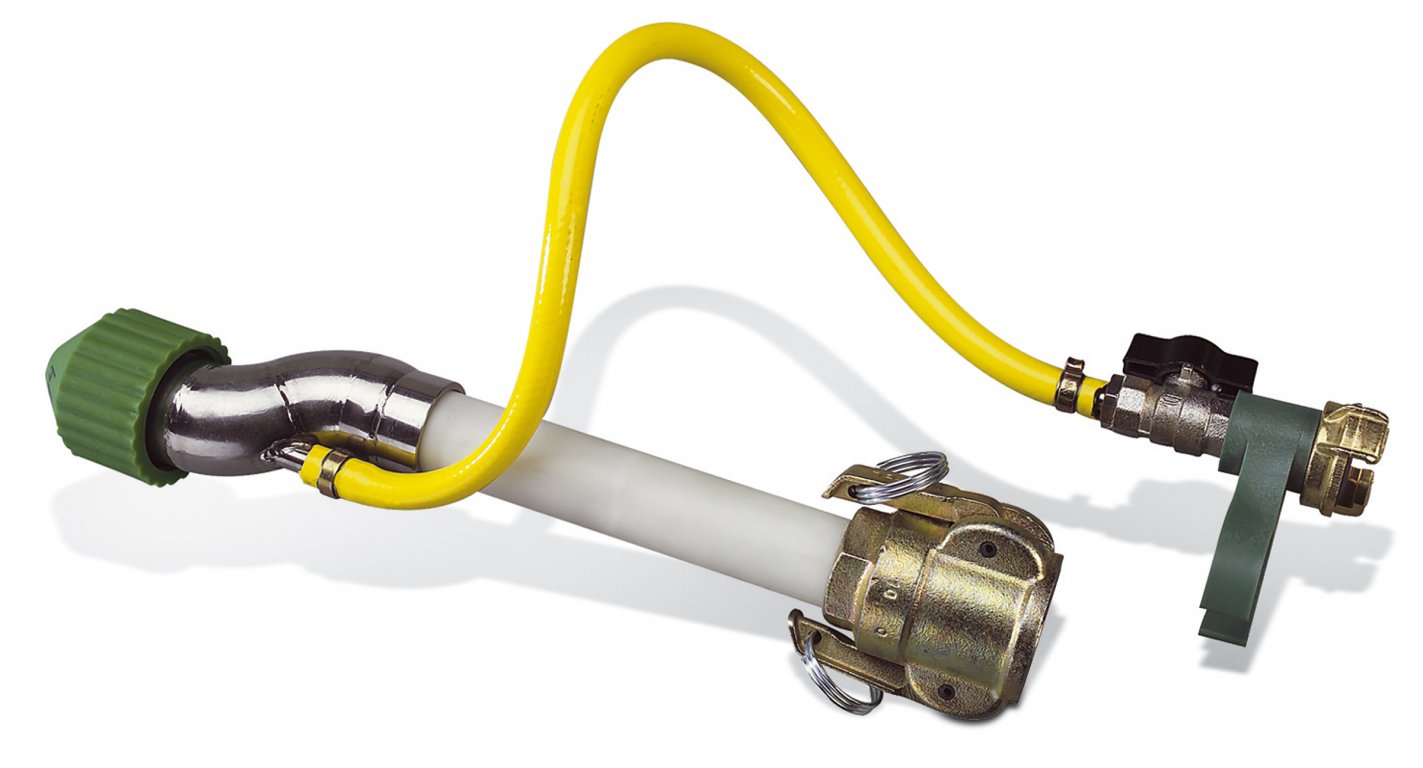

Short spray pipe with mortar coupling 25 mm
Short, lightweight spray pipe with L24 coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (air flow rate from 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.
- For particle sizes up to 3 mm
- Suitable for a 25 mm mortar hose
- Only in conjunction with remote control cable
Scope of delivery:
Short spray pipe with 2 m whip hose (Ø 19 mm), with mortar coupling 25 mm and 2 m air hose with GEKA coupling, without nozzles
Small spray pipe – short design (Article No. 10039887)

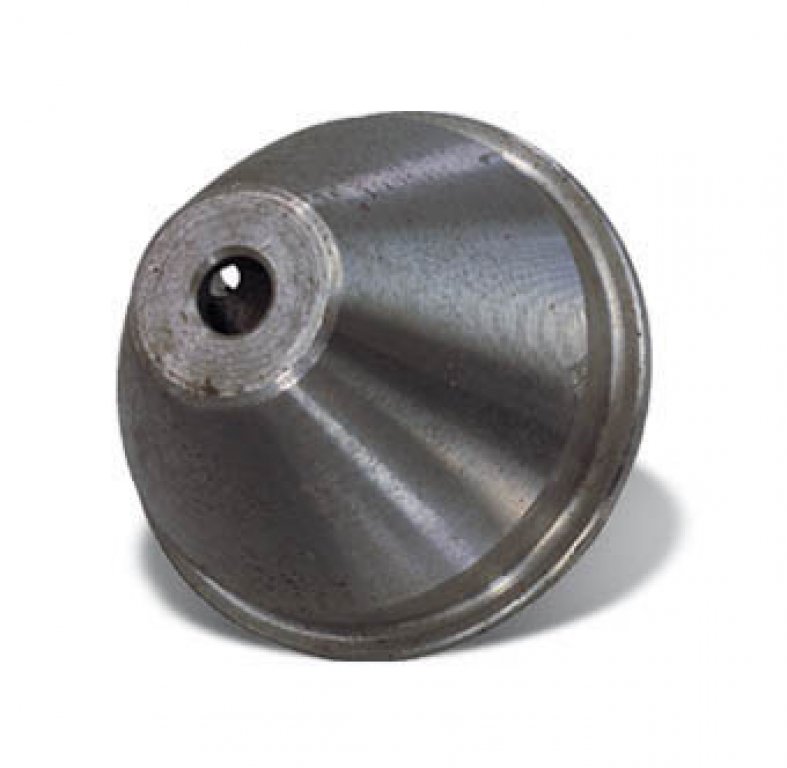

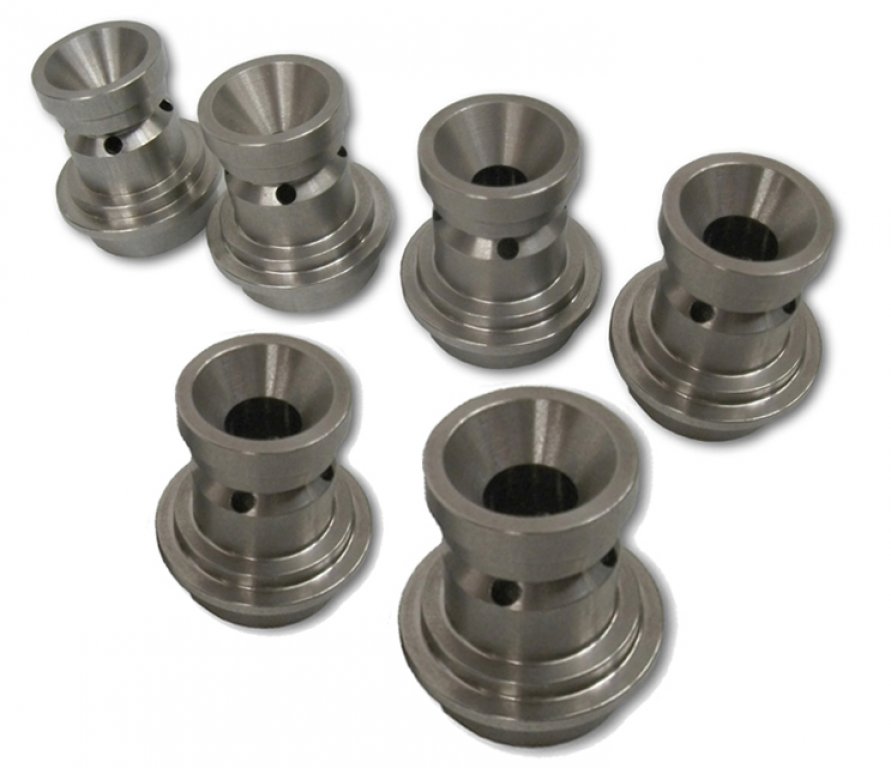

Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10044450)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10044445)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10044446)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10044447)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10044448)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10044449)
MAI finishing coat device, straight
- With 25 mm M-piece coupling
- Including a 14 mm jet nozzle
MAI finishing coat device, straight (Article No. 10024362)
Jet nozzle
- For MAI finishing coat device
Jet nozzle - Ø 10 mm (Article No. 10024378)
Jet nozzle - Ø 12 mm (Article No. 10024379)
Jet nozzle - Ø 14 mm (Article No. 10024380)
Jet nozzle - Ø 16 mm (Article No. 10024381)
Straight finishing coat device
- With 25 mm M-piece coupling
- Incl. a 14 mm finishing coat nozzle
Straight finishing coat device (Article No. 10024098)

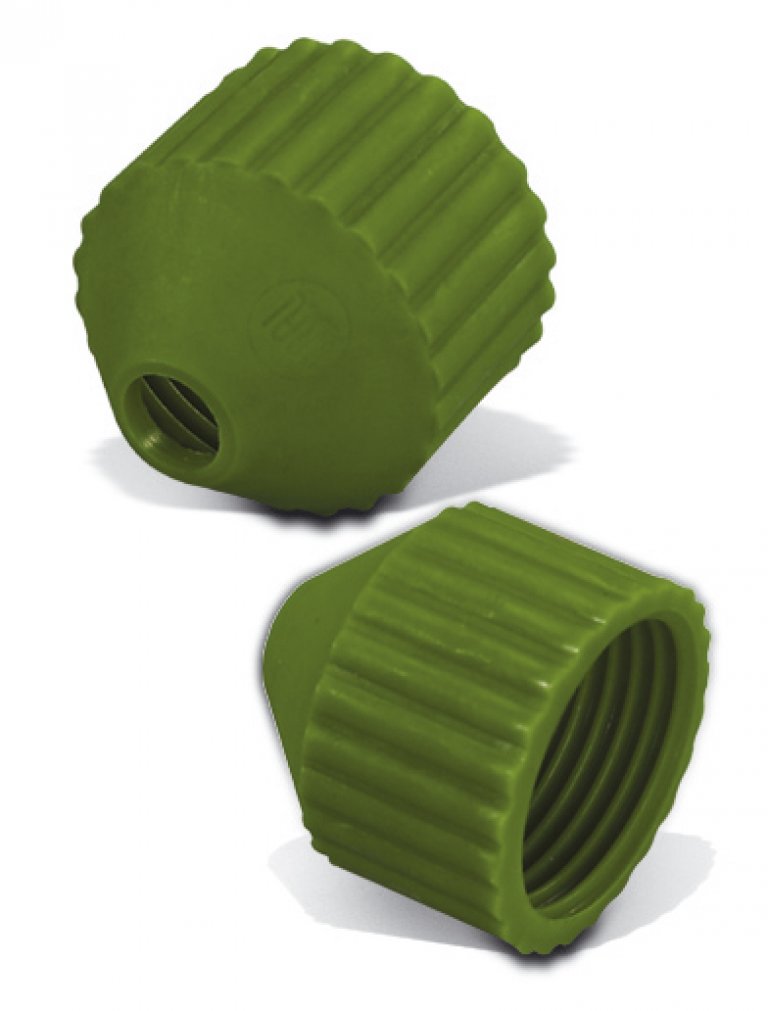

Finishing coat nozzles
- For finishing coat devices, item nos.:
10024098 / 10024099
Finishing coat nozzles - Ø 10 mm (Article No. 10024089)
Finishing coat nozzles - Ø 12 mm (Article No. 10024090)
Finishing coat nozzles - Ø 14 mm (Article No. 10024091)
Finishing coat nozzles - Ø 16 mm (Article No. 10024093)

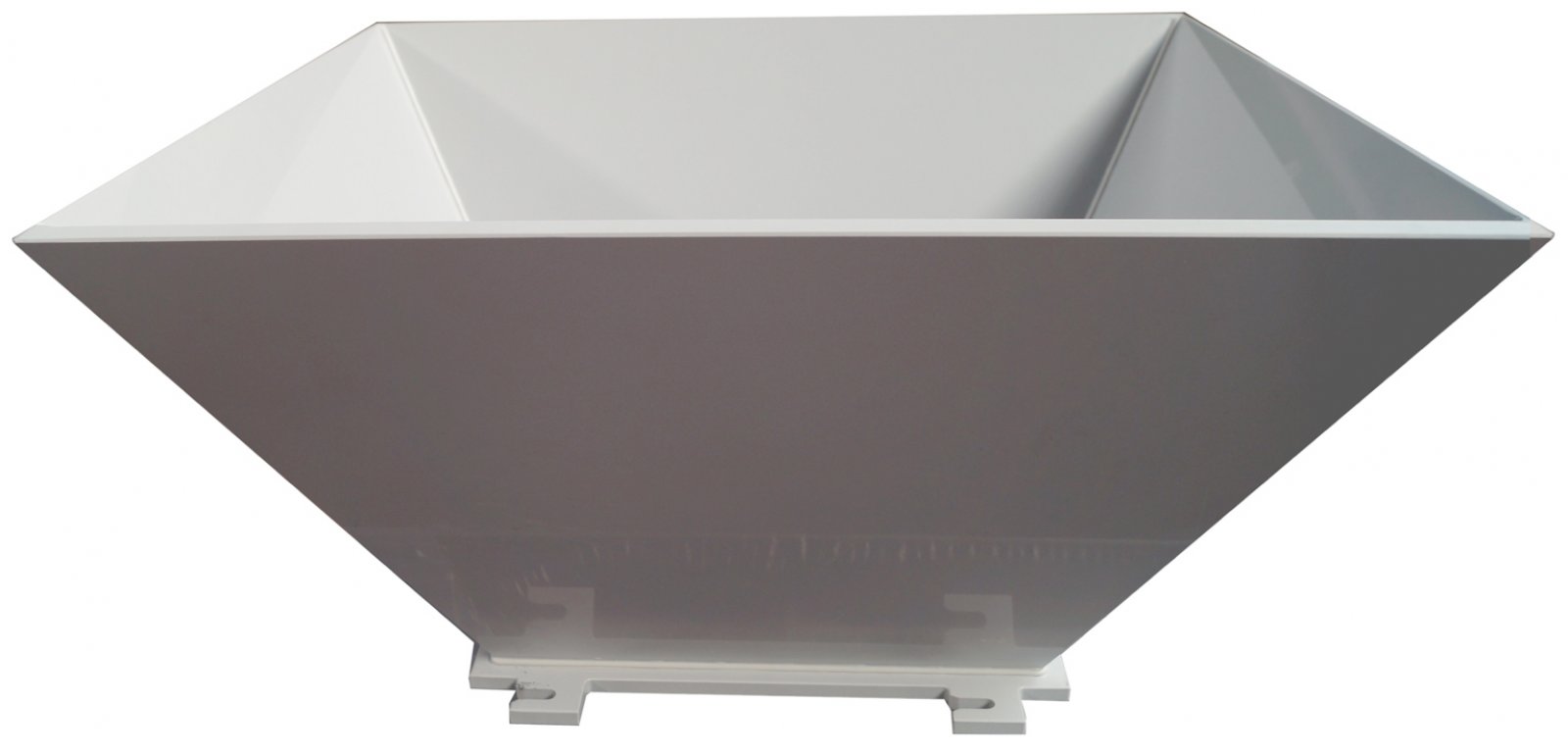

Plastic hopper
Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.
Plastic hopper (Article No. 10040973)

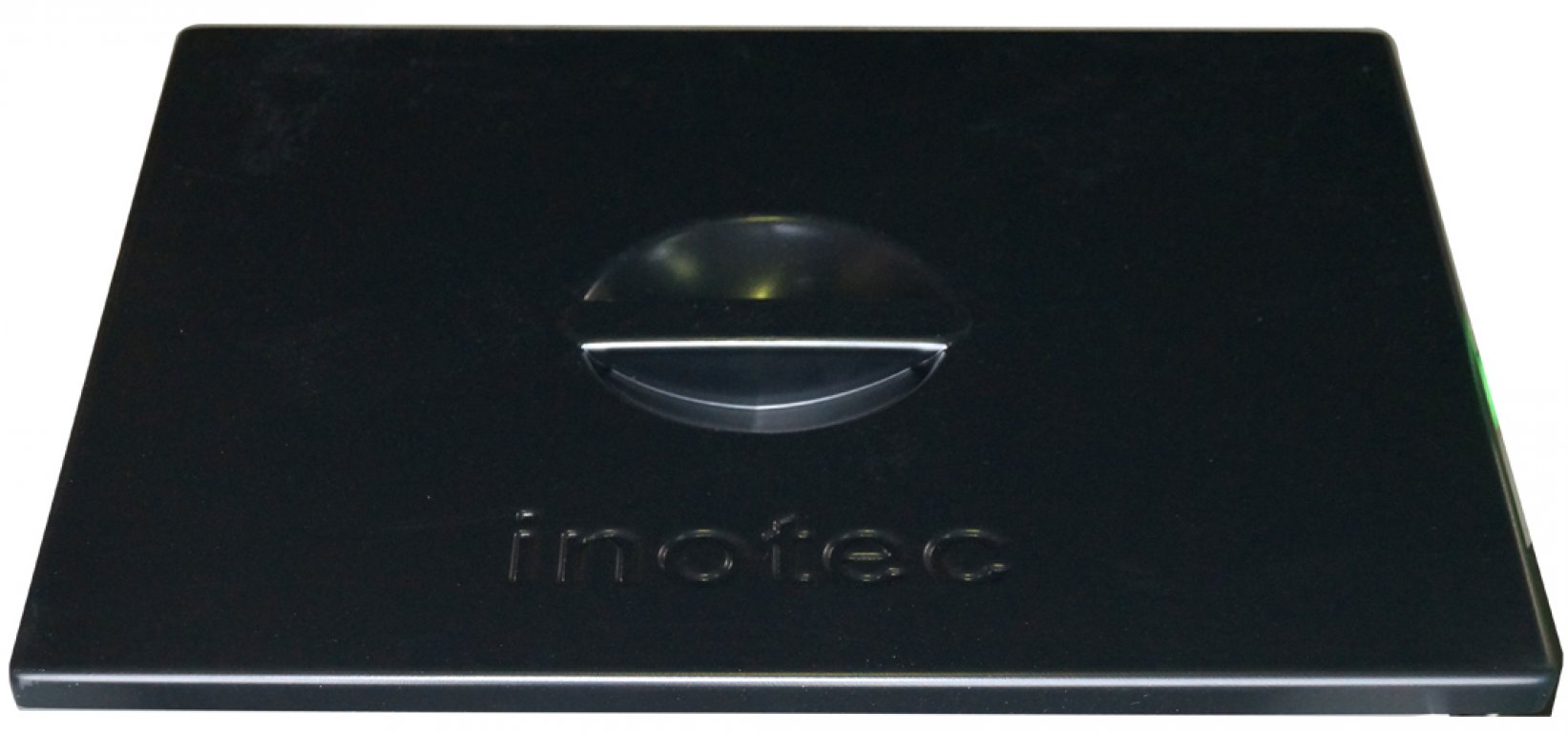

Cover for plastic hopper
- For protecting the content of the hopper against impurities
- Made from black plastic
Cover for plastic hopper (Article No. 10041816)

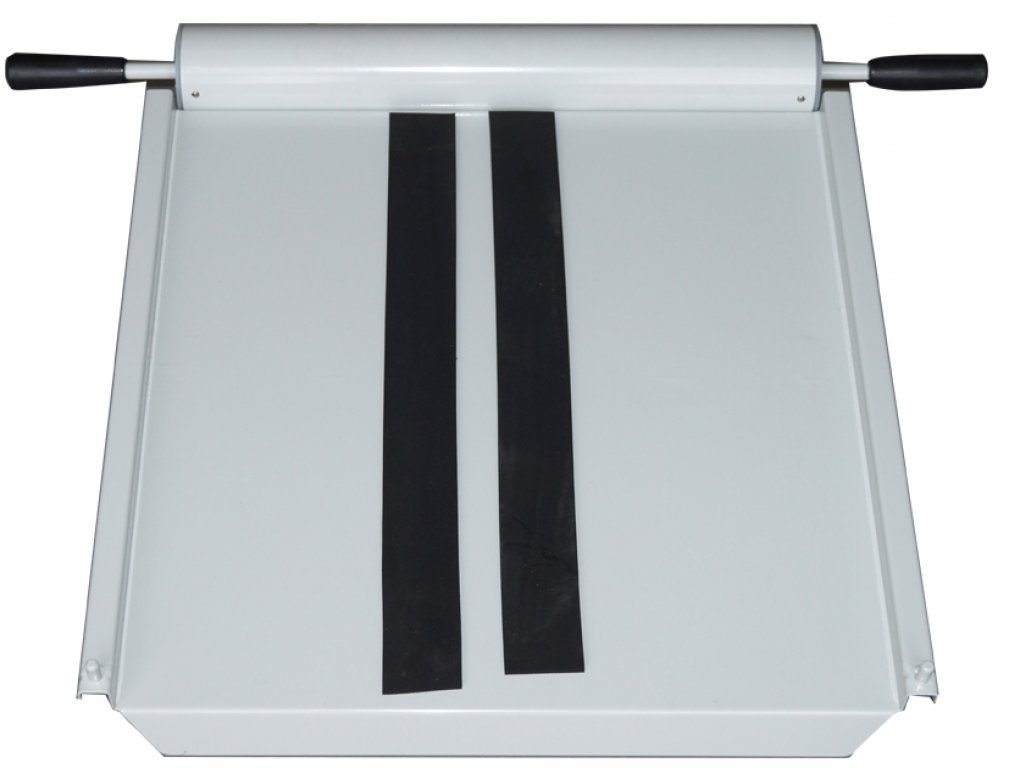

Bag mangle
- For emptying plastic bags with paste-like materials
Bag mangle (Article No. 10041971)

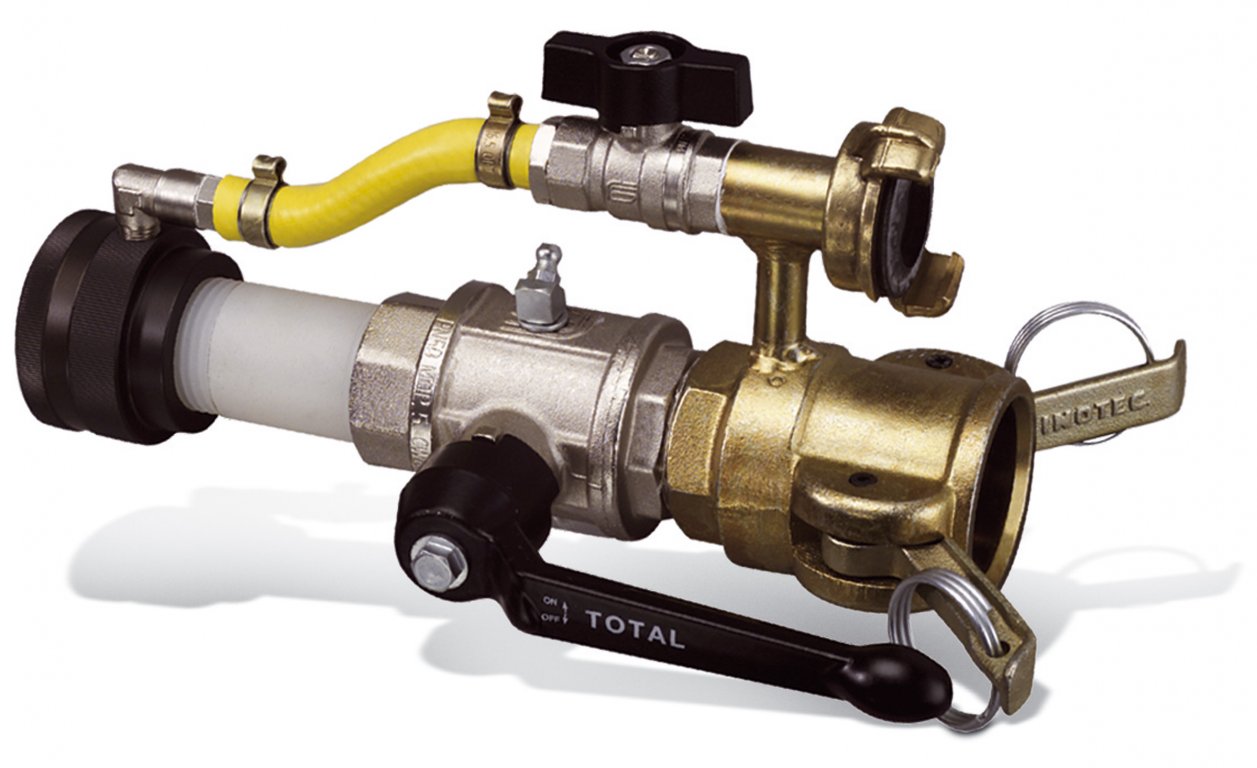

Straight decorative plaster spraying device
- Not including nozzle with 25 mm M-piece coupling
- For grit sizes up to 6.0 mm
- Only in conjunction with remote control cable
Straight decorative plaster spraying device (Article No. 10024246)
Nozzle for straight decorative plaster spraying device
- Made from stainless steel
Nozzle for straight decorative plaster spraying device - Ø 8 mm (Article No. 10024071)
Nozzle for straight decorative plaster spraying device - Ø 10 mm (Article No. 10024065)
Nozzle for straight decorative plaster spraying device - Ø 12 mm (Article No. 10024066)

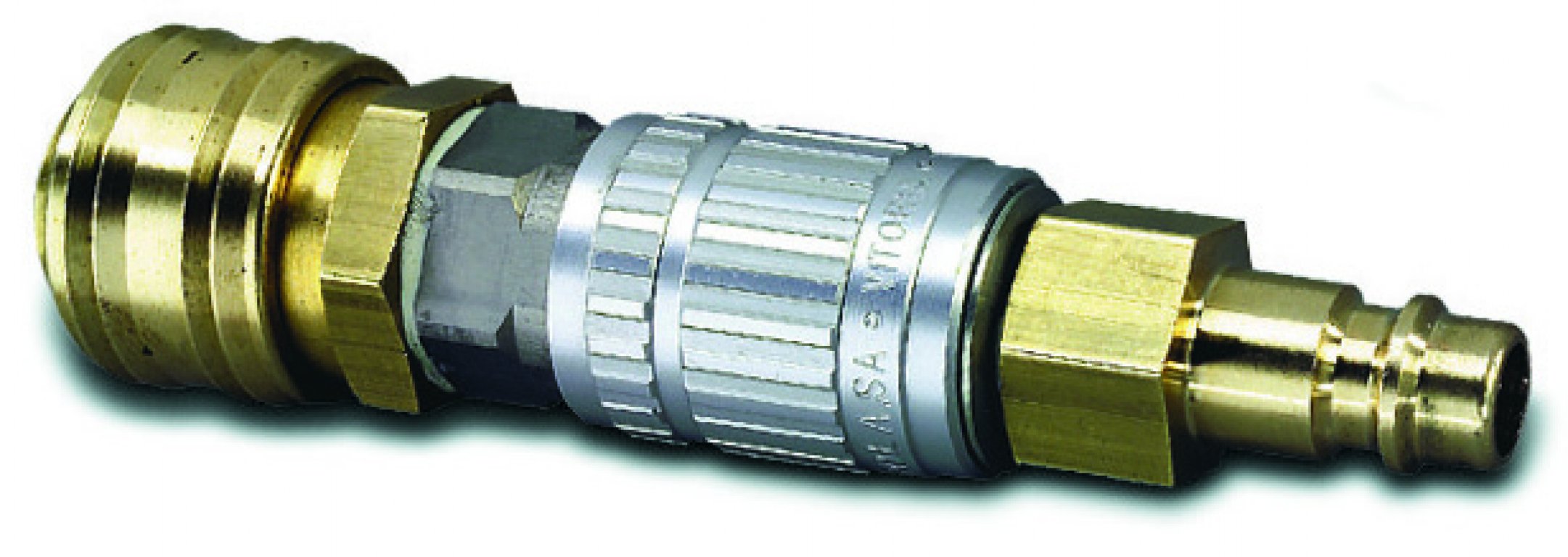

Air quantity controller with EWO couplings
- For precisely adjusting the air quantity when spraying.
- Is connected between the air hose and spraying device.
Air quantity controller with EWO couplings (Article No. 10017793)

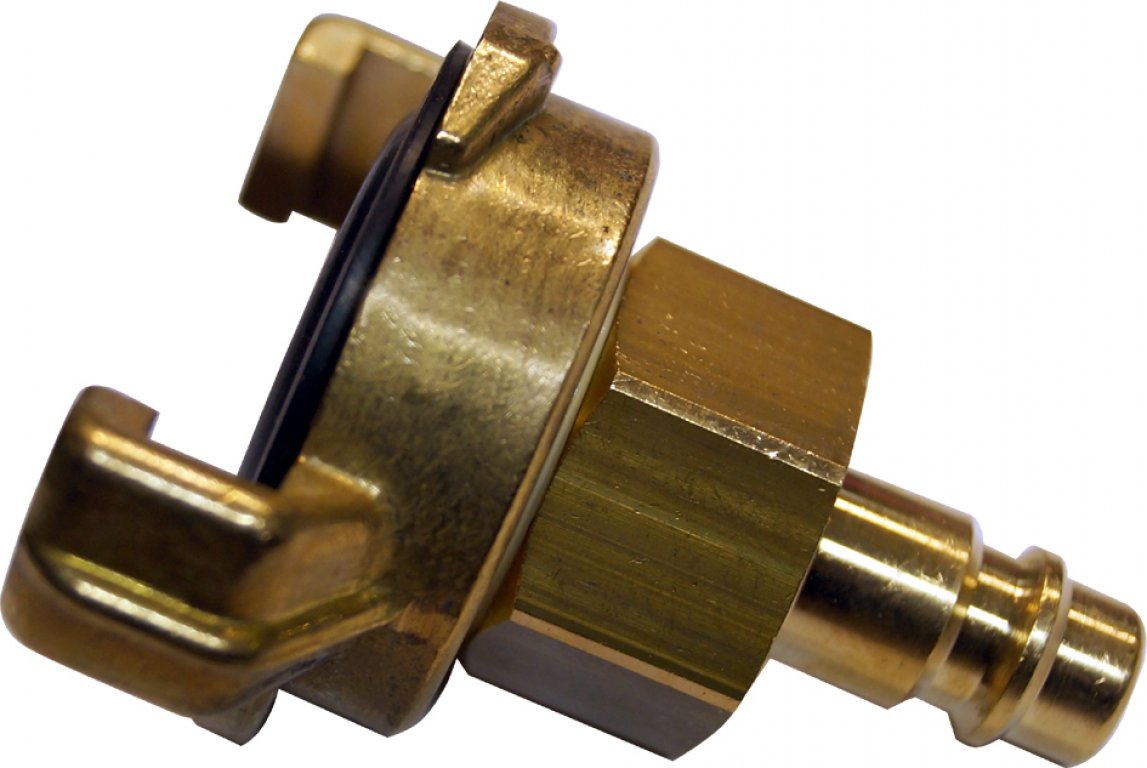

Connecting coupling for compressors
- EWO V-piece on GEKA
Connecting coupling for compressors (Article No. 10022353)

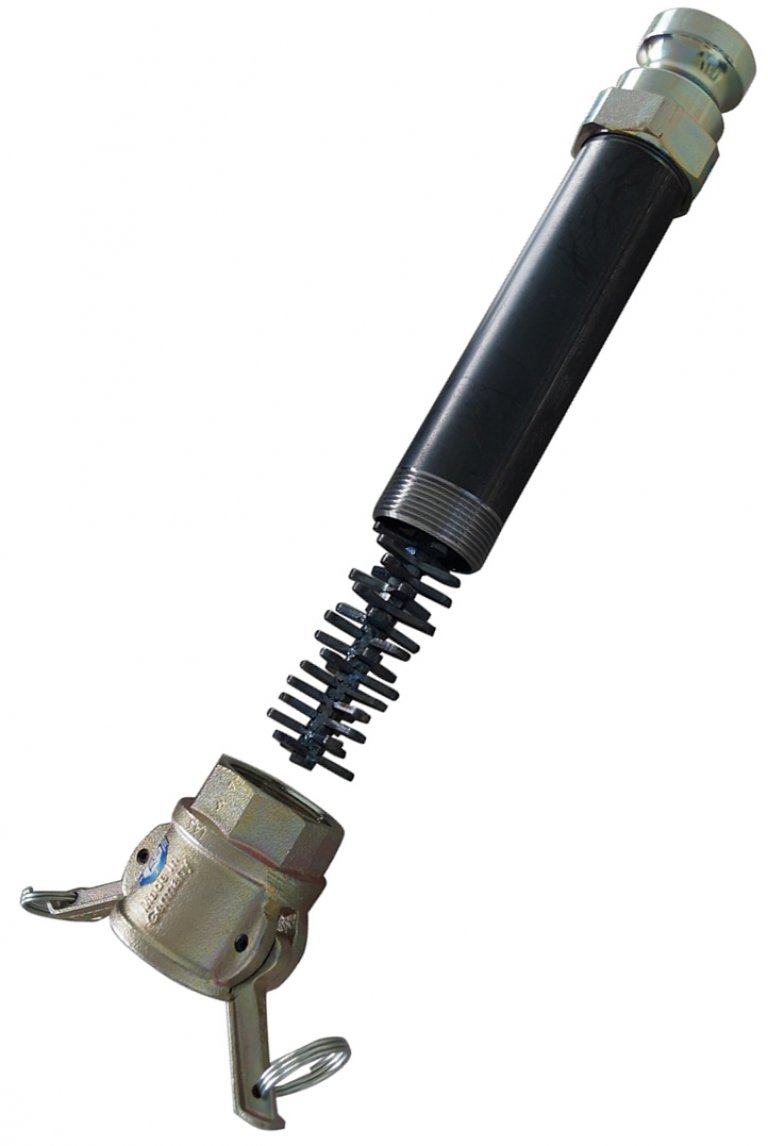

Static mixer
- Prevents / destroys node in mortar
- Diameter: 35 mm
- Length:200 mm
- incl. Coupling M-piece 35 mm and V-piece 35 mm
Static mixer (Article No. 10042362 )
Reprofiling sprayer
- Reprofiling sprayer 35 V with nozzle pipe 12 mm, connection 35 V-piece
Nozzle pipe 12 mm - for reprofiling sprayer (Article No. 10022789)
Nozzle pipe 15 mm - for reprofiling sprayer (Article No. 10022790)
Reprofiling sprayer (Article No. 10023309)

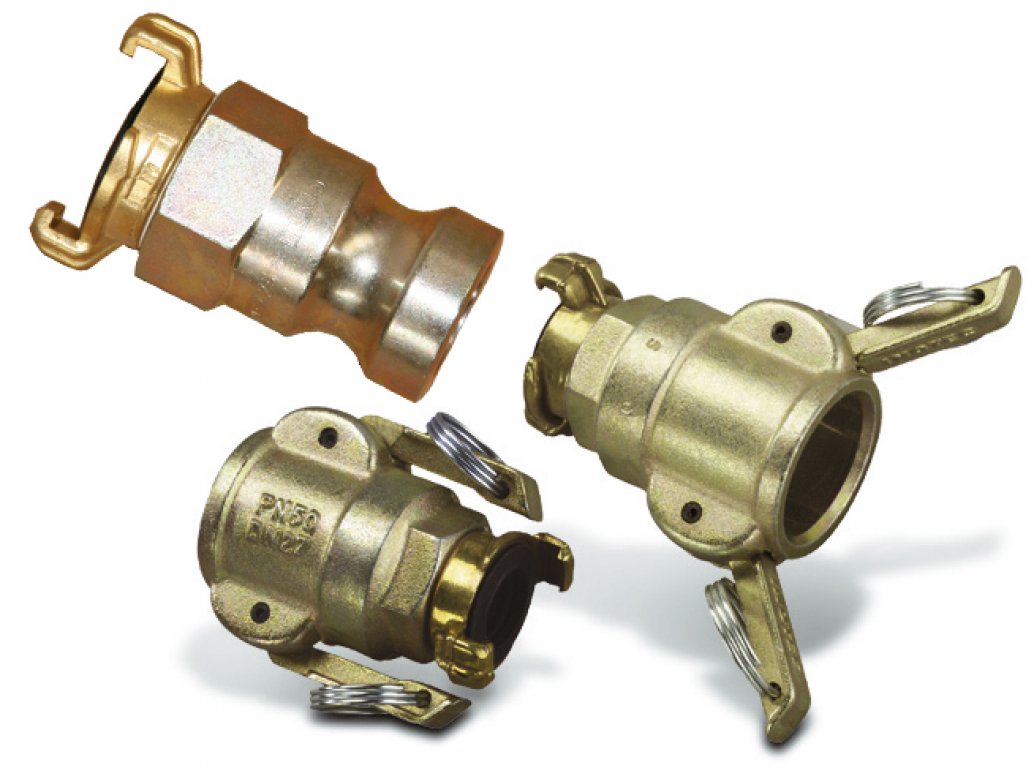

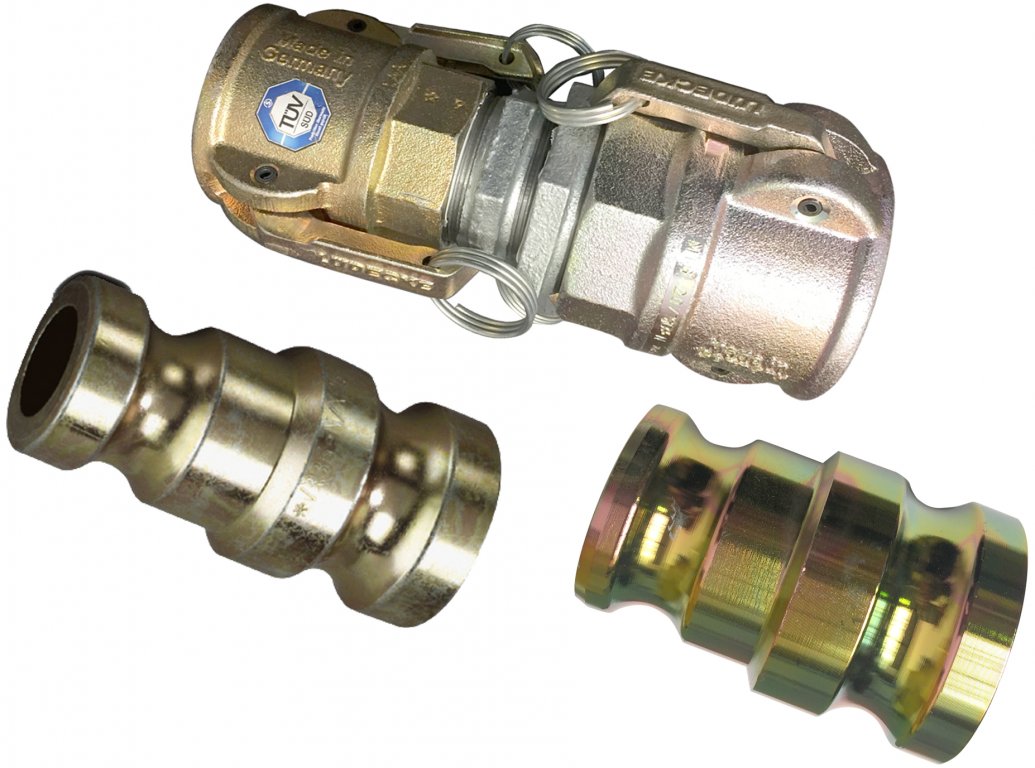

Coupling reducer
- For connecting two mortar hoses or reducing the machine outlet.
Coupling reducer 35 V -> 25 V (Article No. 10022101)
Coupling reducer: 42 M-piece -> 35 M-piece (Article No. 10022097)
Plaster piece for cleaning mortar hoses
Plaster piece 42-V-part (Article No. 10042213)
Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)
Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)
Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)
Sponge balls (soft version)
- For cleaning material / mortar hoses
Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)
Sponge balls (soft version) - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-005)
Sponge balls (soft version) - Ø 60 mm for hose Ø 40 / 50 mm (Article No. 10008116-006)
Sponge balls (solid version)
- For cleaningmaterial / mortar hoses
Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)
Sponge balls (solid version) Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)

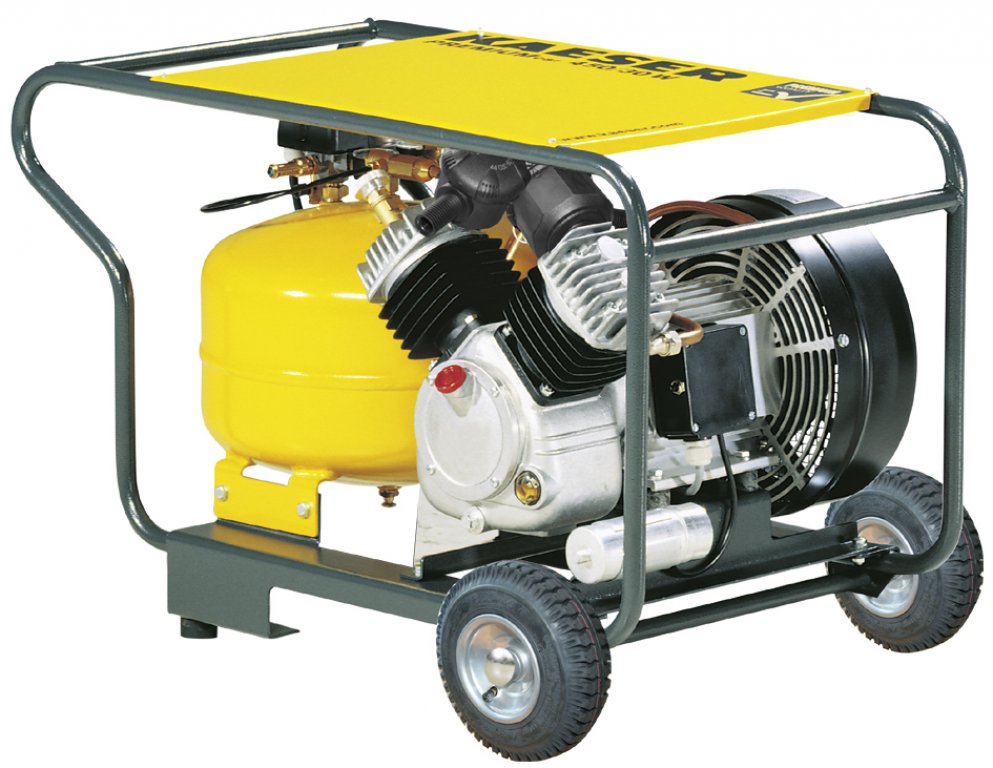

KAESER 230 V Compressor Premium Car 450/30W
The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.
Technical data:
| Operating pressure: | 10 bar | |
| Suction capacity: | 450 l/min | |
| Output: | 2,2 kW | |
| Dimensions (L x W x H): | 870 x 560 x 590 mm | |
| Weight: | 86 kg |
KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)

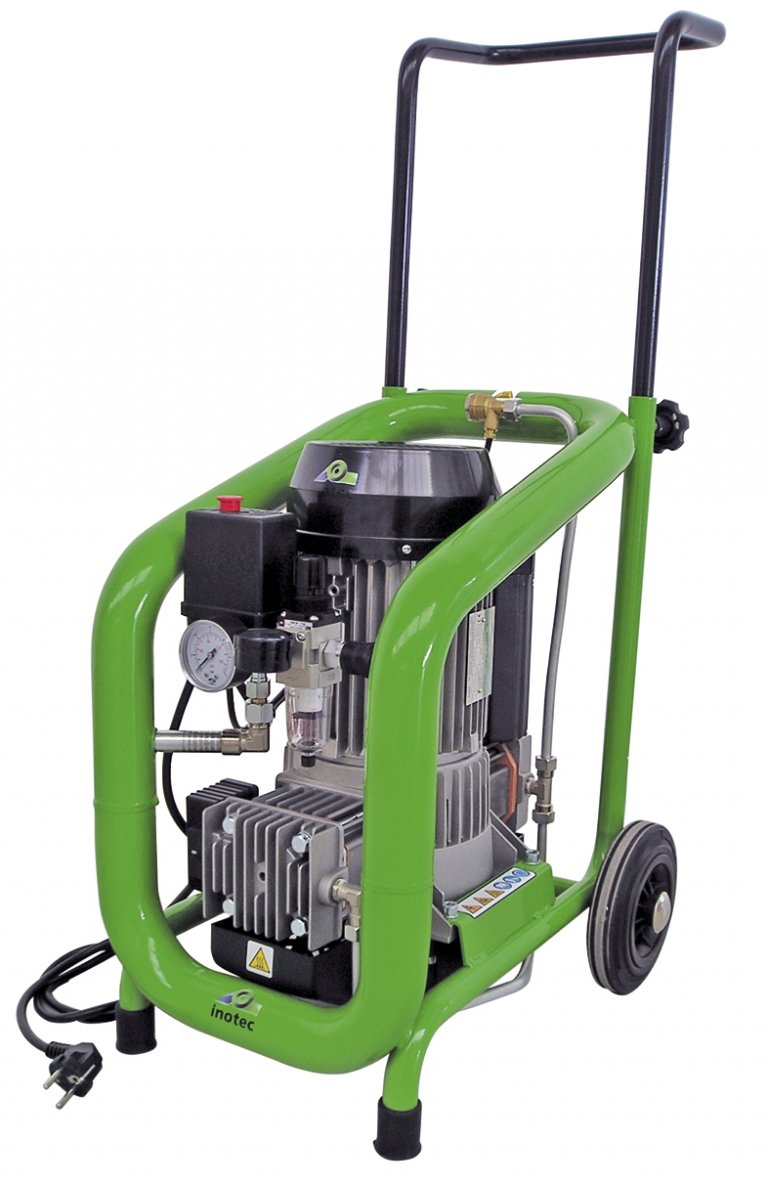

230 V INOTEC Compact 330 compressor
The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.
| Technical data: | |
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | 32 kg |
230 V INOTEC Compact 330 compressor (Article No. 10034389)

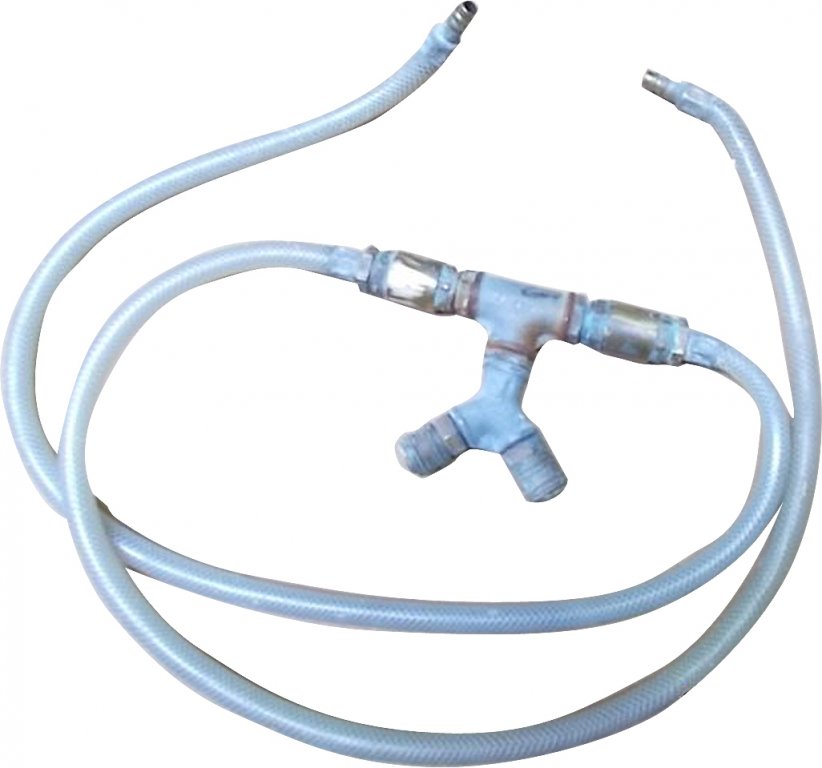

Connection unit for 2 INOTEC Compact 330 compressors
consisting of check valve and EWO coupling
- 2 x V parts
- 1 x M part
Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)

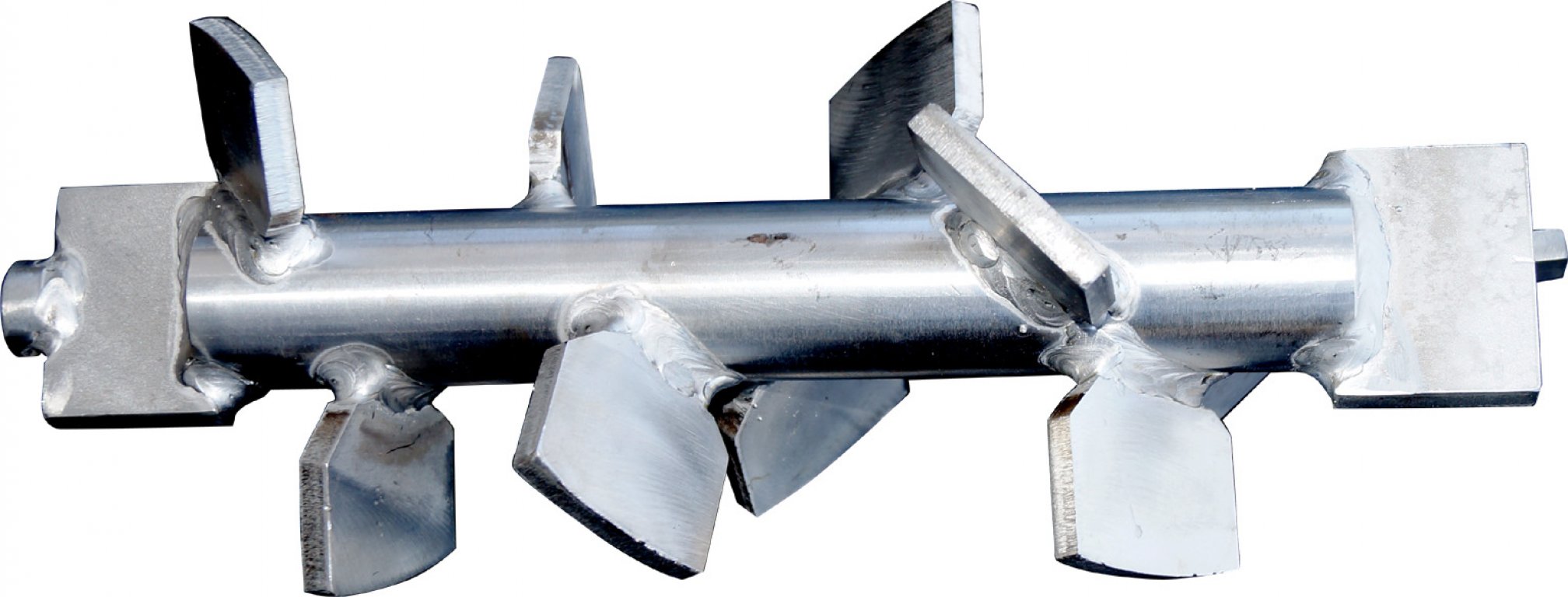

Pump shaft for inoBEAM F12 / F30
Pump shaft for inoBEAM F12 / F30 (Article No. 10006177)

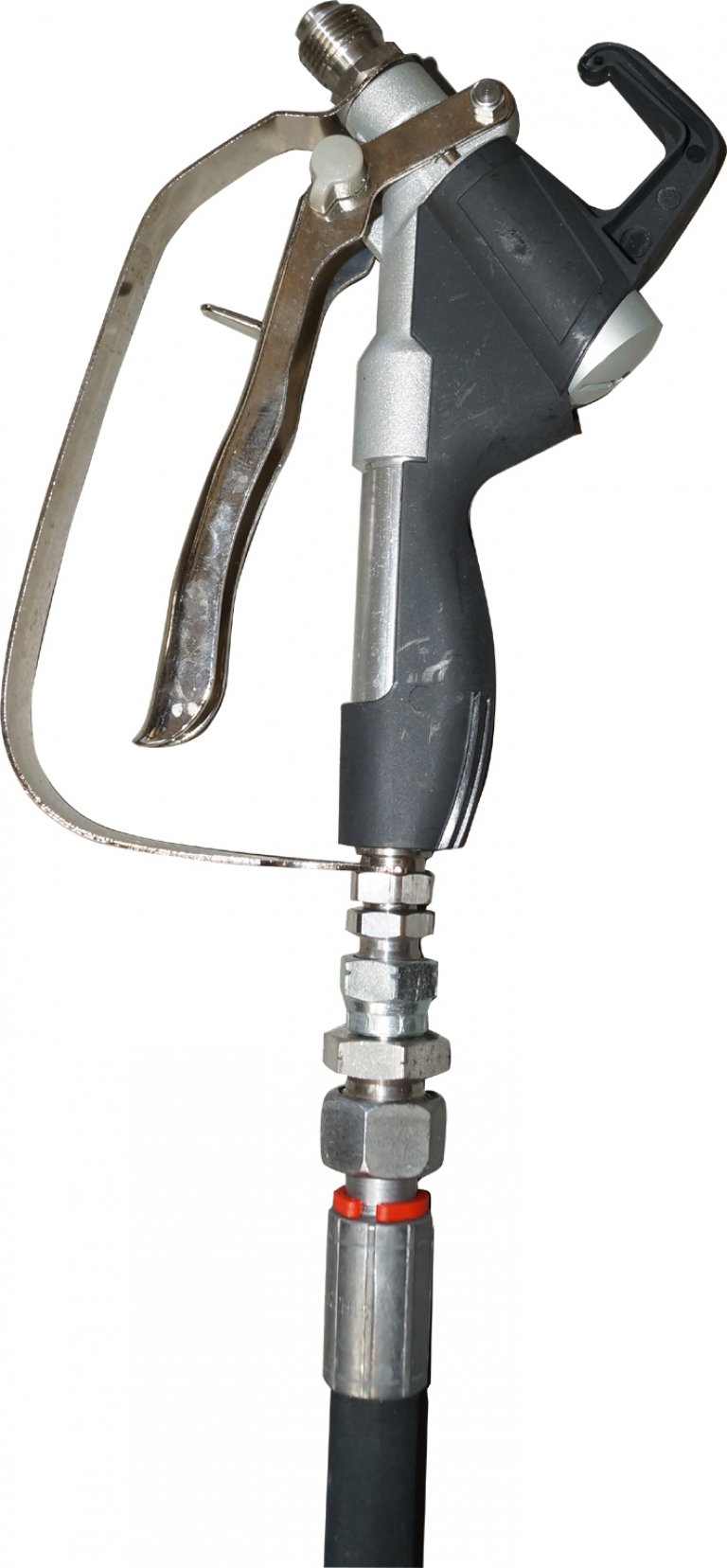

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP
- Connection 3/8” male, including swivel / Maximum pressure: 250 bar
Optional (not included in the scope of delivery):
- RAC X nozzle holder (for F12 HP, F30 HP, F70 HP)
- HDA nozzle 439 (for F12 HP)
- HDA nozzle 543 (for F30 HP)
- HDA nozzle 655 (for F70 HP)
- Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
- Adapter 1/2“ AG x 1“ AG (for F70 HP)
INOTEC airless gun AG 190 LB for inoSPRAY M5 & M7, inoBEAM F12 HP, F30 HP and F70 HP (Article No. 10044654)

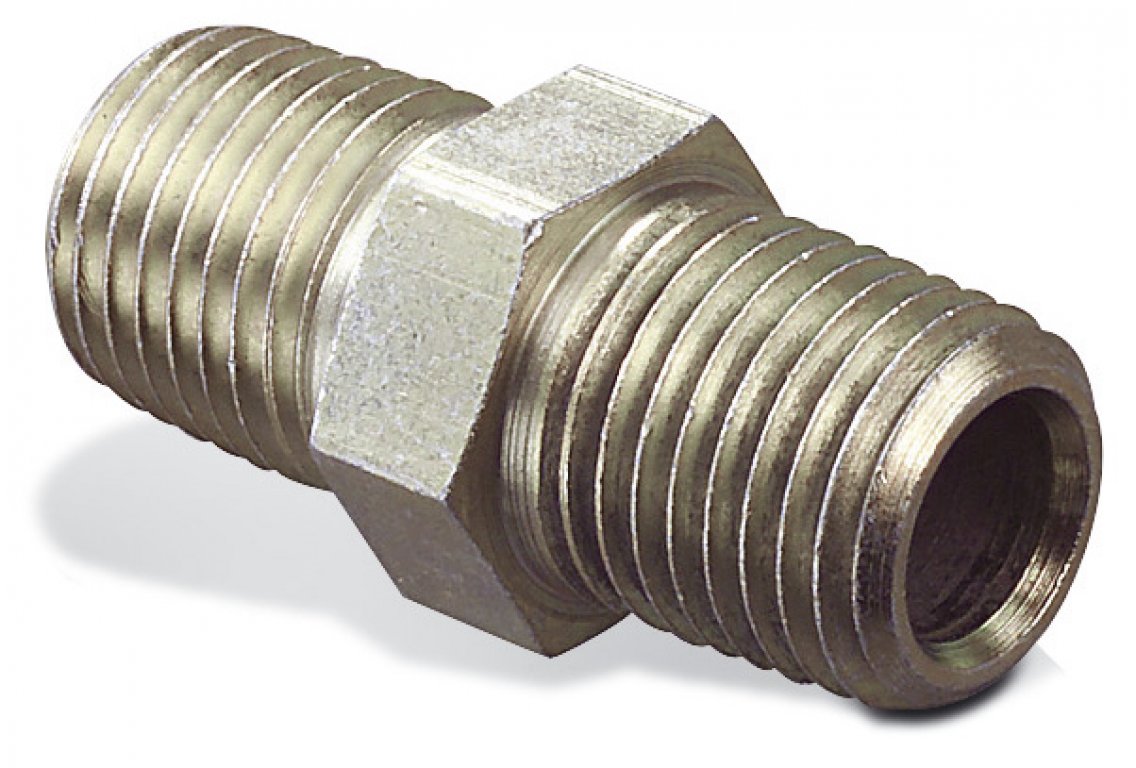

Double nipple
- Hose connection – this connection is rigid; does not rotate
Double nipple - 1/2“ ET x 1/2“ ET - 500 bar (Article No. 10022161)
D4 ½ output conveying screw - Head marked in green
D4 ½ output conveying screw - Head marked in green (Article No. 10022543)
D4 ½ output screw casing, soft with clamping strip
D4 ½ output screw casing, soft with clamping strip (Article No. 10022503)
D6-3 Eco Gold conveying screw
- Tip marked in gold
D6-3 Eco Gold conveying screw (Article No. 10022552)
D6-3 Eco Gold screw casing
- Without anti-twist protection, colour: gold
D6-3 Eco Gold screw casing (Article No. 10022509)
Stator R7-1.5 (maintenance-free)
Stator R7-1.5 (maintenance-free) (Article No. 10023395)
Rotor R7-1.5
R7-1,5 spiral conveyor (Article No. 10022887)
Stator R7-1.5 with clamping strip
Stator R7-1.5 with clamping strip (Article No. 10023395)
D8-1.5 conveying screw
- Tip marked in yellow
D8-1.5 conveying screw (Article No. 10022562)

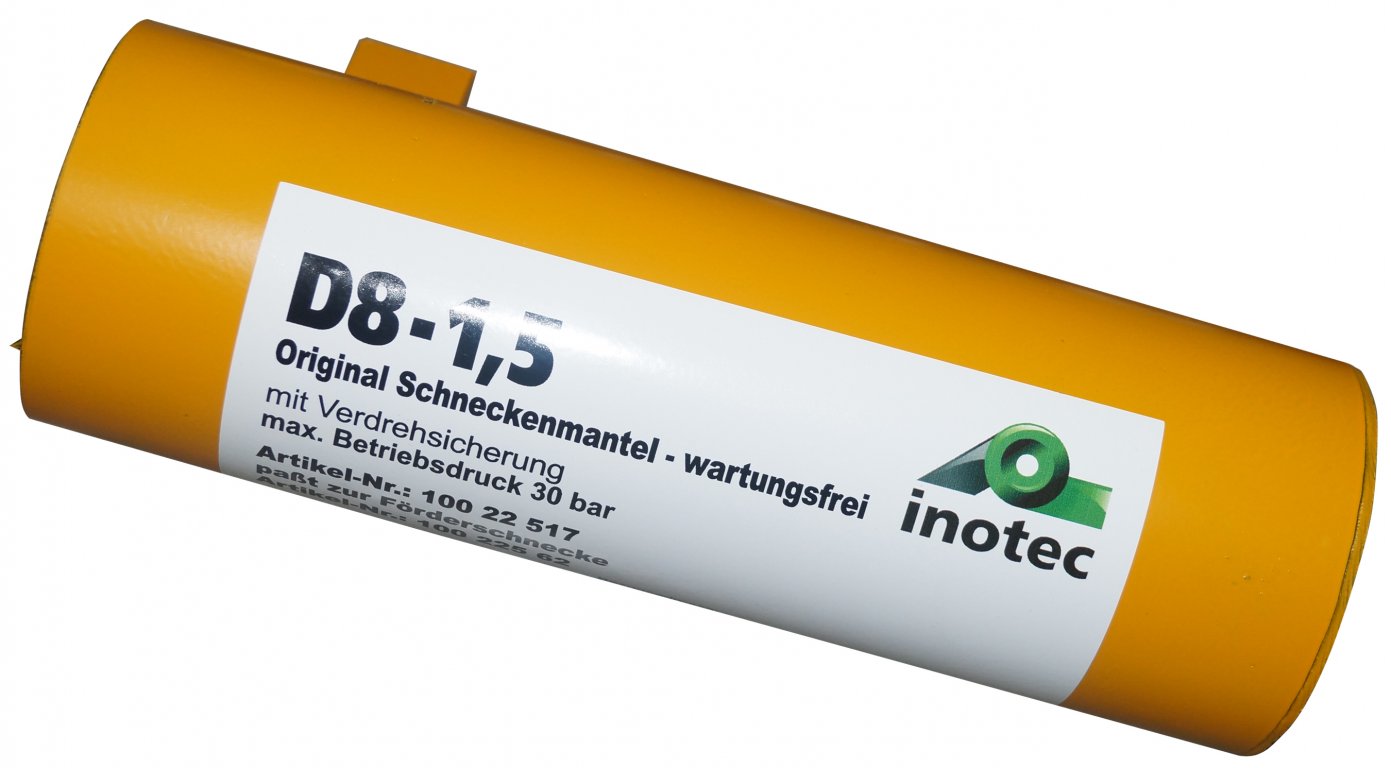

D8-1.5 yellow screw casing (maintenance free)
D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)

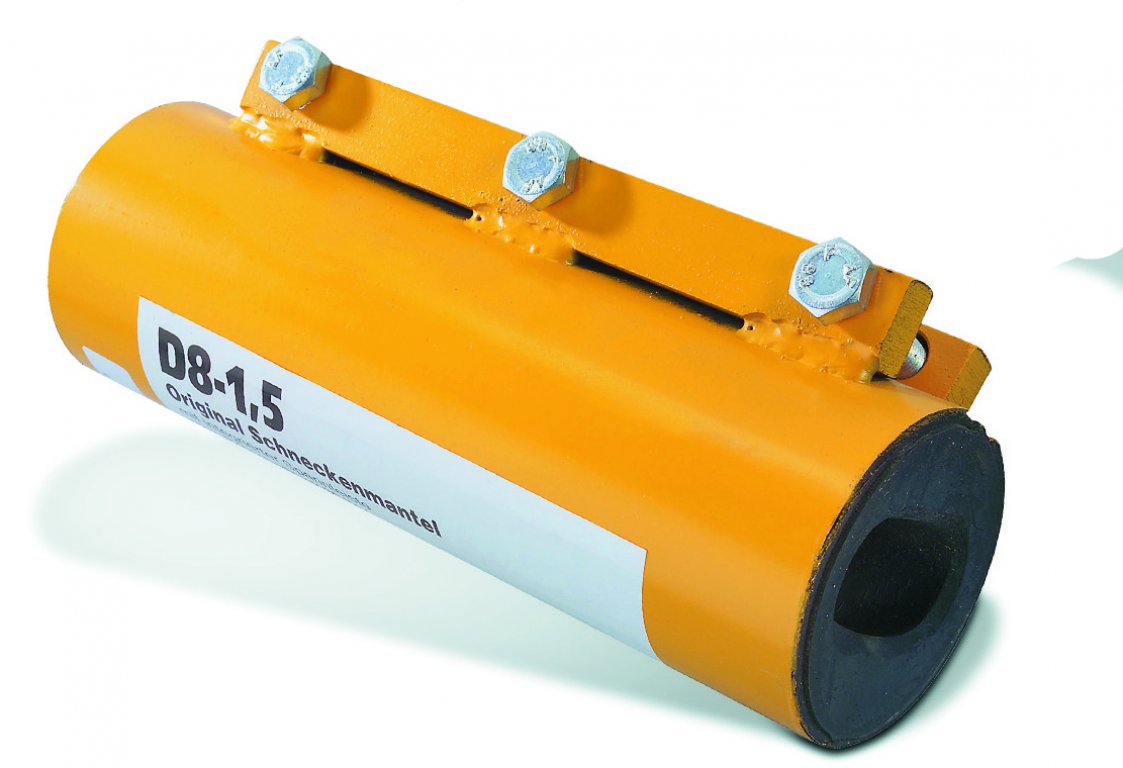

D8-1.5 yellow screw casing with clamping strip
D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)
Rotor D7-2.5 “S”
Rotor D7-2,5 „S“ (Article No. 10022556)
Stator D7-2.5 “Mono Plus” (maintenance free)
Stator D7-2.5 “Mono Plus” (maintenance free) (Article No. 10042506)
Rotor SPRAY for inoBEAM F30 high-pressure pump (HP)
Rotor SPRAY for inoBEAM F30 high-pressure pump (HP) (Article No. 10042467)
Stator SPRAY for inoBEAM F30 high-pressure pump (HP)
Stator SPRAY for inoBEAM F30 high-pressure pump (HP) (Article No. 10042466)
Assembly spray lubricant
- For assembling the conveying screw and screw casing
- 400 ml
Assembly spray lubricant (Article No. 10004591)
Professional grease gun: 400 ccm cartridges with hand lever press
- Hose length: 300 mm (Diameter: 8 mm)
- Material: Steel
- Good durability, easy handling
- Weight: 1.10 kg
Professional grease gun: 400 ccm cartridges with hand lever press (Article No. 10026629)

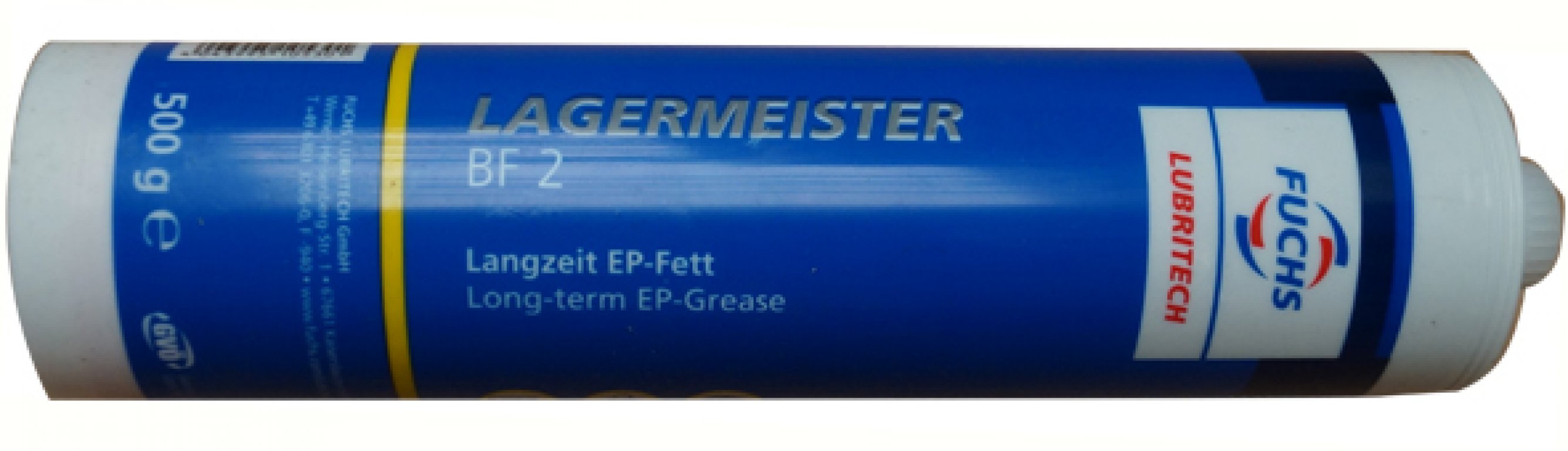

Grease cartridges (replacement cartridges) for professional grease gun
Grease cartridges (replacement cartridges) for professional grease gun (Article No. 10004510)
