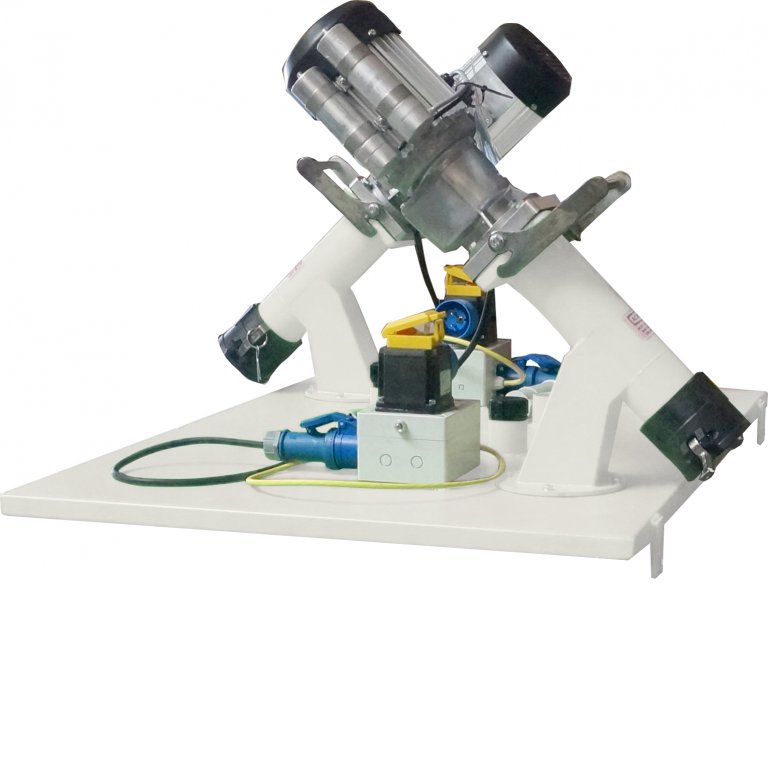

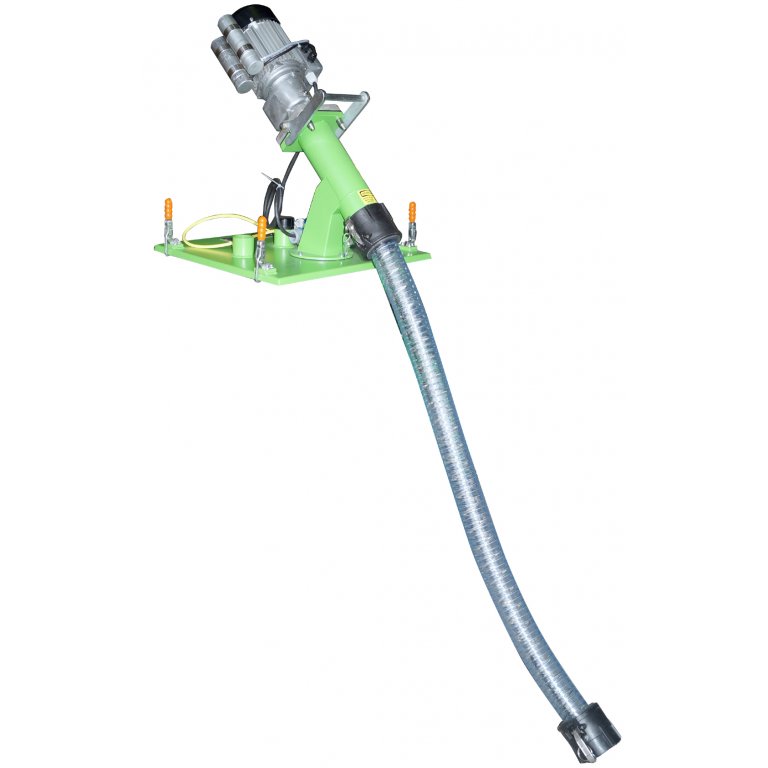

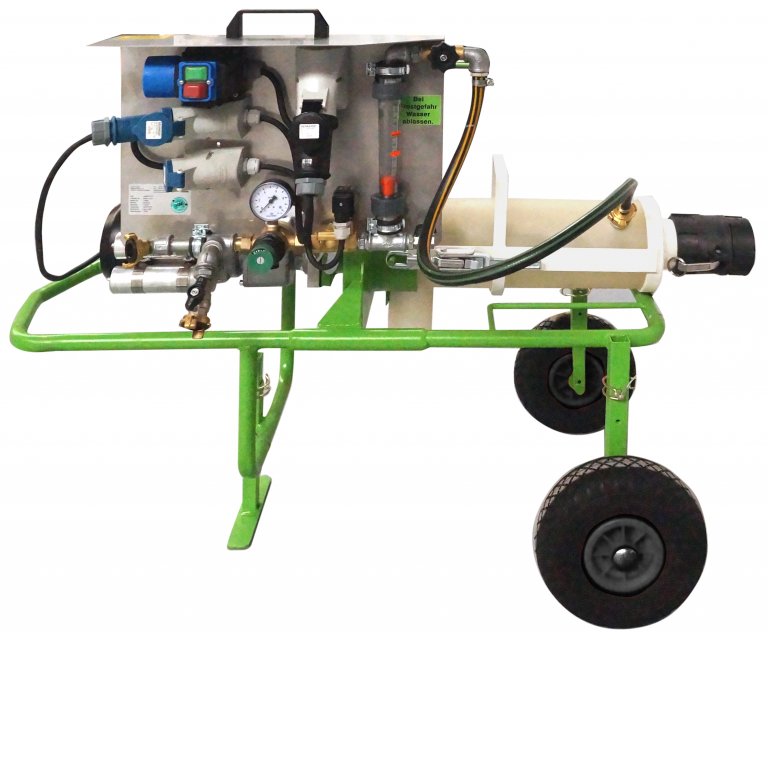

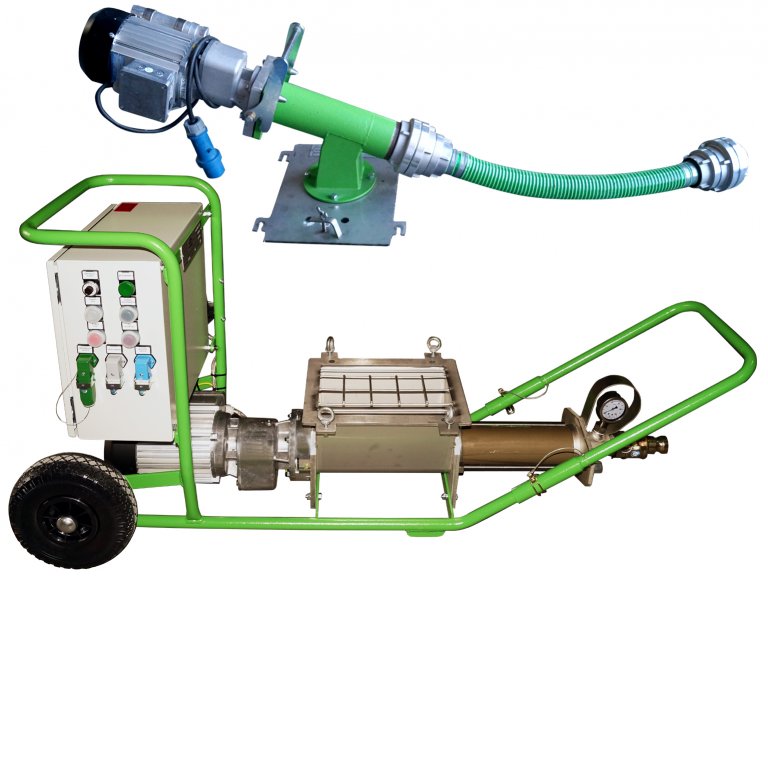

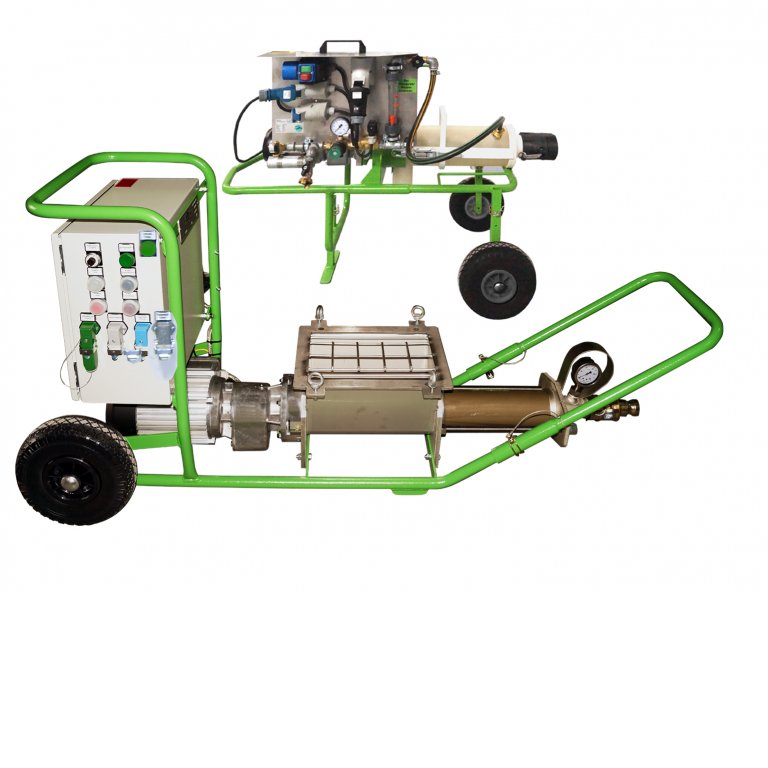

![]() Powdery materials: OWC in combination with a continuous mixer | ![]() Powdery materials: OWC in combination with a continuous mixer and a delivery pump | ![]() Powdery materials: OWC in combination with the dry delivery unit for mixing pumps | ![]() Powdery materials: OWC in combination with two dry delivery unit for a small silo | ![]() Pastöses Material: OWC kombiniert mit Nassfördereinheit und Förderpumpe | ||
Operating voltage | V/Hz/A | 110-230 / 50 / 16 | 110-230 / 50 / 16 | 110-230 / 50 / 16 | 230 / 50 / 16 | 110-230 / 50 / 16 |
Drive performance | kW | 1,1 | inoMIX: 1,1 kW / inoBEAM F30 E: 3,0 (frequency controlled) | 1,1 | inoFLEX pastös: 1,1 kW / inoBEAM Light E: 3,0 (frequency controlled) | |
Mixing performance | l/min | max. 18 | ||||
Machine technique | OWC Machine technology | OWC Machine technology | OWC Machine technology | OWC Machine technology | OWC Machine technology | |
Dimensions (L x W x H) | mm | 1200 x 610 x 950 | 1450 x 530 x 700 | 1450 x 530 x 700 | ||
Weight | kg | approx. 47 | approx. inoMIX: 47 kg / inoBEAM Light E: 80 | approx. 80 | ||
Operating pressure | bar | up to 40 | up to 40 | |||
Delivery rate (depending on the material) | l/min | max. 0 - 30 | max. 24 | max. 2 x 24 | ||
Conveying distance (depending on the material) | m | max. 80 | ||||
Pressure height (depending on the material) | m | max. 25 | ||||
Material container | l | 10 l / 60 l | ||||
Conveying wave | flexible | |||||
Connection Port | flexible |
