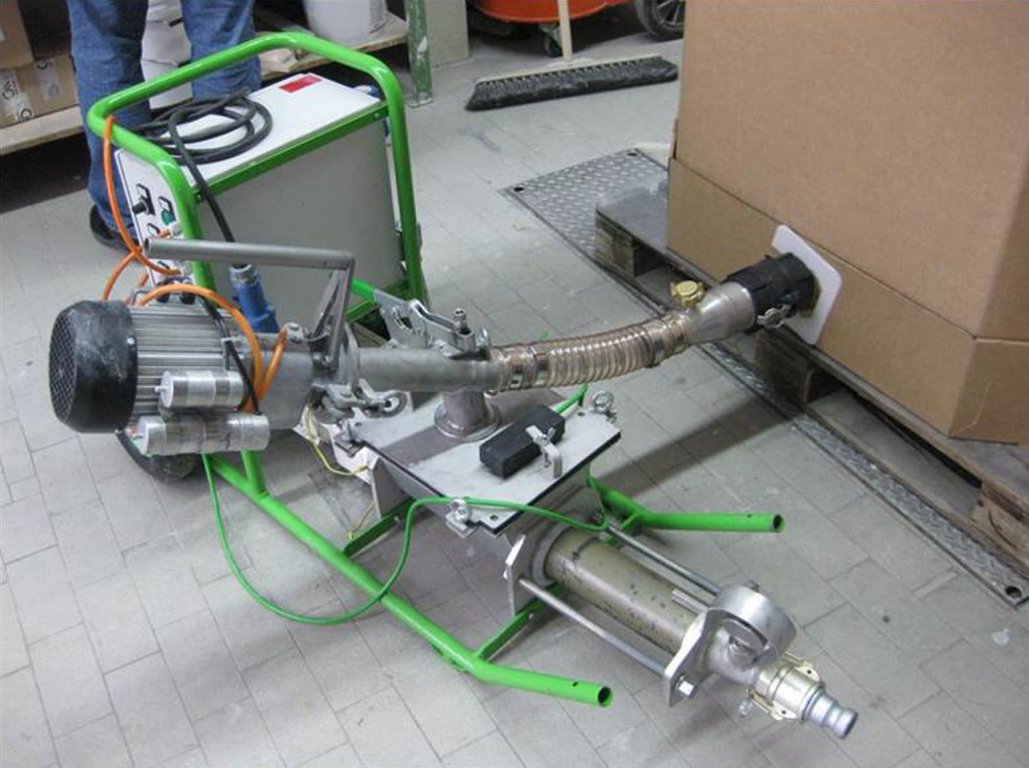

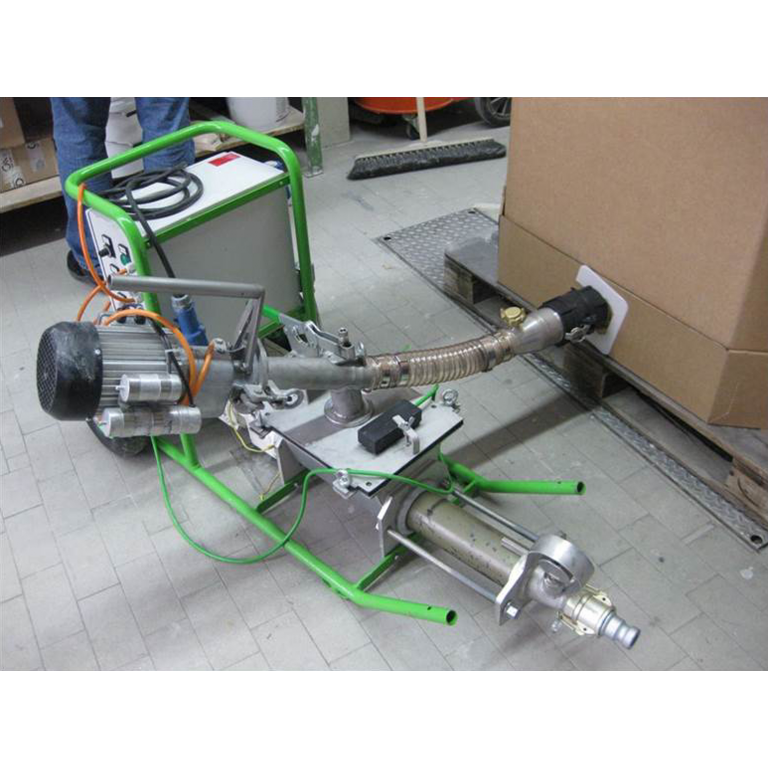

One-way container for paste-like materials in combination with the inoFLEX Mono paste-like wet delivery unit and the inoBEAM F30 delivery pump
inoFLEX paste-like
Advantages at a glance
- Extremely simple assembly on the inoBEAM F30 delivery pump
- Simple one-person transport
- High delivery rate
- Low-maintenance and building site compliant technology
- Simple cleaning
The flexible inoFLEX Mono paste-like delivery shaft transports the material to be processed from a one-way container or from an IBC container directly into the mixing pump hopper, and from there into the material hose for the spray or glue gun.
The inoFLEX Mono paste-like wet delivery unit is combined with the inoBEAM F30 delivery pump.
| Operating pressure | bar | up to 40 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | inoFLEX pastös: 1,1 kW / inoBEAM Light E: 3,0 (frequency controlled) |
| Machine technique | OWC Machine technology | |
| Dimensions (L x W x H) | mm | 1450 x 530 x 700 |
| Weight | kg | approx. 80 |
Scope of delivery
inoFLEX Mono paste-like
Item no. 10010010
- Flexible hose, approx. 0.5 m with C coupling
- Adapter fitting for B to C coupling
- Delivery shaft
- Gear motor
- Stainless steel lid with transition connecting piece and retaining device for fill level probe
- Control panel
- Hydrostatic level probe
- Cable for probe control system
- Funnel elevation
Scope of delivery
inoBEAM F30 E
Item no. 10044215
- Frame
- 2 running wheels
- Plastic material hopper (for filling with e.g. liquid or paste-like material from buckets)
- Cover for material hopper
- Gear motor
- Switching cabinet
- 3 m connecting cable
- Pump shaft
- Pump housing made from stainless steel
- Tool set
- Assembly spray lubricant
- Operating instructions
Set “D”-F30
for spray applications (18 l / 40 bar)
Item no. 10041913*
Set “HP”-F30
for airless spray-on smoothing compounds (8 l / 90 bar)
Item no. 10044242*
---------------------------------------------------------
* For delivery contents, see accessories
