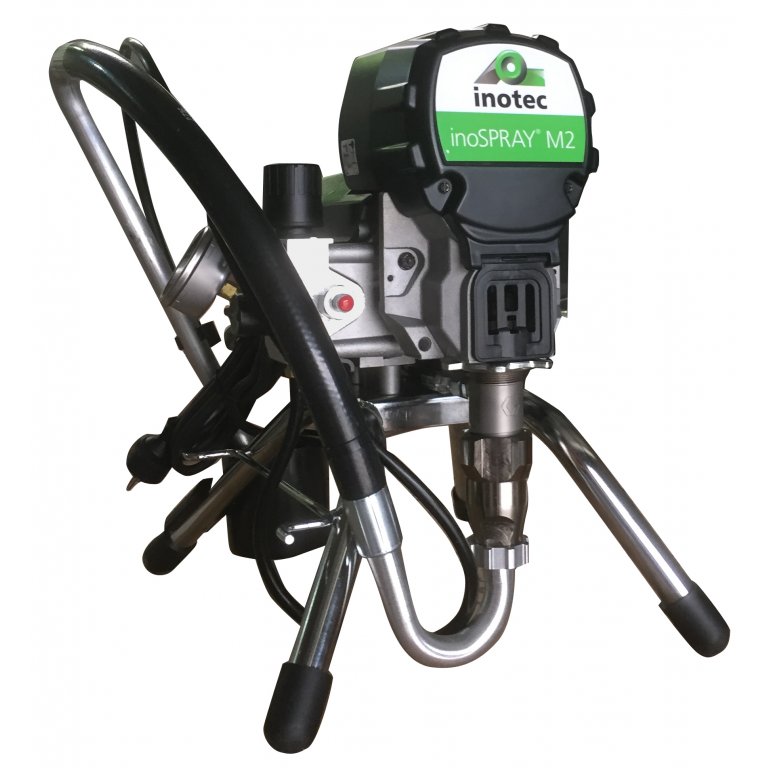

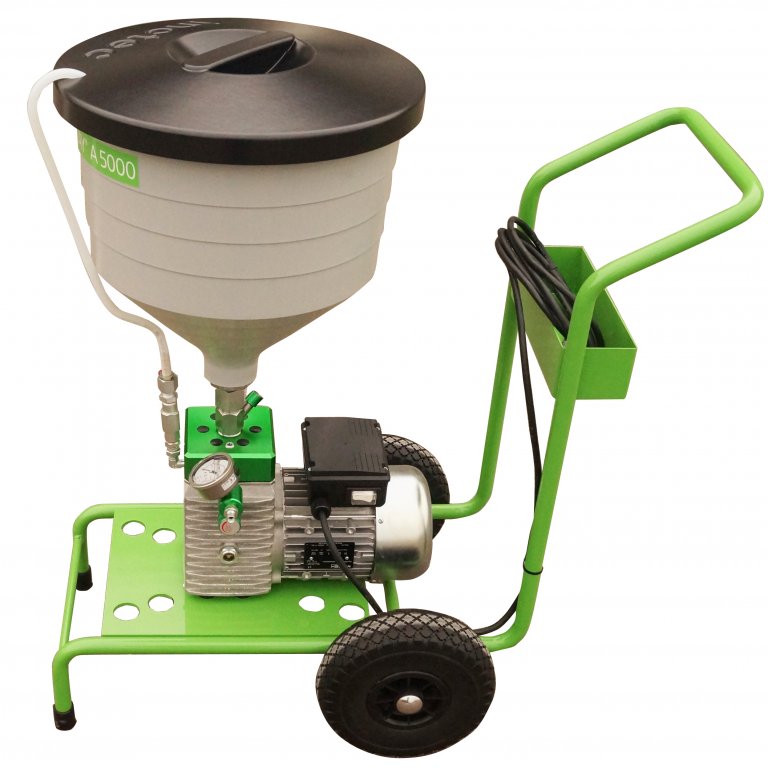

 inoSPRAY A 4000 |  inoSPRAY A 5000 |  inoSPRAY M2 |  inoSPRAY M3 |  inoSPRAY M5 |  inoSPRAY M7 |  inoBEAM F12 (HP) |  inoBEAM F30 high-pressure pump (HP) |  inoBEAM F70 (HP) | |
| Airless spattling compounds | |||||||||
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |||||||||
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |||||||||
| Clear varnishes | |||||||||
| EP and PU injection resins | |||||||||
| External dispersion paints | |||||||||
| Fire protection coats | |||||||||
| Highly viscous materials | |||||||||
| Internal dispersion paints | |||||||||
| Pigmented varnishes | |||||||||
| Primers | |||||||||
| Silicate paints | |||||||||
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |||||||||
| Stains | |||||||||
| Varnishes greater than 21°C | |||||||||
| Water-based varnishes | |||||||||
| Wood preservatives |
inoSPRAY A 4000 | inoSPRAY A 5000 | inoSPRAY M2 | inoSPRAY M3 | inoSPRAY M5 | inoSPRAY M7 | inoBEAM F12 (HP) | inoBEAM F30 high-pressure pump (HP) | inoBEAM F70 (HP) | ||
| Operating pressure | bar | up to 0 - 240 | up to 0 - 240 | up to 0 - 230 | up to 0 - 230 | up to 0 - 230 | up to 0 - 230 | up to 85 | up to 95 | up to max. 120 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 | 110-230 / 50 / 16 | 230 / 50 / 16 | 110-230 / 50 / 16 | 110-230 / 50 / 16 | 110-230 / 50 / 16 | 230 / 50 / 16 | 230 / 50 / 16 | 400 / 50 / 32 |
| Drive performance | kW | 0,75 | 1,1 | 0,75 | 1,3 | 1,6 | 3,0 | 1,5 (frequency controlled) | 3,0 (frequency controlled) | 7,5 (frequency controlled) |
| Delivery rate (depending on the material) | l/min | max. 2,5 | max. 3,5 | max. 1,8 | max. 3,0 | max. 5,5 | max. 8,6 | max. 6 | max. 8 | max. 2 - 100 |
| Conveying distance (depending on the material) | m | max. 30 | max. 30 | max. 15 | max. 30 | max. 45 | max. 45 | max. 100 | ||
| Nozzle size | " | max. 0,52 mm / 0,021 | max. 0,025 | max. 0,021 | max. 0,027 | max. 0,037 | max. 0,047 | max. max. 39 | max. max. 45 | max. max. 55 |
| Material container | l | 6 | 30 | optional | 50 | 50 | 70 | |||
| Hose connection | " | 1/4 | 1/4 | 1/4 | 1/4 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Machine technique | Airless devices | Airless devices | Airless devices | Airless devices | Airless devices | Airless devices | Airless devices | Airless devices | Airless devices | |
| Dimensions (L x W x H) | mm | 450 x 300 x 670 | 850 x 500 x 820 | 420 x 350 x 460 | 650 x 750 x 750 | 670 x 780 x 780 | 690 x 810 x 780 | 1450 x 530 x 700 | 1450 x 530 x 700 | 1100 x 720 x 750 |
| Weight | kg | approx. 17 | approx. 30 | approx. 23 | approx. 43 | approx. 58 | approx. 67 | approx. 65 | approx. 85 | approx. ca. 140 |
| Pressure height (depending on the material) | m | max. 50 |
