The versatile 230 V high-pressure spiral pump airless sprayer

Benefits at a glance

  • 230 V high-pressure pump – and thus suitable for any construction site
  • Lightweight, small and handy
  • Optimum machine capacity thanks to various areas of application
  • Continuously variable speed control using potentiometer
  • Simple operation
  • Simple cleaning and maintenance
  • Plastic material hopper (50 l)
  • Weight approx. 65 kg

The inoBEAM F12  is a compact, easy-to-use, and versatile 230 V delivery pump. With an optional set that is available, the delivery pump can be converted for various fields of application in just a couple of steps. This means that the “HP” set can be used to create a high-performance high-pressure pump for airless spray-on filling compounds from the delivery pump.



inoBEAM F12 (HP)
Operating pressurebarup to 85
Operating voltageV/Hz/A230 / 50 / 16
Drive performancekW1,5 (frequency controlled)
Delivery rate (depending on the material)l/minmax. 6
Nozzle size"max. max. 39
Material containerl50
Hose connection"3/4
Machine techniqueAirless devices
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 65
inoBEAM
inoBEAM F12 (HP)
Airless spattling compounds
Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories)
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Clear varnishes
EP and PU injection resins
External dispersion paints
Fire protection coats
Highly viscous materials
Internal dispersion paints
Pigmented varnishes
Primers
Silicate paints
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”-F12 and “D”- & “R”-F30
Stains
Varnishes greater than 21°C
Water-based varnishes
Wood preservatives

Basic module
Item no. 10044357

Scope of delivery
inoBEAM F12:

  • Frame
  • 2 running wheels & 2 steering wheels
  • Plastic material hopper
  • Cover for material hopper
  • Gear motor
  • Electric control system with 10 m connecting cable
  • Pump shaft
  • Pump housing made from stainless steel
  • Mortar pressure gauge
  • Tool set
  • Assembly spray lubricant
  • Operating instructions

Set “HP”-F12
for airless spray-on filling compounds (6 l / 85 bar)
Item no. 10044660*


* For scope of delivery, see accessories

inoBEAM F12 (HP)
Set “HP”-F12

Set “HP”-F12

he delivery pump inoBEAM F12 can be converted into a high-performance 230 V airless sprayer using an optional set and just a few, easy steps.
A delivery rate of up to 6 l/min is achieved with 1.5 kW when processing spray-on filler.


Scope of delivery: High-pressure pump SPRAY “short”, 10 m high-pressure hose 3/4“ and 2 m 1/2“, airless gun, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle

Set “HP”-F12 (Article No. 10044660)

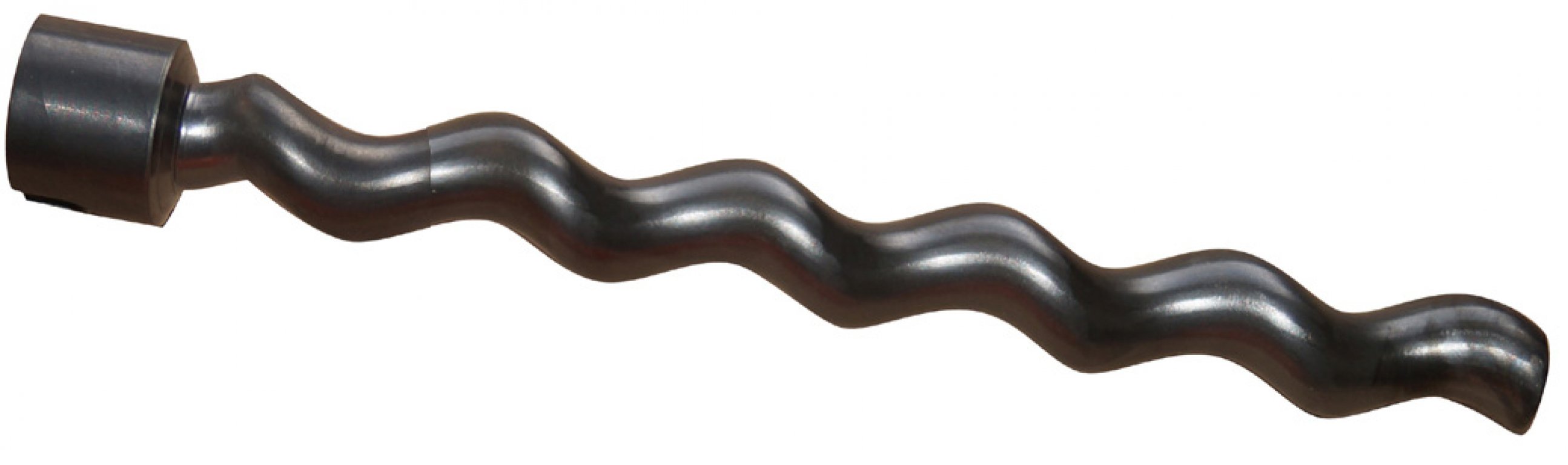

Rotor SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

Rotor SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

Rotor SPRAY “short” for high-pressure pump inoBEAM F12 (HP) (Article No. 10044327)

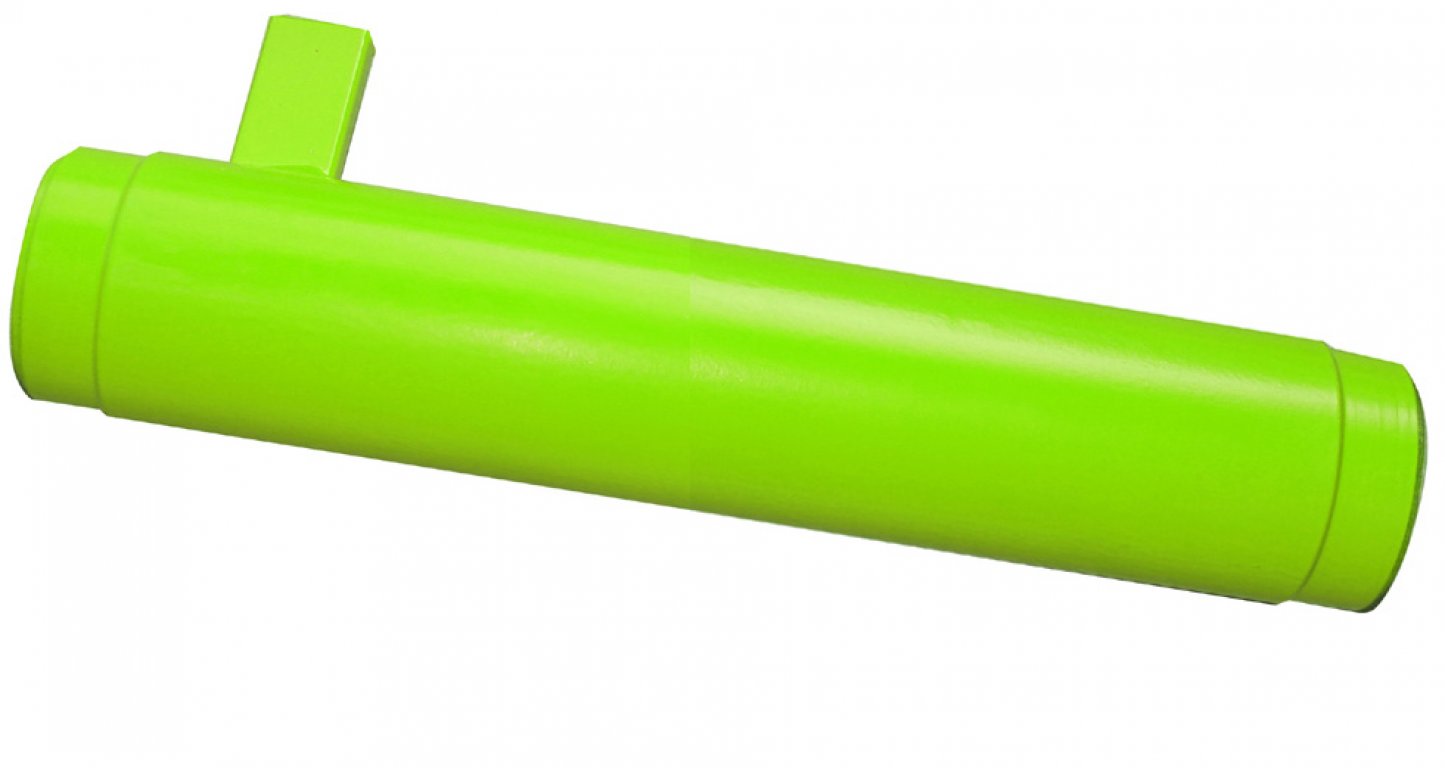

Stator SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

Stator SPRAY “short” for high-pressure pump inoBEAM F12 (HP)

Stator SPRAY “short” for high-pressure pump inoBEAM F12 (HP)  (Article No. 10044326)
Plastic hopper

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 50 litres.

Plastic hopper (Article No. 10040973)
Cover for plastic hopper

Cover for plastic hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for plastic hopper (Article No. 10041816)

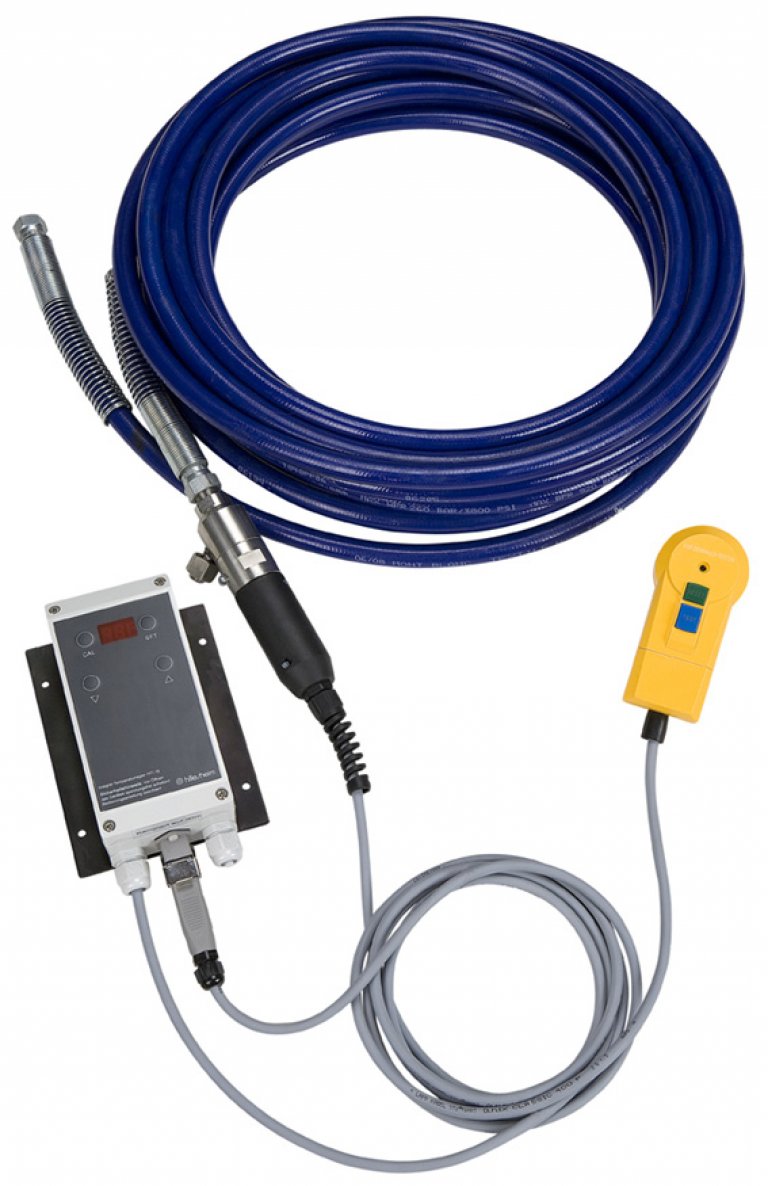

inoSPRAY Temp, heating hose for  airless devices

inoSPRAY Temp, heating hose for airless devices

For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.

Technical data:
Operating pressure: 250 bar
Nominal width: 10 mm e.g. for dispersions, 8 mm for varnish
Connection: 3/8“ IT

Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 15 m (Article No. 10012278)
inoSPRAY Temp, heating hose for airless devices - Ø 10 mm - 30 m (Article No. 10012279)
High-pressure / airless hoses

High-pressure / airless hoses

Colours: yellow / blue / black

High-pressure / airless hoses - Ø 13 mm - 1/2' IT - 260 bar - 15 m (Article No. 10035852)
High-pressure / airless hoses - Ø 16 mm - 1/2' IT - 160 bar - 15 m (Article No. 10012228)
High-pressure / airless hoses - Ø 16 mm - 1/2' IT - 160 bar - 7 m (Article No. 10012231)
High-pressure / airless hoses - Ø 19 mm - 3/4' IT - 230 bar - 15 m (Article No. 10043715)
INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP

INOTEC airless gun AG 190 LB for inoBEAM F12 HP, F30 HP and F70 HP

  • Connection 3/8” male, including swivel / Maximum pressure: 250 bar

Optional (not included in the scope of delivery):

  • RAC X nozzle holder  (for F12 HP, F30 HP, F70 HP)
  • HDA nozzle 439 (for F12 HP)
  • HDA nozzle 543 (for F30 HP)
  • HDA nozzle 655 (for F70 HP)
  • Transition nipple 3/4" AG x 1/2" IG (for F12 HP, F30 HP, F70 HP)
  • Adapter 1/2“ AG x 3/8“ IG (for F12 HP, F30 HP, F70 HP)
  • Adapter 1/2“ AG x 1“ AG (for F70 HP)

INOTEC airless gun AG 190 LB for inoSPRAY M5 & M7, inoBEAM F12 HP, F30 HP and F70 HP (Article No. 10044654)

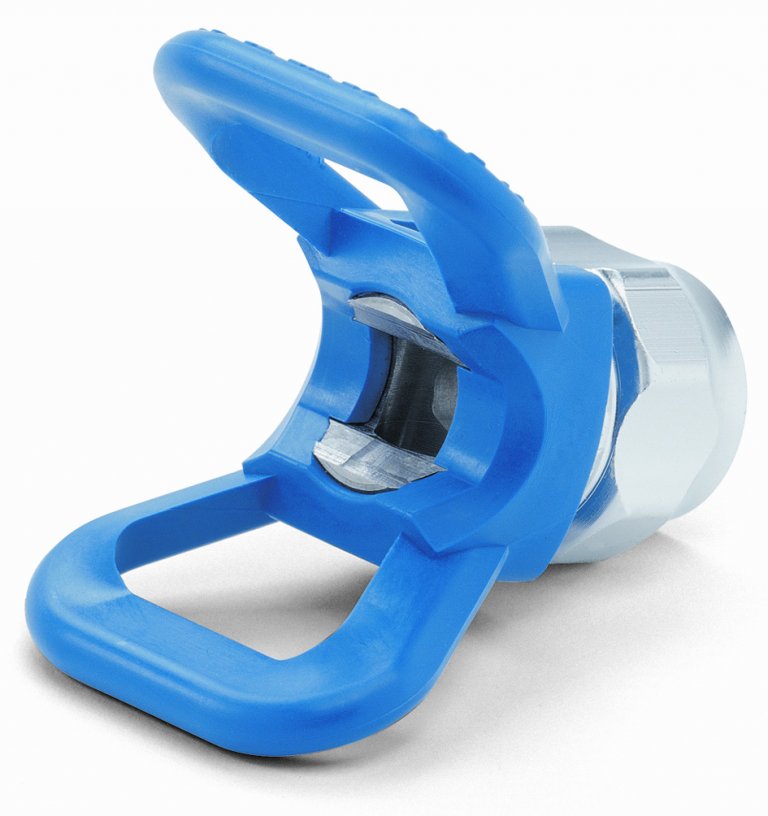

Graco RAC X nozzle holder for RAC X nozzles

Graco RAC X nozzle holder for RAC X nozzles

  • Operating pressure: 280 bar
  • Suitable for:
    Graco PAA, FFA, HDA, WA nozzles

Graco RAC X nozzle holder for RAC X nozzles - 7/8" - 280 bar (Article No. 10012119)

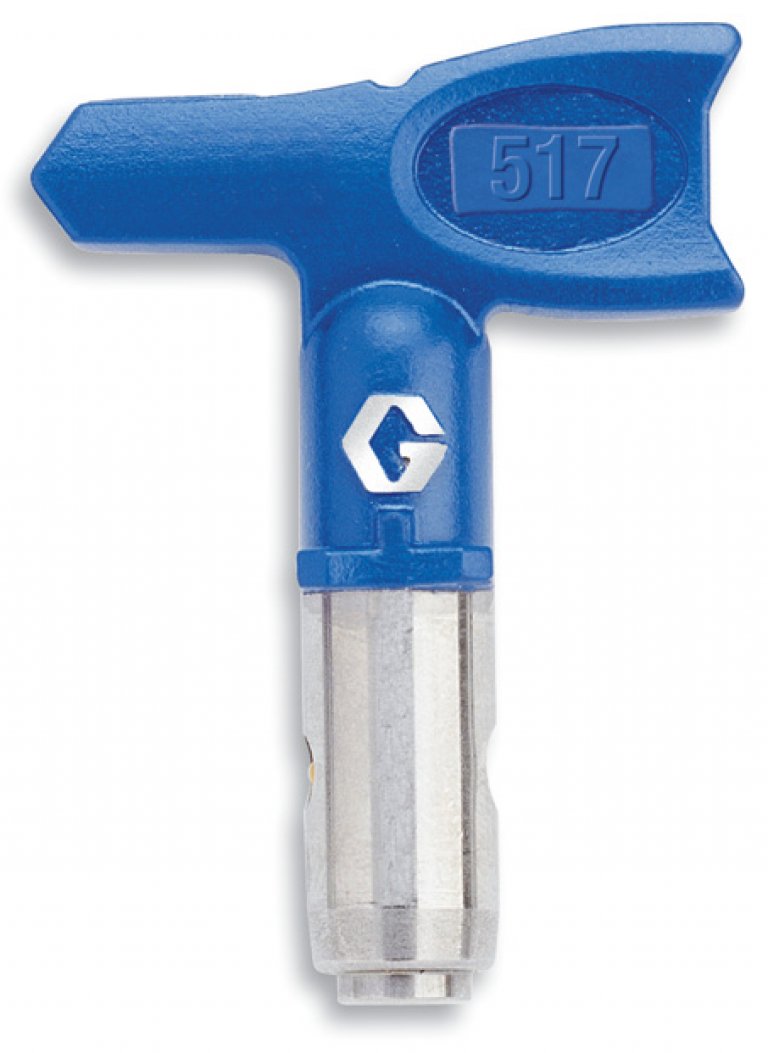

Graco PAA nozzles

Graco PAA nozzles

for RAC X nozzle holders (PAA = Professional Airless Application)

  • Colour: blue
  • E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications

Graco PAA nozzles - 0,019“ / 0,483 mm - 1,15 l/min / 50° (Article No. 10007998-015)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 50° (Article No. 10007998-016)
Graco PAA nozzles - 0,021“ / 0,533 mm - 1,80 l/min / 60° (Article No. 10007998-020)
Graco PAA nozzles - 0,023“ / 0,584 mm - 2,15 l/min / 50° (Article No. 10007998-017)

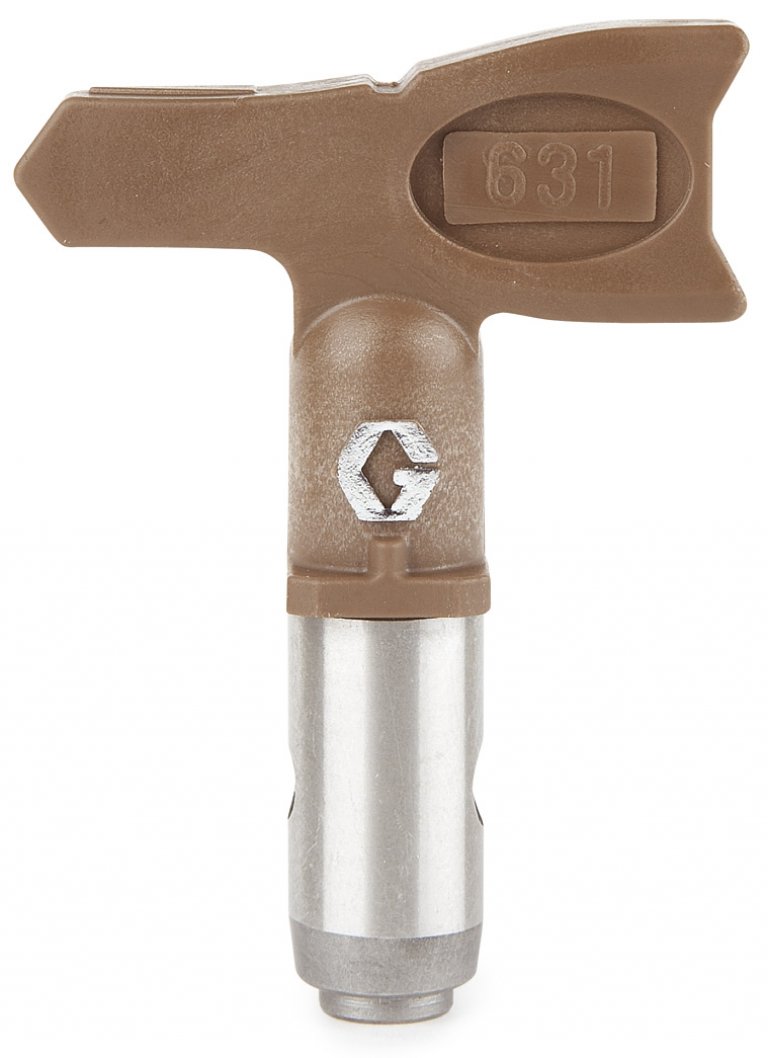

Graco HDA nozzles

Graco HDA nozzles

for RAC X nozzle holders (HDA = Heavy Duty Application)

  • Colour: brown
  • E.g. for fillers, spattling compound, fibrous materials, paints, etc., for indoor and outdoor applications

Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 40° (Article No. 10008017-003)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 50° (Article No. 10008017-007)
Graco HDA nozzles - 0,035“ / 0,889 mm - 4,98 l/min / 60° (Article No. 10008017-011)
Graco HDA nozzles - 0,039“ / 0,991 mm - 6,78 l/min / 40° (HDA nozzle 439) (Article No. 10008017-004)
Graco HDA nozzles - 0,045“ / 1,090 mm - 8,20 l/min / 50° (Article No. 10008017-008)
Graco HDA nozzles 543 (Article No. 10008017-004)
Graco HDA nozzles 655 (Article No. 10008017-015)
Graco RAC X nozzle extension

Graco RAC X nozzle extension

  • With 7/8” thread
  • With RAC X nozzle holder (not including nozzle)

Graco RAC X nozzle extension - 25 cm (Article No. 10007986-001)
Graco RAC X nozzle extension - 50 cm (Article No. 10007986-003)
Graco RAC X nozzle extension RAC X - 75 cm (Article No. 10007986-004)

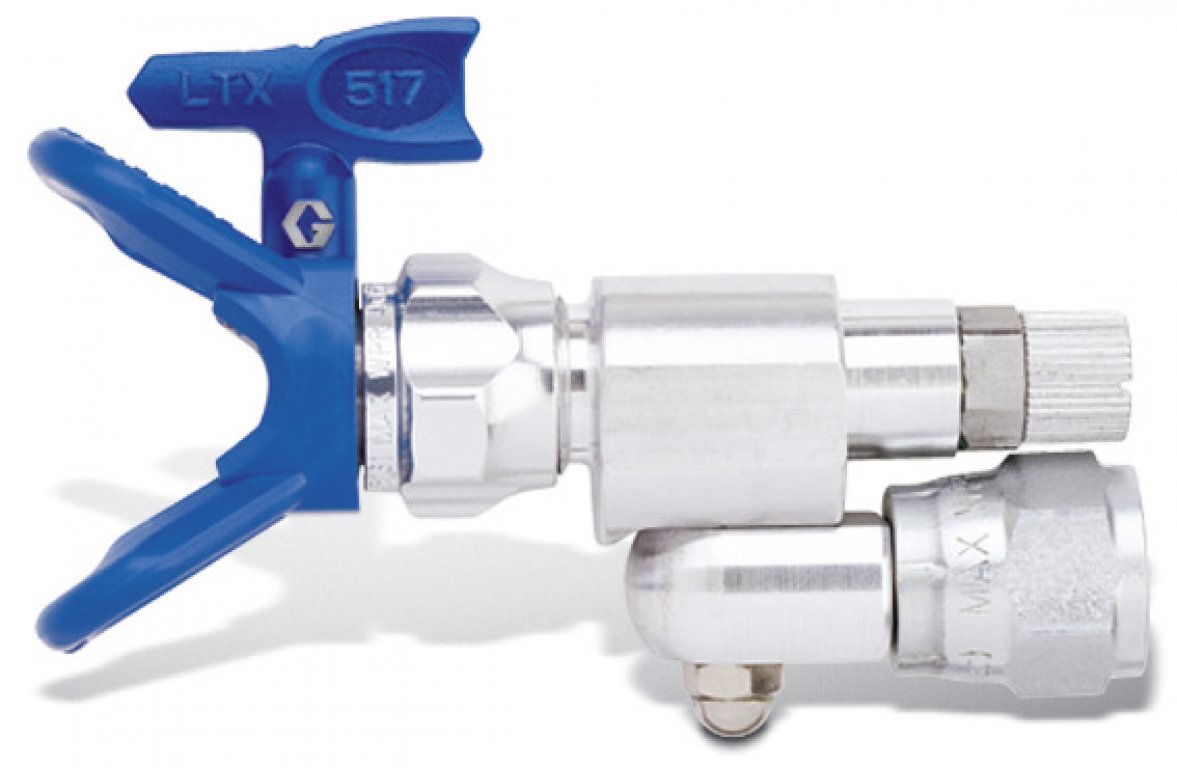

Graco Cleanshot shut-off valve set

Graco Cleanshot shut-off valve set

The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle

Graco Cleanshot shut-off valve set (Article No. 10012062)
Bag mangle for material hopper

Bag mangle for material hopper

Bag mangle for material hopper (Article No. 10013581)

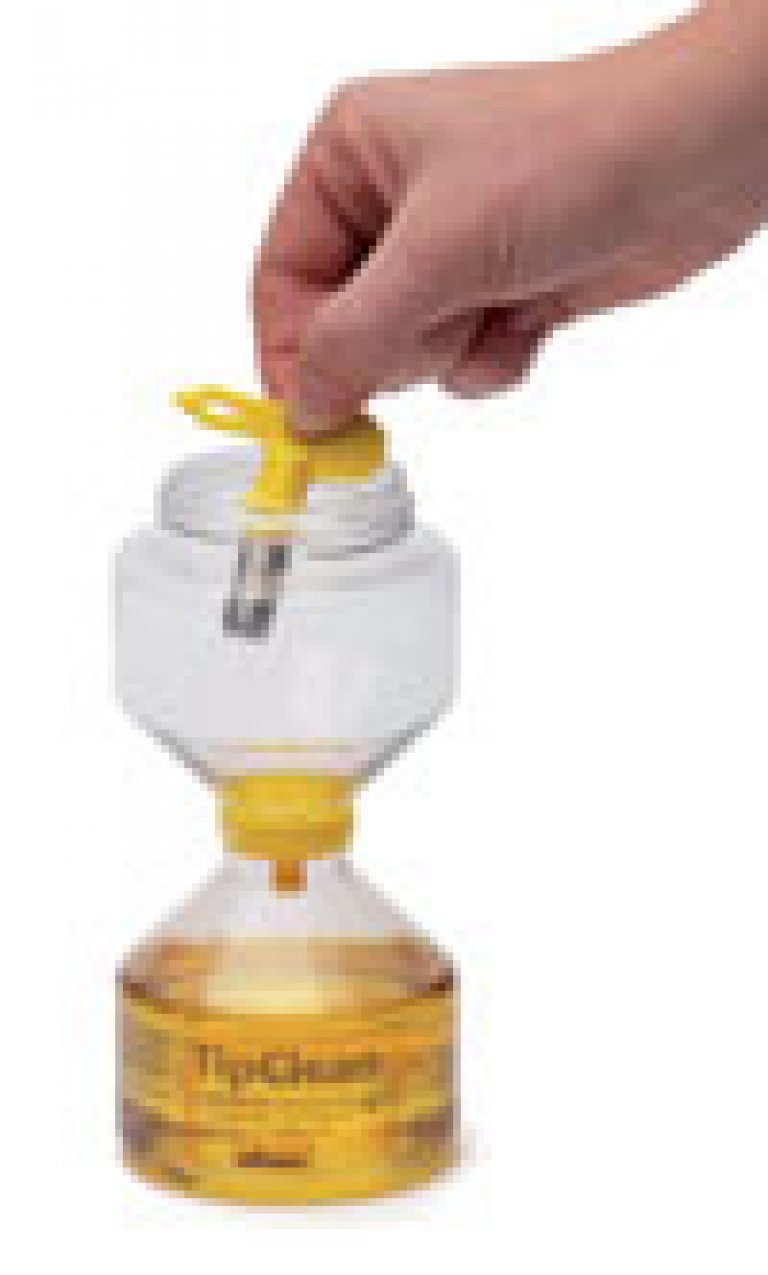

Tip-Clean nozzle cleaning set for airless nozzles

Tip-Clean nozzle cleaning set for airless nozzles

For quick and simple cleaning and preservation of airless nozzles.

Tip-Clean nozzle cleaning set for airless nozzles (Article No. 10012495)
Transition nipple

Transition nipple

This connection is rigid; does not rotate

  • For connecting a variety of hoses

Transition nipple - 1/2” ET x 3/4” ET 410 bar (Article No. 10043716)
Transition nipple - 3/4” ET x 1/2” IT (Article No. 10042718)

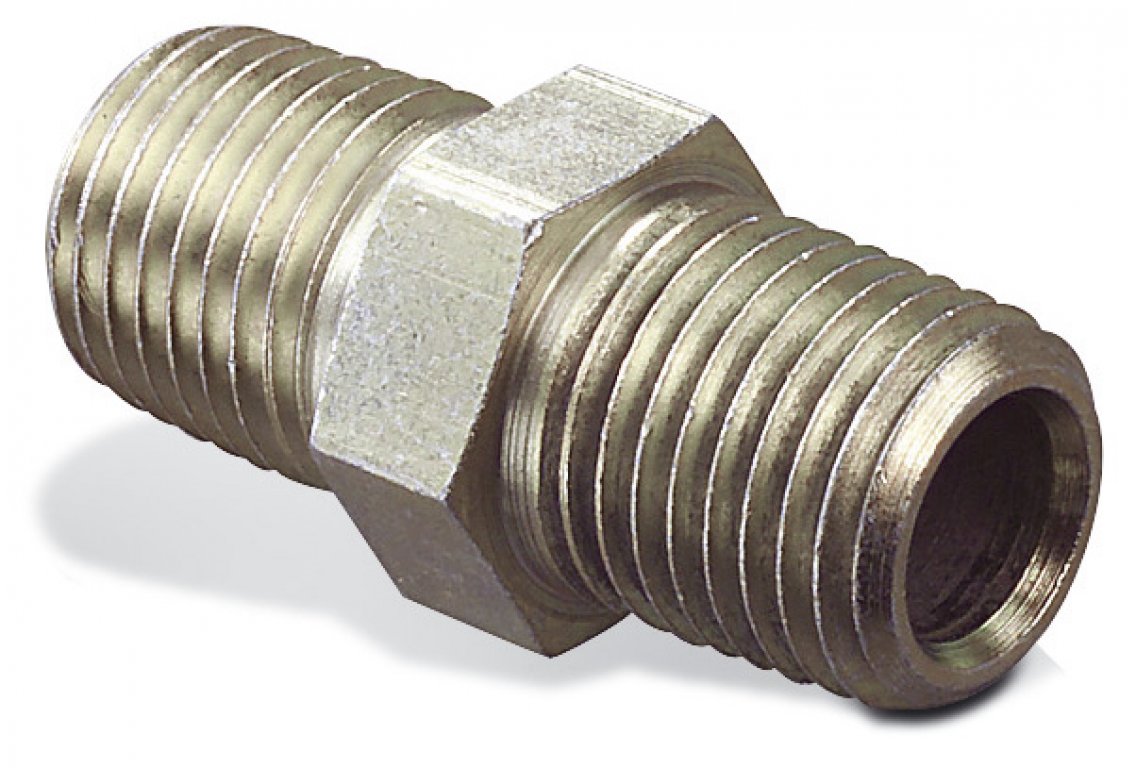

Double nipple

Double nipple

  • Hose connection – this connection is rigid; does not rotate

Double nipple - 1/2“ ET x 1/2“ ET - 500 bar (Article No. 10022161)
Double nipple - 1/2“ ET x 3/8“ ET - 400 bar (Article No. 10022162)
Double nipple - 1/4“ ET x 3/8“ ET - 350 bar (Article No. 10012987)
Double nipple - 1/4“ET x 1/4“ ET - 410 bar (Article No. 10022170)
Double nipple - 3/4“ ET x 3/4“ ET - 400 bar (Article No. 10044775)
Double nipple - 3/8“ ET x 3/8“ ET - 410 bar (Article No. 10012991)
