The efficient 230 V* diaphragm airless sprayer for liquid materials
Benefits at a glance
- Large material hopper
- Versatile in use
- Hopper cover protects the material against contamination and prevents a skin from forming
- Simple operation
- Handy, mobile
- Robust mechanism
- No electronic components
- Quick and simple to clean
- All parts that conduct paint are made from stainless steel

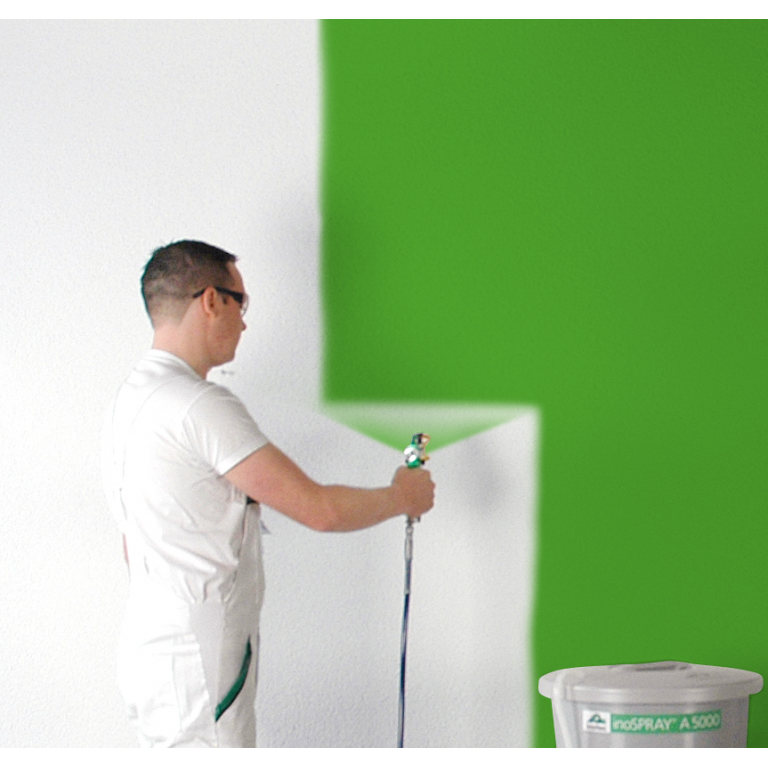

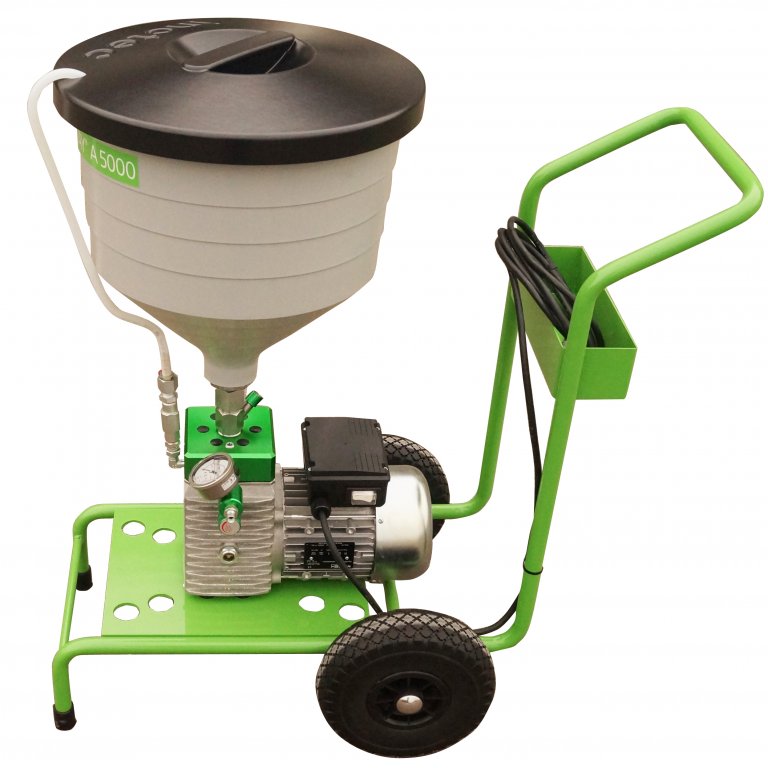

The inoSPRAY A 5000 is an efficient diaphragm-style airless device with a medium delivery rate. It is suitable for smaller and medium-sized objects.
The low-maintenance device is simple to operate and is extremely robust.
_______________
* The machine is also available in 110 V
Alternative Machines
Service details
| Operating pressure | bar | up to 0 - 240 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 1,1 |
| Delivery rate (depending on the material) | l/min | max. 3,5 |
| Conveying distance (depending on the material) | m | max. 30 |
| Nozzle size | " | max. 0,025 |
| Material container | l | 30 |
| Hose connection | " | 1/4 |
| Machine technique | Airless devices | |
| Dimensions (L x W x H) | mm | 850 x 500 x 820 |
| Weight | kg | approx. 30 |
inoSPRAY A 5000 | |
| Airless spattling compounds | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Clear varnishes | |
| EP and PU injection resins | |
| External dispersion paints | |
| Fire protection coats | |
| Highly viscous materials | |
| Internal dispersion paints | |
| Pigmented varnishes | |
| Primers | |
| Silicate paints | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Stains | |
| Varnishes greater than 21°C | |
| Water-based varnishes | |
| Wood preservatives |
Basic module
Item no. 10040782
Scope of delivery
inoSPRAY A 5000:
- Material hopper with cover
- Trolley with 2 wheels
- Diaphragm pump unit
- Operating instructions
Ready-to-spray set
(for paint)
Item no. 10040777
Scope of delivery
inoSPRAY A 5000 Set:
As with the basic module
(item no. 10040782)
Plus:
- 15 m, 1/4” material hose with a diameter of 6 mm
- AG 500 L airless gun
- RAC X nozzle holder
- 519 mm nozzle

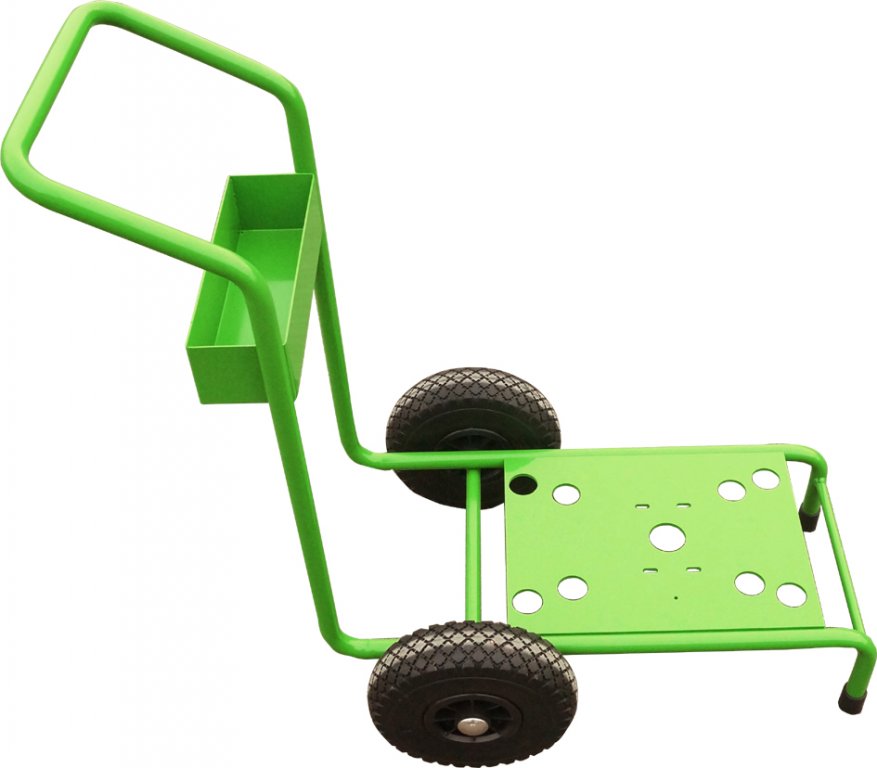

Trolley with 2 plastic wheels for inoSPRAY A4000 and A5000 airless device

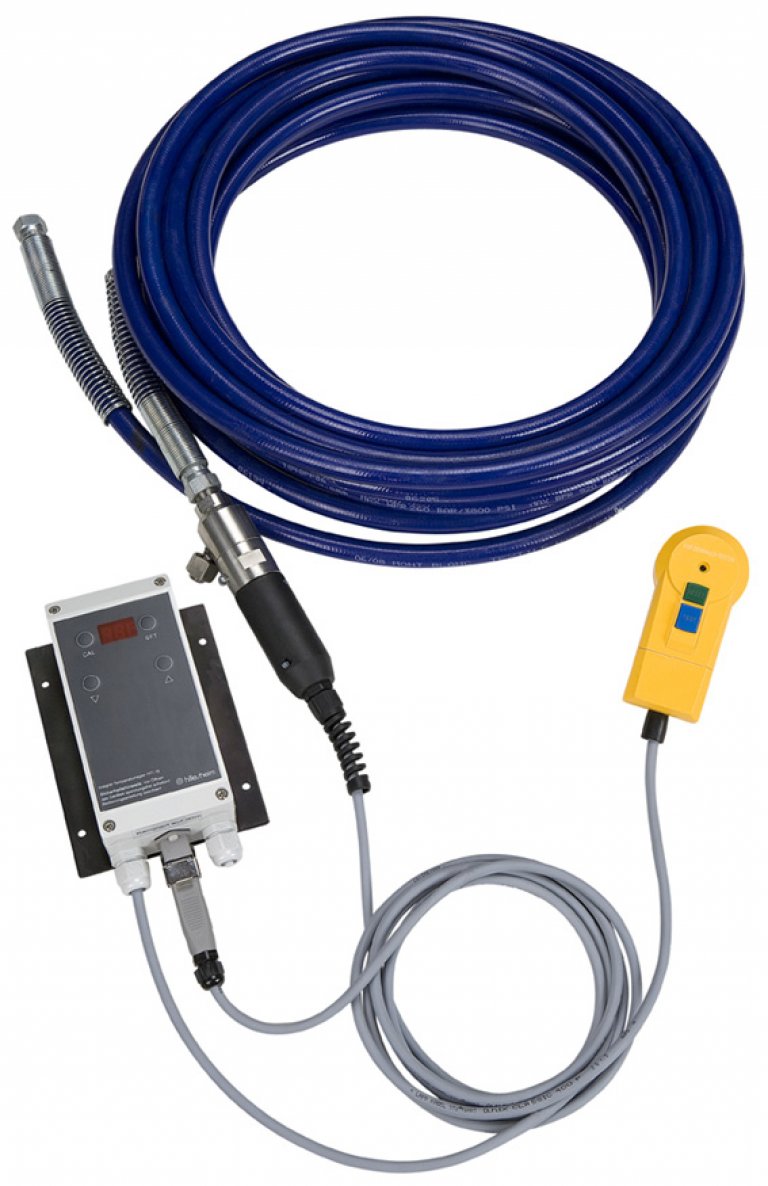

inoSPRAY Temp, heating hose for airless devices
For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.
| Technical data: | |
| Operating pressure: | 250 bar |
| Nominal width: | 10 mm e.g. for dispersions, 8 mm for varnish |
| Connection: | 3/8“ IT |
Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable
High-pressure / airless hoses
Colours: yellow / blue / black

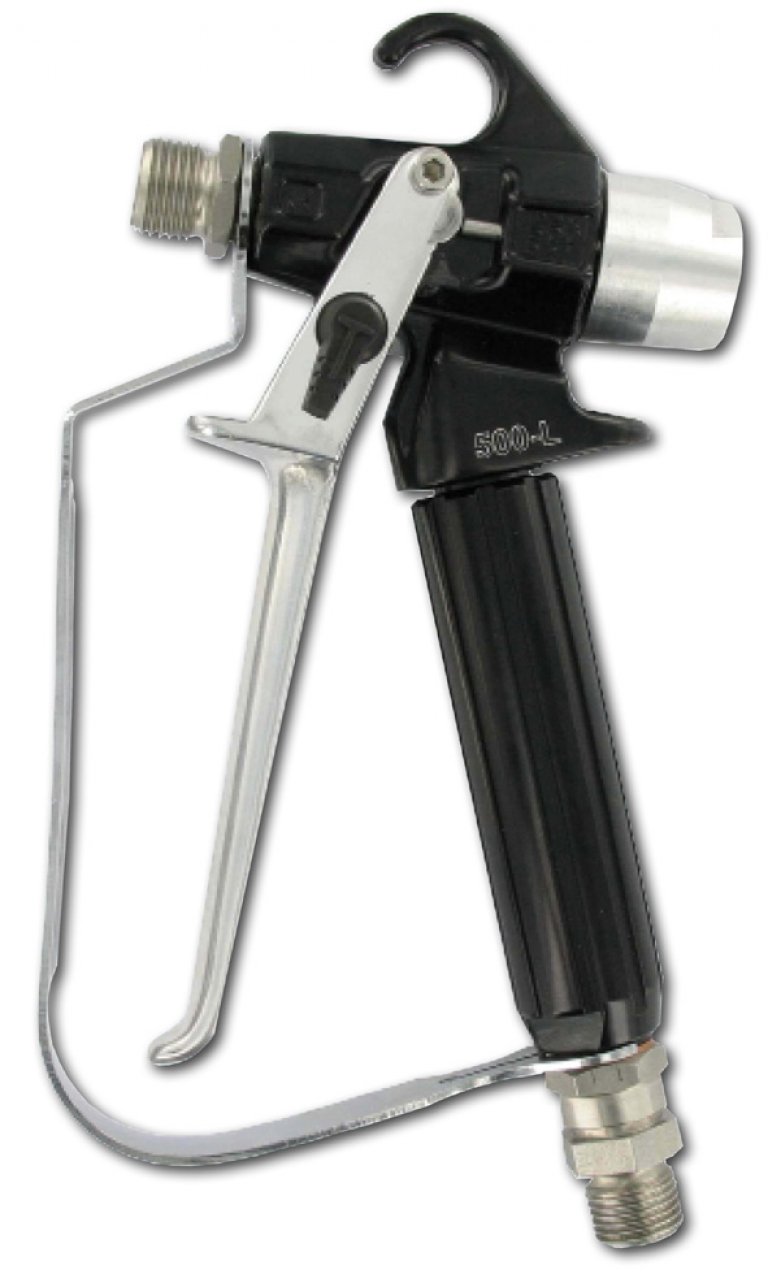

INOTEC AG 500 L airless gun
- High-quality airless gun with 4-finger trigger
| Technical data: | |
| Needle position / ball: | 5 mm |
| Operating pressure: | 500 bar |
| Receptacle for nozzle holder: | 7/8“ |
| Swivel joint | with 1/4” hose connection |
| Filter | 60 Mesh |
| Adapter | V2A 1/4” IT – M16 x 1.5 ET |
Scope of delivery:
Gun without nozzle holder / nozzles
Gun filter for AG 500 L

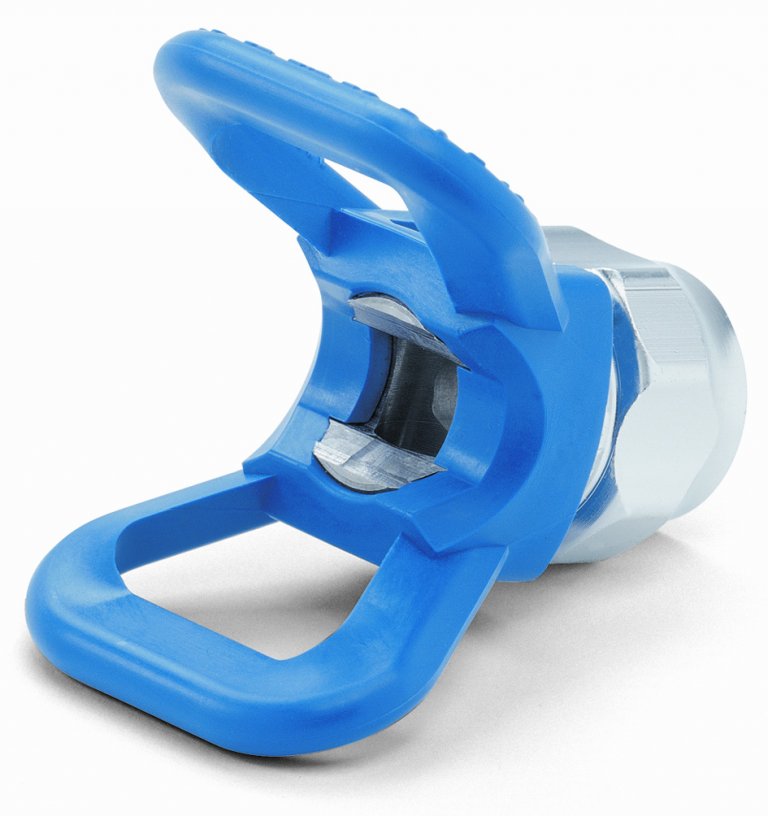

Graco RAC X nozzle holder for RAC X nozzles
- Operating pressure: 280 bar
- Suitable for:
Graco PAA, FFA, HDA, WA nozzles

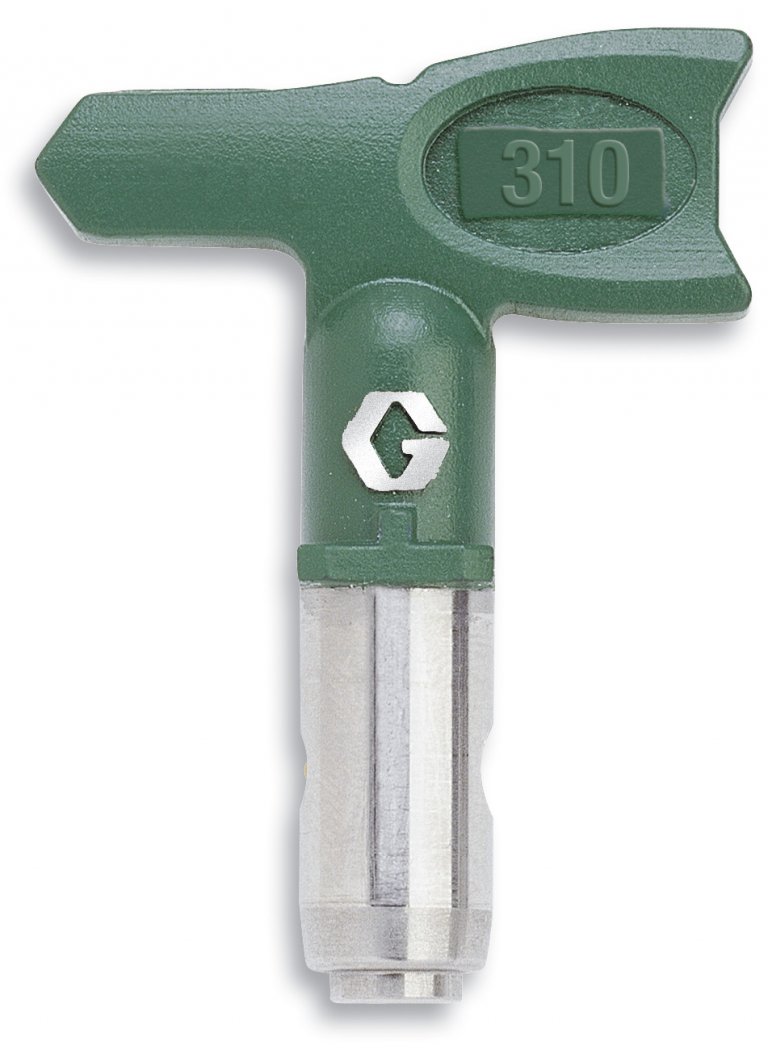

Graco FFA nozzles
for RAC X nozzle holders (FFA = Fine Finish Application)
- Colour: green
- E.g. for paint, mordents, clear varnishes, varnishes

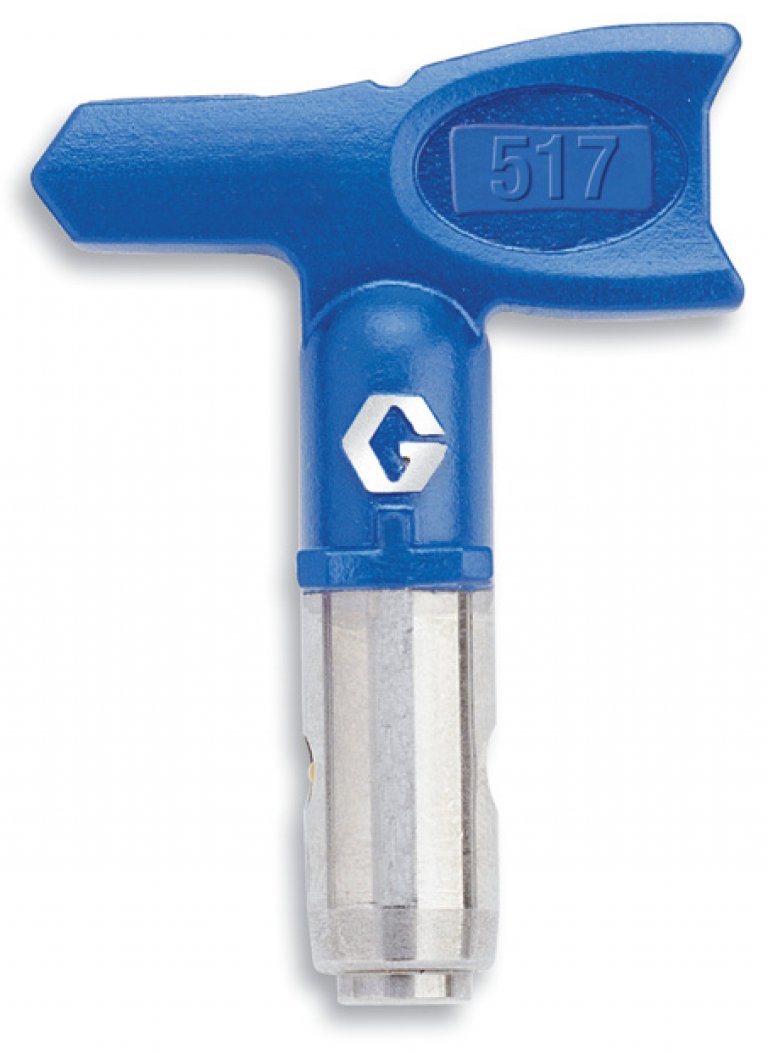

Graco PAA nozzles
for RAC X nozzle holders (PAA = Professional Airless Application)
- Colour: blue
- E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications

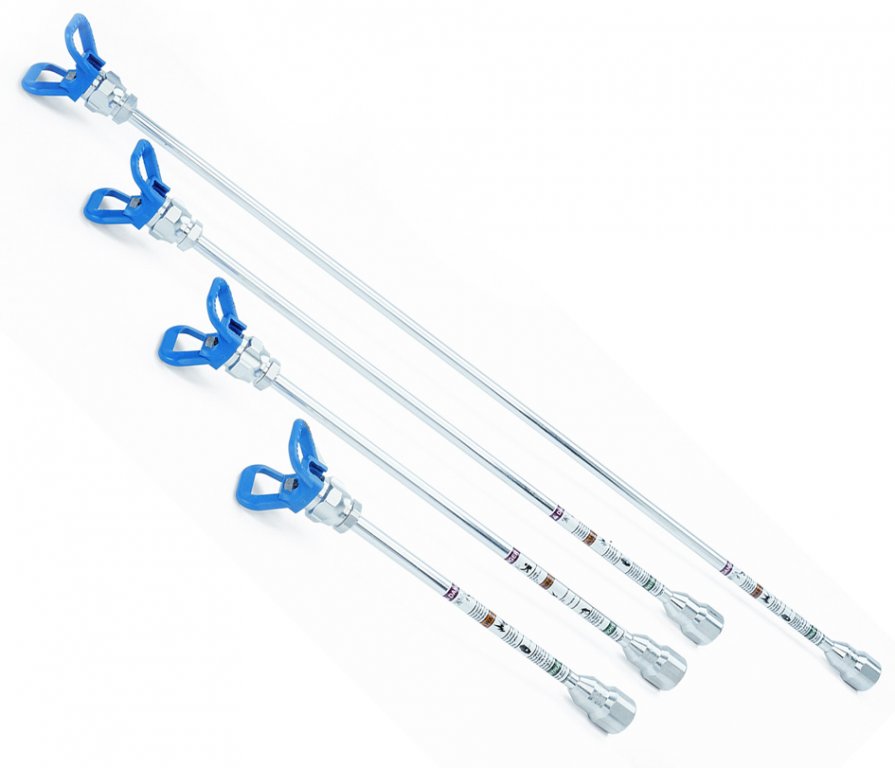

Graco RAC X nozzle extension
- With 7/8” thread
- With RAC X nozzle holder (not including nozzle)

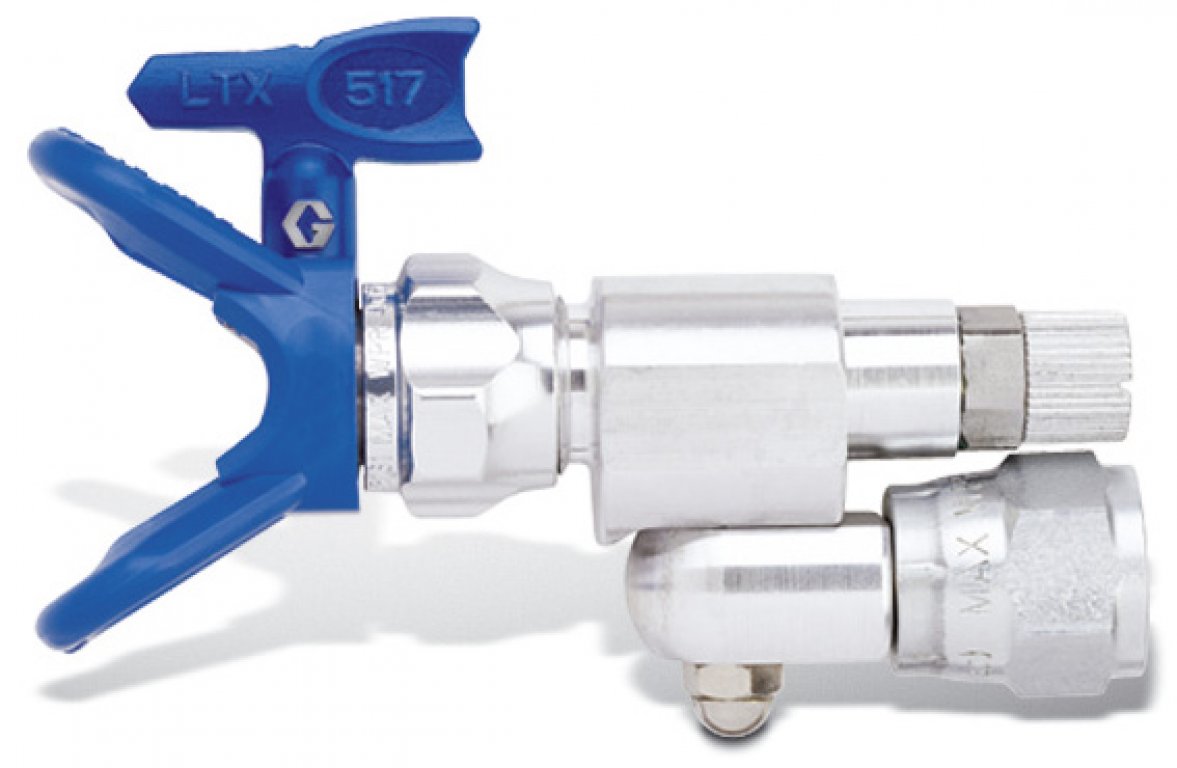

Graco Cleanshot shut-off valve set
The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle

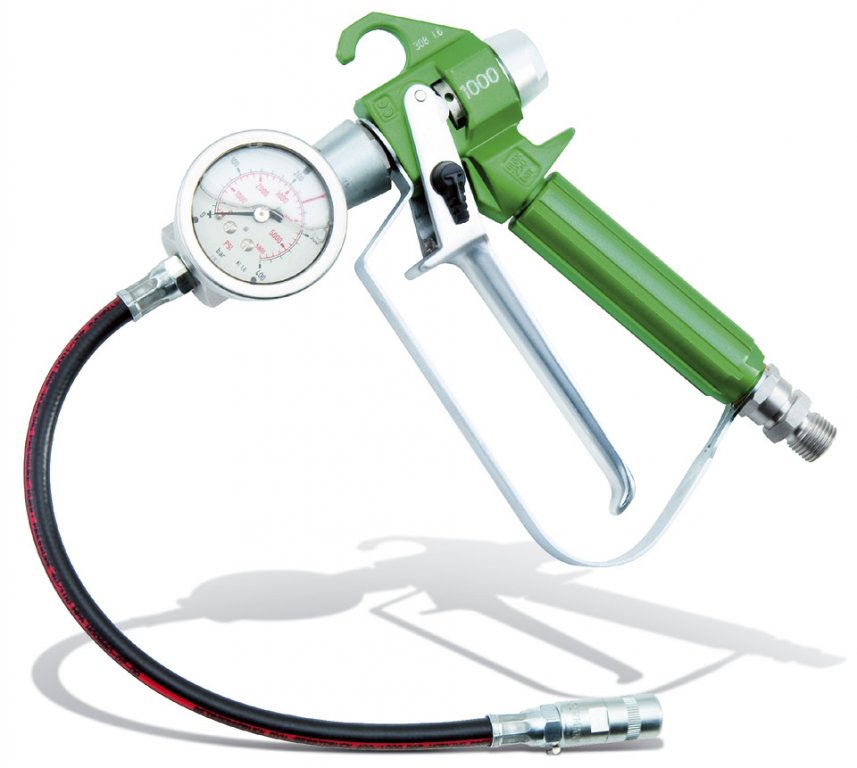

Injection set
- For injecting cracks
- Reliable operating pressure: 250 bar
Scope of delivery:
Gun with material pressure gauge, injection hose with mouthpiece,
7.5 m, DN 5 HP hose
Tip-Clean nozzle cleaning set for airless nozzles
For quick and simple cleaning and preservation of airless nozzles.

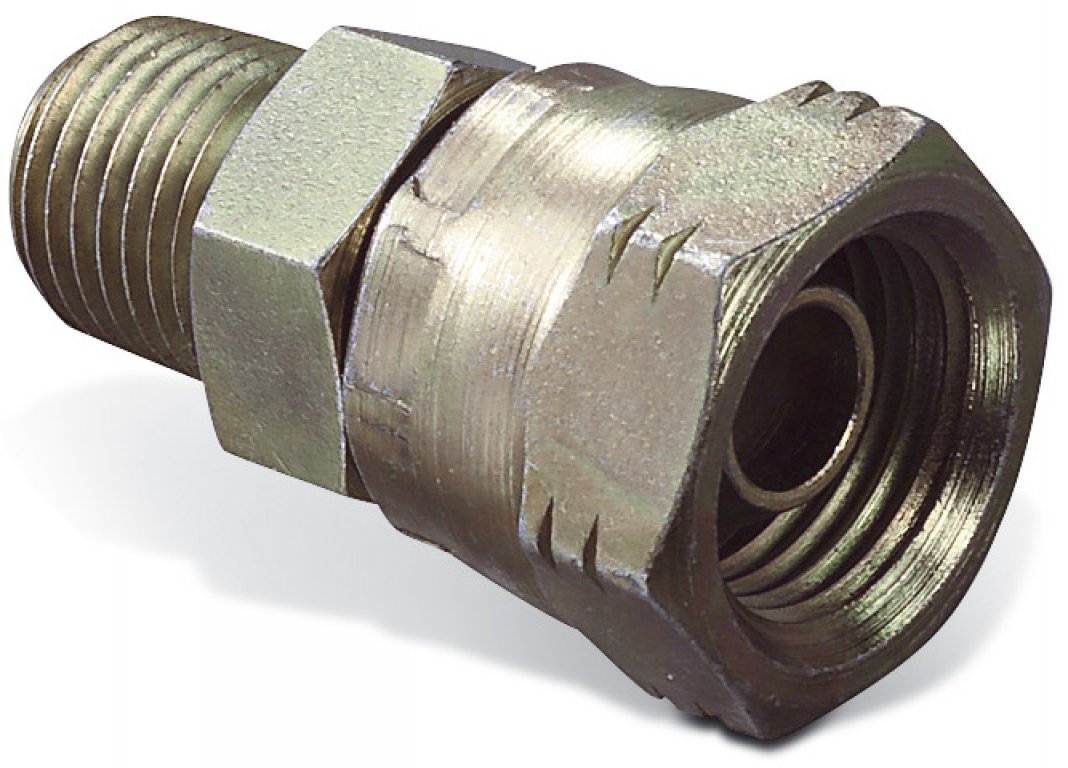

Transition nipple
This connection is rigid; does not rotate
- For connecting a variety of hoses
Double nipple
- Hose connection – this connection is rigid; does not rotate

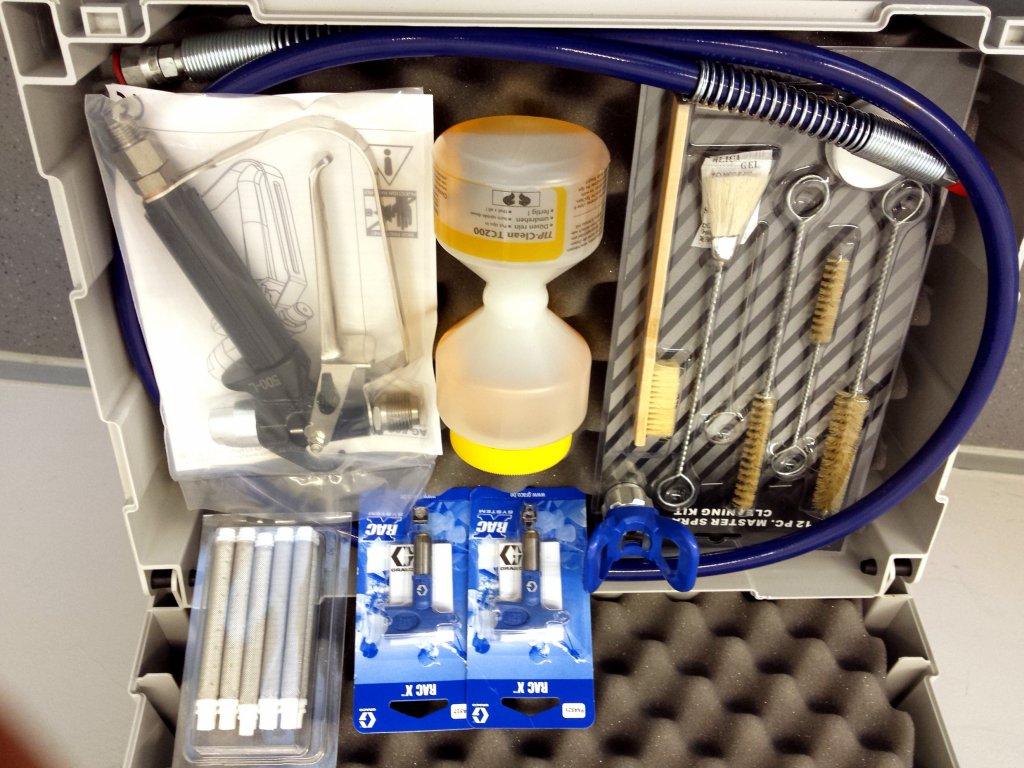

First aid airless set “Dispersion”
Provided in emergency kit:
airless gun AG500-L-G, 10 x white plug-in filter, nozzle holder RAC X, reversible nozzle RAC X 517, reversible nozzle RAC X 521, whip hose ¼”, TipClean, brush cleaning kit
