The compact waste water system for tool cleaning and waste water treatment
Benefits at a glance
- Compact design
- Requires little space
- Simple operation
- Integrated washbasin
- Integrated roller washing device (roller size: 100 x 300 mm)
- Low fresh water consumption
- Additional drawer compartment, storage compartment and large dripping area

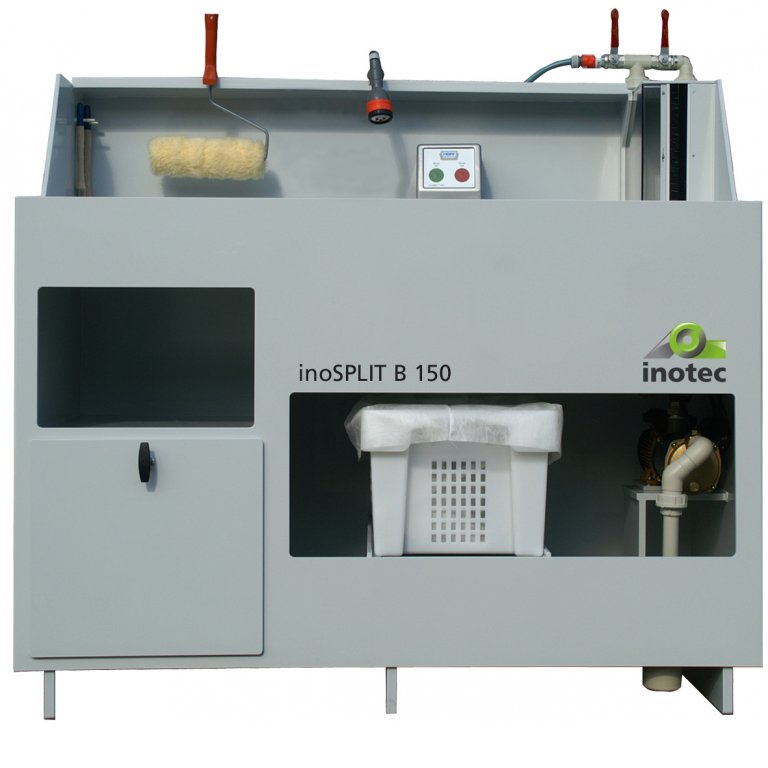

The inoSPLIT B150 serves to clean painters’ and plasterers’ tools and to treat dirty water to make it safe for disposal.
The treated water is collected in a built-in vessel and can be reused for further cleaning processes thanks to a pump system.
The accumulating paint residue remains in the filter drawer and can subsequently be disposed of once dry in commercial waste similar to domestic waste.
The fresh water consumption is considerably reduced as the treated dirty water is reused.
_______________
* The machine is available in 110 and 230 V
Alternative Machines
Service details
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Capacity | l | max. 100 |
| Machine technique | Waste water systems | |
| Dimensions (L x W x H) | mm | 700 x 1500 x 1450 |
| Weight | kg | approx. 75 |
Scope of delivery
inoSPLIT B150
Item no. 10040791
- Housing made from polypropylene
- Washbasin
- Industrial water reservoir
- Roller washing device
- Quenching gun with 2 m hose
- Agitator and pump integrated
- Power supply cable for agitator and pump
- Washing basket
- 1 x filter mat
- 1 x filter fleece
- 1 x splitting agent, 25 kg
- Operating instructions
Splitting agent for waste water systems inoSPLIT B100 / B150
Response separating agent, up to a PH value of 10, PU = 25 kg bag
Filter fleece
Filter mat
Odour trap for waste water systems
- Prevents the build-up of bacteria
- Packaging unit: 1 litre canister (sufficient for 1,000 litres of industrial water)
