The handy and lightweight hot wire cutter for ETICS insulation boards
Benefits at a glance
- Multi-ply, environmentally-friendly painted Multiplex plywood with scaling
- Push-button (transformer for short-time operation)
- Swivelling cutting bar up to 45 °
- Depth stop for rebate, groove or separating cuts
- Swivelling plate support up to 60 °
- Versatile and extendable

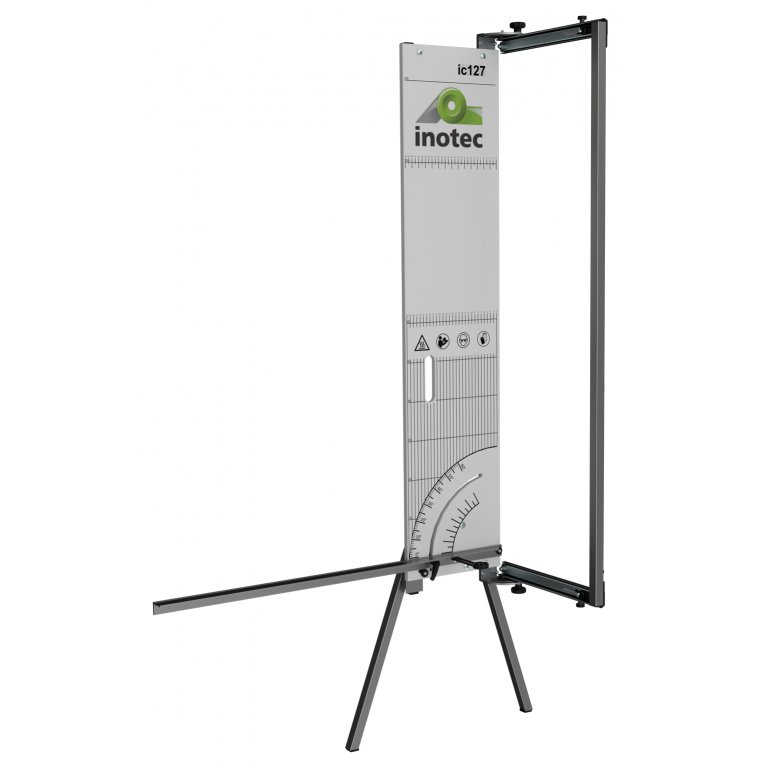

The handy and lightweight hot wire cutter inoCUT ic127 is a practical and precise high-end device.
It is used as a standing unit. The device can also be attached to the rail using the integrated anti-tilt device.
The swivelling insulation board support also holds thick insulation boards in the device.
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Machine technique | Cutters | |
| Dimensions (W x H x D) | mm | 415 x 1850 x 150 |
| Weight | kg | approx. 11,3 |
inoCUT ic127 | |
| Corkboard | |
| Foam glass panels | |
| Hemp boards | |
| Mineral wool | |
| Phenolic resin panels | |
| Polystyrene rigid foam panels | |
| Polyurethane panels | |
| Potential cuts: Cut-outs | |
| Potential cuts: Diagonal cuts | |
| Potential cuts: Diagonal cuts with mitre joints | |
| Potential cuts: Groove cuts | |
| Potential cuts: Layered cut | |
| Potential cuts: Layered cuts with mitre joints | |
| Potential cuts: Layered groove cuts | |
| Potential cuts: Mitre cuts | |
| Potential cuts: Separating cuts | |
| Potential cuts: Straight cuts | |
| Rolls of clamping felt |
