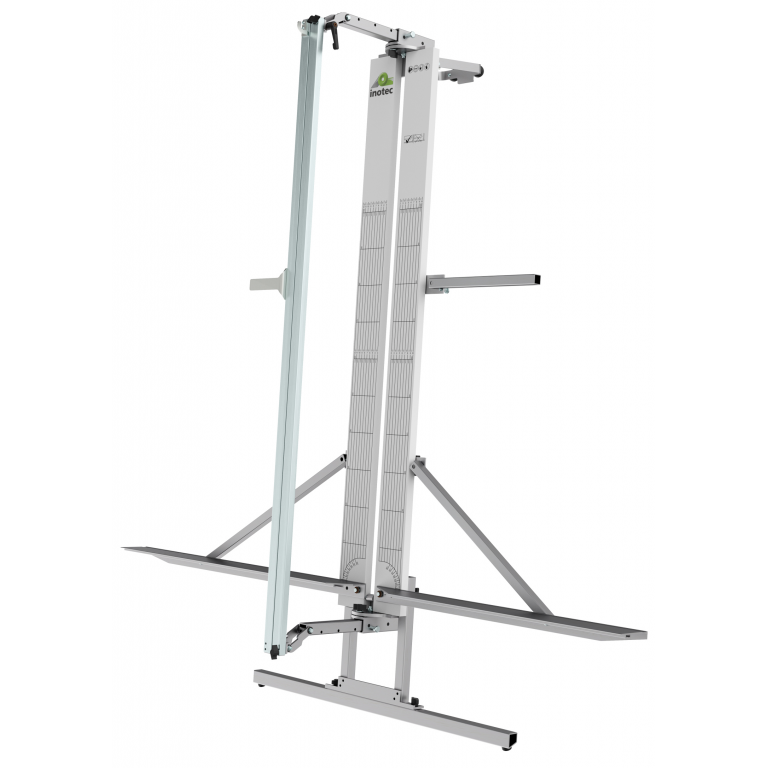

The universal cutter for insulation material with a cutting depth of up to 30 cm
Benefits at a glance
- Short-stroke parallelogram for user-friendly operation
- Preset insulation thickness
- Double-sided forced guidance for electric saw blades or unrestricted handsaws
- Swivel cutting bracket up to 45°
- Wide foot profile for excellent device positioning
- Wall support, making it possible to work on the scaffold without an independent support
The new inoCUT icM135 makes cutting all mineral wool and glass wool child’s play.
The new cutting device for manual or power cutting has large, swivelling board supports on both sides.
Exact mitre cuts, as well as straight, angular and diagonal cuts can be carried out with the toothed handsaw included in the scope of supply or, alternatively, performed quickly and effortlessly with an electric, cordless Milwaukee sabre saw.
| Cutting length | cm | max. 135 |
| Cutting depth | cm | max. 90° = 8 - 30 cm / 45° = 20 |
| Machine technique | Cutters | |
| Dimensions (W x H x D) | mm | 350 x 1800 x 420 |
| Weight | kg | approx. 21,0 |
inoCUT icM135 | |
| Corkboard | |
| Foam glass panels | |
| Hemp boards | |
| Mineral wool | |
| Phenolic resin panels | |
| Polystyrene rigid foam panels | |
| Polyurethane panels | |
| Potential cuts: Cut-outs | |
| Potential cuts: Diagonal cuts | |
| Potential cuts: Diagonal cuts with mitre joints | |
| Potential cuts: Groove cuts | |
| Potential cuts: Layered cut | |
| Potential cuts: Layered cuts with mitre joints | |
| Potential cuts: Layered groove cuts | |
| Potential cuts: Mitre cuts | |
| Potential cuts: Separating cuts | |
| Potential cuts: Straight cuts | |
| Rolls of clamping felt |
Scope of delivery
inoCUT icM135
Item no. 10042899
- Base plate
- Left and right support strip
- Removable foot strip
- Short stroke parallelogram
- Right height-adjustable swivel arm
- Toothed handsaw 500 mm, without chamfer
- Magnet for the handsaw
- Park holder for electric sabre saw
- Operating instructions

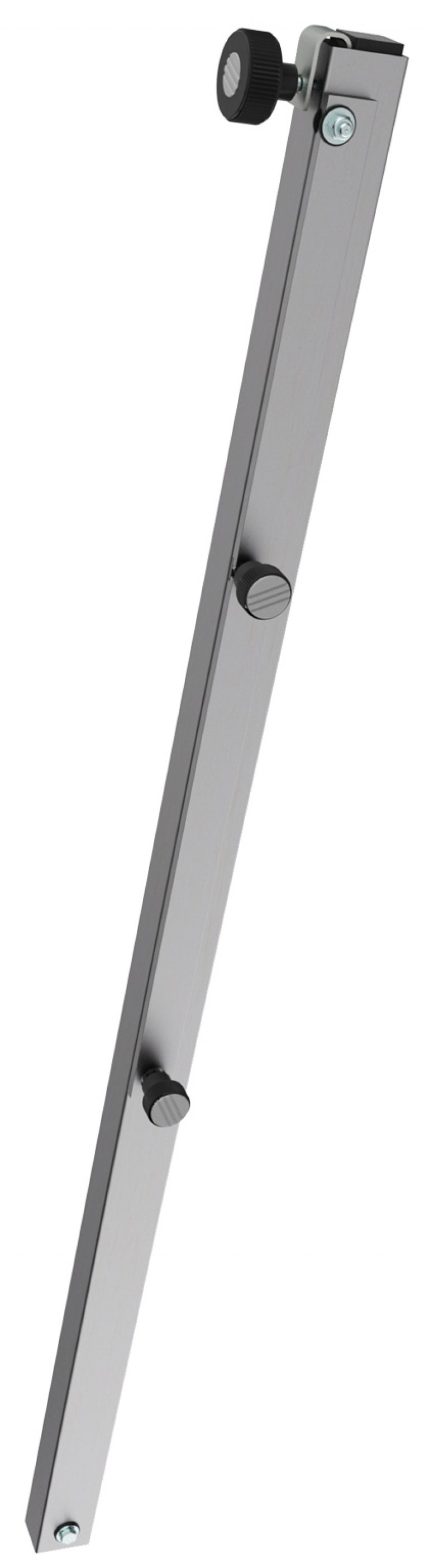

Freestanding support with strut for inoCUT icM135
- For freely positioning the icM135 cutter

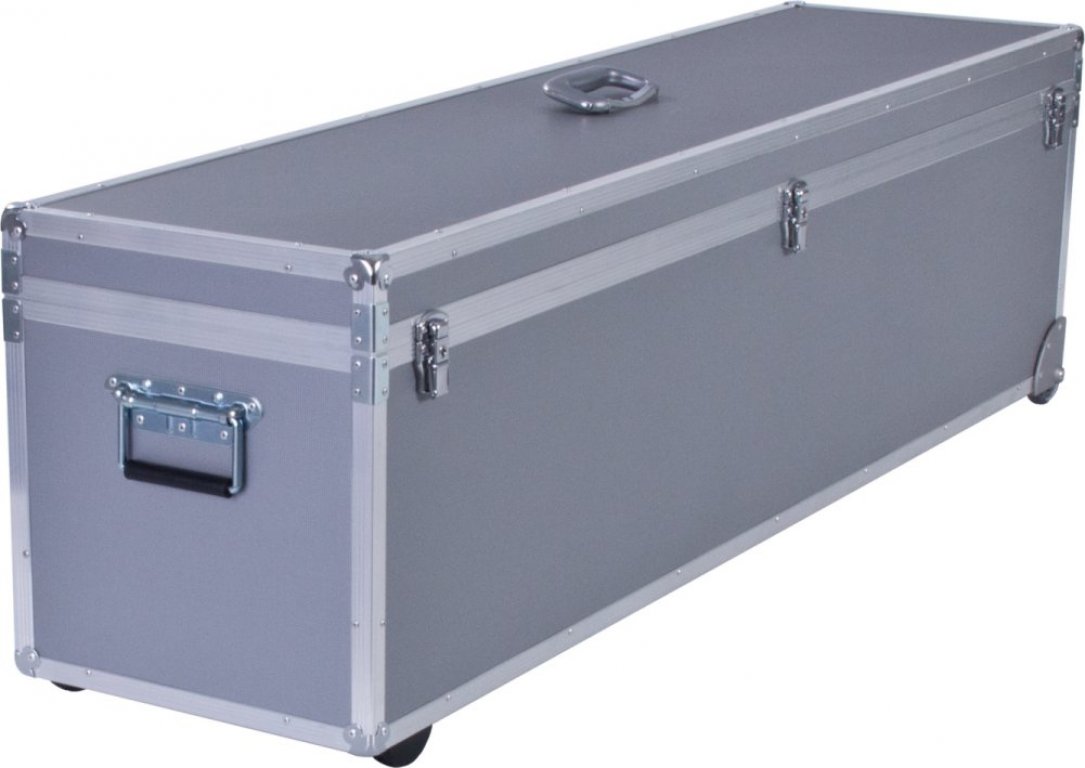

Aluminium transport case for inoCUT icM135 and icM127 Pro

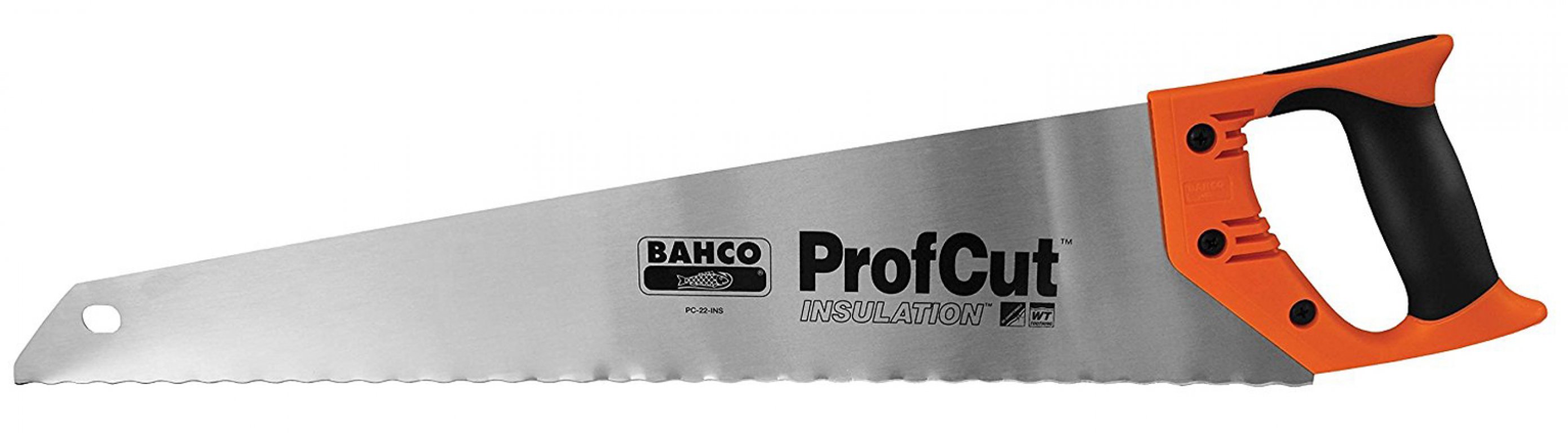

Serrated handsaw (length 500 mm) for icM135
- suitable for rock wool and glass wool

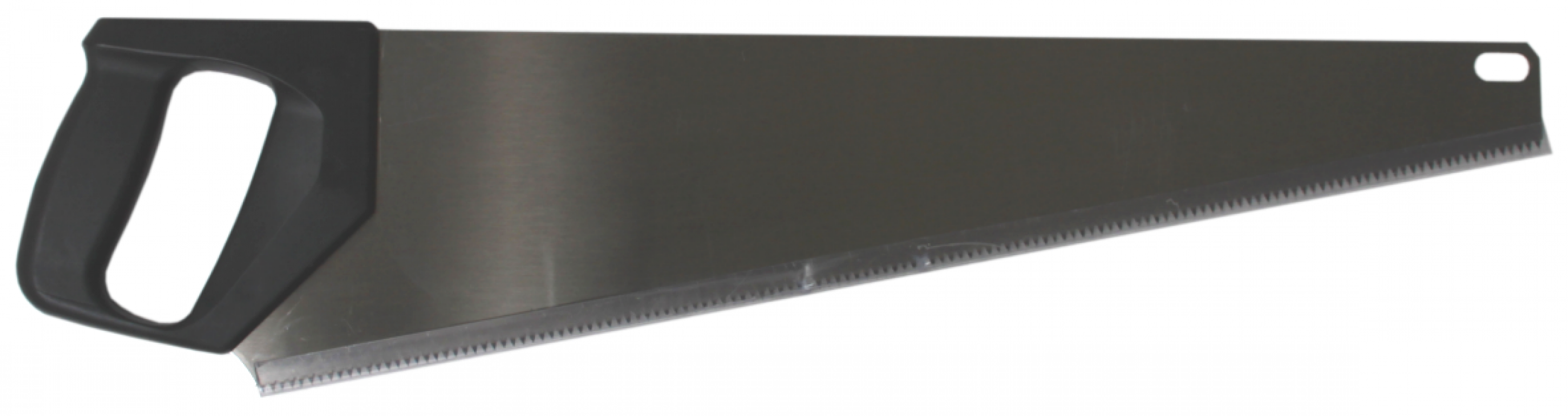

Toothed handsaw without chamfer (length 550 mm) for icM135
- suitable for insulation material

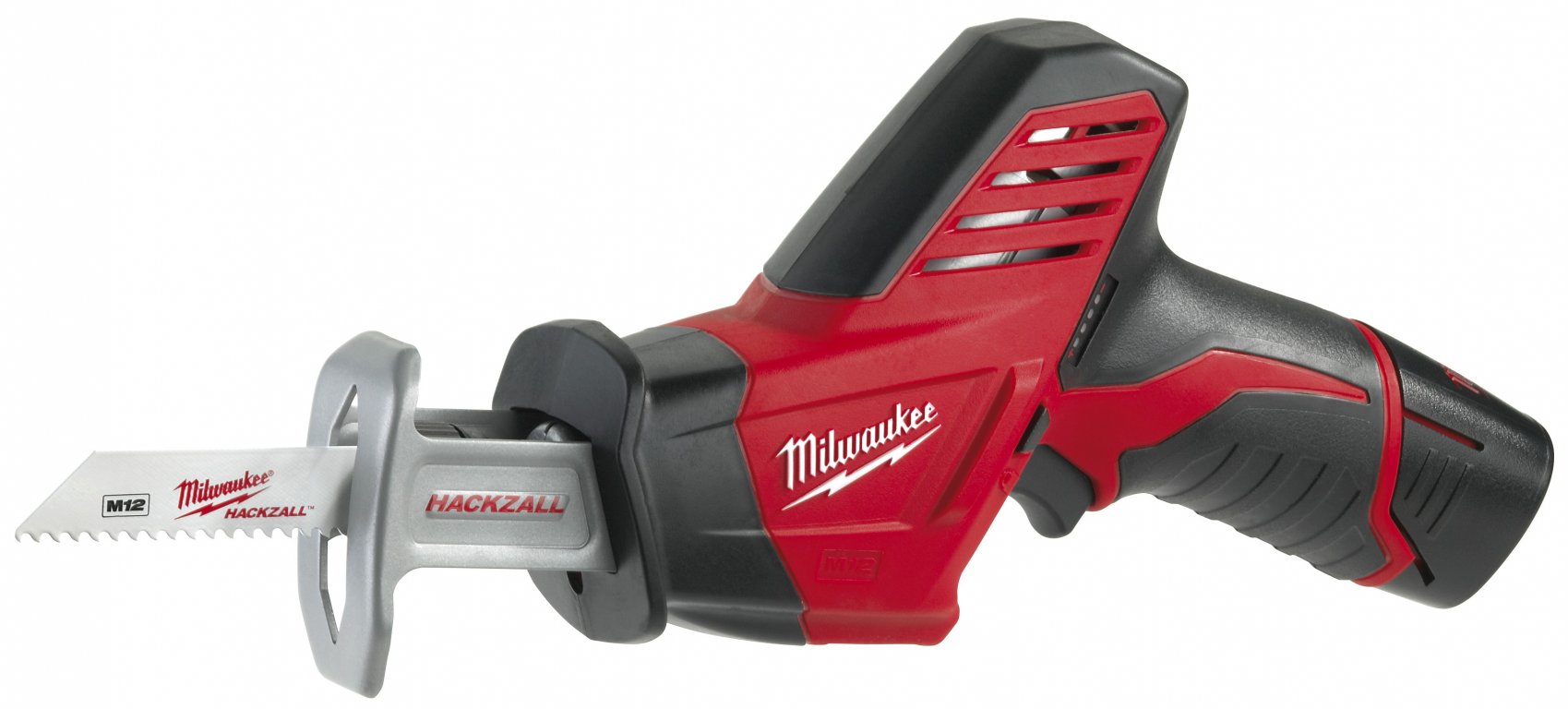

12 volt Milwaukee cordless sabre saw
High-performance 12 volt compact sabre saw. The saw has a cutting depth of up to 450 mm
Technical data:
- Battery: 12 V / 2 Ah Li-Ion
- sawing height: 16.5 mm,
- weight (with battery): 1.2 kg
Scope of delivery:
- 2 batteries
- fast charger
- 2 saw blades
- with case
18 volt Milwaukee cordless sabre saw
High-performance 18 volt compact sabre saw. The saw has a cutting depth of up to 450 mm
Technical data:
- Battery: 18 V / 4 Ah Li-Ion
- sawing height: 20.0 mm,
- weight (with battery): 2.6 kg
Scope of delivery:
- 2 batteries
- fast charger
- with cloth bag
- 2 saw blades

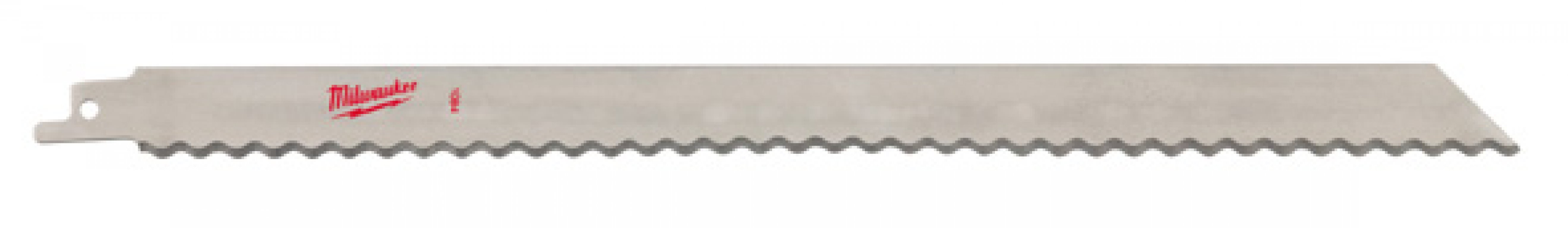

Replacement saw blades for Milwaukee cordless sabre saw
- Length 450 mm, corrugated for Milwaukee sabre saw

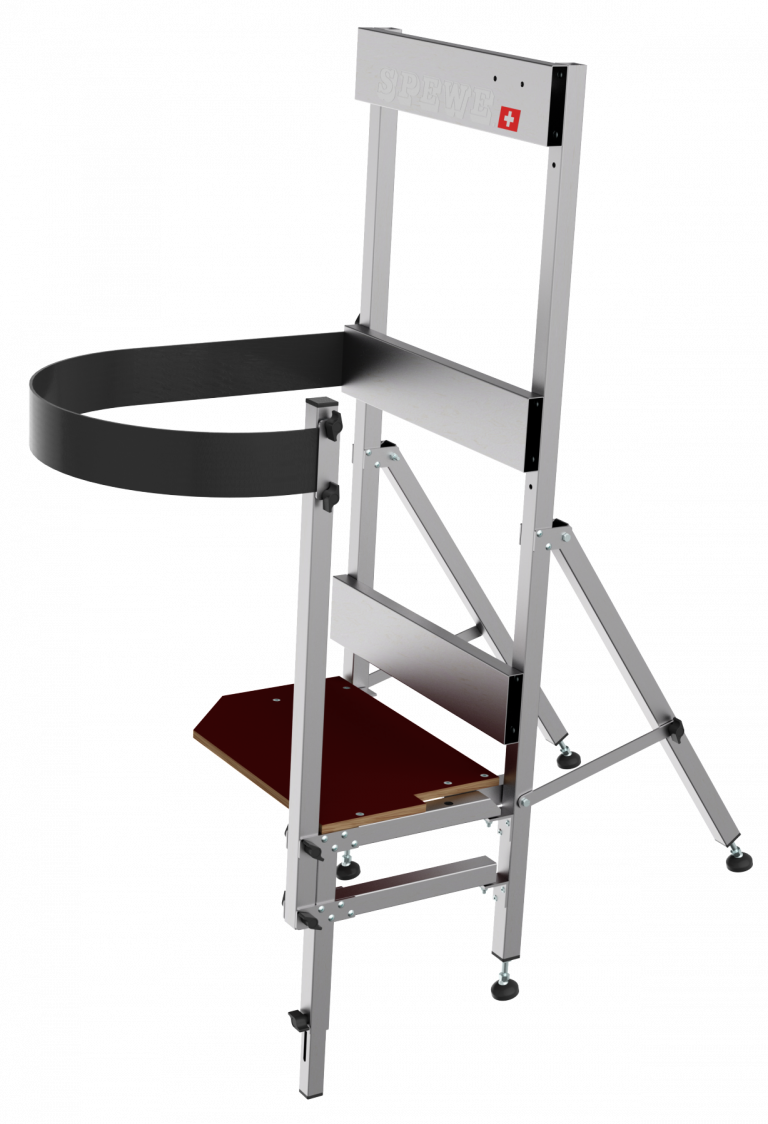

Stands for rolls and boards for icM 135
- For processing rolls of clamping felt
