Robust, handy and versatile cutting device for ETICS insulation boards
Benefits at a glance
- Multi-ply, environmentally-friendly painted Multiplex plywood with scaling
- Continuous operation with ON/OFF switch
- Swivel cutting bracket up to 45°
- Swivel board support for mitre cuts up to 45°
- 1 depth limiter for separating cuts
- Belt with snap lock for assembly on the handrail
- Freestanding support included in delivery
The robust inoCUT ic128 with hot wire cutter and push-button operation is versatile and is thus the ideal cutting device for the construction site.
The inoCUT ic128 revolutionises the thermal cutting of ETICS rigid foam panels on the construction site.
Rafter beam and corner cutouts for window sills are easily achievable with the optional corner cutter.
Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
Cutting length | cm | max. 128 |
Cutting depth | cm | max. 90° = 30 cm / 45° = 20 |
Machine technique | Cutters | |
Dimensions (W x H x D) | mm | 415 x 1850 x 150 |
Weight | kg | approx. 14,8 |
inoCUT ic128 | |
Corkboard | |
Foam glass panels | |
Hemp boards | |
Mineral wool | |
Phenolic resin panels | |
Polystyrene rigid foam panels | |
Polyurethane panels | |
Potential cuts: Cut-outs | |
Potential cuts: Diagonal cuts | |
Potential cuts: Diagonal cuts with mitre joints | |
Potential cuts: Groove cuts | |
Potential cuts: Layered cut | |
Potential cuts: Layered cuts with mitre joints | |
Potential cuts: Layered groove cuts | |
Potential cuts: Mitre cuts | |
Potential cuts: Separating cuts | |
Potential cuts: Straight cuts | |
Rolls of clamping felt |
Basic module
Art.-Nr. 10042904
Scope of delivery
inoCUT ic128:
- Base plate
- Swivel cutting bracket
- Left and right support strip
- Power supply unit
- Connecting cable
- Freestanding support
- Swivel base
- Railing fastening
- Operating instructions

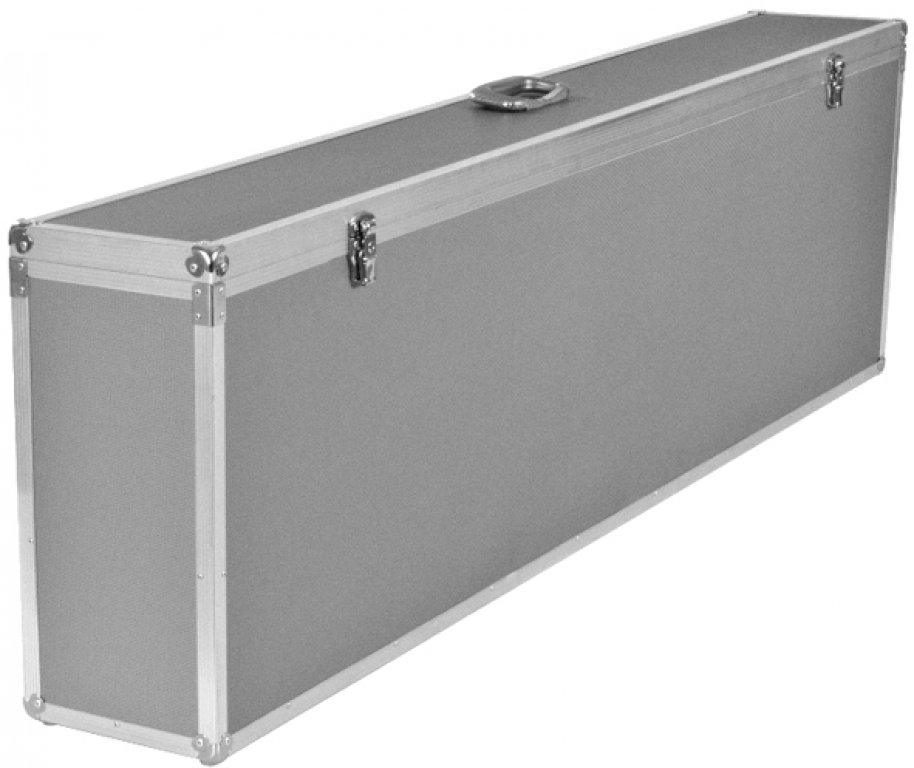

Transport case made of aluminum
- for inoCUT ic127 and ic128 Battery
Aluminium transport case (Article No. 10044543)

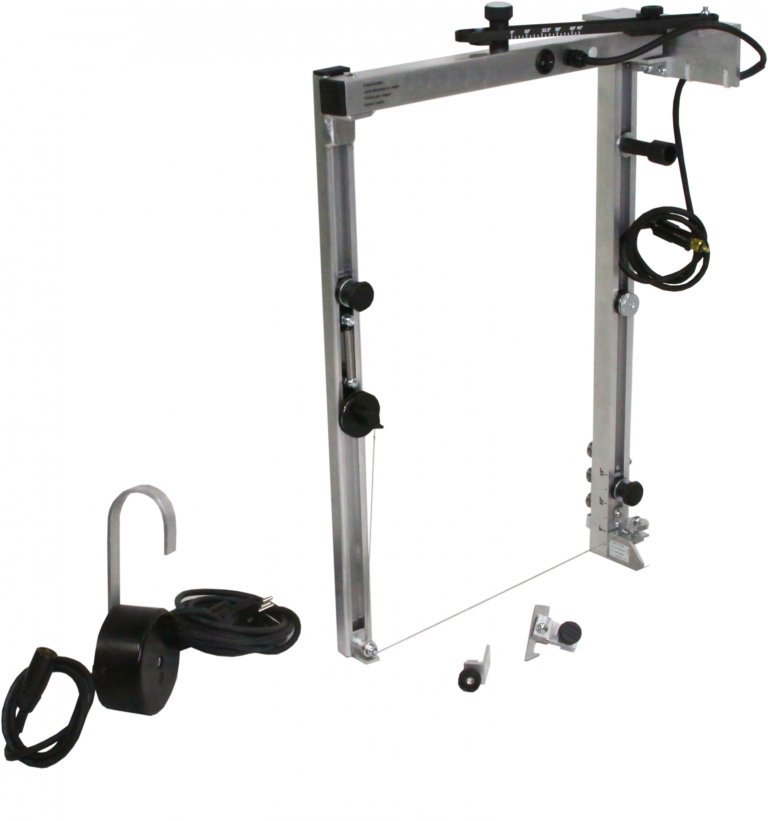

Corner cutter for inoCUT ic128 / inoCUT ic128 Battery
- Rafter cutouts, corner cutouts in window sills, plasterboard, lintels, etc.
- 0 - 90° swivel
- Degree scale and slider for diagonal cut repetitions

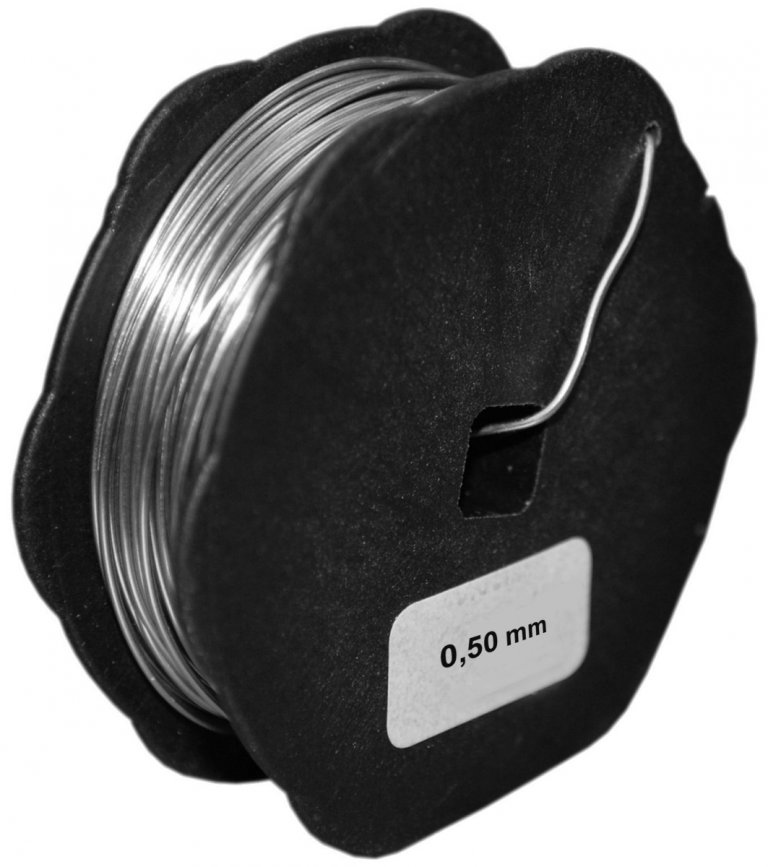

- Tool-free, fast wire change thanks to integrated reserve wire spool
- Separate transformer (not with the battery version)
- With nylon pouch
Corner cutter for inoCUT ic128 (Article No. 10042900)
