The light and compact 230 V* mixing pump for mineral materials
Benefits at a glance
- Power output: 3.0 kW and 230 V, making a conveyor width of 30 m and a lifting height of 20 m achievable
- Continuously variable delivery rate
- Material hopper made from stainless steel
- Simple cleaning thanks to PU mixing zone
- Powerful compressor – can also be used for processing decorative finish coatings
- The total weight without compressor is only 65 kg! This therefore allows for easy transport.
The inoCOMB Picco Power is a trendsetter among compact 230 V mixing pumps. With its power output, a conveyor width of 30 m and a lifting height of 20 m are easily achievable. As a result, the Picco Power – even without high-voltage current – is very versatile on any construction site.
Parts that come into contact with materials, such as the hopper, mixing shaft, pump flange and protective screen, are made of high-quality stainless steel.
The simple operation and easy-to-clean PU mixing zone ensure smooth operation right from the start.
Together with the dry delivery unit inoFLEX, the mixing pump Picco Power process the material out of the one-way container.
_______________
* The machine is also available in 110 V
Video
Alternative Machines
Downloads
Service details

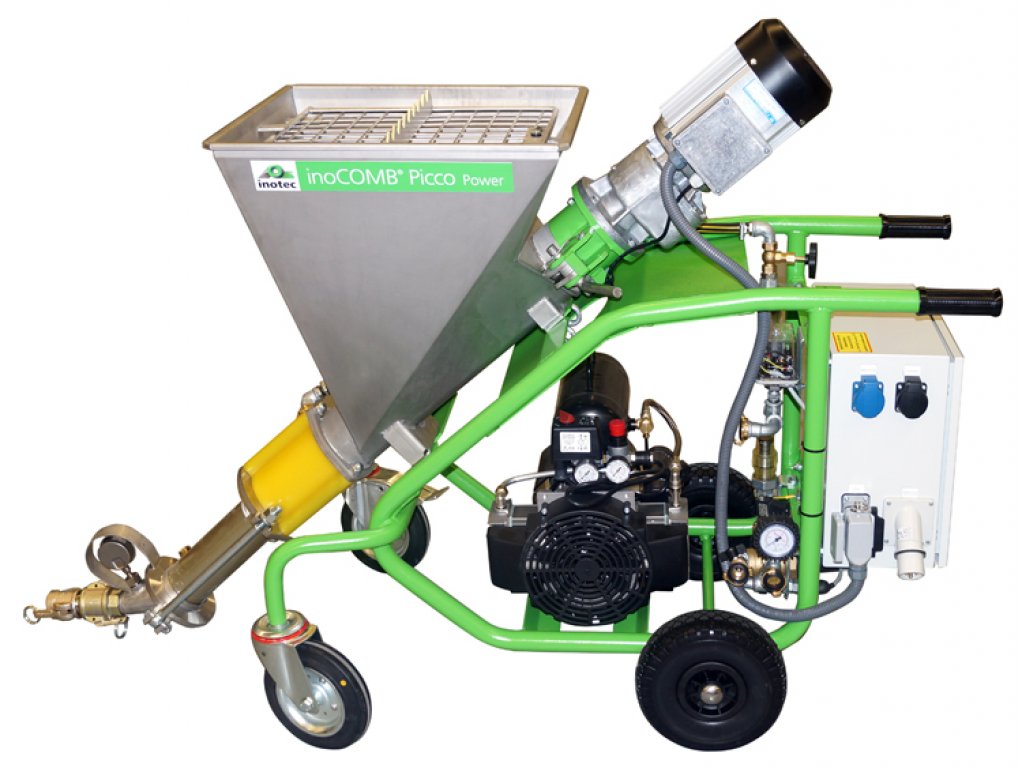

Picco Power: 230 V mixing pump
- No high-voltage current required, yet still very powerful.
→ Can be used on any construction site with lighting current connection

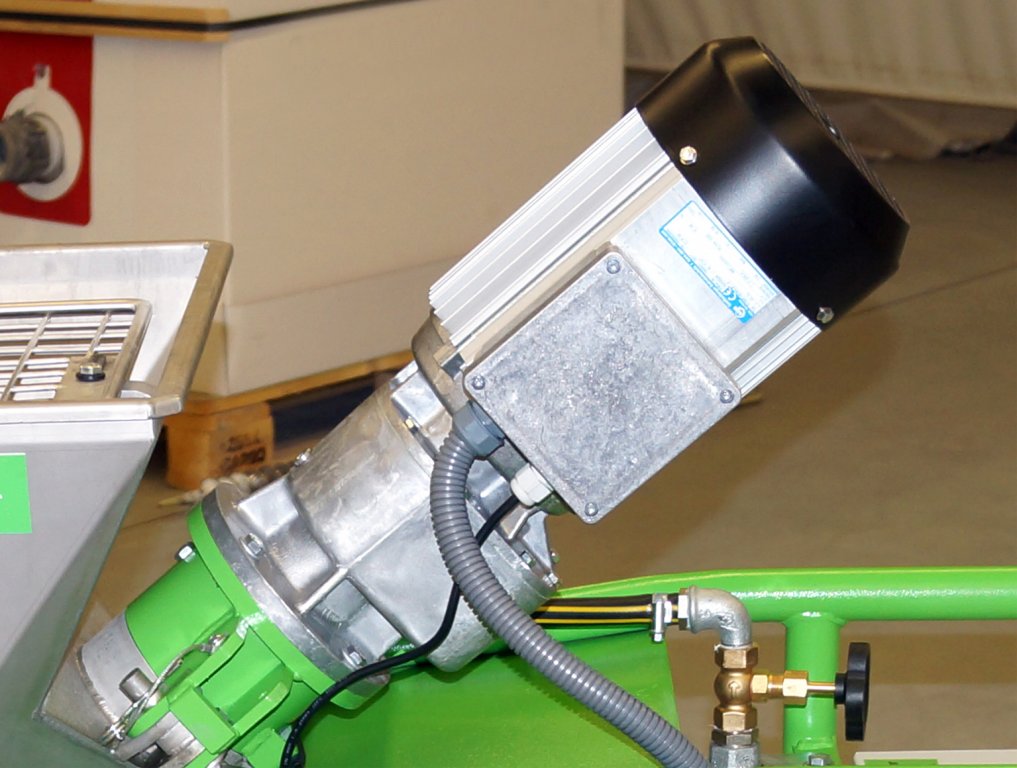

Picco Power: 3.0 kW drive motor
- Powerful, frequency-controlled
→ High variable adjustment of delivery rate
Picco Power: Drive motor with foldable sides
- Sides can be folded away
→ Good accessibility to mixing coil
- Electrically locked
→ Security for the operator

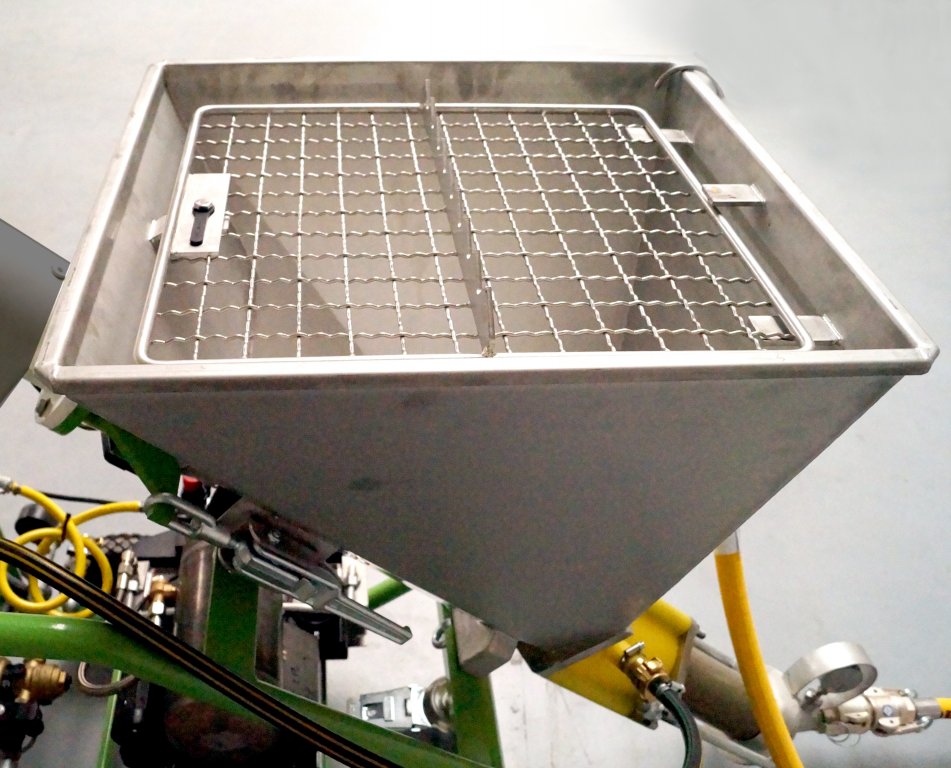

Picco Power: Material hopper made of stainless steel with protective grating
- Stable material for the harsh conditions found on construction sites
→ Long container service life
→ The processing of mineral is possible
- No material deposits
→ Quick and easy to clean
- No paint chipping or rust particles
- Contract protection thanks to protective grating
→ Security for the operator

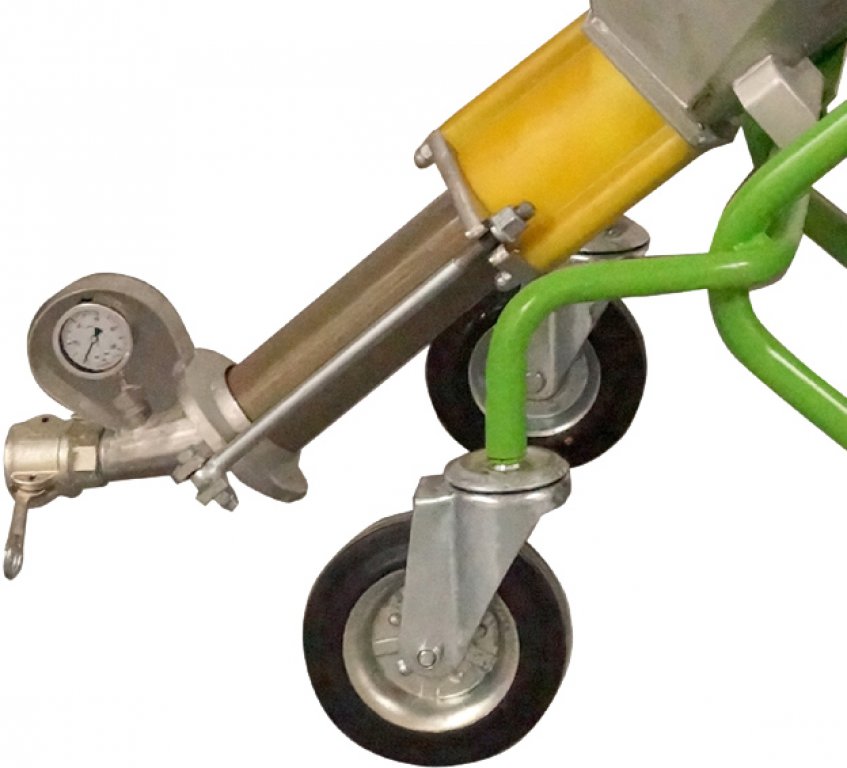

Picco Power: Polyurethane mixing zone
- No material deposits
→ Durable material
→ Low wear and tear
→ Easy to clean
→ Low amount of time required for cleaning
→ Good mixing result
→ Cost savings
Picco Power: Ergonomic switching cabinet
- Clearly structured, well laid out and easily accessible controls
→ Very simple operation
Picco Power: Can be connected to OWC containers
- Automatic filling from an OWC (one way container) using the flexible inoFLEX delivery unit
→ No carrying of bagged goods
→ No more manual filling
→ Time savings
→ No dust formation
→ Constant, steady material consistency

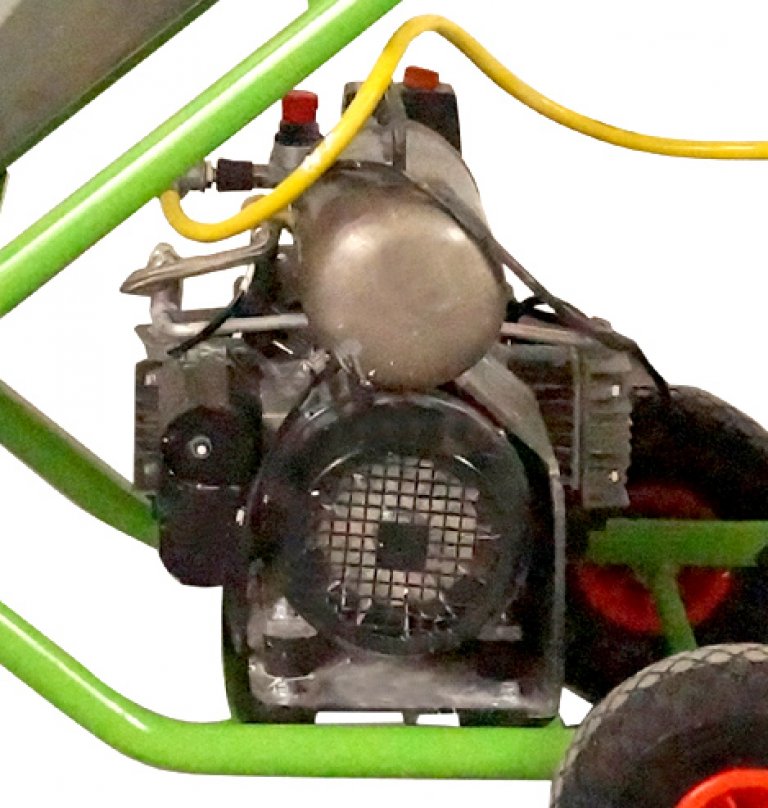

Picco Power: Compressor integrated in the frame (optional accessory)
- Compressor is removable
→ Thus also suitable for other machines and applications
→ Good protection for compressor and water fitting
Picco Power optional accessories: Powerful compressor with pressure switch INOTEC compressor compact C 330 PP
- High air capacity
→ Wide range of applications
→ Ready-to-spray, decorative coatings are therefore possible

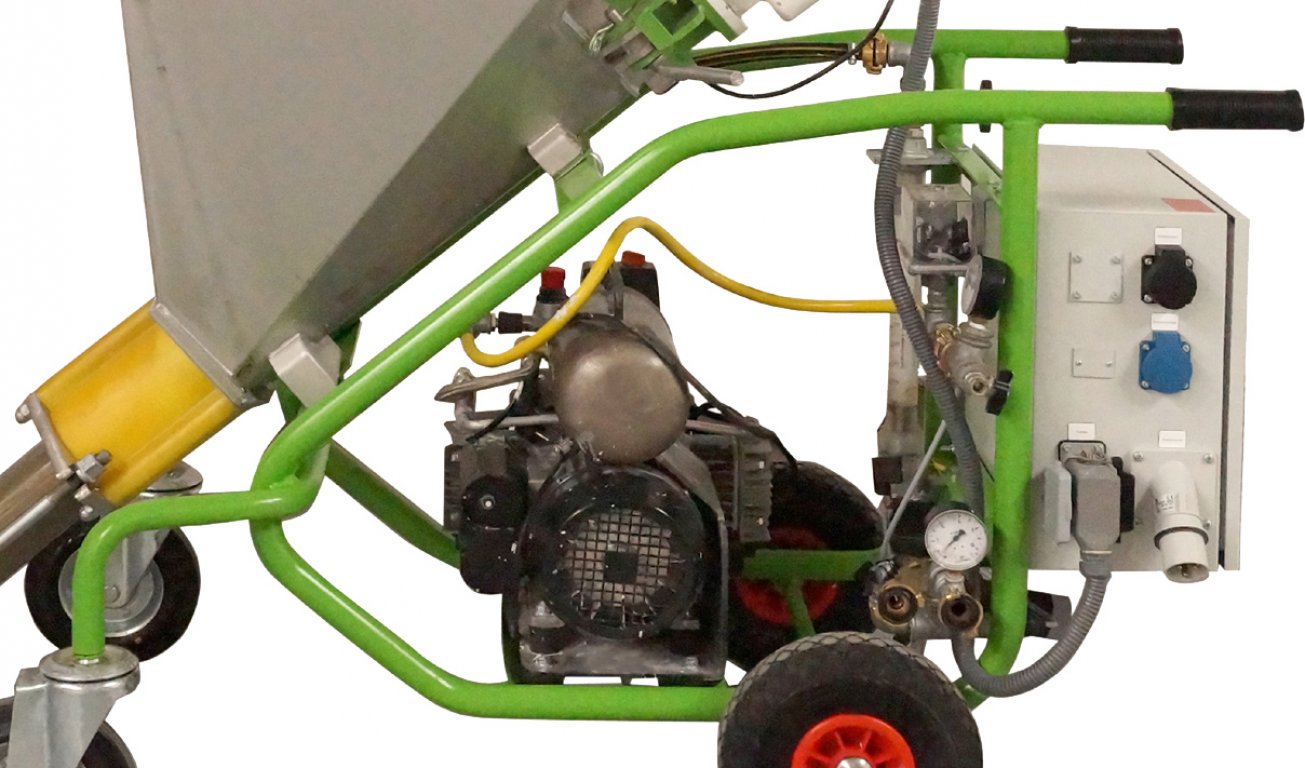

Picco Power: Robust tubular frame with puncture-free, construction site-compliant running wheels
- Solid construction / 4 wheels
→ No punctures
→ Durable construction
→ Simple and safe movement on site
→ Good stability
Picco Power: Easily accessible and visible water fitting
- Simple adjustment of the correct water volume
→ This results in rapid operation, even with changing materials
→ Time savings

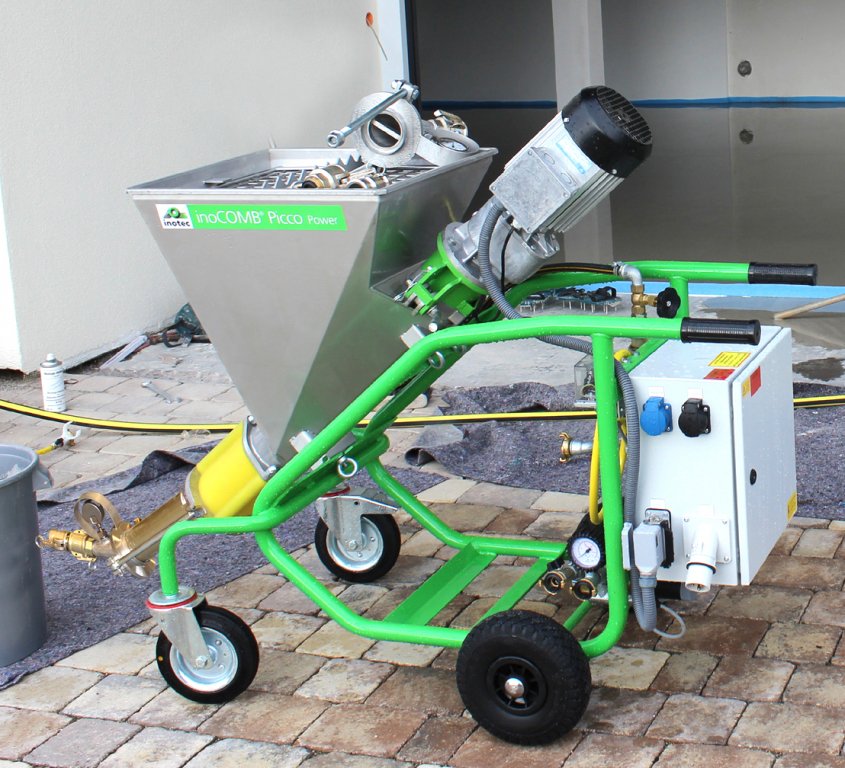

Picco Power: Low total weight
- 97 kg with compressor / 65 kg without compressor
→ Compressor can be easily removed from the frame
→ Transporting the mixing pump is therefore very easy

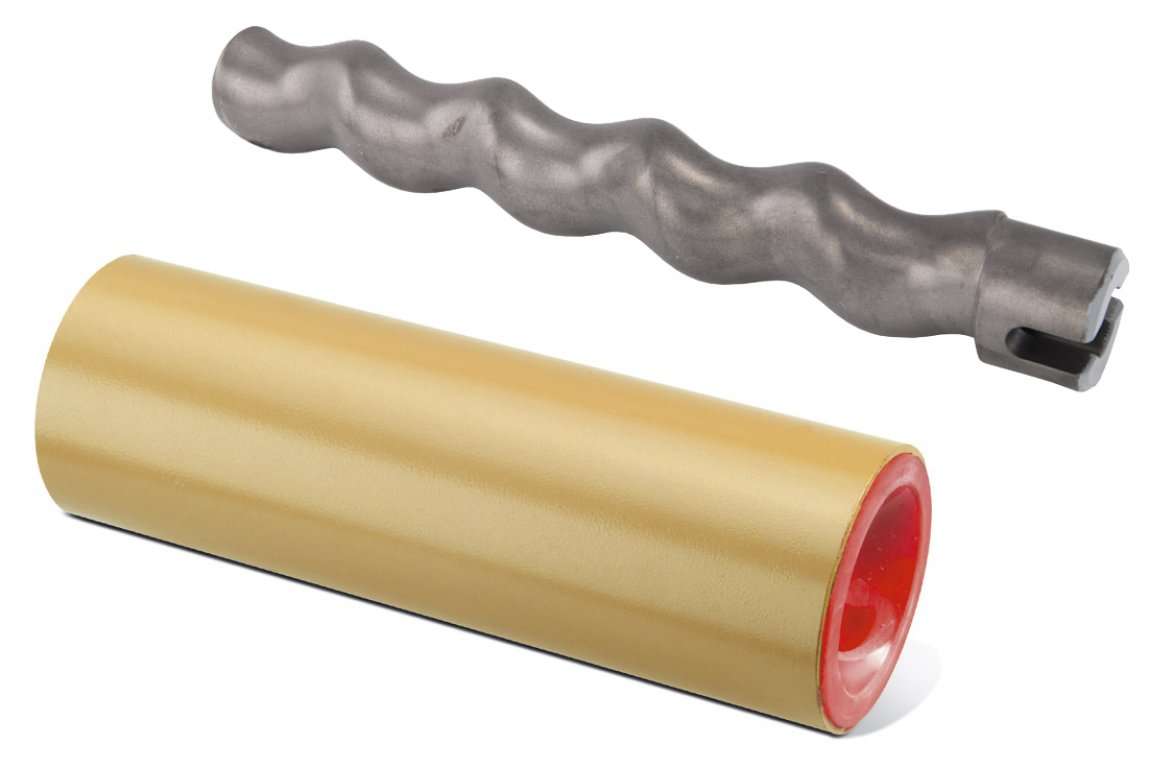

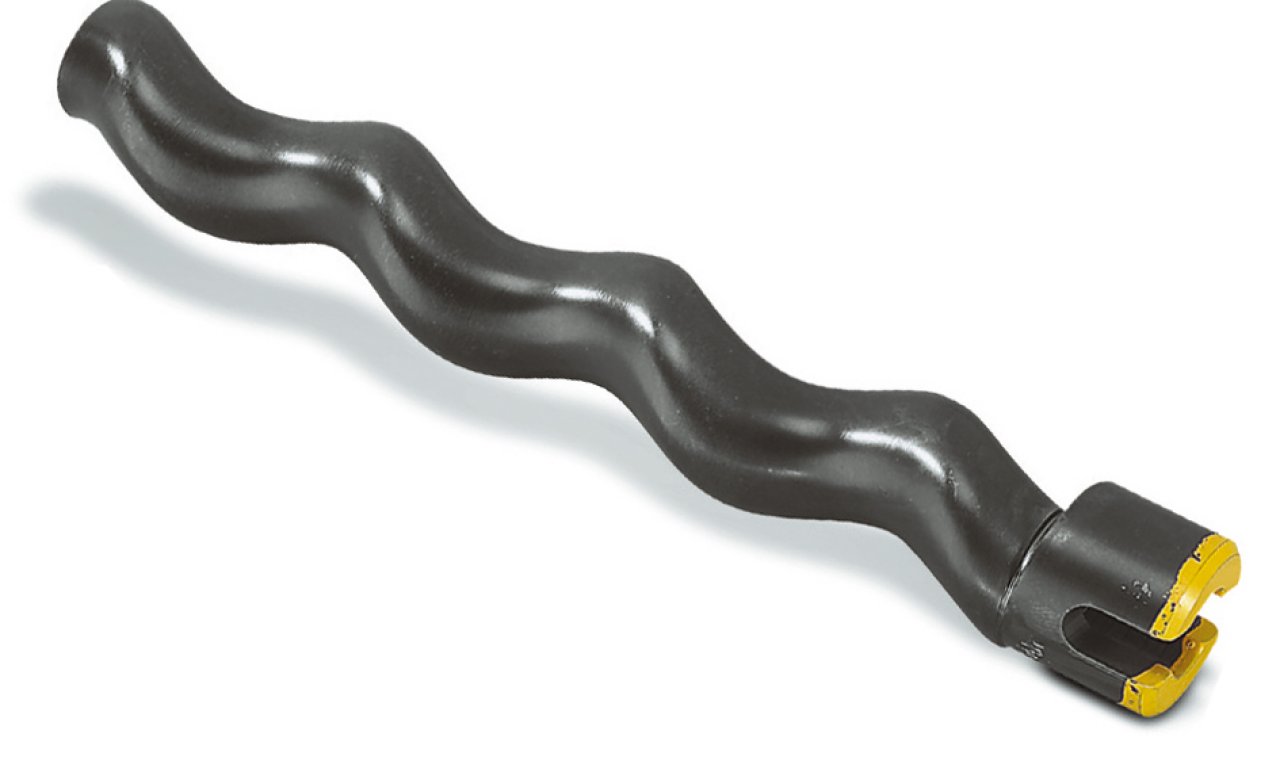

Picco Power: High delivery rate

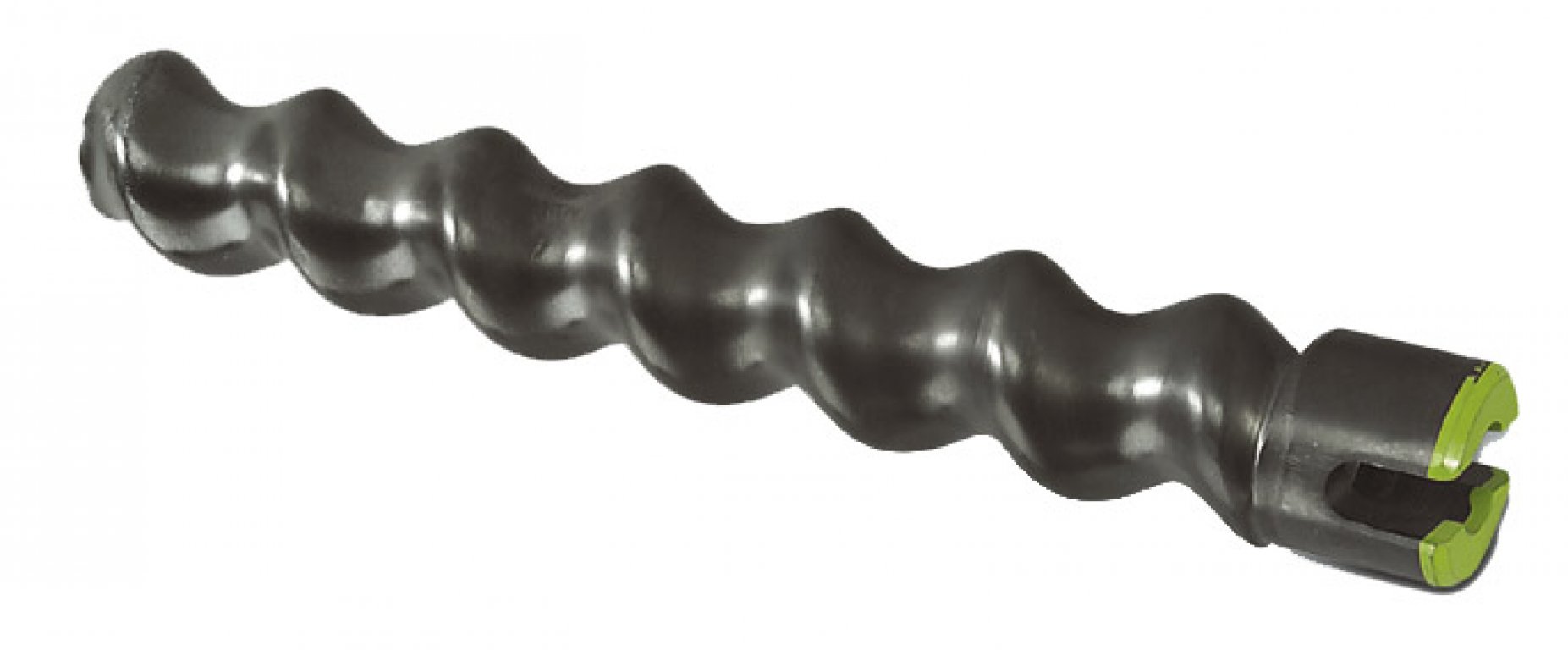

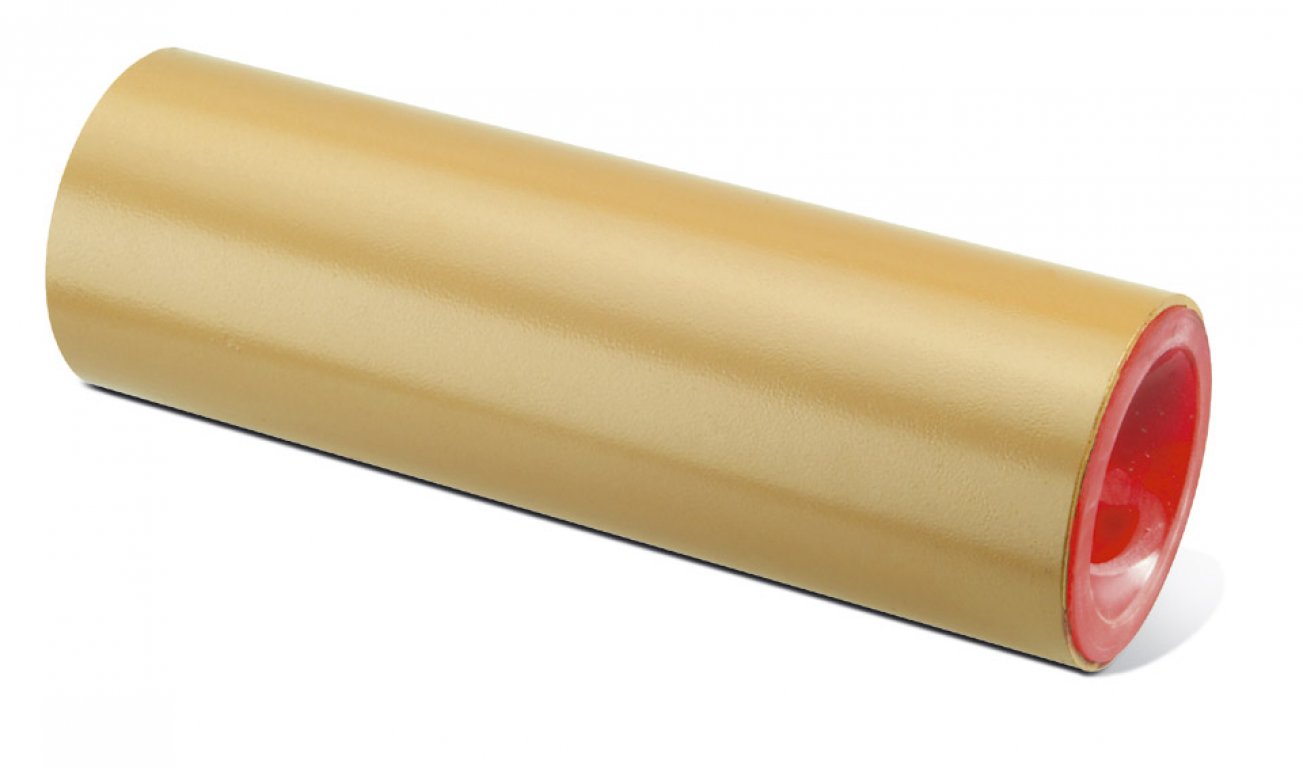

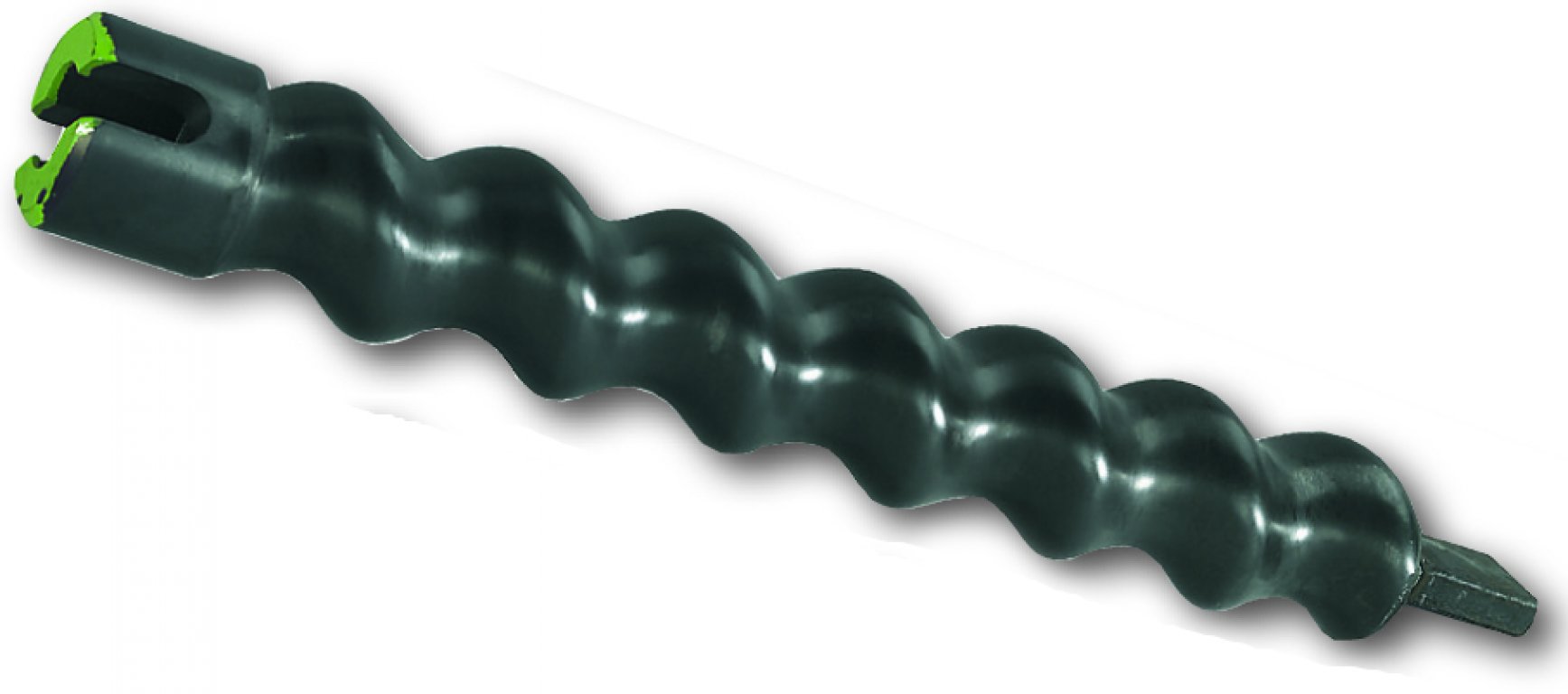

- Optional use of D spiral casings
Power range:
13 - 18 l = D 6-3
8 - 13 l = D 4-½
18 - 27 l = D 8-1/5

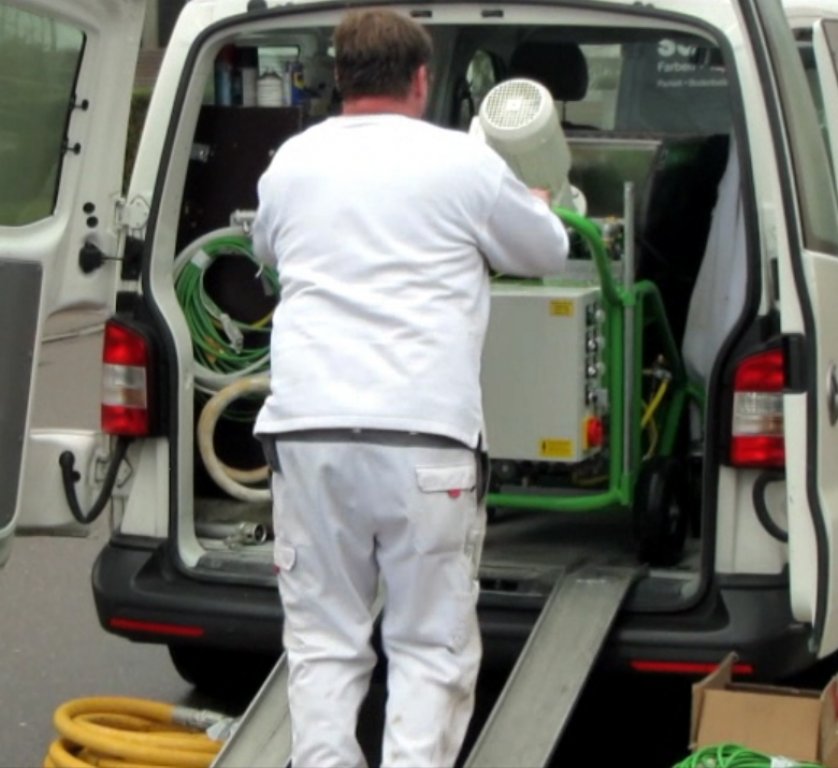

Picco Power: Removable drive motor and material hopper
- Simpler transport
→ The machine can therefore also be transported in an estate car
Picco Power: Integrated control system
- Pneumatic or electric operation
→ Switchable with spray gun, glue gun or radio remote control

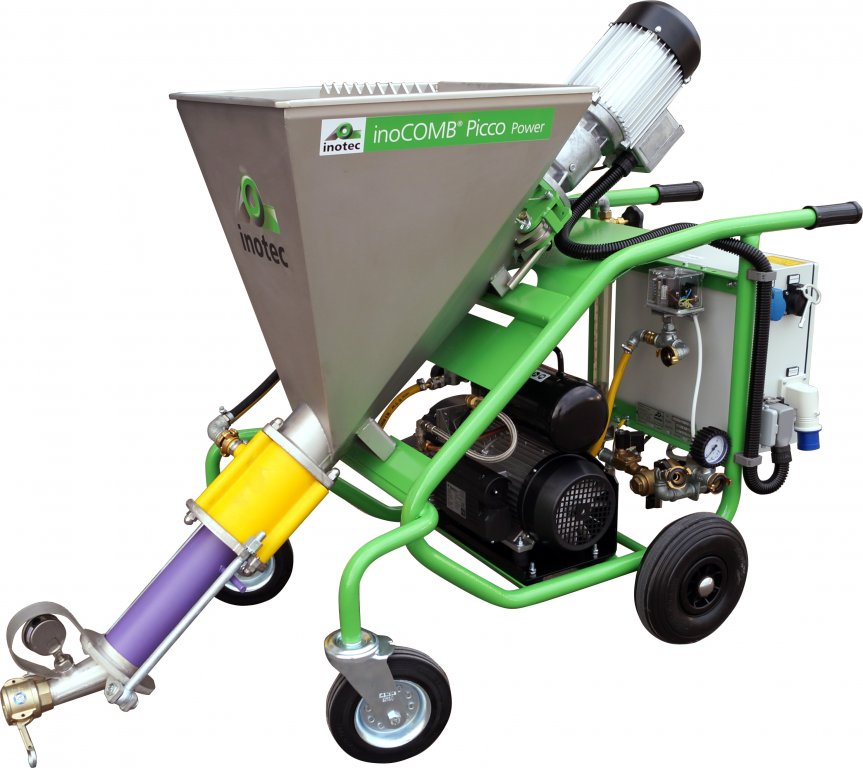

Picco Power: Advantages at a glance
- The Picco Power has an unbeatable price-performance ratio
- Power output: 3.0 kW and 230 V, making a conveyor width of 30 m and a lifting height of 20 m achievable (depending on the material)
- Machine is much lighter than other machines and also offers a high degree of stability thanks to the stable frame and four wheels
- Machine with “Made in Germany” quality
- INOTEC offers a Germany-wide, comprehensive service network
- Affordable wearing parts
- Maintenance of third-party and our own products
- Instruction and training by salaried, very well trained application engineers
| Operating pressure | bar | up to 30 |
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 3,0 (frequency controlled) |
| Delivery rate (depending on the material) | l/min | max. ca. 8-30 l/min. |
| Conveying distance (depending on the material) | m | max. 30 |
| Pressure height (depending on the material) | m | max. 20 |
| Grain size | mm | max. 6 |
| Material container | l | 55 |
| Filling | mm | approx. 1000 |
| Machine technique | Mixing pumps | |
| Comments | * Weight with compressor: approx. 97 kg | |
| Dimensions (L x W x H) | mm | 1560 x 640 x 1090 |
| Weight | kg | approx. 65 |
inoCOMB Picco Power | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Concrete bonder | |
| Decorative fine coats | |
| ETICS glue, mineral | |
| ETICS glue, paste-like | |
| Fine acoustic finishing coats | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Liquid woodchip | |
| Machine-applied gypsum plasters for indoor applications | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| Paste-like textured plasters | |
| PCC- and SPCC-mortar / filler | |
| Porous concrete coats | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Spray-on spattling compounds |
Basic module
Item no. 10041148
Scope of delivery
inoCOMB Picco Power:
- Frame
- 4 running wheels
- Material hopper made from stainless steel
- PU mixing zone
- Gear motor

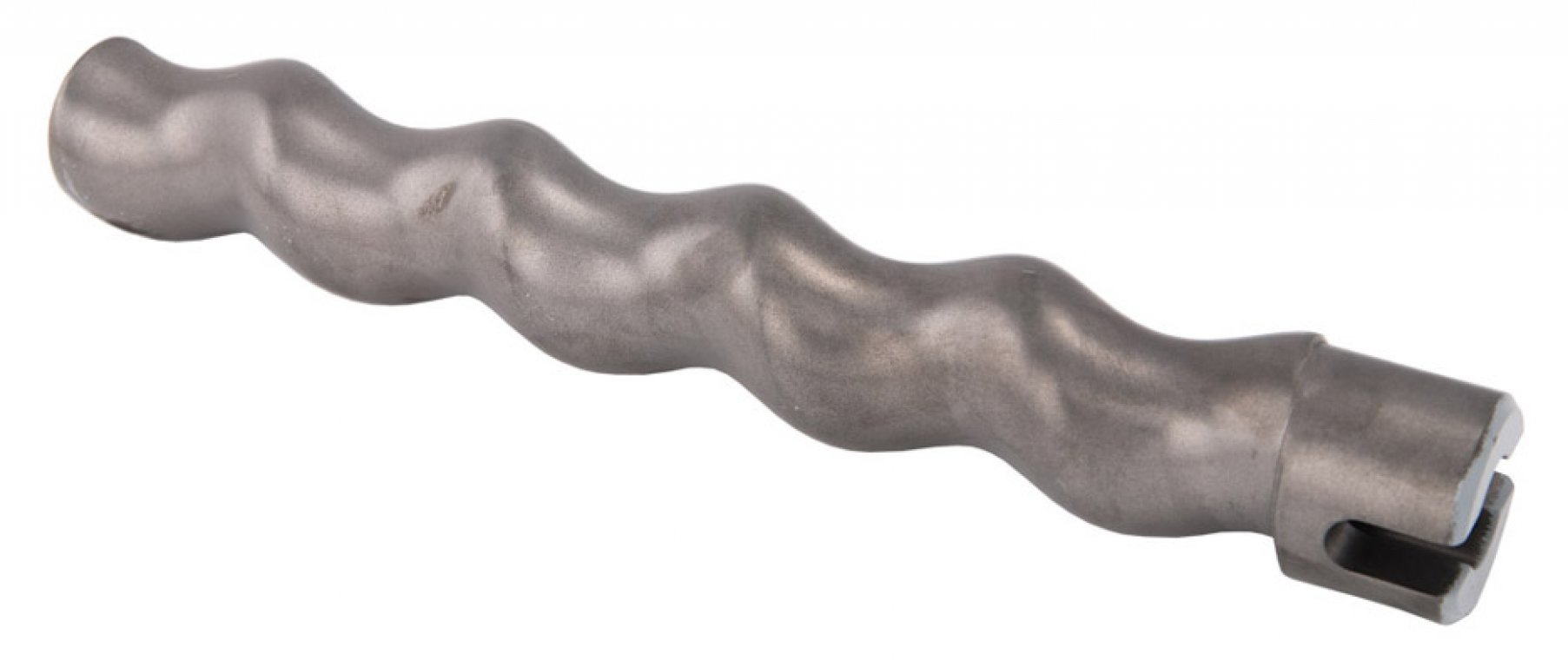

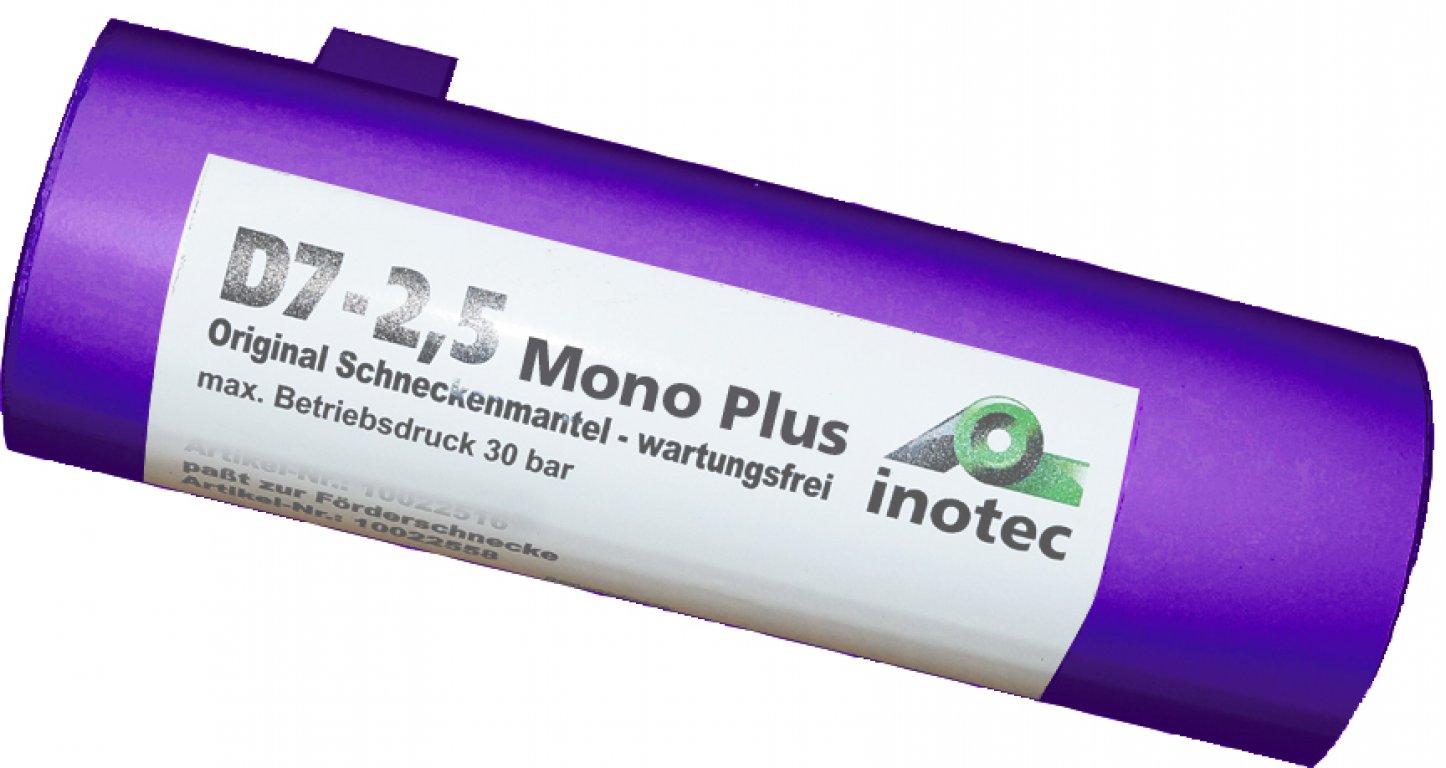

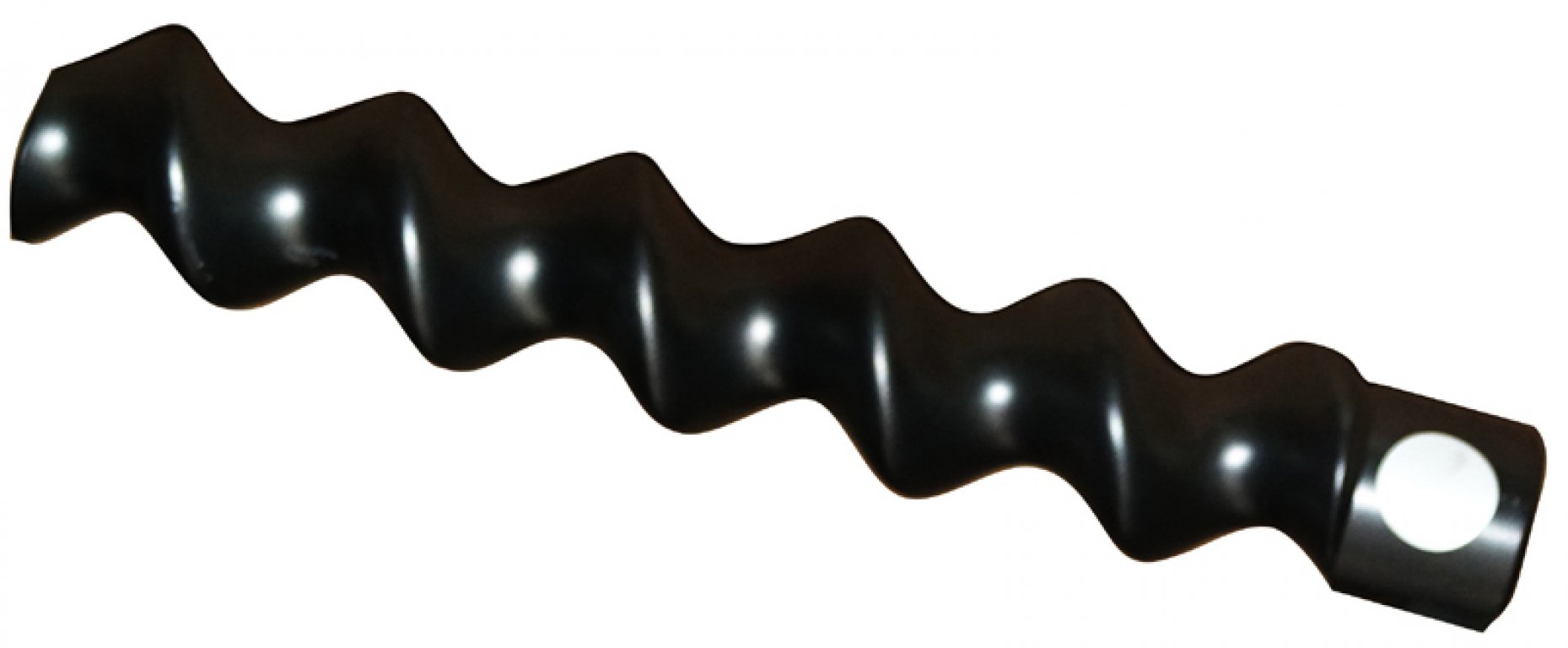

- Rotor/stator D 7-2.5 “Mono Plus”
- Switching cabinet
- 15 m, 230 V Schuko / CEE connecting cable
- Mortar pressure gauge
- Mixing coil
- Water fitting
- Tool set

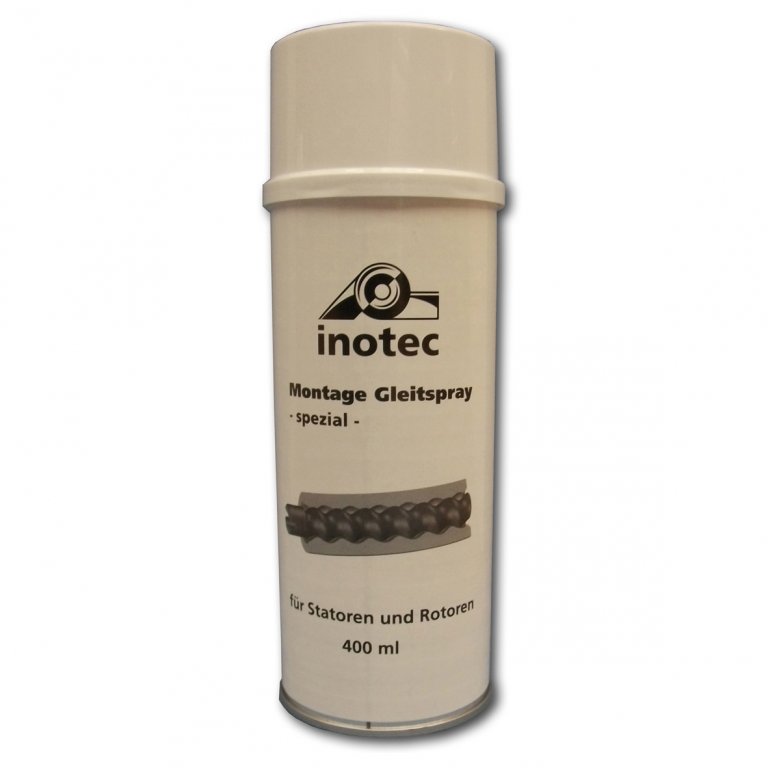

- Assembly spray lubricant
- Operating instructions
Ready-to-spray set
Item no. 10041149
Scope of delivery
inoCOMB Picco Power set:
As with the basic module
(item no. 10041148)
Plus:
- C 330 PP compressor
- 10 m mortar hose with a diameter of 25 mm
- 15 m air hose with a diameter of ½”
- Straight finishing coat device incl. nozzle with a diameter of 12 mm, 14 mm
Ultralight hose
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
INOTEC mortar hose
- Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
- For an operating pressure of 40 bar with 3 times the reliability
- Yellow on the outside at Ø 35 mm
- Black on the outside at Ø 40 and Ø 50 mm
- With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
- With cam levers on the M-piece
| Technical data: | |
| Operating pressure: | 40 bar |
| Bursting pressure: | 120 bar |

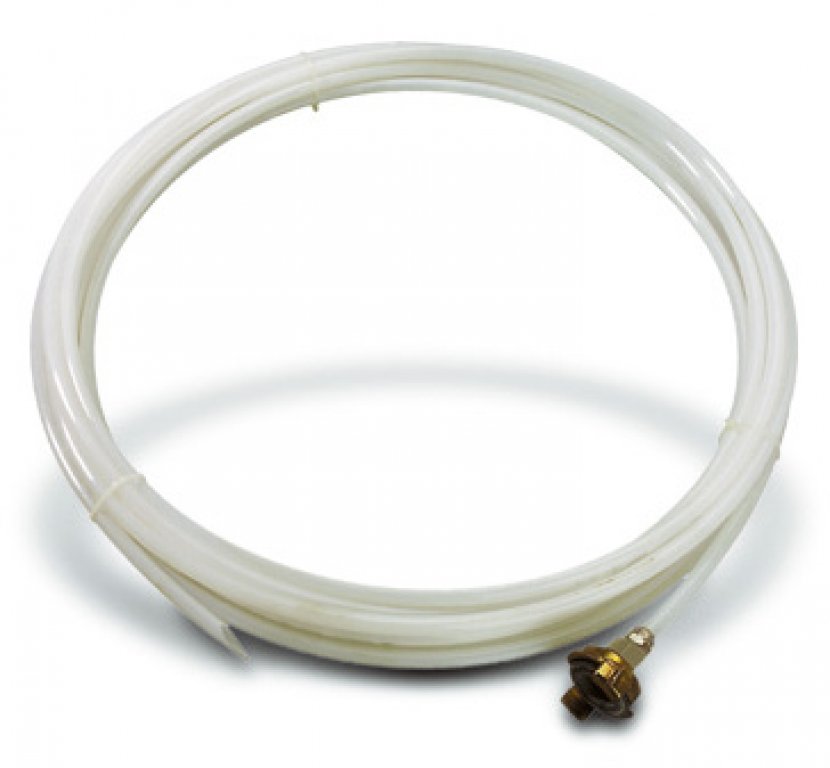

Flushing hose
- For clearing blockages in mortar hoses

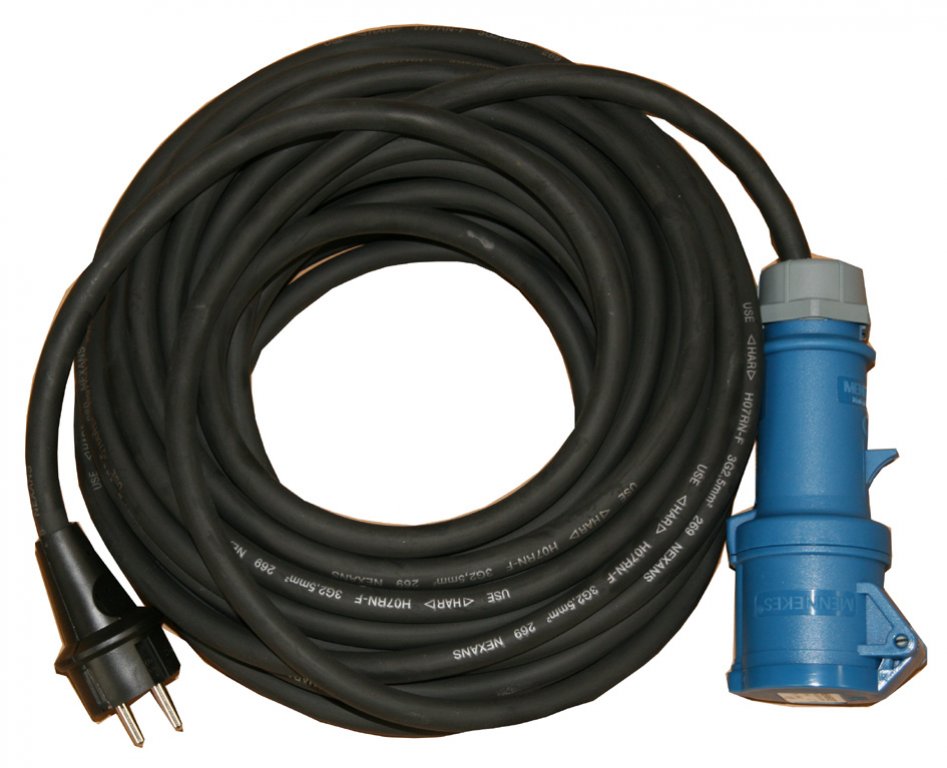

230 V / 3 x 2.5 mm² connecting cable
- 16 A Schuko plug and CEE coupling
Wireless remote control
- Wireless remote control, 3-channels, with handheld transmitter, integrated antenna, 4-pole Harting plug with LED display
- Only for devices with a control voltage of 24 V / 42 V
- Function: ON / OFF/ TEST

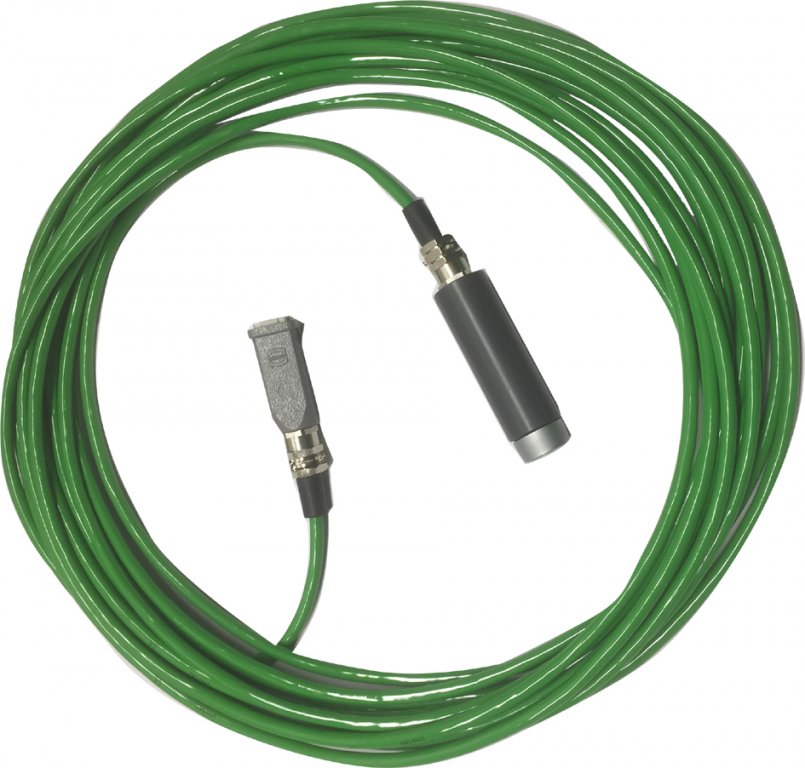

Remote control cable with remote control switch
Remote control extension cable without remote control switch
- For remote control cable
- For remote control switch
- For inoCOLL / inoCOLL Pro one-handed gun
Remote control switch
- With 0.2 m cable, indicator light and 4-pin Harting plug
Plastic hose connector with V Part 35
- Ø 35 mm
- Length: 0,3 m

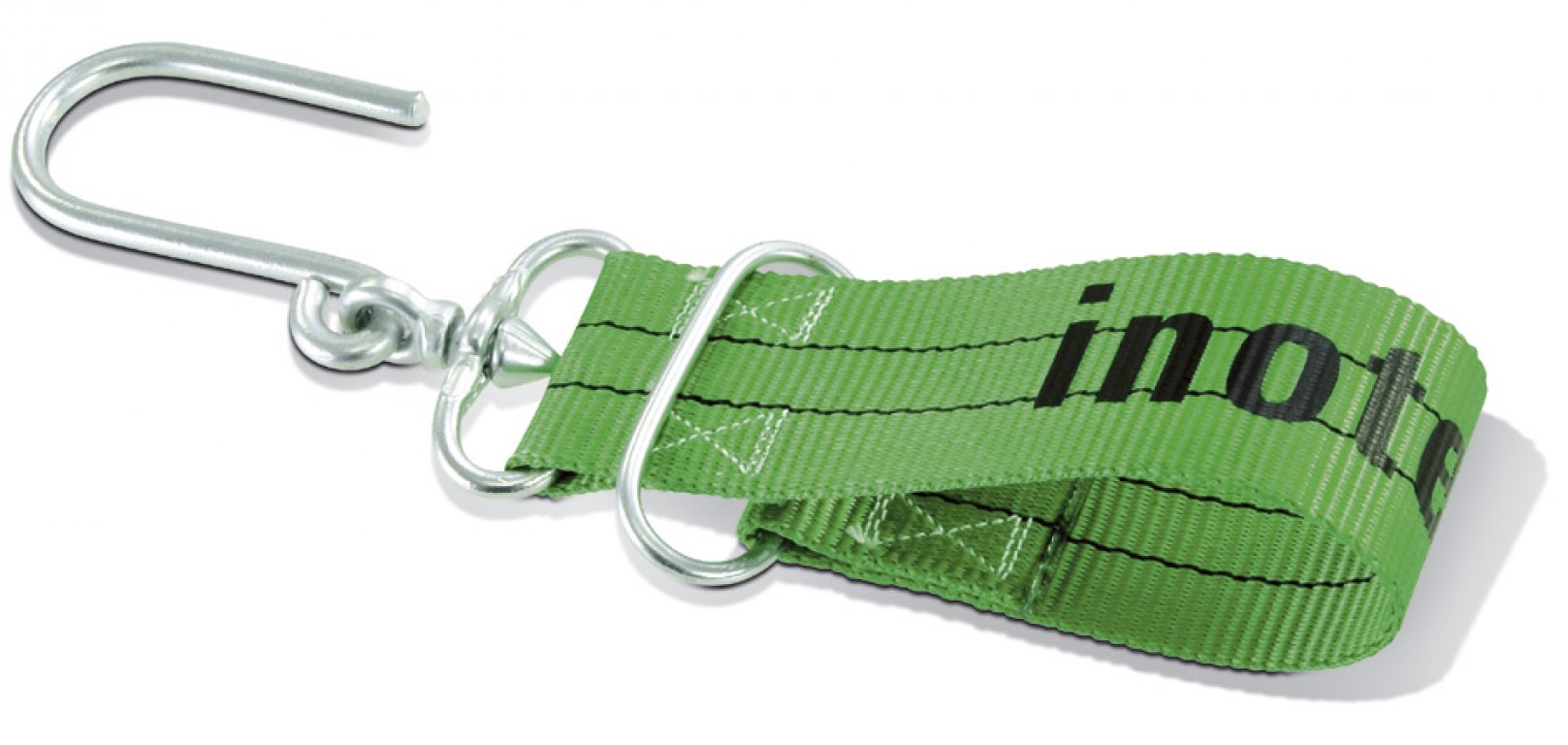

Hose holder
- For rapidly fixing hoses to the scaffold

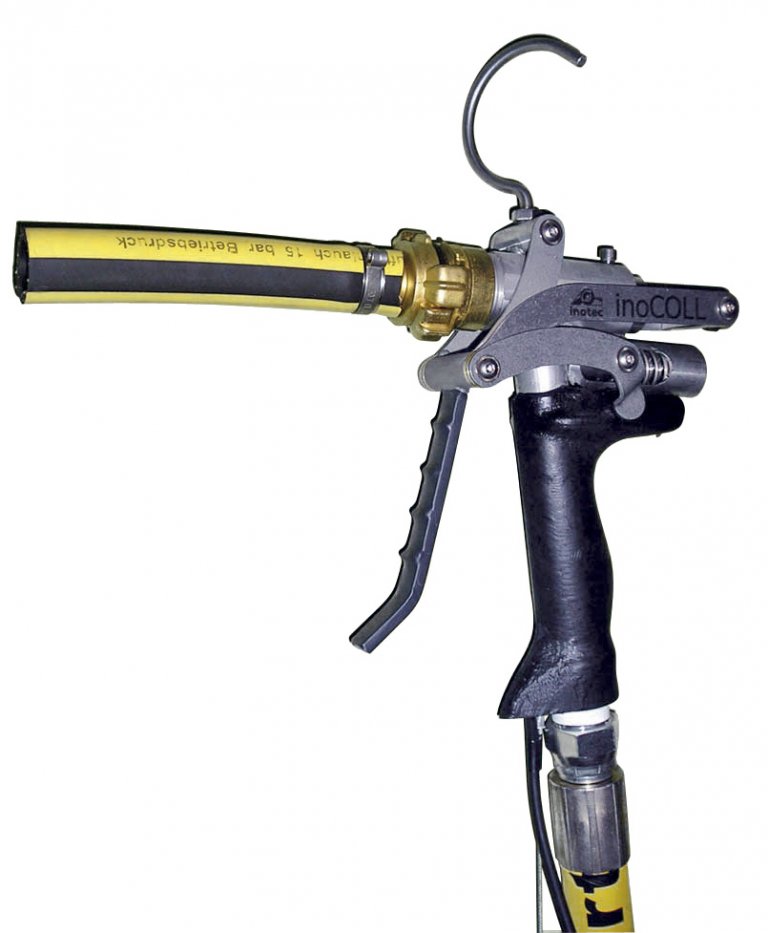

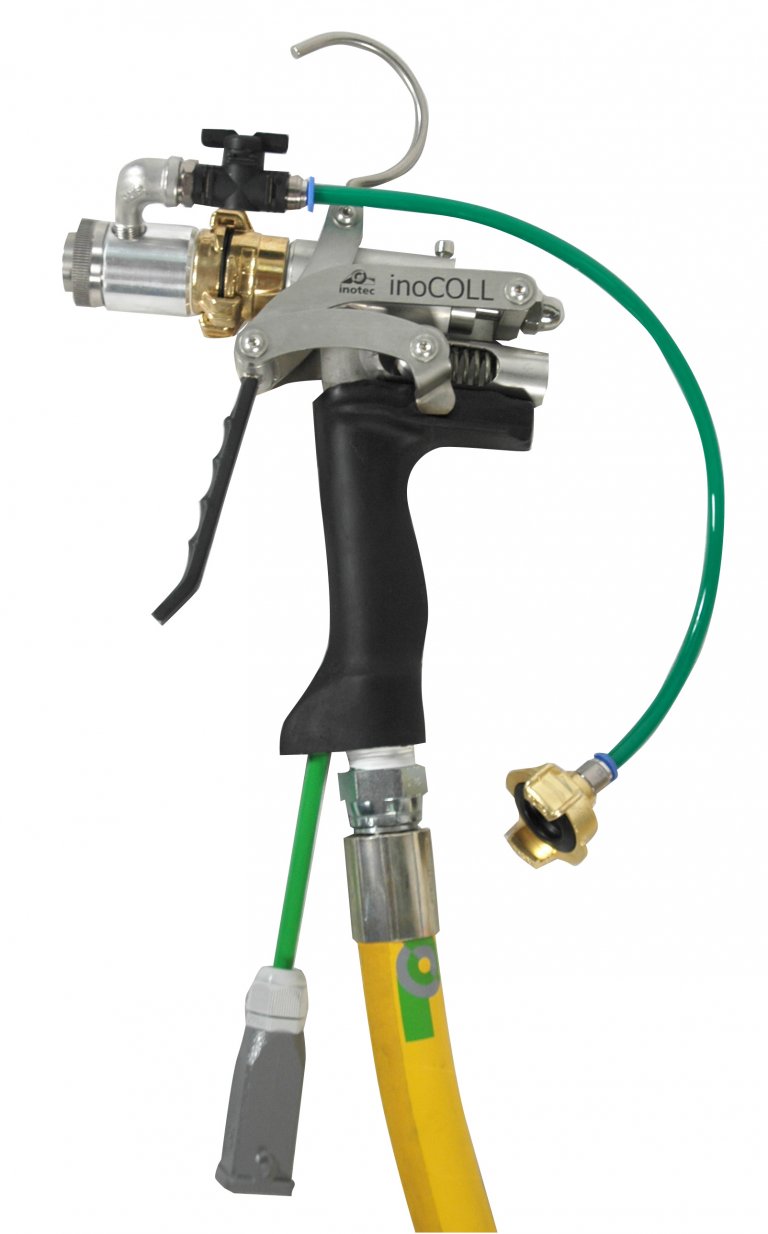

inoCOLL one-handed gun
- For bonding and basecoat mortars
- 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
- For grit sizes up to 1.5 mm
inoCOLL PRO one-handed gun with mortar coupling
- For bonding and basecoat mortars
- For particle sizes up to 4.0 mm

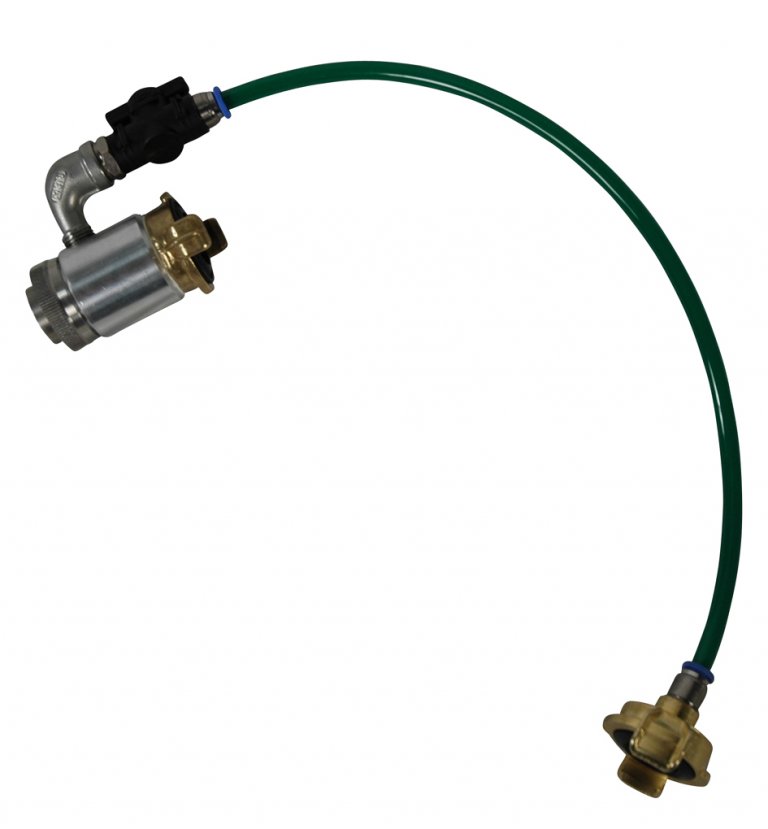

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection
- For spraying mineral and paste-like products
- With 10 mm nozzle
Short spray pipe with mortar coupling 25 mm
Short, lightweight spray pipe with L24 coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (air flow rate from 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.
- For particle sizes up to 3 mm
- Suitable for a 25 mm mortar hose
- Only in conjunction with remote control cable
Scope of delivery:
Short spray pipe with 2 m whip hose (Ø 19 mm), with mortar coupling 25 mm and 2 m air hose with GEKA coupling, without nozzles
Nozzles for Item no. 10039322 / 10039887 / 10039457
- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Short spray pipe with mortar coupling 25 (10039887)
- Angled spray head with GEKA coupling (10039457)
- Made from stainless steel

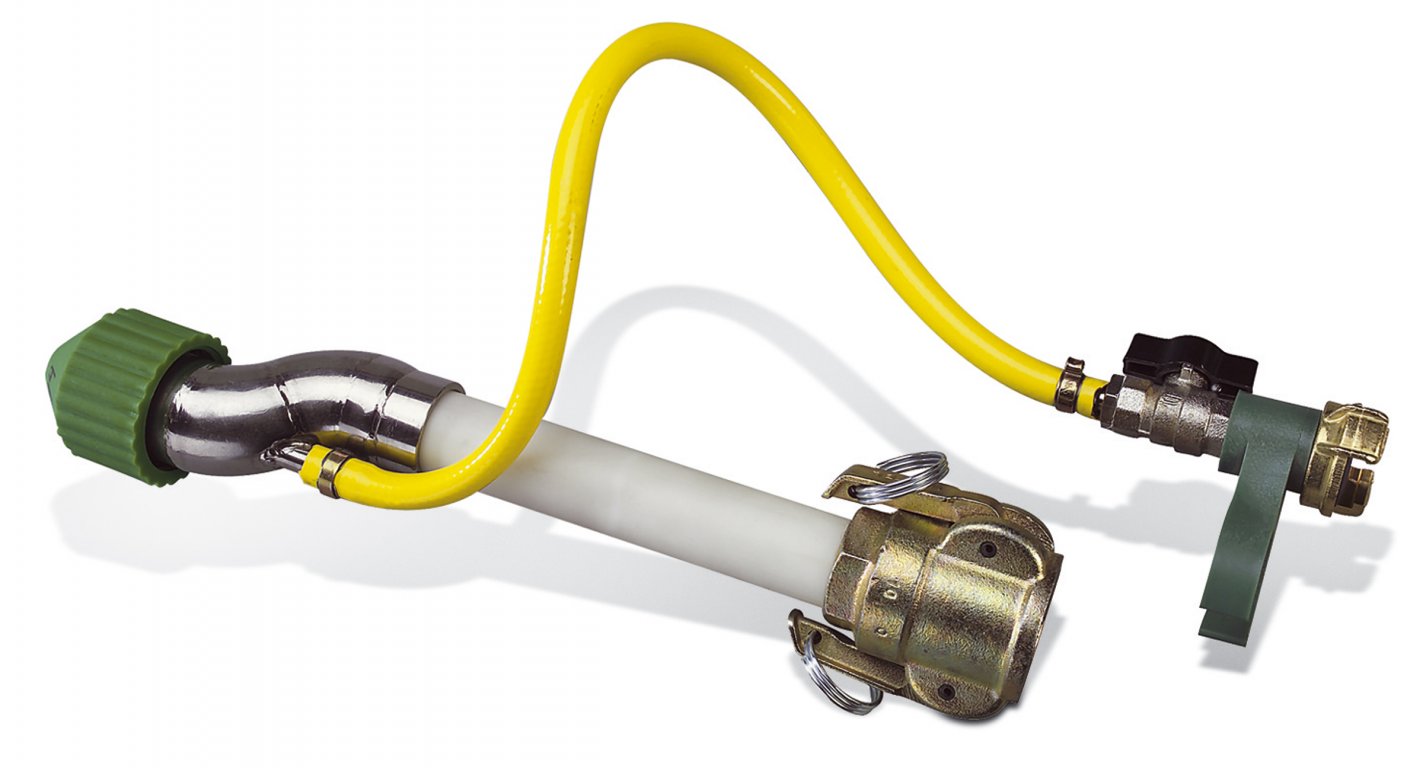

MAI finishing coat device, straight
- With 25 mm M-piece coupling
- Including a 14 mm jet nozzle

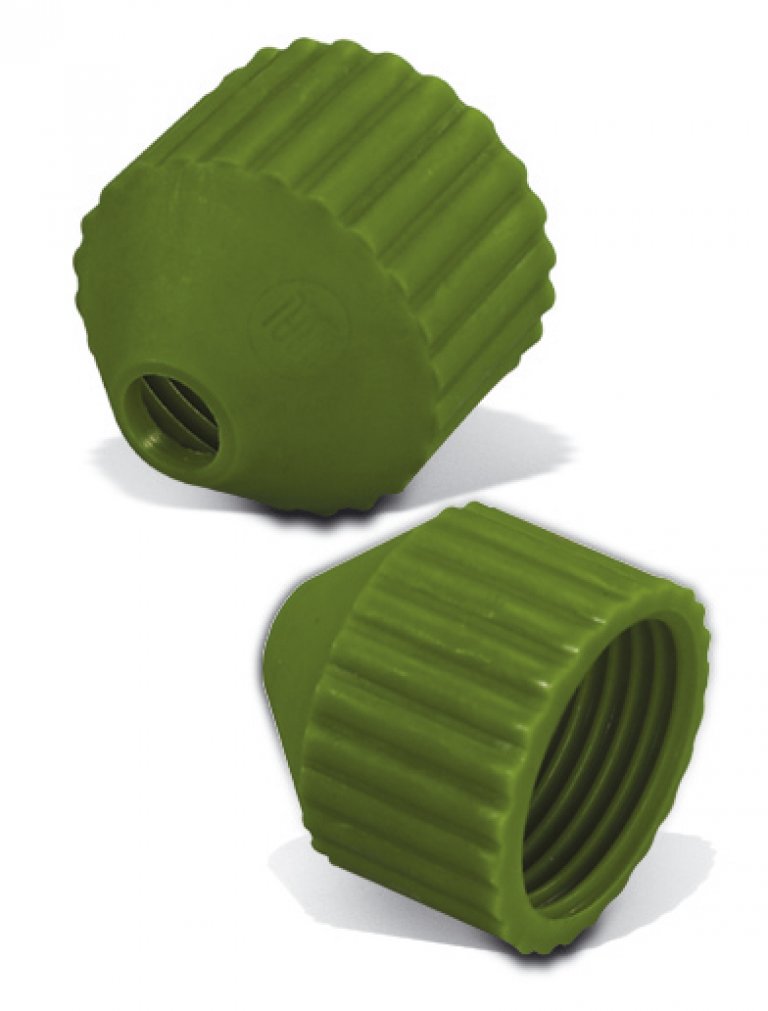

Jet nozzle
- For MAI finishing coat device
Straight finishing coat device
- With 25 mm M-piece coupling
- Incl. a 14 mm finishing coat nozzle

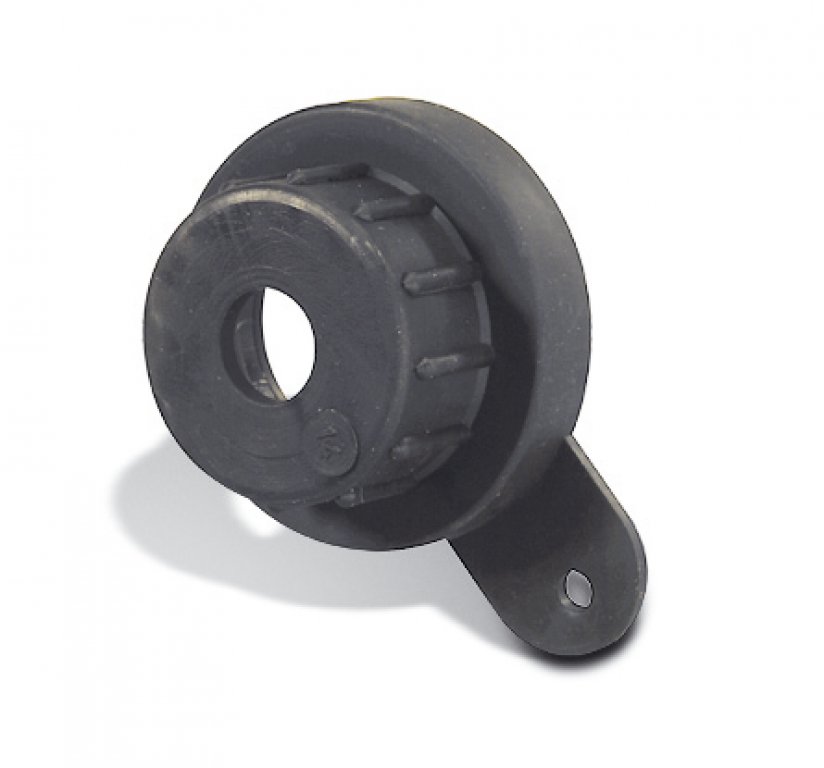

Finishing coat nozzles
- For finishing coat devices, item nos.:
10024098 / 10024099
Straight decorative plaster spraying device
- Not including nozzle with 25 mm M-piece coupling
- For grit sizes up to 6.0 mm
- Only in conjunction with remote control cable

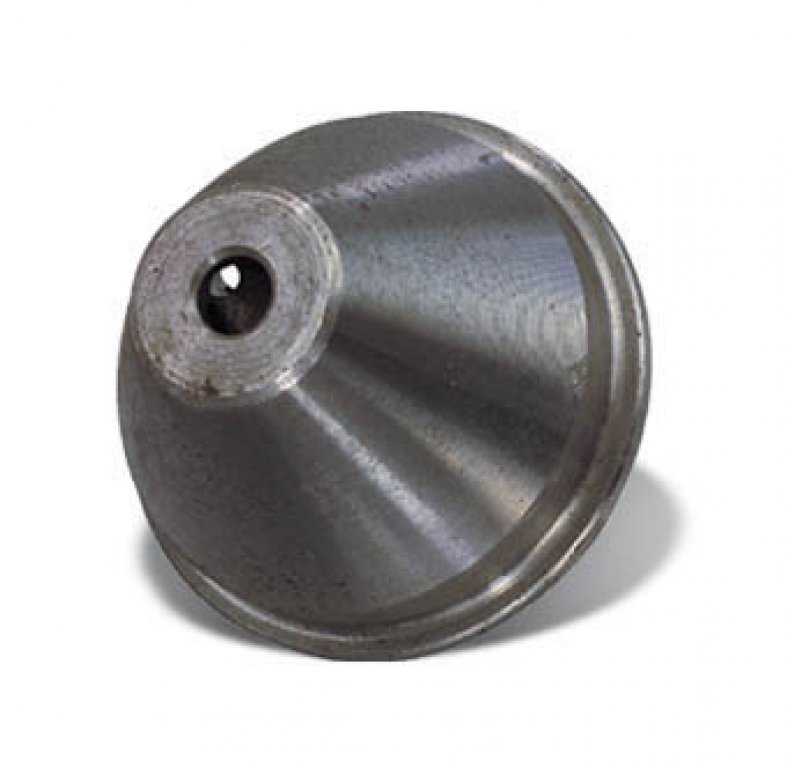

Nozzle for straight decorative plaster spraying device
- Made from stainless steel
Finishing coat device, long design
- With offset tip
- Including a 12 mm nozzle
Static mixer
- Prevents / destroys node in mortar
- Diameter: 35 mm
- Length:200 mm
- incl. Coupling M-piece 35 mm and V-piece 35 mm

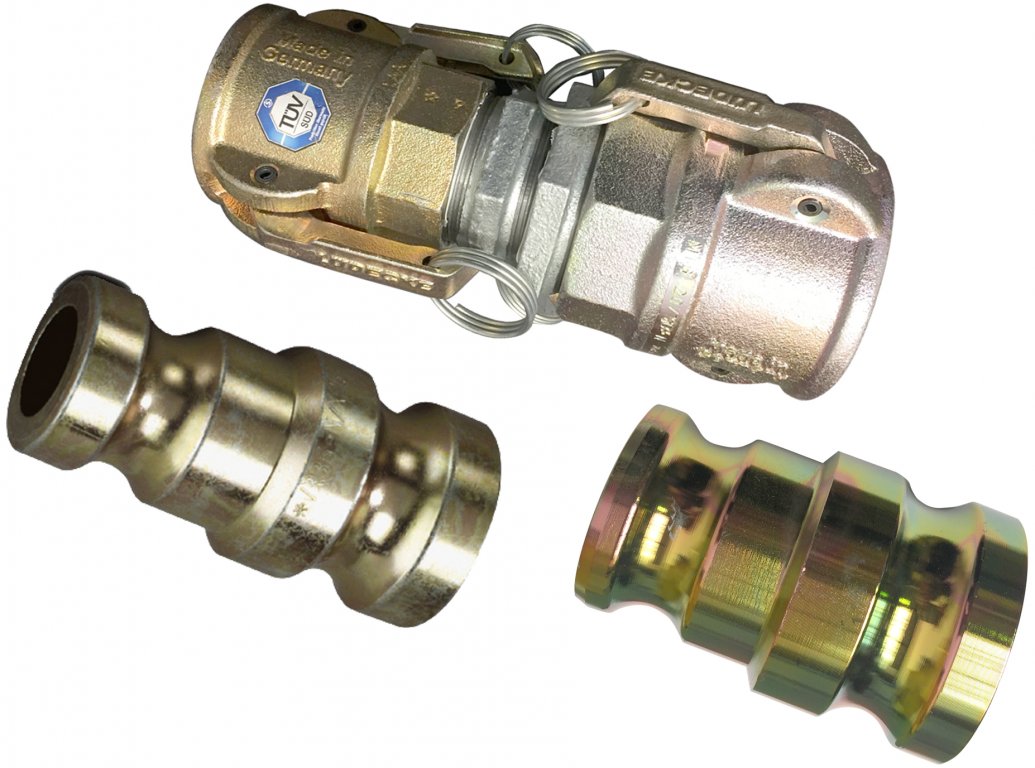

Coupling reducer
- For connecting two mortar hoses or reducing the machine outlet.
Plaster piece for cleaning mortar hoses

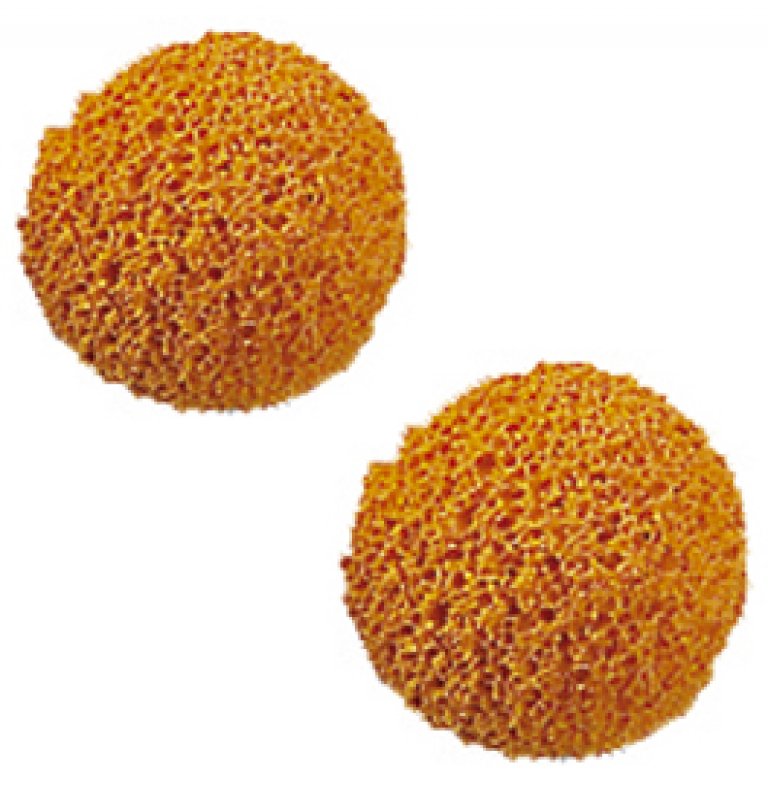

Sponge balls
- For cleaning material / mortar hoses

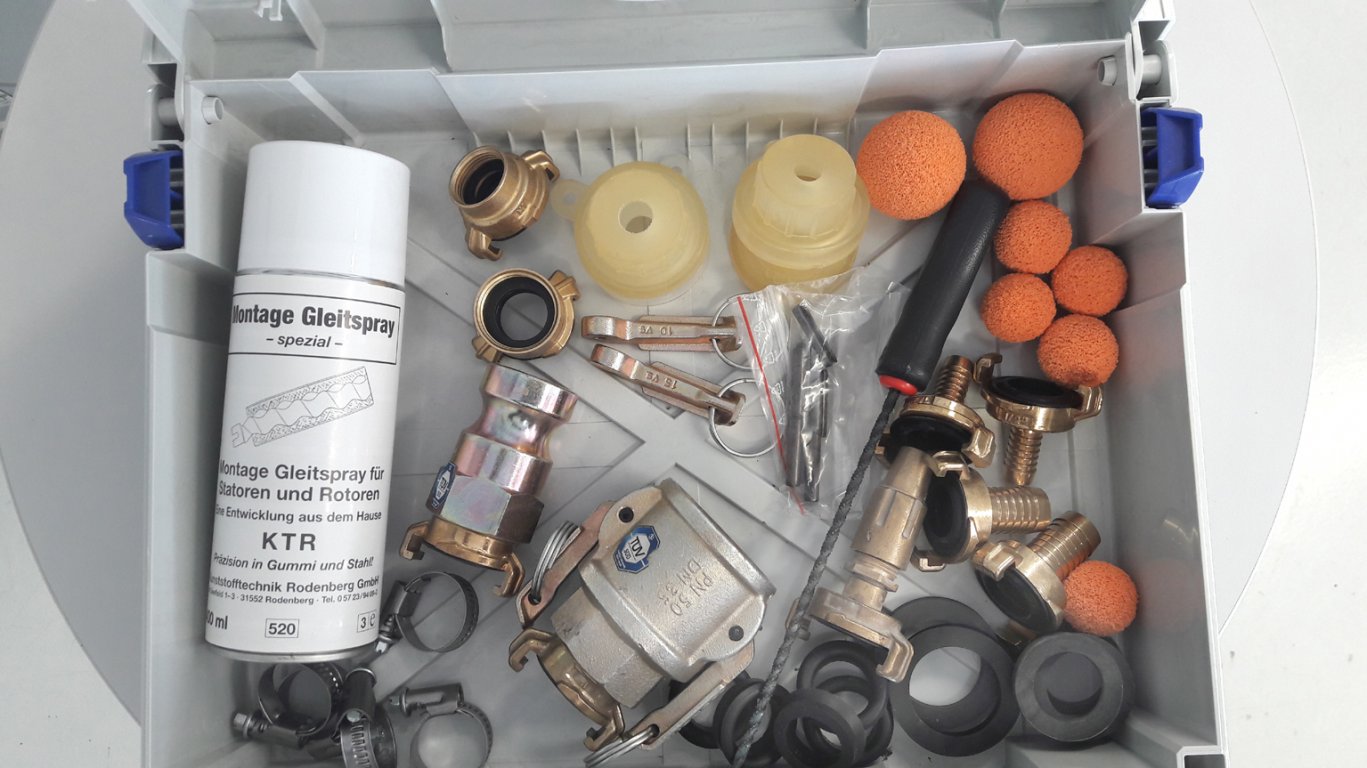

First aid set for plastering machines in the systainer
Scope of delivery:
Sealing systems for coupling (5 x 25 mm & 2 x 35 mm), fine plaster nozzles (each 2 x 12 mm & 14 mm), 5 x Geka sealing system with beaded edging (1 x 1” IT, 2 x 1/2” nozzle, 1 x 3/4” IT, 2 x 3/4” nozzle), 1 x Geka 1/2” injection nozzle, 1 x special assembly lubricant spray (400 ml can), 2 x cam levers with lock ring, plaster piece (each 1 x 25 V part & 35 M part with Geka coupling), 2 x combination wrenches (19 mm), hose clamps (each 5 x 1/2” & 3/4” clamping range), 1 x screwdriver for slotted screws, sponge balls (5 x 30 & 2 x 45 mm RG250), 5 x clamping sleeves (6 x 30), 1 x pin punch (5 mm), 1 x keyhole saw (5 mm).

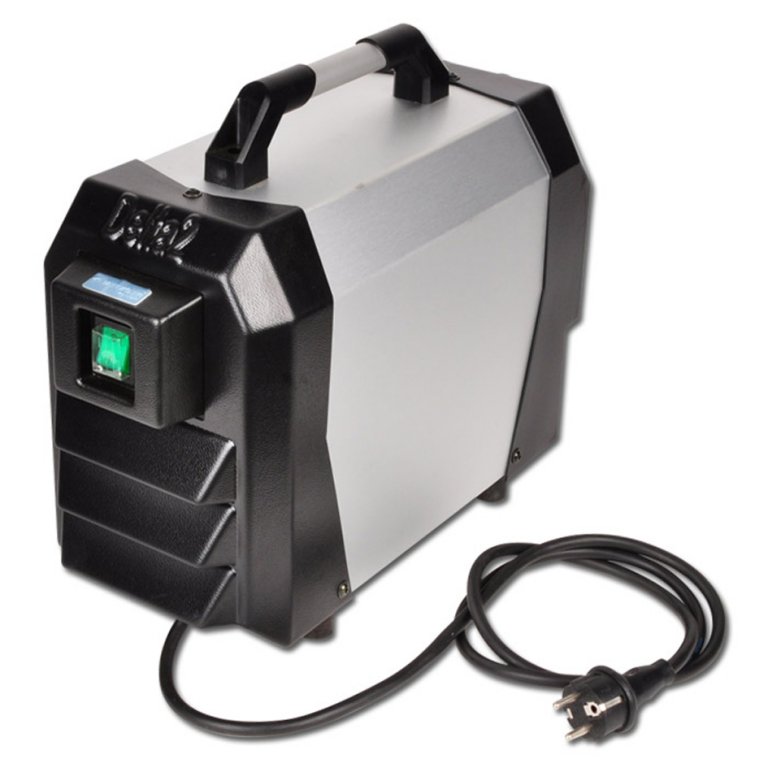

Metzger Delta 2 compressor, 230 V, including pressure switch
Mobile, universal use piston compressor for the production of oil-free compressed air.
Technical data:
| Operating pressure: | 3,8 bar |
| Suction capacity: | 180 l/min |
| Output: | 0,52 kW |
| Dimensions (L x W x H): | 415 x 194 x 344 mm |
| Weight: | approx 14 kg |

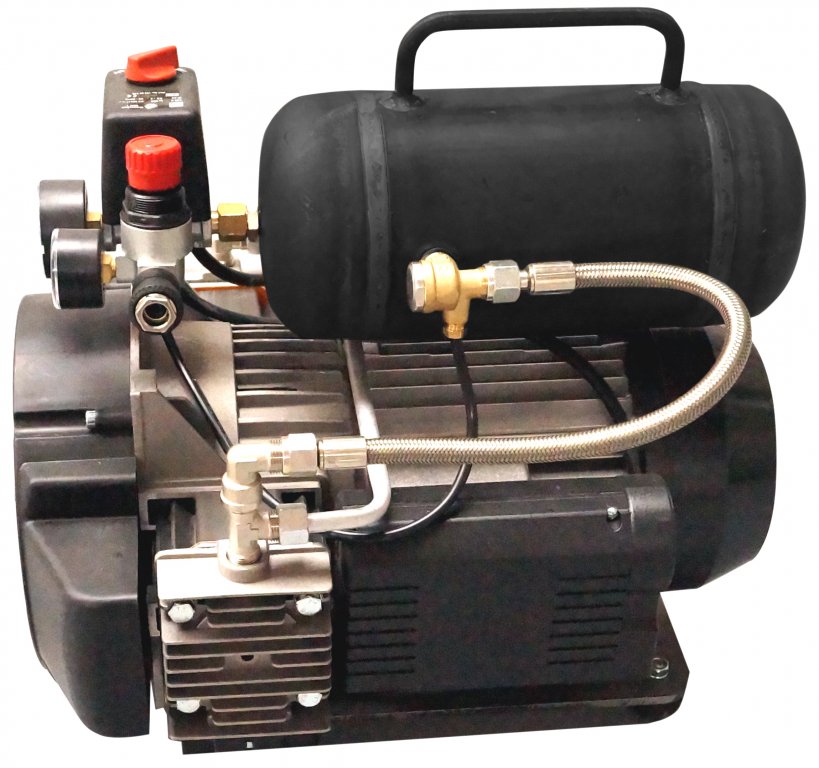

INOTEC compressor (black) compact C 330 PP, 230 V including pressure switch
The compact 230 V compressor (also as an auxiliary compresso) is excellently suited to a multitude of applications, such as spraying decorative coats, plasters, etc.
Technical data:
| Operating pressure: | 10 bar |
| Suction capacity: | 330 l/min |
| Output: | 2,05 kW |
| Dimensions (L x W x H): | 396 x 473 x 598 mm |
| Weight: | ca. 32 kg |

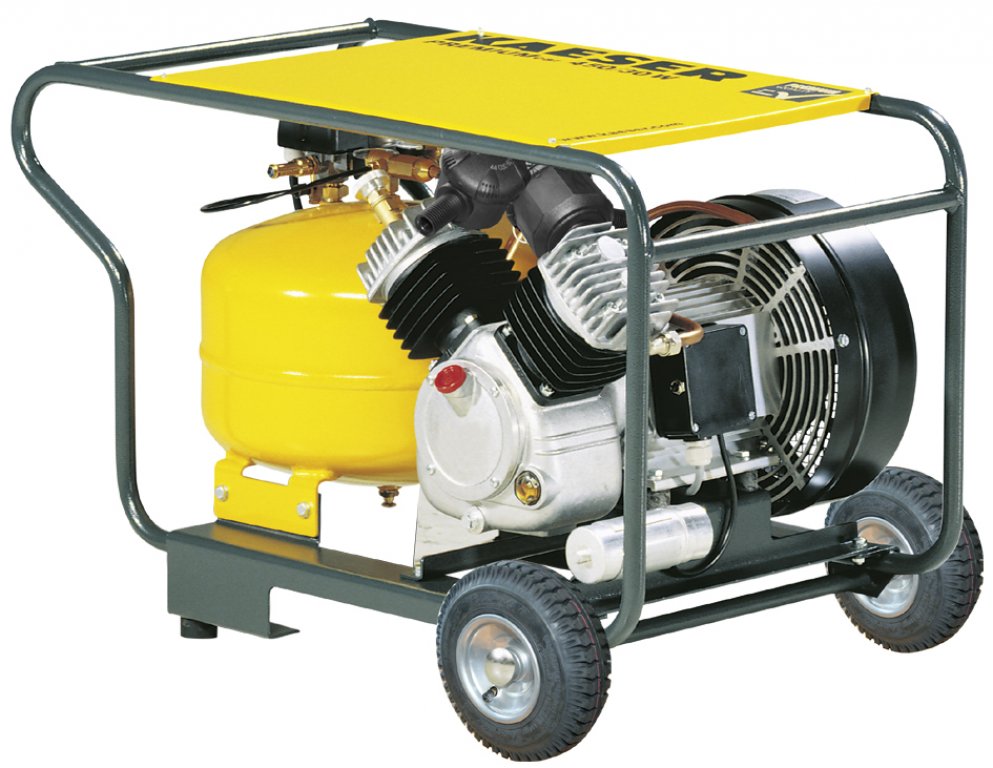

KAESER 230 V Compressor Premium Car 450/30W
The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.
Technical data:
| Operating pressure: | 10 bar | |
| Suction capacity: | 450 l/min | |
| Output: | 2,2 kW | |
| Dimensions (L x W x H): | 870 x 560 x 590 mm | |
| Weight: | 86 kg |

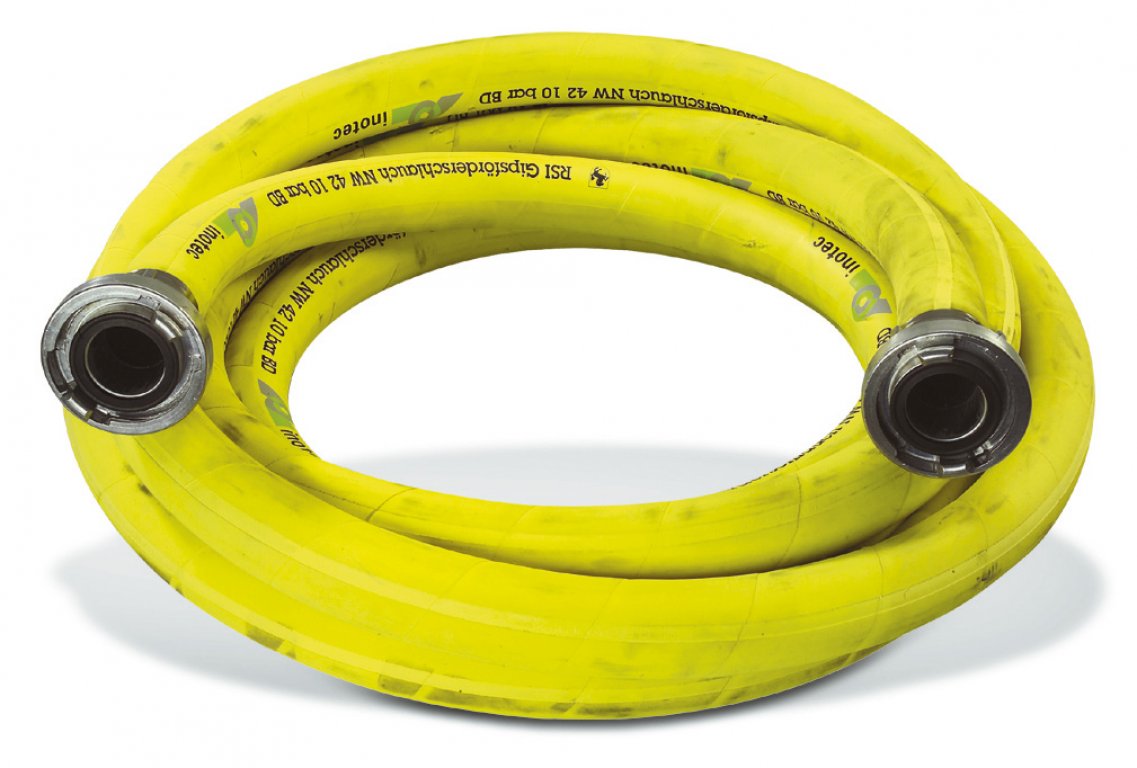

On request: INOTEC gypsum delivery hose
- Complete with C couplings
For delivering dry mortar from the silo to the plastering machine via the delivery system. Abrasion-resistant, flexible at low temperatures, for a BP of 10 bar. Featuring C couplings with special grommets integrated on both sides that guarantee a transition-free flow of material.
|
Technical data: |
|
|
Hose dimensions: |
42 x 7 mm |
|
Operating pressure: |
up to 10 bar |
PQm65 booster pump with GEKA coupling for raising the water network
(Observe local regulations)
- 230 V / 50 Hz / 0,55 KW, 6 bar
- Including connecting cable
Check valve set including GEKA coupling and 1 metre hose
Mixing coil
D4 ¼ output conveying screw - Head marked in black
D4-¼ output screw casing (maintenance free) - black
D4 ½ output conveying screw - Head marked in green
D4-½ conveying screw with tappets for after-mixers
(applies only to D4-½ screw coating with clamping strip art. no. 10022501)
- Head tipped in green

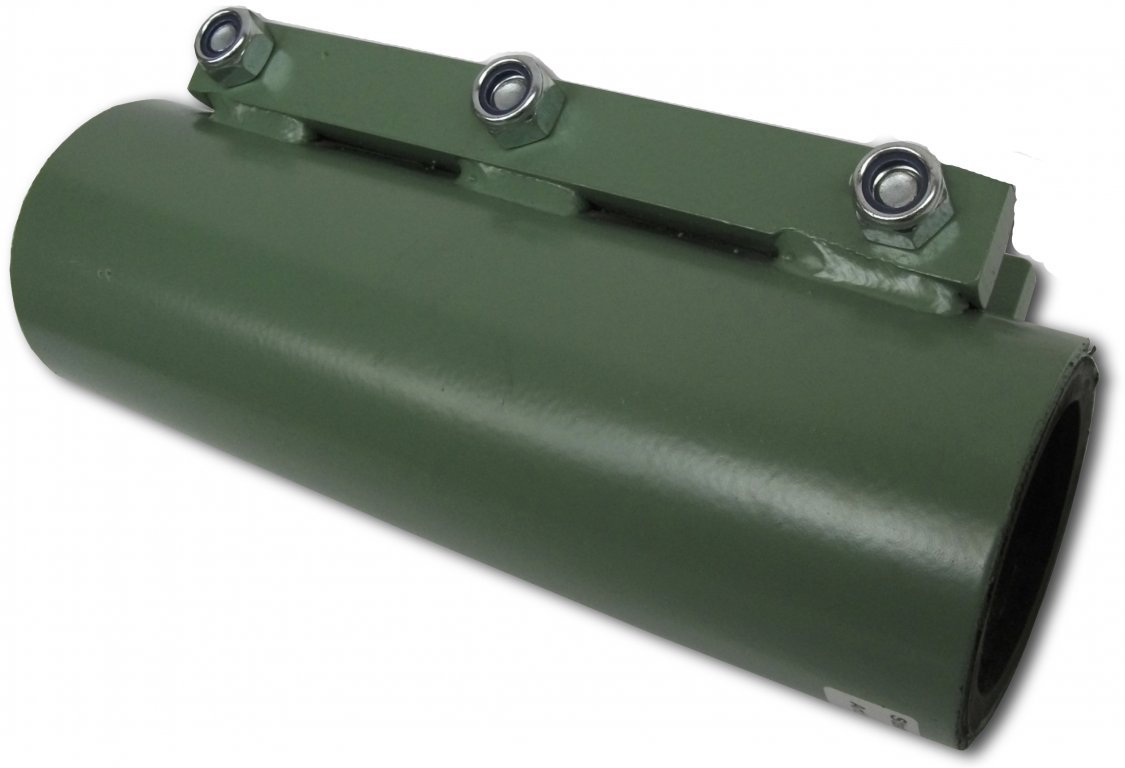

D4 ½ output screw casing, soft with clamping strip
D6-3 Eco Gold conveying screw
- Tip marked in gold
D6-3 Eco Gold screw casing
- Without anti-twist protection, colour: gold
D8-1.5 conveying screw
- Tip marked in yellow
D8-1.5 conveying screw with tappet for after-mixers
- Tip marked in yellow
D8-1.5 yellow screw casing (maintenance free)
D8-1.5 yellow screw casing with clamping strip
Rotor D7-2.5 “S”
Stator D7-2.5 “Mono Plus” (maintenance free)
Mixing tube cleaner for Picco Power / Maxi Power / G4 / M4G

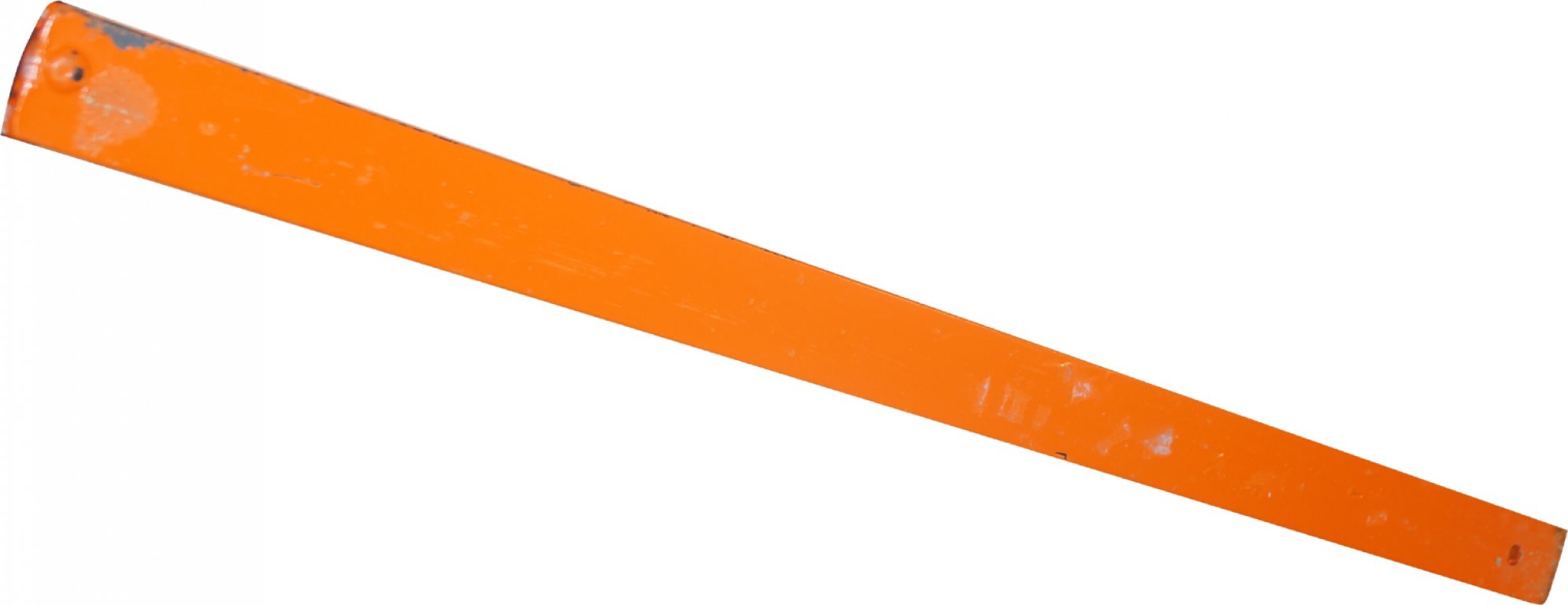

Cleaning rod (730 mm) for Picco Power

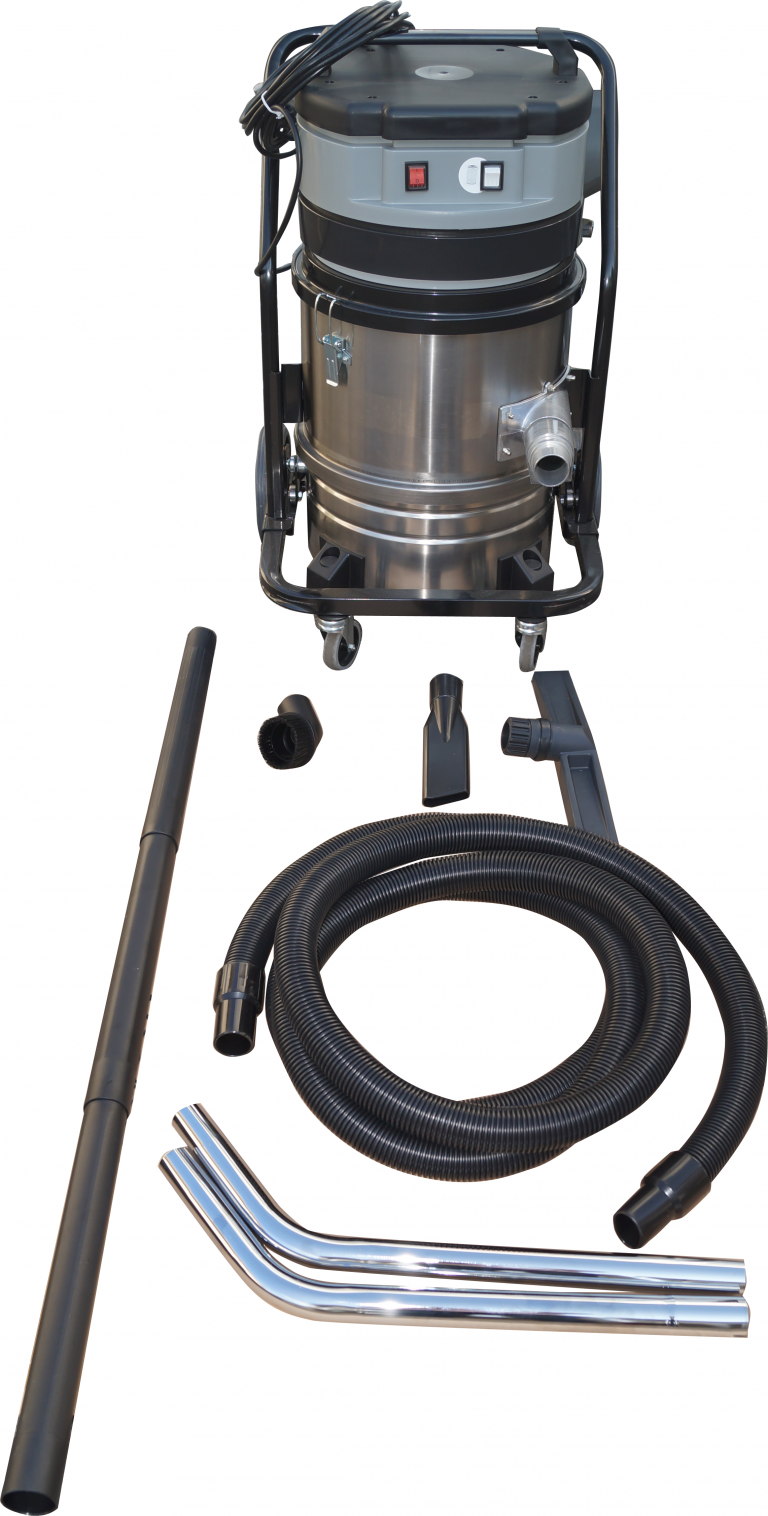

Twin-motor industrial vacuum cleaner inoCLEAN 230
- For very fine dust with automatic filter cleaning
- Very powerful thanks to two motors
- Low noise levels
- Easy to use
- With HEPA filter H
- For dry use
Technical data:
- Operating voltage: 230 V / 50 Hz
- Motor rating: 2.2 kW
- Volumetric capacity: 20 l
- Vacuum 230 mbar
- Airflow: 340 m3/h
- Dimensions: 540 x 580 x 850 mm
- Weight (without accessories): 36 kg
Scope of delivery: Vacuum cleaner complete with 2 motors & HEPA filter, suction tube, 5 m suction hose Ø 50 mm, floor suction nozzle
Assembly spray lubricant
- For assembling the conveying screw and screw casing
- 400 ml
