inoCUT icM127 Pro

 inoCUT icM127 Pro inoCUT icM127 Pro

Cutters

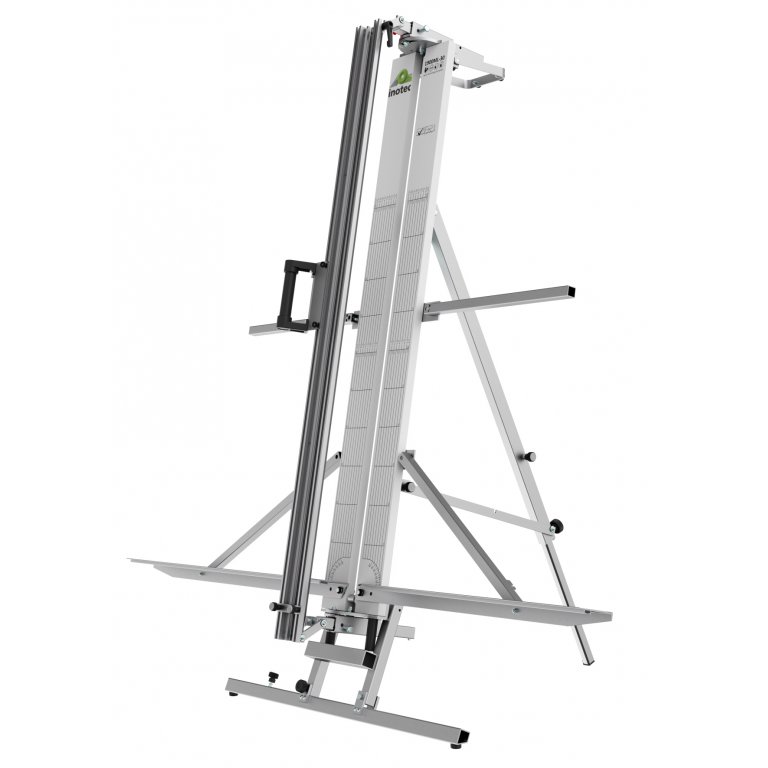

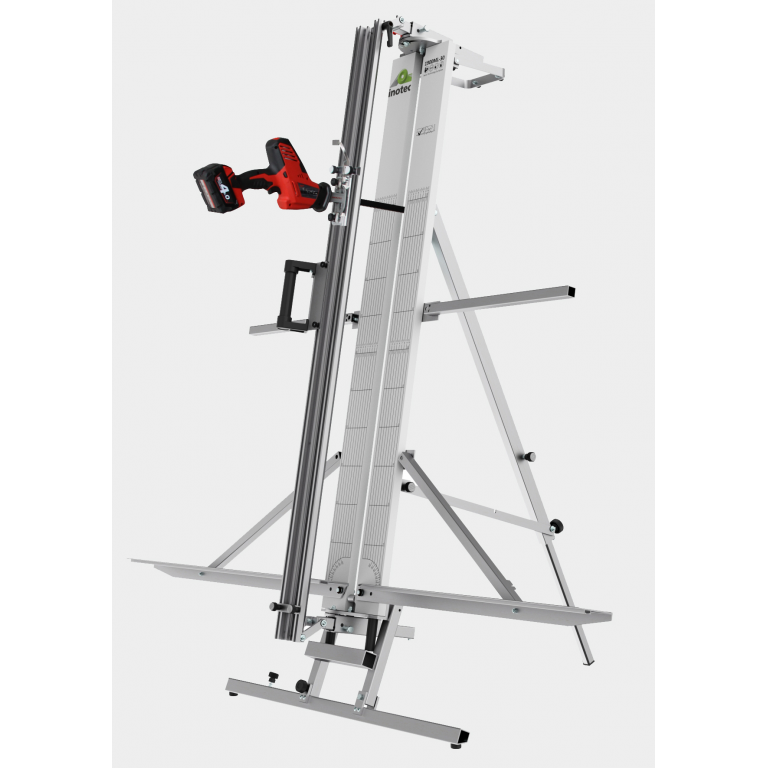

inoCUT icM127 Pro

The universal cutter for insulation material with a cutting depth of up to 30 cm


Benefits at a glance

  • Short-stroke parallelogram for user-friendly operation
  • Preset insulation thickness
  • Positive guide for electric cordless sabre saw
  • Swivel cutting bracket from -5° to +45°
  • Integrated double folding foot with an extra long foot profile for optimal device positioning even with heavy plates
  • Large swivel plate supports on both sides for precise and individual oblique cuts
  • Wall support, making it possible to work on the scaffold without an independent support
  • Telescopic freestanding support

The new inoCUT icM127 Pro makes cutting all commercially available insulating materials child’s play.
The new cutting device for electric cutting has a universal positive guidance for the saw. Exact mitre cuts, as well as straight and diagonal cuts with a mitre can be performed effortlessly and quickly with the electric cordless sabre saw included in the scope of supply.


Further information / downloads:


Alternative Machines:

Cutting length: max. 127 cm
Cutting depth: max. 90° = 10 - 30 cm / 45° = 18 cm
Dimensions (W x H x D): 350 x 1.820 x 420* mm
Weight: 24,0 kg
Comments: * Dimensions without support strip
 inoCUT icM127 Pro

Scope of delivery
inoCUT icM127 Pro
Art.-Nr. 10042638

  • Base plate
  • Left and right support strip
  • Short stroke parallelogram
  • Left and right height-adjustable swivel arms
  • Folding foot
  • Telescopic freestanding support
  • Guided block with hooks for fixing a Milwaukee sabre saw
  • Milwaukee sabre saw with 2 batteries  (4.0 Ah Li-Ion), fast charger, 2 saw blades (450 mm)
  • Operating instructions
 inoCUT icM127 Pro

inoCUT icM127 Pro

Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts

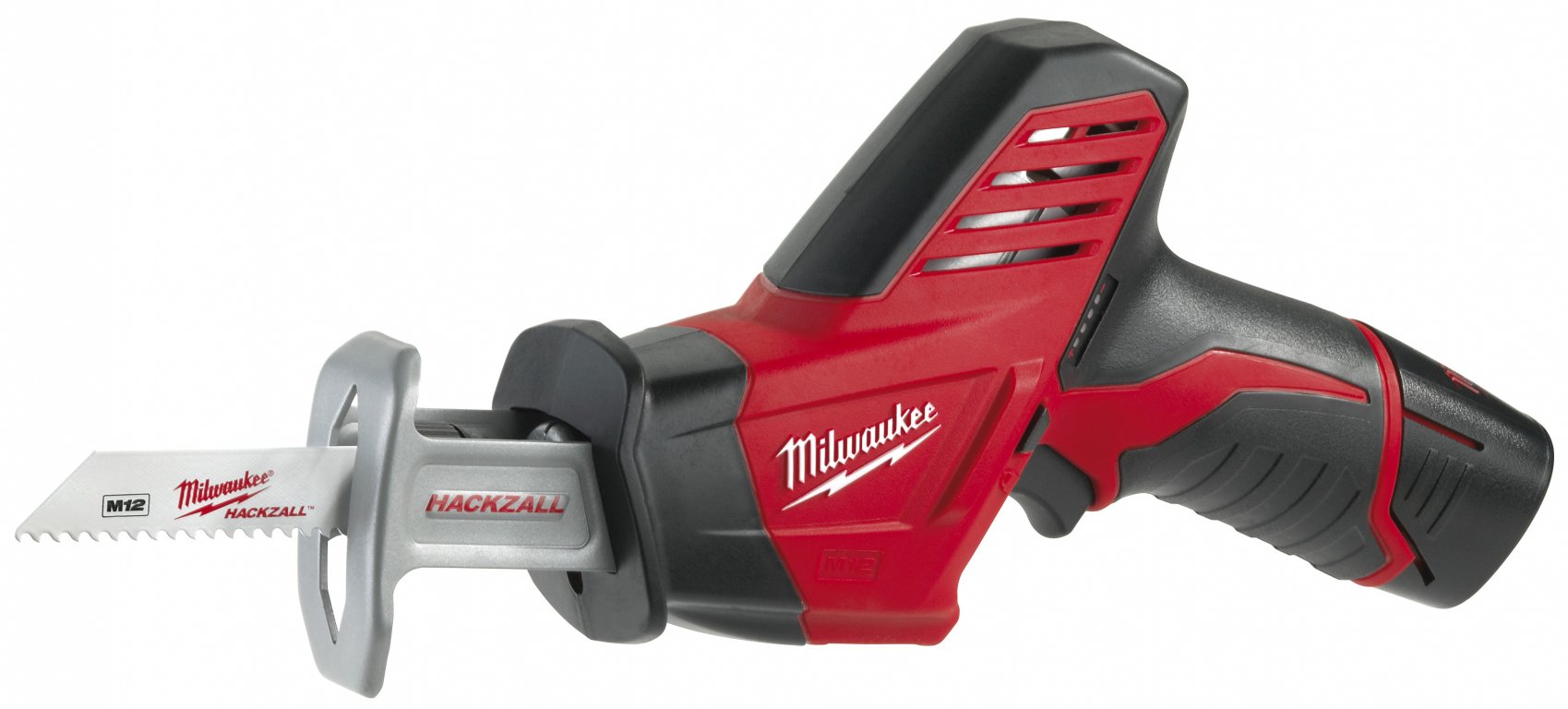

12 volt Milwaukee cordless sabre saw

12 volt Milwaukee cordless sabre saw

High-performance 12 volt compact sabre saw. The saw has a cutting depth of up to 450 mm

Technical data:

  • Battery: 12 V / 2 Ah Li-Ion
  • sawing height: 16.5 mm,
  • weight (with battery): 1.2 kg

Scope of delivery:

  • 2 batteries
  • fast charger
  • 2 universal saw blades (450 mm)
  • with case

12 volt Milwaukee cordless sabre saw (Article no. 10042573)

18 volt Milwaukee cordless sabre saw

18 volt Milwaukee cordless sabre saw

High-performance 18 volt compact sabre saw. The saw has a cutting depth of up to 450 mm


Technical data:

  • Battery: 18 V / 4 Ah Li-Ion
  • sawing height: 20.0 mm,
  • weight (with battery): 2.6 kg


Scope of delivery:

  • 2 batteries
  • fast charger
  • 2 universal saw blades (450 mm)
  • with case

18 volt Milwaukee cordless sabre saw (Article no. 10042632)

Replacement saw blades for Milwaukee cordless sabre saw

Replacement saw blades for Milwaukee cordless sabre saw

  • Length 450 mm, corrugated for Milwaukee sabre saw

Insulation saw blade for Milwaukee cordless sabre saw (Article no. 10042572)

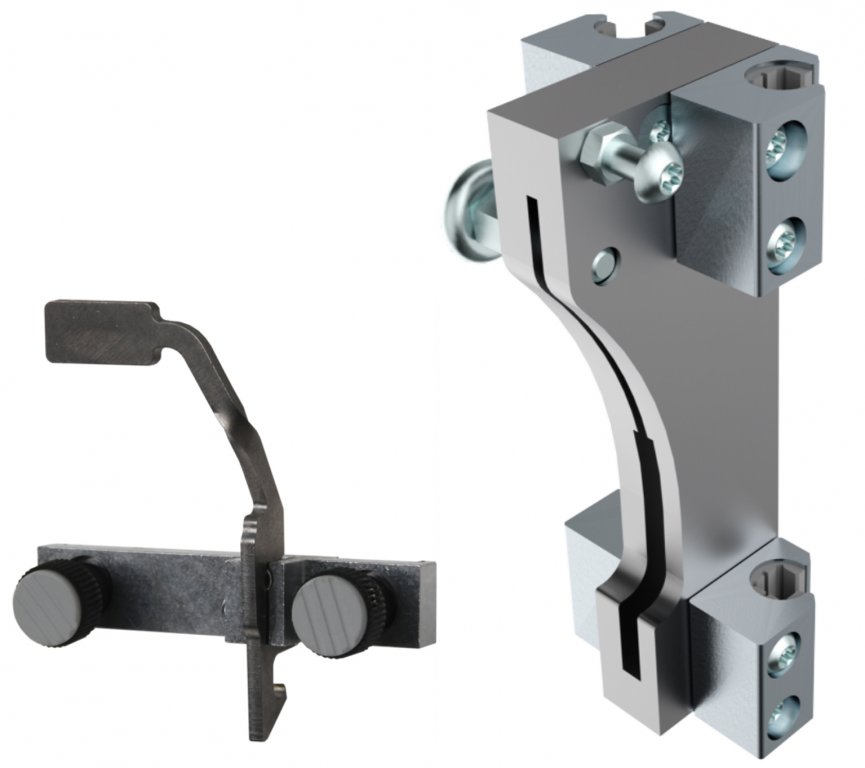

Guide block with hooks for Dewalt or Bosch sawing machine

Guide block with hooks for Dewalt or Bosch sawing machine

Guide block with hooks for Dewalt or Bosch sawing machine (Article no. 10042902)
