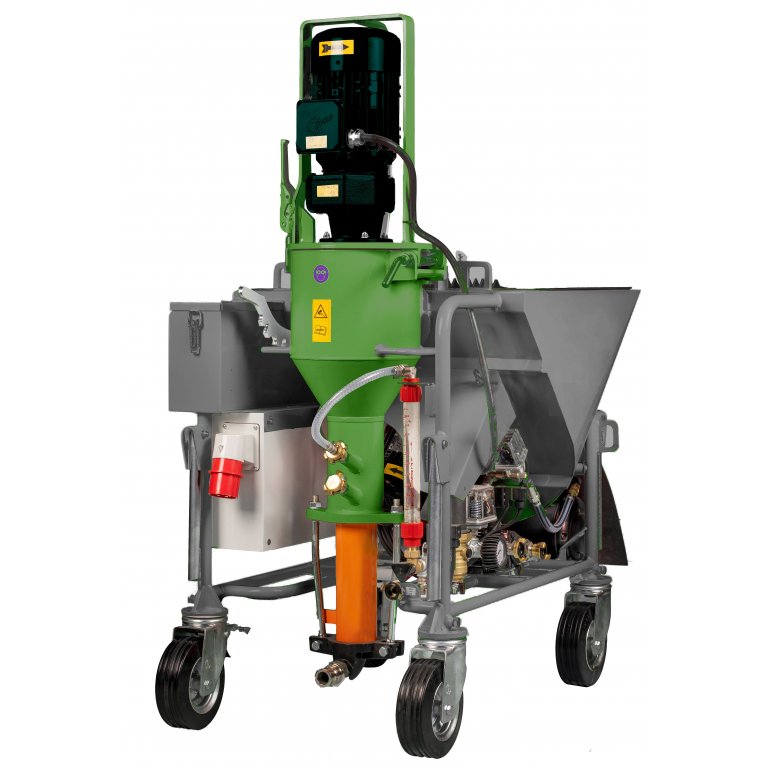

The powerful 400 V mixing pump for mineral materials

Benefits at a glance

  • Power output: with the 5.5 kW drive motor and 400 V output, it is possible to achieve a delivery range of 50 m and a delivery height of 30 m.
  • Water pressure booster pump integrated
  • Robust frame
  • Simple operation
  • Mounting device for stator
  • Both the toolbox and the compressor are integrated into the frame.

OWCThe inoCOMB Maxi Power is a powerful 400 V mixing pump and the classic among mixing pumps!
It can be used for a wide variety of indoor and outdoor applications, as well as for restoration and renovation work, and can be operated with both D and R stators without major modification. Sophisticated engineering, careful workmanship and long-standing proven components create a premium
quality that meets building site requirements.

Together with the dry delivery unit inoFLEX, the mixing pump Maxi Power process the material out of the one-way container.



inoCOMB Maxi Power

Operating pressurebarup to 30
Operating voltageV/Hz/A400 / 50 / 32
Drive performancekW5,5
Delivery rate (mineral materials)l/minmax. 8 - 50
Conveying distance (mineral materials)mmax. 50
Pressure height (mineral materials)mmax. 30
Grain sizemmmax. 6
Material containerl145
Fillingmmapprox. 880
Machine techniqueMixing pumps
Dimensions (L x W x H)mm1100 x 730 x 1500
Weightkgapprox. 270
inoCOMB
inoCOMB Maxi Power
Cement pastes, suspensions
Cement plasters
Concrete bonder
Decorative fine coats
ETICS glue, mineral
ETICS glue, paste-like
Fine acoustic finishing coats
Fire protection mortar
Floating screeds
Floor spattling compounds
Lime cement plasters
Lime plasters
Lime smoothers
Liquid woodchip
Machine-applied gypsum plasters for indoor applications
Mineral textured plasters
Multi-layer acoustic spray plasters
Paste-like textured plasters
Porous concrete coats
Renovating plaster systems
SPCC mortar / filler
Spray-on spattling compounds

Basic module
Item no. 10042324

Scope of delivery
inoCOMB Maxi Power:

  • Frame
  • 4 running wheels
  • Material hopper
  • Gear motor
  • Rotor/stator D 6-3 Helix
  • Switching cabinet
  • Mortar pressure gauge
  • Handy K2 compressor
  • Mixing coil
  • Water fitting
  • Water pump
  • Straight finishing coat device incl. nozzle with a diameter of 14 mm
  • Plaster piece 35 M / GEKA
  • Sponge ball with a diameter of 30 mm, 45 mm
  • Tool set
  • Operating instructions

Ready-to-spray set
Item no. 10042323

Scope of delivery
inoCOMB Maxi Power Set:

As with the basic module
(item no. 10042324)

Plus:

  • 10 m mortar hose with a diameter of 25 mm
  • 15 m air hose with a diameter of ½”
  • Assembly spray lubricant
inoCOMB Maxi Power
Multi-purpose hose

Multi-purpose hose

  • For universal use, e.g. air, water
  • GEKA couplings crimped with sleeves on both sides
Technical data:
Max. operating pressure: max. 15 bar
Temperature range:  -20 up to +90°C

Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)
INOTEC mortar hose

INOTEC mortar hose

  • Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
  • For an operating pressure of 40 bar with 3 times the reliability
  • Yellow on the outside: less heat builds up in the event of sun exposure
  • With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
  • With cam levers on the M-piece
Technical data:
Operating pressure:  40 bar
Bursting pressure: 120 bar

Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)
Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)
Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)
Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)
Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)
Flushing hose

Flushing hose

  • For clearing blockages in mortar hoses

Flushing hose - Length 10 m (Article No. 10024385)
400 V / 5 x 4 mm² extension cable

400 V / 5 x 4 mm² extension cable

  • 32 A plug and coupling

400 V / 5 x 4 mm² extension cable - Length 20 m (Article No. 10015201)
Remote control cable with remote control switch

Remote control cable with remote control switch

Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)
Remote control extension cable without remote control switch

Remote control extension cable without remote control switch

  • For remote control cable
  • For remote control switch
  • For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)
Remote control switch

Remote control switch

  • With 0.2 m cable, indicator light and 4-pin Harting plug

Remote control switch (Article No. 10015134)
Starting mortar hose with M+V-part

Starting mortar hose with M+V-part

Starting mortar hose with M+V-part (Article No. 10022031)
Hose holder

Hose holder

  • For rapidly fixing hoses to the scaffold

Hose holder (Article No. 10018503)
inoCOLL one-handed gun

inoCOLL one-handed gun

  • For bonding and basecoat mortars
  • 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
  • For grit sizes up to 1.5 mm

inoCOLL one-handed gun (Article No. 10024144)
inoCOLL PRO one-handed gun

inoCOLL PRO one-handed gun

  • For applying reinforcing mortar and finishing plaster up to 4 mm grit size
  • Operating pressure: up to 40 bar

inoCOLL PRO one-handed gun (Article No. 10041950)
Spray attachment for inoCOLL / PRO one-handed gun  with GEKA air connection

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection

  • For spraying mineral and paste-like products
  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)
Glue distribution head for inoCOLL / PRO one-handed gun

Glue distribution head for inoCOLL / PRO one-handed gun

The glue distribution head is suitable for applying paste-like glues/dispersion glues to boards, e.g. acoustic boards, insulating boards in the prefabricated construction industry.
The material is applied using hoses that are connected to a glue distribution head and applied at even intervals.
The distribution head is connected to a lockable GEKA coupling on the one-handed gun.
Maximum operating pressure: 10 bar !

Glue distribution head for inoCOLL / PRO (Article No. 10040623)
Small spray pipe – short design

Small spray pipe – short design

  • With 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose (without a nozzle)
  • For grit sizes up to 3.0 mm

Small spray pipe – short design (Article No. 10039887)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Small spray pipe (10039887)
- Angled spray head with GEKA coupling (10039457)
- Spray pipe set (10039886)

  • Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10039271)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10042461)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10039220)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10039221)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10039222)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10040941)
MAI finishing coat device, straight

MAI finishing coat device, straight

  • With 25 mm M-piece coupling
  • Including a 14 mm jet nozzle

MAI finishing coat device, straight (Article No. 10024362)
Jet nozzle

Jet nozzle

  • For MAI finishing coat device

Jet nozzle - Ø 10 mm (Article No. 10024378)
Jet nozzle - Ø 12 mm (Article No. 10024379)
Jet nozzle - Ø 14 mm (Article No. 10024380)
Jet nozzle - Ø 16 mm (Article No. 10024381)
Straight finishing coat device

Straight finishing coat device

  • With 25 mm M-piece coupling
  • Incl. a 14 mm finishing coat nozzle

Straight finishing coat device (Article No. 10024098)
Finishing coat nozzles

Finishing coat nozzles

  • For finishing coat devices, item nos.:
    10024098 / 10024099

Finishing coat nozzles - Ø 10 mm (Article No. 10024089)
Finishing coat nozzles - Ø 12 mm (Article No. 10024090)
Finishing coat nozzles - Ø 14 mm (Article No. 10024091)
Finishing coat nozzles - Ø 16 mm (Article No. 10024093)
Straight decorative plaster spraying device

Straight decorative plaster spraying device

  • Not including nozzle with 25 mm M-piece coupling
  • For grit sizes up to 6.0 mm

Straight decorative plaster spraying device (Article No. 10024246)
Nozzle for straight decorative plaster spraying device

Nozzle for straight decorative plaster spraying device

  • Made from stainless steel

Nozzle for straight decorative plaster spraying device - Ø 8 mm (Article No. 10024071)
Nozzle for straight decorative plaster spraying device - Ø 10 mm (Article No. 10024065)
Nozzle for straight decorative plaster spraying device - Ø 12 mm (Article No. 10024066)
Finishing coat device, long design

Finishing coat device, long design

  • With offset tip
  • Including a 12 mm nozzle

Finishing coat device, long design (Article No. 10040697)
Static mixer

Static mixer

  • Prevents / destroys node in mortar
  • Diameter: 35 mm
  • Length:200 mm
  • incl. Coupling M-piece 35 mm and V-piece 35 mm

Static mixer (Article No. 10042362 )
Coupling reducer

Coupling reducer

  • For connecting two mortar hoses or reducing the machine outlet.

Coupling reducer 35 V -> 25 V (Article No. 10022101)
Plaster piece for cleaning mortar hoses

Plaster piece for cleaning mortar hoses

Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)
Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)
Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)
Sponge balls (soft version)

Sponge balls (soft version)

  • For cleaning material / mortar hoses

Sponge balls (soft version) - Ø 14 mm for hose Ø 13 mm (Article No. 10008116-001)
Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)
Sponge balls (soft version) - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-005)
Sponge balls (solid version)

Sponge balls (solid version)

  • For cleaningmaterial / mortar hoses

Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)
Sponge balls (solid version) Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)
INOTEC compressor (black) compact C 330 PP, 230 V

INOTEC compressor (black) compact C 330 PP, 230 V

The compact 230 V compressor is excellently suited to a multitude of applications, such as spraying decorative coats, plasters, etc.


Also as an auxiliary compresso for

  • inoCOMB Picco Business
  • inoCOMB Maxi Power
  • inoCOMB M4G Basic
  • inoCOMB Fox

Technical data:

Operating pressure: 10 bar
Suction capacity: 330 l/min
Output: 2,05 kW
Dimensions (L x W x H): 396 x 473 x 598 mm
Weight: ca. 32 kg
More powerful compressors available upon request!



INOTEC compressor (black) compact C 330 PP, 230 V (Article No. 10041150)
Handy K2 compressor, 400 V

Handy K2 compressor, 400 V

Mobile, universal use diaphragm compressor for the production of oil-free compressed air. Used in many mixing pumps due to its low maintenance and compact design, e.g. inoCOMB M4G.


Technical data:

Operating pressure: 5.5 bar
Suction capacity: 250 l/min
Output: 0.9 kW
Operating voltage: 400 V
Dimensions (L x W x H): 495 x 165 x 340 mm
Weight: 23.5 kg

Handy K2 compressor, 400 V (Article No. 10023102)
KAESER 230 V Compressor Premium Car 450/30W

KAESER 230 V Compressor Premium Car 450/30W

The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.

Technical data:

Operating pressure:   10 bar
Suction capacity:   450 l/min
Output:   2,2 kW
Dimensions (L x W x H):   870 x 560 x 590 mm
Weight:       86 kg

KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)
inoCOMB M4G / Maxi Power / G4 injection hood

inoCOMB M4G / Maxi Power / G4 injection hood

consisting of:

  • Injection hood
  • Rotor sensor
  • 50 m control cable for rotor sensor

inoCOMB M4G / Maxi Power / G4 injection hood (Article No. 10039381)
Mobile delivery system for inoTRANS FF 100 free-fall silos

Mobile delivery system for inoTRANS FF 100 free-fall silos

Technical data:
Operating voltage: 400 V / 50 Hz
Nominal output: 5,5 kW
Protection 25 A
Dimensions (L x W x H): 1.200 x 630 x 630 mm
Suction capacity: approx. 100 m3/h
Conveying vessel volume: 70 l
Dimensions: 950 x 800 x 509 mm
Weight of compressor (dry rotor), frame and switching cabinet: 205 kg
Weight of the conveying vessel: 103 kg

Scope of delivery:
Conveying system, conveying vessel, rotary compressor, connecting hose: 8 m

Mobile delivery system for inoTRANS FF 100 free-fall silos (Article No. 10042348)
Mobile delivery system for inoTRANS P 100 pressure silos

Mobile delivery system for inoTRANS P 100 pressure silos

Technical data:
Operating voltage: 400 V / 50 Hz
Nominal output: 5,5 kW
Protection: 25 A
Dimensions (L x W x H): 1.200 x 630 x 630 mm
Suction capacity: approx. 100 m3/h
Gewicht von Kompressor (Trockenläufer), Gestell und Schaltschrank: 203 kg
Conveyor block weight: 29 kg
Conveyor block dimensions (L x W x H): 550 x 360 x 480 mm

Scope of delivery:
Delivery system, conveyor block, rotary compressor, 7 m control hose, 6 m silo connection hose, 5 m conveyor block connection hose

Mobile delivery system for inoTRANS P 100 pressure silos (Article No. 10042347)
On request: INOTEC gypsum delivery hose

On request: INOTEC gypsum delivery hose

  • Complete with C couplings

For delivering dry mortar from the silo to the plastering machine via the delivery system. Abrasion-resistant, flexible at low temperatures, for a BP of 10 bar. Featuring C couplings with special grommets integrated on both sides that guarantee a transition-free flow of material.

Technical data:



Hose dimensions:

42 x 7 mm

Operating pressure:

up to 10 bar

On request: INOTEC gypsum delivery hose - Length 10 m (Article No. 10008342-002)
On request: INOTEC gypsum delivery hose - Length 20 m (Article No. 10008342-001)
Mixing coil

Mixing coil

Insulating plaster mixing coil, for inoCOMB Maxi Power / M4G / G4 (Article No. 10023186)
Standard mixing coil, for inoCOMB Maxi Power / M4G / G4 (Article No. 10039464)
D4 ¼ output conveying screw

D4 ¼ output conveying screw

  • Tip marked in black

D4 ¼ output conveying screw (Article No. 10022534)
D4-¼ output screw casing (maintenance free)

D4-¼ output screw casing (maintenance free)

D4-¼ output screw casing (maintenance free) (Article No. 10022524)
D4 ½ output conveying screw

D4 ½ output conveying screw

  • Tip marked in green

D4 ½ output conveying screw (Article No. 10022543)
D4-½ conveying screw with tappets for after-mixers

D4-½ conveying screw with tappets for after-mixers

(applies only to D4-½ screw coating with clamping strip art. no. 10022501)

  • Head tipped in green

D4-½ conveying screw with tappets for after-mixers (Article No. 10022546)
D4 ½ output screw casing (maintenance free)

D4 ½ output screw casing (maintenance free)



D4 ½ output screw casing (maintenance free) (Article No. 10022502)
D4-½ output screw casing with clamping strip

D4-½ output screw casing with clamping strip

D4-½ output screw casing with clamping strip (Article No. 10022501)
D6-3 C45 conveying screw

D6-3 C45 conveying screw

D6-3 C45 conveying screw (Article No. 10022555)
D6-3 screw casting (maintenance free)

D6-3 screw casting (maintenance free)

D6-3 screw casting (maintenance free) (Article No. 10022511)
D6-3 Helix conveying screw

D6-3 Helix conveying screw

  • Tip marked in orange

D6-3 Helix conveying screw (Article No. 10036994)
D6-3 Helix orange screw casing

D6-3 Helix orange screw casing

D6-3 Helix orange screw casing (Article No. 10036995)

(Article No. 10022887)

(Article No. 10022522)
D8-1.5 conveying screw

D8-1.5 conveying screw

  • Tip marked in yellow

D8-1.5 conveying screw (Article No. 10022562)
D8-1.5 conveying screw with tappet for after-mixers

D8-1.5 conveying screw with tappet for after-mixers

  • Tip marked in yellow

D8-1.5 conveying screw with tappet for after-mixers (Article No. 10022563)
D8-1.5 yellow screw casing (maintenance free)

D8-1.5 yellow screw casing (maintenance free)

D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)
D8-1.5 yellow screw casing with clamping strip

D8-1.5 yellow screw casing with clamping strip

D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)
D8-2 output screw casing (maintenance free)

D8-2 output screw casing (maintenance free)

D8-2 output screw casing (maintenance free) (Article No. 10022565)
D8-2 screw casing (maintenance free)

D8-2 screw casing (maintenance free)

D8-2 screw casing (maintenance free) (Article No. 10022496)
Assembly spray lubricant

Assembly spray lubricant

  • For assembling the conveying screw and screw casing
  • 400 ml

Assembly spray lubricant (Article No. 10004591)

Inquiry: inoCOMB Maxi Power



* Required
