Powdery
Powdery materials: OWC in combination with a continuous mixer
Powdery
Powdery materials: OWC in combination with a continuous mixer and a delivery pump
Powdery

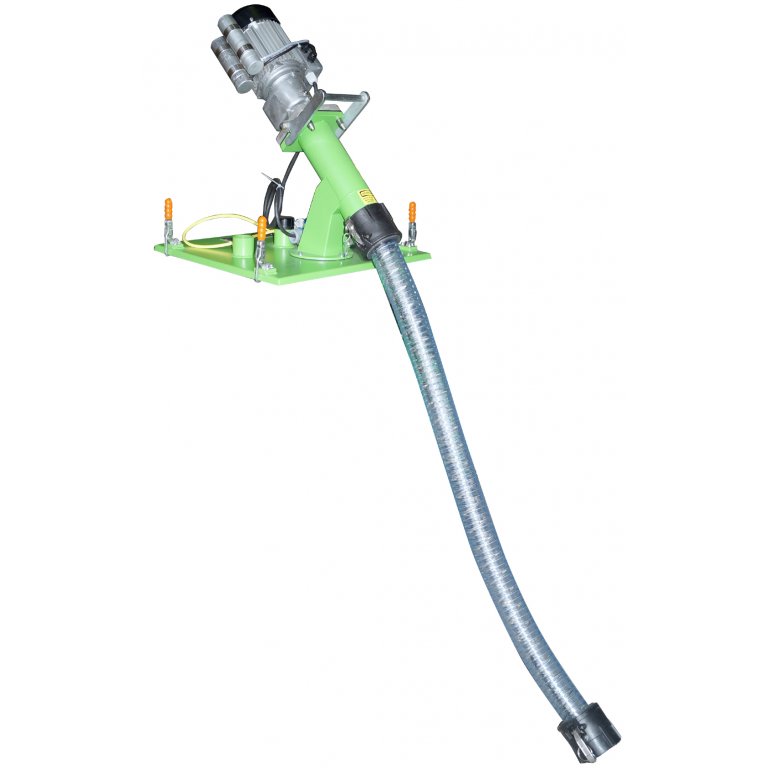

Powdery materials: OWC in combination with the dry delivery unit for mixing pumps
Powdery

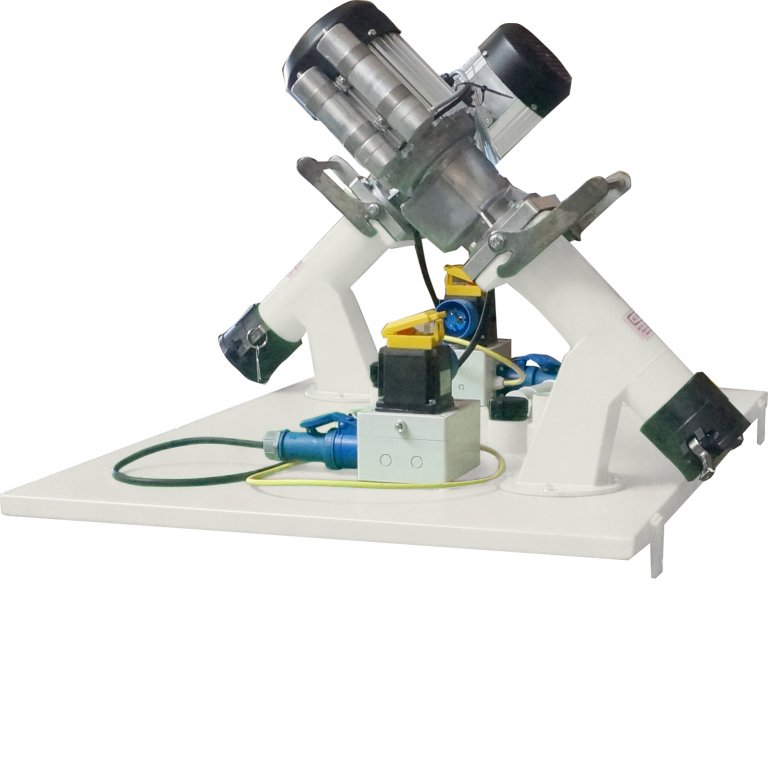

Powdery materials: OWC in combination with two dry delivery unit for a small silo
Paste-like

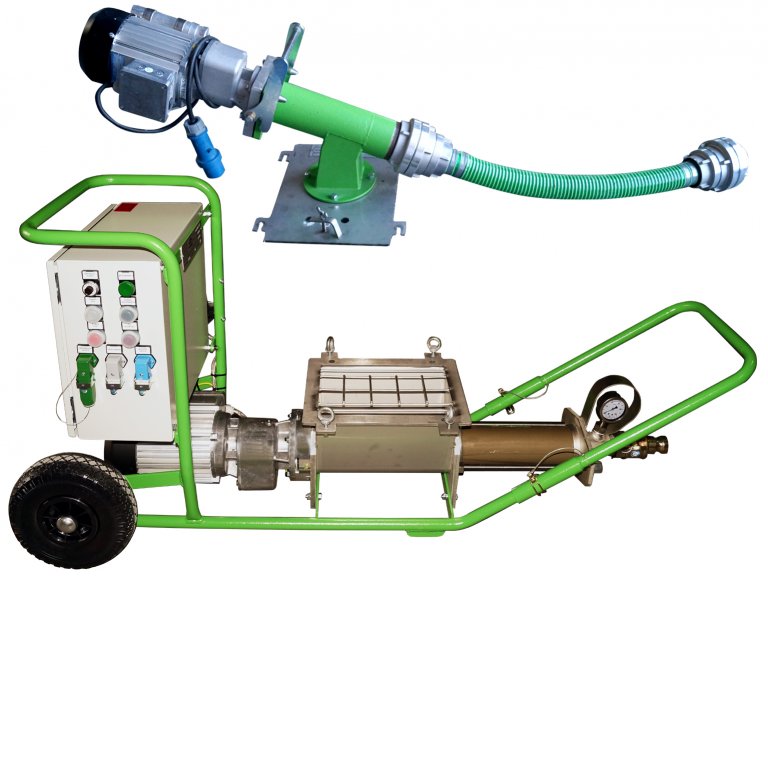

Paste-like materials: OWC in combination with a wet delivery unit and a delivery pump
Operating voltageV/Hz/A110-230 / 50 / 16110-230 / 50 / 16110-230 / 50 / 16230 / 50 / 16110-230 / 50 / 16
Drive performancekW1,1inoMIX: 1,1 kW / inoBEAM Light E: 3,0 (frequency controlled)1,1inoFLEX pastös: 1,1 kW / inoBEAM Light E: 3,0 (frequency controlled)
Mixing performancel/minmax. 18
Machine techniqueOWC Machine technologyOWC Machine technologyOWC Machine technologyOWC Machine technologyOWC Machine technology
Dimensions (L x W x H)mm1200 x 610 x 9501450 x 530 x 7001450 x 530 x 700
Weightkgapprox. 47approx. inoMIX: 47 kg / inoBEAM Light E: 80approx. 80
Operating pressurebarup to 40up to 40
Delivery rate (mineral materials)l/minmax. 0 - 30max. 24max. 2 x 24max. 20
Conveying distance (fluid materials)mmax. 30
Conveying distance (pasty materials)mmax. 20
Pressure height (fluid materials)mmax. 25
Material containerl10
Conveying waveflexible
Connection Portflexible
Conveying distance (mineral materials)mmax. 50
Pressure height (mineral materials)mmax. 20
