The compact waste water system for tool cleaning and waste water treatment

Benefits at a glance

  • Compact design
  • Requires little space
  • Simple operation
  • Integrated washbasin
  • Integrated roller washing device (roller size: 100 x 300 mm)
  • Low fresh water consumption
  • Additional drawer compartment, storage compartment and large dripping area

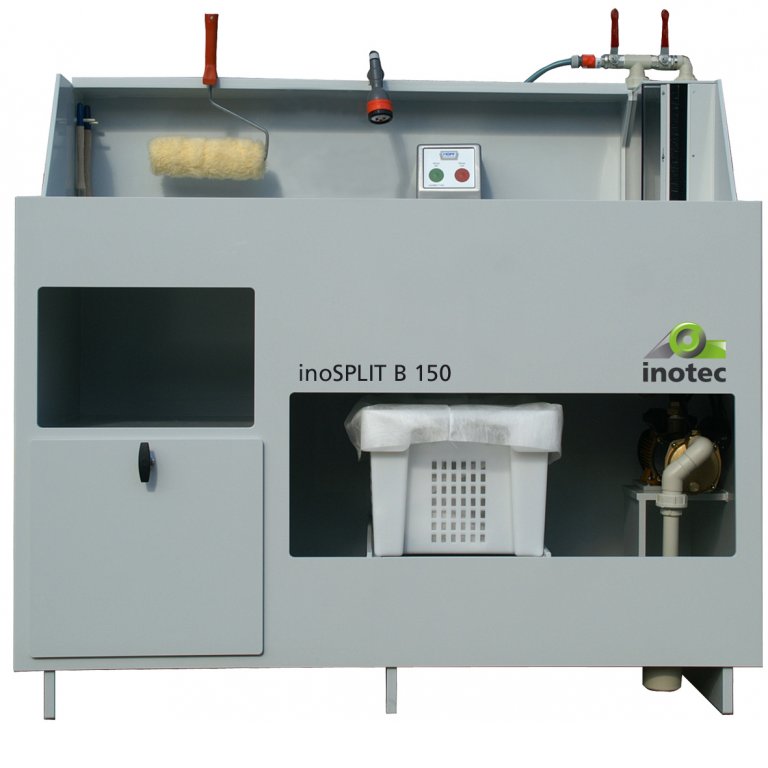

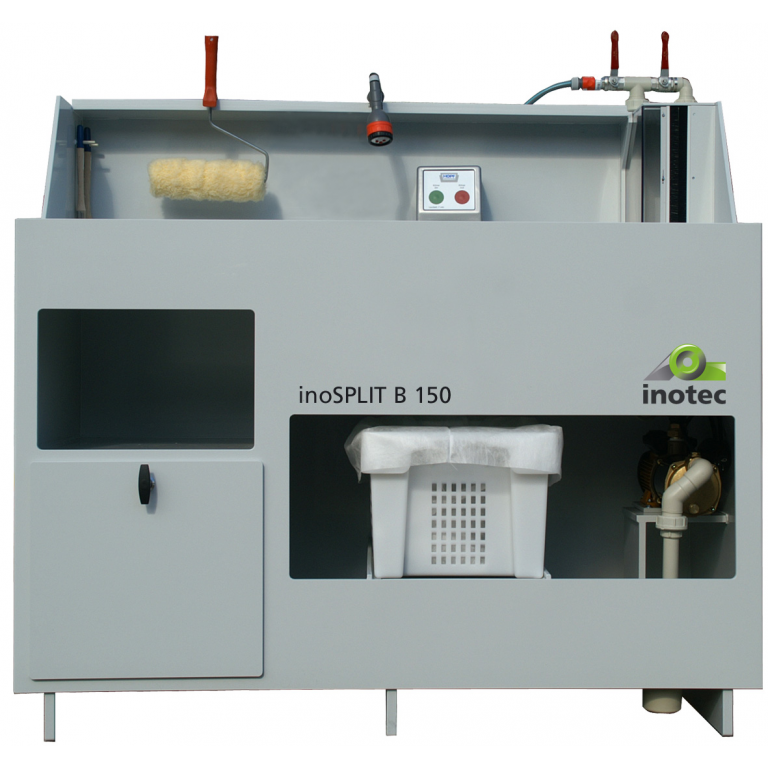

The inoSPLIT B150 serves to clean painters’ and plasterers’ tools and to treat dirty water to make it safe for disposal.

The treated water is collected in a built-in vessel and can be reused for further cleaning processes thanks to a pump system.

The accumulating paint residue remains in the filter drawer and can subsequently be disposed of once dry in commercial waste similar to domestic waste.

The fresh water consumption is considerably reduced as the treated dirty water is reused.

_______________

* The machine is available in 110 and 230 V



inoSPLIT B 150

Service details

Services
Operating voltageV/Hz/A110-230 / 50 / 16
Capacitylmax. 100
Machine techniqueWaste water systems
Dimensions (L x W x H)mm700 x 1500 x 1450
Weightkgapprox. 75

Scope of delivery
inoSPLIT B150
Item no. 10040791

  • Housing made from polypropylene
  • Washbasin
  • Industrial water reservoir
  • Roller washing device
  • Quenching gun with 2 m hose
  • Agitator and pump integrated
  • Power supply cable for agitator and pump
  • Washing basket
  • 1 x filter mat
  • 1 x filter fleece
  • 1 x splitting agent, 25 kg
  • Operating instructions
inoSPLIT B 150

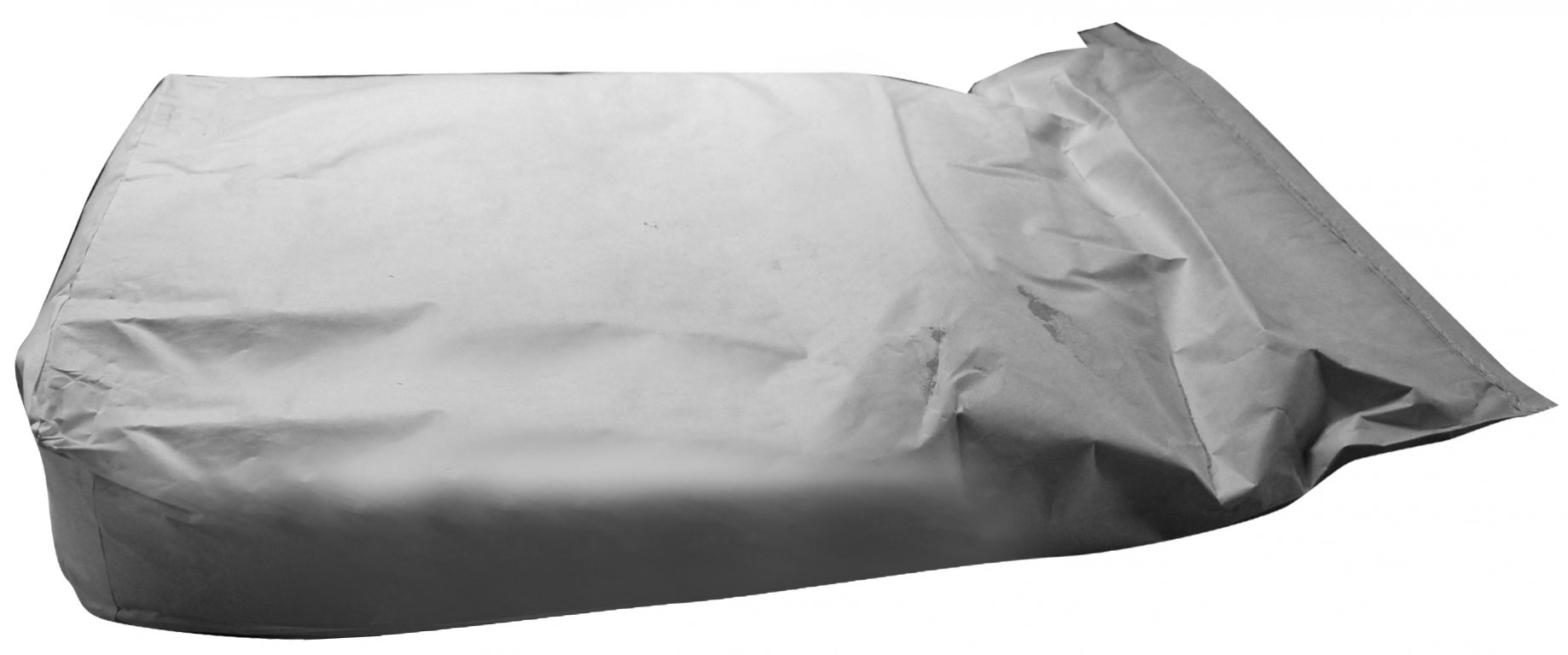

Splitting agent for waste water systems B100 / B150

Splitting agent for waste water systems B100 / B150

Response separating agent, up to a PH value of 10, PU = 25 kg bag (price per kilogram: 3,98 €)

Splitting agent for waste water systems B100/150 (Article No. 10041634)

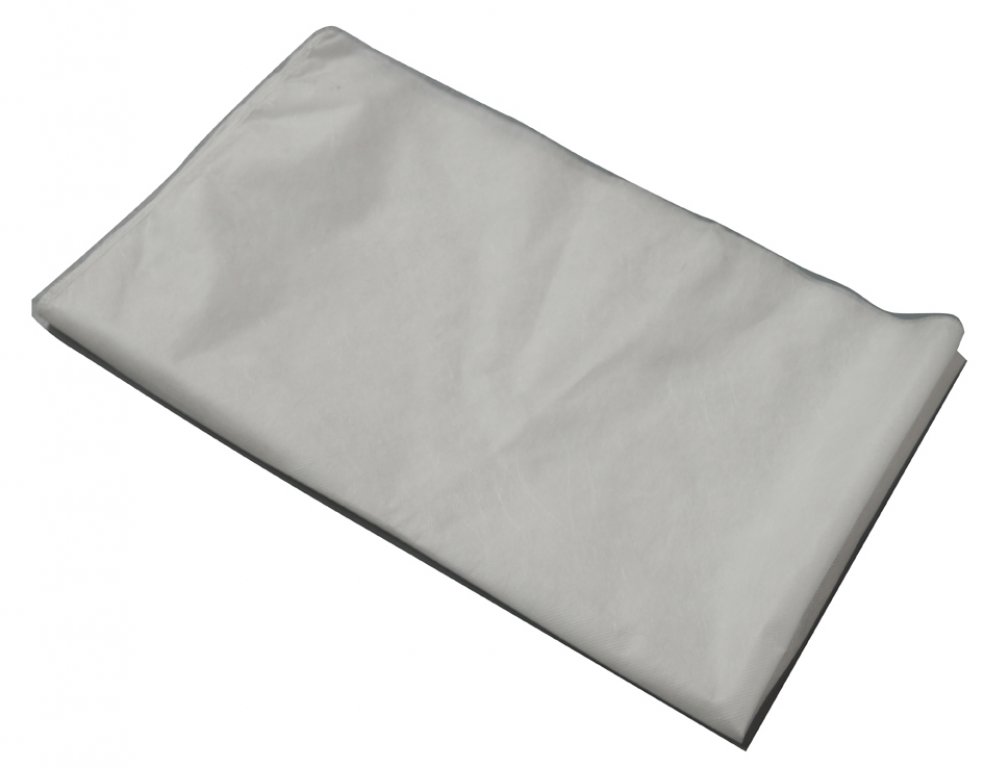

Filter fleece

Filter fleece

Filter fleece (Article No. 10040792)

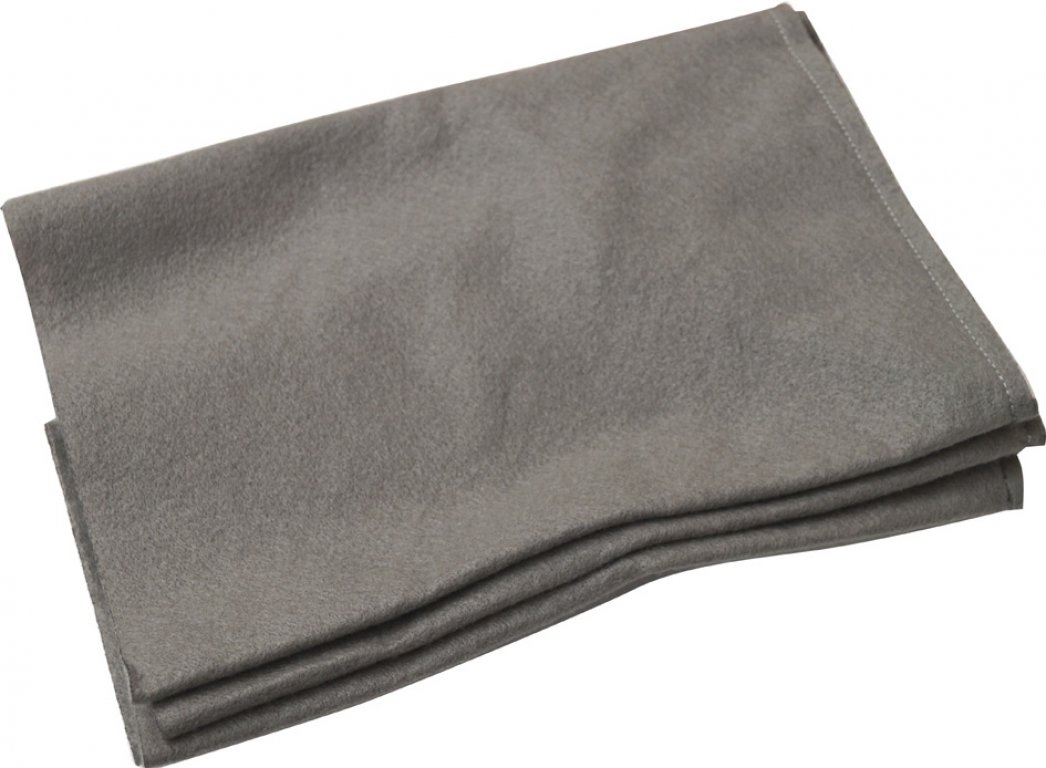

Filter mat

Filter mat

Filter mat (Article No. 10040793)

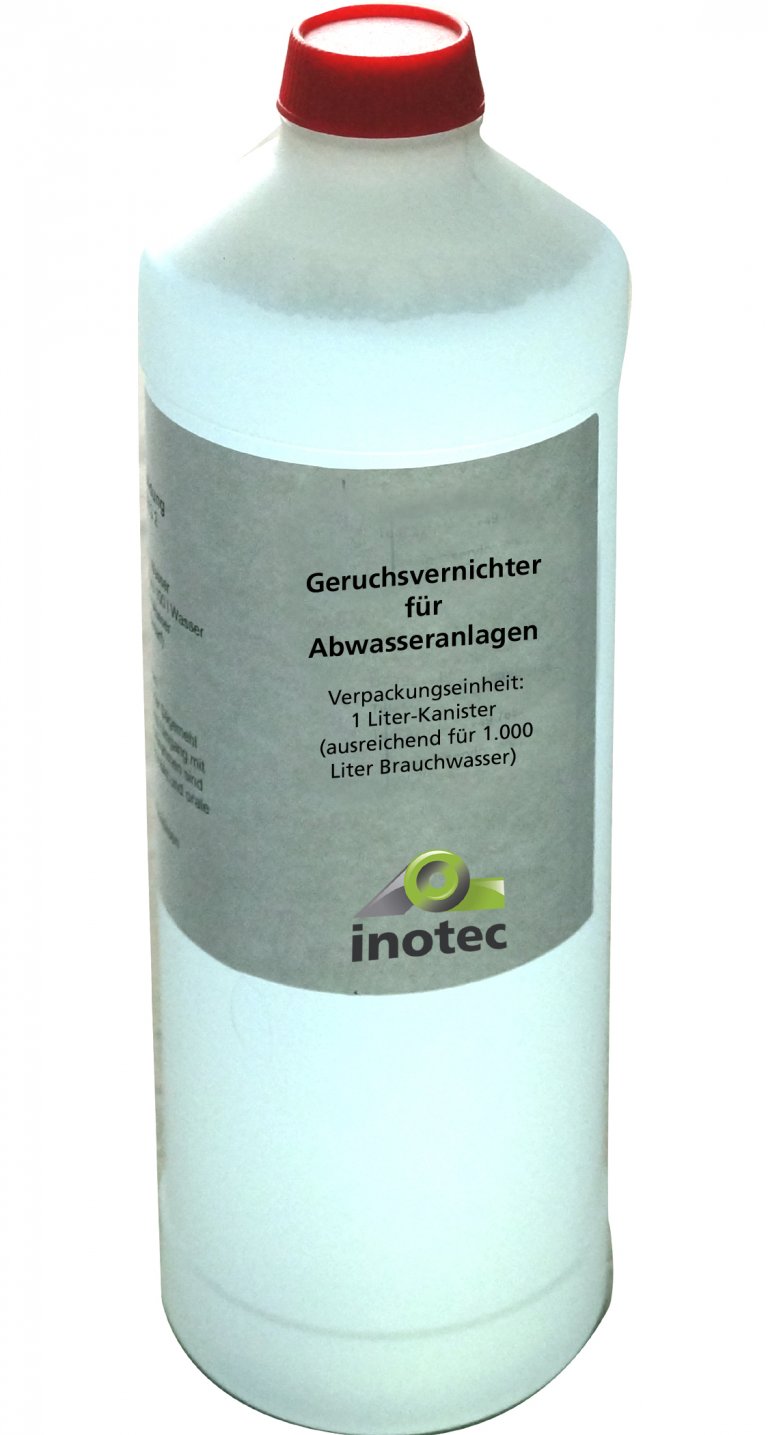

Odour trap for waste water systems

Odour trap for waste water systems

  • Prevents the build-up of bacteria
  • Packaging unit: 1 litre canister (sufficient for 1,000 litres of industrial water)



Odour trap for waste water systems (Article No. 10039482)
