The handy and lightweight hot wire cutter for ETICS insulation boards

Benefits at a glance

  • Multi-ply, environmentally-friendly painted Multiplex plywood with scaling
  • Push-button (transformer for short-time operation)
  • Swivelling cutting bar up to 45 °
  • Depth stop for rebate, groove or separating cuts
  • Swivelling plate support up to 60 °
  • Versatile and extendable

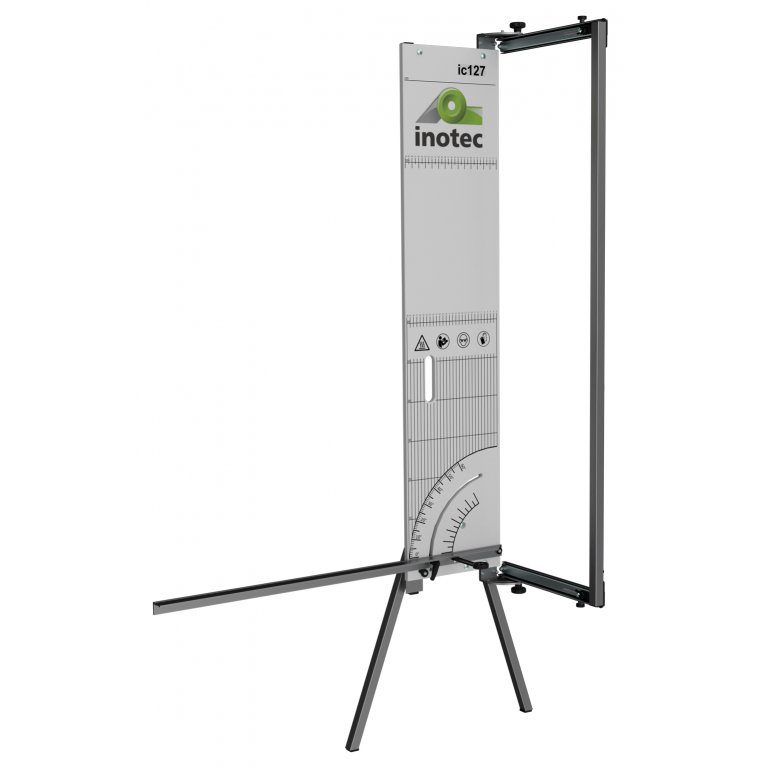

The handy and lightweight hot wire cutter inoCUT ic127 is a practical and precise high-end device.
It is used as a standing unit. The device can also be attached to the rail using the integrated anti-tilt device.
The swivelling insulation board support also holds thick insulation boards in the device.



inoCUT ic127
Operating voltageV/Hz/A110-230 / 50 / 16
Cutting lengthcmmax. 127
Cutting depthcmmax. 90° = 28 cm / 45° = 20
Machine techniqueCutters
Dimensions (W x H x D)mm415 x 1850 x 150
Weightkgapprox. 11,3
inoCUT
inoCUT ic127
Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts

Basic module
Item no. 10042560

Scope of delivery
inoCUT ic127:

  • Base plate
  • Swivel cutting bracket
  • Power supply unit
  • Connecting cable
  • Left support strip
  • Swivel base
  • Railing fastening
  • Operating instructions
inoCUT ic127
Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm (Article No. 10039890)
Release support with brace for inoCUT ic127

Release support with brace for inoCUT ic127

  • Foldable support with brace. Remains attached to the device after installation

Release support with brace for inoCUT ic127 (Article No. 10042567)

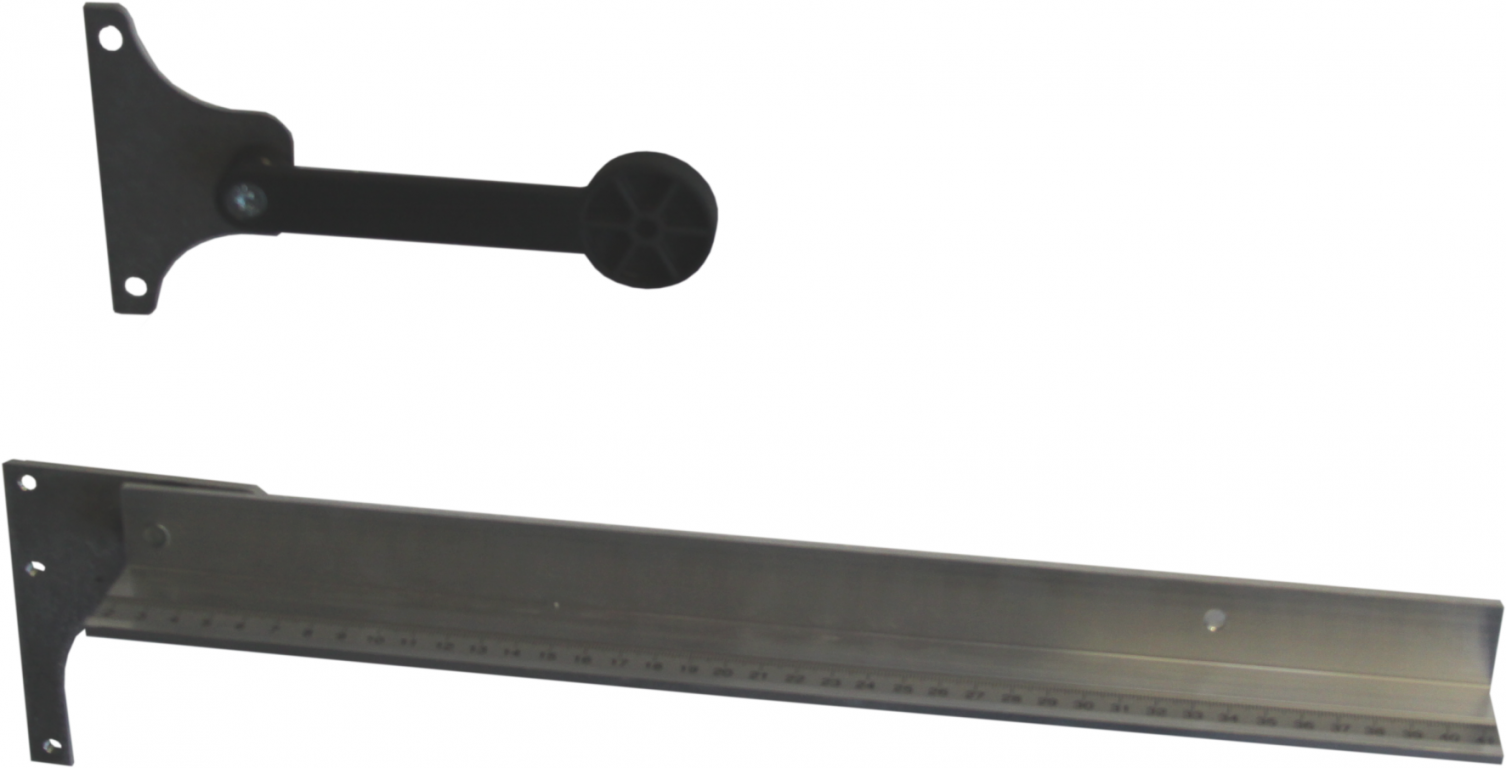

Right support strip for inoCUT ic127

Right support strip for inoCUT ic127

Right support strip (Article No. 10042568)
Aluminium transport case for inoCUT icM135 and ic127

Aluminium transport case for inoCUT icM135 and ic127

  • Robust case with wheels

Aluminium transport case for inoCUT icM110 and ic127 (Article No. 10042569)
