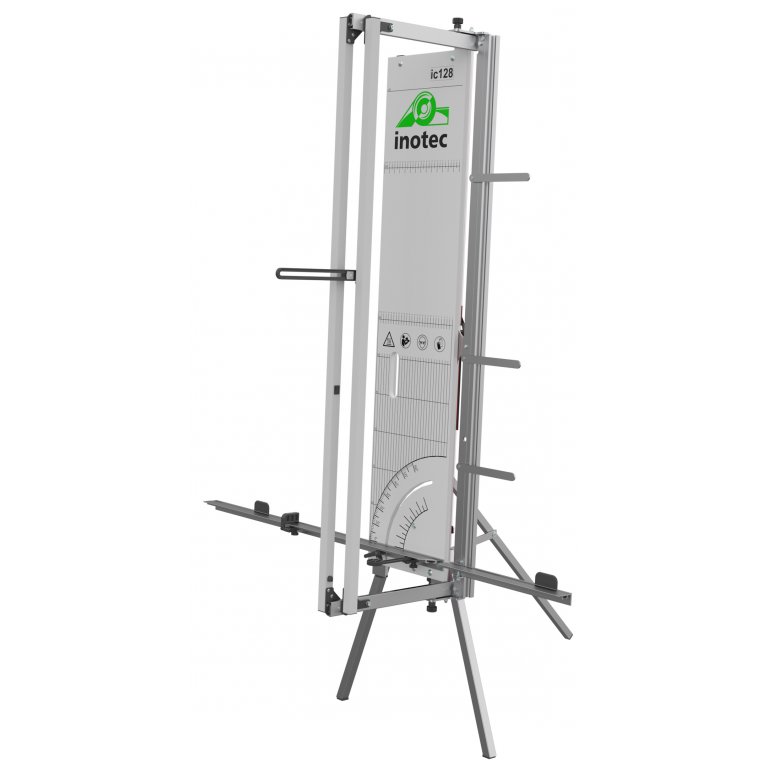

inoCUT ic128

 inoCUT ic128 inoCUT ic128

Cutters

inoCUT ic128

Robust, handy and versatile cutting device for ETICS insulation boards


Benefits at a glance

  • Multi-ply, environmentally-friendly painted Multiplex plywood with scaling
  • Continuous operation with ON/OFF switch
  • Swivel cutting bracket up to 45°
  • Swivel board support for mitre cuts up to 45°
  • 1 depth limiter for separating cuts
  • Belt with snap lock for assembly on the handrail
  • Freestanding support included in delivery

The robust inoCUT ic128 with hot wire cutter and push-button operation is versatile and is thus the ideal cutting device for the construction site.
The inoCUT ic128 revolutionises the thermal cutting of ETICS rigid foam panels on the construction site.
Rafter beam and corner cutouts for window sills are easily achievable with the optional corner cutter.


Further information / downloads:


Alternative Machines:

Operating voltage: 110 or 230 V / 50 Hz
Cutting length: max. 128 cm
Cutting depth: max. 90° = 30 cm / 45° = 20 cm
Dimensions (W x H x D): 415 x 1.850 x 150* mm
Weight: 14,8 kg
Comments: * Dimensions without support strip
 inoCUT ic128

Basic module
Art.-Nr. 10042904


Scope of delivery
inoCUT ic128:

  • Base plate
  • Swivel cutting bracket
  • Left and right support strip
  • Power supply unit
  • Connecting cable
  • Freestanding support
  • Swivel base
  • Railing fastening
  • Operating instructions
 inoCUT ic128

inoCUT ic128

Corkboard
Foam glass panels
Hemp boards
Mineral wool
Phenolic resin panels
Polystyrene rigid foam panels
Polyurethane panels
Potential cuts: Cut-outs
Potential cuts: Diagonal cuts
Potential cuts: Diagonal cuts with mitre joints
Potential cuts: Groove cuts
Potential cuts: Layered cut
Potential cuts: Layered cuts with mitre joints
Potential cuts: Layered groove cuts
Potential cuts: Mitre cuts
Potential cuts: Separating cuts
Potential cuts: Straight cuts

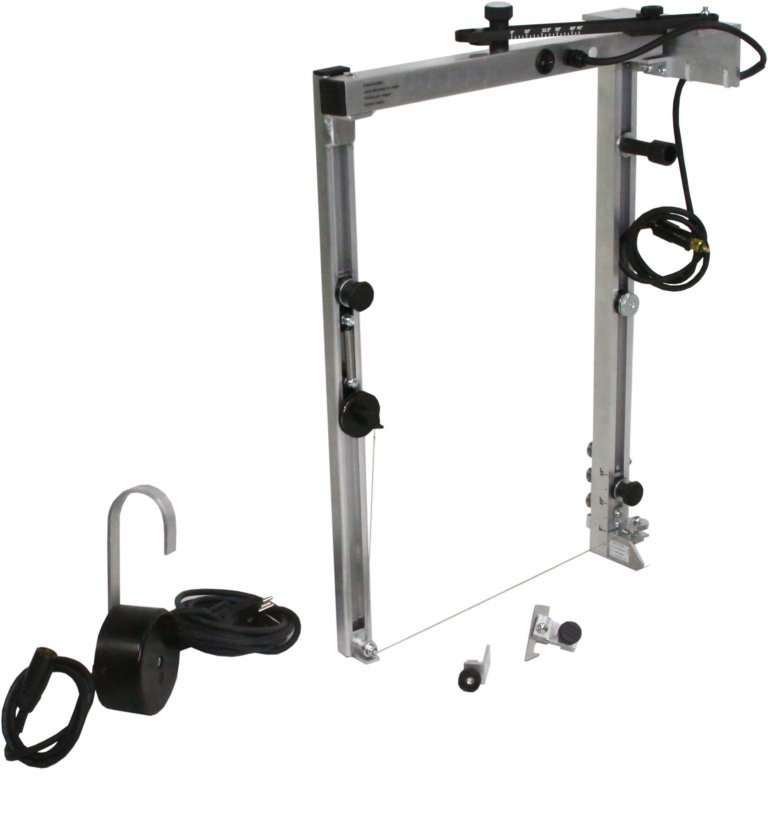

Corner cutter for inoCUT ic128

Corner cutter for inoCUT ic128

  • Rafter cutouts, corner cutouts in window sills, plasterboard, lintels, etc.
  • 0 - 90° swivel
  • Degree scale and slider for diagonal cut repetitions
  • Tool-free, fast wire change thanks to integrated reserve wire spool
  • Separate transformer
  • With nylon pouch

Corner cutter for inoCUT ic128 (Article no. 10042900)

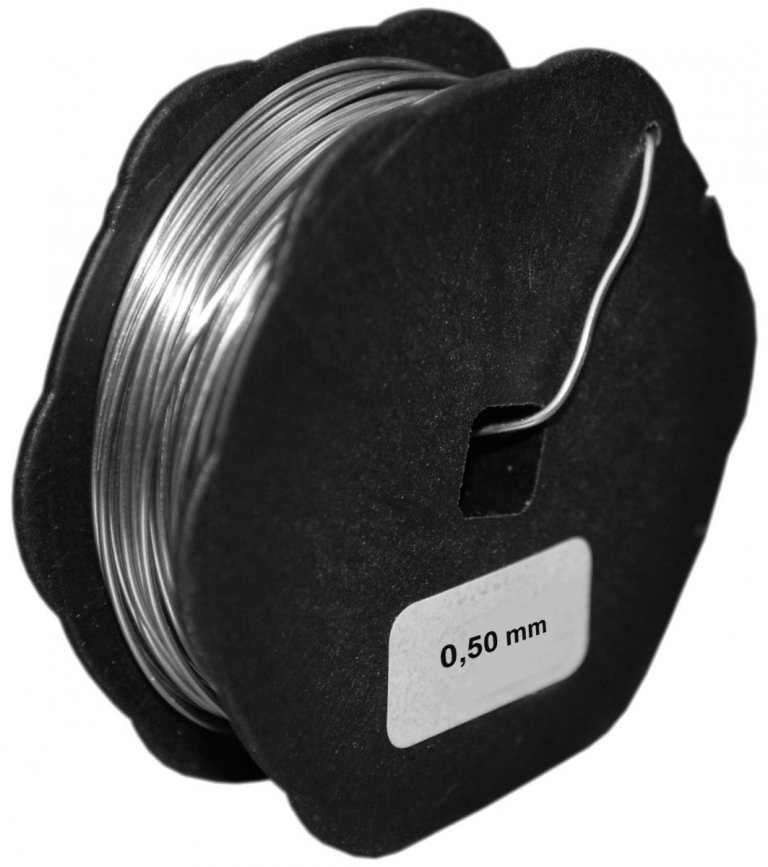

Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm - 20 m

Spare wire with a diameter of 0.65 mm (Article no. 10039890)

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter

Spare wire with a diameter of 0.50 mm for inoCUT ic127 PRO and ic128 corner cutter (Article no. 10026105)
