Benefits at a glance

  • Lightweight, small and handy
  • For liquid and paste-like materials
  • Continuously variable speed control using potentiometer
  • Simple operation
  • Simple cleaning and maintenance
  • Detachable plastic material hopper
  • Bis 6 mm grit size
  • Forward and reverse running

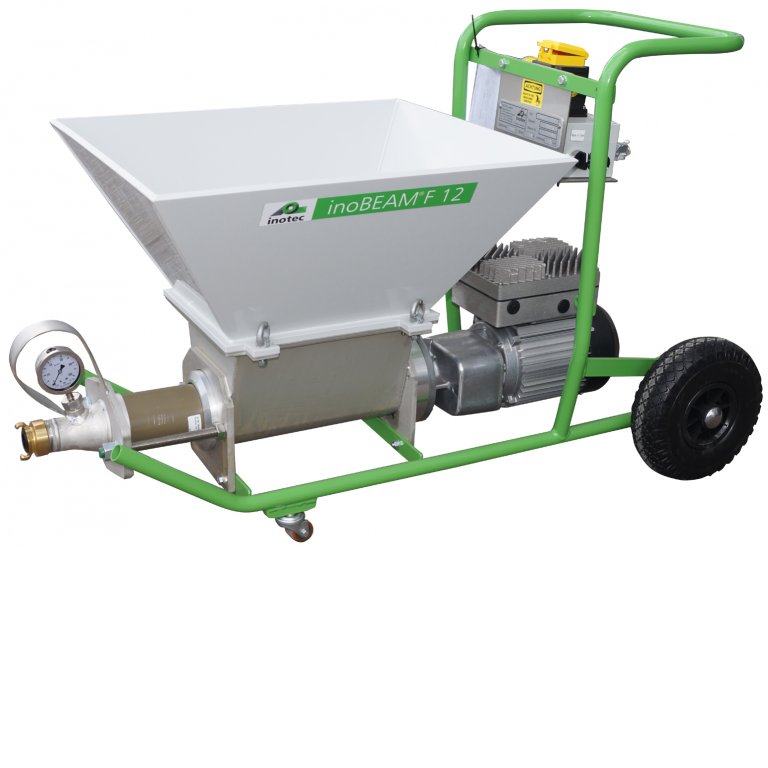

The inoBEAM F12 is a compact and versatile 230 V delivery pump. The material hopper can be disassembled without the need for tools.
It can be dismantled quickly and easily for cleaning purposes.
The handy design and low weight make transporting the device simple.



inoBEAM F12
Operating pressurebarup to 16
Operating voltageV/Hz/A230 / 50 / 16
Drive performancekW1,5
Delivery rate (depending on the material)l/minmax. 0 - 12
Conveying distance (depending on the material)mmax. 30
Pressure height (depending on the material)mmax. 20
Material containerl60
Machine techniqueDelivery pumps
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 65
inoBEAM
inoBEAM F12
Acoustic renovation paint
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Bitumen
Cement pastes, suspensions
Cement plasters
Concrete bonder
Decorative fine coats
ETICS glue, mineral
ETICS glue, paste-like
Fibour plaster
Fine acoustic finishing coats
Fire protection mortar
Floor leveling compound
Floor spattling compounds
Lime cement plasters
Lime plasters
Lime smoothers
Liquid woodchip
Mineral textured plasters
Multi-layer acoustic spray plasters
Outdoor / indoor dispersion paint Silicate paint - with conversion kit "HP"-F30 (see accessories)
Paste-like textured plasters
Porous concrete coats
Rendering base
Renovating plaster systems
Reprofiling mortar
SPCC mortar / filler
SPCC Spatula
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”- & “R”-F30
Spray-on spattling compounds

Basic module
Item no. 10041065

Scope of delivery
inoBEAM F12:

  • 2 running wheels
  • Plastic material hopper
  • Cover for material hopper
  • Gear motor
  • Rotor/Stator D 6-3 Eco gold short
  • Electric control system with 10 m connecting cable
  • Pump housing made from stainless steel
  • Mortar pressure gauge
  • Pump shaft
  • Operating instructions

inoBEAM F12 set
Item no. 10041574

Scope of delivery
inoBEAM F12 Set:

As with the basic module (item no. 10041065)

Plus:

  • 10 m combined material hose with a diameter of 1”
  • Spray pipe set with nozzles (4, 5, 6, 8, 10, 13 mm)
  • Remote control cable, 16 m
  • Assembly spray lubricant
  • Tool set
inoBEAM F12

(Article No. 10040858)

(Article No. 10039343)
Ultralight hose

Ultralight hose

Ultralight hose with GEKA coupling (Ø 25 mm / 10 m) (Article No. 10043875)
Combined material hose

Combined material hose

  • For applying, with integrated air hose
  • Colour: black / yellow
  • Operating pressure: 15 bar
  • With GEKA couplings, lockable

Combined material hose - Ø 1" - 10 m (Article No. 10008344-003)
Combined material hose - Ø 1“ - 5 m (Article No. 10008344-007)
Combined material hose - Ø 1“ - 15 m (Article No. 10008344-005)
Combined material hose - Ø 3/4“ - 10 m (Article No. 10022140)
Material hose

Material hose

  • Colour: black / yellow
  • Operating pressure: 15 bar
  • With GEKA coupling, lockable

Material hose - Ø 1/2' - 10 m (Article No. 10008345-005)
Material hose - Ø 1“ - 10 m (Article No. 10008345-001)
Multi-purpose hose

Multi-purpose hose

  • For universal use, e.g. air, water
  • GEKA couplings crimped with sleeves on both sides
Technical data:
Max. operating pressure: max. 15 bar
Temperature range: -20 up to +90°C

Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)
Flushing hose

Flushing hose

  • For clearing blockages in mortar hoses

Flushing hose - Length 10 m (Article No. 10024385)
230 V / 3 x 2.5 mm² extension cable

230 V / 3 x 2.5 mm² extension cable

  • 16 A Schuko plug and coupling

230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)
3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m

3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m

  • Plastic cable reel with 40 m H07RN-F cable; robust design.
  • With 3 Schuko sockets, a VDE thermal circuit breaker and a locking brake. Protection class: IP44

3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m (Article No. 10015300)
Wireless remote control

Wireless remote control

  • Wireless remote control, 3-channels, with handheld transmitter integrated antenna, 24 V Harting connector with LED display
  • Only for devices with a control voltage of 12-24 V

Wireless remote control (Article No. 10043315)
Remote control cable with remote control switch

Remote control cable with remote control switch

Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)
Remote control extension cable without remote control switch

Remote control extension cable without remote control switch

  • For remote control cable
  • For remote control switch
  • For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)
Remote control switch

Remote control switch

  • With 0.2 m cable, indicator light and 4-pin Harting plug

Remote control switch (Article No. 10015134)
Adapter for remote control cable

Adapter for remote control cable

m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)
Hose holder

Hose holder

  • For rapidly fixing hoses to the scaffold

Hose holder (Article No. 10018503)
inoCOLL one-handed gun with GEKA coupling

inoCOLL one-handed gun with GEKA coupling

  • For bonding and basecoat mortars
  • For grit sizes up to 1.5 mm

inoCOLL one-handed gun with GEKA coupling (Article No. 10024143)
inoCOLL PRO one-handed gun with GEKA coupling

inoCOLL PRO one-handed gun with GEKA coupling

  • For bonding and basecoat mortars
  • For grit sizes up to 4.0 mm

inoCOLL PRO one-handed gun with GEKA coupling (Article No. 10041973)
Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection

For spraying mineral and paste-like products

  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with EWO air connection (Article No. 10042332)
Spray pipe set

Spray pipe set

Short, lightweight spray pipe with GEKA coupling for spraying paste-like materials. Thanks to the special nozzle geometry, a small compressor (from an air flow rate of 200 l/min.) is sufficient to achieve a very good spray pattern.
The air quantity can be regulated using the integrated mini ball valve.

  • For grit sizes up to 3 mm

Scope of delivery:
Spray pipe set, including 4 / 5 / 6 / 8 / 10 / 13 mm nozzles, nozzle bit, cleaning brush, in a systainer

Spray pipe set (new design) (Article No. 10039886)
Angled spray head with GEKA coupling

Angled spray head with GEKA coupling

  • E.g. for spraying bitumen, etc.
  • Length: 65 cm
  • At an angle of 45°

Scope of delivery:
Spray head including 8 mm nozzle

Angled spray head with GEKA coupling (Article No. 10039457)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Small spray pipe (10039887)
- Angled spray head with GEKA coupling (10039457)
- Spray pipe set (10039886)

  • Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10039271)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10042461)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10039220)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10039221)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10039222)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10040941)
Plastic hopper

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 60 litres.

Plastic hopper (Article No. 10040973)
Cover for plastic hopper

Cover for plastic hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for plastic hopper (Article No. 10041816)
Bag mangle

Bag mangle

  • For emptying plastic bags with paste-like materials

Bag mangle (Article No. 10041971)
Air quantity controller with EWO couplings

Air quantity controller with EWO couplings

  • For precisely adjusting the air quantity when spraying.
  • Is connected between the air hose and spraying device.

Air quantity controller with EWO couplings (Article No. 10017793)
Connecting coupling for compressors

Connecting coupling for compressors

  • EWO V-piece on GEKA

Connecting coupling for compressors (Article No. 10022353)
Sponge balls (soft version)

Sponge balls (soft version)

  • For cleaning material / mortar hoses

Sponge balls (soft version) - Ø 14 mm for hose Ø 13 mm (Article No. 10008116-001)
Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)
Sponge balls (solid version)

Sponge balls (solid version)

  • For cleaningmaterial / mortar hoses

Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)
KAESER 230 V Compressor Premium Car 450/30W

KAESER 230 V Compressor Premium Car 450/30W

The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.

Technical data:

Operating pressure: 10 bar
Suction capacity: 450 l/min
Output: 2,2 kW
Dimensions (L x W x H): 870 x 560 x 590 mm
Weight: 86 kg

KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)
230 V INOTEC Compact 330 compressor

230 V INOTEC Compact 330 compressor

The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.

Technical data:
Operating pressure: 10 bar
Suction capacity: 330 l/min
Output: 2,05 kW
Dimensions (L x W x H): 396 x 473 x 598 mm
Weight: 32 kg

More powerful compressors available upon request!

230 V INOTEC Compact 330 compressor (Article No. 10034389)
Connection unit for 2 INOTEC Compact 330 compressors

Connection unit for 2 INOTEC Compact 330 compressors

consisting of check valve and EWO coupling

  • 2 x V parts
  • 1 x M part

Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)
