Benefits at a glance
- Compact design
- Proven, robust machine technology
- Excellent for use against walls thanks to removable side cover

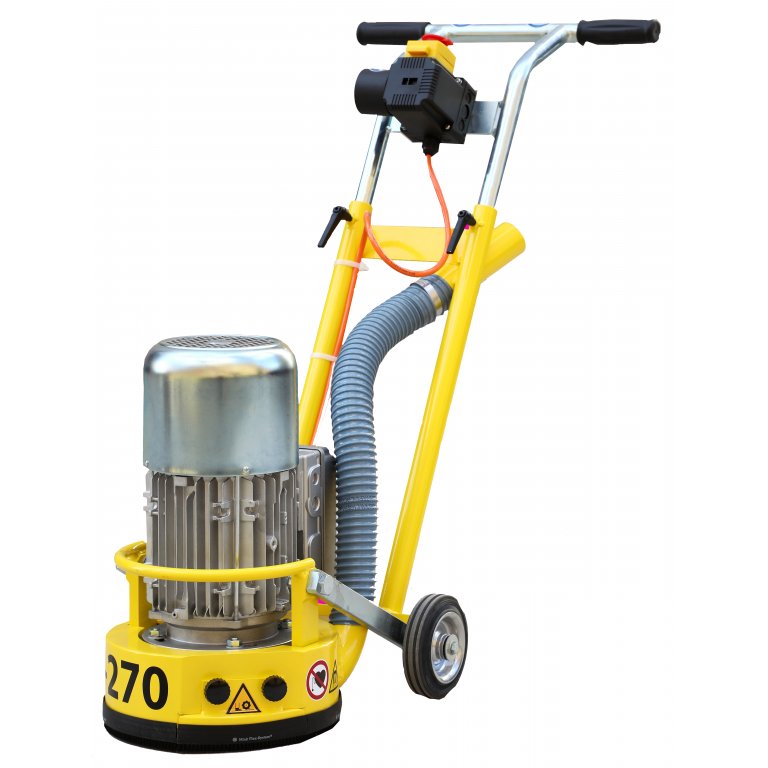

The BS-270-EL-9 is an easy-to-transport machine for multi-purpose and powerful use in surface preparation.
It’s perfectly suitable for small to medium-sized surfaces and areas.
This floor sander is excellent for use against walls, thanks to a removable side cover. Its compact design makes it easy to store in a vehicle.
Areas of application
Cleaning of dirty concrete surfaces, peeling of foam backing, grinding, sanding of floors to medium sized surfaces and areas, etc.
| Operating voltage | V/Hz/A | 230 / 50 / 16 |
| Drive performance | kW | 2,2 |
| Rotational frequency | r/min | 1.430 |
| Machine technique | Floor processing | |
| Working width | mm | 270 |
| Working pressure | kg/cm² | 25 |
| Dust extraction connection | mm | 38 |
| Comments | Required tools: 4 pcs. | |
| Dimensions (L x W x H) | mm | 860 x 470 x 1 |
| Weight | kg | approx. 57 |
Floor sander BS-270-EL-9 | |
| Blasting EP and PU coatings | |
| EP and PU coatings: Removal of old coatings, roughening of new coatings, roughening of concrete or screed | |
| Industrial flooring: Restoration and remedy | |
| Keying and removal of mineral substrates | |
| Natural and artificial stone, terrazzo: grinding of slabs made of artificial stone, hard and soft stone up to polishing, grinding and honing of terrazzo | |
| Remedy of surface roughness | |
| Removal of sanding bridges and blast tracks | |
| Removal of sealants and thin coatings | |
| Screed: Grinding and polishing, tackling irregularities | |
| Shot-blasting of concrete, screed and asphalt to remove cement slurry and for substrate preparation | |
| Shot-blasting of steel to remove sinter layers and for rust removal | |
| Topsoil transfer: substrate preparation, removal of spattling compounds and adhesive residues |
Scope of delivery
BS-270-EL-9
Item no. 10044435

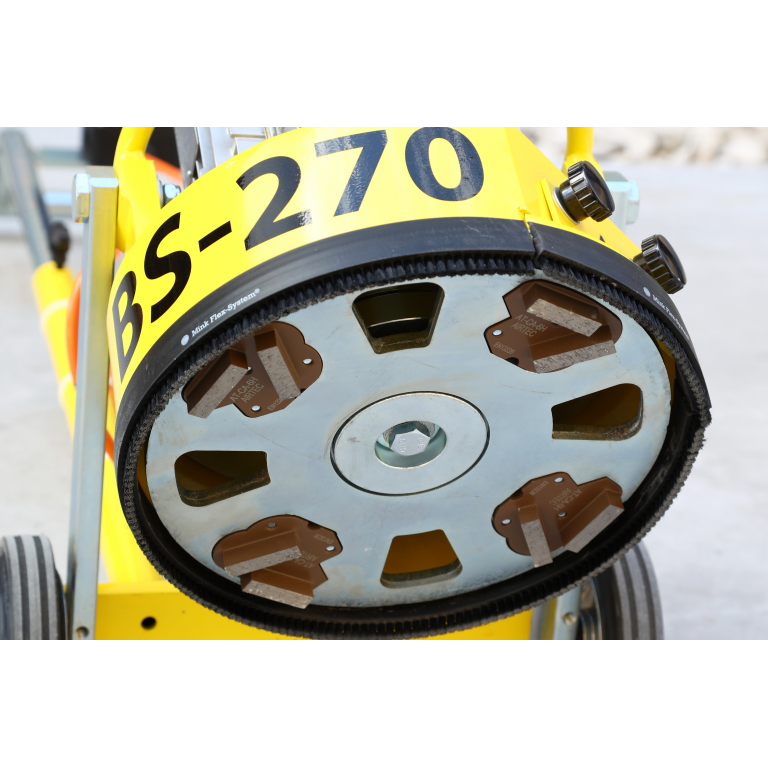

- BS 270 floor sander
- 4 units of AT-CA-6H segments
- 1 mounting plate
- 230 V motor
- Operating instructions
Optional (see accessories):
- Other segments
- AT-CA-40 H
- AT-PCM-9L-1
- AT-PKD-SPLITT-1 - Industrial vacuum cleaner KV 2400-EL
Twin-motor industrial vacuum cleaner inoCLEAN 230
- For very fine dust with automatic filter cleaning
- Very powerful thanks to two motors
- Low noise levels
- Easy to use
- With HEPA filter H
- For dry use
Technical data:
- Operating voltage: 230 V / 50 Hz
- Motor rating: 2.2 kW
- Volumetric capacity: 20 l
- Vacuum 230 mbar
- Airflow: 340 m3/h
- Dimensions: 540 x 580 x 850 mm
- Weight (without accessories): 36 kg
Scope of delivery: Vacuum cleaner complete with 2 motors & HEPA filter, suction tube, 5 m suction hose Ø 50 mm, floor suction nozzle

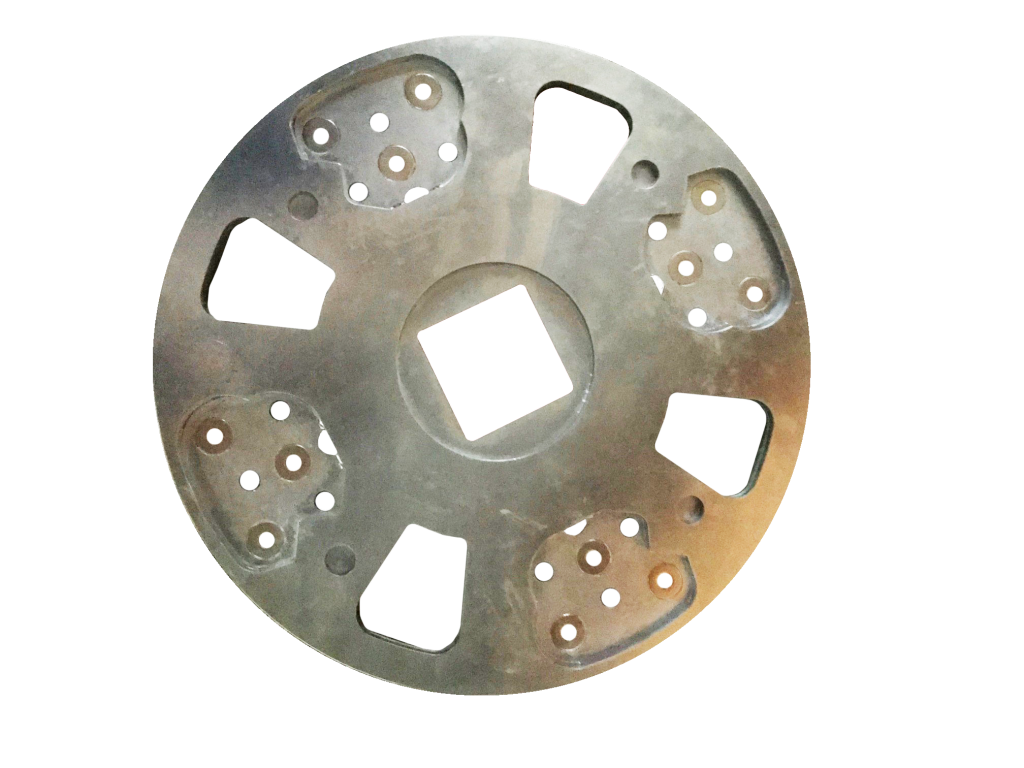

1 mounting plate BS-270-240 (without sanding segments)
(suitable for floor sander BS-270-EL-9)
- 1 unit per machine (necessary)

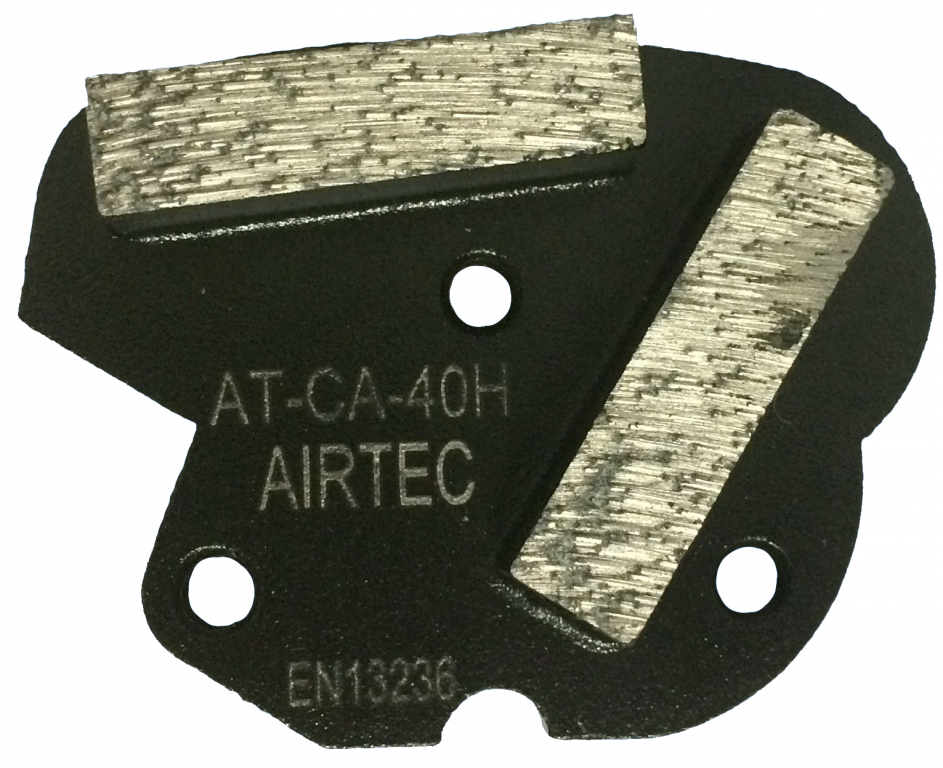

Tool AT-CA-40H (without mounting plates, magnets or Screws)
- Fine particle size
Areas of application: Fine removal, eliminates grinding and sanding marks, honing concrete and subfloors, etc.
- 4 tools are required for BS270-EL-9
- 9 tools are required for BS-520-EL
Tool AT-CA-6H (without mounting plates, magnets or Screws)
- Medium particle size
Areas of application: Rough removal, grinding and sanding of concrete, subfloors, thin layers of paint, etc.
- 4 tools are required for BS270-EL-9
- 9 tools are required for BS-520-EL

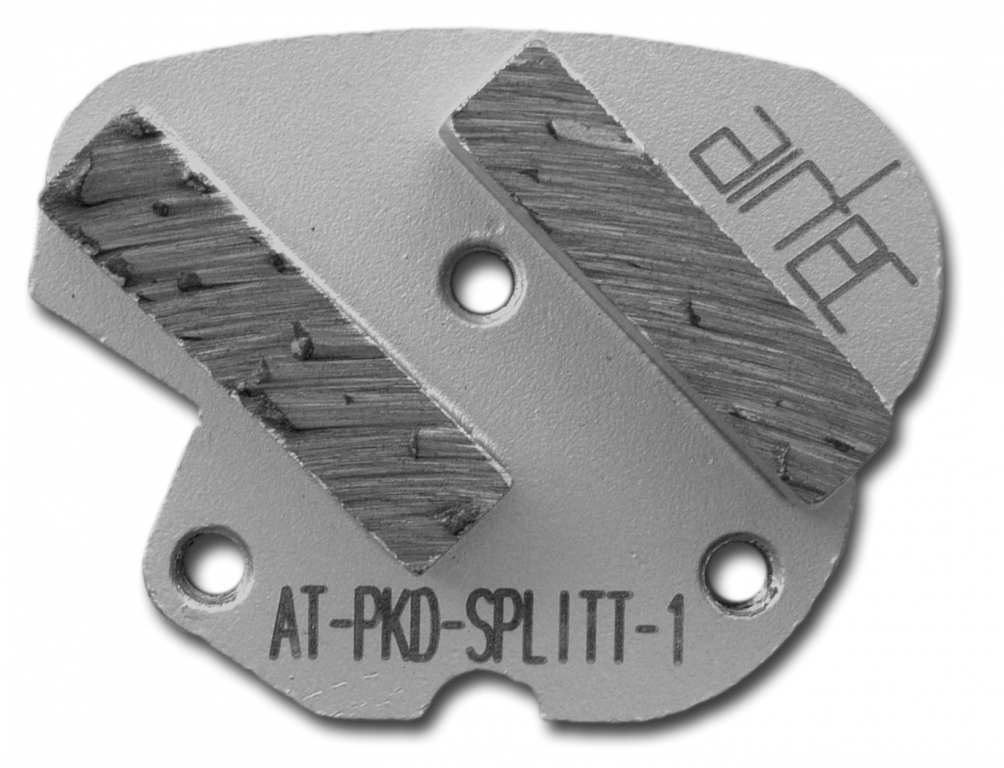

Tool AT-PKD-SPLITT-1 (without mounting plates, magnets or Screws)
- Coarse particle size
Areas of application: Fast removal, grinding and sanding of thin coatings, paint, sealers, etc.
- 4 tools are required for BS270-EL-9
- 9 tools are required for BS-520-EL
Tool AT-PCM-9L-1 (without mounting plates, magnets or Screws)
- Coarse removal
Areas of application: Rough removal of stubborn coatings such as adhesives, fillers, thermoplastics, etc.
- 4 tools are required for BS270-EL-9
- 9 tools are required for BS-520-EL
