Benefits at a glance

  • Compact design
  • Proven, robust machine technology

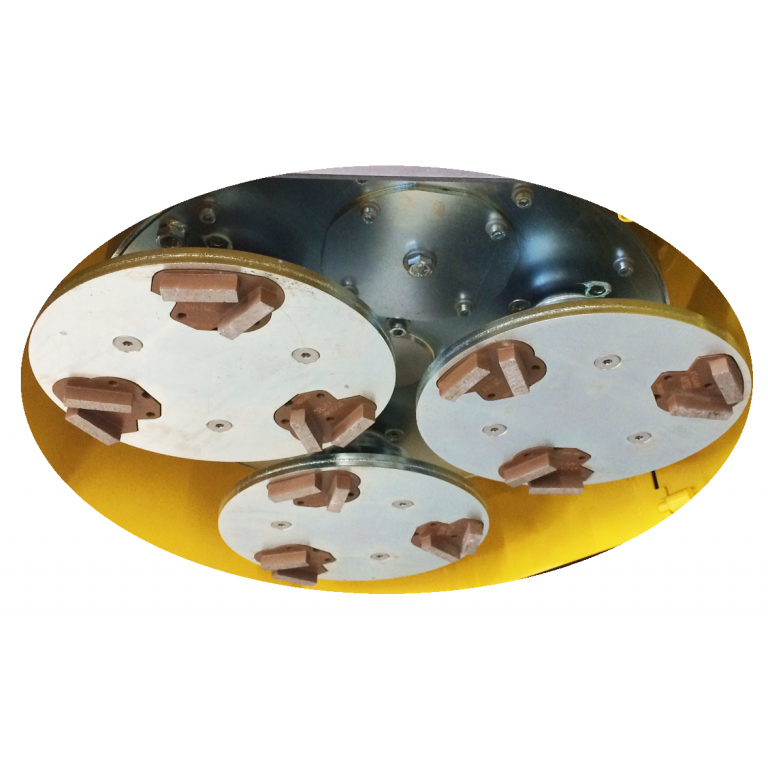

  • 3-disc grinding and sanding technology ensures excellent grinding and sanding results
  • Versatile
  • Can be used for both dry and wet suitable for wet use

The BS-520-EL has a strong torque and excellent ground contact thanks to the planetary gear.
It is the ideal floor grinding and sanding machine for powerful grinding and sanding results on small and medium-sized surfaces.



Areas of application
Removing fillers and adhesives, evening and levelling uneven surfaces, polishing, grinding and sanding concrete surfaces and industrial floors, renovating floors, etc.

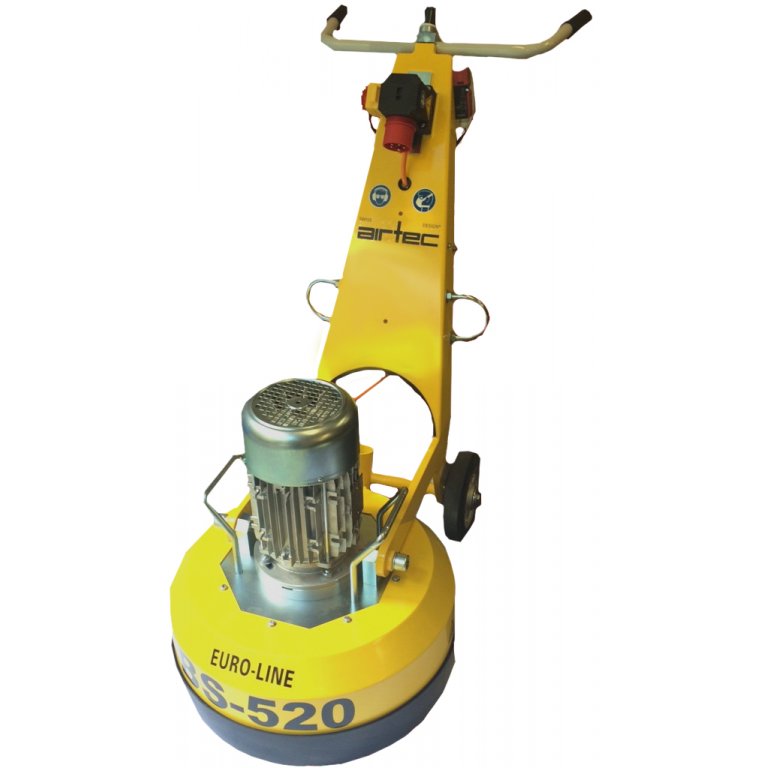

Floor sander BS-520-EL
Operating voltageV/Hz/A400 / 50 / -
Drive performancekW3,0
Rotational frequencyr/min900
Machine techniqueFloor processing
Working widthmm520
Working pressurekg/cm²90
Dust extraction connectionmm51
Dimensions (L x W x H)mm980 x 580 x 1080
Weightkgapprox. 130
Floor
Floor sander BS-520-EL
Blasting EP and PU coatings
EP and PU coatings: Removal of old coatings, roughening of new coatings, roughening of concrete or screed
Industrial flooring: Restoration and remedy
Keying and removal of mineral substrates
Natural and artificial stone, terrazzo: grinding of slabs made of artificial stone, hard and soft stone up to polishing, grinding and honing of terrazzo
Remedy of surface roughness
Removal of sanding bridges and blast tracks
Removal of sealants and thin coatings
Screed: Grinding and polishing, tackling irregularities
Shot-blasting of concrete, screed and asphalt to remove cement slurry and for substrate preparation
Shot-blasting of steel to remove sinter layers and for rust removal
Topsoil transfer: substrate preparation, removal of spattling compounds and adhesive residues

Scope of delivery
BS-520-EL
Item no. 10044436

  • BS-520-EL floor sander
  • 9 units of AT-CA-6H segments
  • 3 mounting plates
  • 400 V motor
  • Operating instructions

Optional (see accessories):

  • Other segments
    - AT-CA-40H
    - AT-PCM-9L-1
    - AT-PKD-SPLITT-1
  • Industrial vacuum cleaner KV-3500-EL
Floor sander BS-520-EL

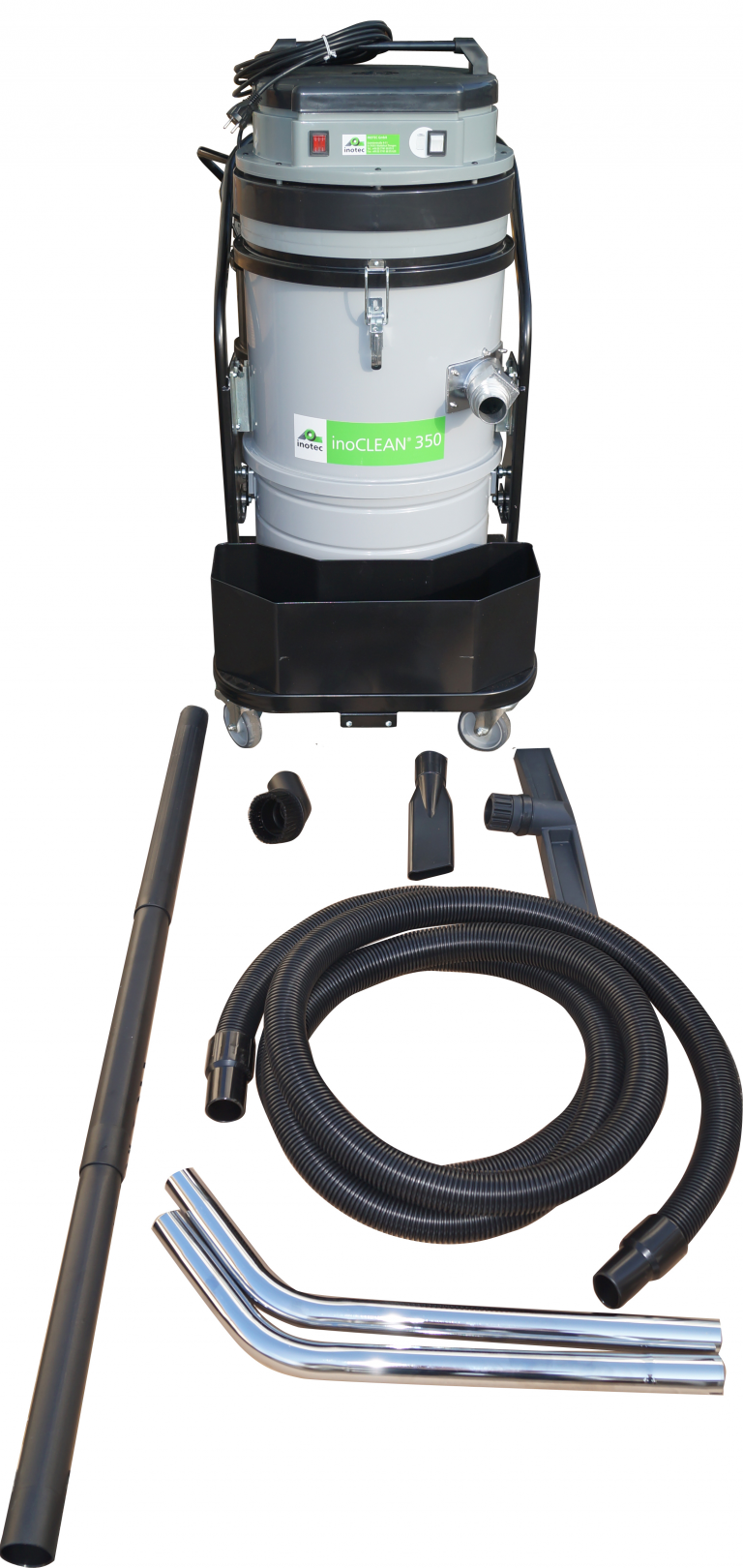

Three-motor industrial vacuum cleaner inoCLEAN 350

Three-motor industrial vacuum cleaner inoCLEAN 350

  • For very fine dust with automatic filter cleaning
  • Very powerful thanks to its three motors
  • Low noise levels
  • Easy to use
  • With HEPA filter H
  • For dry use

Technical data:

  • Operating voltage: 230 V / 50 Hz
  • Motor rating: 3 x 1.2 kW
  • Volumetric capacity: 50 l
  • Vacuum 230 mbar
  • Airflow: 510 m3/h
  • Dimensions: 800 x 600 x 1,180 mm
  • Weight (without accessories): 65 kg

Scope of delivery:  Vacuum cleaner complete with 3 motors & HEPA filter, suction tube, 5 m suction hose ø 50 mm, floor suction nozzle

Three-motor industrial vacuum cleaner inoCLEAN 350 (Article No. 10044432)

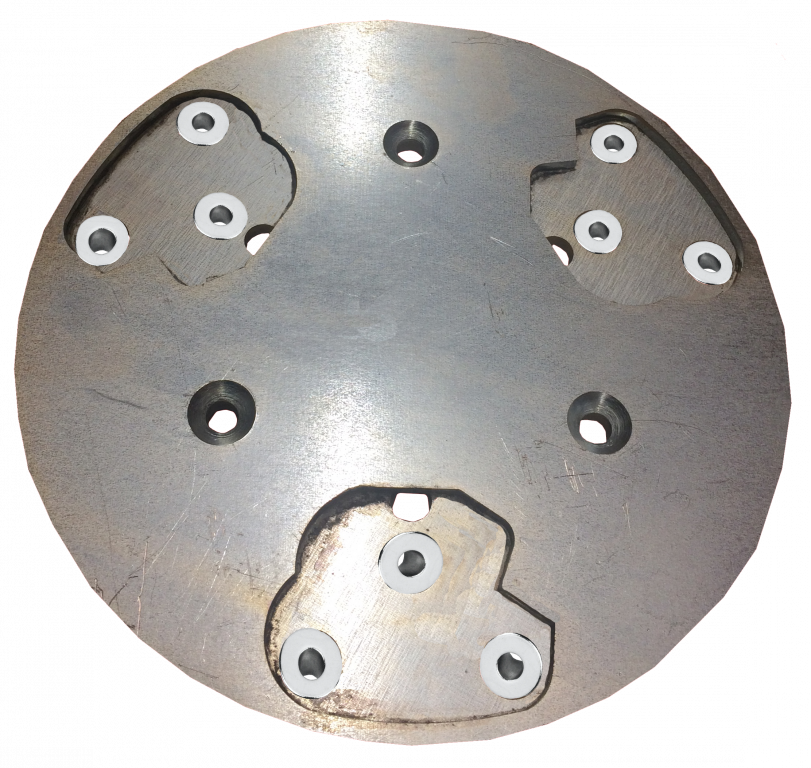

1 mounting plate BS-520-240 (without sanding segments)

1 mounting plate BS-520-240 (without sanding segments)

(suitable for floor sander BS-520-EL)

  • 3 units per machine (necessary)

1 mounting plate BS-520-240 (without sanding segments) (Article No. 10044437)

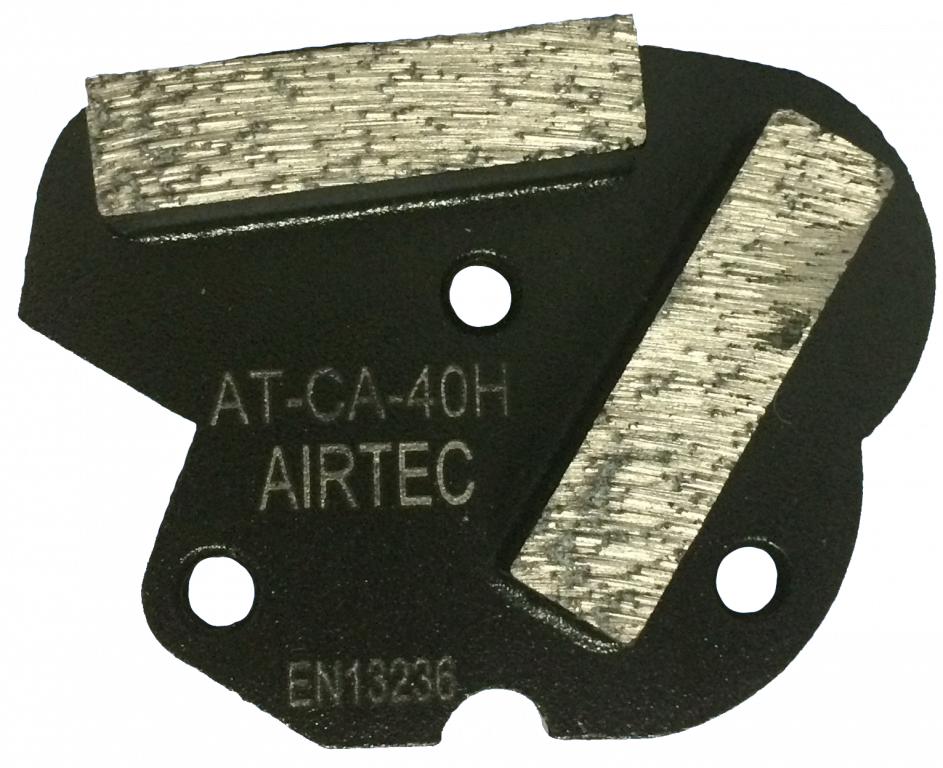

Tool AT-CA-40H (without mounting plates, magnets or Screws)

Tool AT-CA-40H (without mounting plates, magnets or Screws)

- Fine particle size


Areas of application: Fine removal, eliminates grinding and sanding marks, honing concrete and subfloors, etc.

  • 4 tools are required for BS270-EL-9
  • 9 tools are required for BS-520-EL

Tool AT-CA-40H (Article No. 10044439)

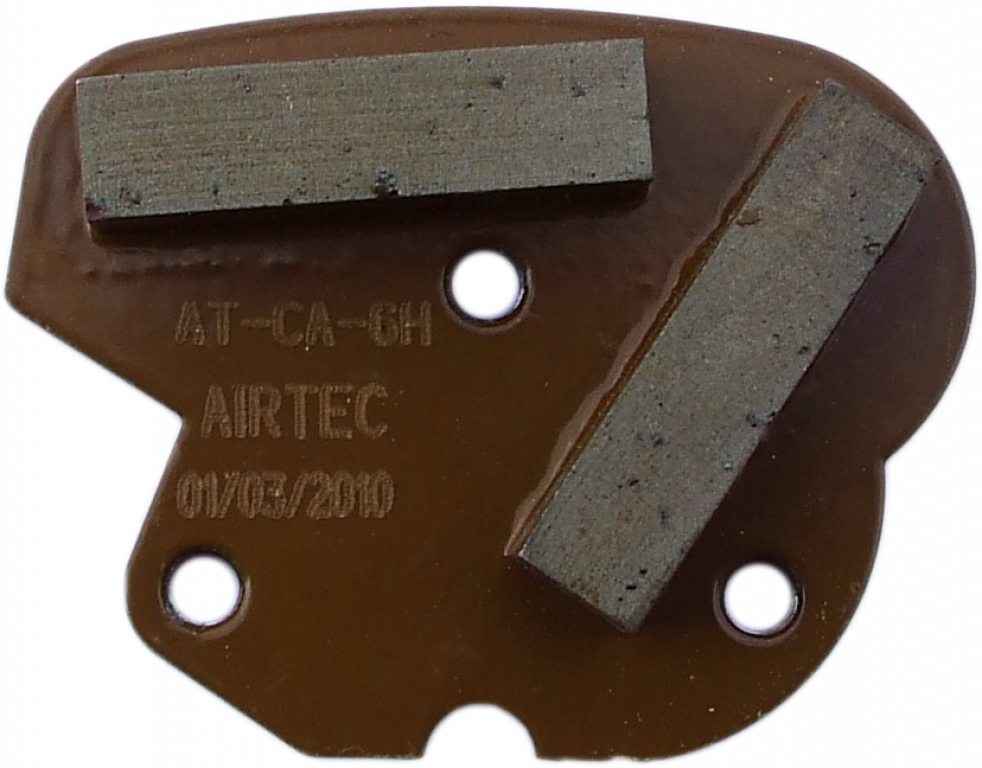

Tool AT-CA-6H (without mounting plates, magnets or Screws)

Tool AT-CA-6H (without mounting plates, magnets or Screws)

- Medium particle size



Areas of application: Rough removal, grinding and sanding of concrete, subfloors, thin layers of paint, etc.

  • 4 tools are required for BS270-EL-9
  • 9 tools are required for BS-520-EL

Tool AT-CA-6H (Article No. 10044438)

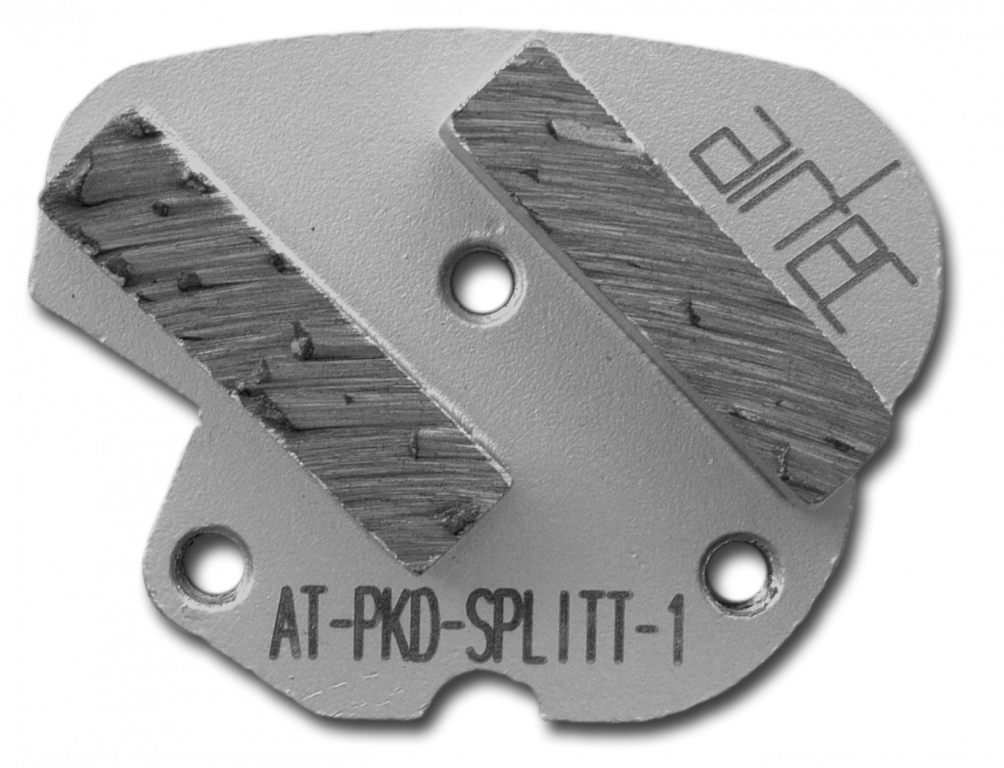

Tool AT-PKD-SPLITT-1 (without mounting plates, magnets or Screws)

Tool AT-PKD-SPLITT-1 (without mounting plates, magnets or Screws)

- Coarse particle size

Areas of application: Fast removal, grinding and sanding of thin coatings, paint, sealers, etc.

  • 4 tools are required for BS270-EL-9
  • 9 tools are required for BS-520-EL

Tool AT-PKD-SPLITT-1 (Article No. 10044440)

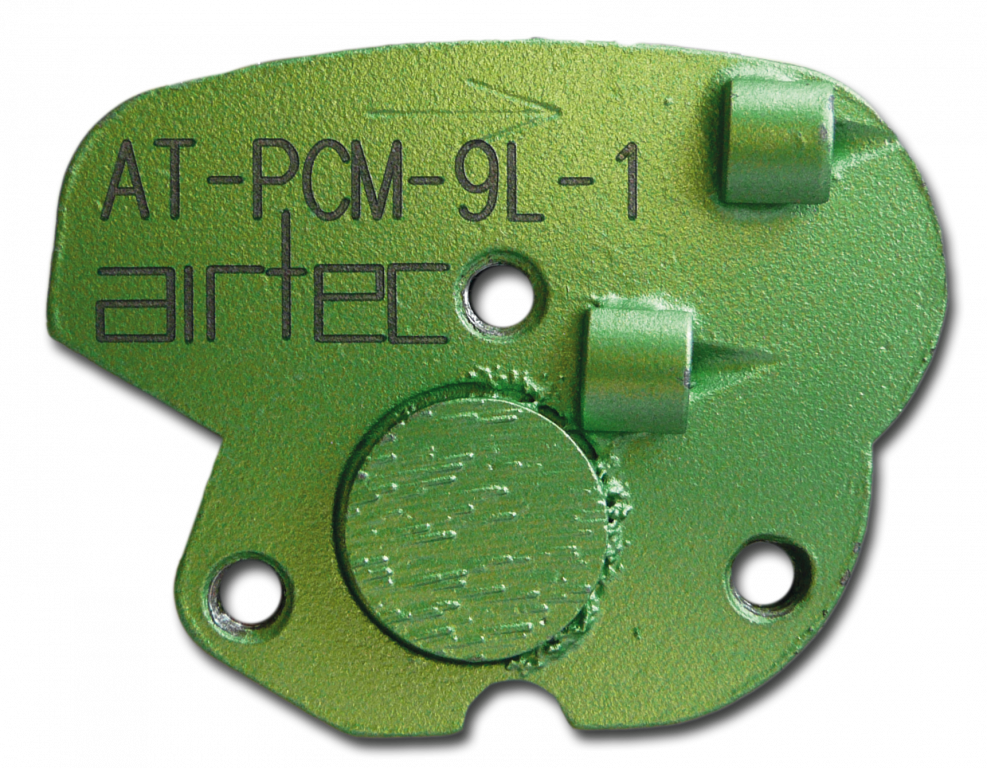

Tool AT-PCM-9L-1 (without mounting plates, magnets or Screws)

Tool AT-PCM-9L-1 (without mounting plates, magnets or Screws)

- Coarse removal


Areas of application: Rough removal of stubborn coatings such as adhesives, fillers, thermoplastics, etc.

  • 4 tools are required for BS270-EL-9
  • 9 tools are required for BS-520-EL

Tool AT-PCM-9L-1 (Article No. 10044441)
