The S270E75R Streamer is a compact and efficient shot blaster
Advantages at a glance
- Excellent separation
- Height-adjustable steering arm, with integrated control elements
- Extremely good handling
- Powerful drive
- Optimised weight
The S270E75R Streamer is a compact, efficient shot blaster for processing medium-sized horizontal surfaces.
It is equipped with a variable drive, as well as impellers for optimum coverage of the complete working range and latest-generation separation.

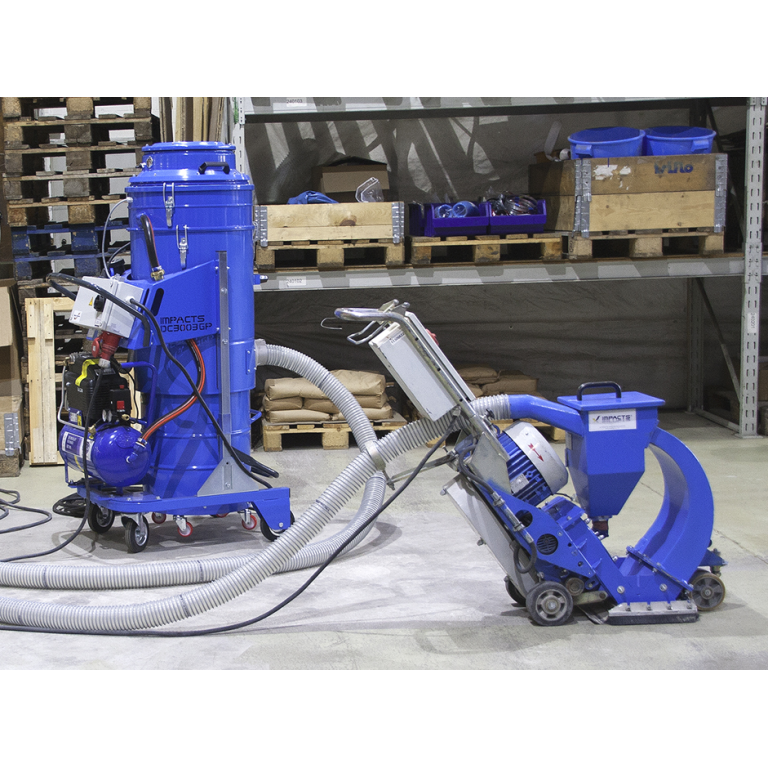

To generate the optimum blast output, we recommend using the S270E75R Streamer along with the filter systems DUSTCOM 3003GP.
| Operating voltage | V/Hz/A | 400 / 50 / 32 |
| Drive performance | kW | 7,5 |
| Machine technique | Floor processing | |
| Beam power on concrete | m²/h | 130 |
| Filter connection | mm | Ø 75 |
| Rotations | min-1 | 0 - 30 * |
| Comments | * Rotations continuously variable | |
| Dimensions (L x W x H) | mm | 1250 x 390 x 1050 |
| Weight | kg | approx. 166 |
Shot blaster system S270E75R Streamer | |
| Blasting EP and PU coatings | |
| EP and PU coatings: Removal of old coatings, roughening of new coatings, roughening of concrete or screed | |
| Industrial flooring: Restoration and remedy | |
| Keying and removal of mineral substrates | |
| Natural and artificial stone, terrazzo: grinding of slabs made of artificial stone, hard and soft stone up to polishing, grinding and honing of terrazzo | |
| Remedy of surface roughness | |
| Removal of sanding bridges and blast tracks | |
| Removal of sealants and thin coatings | |
| Screed: Grinding and polishing, tackling irregularities | |
| Shot-blasting of concrete, screed and asphalt to remove cement slurry and for substrate preparation | |
| Shot-blasting of steel to remove sinter layers and for rust removal | |
| Topsoil transfer: substrate preparation, removal of spattling compounds and adhesive residues |
Scope of delivery
S270E75R Streamer Set
Item no. 10030023
- Streamer S270E75R shot blaster
- Abrasive S330, 300 kg
- DC 3003GP filter system, incl. filter cartridges
- Dust hose Ø 75 mm, 10 m
- Magnet trolley 700 mm
- Maintenance box
- Operating instructions

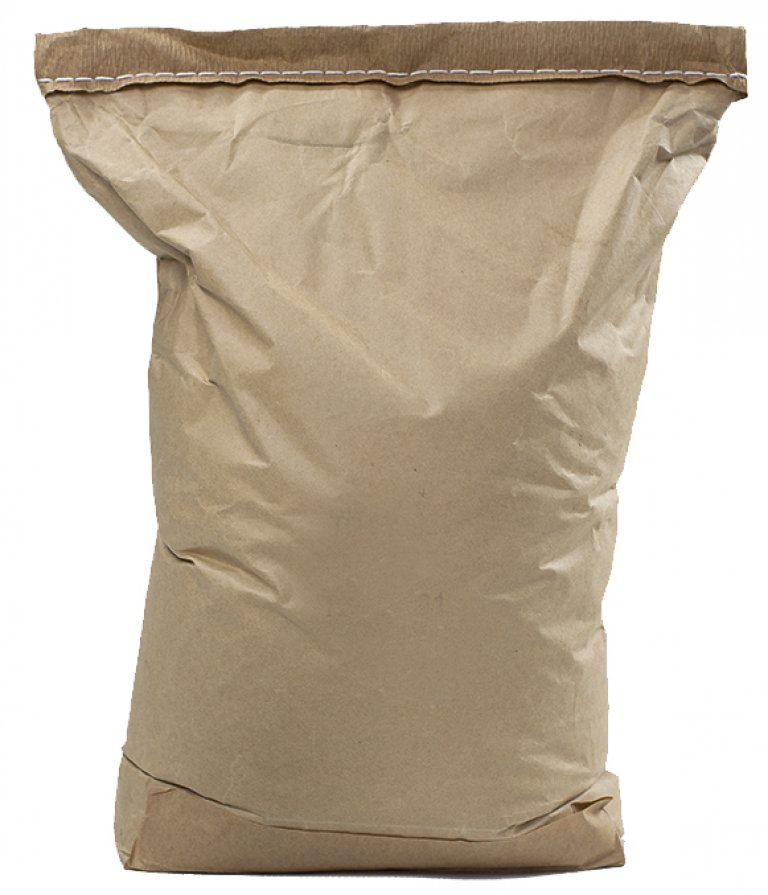

Blasting abrasive (Price per tonne, plus scrap bonus)
IMPACTOR S330 / 25 kg (for an extra-fine profile − also as admixture) (Article No. 10030042)
IMPACTOR S390 / 25 kg (standard abrasive) (Article No. 10030043)
