The efficient 230 V* delivery pump for liquid and paste-like materials

Benefits at a glance

  • For liquid and paste-like materials
  • Detachable plastic material hopper
  • High delivery rate
  • Continuously variable speed control using potentiometer
  • Simple operation
  • Can be combined with OWC machine technology (e.g. inoMIX E12) at any time.

The inoBEAM F30 is an efficient 230 V delivery pump suitable for a wide range of indoor and outdoor applications. The simple and clear layout of the operating elements make working safe and easy. With the optional sets that are available, the delivery pump can be converted for various fields of application in just a couple of steps. This offers maximum flexibility on your construction site thanks to unlimited areas of application (spraying, adhesion, filling, reinforcing and now also paint spraying, etc.) with an unbeatable price/performance ratio.

______________

* The machine is also available in 110 V

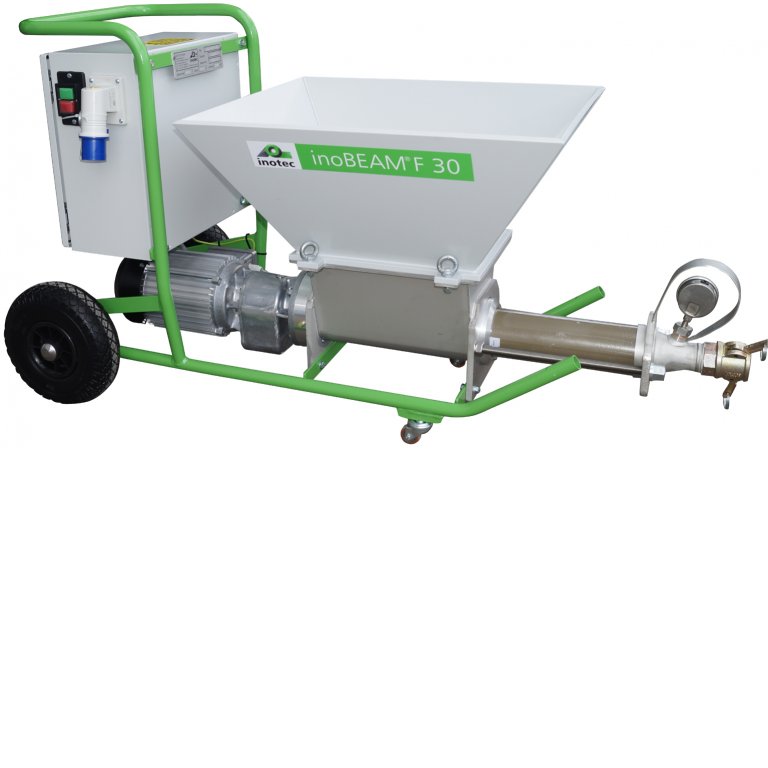

inoBEAM F30

Video

Service details

Services
Operating pressurebarup to 40
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW3,0 (frequency controlled)
Delivery rate (depending on the material)l/minmax. 2 - 50
Conveying distance (depending on the material)mmax. 80
Pressure height (depending on the material)mmax. 25
Grain sizemmmax. 6
Material containerl10 l / 60
Machine techniqueDelivery pumps
Dimensions (L x W x H)mm1450 x 530 x 700
Weightkgapprox. 85
inoBEAM
inoBEAM F30
Acoustic renovation paint
Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories)
Bitumen
Cement pastes, suspensions
Cement plasters
Concrete bonder
Decorative fine coats
ETICS glue, mineral
ETICS glue, paste-like
Fibour plaster
Fine acoustic finishing coats
Fire protection mortar
Floor leveling compound
Floor spattling compounds
Lime cement plasters
Lime plasters
Lime smoothers
Liquid woodchip
Mineral textured plasters
Multi-layer acoustic spray plasters
Outdoor / indoor dispersion paint Silicate paint - with conversion kit "HP"-F30 (see accessories)
Paste-like textured plasters
Porous concrete coats
Rendering base
Renovating plaster systems
Reprofiling mortar
SPCC mortar / filler
SPCC Spatula
Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers
- with sets “D”- & “R”-F30
Spray-on spattling compounds

Basic module
Item no. 10041083
Scope of delivery
inoBEAM F30:

  • Frame
  • 2 running wheels
  • Plastic material hopper
  • Cover for material hopper
  • Gear motor
  • Switching cabinet
  • 3 m connecting cable
  • Pump shaft
  • Pump housing made from stainless steel
  • Tool set
  • Assembly spray lubricant
  • Operating instructions

Set “D”-F30
for spray applications (18 l / 40 bar)
Item no. 10041913*


Set “R”-F30
for floor levelling compounds (50 l / 15 bar)
Item no. 10043416*


Set “HP”-F30
for airless spray-on smoothing compounds
(8 l / 90 bar)
Item no. 10041888*

------------------------------------------
* For delivery contents, see accessories

inoBEAM F30
Set “HP”-F30

Set “HP”-F30

The inoBEAM F30 delivery pump can be converted into a high-performance 230 V airless spraying device using an optional set and just a few, easy steps. A delivery rate of 7-8 l/min is achieved with 3.0 kW when processing spray-on filler.

Scope of delivery:
High-pressure pump SPRAY, high-pressure hose, airless gun with hose whip, pressure and suction flange “HP”, pressure control and tie rod “HP”, nozzle holder, nozzle

Set “HP”-F30 (Article No. 10041888)
Set “R”-F30 (Rotor/Stator R7-1.5)

Set “R”-F30 (Rotor/Stator R7-1.5)

  • Ø 115 mm, 50 l/min, 15 bar, e.g., for floor levelling compounds

Scope of delivery:
Suction flange, pressure flange, mortar pressure gauge, rotor/stator R7-1.5, coupling M part 50 (2” IT), 2 x M16 nuts, 2 x M16 threaded rods (330 mm), 2 x M16 double nuts

Set “R”-F30 (Rotor/Stator R7-1.5) (Article No. 10043416)
Set “E”-F30 for the combination inoMIX E12 & inoBEAM F30

Set “E”-F30 for the combination inoMIX E12 & inoBEAM F30

Scope of delivery:

  • Cable for probe control system (Item no. 10042946)
  • Filling level probe with 3 prongs (Item no. 10036550)
  • Stainless steel lid with transition connecting piece and retaining device for hydrostatic level probe

Set “E”-F30 for the combination inoMIX E12 & inoBEAM F30 (Article No. 10043986)
Set “D”-F30 (Rotor/stator D6-3 Eco gold)

Set “D”-F30 (Rotor/stator D6-3 Eco gold)

  • Ø 89 mm, 18 l/min, 40 bar, e.g., for spray applications

Scope of delivery:
Pressure and suction flange with tension rods, mortar pressure gauge, rotor/stator D6-3 Eco gold

Set “D”-F30 (Rotor/stator D6-3 Eco gold) (Article No. 10041913)
Ultralight hose

Ultralight hose

Ultralight hose with mortar coupling (Article No. 10043874)
Multi-purpose hose

Multi-purpose hose

  • For universal use, e.g. air, water
  • GEKA couplings crimped with sleeves on both sides
Technical data:
Max. operating pressure: max. 15 bar
Temperature range: -20 up to +90°C

Water / air hose - Ø 1/2“ - Length 10 m (Article No. 10022000)
Water / air hose - Ø 1/2“ - Length 15 m (Article No. 10022001)
Water / air hose - Ø 1/2“ - Length 20 m (Article No. 10022002)
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)
INOTEC mortar hose

INOTEC mortar hose

  • Abrasion-resistant special hose for pumping highly pressurised wet mortar; largely kink-proof
  • For an operating pressure of 40 bar with 3 times the reliability
  • Yellow on the outside at Ø 35 mm
  • Black on the outside at Ø 40 and Ø 50 mm
  • With mortar hose couplings, M-piece and rotating V-piece (only with diameters of 25 mm)
  • With cam levers on the M-piece
Technical data:
Operating pressure: 40 bar
Bursting pressure: 120 bar

Inotec mortar hose - Ø 25 mm - Length 10 m (Article No. 10008346-001)
Inotec mortar hose - Ø 25 mm - Length 15 m (Article No. 10008346-002)
Inotec mortar hose - Ø 25 mm - Length 20 m (Article No. 10008346-003)
Inotec mortar hose - Ø 35 mm - Length 10 m (Article No. 10022032)
Inotec mortar hose - Ø 35 mm - Length 20 m (Article No. 10008346-007)
Inotec mortar hose - Ø 40 mm - Length 13,3 m (Article No. 10041544)
Inotec mortar hose - Ø 40 mm - Length 20 m (Article No. 10041545)
Flushing hose

Flushing hose

  • For clearing blockages in mortar hoses

Flushing hose - Length 10 m (Article No. 10024385)
230 V / 3 x 2.5 mm² connecting cable

230 V / 3 x 2.5 mm² connecting cable

  • 16 A Schuko plug and CEE coupling

230 V / 3 x 2.5 mm² connecting cable - Length 15 m (Article No. 10015126)
3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m

3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m

  • Plastic cable reel with 40 m H07RN-F cable; robust design.
  • With 3 Schuko sockets, a VDE thermal circuit breaker and a locking brake. Protection class: IP44

3 x 2.5 mm² cable reel made from impact-resistant plastic - 40 m (Article No. 10015300)
Wireless remote control

Wireless remote control

  • Wireless remote control, 3-channels, with handheld transmitter integrated antenna, 24 V Harting connector with LED display
  • Only for devices with a control voltage of 12-24 V

Wireless remote control (Article No. 10043315)
Remote control cable with remote control switch

Remote control cable with remote control switch

Remote control cable with remote control switch - Length 16 m (Article No. 10042464)
Remote control cable with remote control switch - Length 32 m (Article No. 10042465)
Remote control extension cable without remote control switch

Remote control extension cable without remote control switch

  • For remote control cable
  • For remote control switch
  • For inoCOLL / inoCOLL Pro one-handed gun

Remote control extension cable without remote control switch - Length 16 m (Article No. 10015210)
Remote control extension cable without remote control switch - Length 32 m (Article No. 10042463)
Remote control switch

Remote control switch

  • With 0.2 m cable, indicator light and 4-pin Harting plug

Remote control switch (Article No. 10015134)
Adapter for remote control cable

Adapter for remote control cable

m-tec plug – Harting socket (Article No. 10015121)
m-tec socket – Harting plug (Article No. 10015120)
Hose holder

Hose holder

  • For rapidly fixing hoses to the scaffold

Hose holder (Article No. 10018503)
inoCOLL one-handed gun

inoCOLL one-handed gun

  • For bonding and basecoat mortars
  • 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose
  • For grit sizes up to 1.5 mm

inoCOLL one-handed gun (Article No. 10024144)
inoCOLL PRO one-handed gun

inoCOLL PRO one-handed gun

  • For applying reinforcing mortar and finishing plaster up to 4 mm grit size
  • Operating pressure: up to 40 bar

inoCOLL PRO one-handed gun (Article No. 10041950)
Spray attachment for inoCOLL / PRO one-handed gun  with GEKA air connection

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection

  • For spraying mineral and paste-like products
  • With 10 mm nozzle

Spray attachment for inoCOLL / PRO one-handed gun with GEKA air connection (Article No. 10039322)
Small spray pipe – short design

Small spray pipe – short design

  • With 2 m whip hose with a diameter of 19 mm and an LW 24 mortar connection coupling, suitable for a 25 mm mortar hose (without a nozzle)
  • For grit sizes up to 3.0 mm

Small spray pipe – short design (Article No. 10039887)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886

- Spray attachment for inoCOLL / PRO one-handed gun (10039322)
- Small spray pipe (10039887)
- Angled spray head with GEKA coupling (10039457)
- Spray pipe set (10039886)

  • Made from stainless steel

Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 4 mm (Article No. 10039271)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 5 mm (Article No. 10042461)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 6 mm (Article No. 10039220)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 8 mm (Article No. 10039221)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 10 mm (Article No. 10039222)
Nozzles for Item no. 10039322 / 10039887 / 10039457 / 10039886 - Ø 13 mm (for grit size up to 6 mm) (Article No. 10040941)
MAI finishing coat device, straight

MAI finishing coat device, straight

  • With 25 mm M-piece coupling
  • Including a 14 mm jet nozzle

MAI finishing coat device, straight (Article No. 10024362)
Jet nozzle

Jet nozzle

  • For MAI finishing coat device

Jet nozzle - Ø 10 mm (Article No. 10024378)
Jet nozzle - Ø 12 mm (Article No. 10024379)
Jet nozzle - Ø 14 mm (Article No. 10024380)
Jet nozzle - Ø 16 mm (Article No. 10024381)
Straight finishing coat device

Straight finishing coat device

  • With 25 mm M-piece coupling
  • Incl. a 14 mm finishing coat nozzle

Straight finishing coat device (Article No. 10024098)
Finishing coat nozzles

Finishing coat nozzles

  • For finishing coat devices, item nos.:
    10024098 / 10024099

Finishing coat nozzles - Ø 10 mm (Article No. 10024089)
Finishing coat nozzles - Ø 12 mm (Article No. 10024090)
Finishing coat nozzles - Ø 14 mm (Article No. 10024091)
Finishing coat nozzles - Ø 16 mm (Article No. 10024093)
Plastic hopper

Plastic hopper

Plastic hopper as an optional attachment for the pump hopper for increasing the container volume from 10 to 60 litres.

Plastic hopper (Article No. 10040973)
Cover for plastic hopper

Cover for plastic hopper

  • For protecting the content of the hopper against impurities
  • Made from black plastic

Cover for plastic hopper (Article No. 10041816)
Bag mangle

Bag mangle

  • For emptying plastic bags with paste-like materials

Bag mangle (Article No. 10041971)
Straight decorative plaster spraying device

Straight decorative plaster spraying device

  • Not including nozzle with 25 mm M-piece coupling
  • For grit sizes up to 6.0 mm

Straight decorative plaster spraying device (Article No. 10024246)
Nozzle for straight decorative plaster spraying device

Nozzle for straight decorative plaster spraying device

  • Made from stainless steel

Nozzle for straight decorative plaster spraying device - Ø 8 mm (Article No. 10024071)
Nozzle for straight decorative plaster spraying device - Ø 10 mm (Article No. 10024065)
Nozzle for straight decorative plaster spraying device - Ø 12 mm (Article No. 10024066)
Air quantity controller with EWO couplings

Air quantity controller with EWO couplings

  • For precisely adjusting the air quantity when spraying.
  • Is connected between the air hose and spraying device.

Air quantity controller with EWO couplings (Article No. 10017793)
Connecting coupling for compressors

Connecting coupling for compressors

  • EWO V-piece on GEKA

Connecting coupling for compressors (Article No. 10022353)
Static mixer

Static mixer

  • Prevents / destroys node in mortar
  • Diameter: 35 mm
  • Length:200 mm
  • incl. Coupling M-piece 35 mm and V-piece 35 mm

Static mixer (Article No. 10042362 )
Reprofiling sprayer

Reprofiling sprayer

  • Reprofiling sprayer 35 V with nozzle pipe 12 mm, connection 35 V-piece

Nozzle pipe 12 mm - for reprofiling sprayer (Article No. 10022789)
Nozzle pipe 15 mm - for reprofiling sprayer (Article No. 10022790)
Reprofiling sprayer (Article No. 10023309)
Coupling reducer

Coupling reducer

  • For connecting two mortar hoses or reducing the machine outlet.

Coupling reducer 35 V -> 25 V (Article No. 10022101)
Coupling reducer: 42 M-piece -> 35 M-piece (Article No. 10022097)
Plaster piece for cleaning mortar hoses

Plaster piece for cleaning mortar hoses

Plaster piece 42-V-part (Article No. 10042213)
Plaster piece with GEKA coupling - 25 M-piece (Article No. 10022112)
Plaster piece with GEKA coupling - 25 V-piece (Article No. 10022113)
Plaster piece with GEKA coupling - 35 M-piece (Article No. 10022114)
Sponge balls (soft version)

Sponge balls (soft version)

  • For cleaning material / mortar hoses

Sponge balls (soft version) - Ø 14 mm for hose Ø 13 mm (Article No. 10008116-001)
Sponge balls (soft version) - Ø 20 mm for hose Ø 19 mm (Article No. 10008116-003)
Sponge balls (soft version) - Ø 30 mm for hoseØ 25 mm (Article No. 10008116-004)
Sponge balls (soft version) - Ø 45 mm for hose Ø 35 mm (Article No. 10008116-005)
Sponge balls (soft version) - Ø 60 mm for hose Ø 40 / 50 mm (Article No. 10008116-006)
Sponge balls (solid version)

Sponge balls (solid version)

  • For cleaningmaterial / mortar hoses

Sponge balls (solid version) Ø 30 mm for hose Ø 25 mm (Article No. 10008116-007)
Sponge balls (solid version) Ø 45 mm for hose Ø 35 mm (Article No. 10008116-008)
KAESER 230 V Compressor Premium Car 450/30W

KAESER 230 V Compressor Premium Car 450/30W

The compact 230 volt compressor is ideal for many applications, such as spraying decorative coatings, plaster or bitumen, for operating compressed air tools, and for painting, etc.

Technical data:

Operating pressure: 10 bar
Suction capacity: 450 l/min
Output: 2,2 kW
Dimensions (L x W x H): 870 x 560 x 590 mm
Weight: 86 kg

KAESER 230 V Compressor Premium Car 450/30W (Article No. 10039227)
230 V INOTEC Compact 330 compressor

230 V INOTEC Compact 330 compressor

The compact 230 V compressor is excellently suited to a multitude of
applications, such as spraying decorative coats, plasters or bitumen,
as well as operating compressed air tools, varnishing, etc.

Technical data:
Operating pressure: 10 bar
Suction capacity: 330 l/min
Output: 2,05 kW
Dimensions (L x W x H): 396 x 473 x 598 mm
Weight: 32 kg

More powerful compressors available upon request!

230 V INOTEC Compact 330 compressor (Article No. 10034389)
Connection unit for 2 INOTEC Compact 330 compressors

Connection unit for 2 INOTEC Compact 330 compressors

consisting of check valve and EWO coupling

  • 2 x V parts
  • 1 x M part

Connection unit for 2 INOTEC Compact 330 compressors (Article No. 10019060)
D4 ½ output conveying screw - Head marked in green

D4 ½ output conveying screw - Head marked in green

D4 ½ output conveying screw - Head marked in green (Article No. 10022543)
D4 ½ output screw casing, soft with clamping strip

D4 ½ output screw casing, soft with clamping strip

D4 ½ output screw casing, soft with clamping strip (Article No. 10022503)
D6-3 Eco Gold conveying screw

D6-3 Eco Gold conveying screw

  • Tip marked in gold

D6-3 Eco Gold conveying screw (Article No. 10022552)
D6-3 Eco Gold screw casing

D6-3 Eco Gold screw casing

  • Without anti-twist protection, colour: gold

D6-3 Eco Gold screw casing (Article No. 10022509)
Stator R7-1.5 (maintenance-free)

Stator R7-1.5 (maintenance-free)

Stator R7-1.5 (maintenance-free) (Article No. 10023395)
Rotor R7-1.5

Rotor R7-1.5

R7-1,5 spiral conveyor (Article No. 10022887)
Stator R7-1.5 with clamping strip

Stator R7-1.5 with clamping strip

Stator R7-1.5 with clamping strip (Article No. 10023395)
D8-1.5 conveying screw

D8-1.5 conveying screw

  • Tip marked in yellow

D8-1.5 conveying screw (Article No. 10022562)
D8-1.5 yellow screw casing (maintenance free)

D8-1.5 yellow screw casing (maintenance free)

D8-1.5 yellow screw casing (maintenance free) (Article No. 10022517)
D8-1.5 yellow screw casing with clamping strip

D8-1.5 yellow screw casing with clamping strip

D8-1.5 yellow screw casing with clamping strip (Article No. 10022519)
Rotor D7-2.5 “S”

Rotor D7-2.5 “S”

Rotor D7-2,5 „S“ (Article No. 10022556)
Stator D7-2.5 “Mono Plus” (maintenance free)

Stator D7-2.5 “Mono Plus” (maintenance free)

Stator D7-2.5 “Mono Plus” (maintenance free) (Article No. 10042506)
Assembly spray lubricant

Assembly spray lubricant

  • For assembling the conveying screw and screw casing
  • 400 ml

Assembly spray lubricant (Article No. 10004591)
Professional grease gun: 400 ccm cartridges with hand lever press

Professional grease gun: 400 ccm cartridges with hand lever press

  • Hose length: 300 mm (Diameter: 8 mm)
  • Material: Steel
  • Good durability, easy handling
  • Weight: 1.10 kg

Professional grease gun: 400 ccm cartridges with hand lever press (Article No. 10026629)
Grease cartridges (replacement cartridges) for professional grease gun

Grease cartridges (replacement cartridges) for professional grease gun

Grease cartridges (replacement cartridges) for professional grease gun (Article No. 10004510)

Inquiry: inoBEAM F30



* Required
