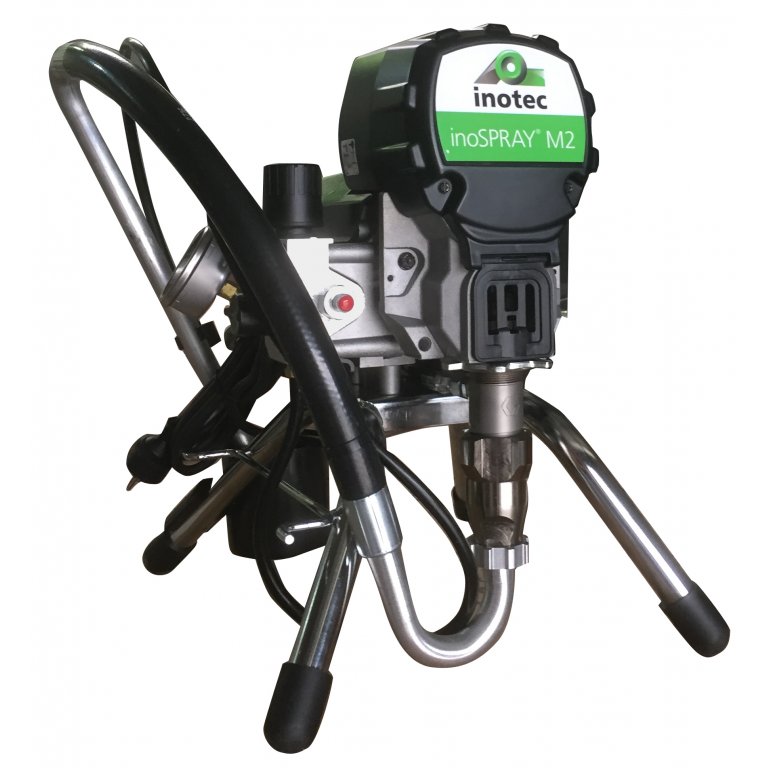

The universal 230 V* piston pump airless sprayer for liquid materials
Benefits at a glance
- Versatile in use
- Simple operation
- Proven, robust technology
The inoSPRAY M2 is a universal 230 V airless spraying device for spraying dispersion paints on smaller surfaces up to nozzle size 0.021".
_______________
* The machine is also available in 110 V
| Operating pressure | bar | up to 0 - 230 |
| Operating voltage | V/Hz/A | 230 / 50 / 16 |
| Drive performance | kW | 0,75 |
| Delivery rate (depending on the material) | l/min | max. 1,8 |
| Conveying distance (depending on the material) | m | max. 15 |
| Nozzle size | " | max. 0,021 |
| Hose connection | " | 1/4 |
| Machine technique | Airless devices | |
| Dimensions (L x W x H) | mm | 420 x 350 x 460 |
| Weight | kg | approx. 23 |
inoSPRAY M2 | |
| Airless spattling compounds | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F12 (see accessories) | |
| Airless spray-on smoothing compounds - with conversion kit 'HP'-F30 (see accessories) | |
| Clear varnishes | |
| EP and PU injection resins | |
| External dispersion paints | |
| Fire protection coats | |
| Highly viscous materials | |
| Internal dispersion paints | |
| Pigmented varnishes | |
| Primers | |
| Silicate paints | |
| Spray-on filling, bonding, plastering, reinforcing and can be combined with one-way containers - with sets “D”-F12 and “D”- & “R”-F30 | |
| Stains | |
| Varnishes greater than 21°C | |
| Water-based varnishes | |
| Wood preservatives |
Ready-to-spray set
Item no. 10042756
Scope of delivery
inoSPRAY M2 Set:
- 1/4”, 15 m material hose with a diameter of 6 mm
- AG 500 L gun
- Swivel joint and thread adapter
- RAC X nozzle holder
- 517, 519 nozzles
- Tool
- Carry frame
- Piston pump unit
- Operating instructions

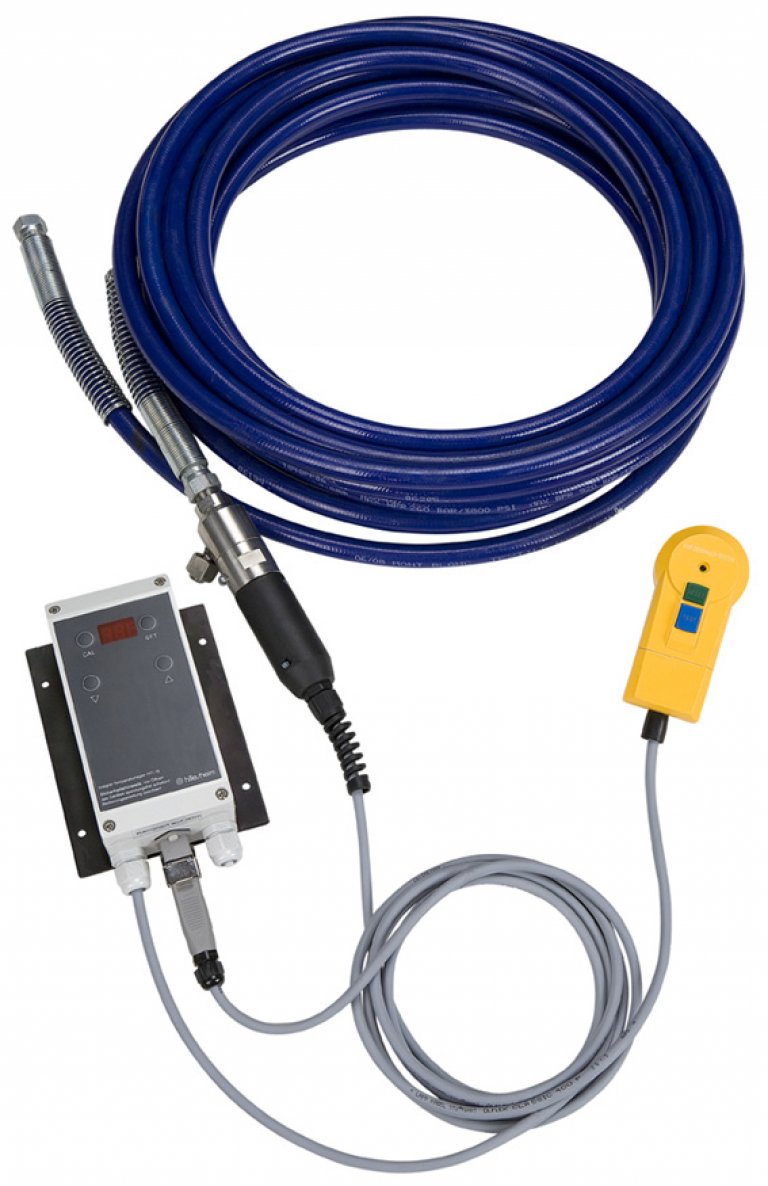

inoSPRAY Temp, heating hose for airless devices
For optimally adjusting the viscosity of the material without thinning it. Less wear on the airless device thanks to a lower material pressure. Possible to apply thicker layers.
| Technical data: | |
| Operating pressure: | 250 bar |
| Nominal width: | 10 mm e.g. for dispersions, 8 mm for varnish |
| Connection: | 3/8“ IT |
Scope of delivery:
With control device for adjusting the temperature and RCBO switch, connecting cable

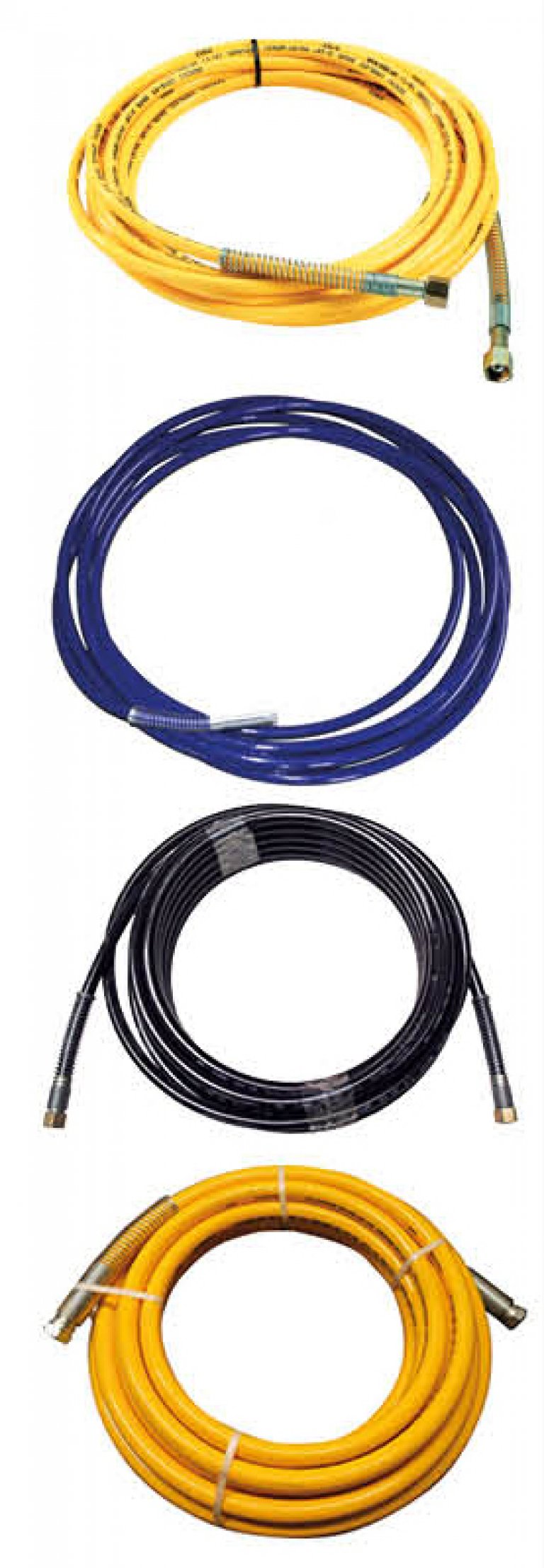

High-pressure / airless hoses
Colours: yellow / blue / black

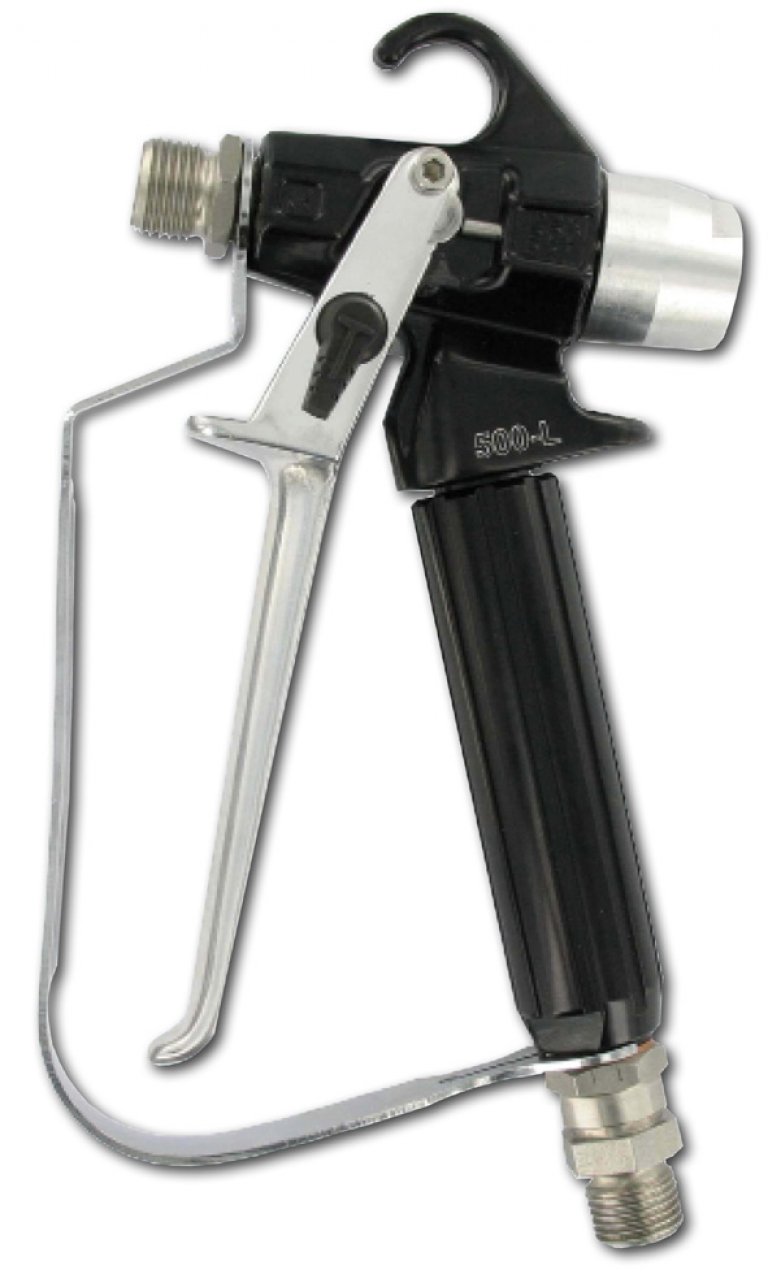

INOTEC AG 500 L airless gun
- High-quality airless gun with 4-finger trigger
| Technical data: | |
| Needle position / ball: | 5 mm |
| Operating pressure: | 500 bar |
| Receptacle for nozzle holder: | 7/8“ |
| Swivel joint | with 1/4” hose connection |
| Filter | 60 Mesh |
| Adapter | V2A 1/4” IT – M16 x 1.5 ET |
Scope of delivery:
Gun without nozzle holder / nozzles

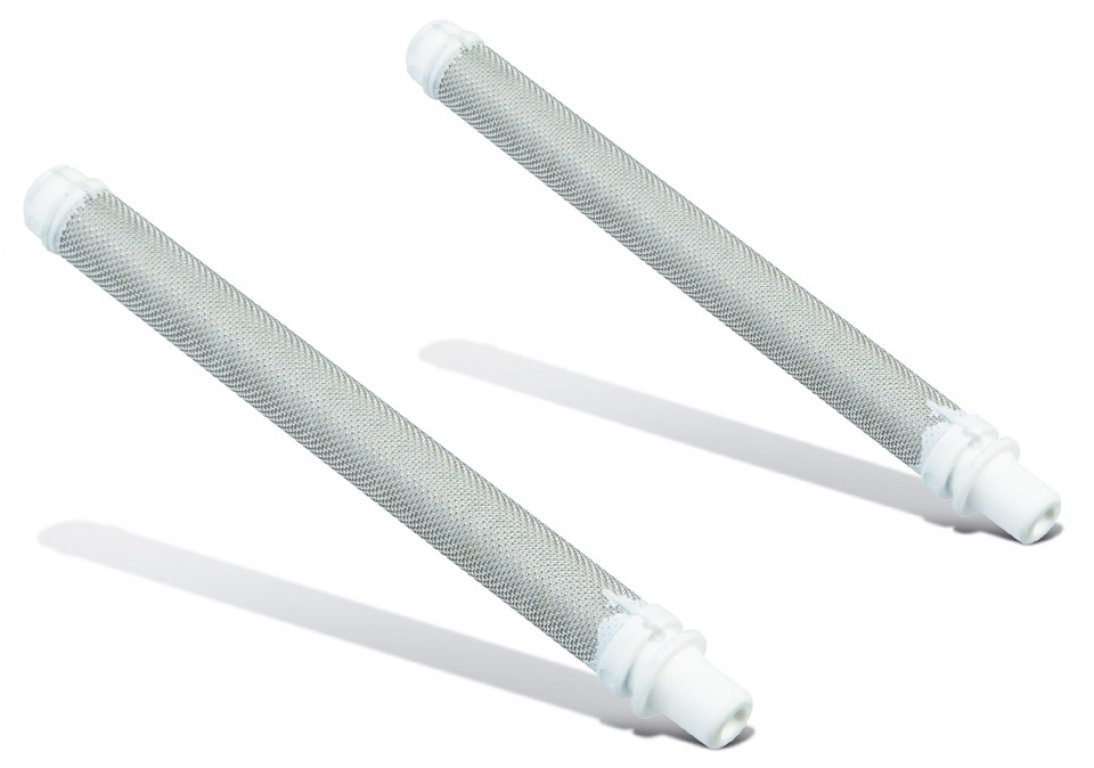

Gun filter for AG 500 L

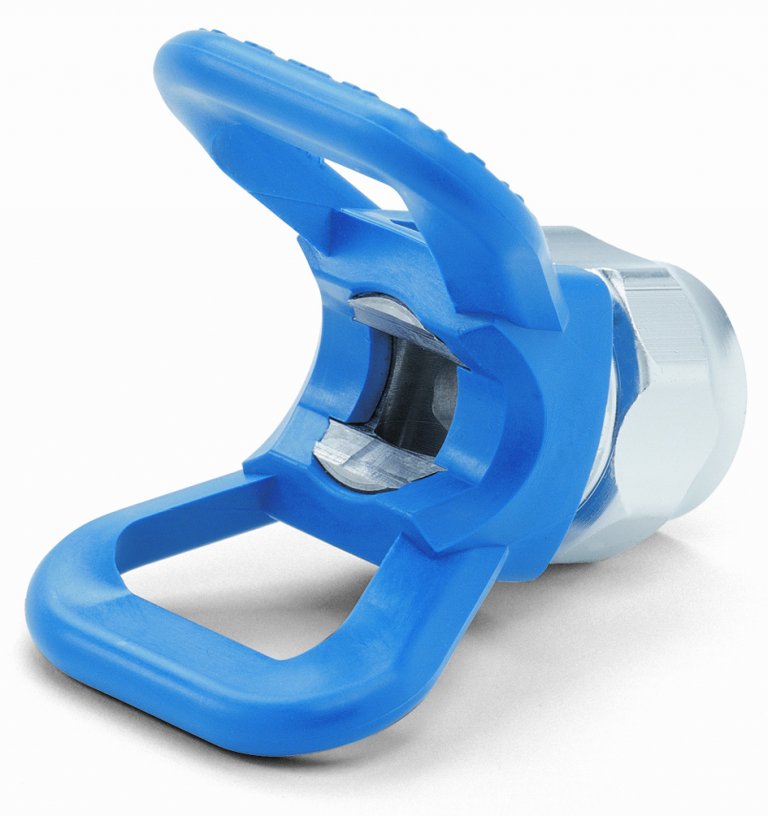

Graco RAC X nozzle holder for RAC X nozzles
- Operating pressure: 280 bar
- Suitable for:
Graco PAA, FFA, HDA, WA nozzles

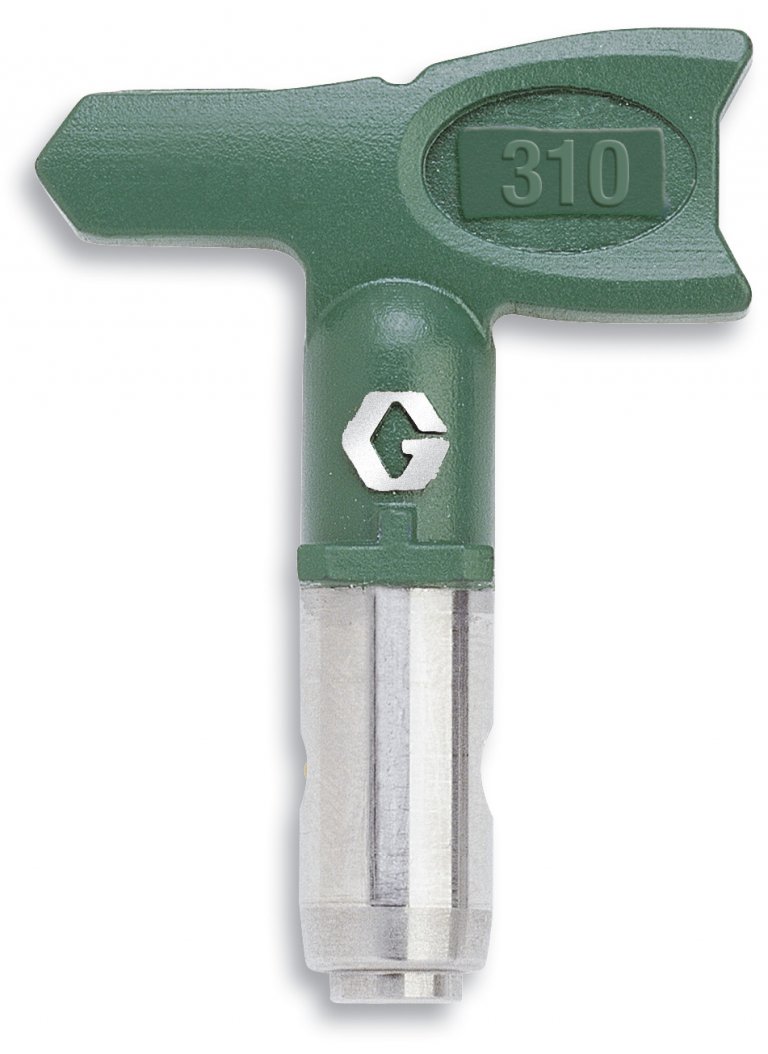

Graco FFA nozzles
for RAC X nozzle holders (FFA = Fine Finish Application)
- Colour: green
- E.g. for paint, mordents, clear varnishes, varnishes

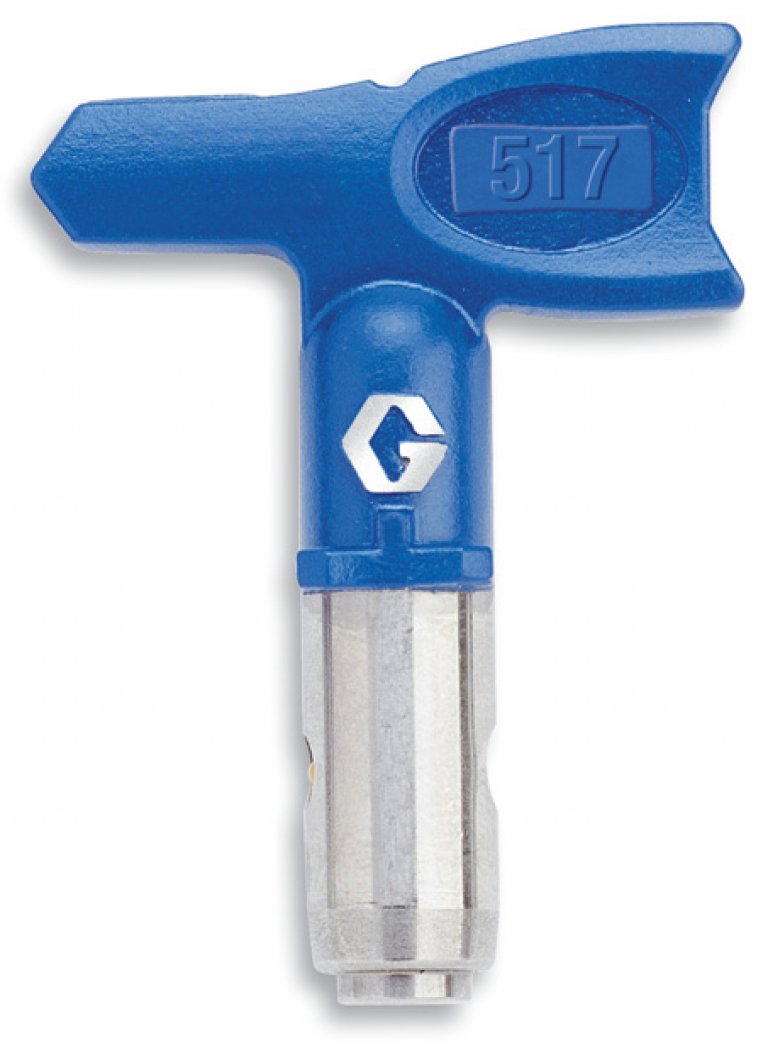

Graco PAA nozzles
for RAC X nozzle holders (PAA = Professional Airless Application)
- Colour: blue
- E.g. for dispersions, acrylic paints, emulsions, etc., for indoor and outdoor applications

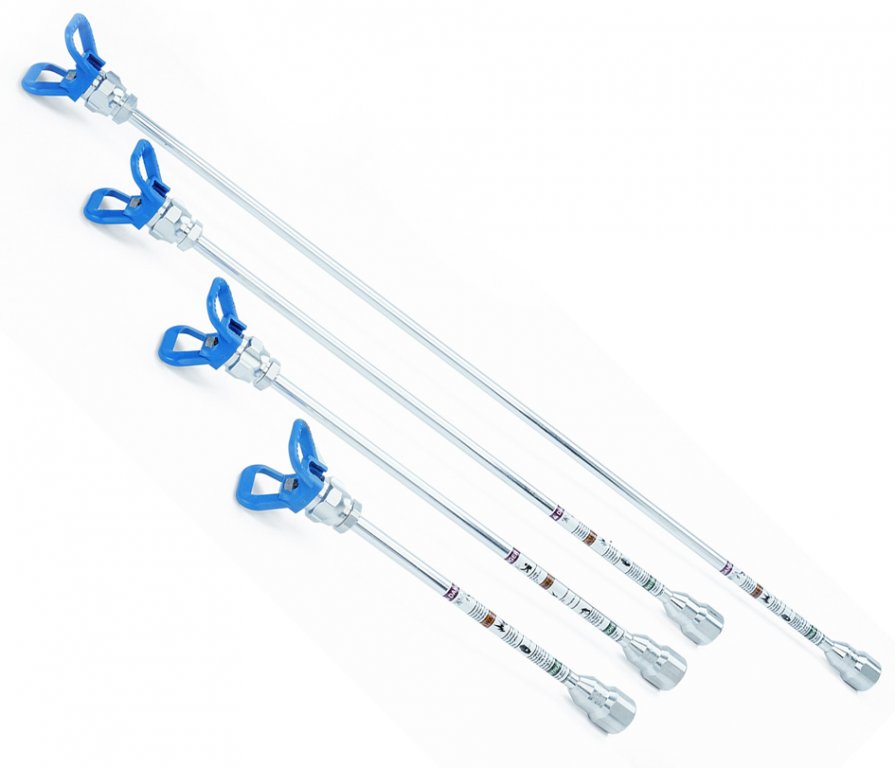

Graco RAC X nozzle extension
- With 7/8” thread
- With RAC X nozzle holder (not including nozzle)

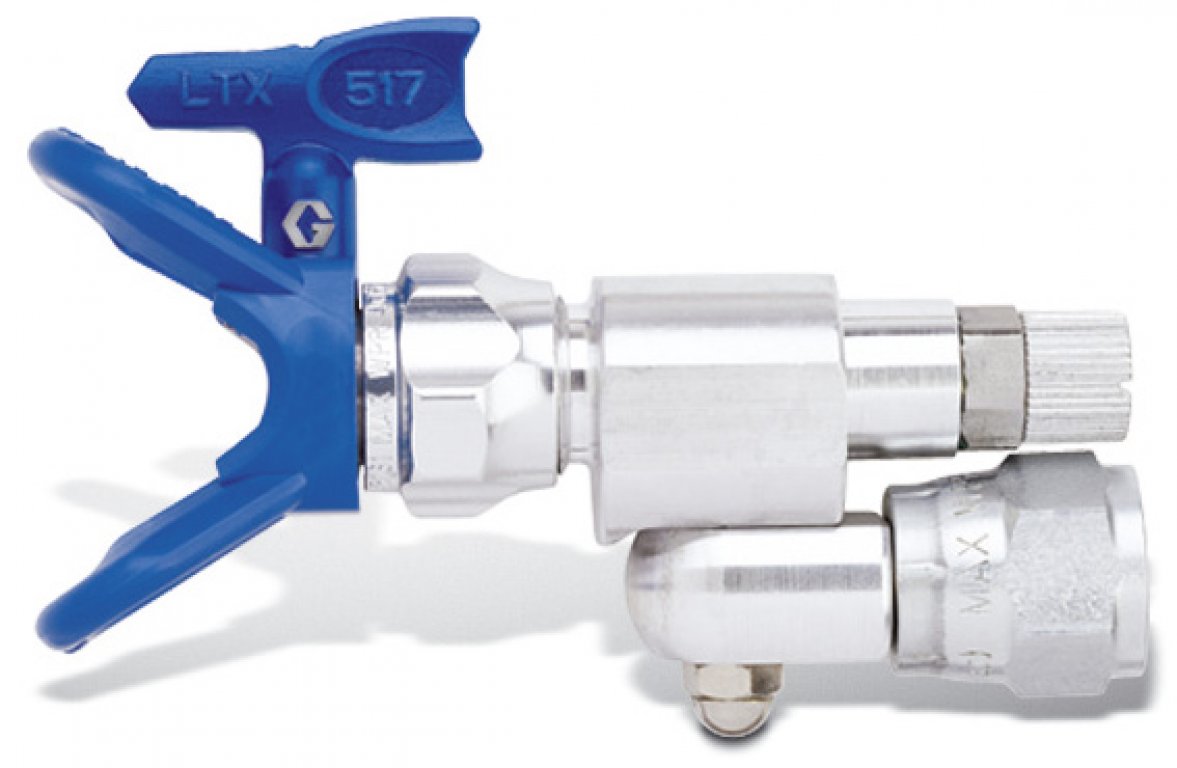

Graco Cleanshot shut-off valve set
The Cleanshot valve has two settings: spraying and flushing.
The valve is set to the spraying position ex-works, with a back pressure of 48 bar. Simply turn the valve to perform bleeding, flushing or cleaning operations.
Scope of delivery:
With RAC X nozzle holder and PAA 517 nozzle

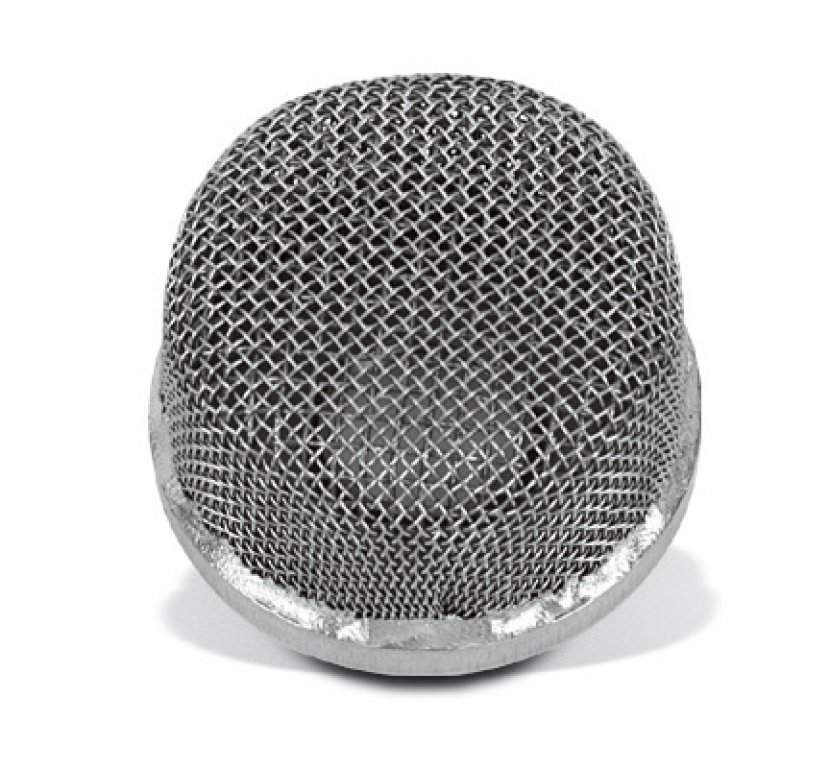

Graco suction filter
For your device to work reliably, the inlet strainer should be kept clean at all times, thus guaranteeing a good flow of material. Pre-filtering is gentle on your pump and extends its service life.

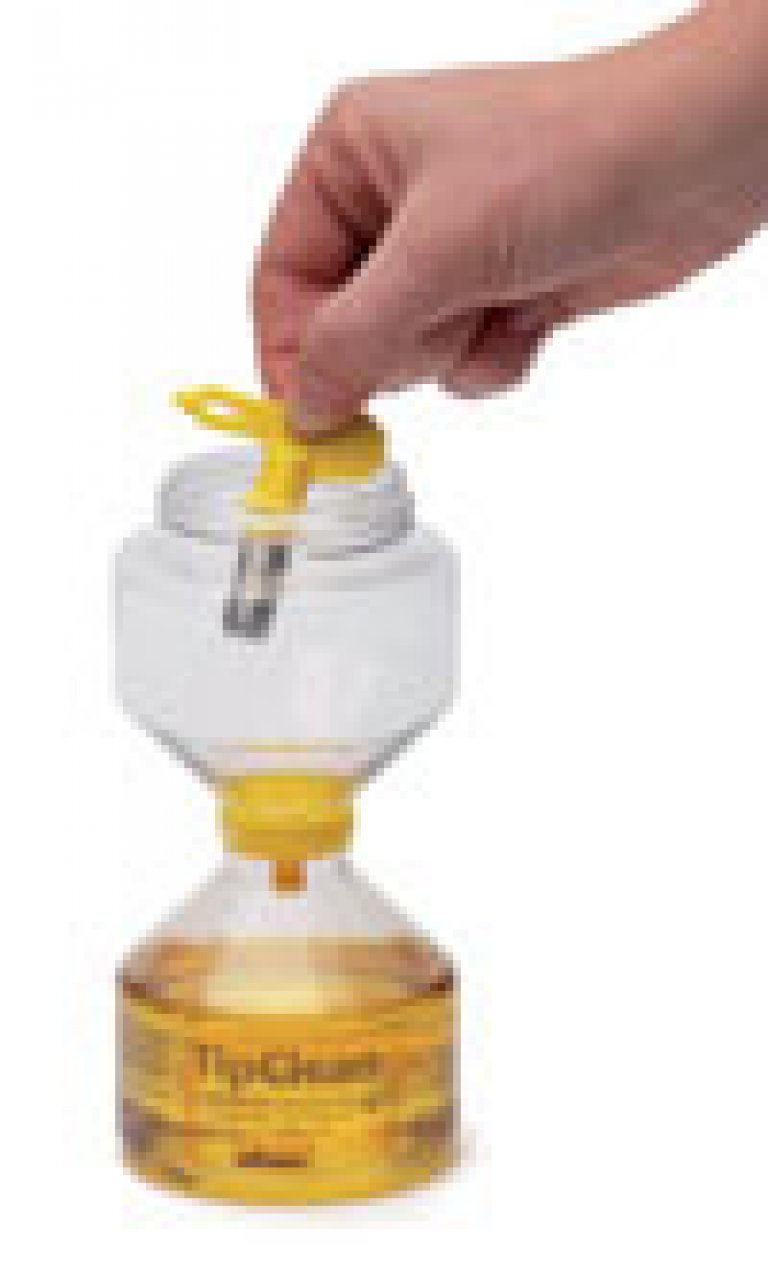

Tip-Clean nozzle cleaning set for airless nozzles
For quick and simple cleaning and preservation of airless nozzles.

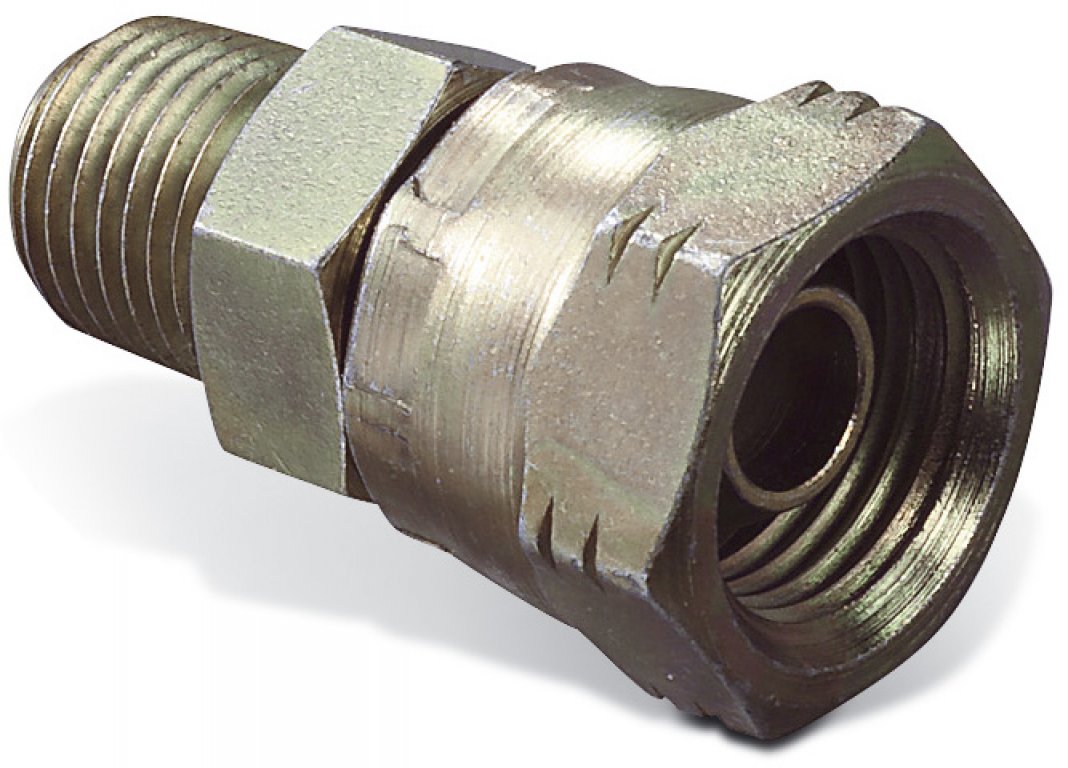

Transition nipple
This connection is rigid; does not rotate
- For connecting a variety of hoses

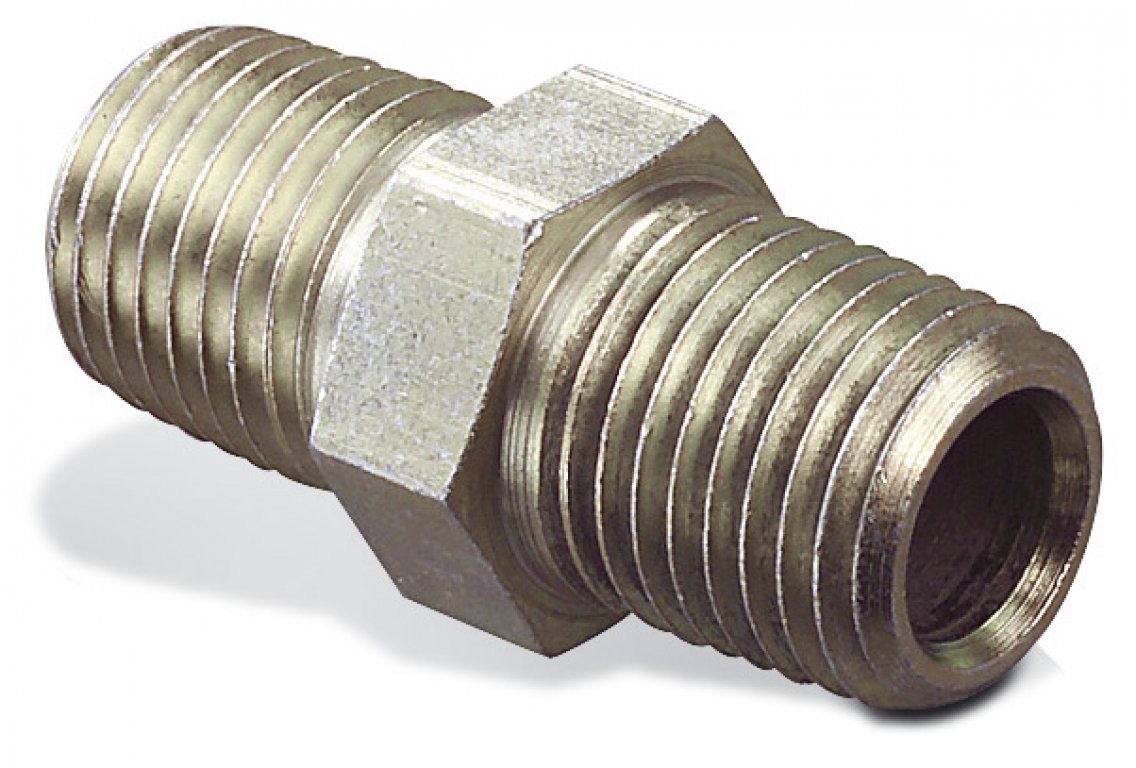

Double nipple
- Hose connection – this connection is rigid; does not rotate

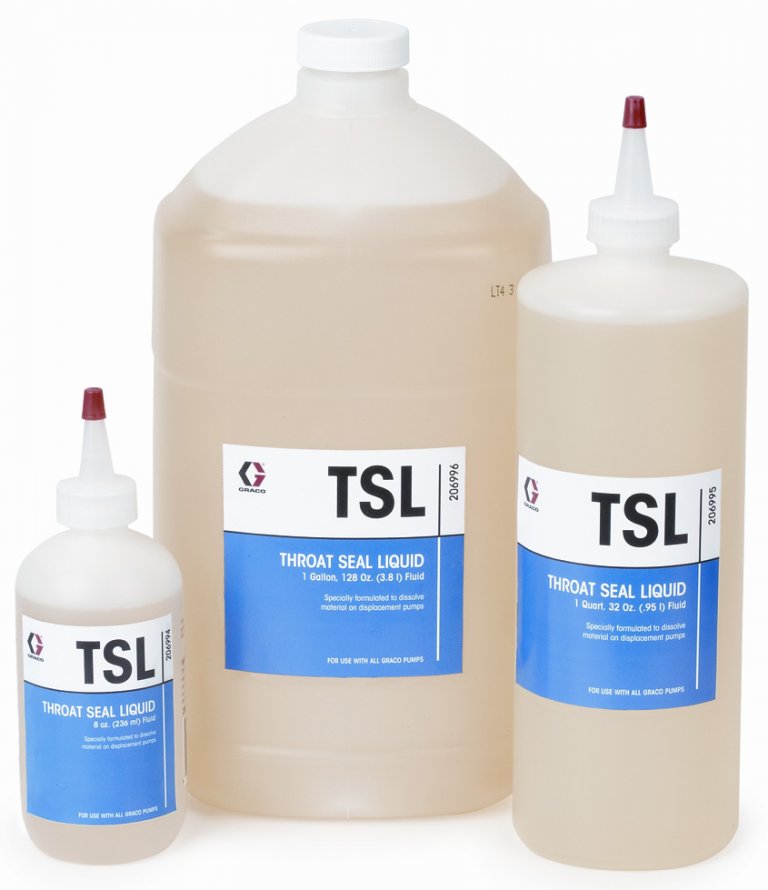

Graco TSL liquid (= neck sealing lubricant)
Loosens hardened spray material on piston rods or slows down their hardening process while reducing friction, wear or abrasion at the same time.
- 0.25 litre bottle

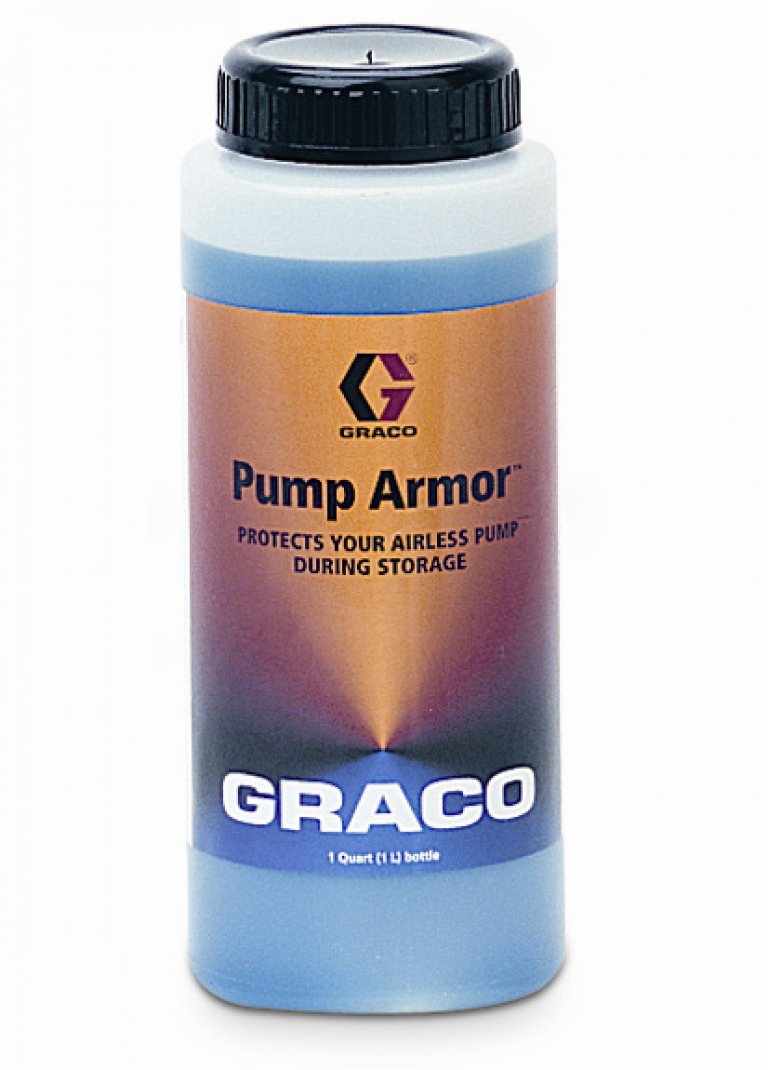

Graco Pump Armor protective liquid
After cleaning, flush the device with Pump Armor to create a protective sleeve that protects against frost and corrosion in the device.
- 1.0 litre bottle

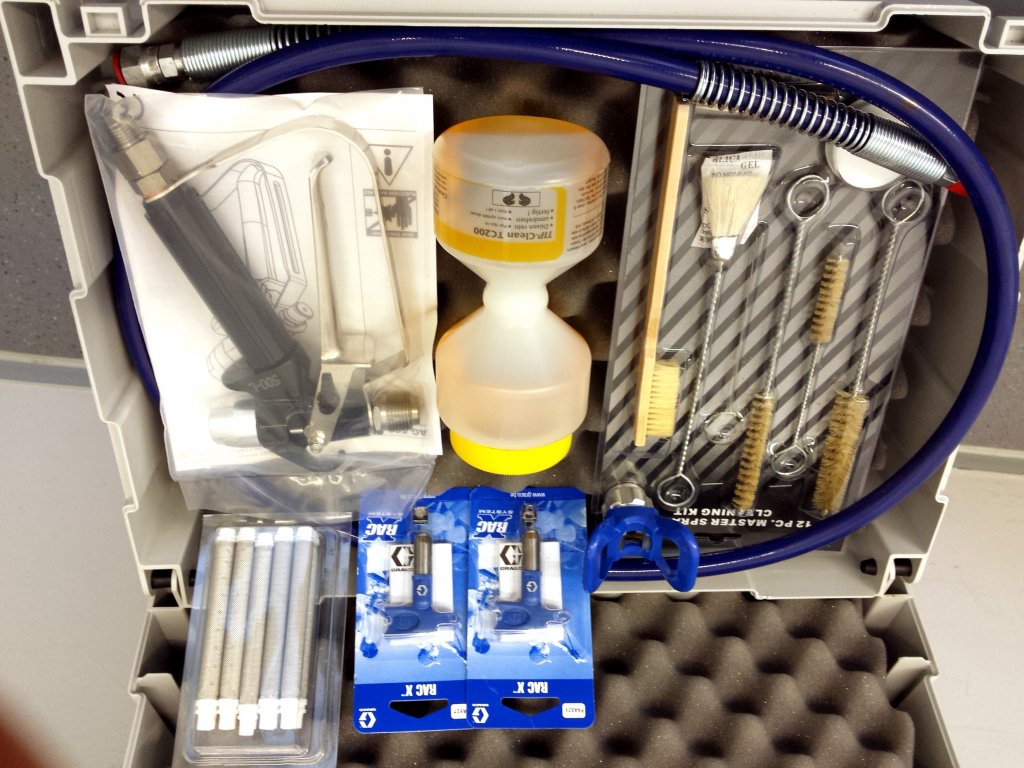

First aid airless set “Dispersion”
Provided in emergency kit:
airless gun AG500-L-G, 10 x white plug-in filter, nozzle holder RAC X, reversible nozzle RAC X 517, reversible nozzle RAC X 521, whip hose ¼”, TipClean, brush cleaning kit
