The ideal 230 V* continuous mixer for powdery materials from a one-way container
Benefits at a glance
- Extremely simple operation
- Constant material consistency
- High mixing rate
- Simple one-person transport
- Simple cleaning
- Low-maintenance technology
- Can be combined with the delivery pump inoBEAM F30
Ingeniously simple, simply ingenious!

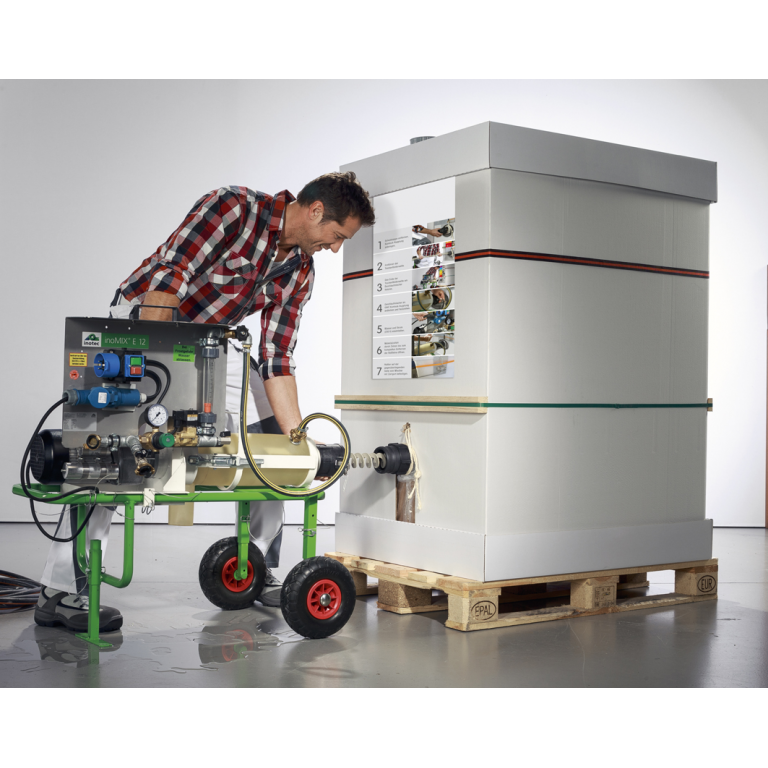

The inoMIX E12 is a simple, affordable and yet very powerful continuous mixer for processing powdery materials from a one-way container (OWC).
Extremely simple operation and handling plus a high mixing rate ensure smooth applications on the construction site.
_______________
* The machine is also available in 110 V
Service details
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 1,1 |
| Mixing performance | l/min | max. ca. 18 l/min |
| Machine technique | Mixers | |
| Dimensions (L x W x H) | mm | 1200 x 610 x 950 |
| Weight | kg | approx. 47 |
inoMIX E12 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery
inoMIX E 12
Item no. 10005950
- Height-adjustable frame
- 2 running wheels
- PU mixing pipe
- Mixing shaft
- Gear motor
- Metering shaft
- Water fitting with flow meter
- Connecting cable
- Operating instructions
Optional (see accessories):
- Can be combined with optional bag funnel for the use of bagged goods

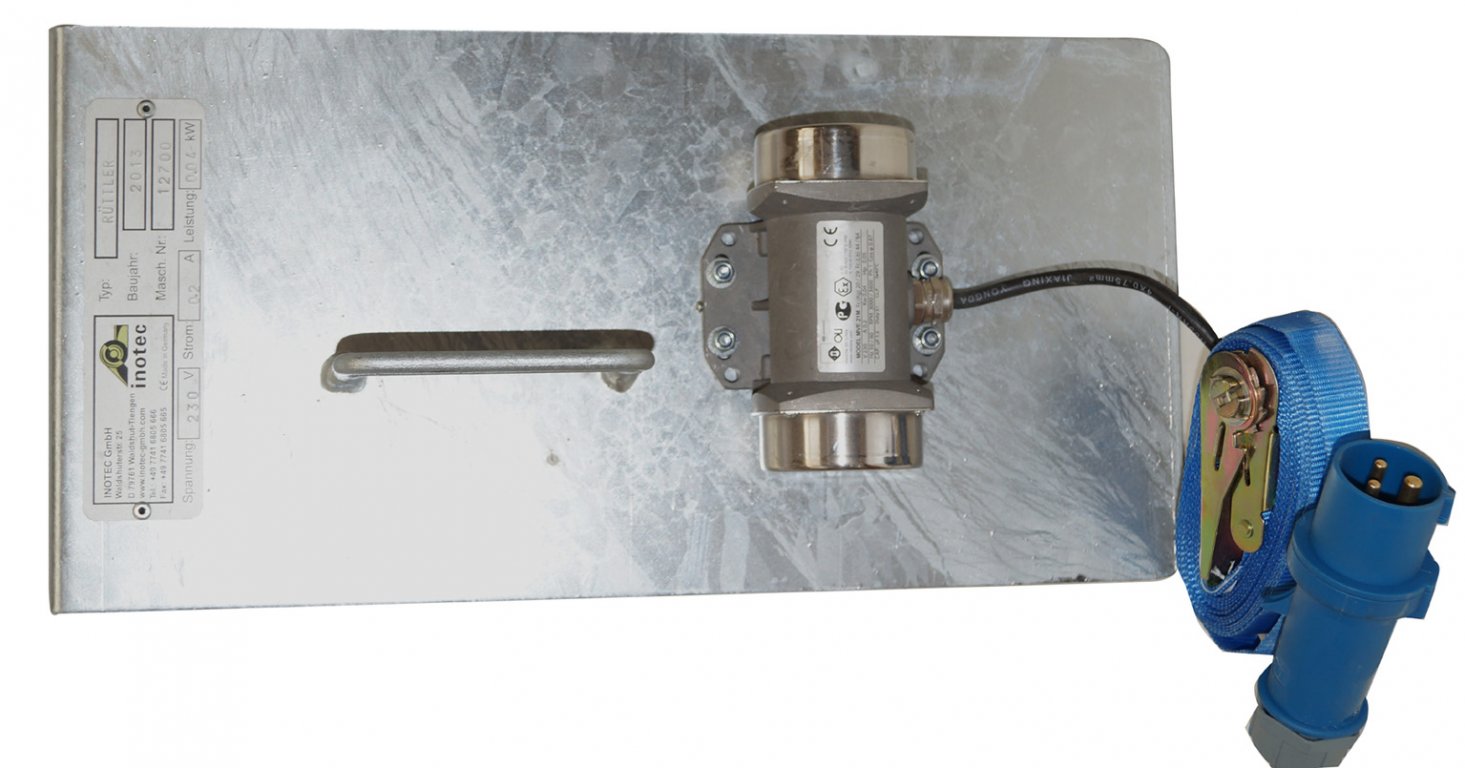

Vibrating unit for one-way-container
The vibrating unit is belted directly onto the one-way container
- For non-flowing powder material in a one-way container
- Prevents tunnel formation in the material hopper
Scope of delivery:
Vibrating unit with support bracket, tension belt and power cable

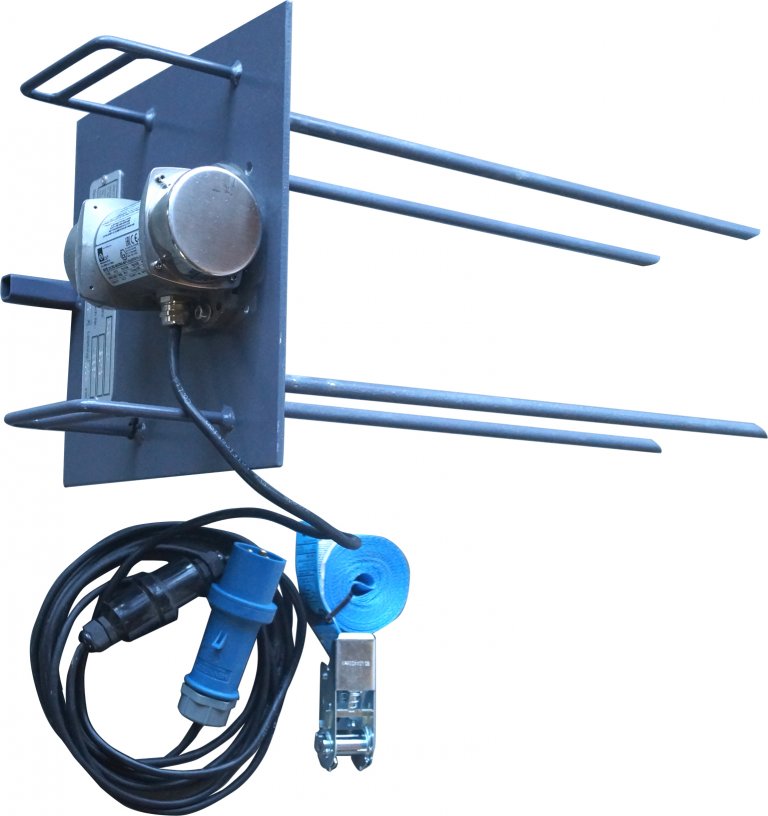

Vibrating unit with vibration rods for OWC and big bags
The vibration unit is stuck directly into an OWC or big bag and secured with a tension belt
- • For non-flowing powder material in an OWC or big bag
- • Prevents ‘tunnel formation’ or ‘bridges’
Scope of delivery:
Vibrating unit assembled on plate with vibration rods, including 230 V connecting cable and tension belt.
Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
230 V / 3 x 2.5 mm² extension cable
- 16 A Schuko plug and coupling
Mixing shaft for inoMIX E12
- (from serial number: 13662 Year of construction: 2014)

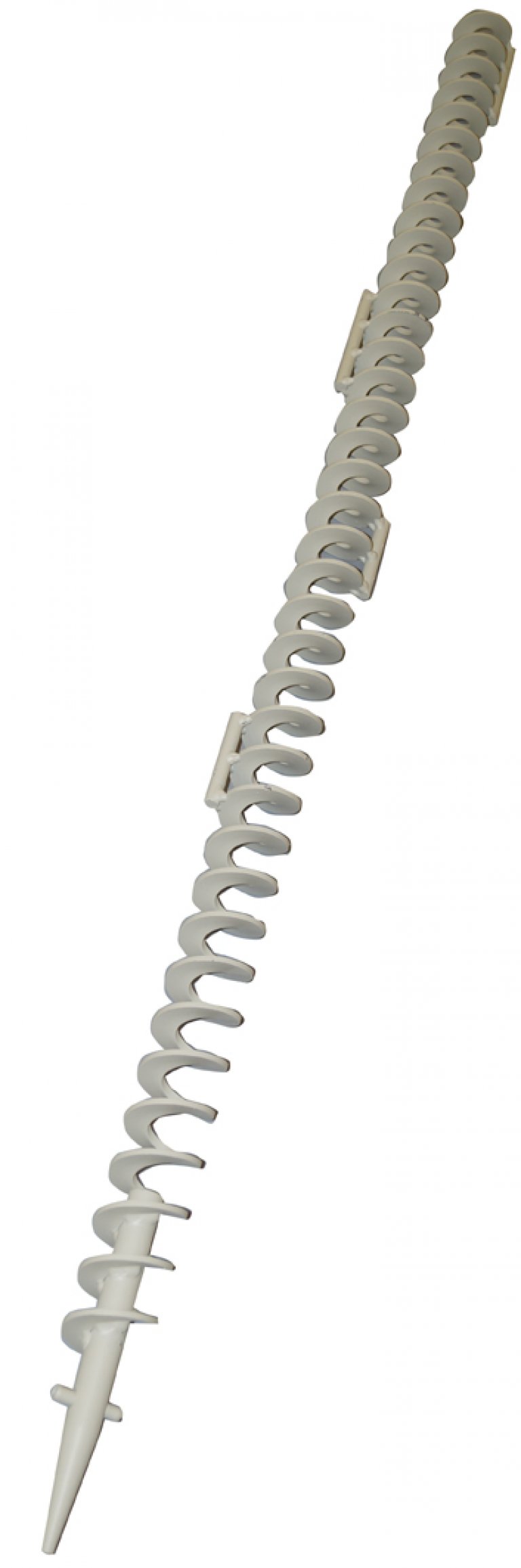

Metering shaft for inoMIX E12 - gradient 30 mm
Bag hopper
- Bag hopper for connecting to the inoMIX E12 including metering shaft
