The powerful 400 V continuous mixer for processing powdery materials

Benefits at a glance

  • Considerable time saving compared with mixing material using handheld agitators
  • Simple operation and cleaning
  • Constant material consistency
  • High mixing rate
  • The machine can be quickly dismantled into individual components without the need for tools (short setup times)
  • Low-maintenance and construction site compliant technology
  • PU mixing tube removable
  • Compatible with delivery pumps
  • Automatic rotation direction detection
  • Transition hood with standard flange attachment with a diameter of 250 mm and thus suitable for all conventional silos

The inoMIX S50 S is a powerful 400 V continuous mixer that is a class of its own. All standard powdery materials can be processed quickly and easily with the strong motor. It is handy, powerful and can be assembled and dismantled again in just a few steps.

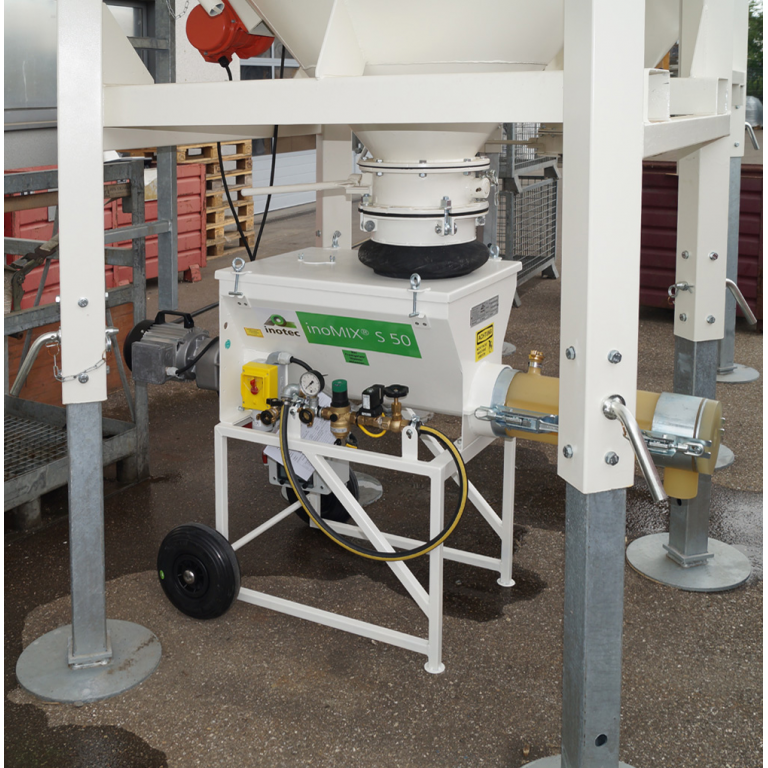

The material can be fed via bagged material or in connection with the transfer hood directly from a silo.



inoMIX S50 S

Video

Service details

Services
Operating voltageV/Hz/A400 / 50 / 16
Drive performancekW2,6
Mixing performancel/minmax. ca. 22 l/min - ca. 50 l/min*
Material containerlmax. 75
Machine techniqueMixers
Comments* with steel metering shaft (pitch 45 mm)
Dimensions (L x W x H)mm1200 x 715 x 990
Weightkgapprox. 90
inoMIX
inoMIX S50 S
Cement pastes, suspensions
Cement plasters
Dried clay plasters
ETICS glue, mineral
Fire protection mortar
Floating screeds
Floor spattling compounds
Grout
Grouting mortar
Gypsum filling compounds
Light masonry mortar
Lime cement plasters
Lime plasters
Lime smoothers
Loam plasters
Masonry mortar
Mineral textured plasters
Multi-layer acoustic spray plasters
PCC- and SPCC-mortar / filler
Rear masonry mortar
Renovating plaster systems
SPCC Spatula
Trass drainage mortar

Scope of delivery
inoMIX S50
Item no. 10043103

  • Frame
  • 2 running wheels
  • Material hopper
  • Gear motor
  • PU mixing tube inoPOWERMIX
  • Stainless steel mixing shaft
  • Steel metering shaft
  • Water fitting
  • Operating instructions
inoMIX S50 S

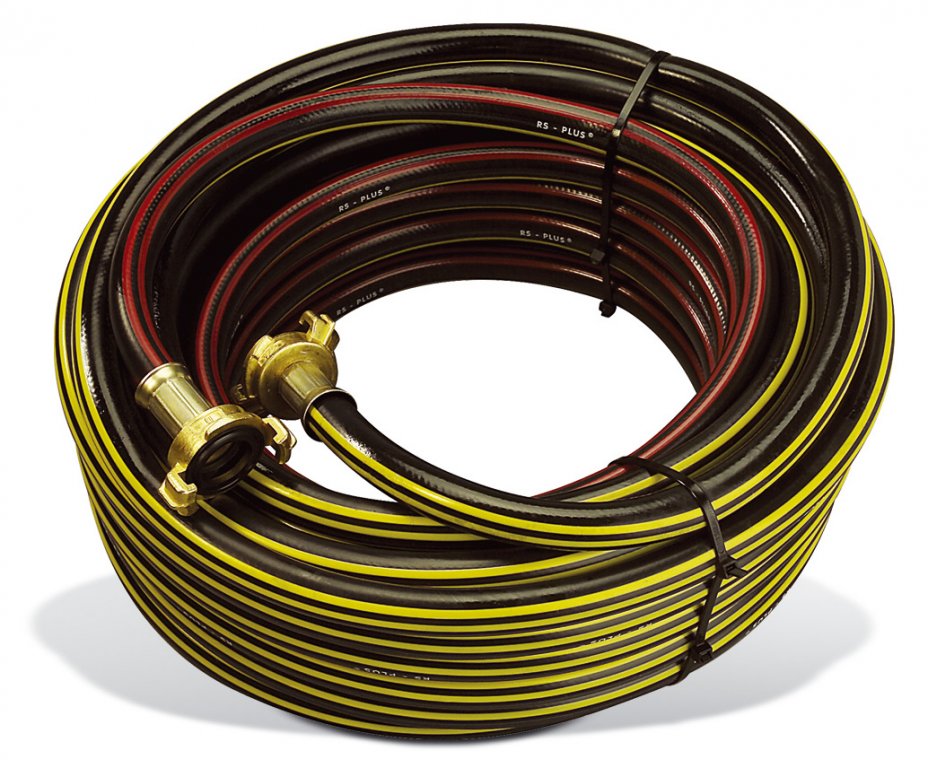

Multi-purpose hose

Multi-purpose hose

  • For universal use, e.g. air, water
  • GEKA couplings crimped with sleeves on both sides
Technical data:
Max. operating pressure: max. 15 bar
Temperature range: -20 up to +90°C

Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)
230 V / 3 x 2.5 mm² extension cable

230 V / 3 x 2.5 mm² extension cable

  • 16 A Schuko plug and coupling

230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)
400 V extension cable, 5 x 2.5 mm², length 20 m

400 V extension cable, 5 x 2.5 mm², length 20 m

  • 16 A, CEE plug and coupling

400 V extension cable, 5 x 2.5 mm², length 20 m (Article No. 10015199)
Plastic funnel attachment for inoMIX S50 / S50 T / S50 S

Plastic funnel attachment for inoMIX S50 / S50 T / S50 S

  • to increase the filling volume for light levelling material (approx. 160 l)

Plastic funnel attachment for inoMIX S50 / S50 T / S50 S (Article No. 10044095)

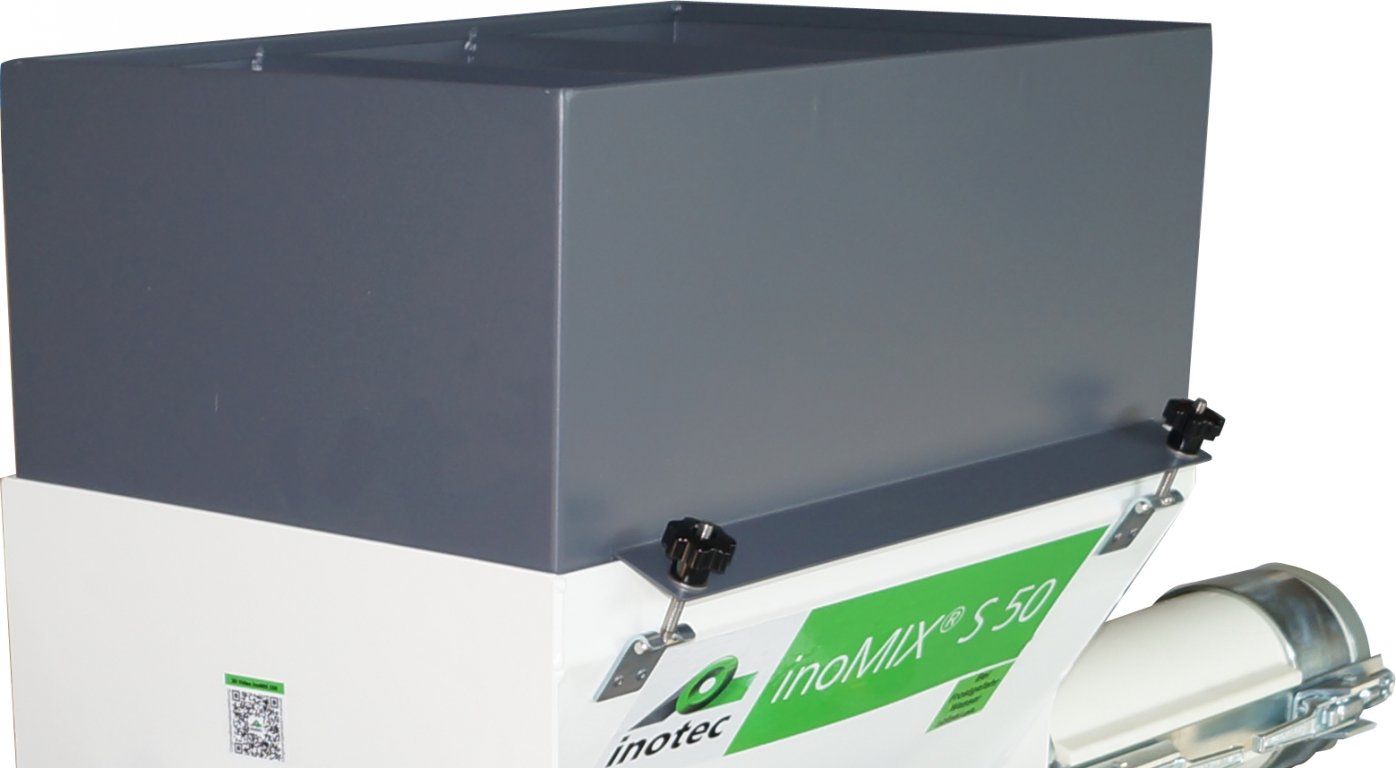

Steel top hopper for inoMIX S50 / S50 T / S50S

Steel top hopper for inoMIX S50 / S50 T / S50S

  • to increase the filling volume for e.g. floor levelling compounds

Steel top hopper for inoMIX S50 / S50 T / S50S (Article No. 10044870)
inoPOWERMIX+ “S” PU mixing pipe, complete, with wide material discharge for stiff material with high delivery rate

inoPOWERMIX+ “S” PU mixing pipe, complete, with wide material discharge for stiff material with high delivery rate

including PU inlay, steel frame with eccentric fastenings, mixing pipe cover and mixing shaft (stainless steel) (e.g. drainage mortar, industrial screeds, etc.)

inoPOWERMIX+ “S” PU mixing pipe, complete, with wide material discharge (Article No. 10044169)

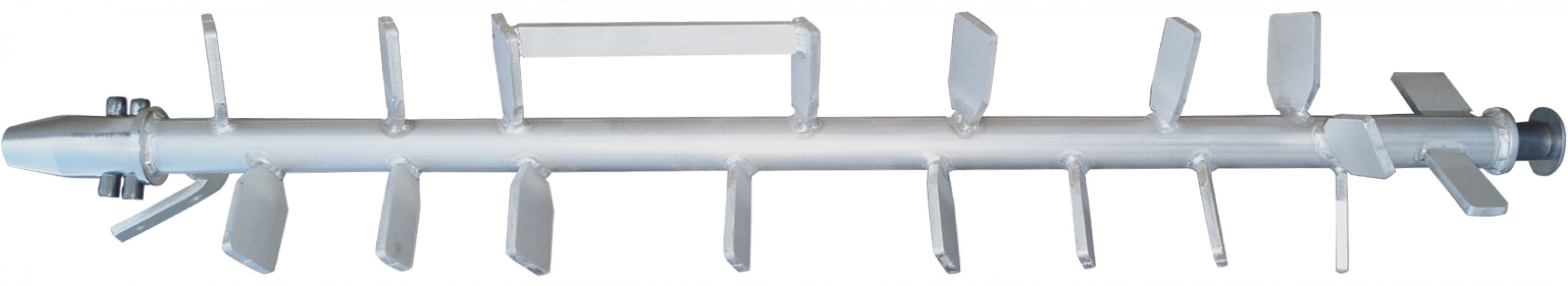

Metering shaft for inoMix S50 / S50 T / S50 S

Metering shaft for inoMix S50 / S50 T / S50 S

Metering shaft for inoMIX S50 - 35 mm gradient, optional (e.g. for bonding, reinforcing compounds) (Article No. 10043255)
Metering shaft for inoMIX S50 - 45mm gradient, standard (e.g. for floor levelling compounds) (Article No. 10043254)

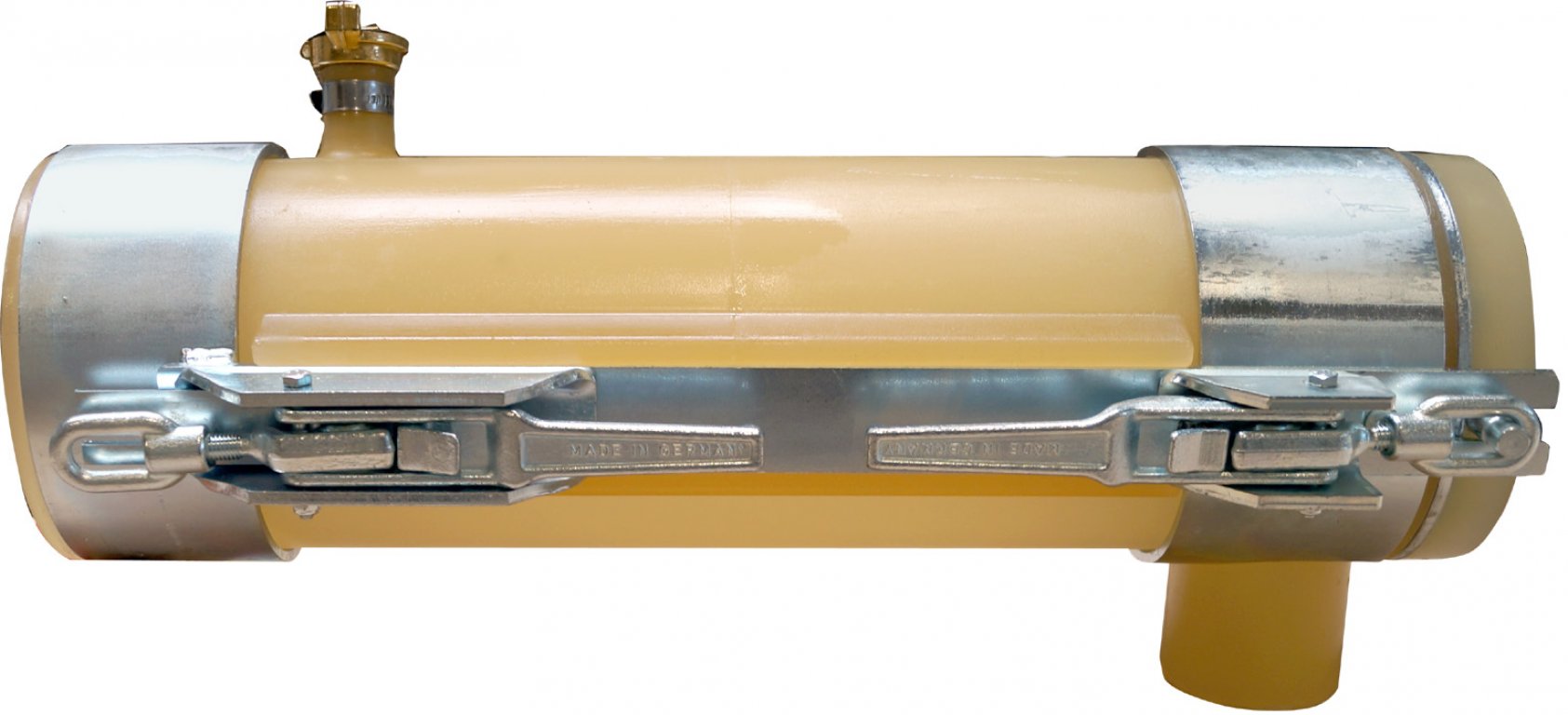

PU mixing tube inoPOWERMIX short with wide material outlet for inoMIX S50 / F52 (stainless steel mixing shaft)

PU mixing tube inoPOWERMIX short with wide material outlet for inoMIX S50 / F52 (stainless steel mixing shaft)

  • including PU inlay, steel frame with eccentric locks, mixing tube cover and stainless steel mixing shaft

inoPOWERMIX “S” mixing pipe, complete (Article No. 10044171)
Stainless steel mixing shaft for inoPOWERMIX short for inoMIX S50 / F52

Stainless steel mixing shaft for inoPOWERMIX short for inoMIX S50 / F52

  • (e.g. floor levelling compounds, bricklaying mortar, drainage mortar, industrial screeds, etc.)

Stainless steel mixing shaft for inoPOWERMIX short for inoMIX S50 / F52 (Article No. 10041033)

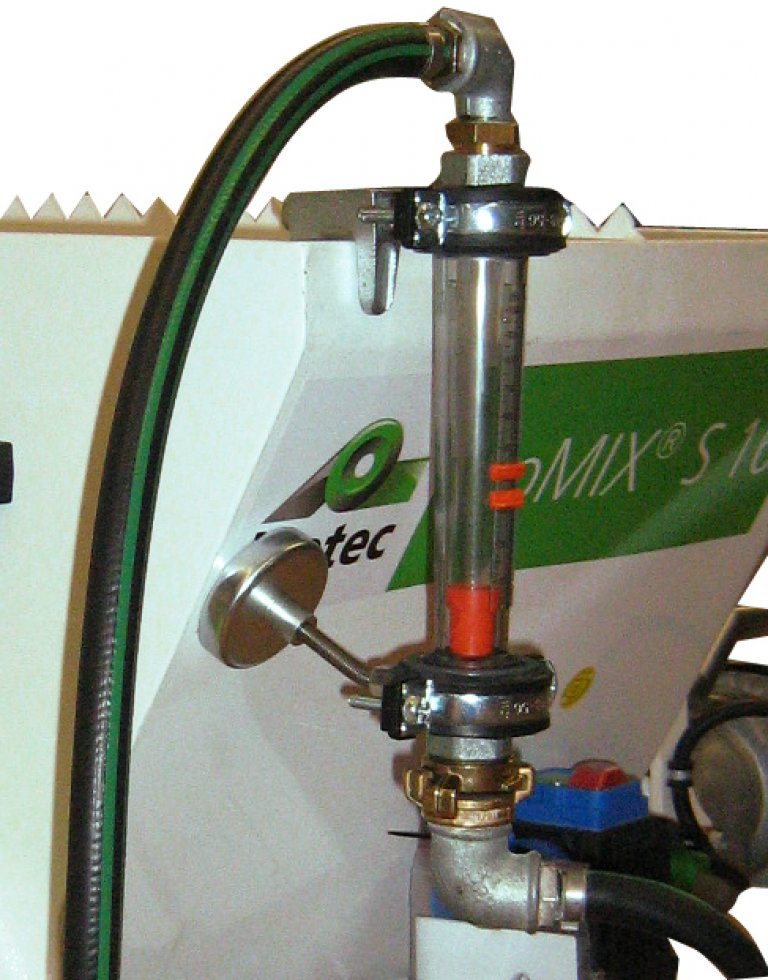

Flow meter with holder

Flow meter with holder

  • For visual control of the water volume

Flow meter with holder (150 - 1.500 l) (Article No. 10043870)
