The powerful 230 V* continuous mixer for processing powdery materials
Benefits at a glance
- Considerable time saving compared with mixing material using handheld agitators
- Simple operation
- Constant material consistency
- High mixing rate
- The machine can be quickly dismantled into individual components without the need for tools, which guarantees short setup times
- Low-maintenance technology
- PU mixing pipe (detachable)
- Simple cleaning
- Compatible with delivery pumps

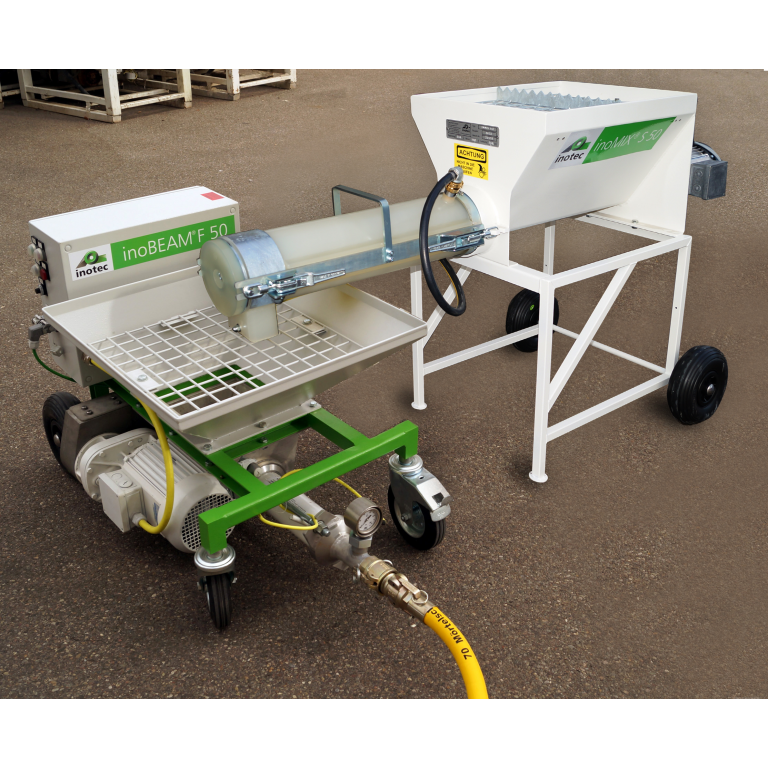

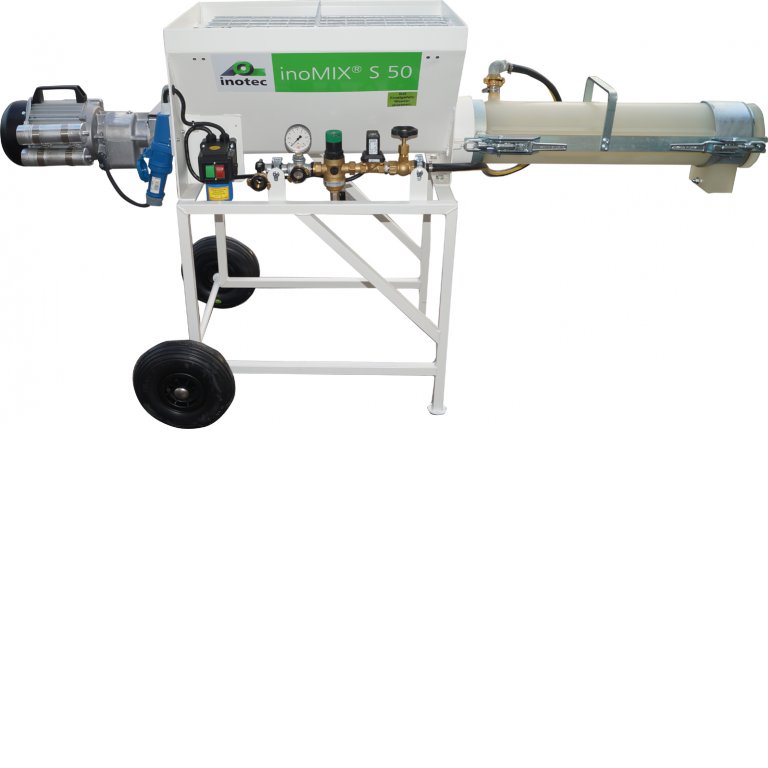

The inoMIX S50 is a powerful 230 V continuous mixer that is a class of its own. All powdery materials can be processed quickly and easily by the strong motor.
It is handy, powerful and can be assembled and dismantled again in just a few steps.
_______________
* The machine is also available in 110 V
Video
Service details
| Operating voltage | V/Hz/A | 110-230 / 50 / 16 |
| Drive performance | kW | 1,5 |
| Mixing performance | l/min | max. ca. 22 l/min - ca. 50 l/min* |
| Material container | l | max. 75 |
| Machine technique | Mixers | |
| Comments | * with steel/PU metering shaft (pitch 45 mm / 55 mm) | |
| Dimensions (L x W x H) | mm | 1200 x 715 x 990 |
| Weight | kg | approx. 83,5 |
inoMIX S50 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery basic module
inoMIX S50
Item no. 10044945
- Frame
- 2 running wheels
- Material hopper
- Gear motor
- Water fitting
- Operating manual
Steel-35/short set
for adhesives and reinforcing compounds
Item-No. 10044943
Scope of delivery:
- PU mixing tube inoPOWERMIX short with wide material outlet
- Stainless steel mixing shaft
- Steel metering shaft (pitch 35 mm)
------------------------------------------------
PU-30/short set
for adhesives and reinforcing compounds
Item-No. 10044944
Scope of delivery:
- PU mixing tube inoPOWERMIX short with wide material outlet
- PU mixing shaft
- PU metering shaft (pitch 30 mm)
------------------------------------------------
Steel-45/long set
for screeds and levelling compounds
Item-No. 10044947
Scope of delivery:
- PU mixing tube inoPOWERMIX long with wide material outlet
- Stainless steel mixing shaft
- Steel metering shaft (pitch 45 mm)
------------------------------------------------
PU-55/long set
for screeds and levelling compunds
Item-No. 10044948
Scope of delivery:
- PU mixing tube inoPOWERMIX long with wide material outlet
- PU mixing shaft
- PU metering shaft (pitch 55 mm)

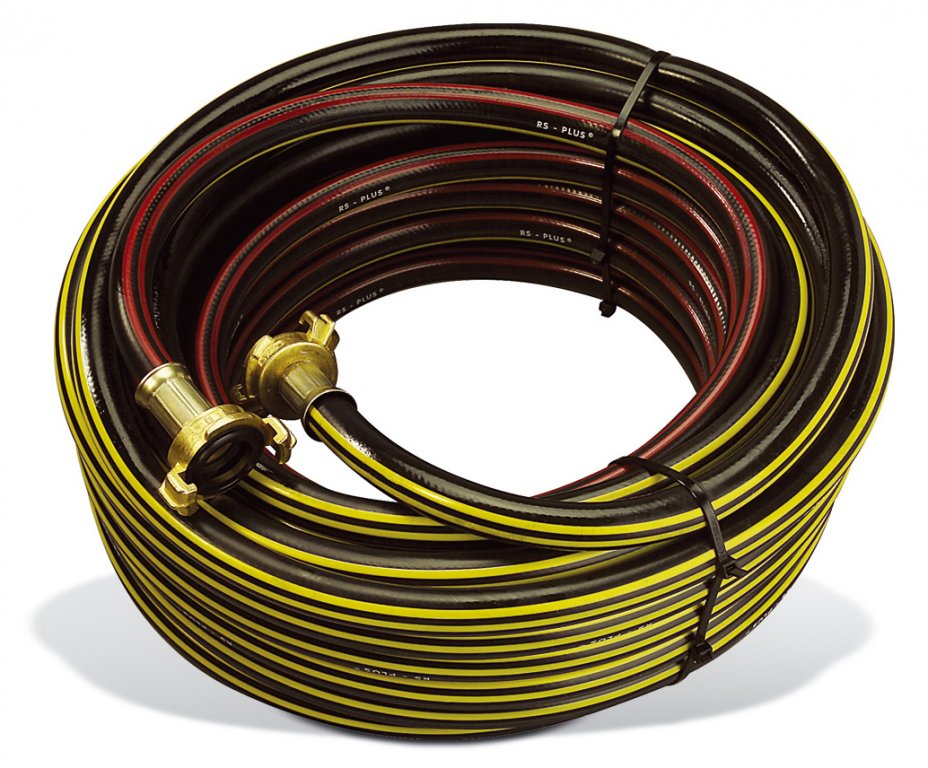

Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |

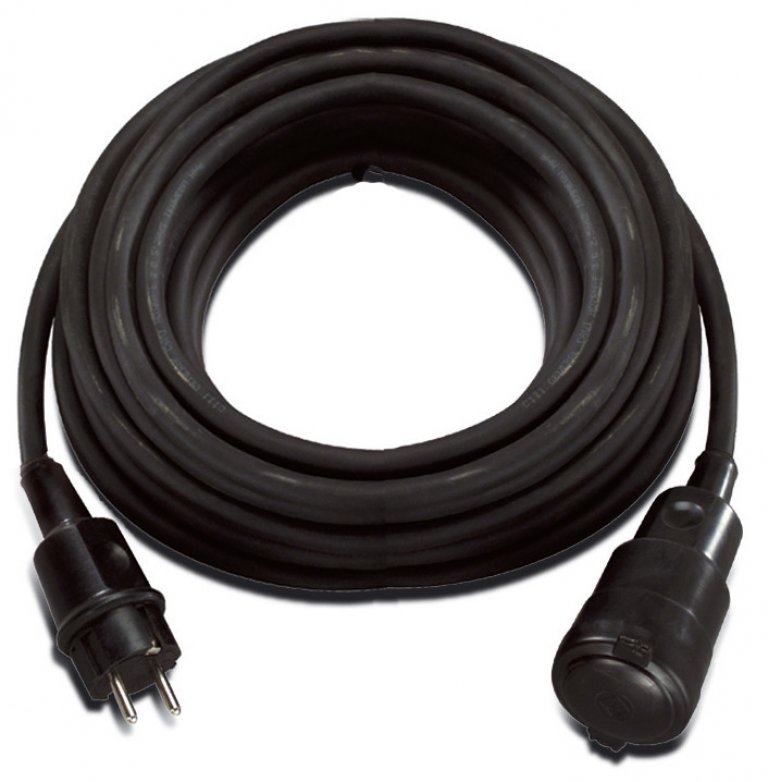

230 V / 3 x 2.5 mm² extension cable
- 16 A Schuko plug and coupling
Plastic funnel attachment for inoMIX S50 / S50 T / S50 S
- to increase the filling volume for light levelling material (approx. 160 l)

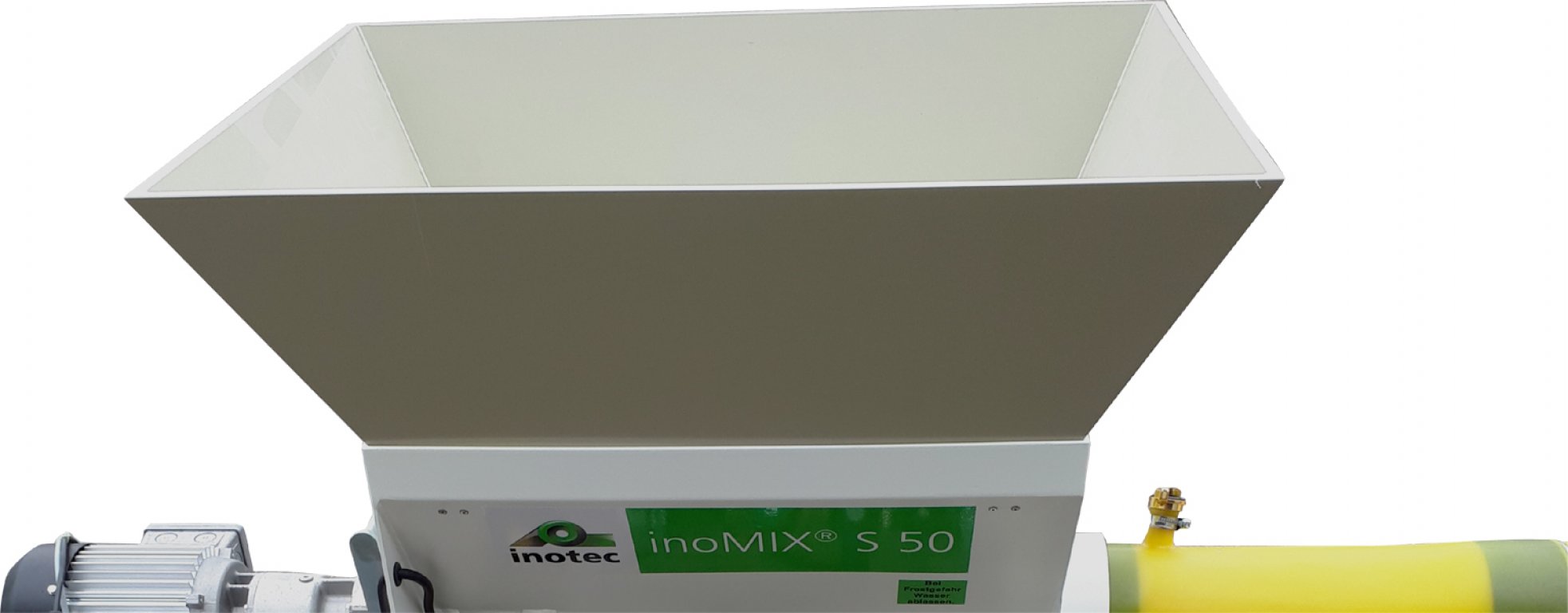

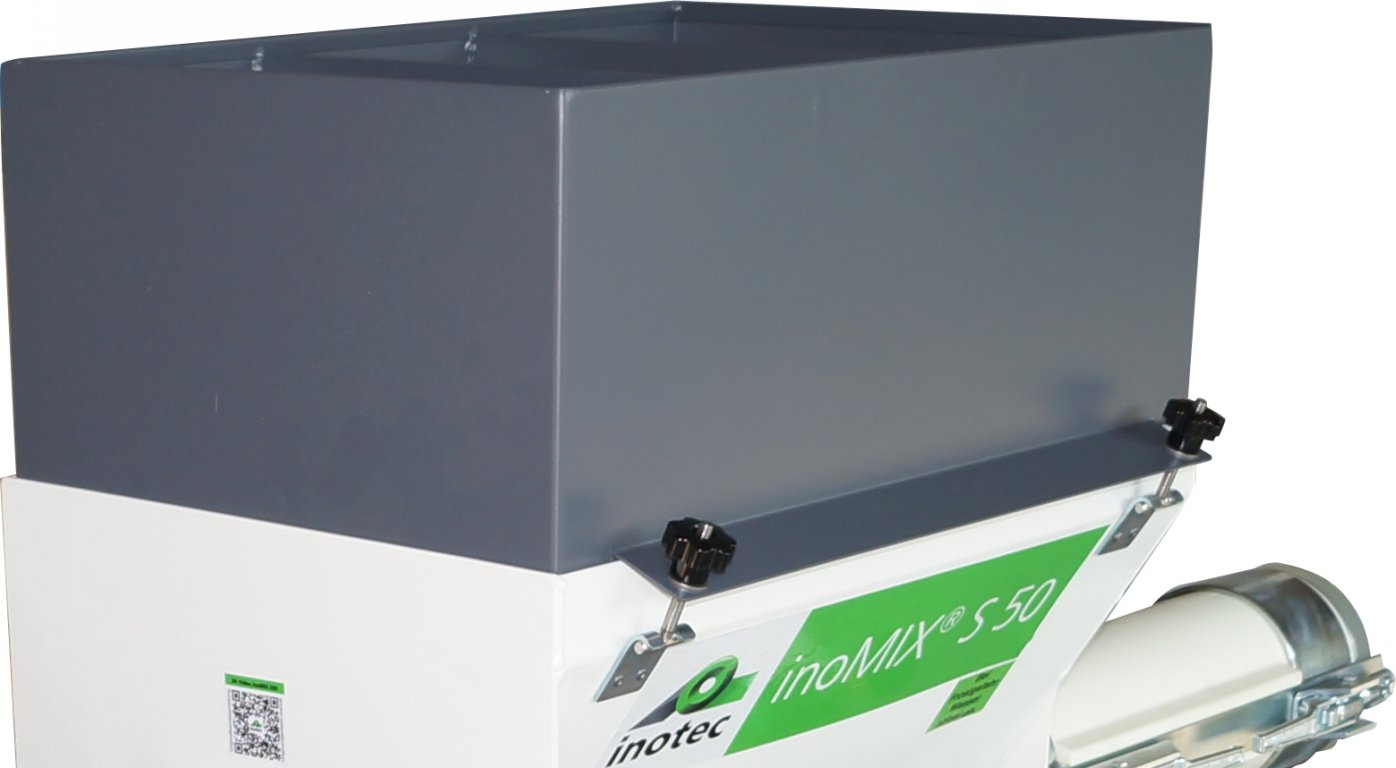

Steel top hopper for inoMIX S50 / S50 T / S50S
- to increase the filling volume for e.g. floor levelling compounds

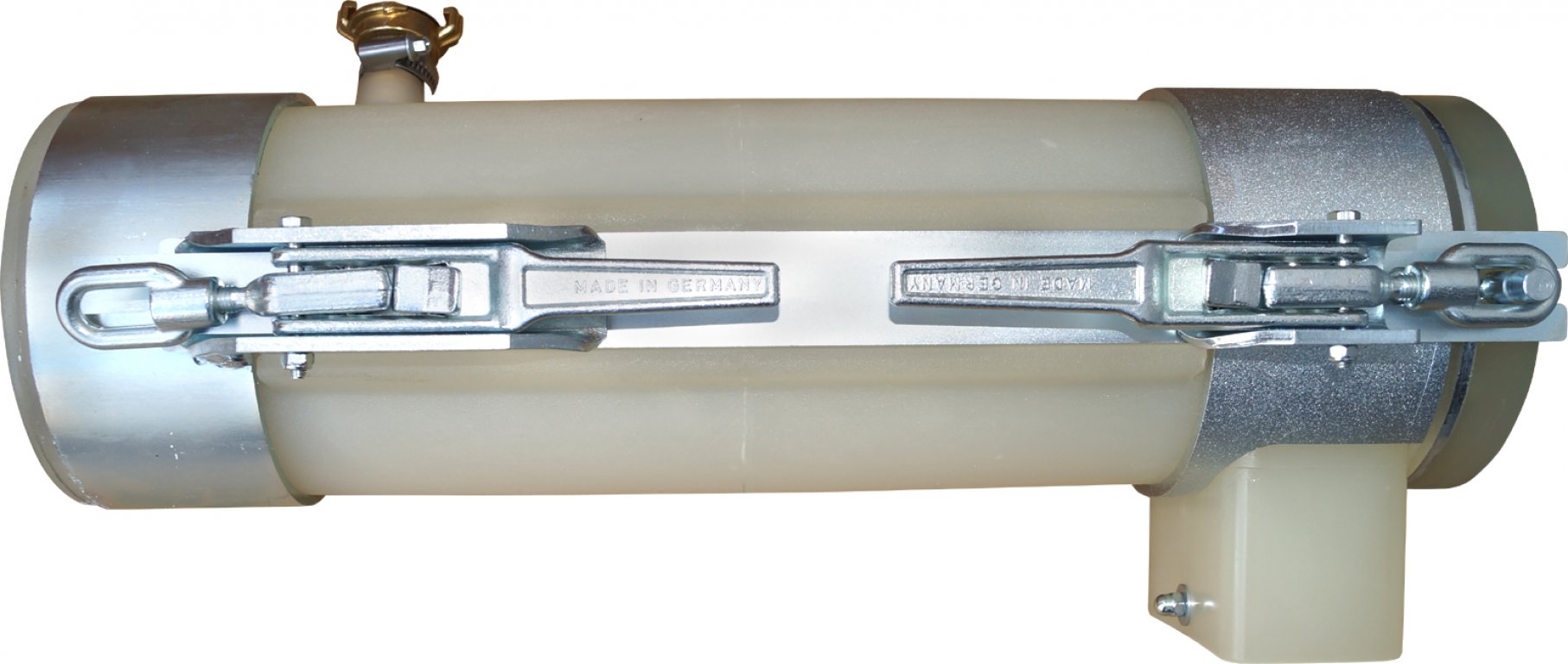

inoPOWERMIX+ “S” PU mixing pipe, complete, with wide material discharge for stiff material with high delivery rate
including PU inlay, steel frame with eccentric fastenings, mixing pipe cover and mixing shaft (stainless steel) (e.g. drainage mortar, industrial screeds, etc.)

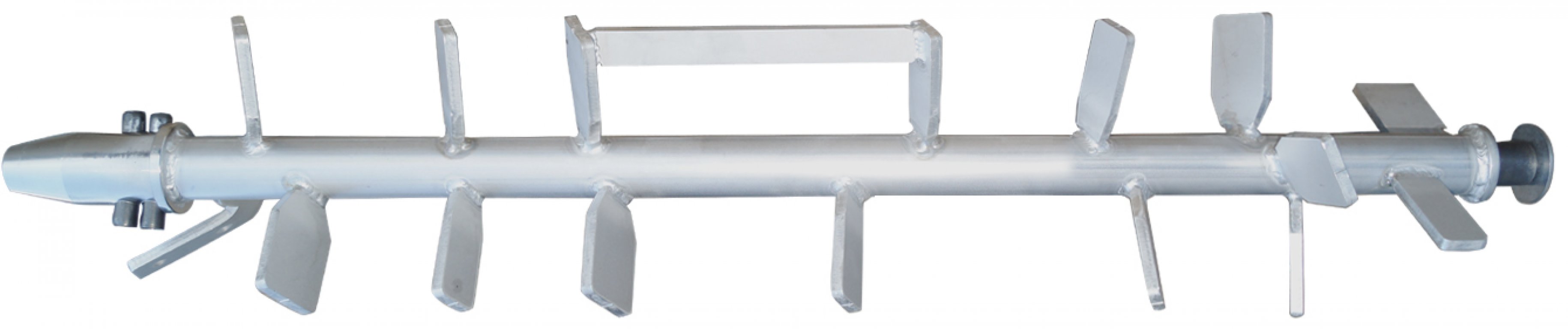

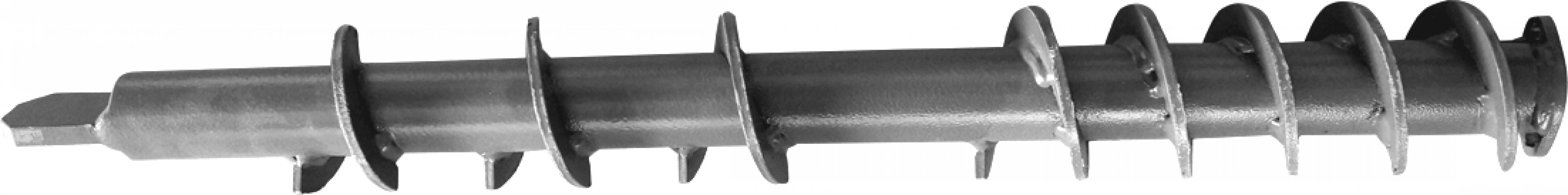

Metering shaft for inoMix S50 / S50 T / S50 S

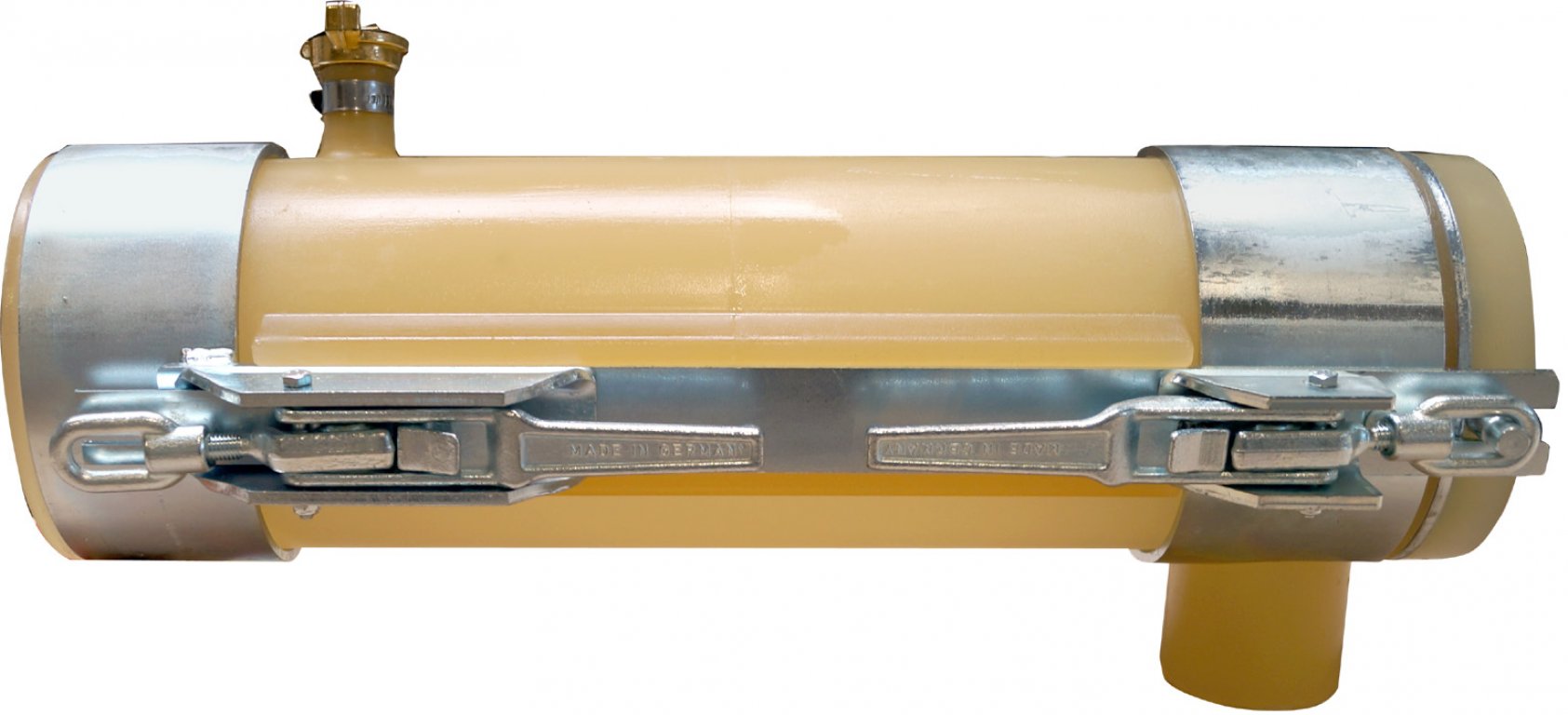

PU mixing tube inoPOWERMIX short with wide material outlet for inoMIX S50 / F52 (stainless steel mixing shaft)
- including PU inlay, steel frame with eccentric locks, mixing tube cover and stainless steel mixing shaft

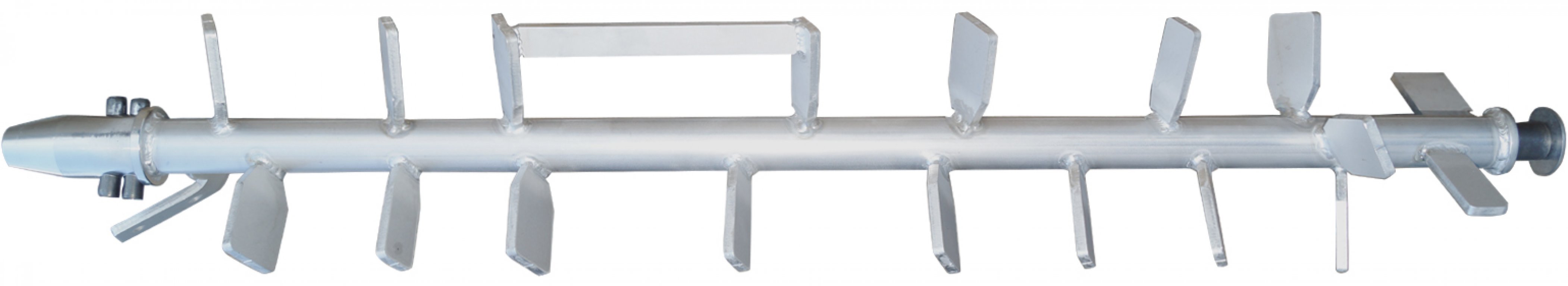

Stainless steel mixing shaft for inoPOWERMIX short for inoMIX S50 / F52
- (e.g. floor levelling compounds, bricklaying mortar, drainage mortar, industrial screeds, etc.)

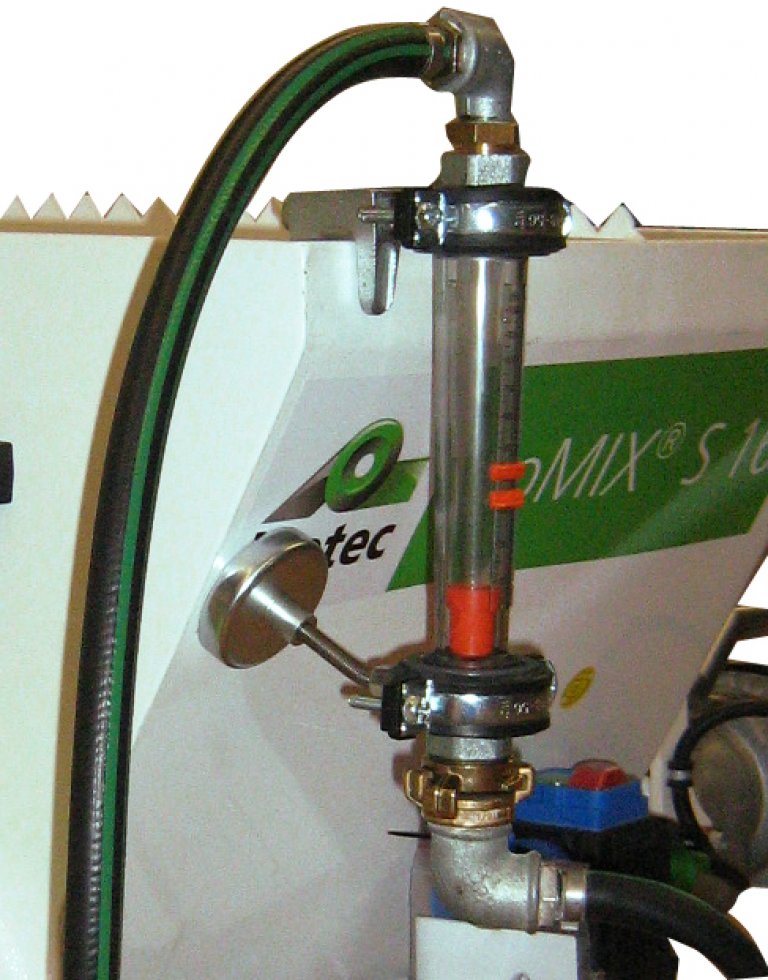

Flow meter with holder
- For visual control of the water volume
