The perfect silo continuous mixer for processing powdery materials
Benefits at a glance
- Constant material consistency
- High mixing rate (22 l/min.)
- PU mixing pipe with quick-release fasteners
- Detachable mixing pipe cover
- Standardised flange attachment with a diameter of 250 mm and thus suitable for all conventional silos
- Automatic rotation direction detection
- Very simple operation and cleaning
- Low-maintenance and construction site compliant technology

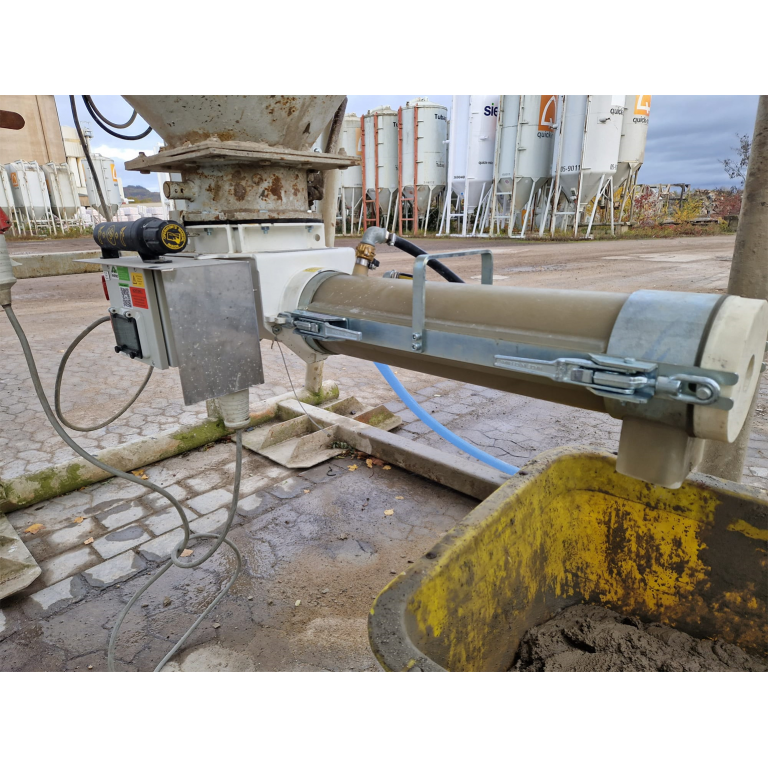

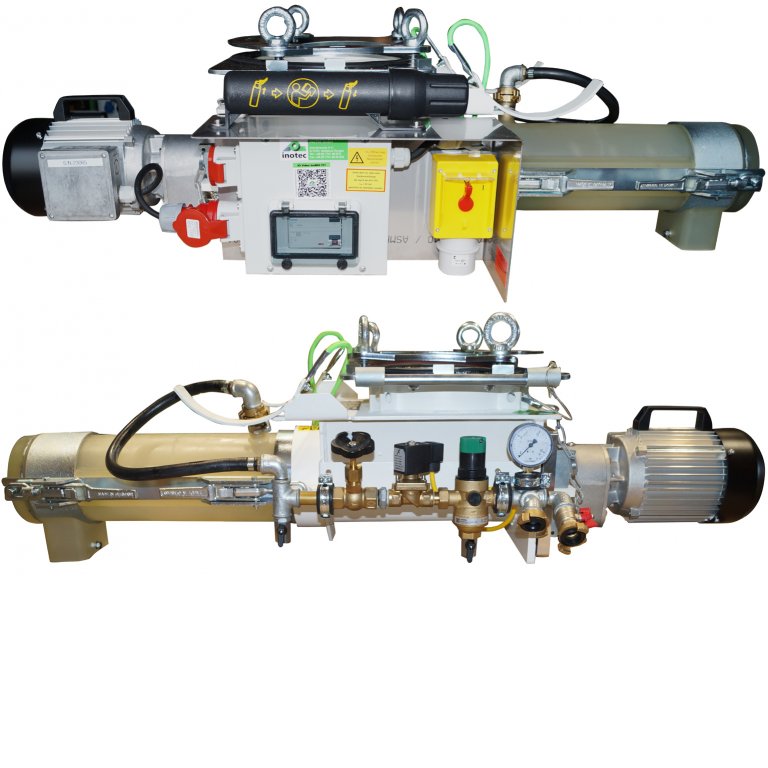

The inoMIX F52 is the perfect 400 V continuous mixer for use with silos for mixing powdery materials.
Its compact design means that the inoMIX F52 can also remain flange-mounted to the silo during transport.
The mixing and metering shafts are driven directly using a gear motor.
This video shows the assembly and operation of the inoMIX F51 continuous flow mixer.
It does not replace reading the original operating instructions.
Video
Service details
| Operating voltage | V/Hz/A | 400 / 50 / 16 |
| Drive performance | kW | 2,6 |
| Mixing performance | l/min | max. 22 l/min - ca. 50 l/min* |
| Machine technique | Mixers | |
| Comments | * with steel metering shaft (pitch 40 mm) | |
| Dimensions (L x W x H) | mm | 960 x 630 x 336 |
| Weight | kg | approx. 65 |
inoMIX F52 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery
inoMIX F52:
Item no. 10044367
- Solid steel hopper
- PU mixing tube inoPOWERMIX
- Stainless steel mixing shaft
- Steel metering shaft (pitch 40 mm)
- Gear motor
- Water fitting
- Operating manual
Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos to prevent material flow or compression problems.
- Mains voltage: 400 volts / 50 Hz, 5 m connecting cable

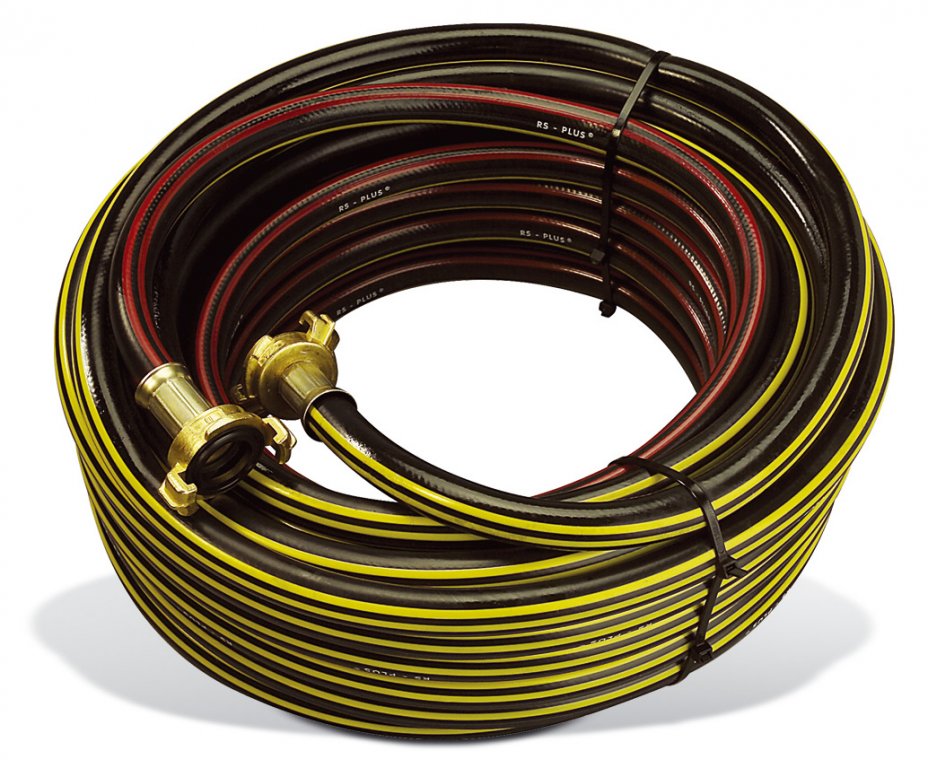

Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
400 V extension cable, 5 x 2.5 mm², length 20 m
- 16 A, CEE plug and coupling
inoPOWERMIX+ “S” PU mixing pipe, complete, with wide material discharge for stiff material with high delivery rate
including PU inlay, steel frame with eccentric fastenings, mixing pipe cover and mixing shaft (stainless steel) (e.g. drainage mortar, industrial screeds, etc.)

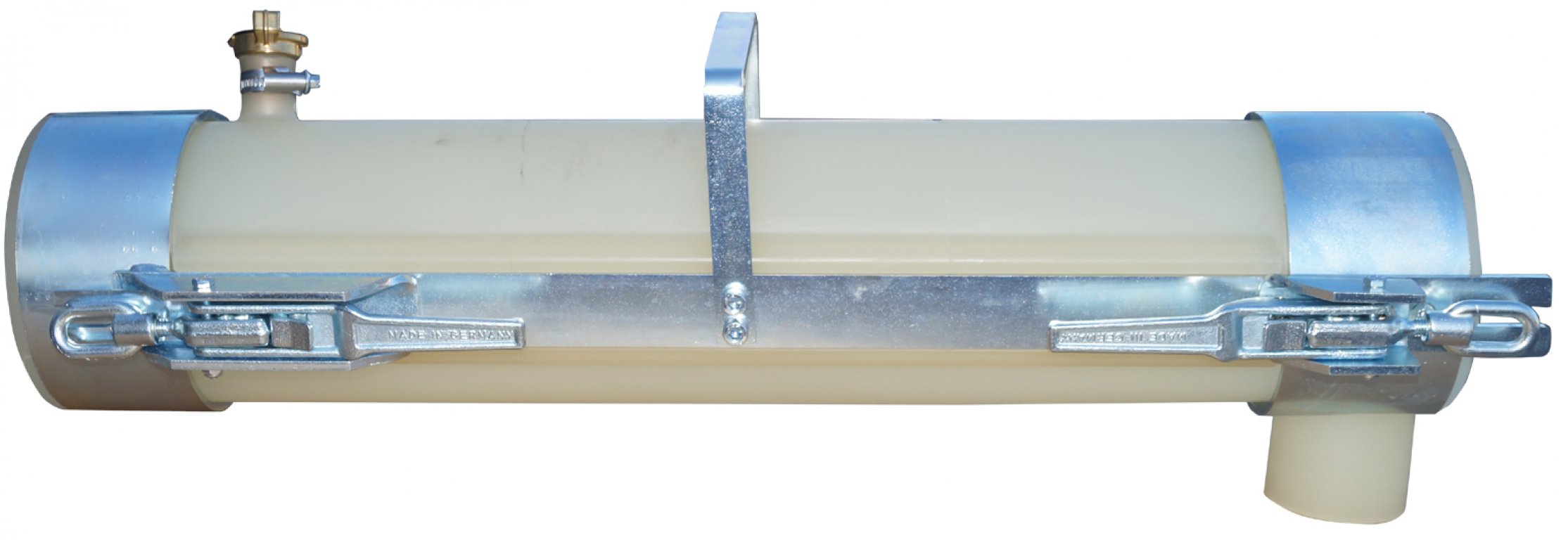

inoPOWERMIX “L” mixing pipe
including PU inlay, steel frame with eccentric fastenings, mixing pipe cover and mixing shaft (stainless steel)
Mixing shaft for inoPOWERMIX 'L'

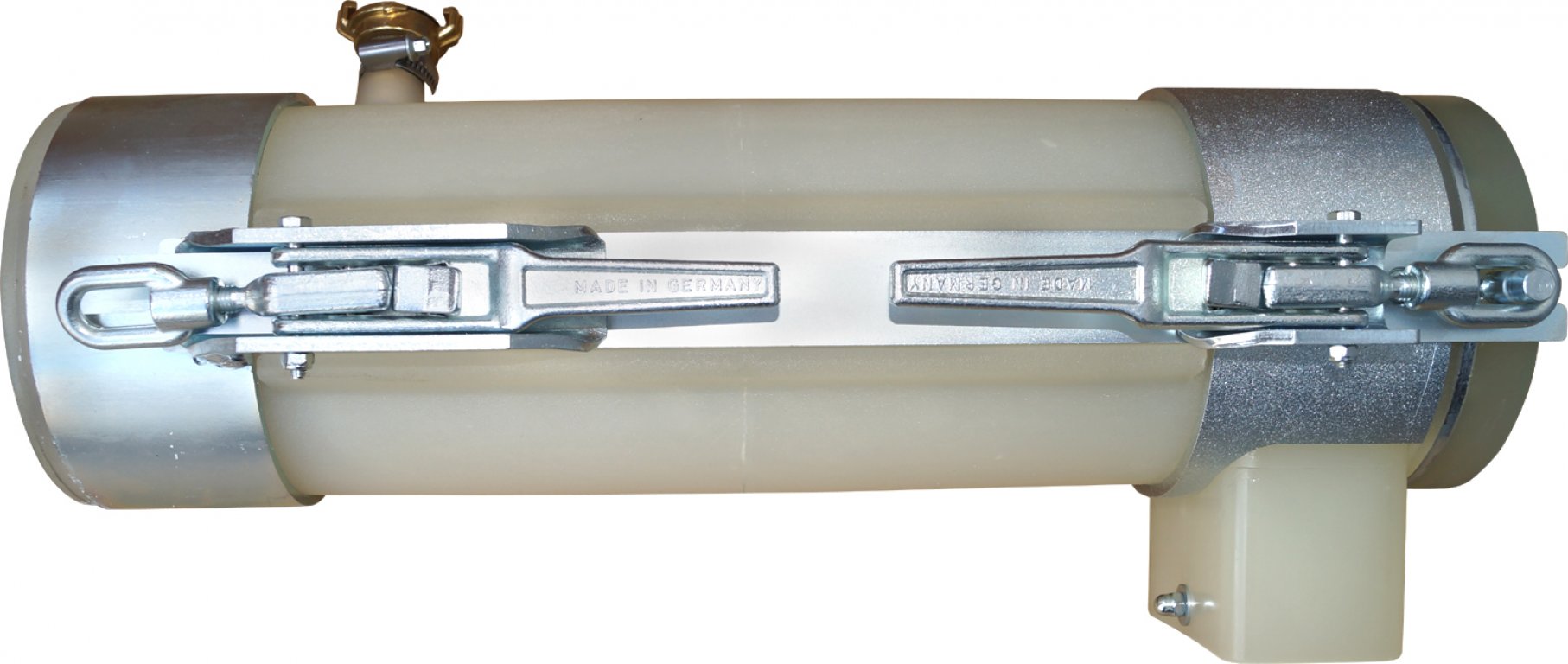

PU mixing tube inoPOWERMIX short with wide material outlet for inoMIX S50 / F52 (stainless steel mixing shaft)
- including PU inlay, steel frame with eccentric locks, mixing tube cover and stainless steel mixing shaft

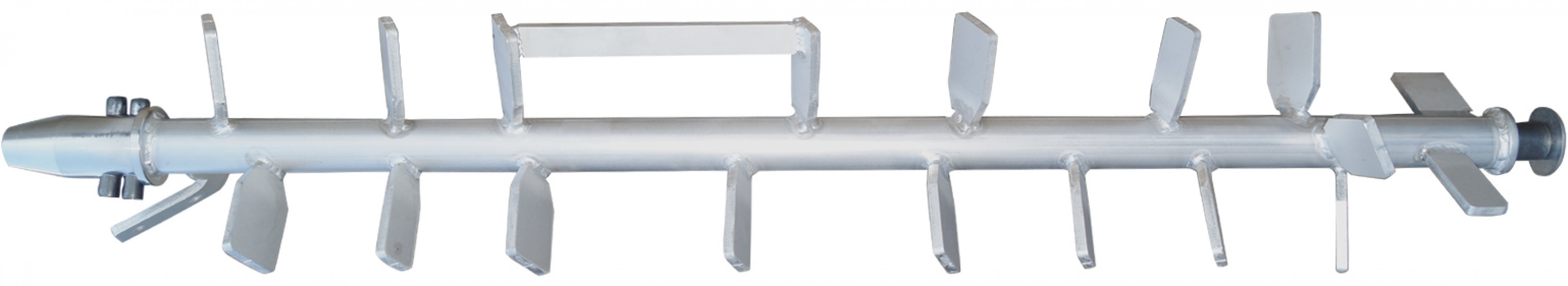

Stainless steel mixing shaft for inoPOWERMIX short for inoMIX S50 / F52
- (e.g. floor levelling compounds, bricklaying mortar, drainage mortar, industrial screeds, etc.)
