The perfect silo continuous mixer for processing powdery, heavy materials
Benefits at a glance
- Constant material consistency
- High mixing rate
- PU mixing pipe with quick-release fasteners
- Standardised flange attachment with a diameter of 250 mm and thus suitable for all conventional silos
- Automatic rotation direction detection
- Very simple operation and cleaning
- Low-maintenance technology

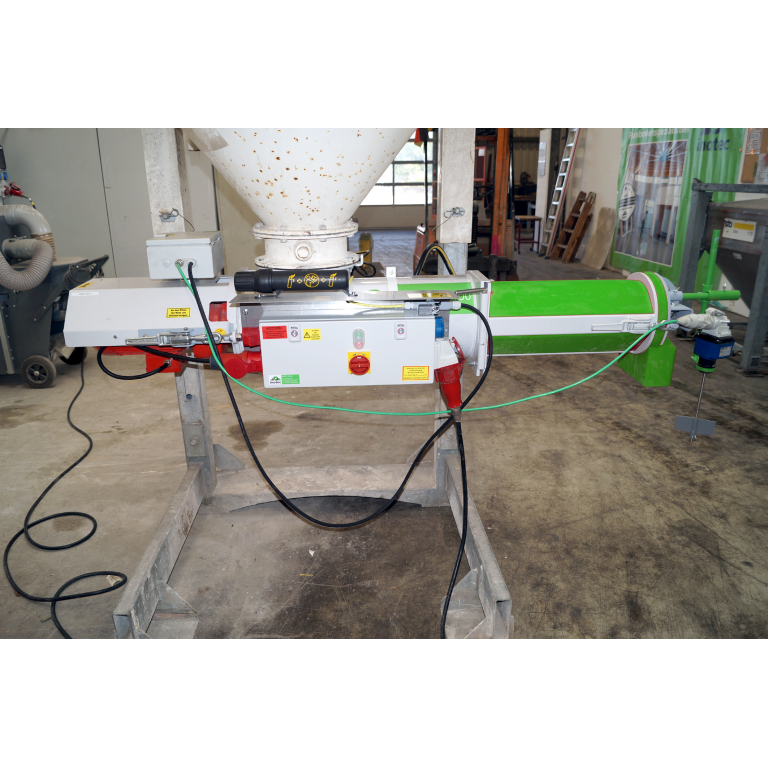

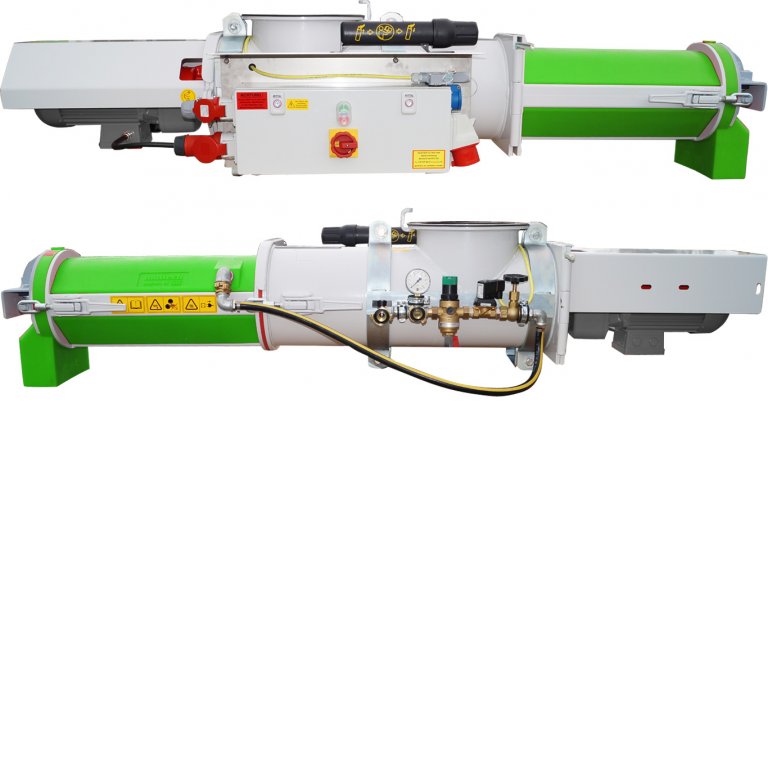

The inoMIX F100 is the perfect 400 V continuous mixer for use with silos for mixing powdery, heavy materials.
Its compact design means that the inoMIX F100 can also remain flange-mounted to the silo during transport.
The mixing and metering shafts are driven directly using a gear motor.
Video
Service details
Services
| Operating voltage | V/Hz/A | 400 / 50 / 25 |
| Drive performance | kW | 5,5 |
| Mixing performance | l/min | max. 60 l/min* - ca. 100 l/min** |
| Machine technique | Mixers | |
| Comments | * With metering shaft, gradient 60 mm / ** with metering shaft, gradient 80 mm | |
| Dimensions (L x W x H) | mm | 1900 x 630 x 440 |
| Weight | kg | approx. 135 |
inoMIX F100 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery
inoMIX F100:
Item no. 10044629
- Solid steel funnel
- inoPOWERMIX F100 PU mixing pipe
- Mixing shaft
- Metering shaft
- Gear motor
- Switching cabinet
- Water fitting
- Operating instructions
Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos to prevent material flow or compression problems.
- Mains voltage: 400 volts / 50 Hz, 5 m connecting cable
Electric vibration motor (three-phase unbalance motor) as external vibrator for attachment to silos (Article No. 10039440)

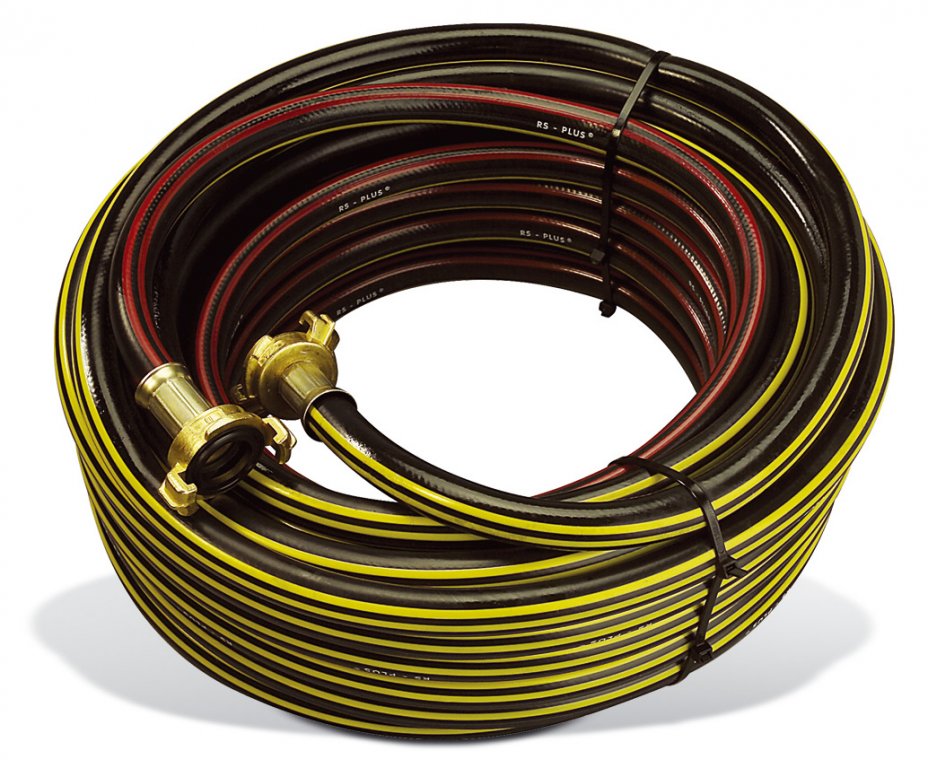

Multi-purpose hose
- For universal use, e.g. air, water
- GEKA couplings crimped with sleeves on both sides
| Technical data: | |
| Max. operating pressure: | max. 15 bar |
| Temperature range: | -20 up to +90°C |
Water / air hose - Ø 3/4“ - Length 20 m (Article No. 10022011)

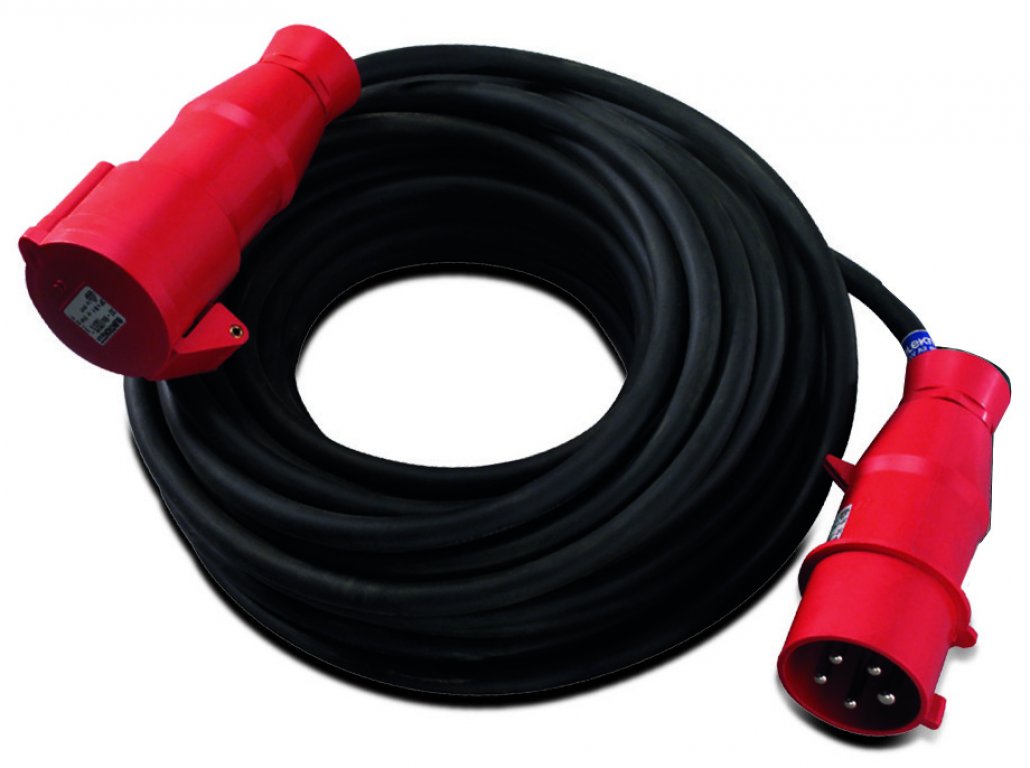

400 V extension cable, 5 x 2.5 mm², length 20 m
- 16 A, CEE plug and coupling
400 V extension cable, 5 x 2.5 mm², length 20 m (Article No. 10015199)

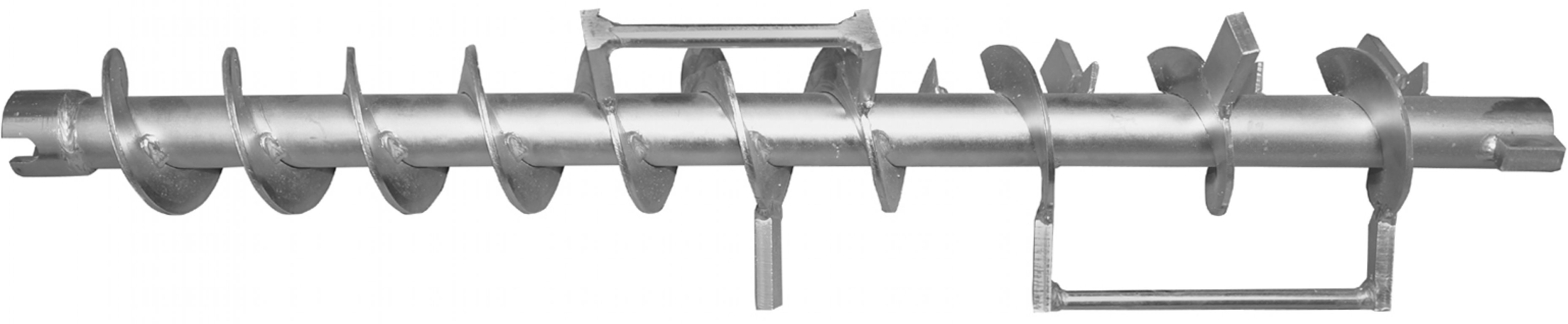

Steel mixing shaft for inoMIX F100, 580 mm
Steel mixing shaft for inoMIX F100, 580 mm (Article No. 10044928)

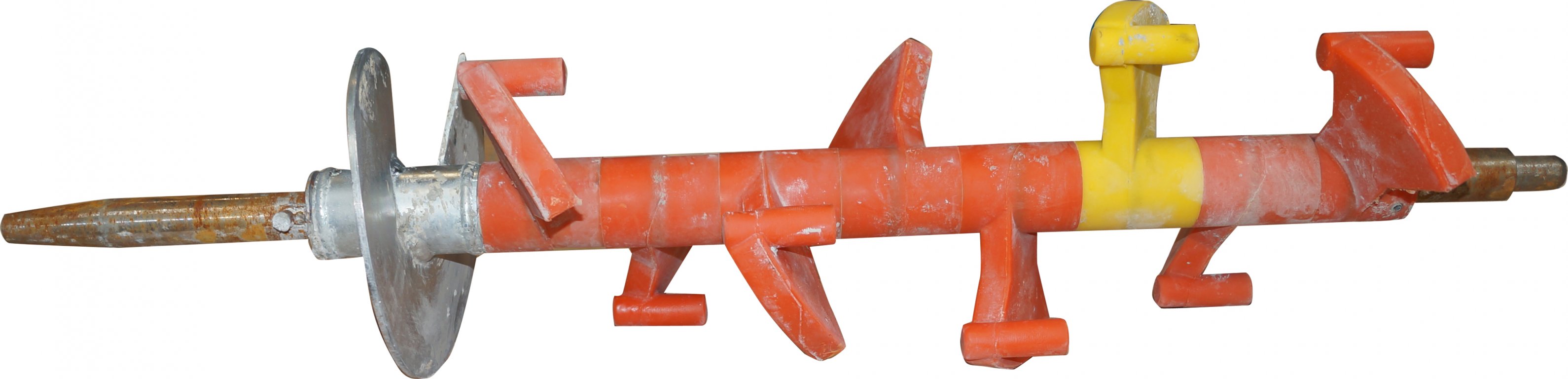

PU mixing shaft for inoMIX F100, 580 mm
PU mixing shaft for inoMIX F100, 580 mm (Article No. 10044576)
Steel metering shaft for inoMIX F100 - 60 l/min
- Delivery rate 60 l/min (e.g. floor levelling compounds)
Steel metering shaft for inoMIX F100 - 60 l/min (Article No. 10044719)
Steel metering shaft for inoMIX F100 - 100 l/min
- Delivery rate 100 l/min (e.g. for bedding mortar)
Steel metering shaft for inoMIX F100 - 100 l/min (Article No. 10044578)
