The ideal 230 V* continuous mixer for powdery materials from a one-way container

Benefits at a glance

  • Extremely simple operation
  • Constant material consistency
  • High mixing rate
  • Simple one-person transport
  • Simple cleaning
  • Low-maintenance technology
  • PU mixing pipe (detachable)
  • Can be combined with the delivery pump inoBEAM Light E

Ingeniously simple, simply ingenious!

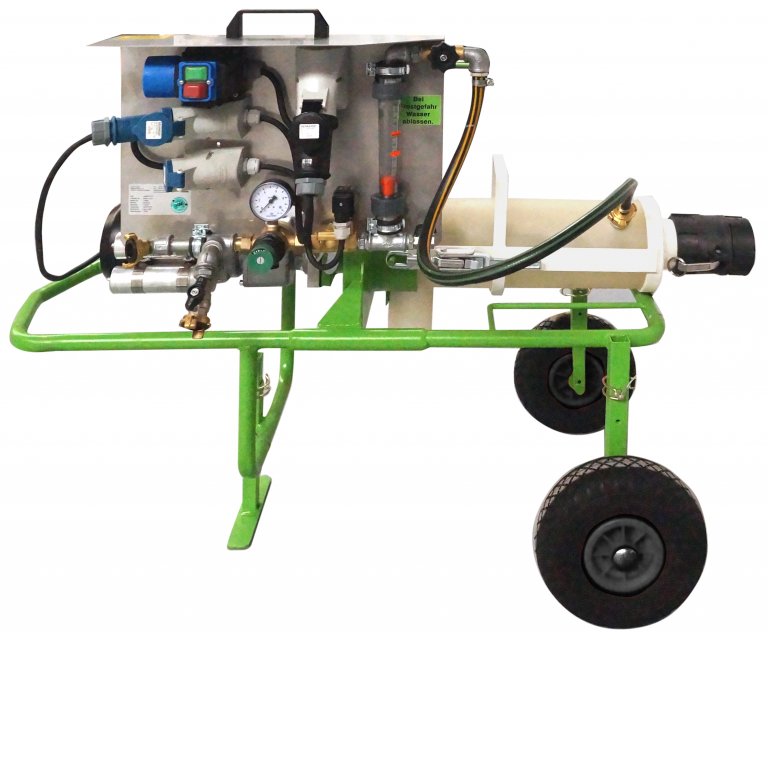

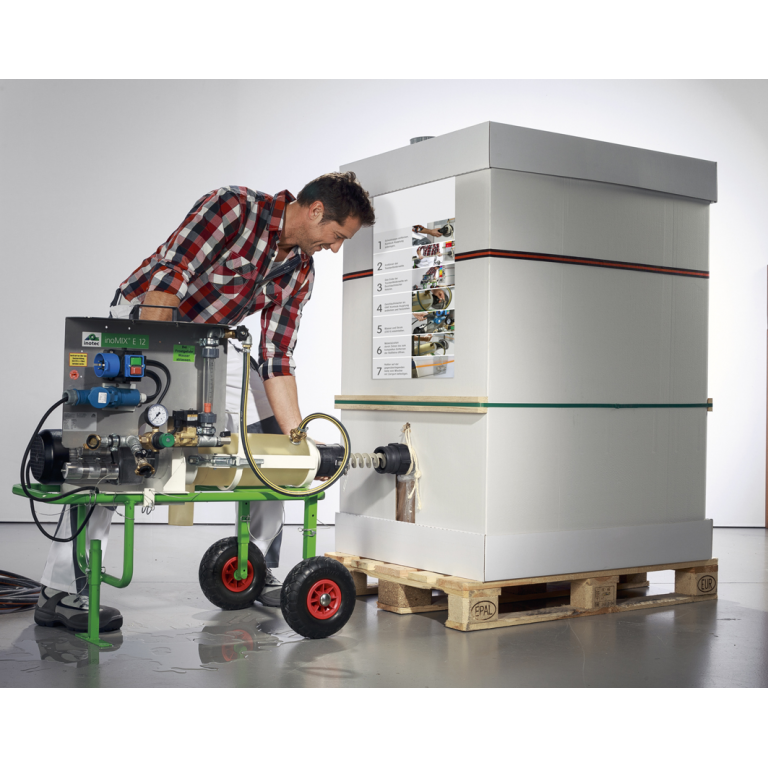

The inoMIX E12 is a simple, affordable and yet very powerful continuous mixer for processing powdery materials from a one-way container (OWC).
Extremely simple operation and handling plus a high mixing rate ensure smooth applications on the construction site.

_______________

* The machine is also available in 110 V



inoMIX E12

Service details

Services
Operating voltageV/Hz/A110-230 / 50 / 16
Drive performancekW1,1
Mixing performancel/minmax. 18 l/min / 20 l/min*
Machine techniqueMixers
Dimensions (L x W x H)mm1200 x 610 x 950
Weightkgapprox. 47
inoMIX
inoMIX E12
Cement pastes, suspensions
Cement plasters
ETICS glue, mineral
Fire protection mortar
Floating screeds
Floor spattling compounds
Gypsum plasters for indoor applications
Lime cement plasters
Lime plasters
Lime smoothers
Loam plasters
Mineral textured plasters
Multi-layer acoustic spray plasters
Renovating plaster systems
SPCC mortar / filler

Scope of delivery
inoMIX E 12
Item no. 10005950


  • Height-adjustable frame
  • 2 running wheels
  • PU mixing pipe
  • Mixing shaft
  • Gear motor
  • Metering shaft
  • Water fitting with flow meter
  • Connecting cable
  • Operating instructions



Optional (see accessories):

  • Can be combined with optional bag funnel for the use of bagged goods
inoMIX E12

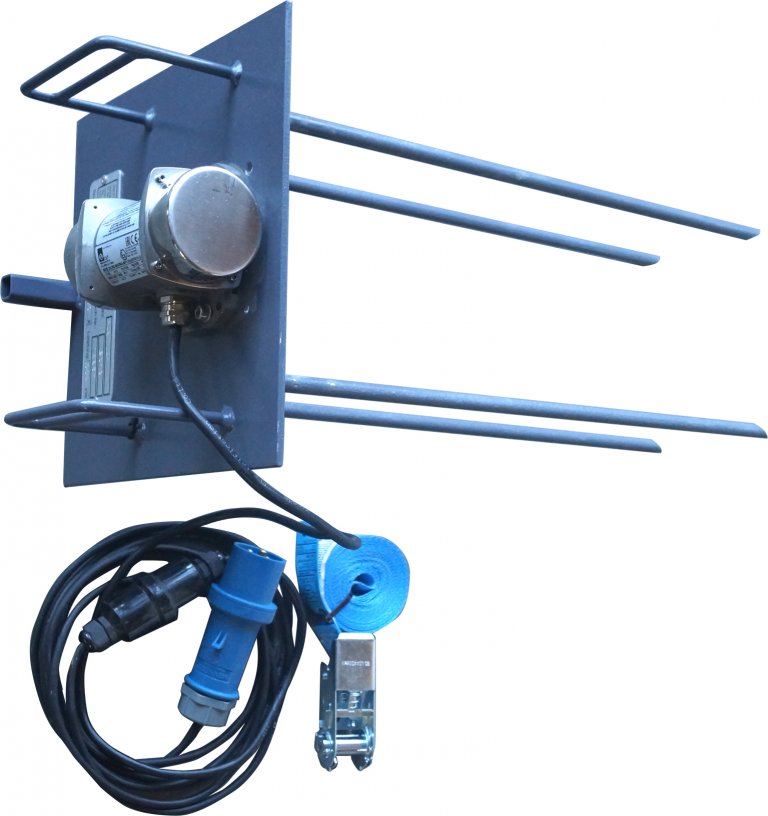

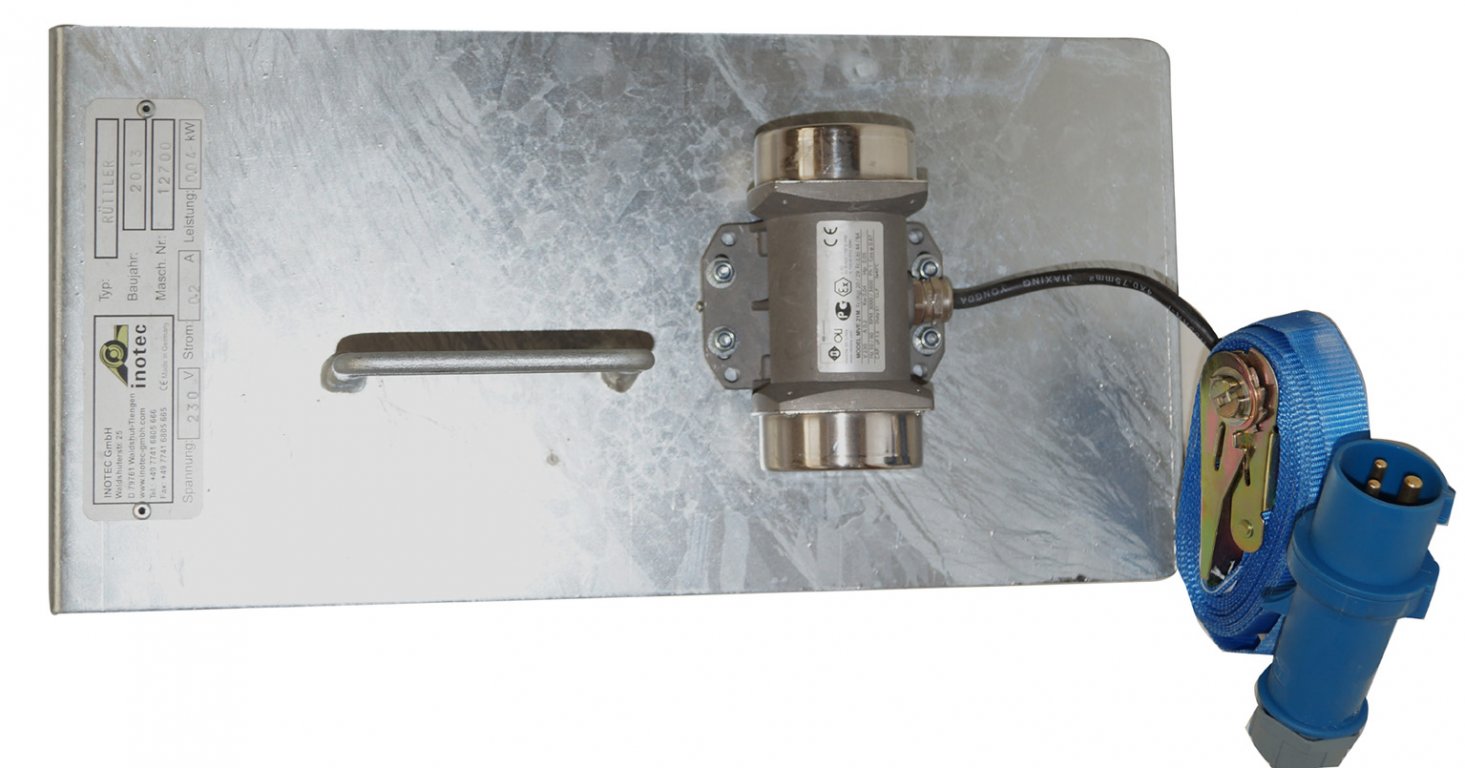

Vibrating unit for one-way-container

Vibrating unit for one-way-container

The vibrating unit is belted directly onto the one-way container

  • For non-flowing powder material in a one-way container
  • Prevents tunnel formation in the material hopper

Scope of delivery:
Vibrating unit with support bracket, tension belt and power cable

Vibrating unit for one-way container (Article No. 10039026)

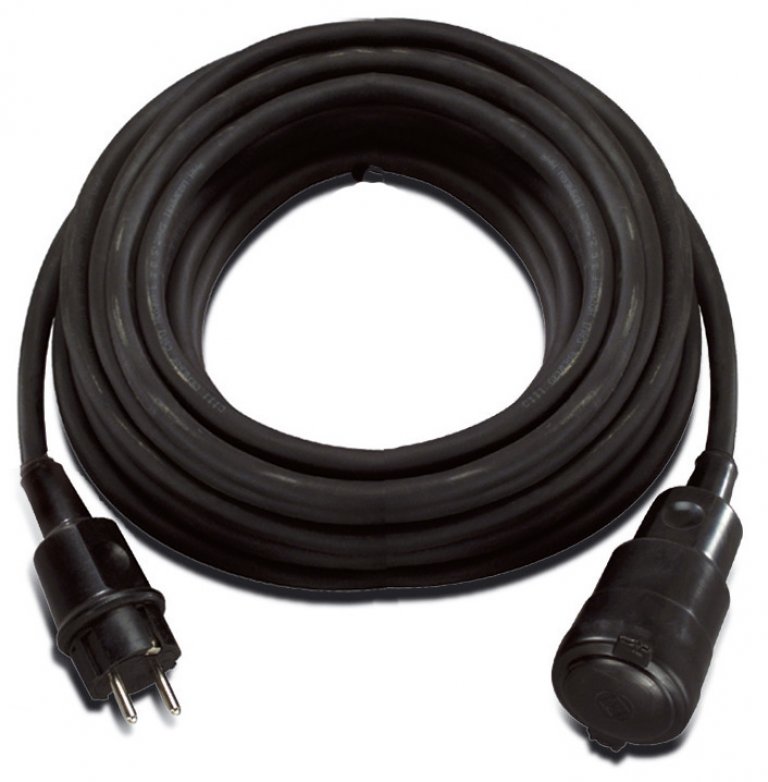

230 V / 3 x 2.5 mm² extension cable

230 V / 3 x 2.5 mm² extension cable

  • 16 A Schuko plug and coupling

230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)
PU mixing pipe for inoMIX E12

PU mixing pipe for inoMIX E12

  • Including mixing shaft, camlock coupling and holders

PU mixing pipe for inoMIX E12 (Article No. 10040787)

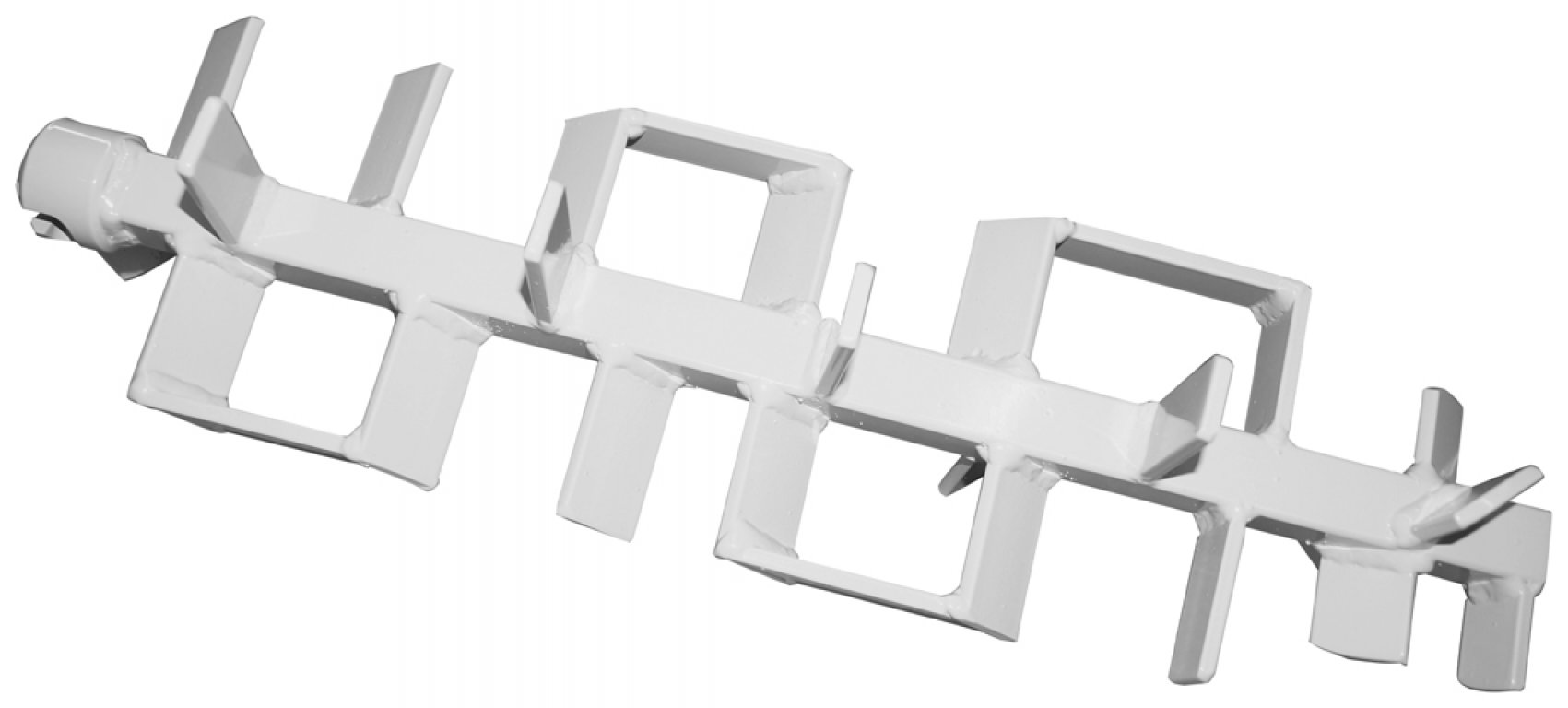

Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014)

Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014)

Mixing shaft for inoMIX E12 (from serial number: 13662 Year of construction: 2014) (Article No. 10041421)

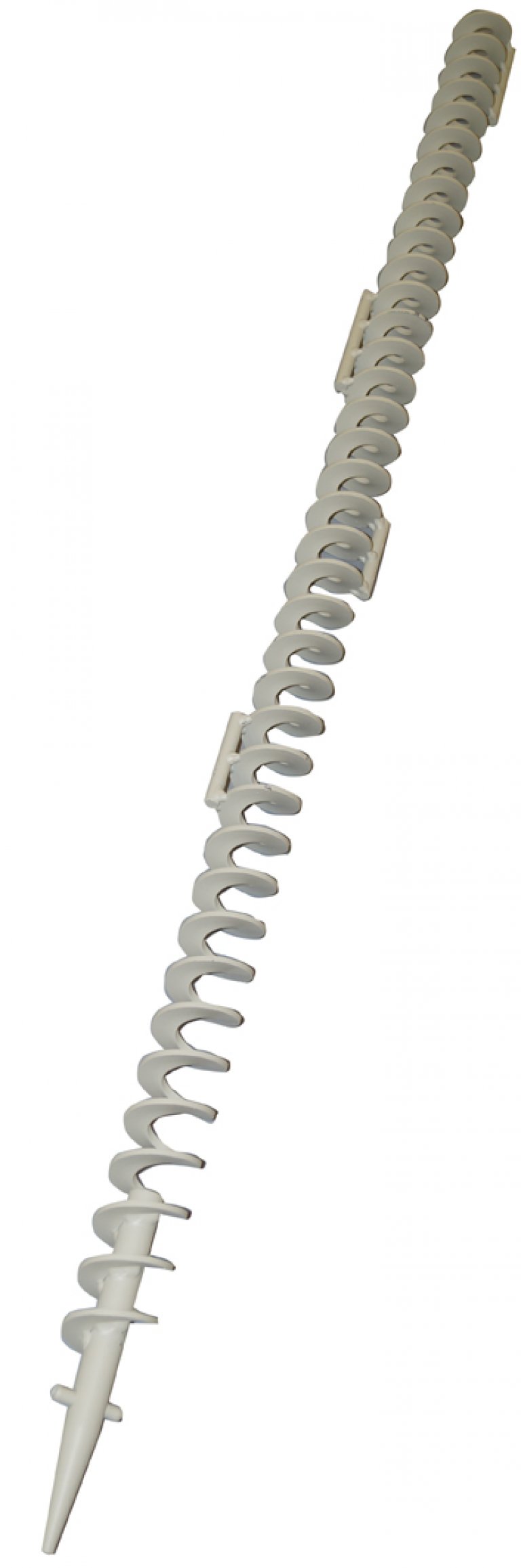

Metering shaft for inoMIX E12 - gradient 30 mm

Metering shaft for inoMIX E12 - gradient 30 mm

Metering shaft for inoMIX E12 - gradient 30 mm (Article No. 10006023)
Metering shaft for inoMIX E12 - gradient 45 mm

Metering shaft for inoMIX E12 - gradient 45 mm

Metering shaft for inoMIX E12 - gradient 45 mm (Article No. 10042193)
Camlock M-part 3“ IG PVC

Camlock M-part 3“ IG PVC

  • For screwing onto the inoMIX E12 continuous mixer

Camlock M-part 3“ IG PVC (Article No. 10034504)
Camlock V part 3“ IG PVC

Camlock V part 3“ IG PVC

  • For screwing onto the material outlet flange of the one-way container

Camlock V part 3“ IG PVC (Article No. 10034507)
Outlet flange for metering shaft

Outlet flange for metering shaft

  • For fitting on the camlock V-Part 3“ IG PVC

Outlet flange for metering shaft (Article No. 10041575)

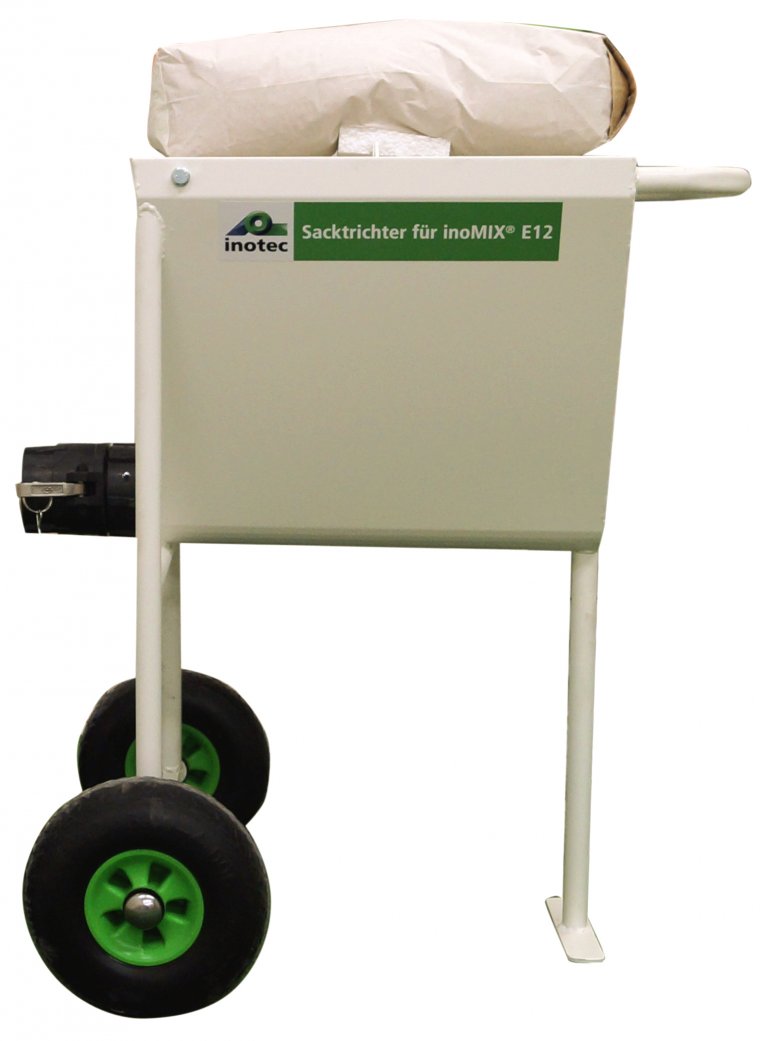

Bag hopper

Bag hopper

  • Bag hopper for connecting to the inoMIX E12 including metering shaft

Material hopper for the inoMIX E12 (Article No. 10035593)

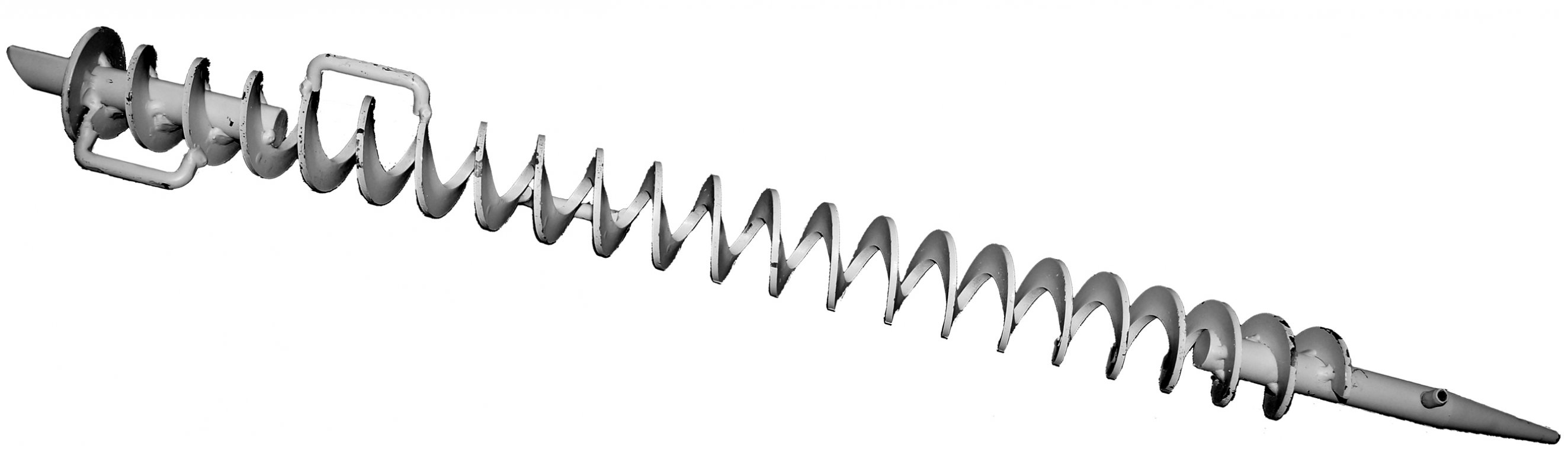

Metering shaft for bag hopper

Metering shaft for bag hopper

Metering shaft for bag hopper (Article No. 10037612)
