The powerful 230 V* compulsory mixer for powdery materials
Benefits at a glance
- Considerable time saving compared with mixing material using handheld agitators
- Extremely simple operation
- 3-arm mixing plant
- Mixing blades made from steel
- Emptying through flat slide valve
- Low-maintenance technology
- With direction of rotation pre-selection

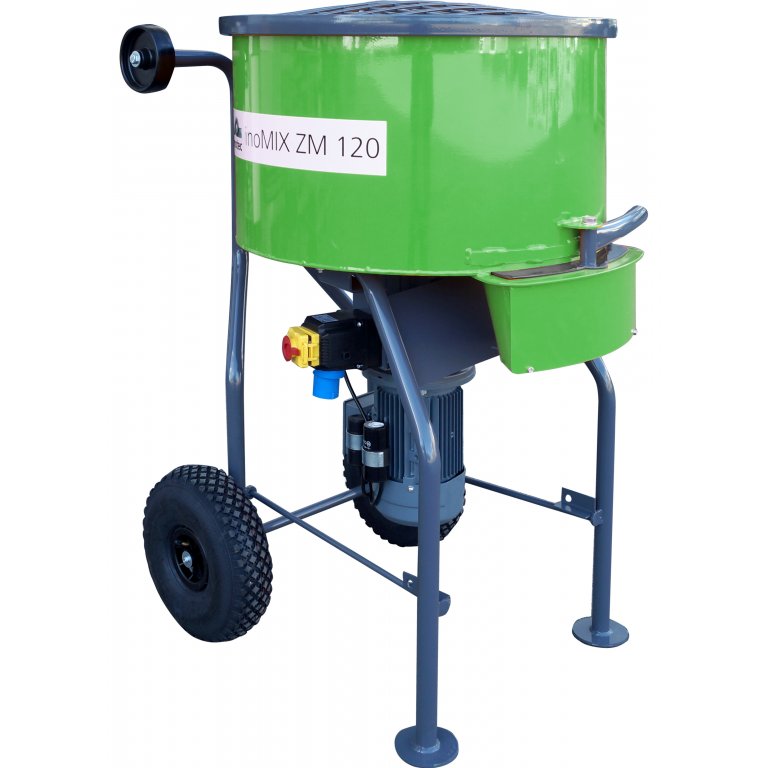

The inoMIX ZM120 is a robust, maintenance-free compulsory mixer for the efficient, homogeneous mixing of a wide range of materials. The 3-arm mixing technology ensures that the mixture is stirred intensively and homogeneously.
This mixer boasts a sturdy and compact design, is height-adjustable and is equipped with transportation wheels – perfect for tough use on the construction site.
_______________
* The machine is also available in 110 V
Service details
Services
| Operating voltage | V/Hz/A | 230 / 50 / 16 |
| Drive performance | kW | 1,4 |
| Mixing performance | l/min | max. 90 |
| Material container | l | 120 |
| Machine technique | Mixers | |
| Dimensions (L x W x H) | mm | 842 x 745 x 1277 |
| Weight | kg | approx. 130 |
inoMIX ZM120 | |
| Cement pastes, suspensions | |
| Cement plasters | |
| Dried clay plasters | |
| ETICS glue, mineral | |
| Fire protection mortar | |
| Floating screeds | |
| Floor spattling compounds | |
| Grout | |
| Grouting mortar | |
| Gypsum filling compounds | |
| Light masonry mortar | |
| Lime cement plasters | |
| Lime plasters | |
| Lime smoothers | |
| Loam plasters | |
| Masonry mortar | |
| Mineral textured plasters | |
| Multi-layer acoustic spray plasters | |
| PCC- and SPCC-mortar / filler | |
| Rear masonry mortar | |
| Renovating plaster systems | |
| SPCC Spatula | |
| Trass drainage mortar |
Scope of delivery
inoMIX ZM120
Item no. 10041789
- Height-adjustable frame
- 2 running wheels
- Material hopper
- Gear motor
- 3-arm mixing plant
- Connecting cable
- Operating instructions
230 V / 3 x 2.5 mm² extension cable
- 16 A Schuko plug and coupling
230 V extension cable, 3 x 2.5 mm², length 10 m (Article No. 10015208)
